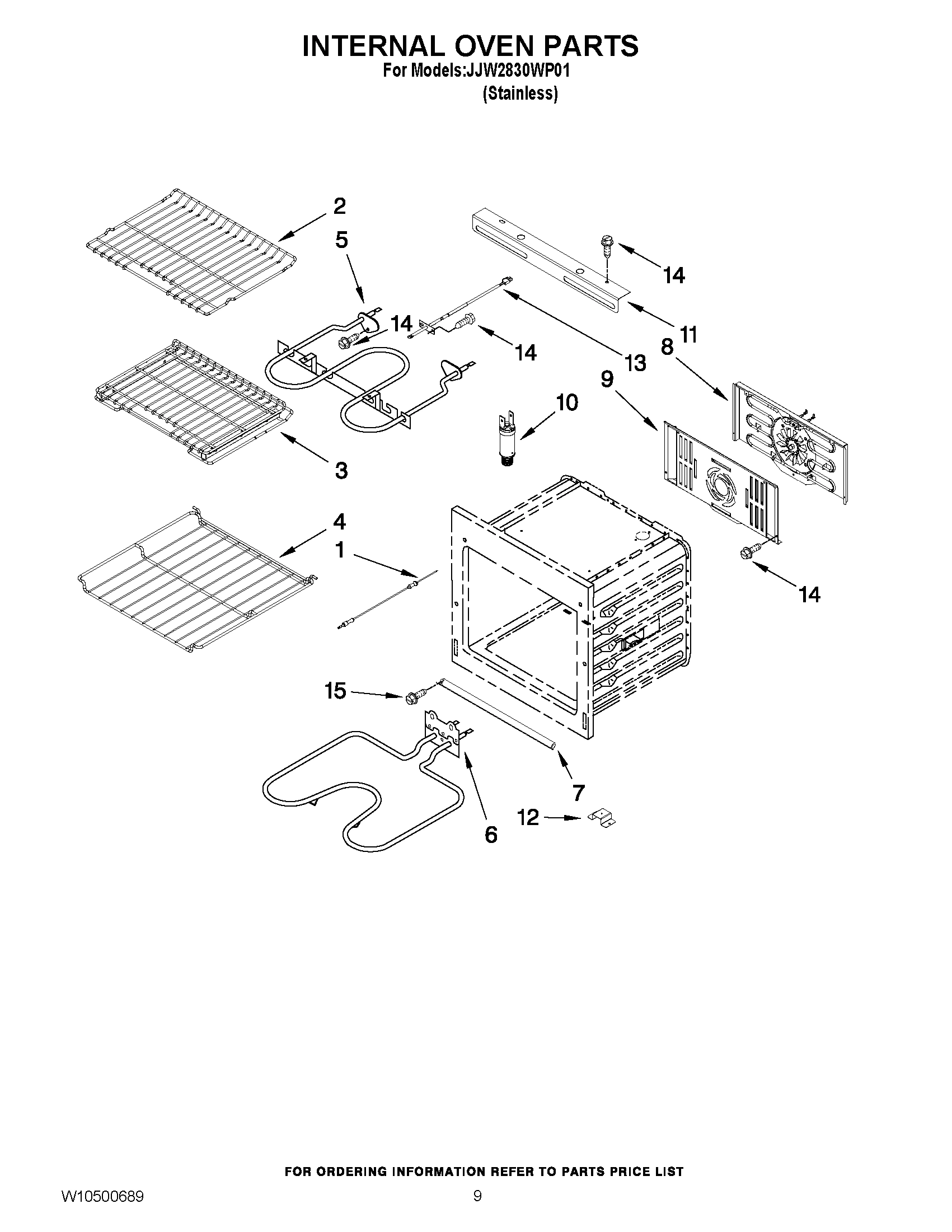

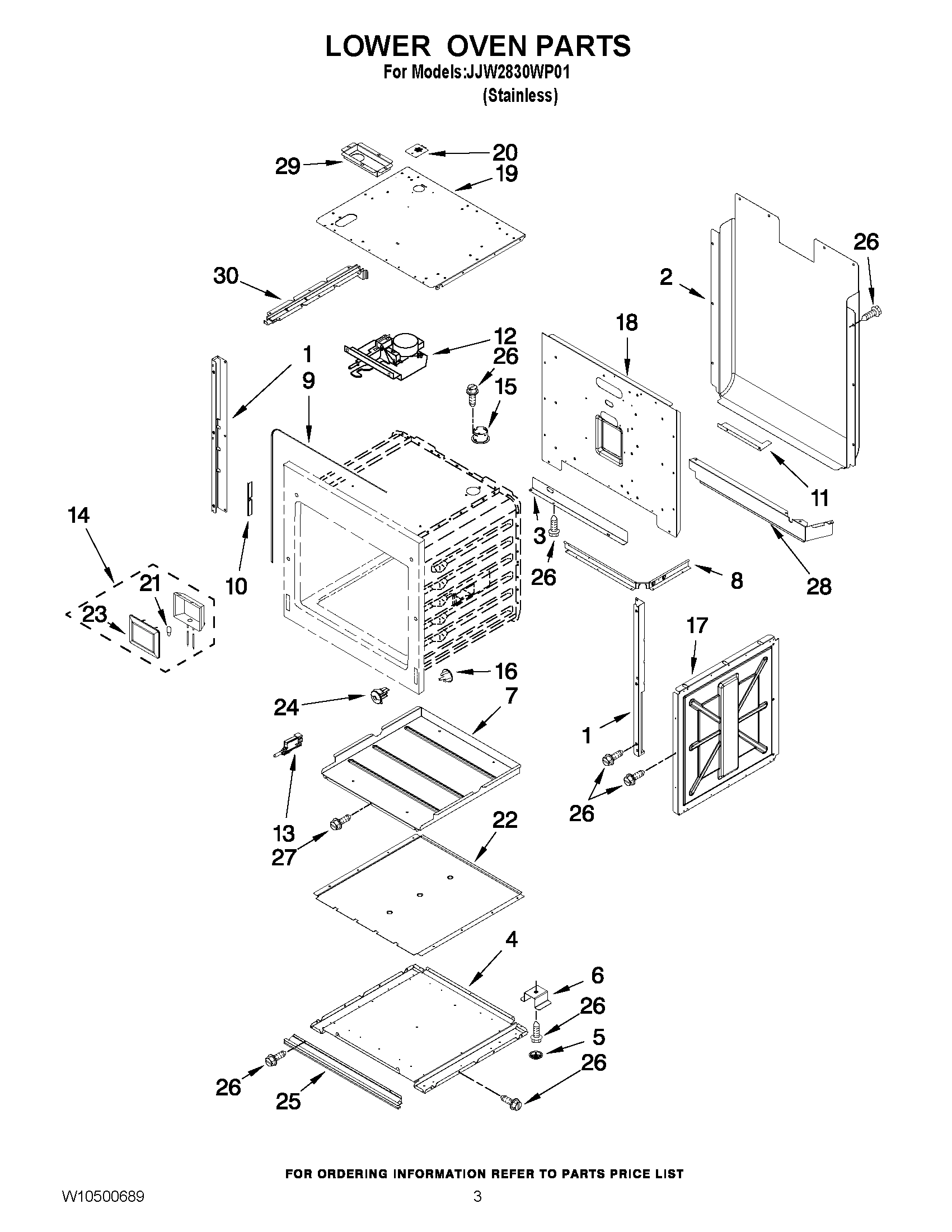

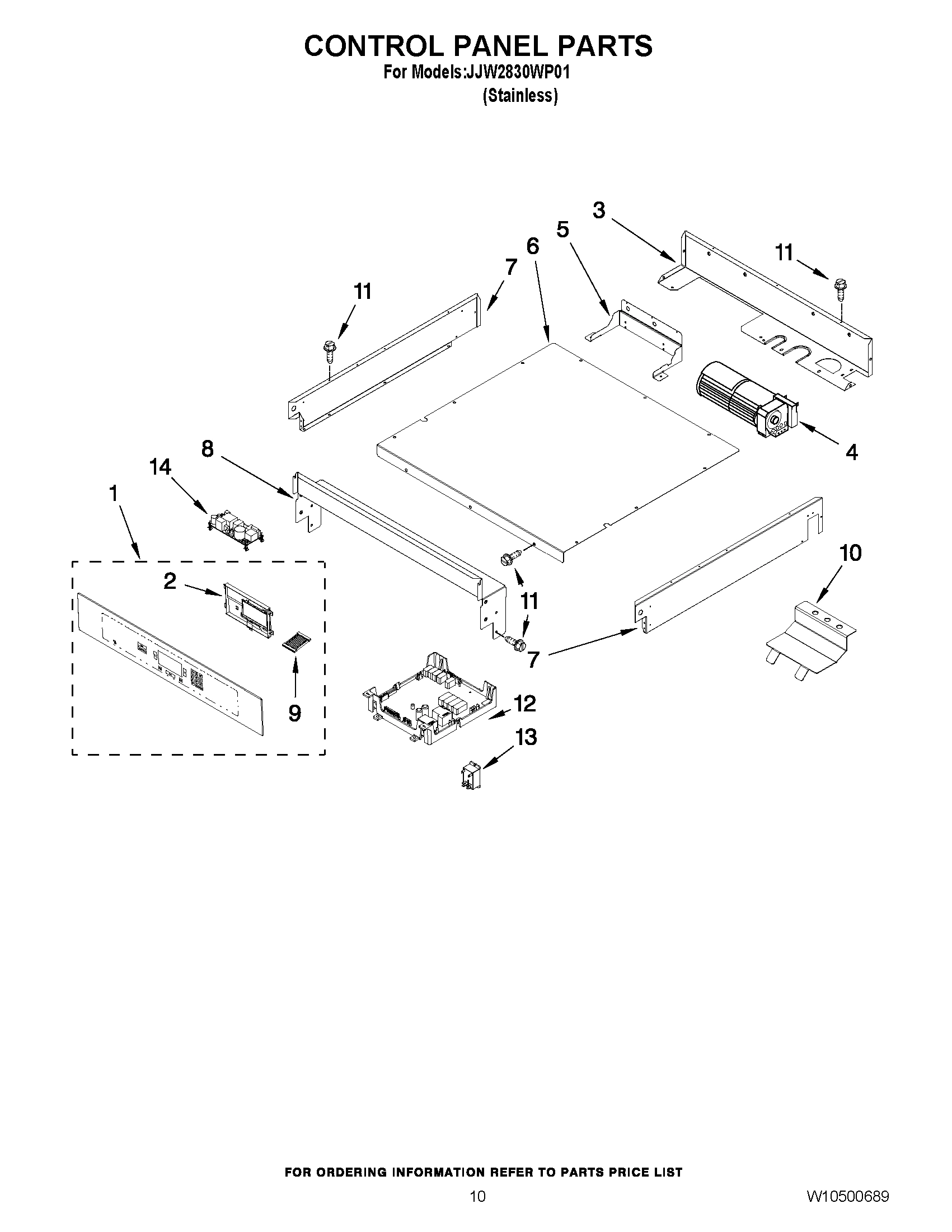

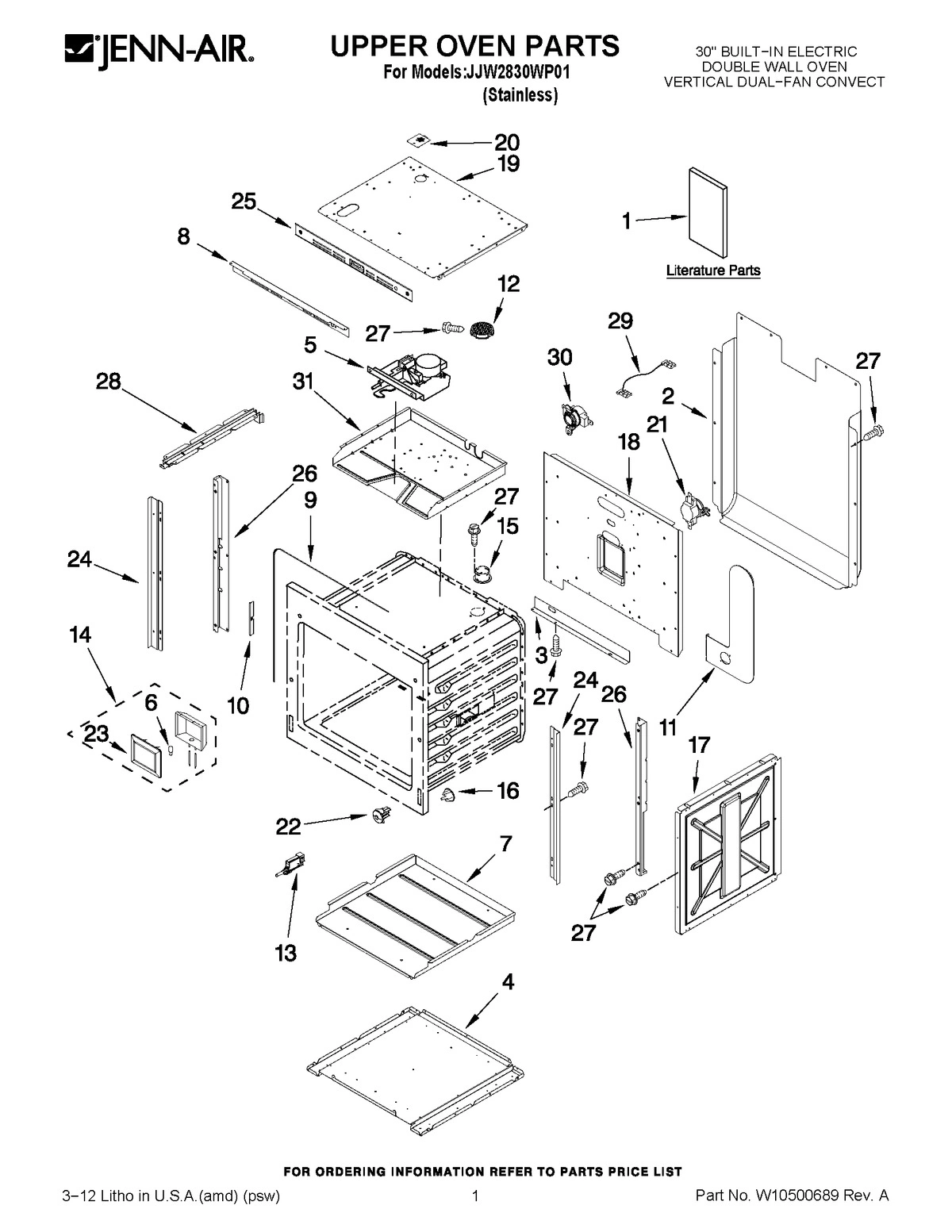

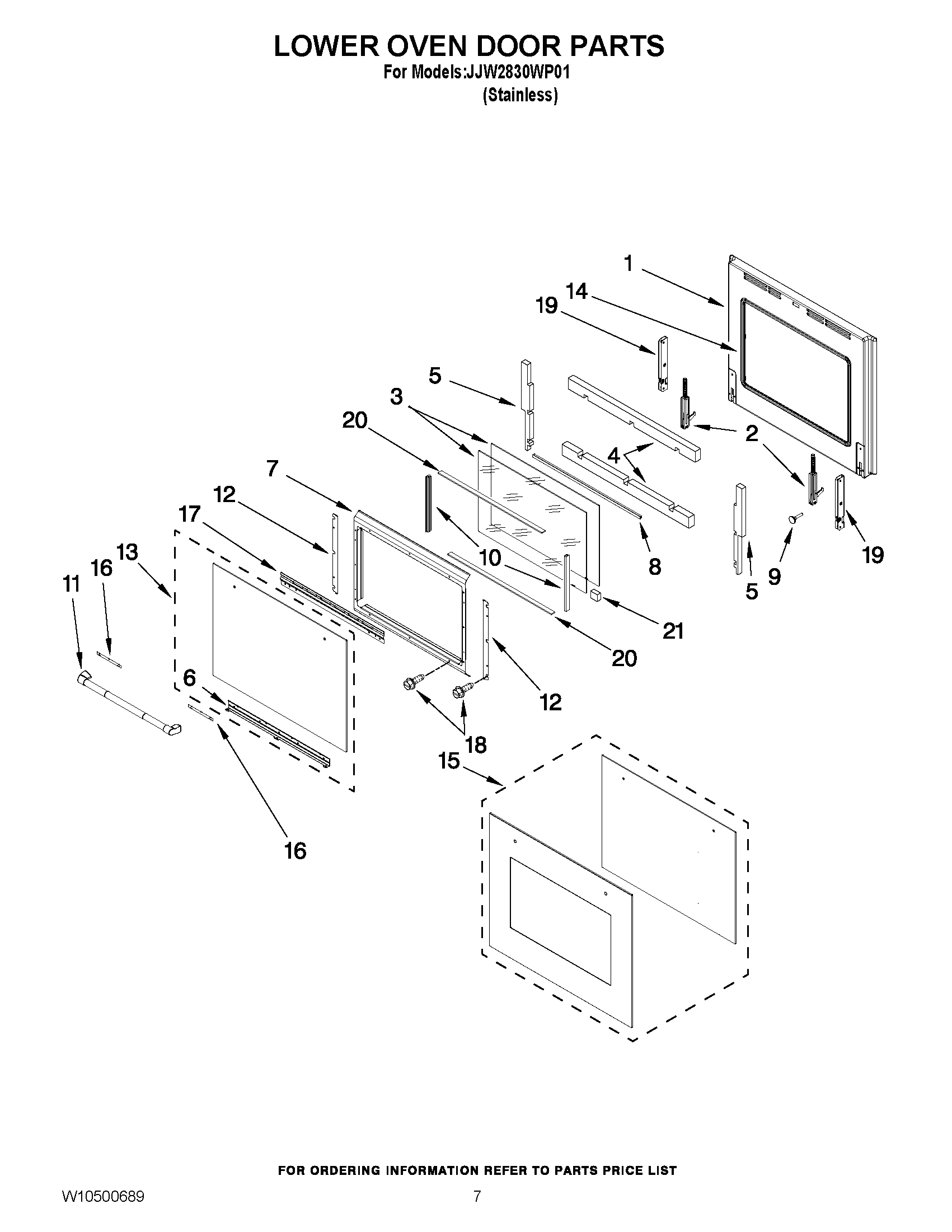

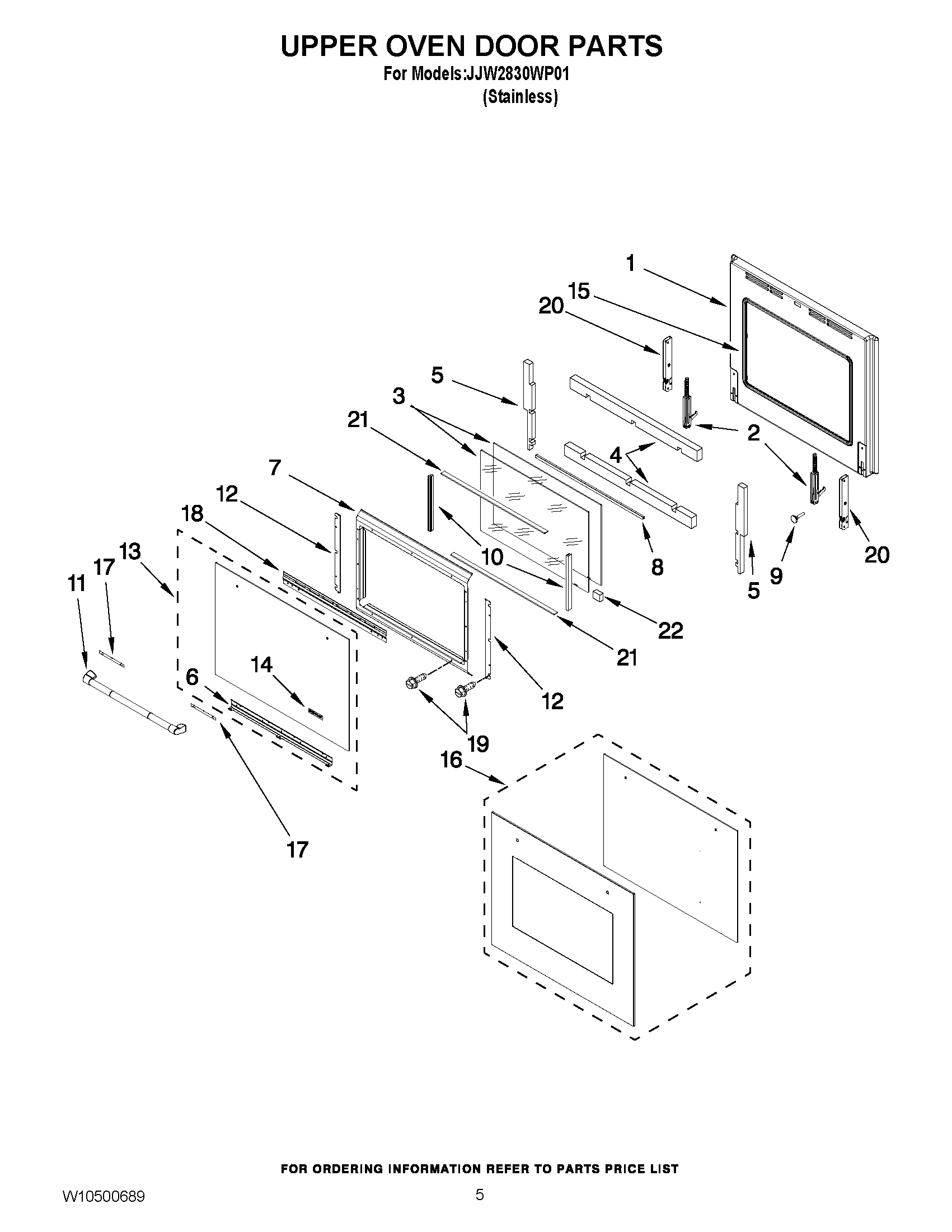

Model Whirlpool JJW2830WP01 ELECTRIC WALL OVEN – Common Parts & Diagrams

1
BKT, REINFORCEMENT (LEFT, SIDE)
BKT, REINFORCEMENT (LEFT, SIDE) WPL W10277423 Contact Us For Availability
View on Model
1
BKT, REINFORCEMENT (RIGHT SIDE)
BKT, REINFORCEMENT (RIGHT SIDE) WPL W10277424 Contact Us For Availability
View on Model
2
RACK, BAKING
RACK, BAKING WPL W10176138 Contact Us For Availability
View on Model
2
HINGE, DOOR
HINGE, DOOR WPL W10277751 Contact Us For Availability
View on Model
2
BACK, MAIN
BACK, MAIN WPL 2624F04351 Contact Us For Availability
View on Model
3
GLASS, INNER
GLASS, INNER WPL W10176100 Contact Us For Availability
View on Model
3
BAFFLE, REAR
BAFFLE, REAR WPL W10254041 Contact Us For Availability
View on Model
4
RACK, OFFSET
RACK, OFFSET WPL W10186988 Contact Us For Availability
View on Model
4
PANEL, BOTTOM
PANEL, BOTTOM WPL W10280327 Contact Us For Availability
View on Model
5
BRACKET, COOLING FAN LOWER
BRACKET, COOLING FAN LOWER WPL W10187016 Contact Us For Availability
View on Model
5
INSULATION, DOOR (VERTICAL)
INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability
View on Model
5
FOOT, PLASTIC
FOOT, PLASTIC WPL 8038P03560 Contact Us For Availability
View on Model
6
BRACKET, DOOR CLIP
BRACKET, DOOR CLIP WPL W10176175 Contact Us For Availability
View on Model
7
RETAINER, DR GLASS
RETAINER, DR GLASS WPL W10176103 Contact Us For Availability
View on Model
8
KIT, UNITY CONVECT
KIT, UNITY CONVECT WPL W10213813 Contact Us For Availability
View on Model
8
BRKT, OVEN BACK
BRKT, OVEN BACK WPL W10251054 Contact Us For Availability
View on Model
9
GASKET
GASKET WPL W10213818 Contact Us For Availability
View on Model
12
MGR., APPLIANCE
MGR., APPLIANCE WPL W10292568 Contact Us For Availability
View on Model
12
BRACKET, INNER DOOR GLASS
BRACKET, INNER DOOR GLASS WPL W10186882 Contact Us For Availability
View on Model
13
SWITCH, MICRO
SWITCH, MICRO WPL W10286173 Contact Us For Availability
View on Model
13
GLASS, OUTER DOOR ASSY.
GLASS, OUTER DOOR ASSY. WPL W10209065 Contact Us For Availability
View on Model
15
GLASS, CAVITY
GLASS, CAVITY WPL W10213803 Contact Us For Availability
View on Model
15
TUBE, VENT
TUBE, VENT WPL 8026P06560 Contact Us For Availability
View on Model
16
KIT, GLASS ASSY.
KIT, GLASS ASSY. WPL W10187006 Contact Us For Availability
View on Model
16
BUTTON, PLUG (THERMOSTAT)
BUTTON, PLUG (THERMOSTAT) WPL 7718P03360 Contact Us For Availability
View on Model
17
PAD, HANDLE FOAM
PAD, HANDLE FOAM WPL W10213723 Contact Us For Availability
View on Model
18
RETAINER, REAR INSULATION
RETAINER, REAR INSULATION WPL W10255436 Contact Us For Availability
View on Model
19
PNL, TOP RETAINER
PNL, TOP RETAINER WPL W10176000 Contact Us For Availability
View on Model
20
HINGE, RCVR
HINGE, RCVR WPL W10175993 Contact Us For Availability
View on Model
20
COVER, VENT
COVER, VENT WPL 4005F72145 Contact Us For Availability
View on Model
22
CHANNEL, BTM AIR BAKE ELEMENT
CHANNEL, BTM AIR BAKE ELEMENT WPL W10280325 Contact Us For Availability
View on Model
26
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
29
JUMPER, THERMAL
JUMPER, THERMAL WPL W10277590 Contact Us For Availability
View on Model
29
BOX, LOWER VENT
BOX, LOWER VENT WPL 4006F23645 Contact Us For Availability
View on Model
30
SUPPORT, OVEN
SUPPORT, OVEN WPL 3807F66951 Contact Us For Availability
View on Model
NI
ASSY., CONDUIT
ASSY., CONDUIT WPL W10176089 Contact Us For Availability
View on Model
NI
INSULATION, WRAP
INSULATION, WRAP WPL W10186989 Contact Us For Availability
View on Model
NI
INSULATION, BACK
INSULATION, BACK WPL W10213750 Contact Us For Availability
View on Model
