Model Whirlpool JJW2827WB00 ELECTRIC WALL OVEN – Common Parts & Diagrams

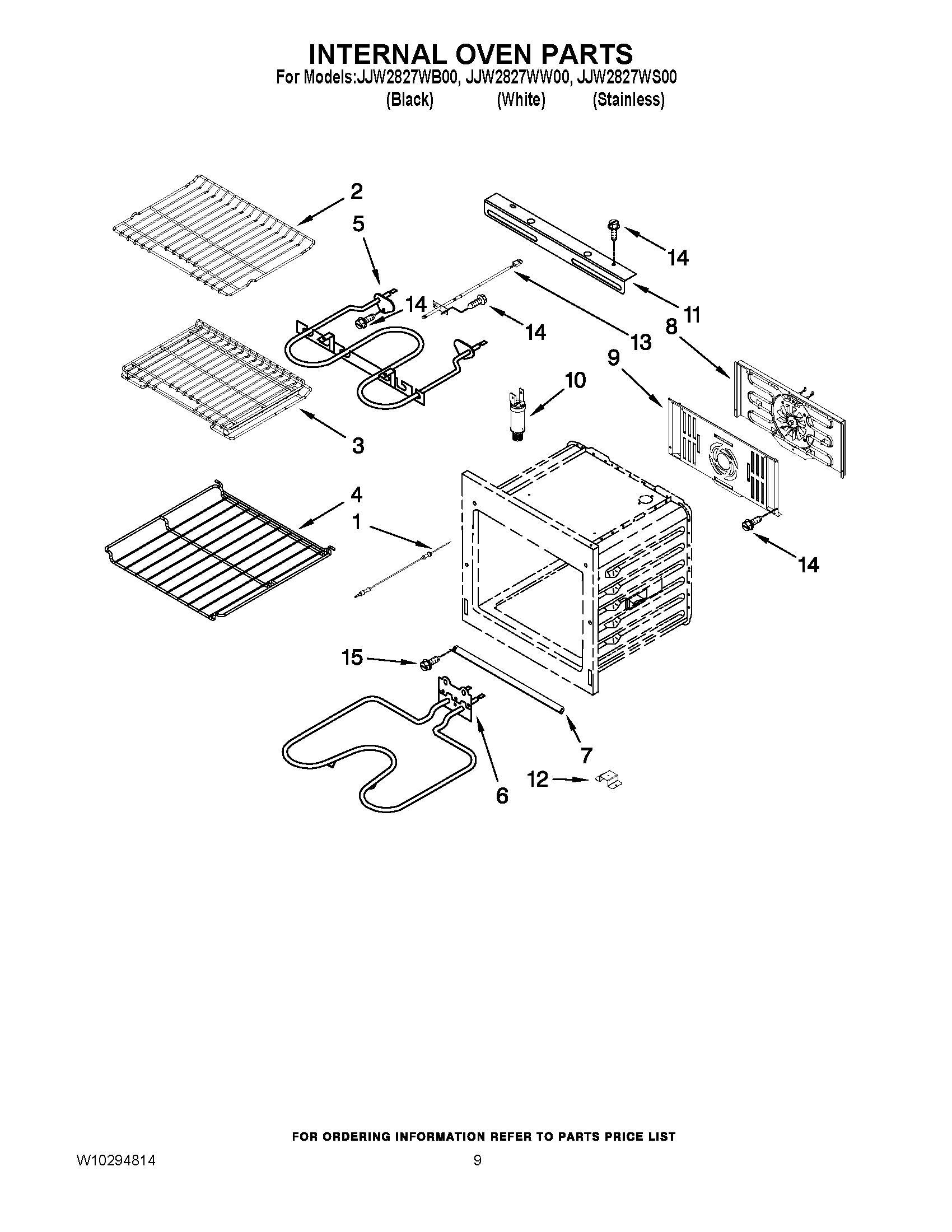

05 - INTERNAL OVEN PARTS

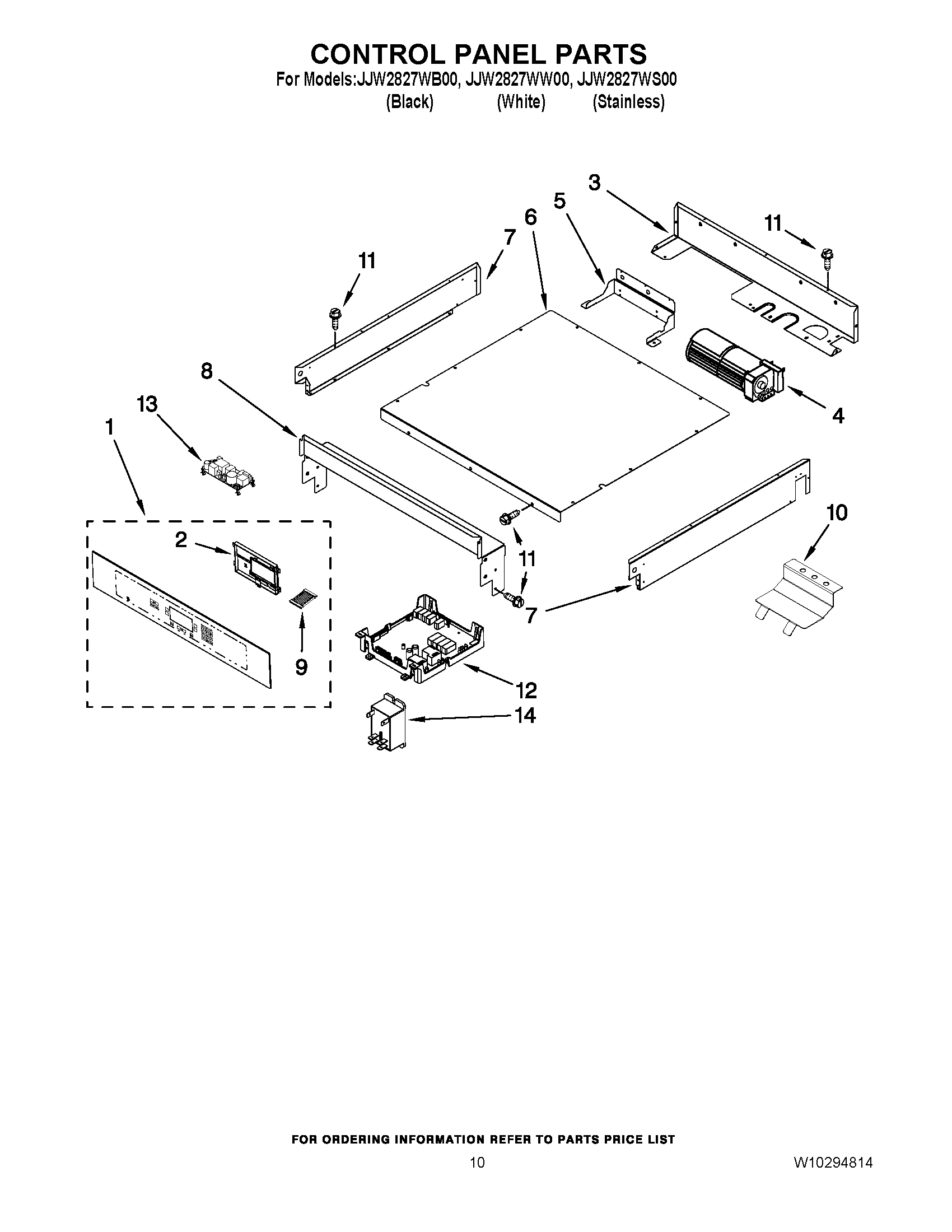

06 - CONTROL PANEL PARTS

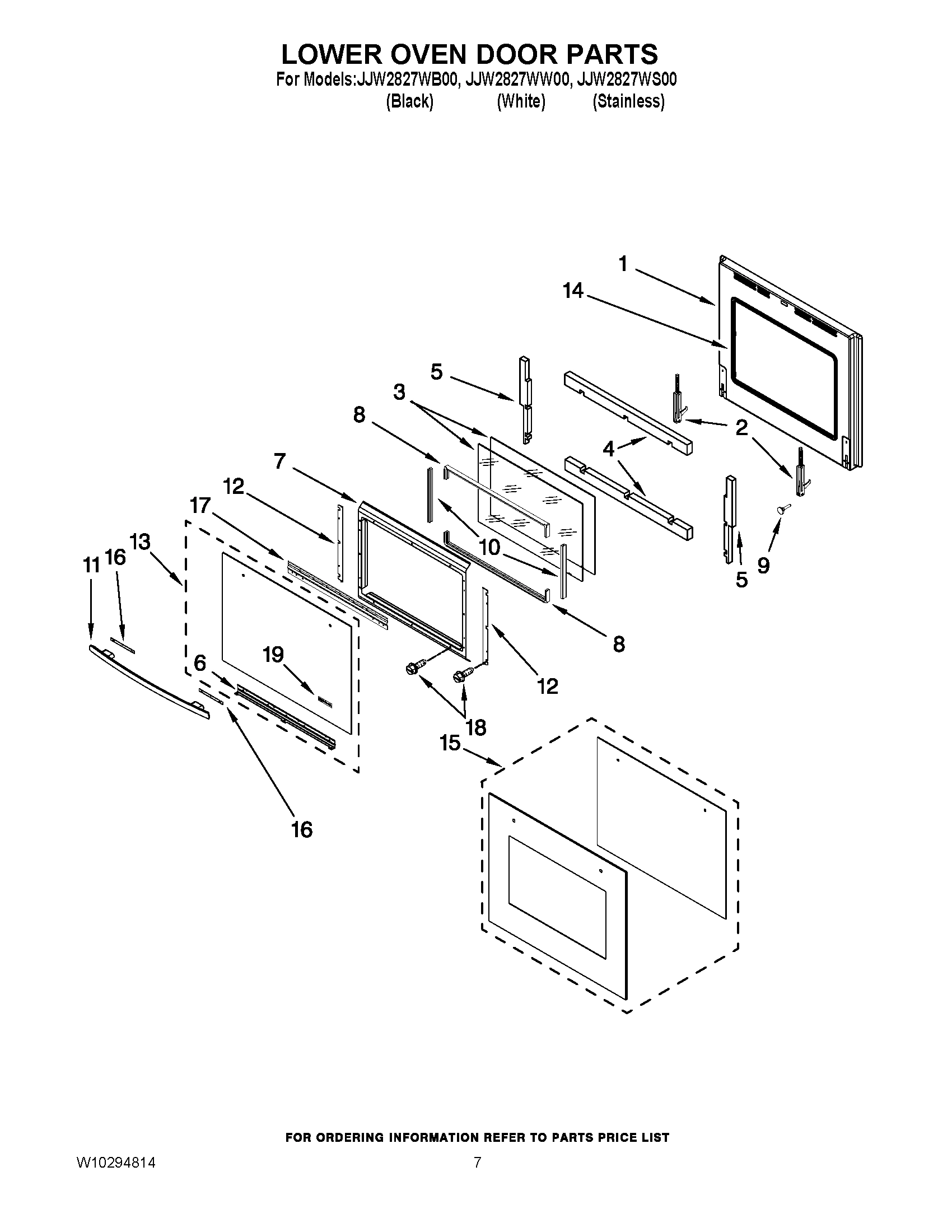

04 - LOWER OVEN DOOR PARTS
07 - OPTIONAL PARTS

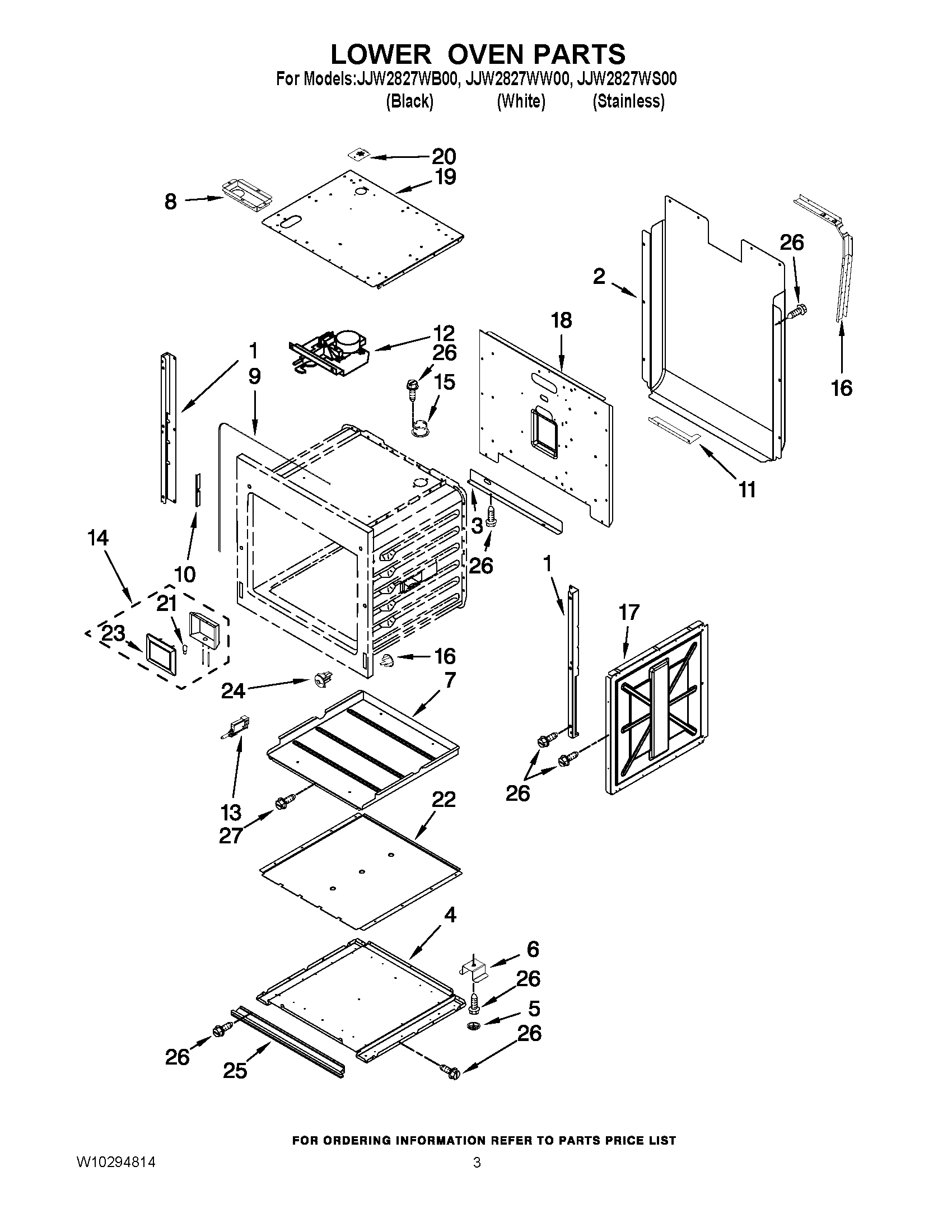

02 - LOWER OVEN PARTS

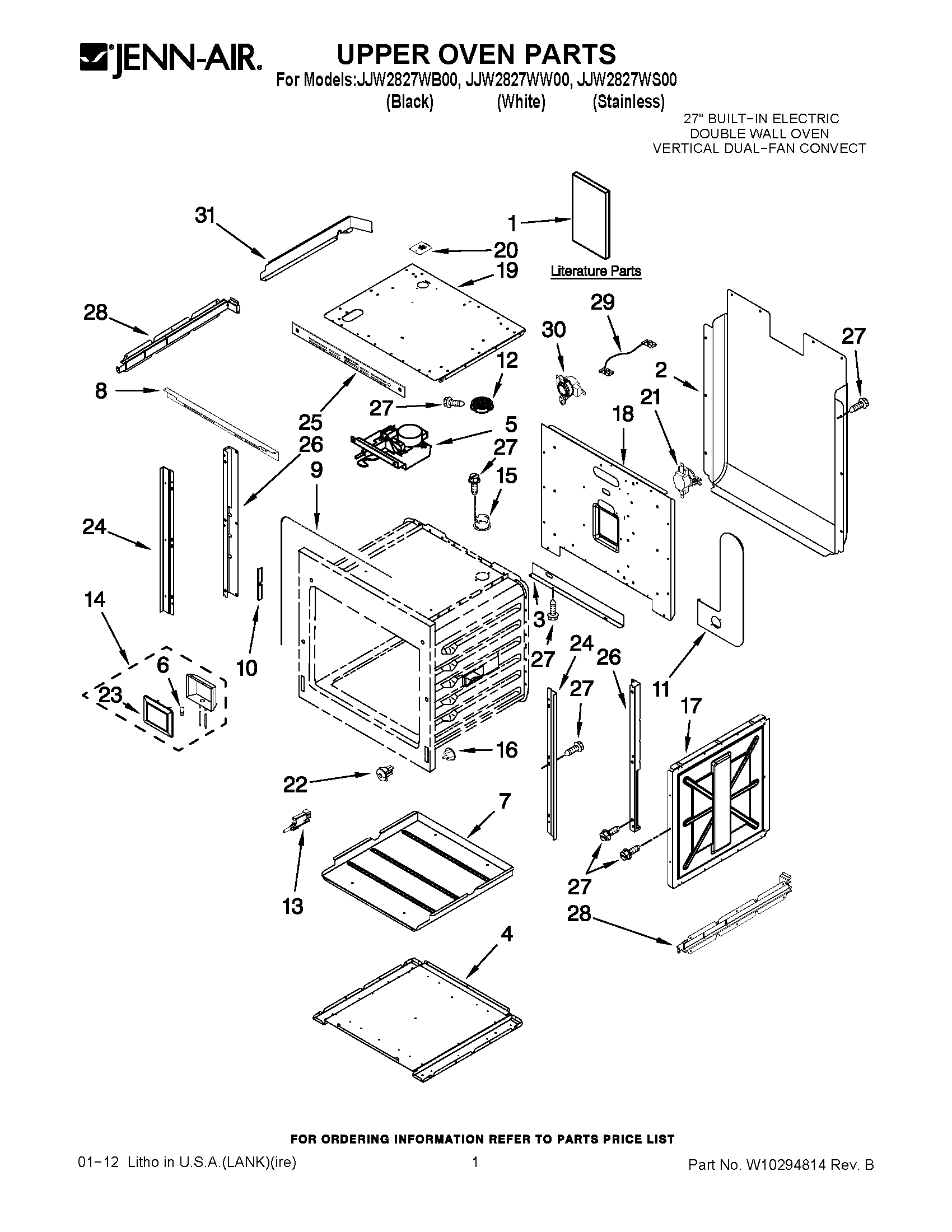

01 - UPPER OVEN PARTS

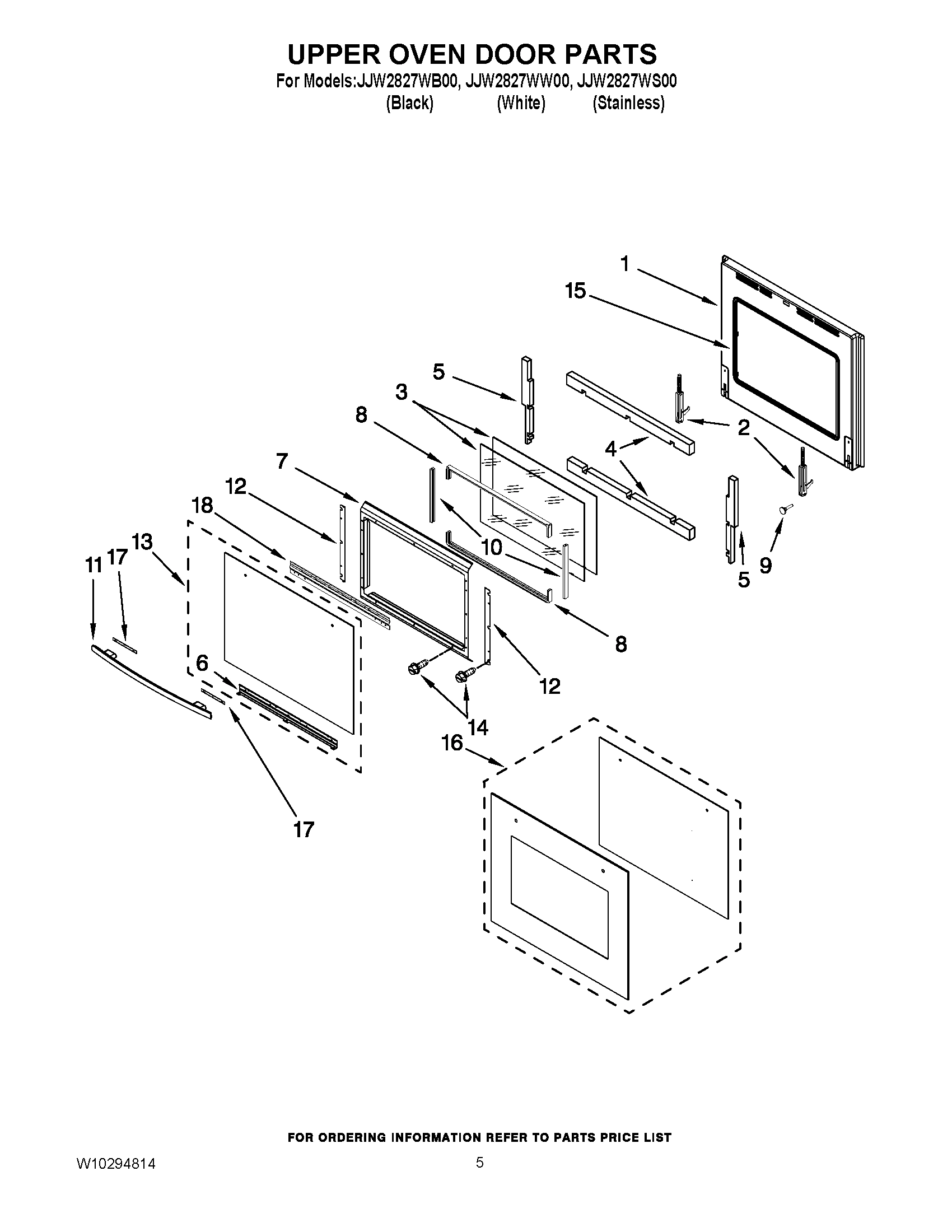

03 - UPPER OVEN DOOR PARTS
Common parts from model Whirlpool JJW2827WB00 ELECTRIC WALL OVEN
1
LINER, DOOR WPL W10187020 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
TECH SHEET (ENGLISH) WPL W10213733 Contact Us For Availability
1
TECH SHEET (FRENCH) WPL W10213742 Contact Us For Availability
1
TECH SHEET (ENERGY GUIDE) WPL W10217590 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10221386 Contact Us For Availability
1
USE & CARE GUIDE WPL W10221394 Contact Us For Availability
2
HINGE, DOOR (2) WPL W10186751 Contact Us For Availability
2
BACK, MAIN WPL 2624F05151 Contact Us For Availability
2
HINGE, DOOR (2) WPL NP Contact Us For Availability
3
GLASS, INNER (2) WPL W10176101 Contact Us For Availability
3
BAFFLE, REAR WPL W10254160 Contact Us For Availability
4
PANEL, BOTTOM WPL W10280326 Contact Us For Availability
5
BRACKET, COOLING FAN LOWER WPL W10187016 Contact Us For Availability
5
INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability
6
BRACKET, DOOR CLIP WPL W10176176 Contact Us For Availability
7
PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability
7
RETAINER, DR GLASS WPL W10176105 Contact Us For Availability
8
KIT, UNITY CONVECT WPL W10213813 Contact Us For Availability
8
SPACER, INNER GLASS WPL W10213817 Contact Us For Availability
9
GASKET WPL W10213819 Contact Us For Availability
11
ASSY., BOX VENT WPL 4006W21845 Contact Us For Availability
12
MGR., APPLIANCE WPL W10292568 Contact Us For Availability
12
SCREEN, SMOKE ELM. WPL 8034P00860 Contact Us For Availability
12
BRACKET, INNER DOOR GLASS WPL W10186882 Contact Us For Availability
13
SWITCH, MICRO WPL W10286173 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (BLACK) WPL W10186886 Contact Us For Availability
13
GLASS, OUTER DOOR ASSY. (WHITE) WPL W10186885 Contact Us For Availability
14
SCREW WPL 7101P42660 Contact Us For Availability
15
GLASS, CAVITY WPL W10213804 Contact Us For Availability
15
TUBE, VENT WPL 8026P06660 Contact Us For Availability
16
BRACKET, OVEN BACK WPL W10253684 Contact Us For Availability
16
BUTTON, PLUG (THERMOSTAT) WPL 7718P02160 Contact Us For Availability
16
KIT, GLASS ASSY. (STAINLESS MODEL ONLY) WPL W10176228 Contact Us For Availability
17
PAD, HANDLE FOAM WPL W10213722 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL W10255437 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL W10213725 Contact Us For Availability
19
PNL, TOP RETAINER WPL W10175999 Contact Us For Availability
20
COVER, VENT WPL 4005F72145 Contact Us For Availability
20
COVER, VENT WPL W10213792 Contact Us For Availability
21
SWITCH, HI LIMIT WPL 7403P89960 Contact Us For Availability
22
CHANNEL, BTM AIR BAKE ELEMENT WPL W10280323 Contact Us For Availability
25
TRIM, BOTTOM VENT (STAINLESS) WPL W10176037 Contact Us For Availability
25
TRIM, BOTTOM VENT (WHITE) WPL W10176144 Contact Us For Availability
25
TRIM, CNTRL PANEL WPL W10176015 Contact Us For Availability
26
BKT, REINFORCEMENT (LEFT, SIDE) WPL W10277423 Contact Us For Availability
26
BKT, REINFORCEMENT (RIGHT SIDE) WPL W10277424 Contact Us For Availability
28
SUPPORT, OVEN (2) WPL 3807F66951 Contact Us For Availability
29
JUMPER, THERMAL WPL W10277590 Contact Us For Availability
NI
ASSY., CONDUIT WPL W10176089 Contact Us For Availability
NI
INSULATION, BACK WPL W10213747 Contact Us For Availability
× ![]()
