Model Whirlpool JJW2727WS02 ELECTRIC WALL OVEN – Common Parts & Diagrams

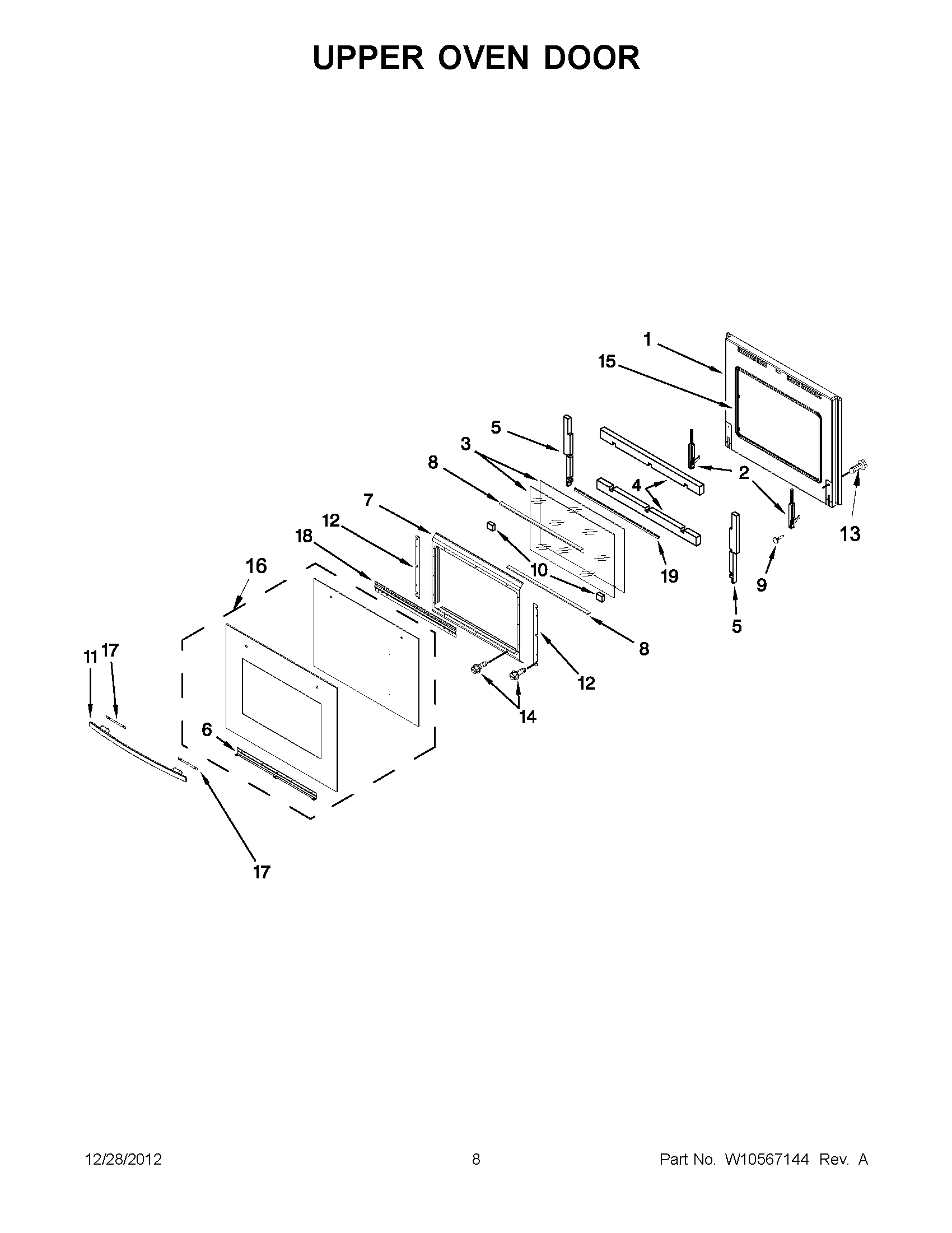

04 - UPPER OVEN DOOR

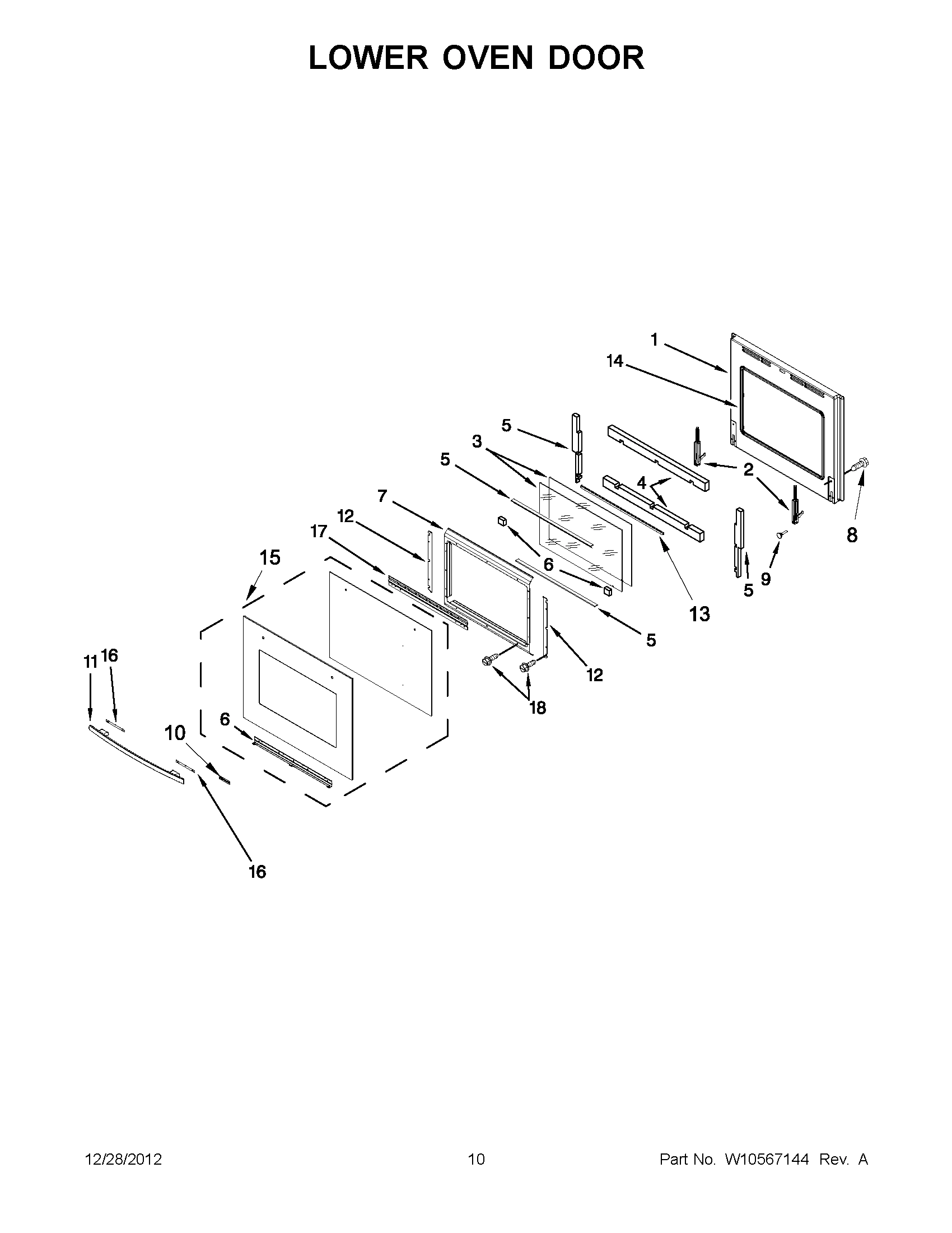

05 - LOWER OVEN DOOR

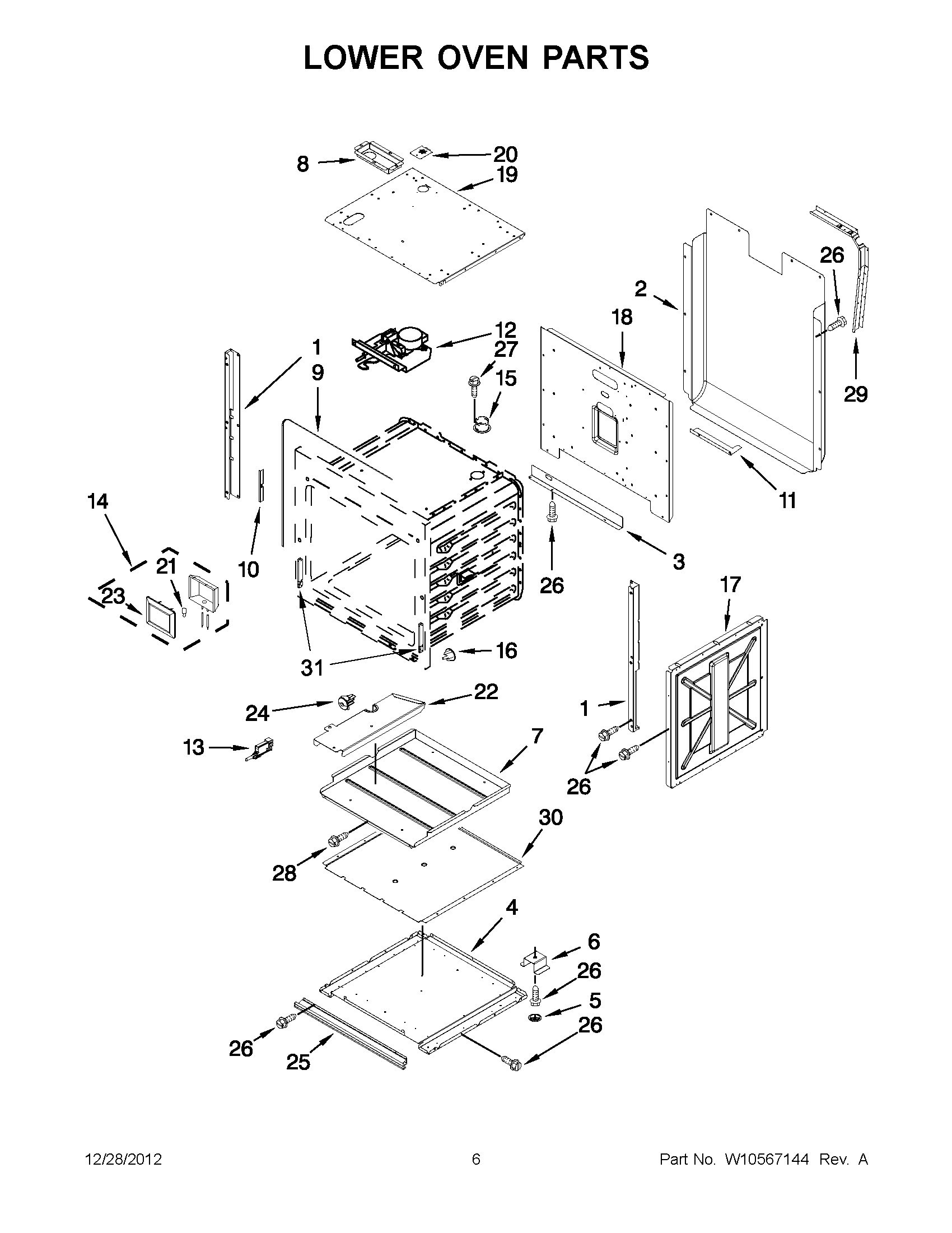

03 - LOWER OVEN PARTS

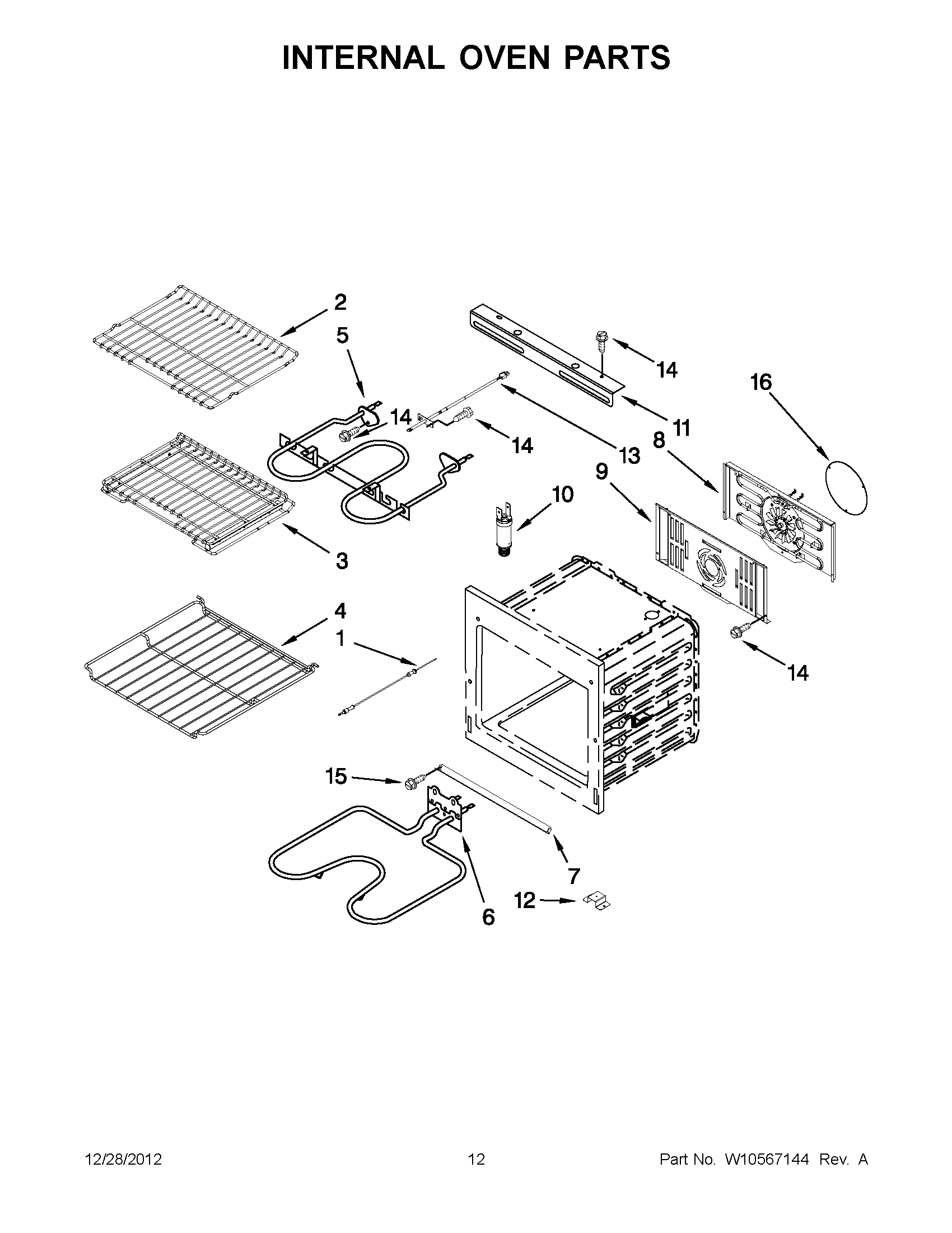

06 - INTERNAL OVEN PARTS

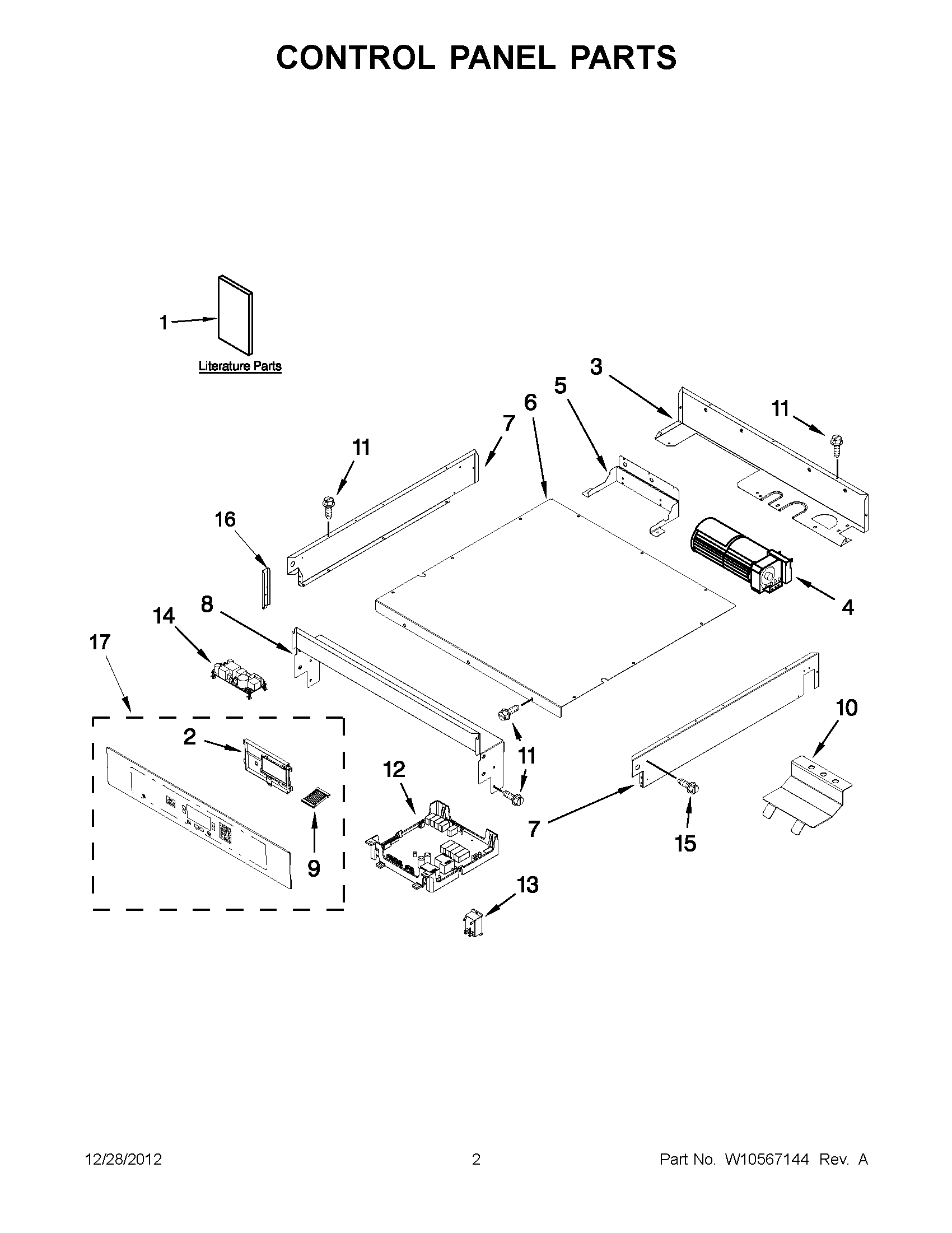

01 - CONTROL PANEL PARTS

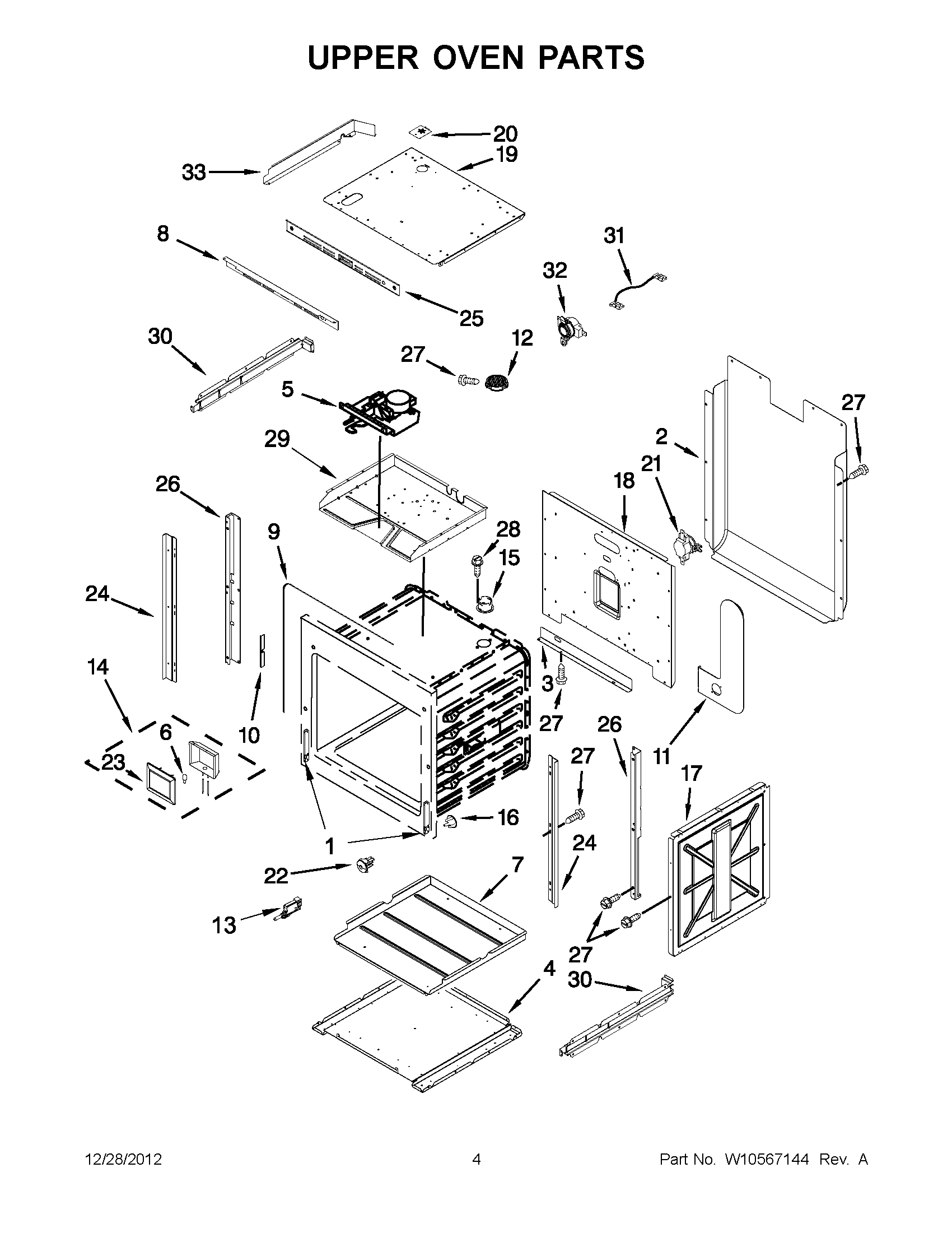

02 - UPPER OVEN PARTS
07 - OPTIONAL PARTS
Common parts from model Whirlpool JJW2727WS02 ELECTRIC WALL OVEN
1
LINER, DOOR WPL W10187020 Contact Us For Availability
1
TIPS, SAFER COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
ENERGY GUIDE (INSTRUCTIONS, INSTALLER) WPL W10075750 Contact Us For Availability
1
TECH SHEET (ENGLISH) WPL W10213733 Contact Us For Availability
1
TECH SHEET (FRENCH) WPL W10213742 Contact Us For Availability
1
INSTRUCTIONS, INSTALLATION WPL W10221386 Contact Us For Availability
1
USE & CARE GUIDE WPL W10450586 Contact Us For Availability
2
HINGE, DOOR WPL W10186751 Contact Us For Availability
2
BACK, MAIN WPL 2624F05151 Contact Us For Availability
3
GLASS, INNER WPL W10176101 Contact Us For Availability
3
BAFFLE, REAR WPL W10254160 Contact Us For Availability
4
PANEL, BOTTOM WPL W10280326 Contact Us For Availability
5
BRACKET, COOLING FAN WPL W10187016 Contact Us For Availability
5
INSULATION, DOOR (VERTICAL) WPL W10273591 Contact Us For Availability
6
PANEL, CONTROL BOX TOP WPL W10176180 Contact Us For Availability
7
RETAINER, ELEMENT BAKE WPL 3807F67845 Contact Us For Availability
7
PANEL, CONTROL BOX RIGHT HAND WPL W10176003 Contact Us For Availability
7
PAN, HIDDEN BAKE WPL 3401F07945 Contact Us For Availability
8
KIT, UNITY CONVECTION WPL W10213813 Contact Us For Availability
8
SUPPORT, TOP CONTROL WPL W10512901 Contact Us For Availability
9
CABLE, USER INTERFACE WPL W10175829 Contact Us For Availability
9
GASKET WPL W10213819 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE WPL 7408P08860 Contact Us For Availability
11
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
11
ASSEMBLY, BOX VENT WPL 4006W21845 Contact Us For Availability
12
MANAGER, APPLIANCE WPL W10292568 Contact Us For Availability
12
BRACKET, SUPPORT (HIDDEN BAKE) WPL 3801F82351 Contact Us For Availability
12
SCREEN, SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
13
SWITCH, MICRO WPL W10286173 Contact Us For Availability
13
PROBE, SENSOR WPL 7430P04360 Contact Us For Availability
15
GLASS, CAVITY WPL W10213804 Contact Us For Availability
15
TUBE, VENT WPL 8026P06660 Contact Us For Availability
16
ASSEMBLY, OUTER DOOR GLASS (BLACK) WPL W10277595 Contact Us For Availability
16
PLATE, NON-CONVECTION WPL W10209035 Contact Us For Availability
16
BRACKET, CONSOLE MOUNTING WPL W10512904 Contact Us For Availability
16
PLUG, BUTTON WPL 7718P02160 Contact Us For Availability
18
RETAINER, REAR INSULATION WPL W10213725 Contact Us For Availability
19
PANEL, TOP RETAINER WPL W10175999 Contact Us For Availability
20
COVER, VENT WPL W10213792 Contact Us For Availability
21
SWITCH, HIGH LIMIT WPL 7403P89960 Contact Us For Availability
25
TRIM, VENT LOWER (STAINLESS) WPL W10176037 Contact Us For Availability
25
TRIM, CNTRL PANEL WPL W10176015 Contact Us For Availability
26
BRACKET, REINFORCEMENT LEFT HAND WPL W10277423 Contact Us For Availability
26
BRACKET, REINFORCEMENT RIGHT HAND WPL W10277424 Contact Us For Availability
27
SCREW WPL 7101P42660 Contact Us For Availability
28
Screw WPL 7101P43460 Contact Us For Availability
30
SUPPORT, UPPER OVEN WPL 3807F66951 Contact Us For Availability
31
HINGE, RECEIVER WPL W10175993 Contact Us For Availability
31
JUMPER, SECONDARY THERMAL FUSE WPL W10277590 Contact Us For Availability
NI
WIRING HARNESS PARTS, ASSEMBLY, CONDUIT DOUBL WPL W10176089 Contact Us For Availability
NI
INSULATION, DOOR LOCK LOWER WPL 7002P27660 Contact Us For Availability
NI
INSULATION, BACK WPL W10213747 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MEAT PROBE JAC WPL 5171P20860 Contact Us For Availability
× ![]()
