Model Maytag JJW2430WW00 ELECTRIC WALL OVEN – Common Parts & Diagrams

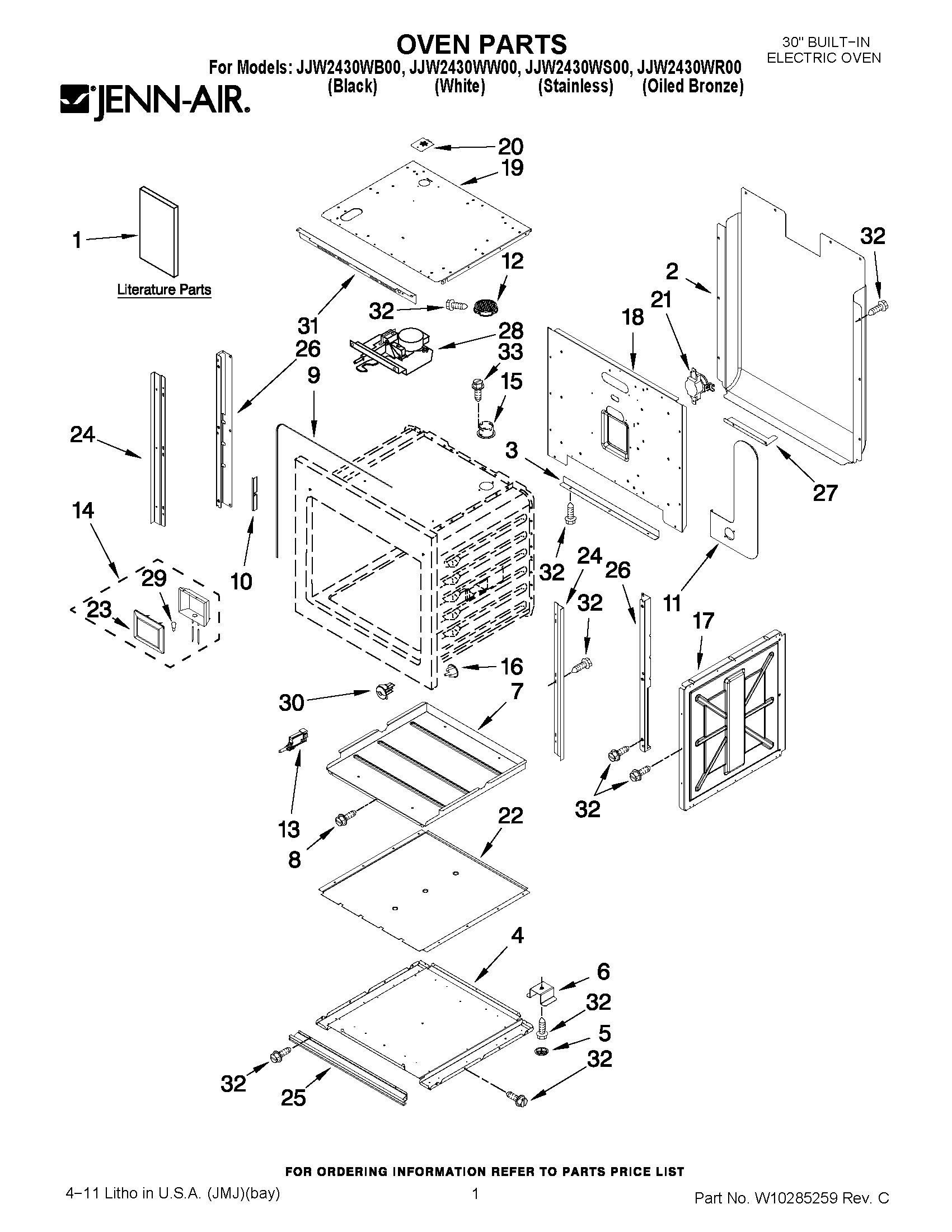

01 - OVEN PARTS

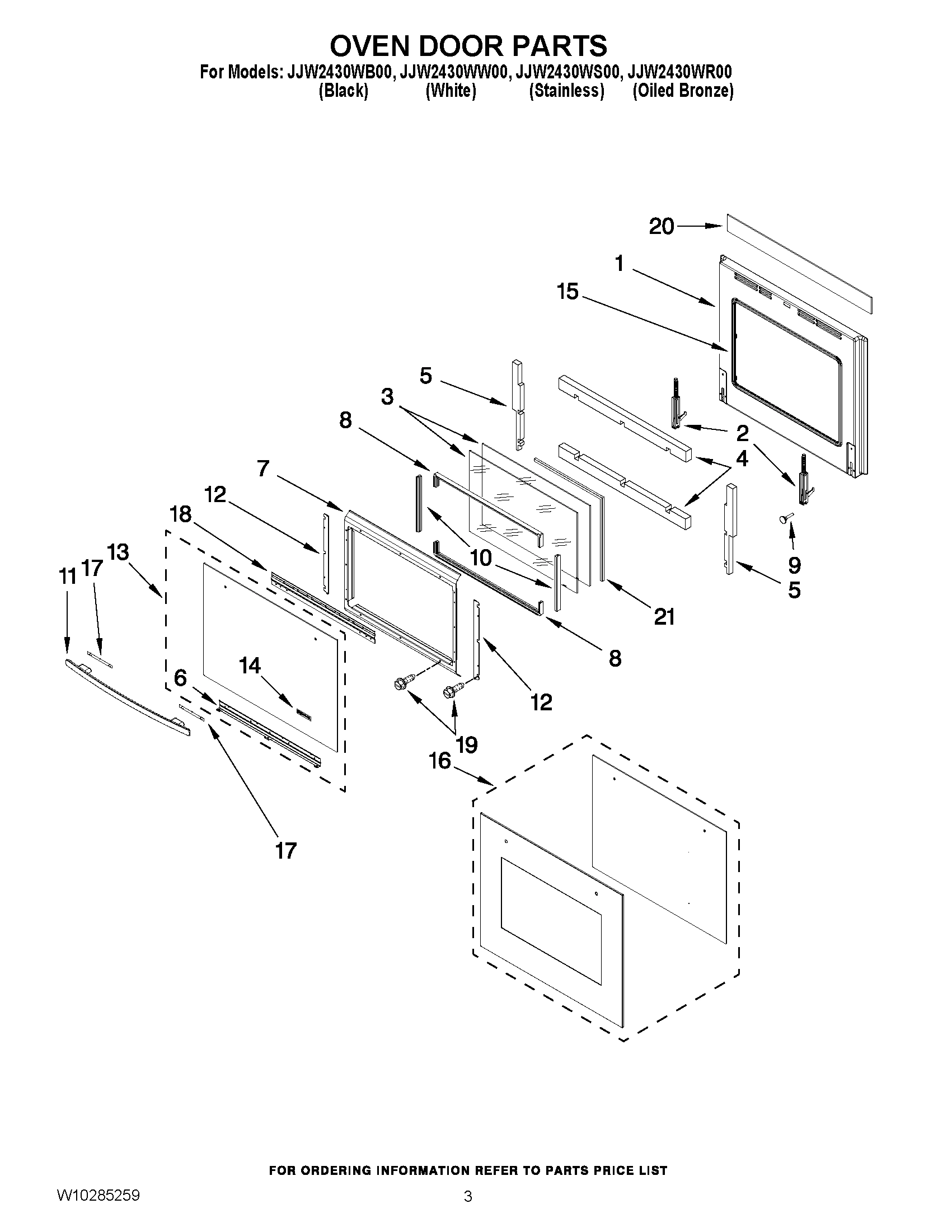

02 - OVEN DOOR PARTS

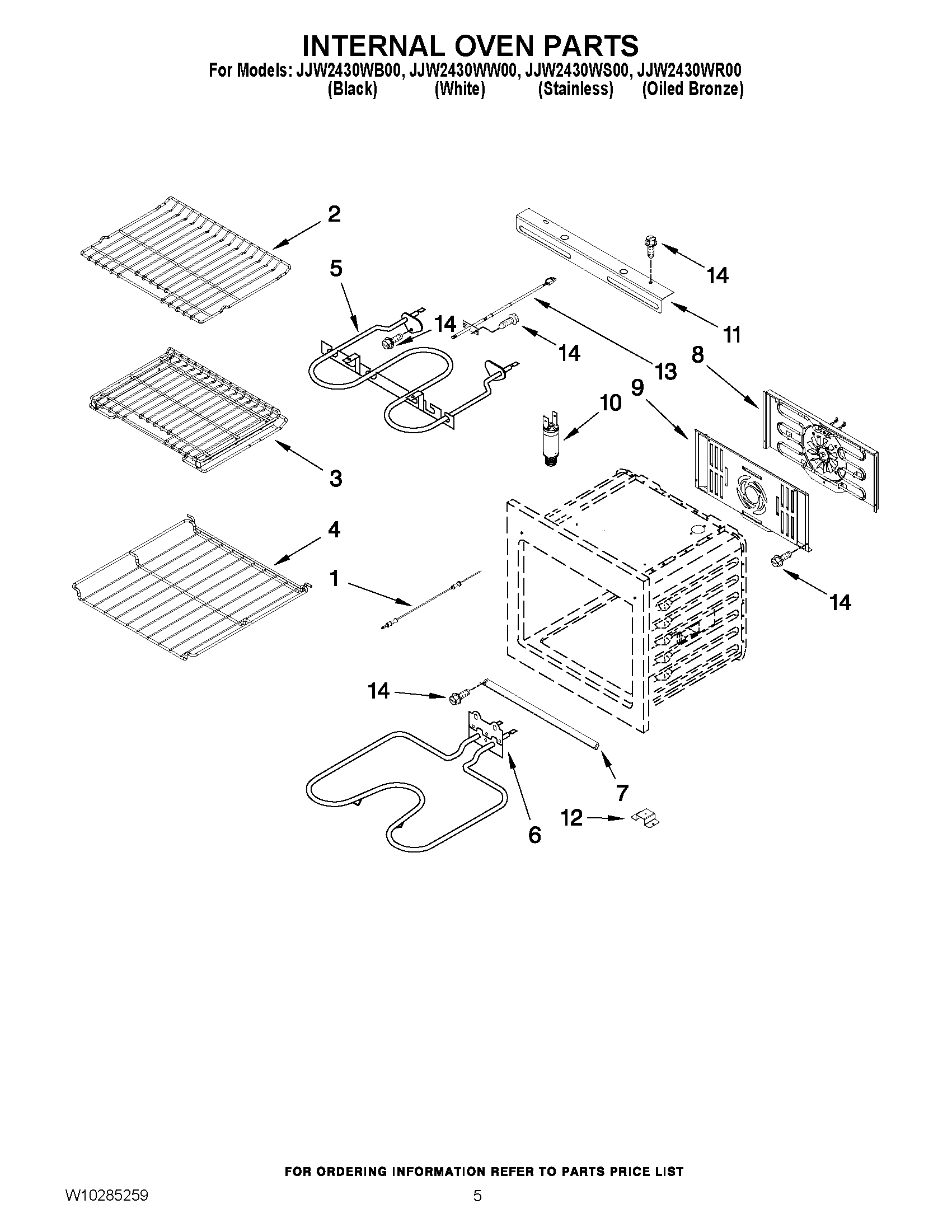

03 - INTERNAL OVEN PARTS

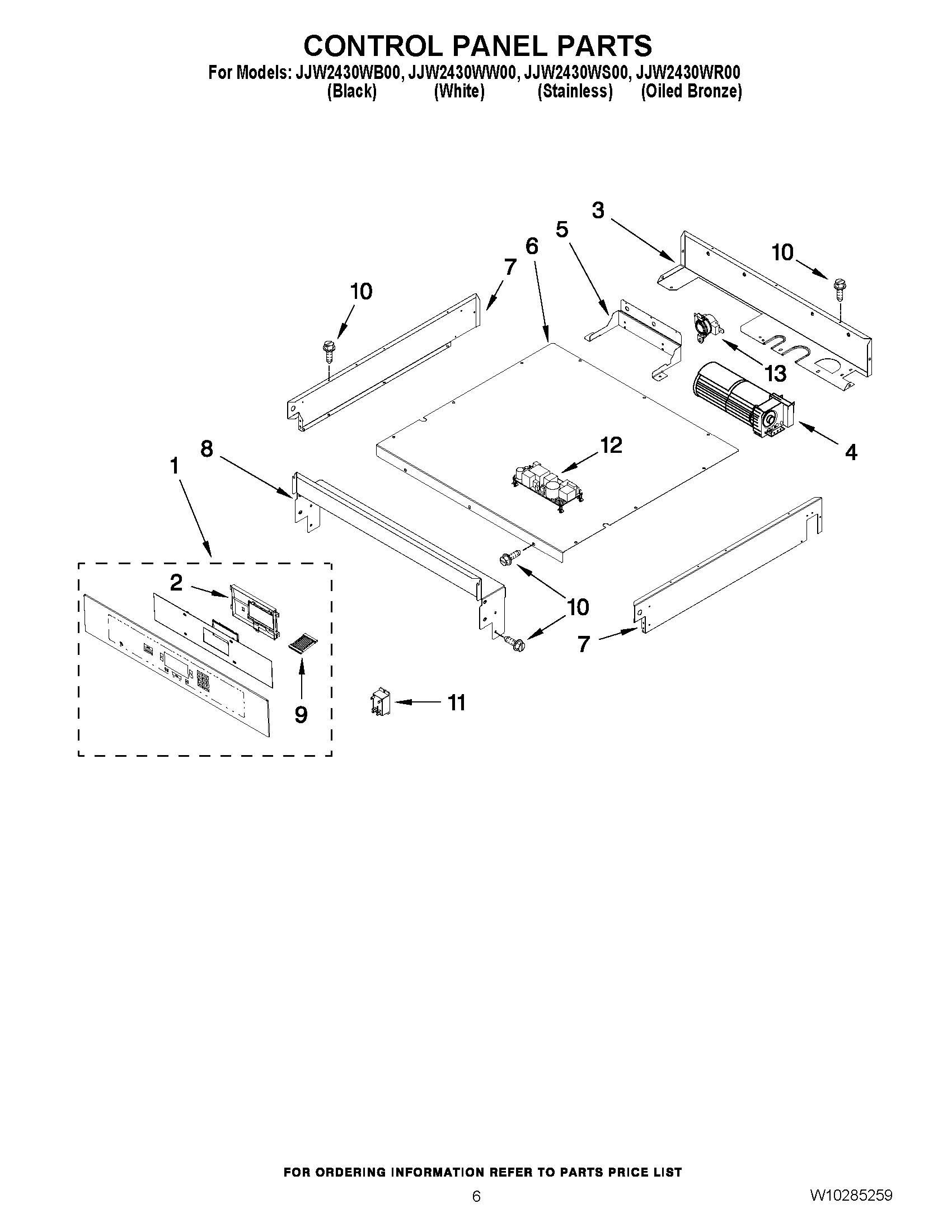

04 - CONTROL PANEL PARTS
05 - OPTIONAL PARTS
Common parts from model Maytag JJW2430WW00 ELECTRIC WALL OVEN
1
BROCHURE, TIPS SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
BROCHURE, TIPS SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
MAY W10176244 MAY W10176244 Contact Us For Availability
1
MAY W10213733 MAY W10213733 Contact Us For Availability
1
MAY W10213742 MAY W10213742 Contact Us For Availability
1
MAY W10221386 MAY W10221386 Contact Us For Availability
1
MAY W10221394 MAY W10221394 Contact Us For Availability
1
MAY W10187019 MAY W10187019 Contact Us For Availability
1
MAY 7430P038-60 MAY 7430P038-60 Contact Us For Availability
1
MAY W10187358 MAY W10187358 Contact Us For Availability
1
MAY W10211553 MAY W10211553 Contact Us For Availability
1
MAY W10211556 MAY W10211556 Contact Us For Availability
1
MAY W10211557 MAY W10211557 Contact Us For Availability
2
MAY 2624F043-51 MAY 2624F043-51 Contact Us For Availability
2
HINGE, DOOR (WHITE/BLACK/OILED BRONZE) MAY W10176157 Contact Us For Availability
2
MAY W10277751 MAY W10277751 Contact Us For Availability
2
MAY W10176138 MAY W10176138 Contact Us For Availability
2
MAY W10186901 MAY W10186901 Contact Us For Availability
3
BAFFLE, REAR LOWER MAY 3601F343-51 Contact Us For Availability
3
MAY W10176100 MAY W10176100 Contact Us For Availability
3
MAY W10277572 MAY W10277572 Contact Us For Availability
3
MAY W10187048 MAY W10187048 Contact Us For Availability
4
MAY W10280327 MAY W10280327 Contact Us For Availability
4
MAY W10273676 MAY W10273676 Contact Us For Availability
4
MAY W10186988 MAY W10186988 Contact Us For Availability
4
MAY W10273667 MAY W10273667 Contact Us For Availability
5
MAY 8038P035-60 MAY 8038P035-60 Contact Us For Availability
5
MAY W10273591 MAY W10273591 Contact Us For Availability
5
MAY W10184147 MAY W10184147 Contact Us For Availability
5
MAY W10186997 MAY W10186997 Contact Us For Availability
6
MAY W10213759 MAY W10213759 Contact Us For Availability
6
BRACKET, DOOR CLIP MAY W10176175 Contact Us For Availability
6
MAY 7406P322-60 MAY 7406P322-60 Contact Us For Availability
6
MAY W10176180 MAY W10176180 Contact Us For Availability
7
MAY 3401F079-45 MAY 3401F079-45 Contact Us For Availability
7
MAY W10176103 MAY W10176103 Contact Us For Availability
7
MAY 3807F678-45 MAY 3807F678-45 Contact Us For Availability
7
PANEL, CONTROL BOX (LEFT SIDE) MAY W10176002 Contact Us For Availability
7
PANEL, CONTROL BOX (RIGHT SIDE) MAY W10176003 Contact Us For Availability
8
MAY W10236129 MAY W10236129 Contact Us For Availability
8
MAY W10213816 MAY W10213816 Contact Us For Availability
8
MAY W10213813 MAY W10213813 Contact Us For Availability
8
SUPPORT, TOP CNTRL MAY W10176004 Contact Us For Availability
9
MAY W10213818 MAY W10213818 Contact Us For Availability
9
MAY W10176233 MAY W10176233 Contact Us For Availability
9
MAY W10186795 MAY W10186795 Contact Us For Availability
9
MAY W10175829 MAY W10175829 Contact Us For Availability
10
MAY W10176218 MAY W10176218 Contact Us For Availability
10
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
10
MAY W10213806 MAY W10213806 Contact Us For Availability
10
RECEPTACLE, MEAT PROBE MAY 7408P088-60 Contact Us For Availability
11
MAY 4006W217-45 MAY 4006W217-45 Contact Us For Availability
11
MAY W10186754 MAY W10186754 Contact Us For Availability
11
MAY W10186755 MAY W10186755 Contact Us For Availability
11
MAY W10186756 MAY W10186756 Contact Us For Availability
11
MAY W10186757 MAY W10186757 Contact Us For Availability
11
SUPPORT, BROIL ELEMENT MAY 3807F754-45 Contact Us For Availability
11
APPLIANCE MANAGER MAY W10292566 Contact Us For Availability
12
SCREEN, SMOKE ELM. MAY 8034P008-60 Contact Us For Availability
12
MAY W10186882 MAY W10186882 Contact Us For Availability
12
MAY 3801F823-51 MAY 3801F823-51 Contact Us For Availability
12
POWER SUPPLY, SMS MAY W10286791 Contact Us For Availability
13
MAY W10286173 MAY W10286173 Contact Us For Availability
13
MAY W10186888 MAY W10186888 Contact Us For Availability
13
GLASS OUTER DOOR ASSY. (BLACK/OILED BRONZE) MAY W10186889 Contact Us For Availability
13
MAY W10186890 MAY W10186890 Contact Us For Availability
13
PROBE, SENSOR MAY 7430P043-60 Contact Us For Availability
13
MAY W10277609 MAY W10277609 Contact Us For Availability
14
MAY W10175989 MAY W10175989 Contact Us For Availability
14
ASSEMBLY, BADGE (WHITE) MAY W10190723 Contact Us For Availability
14
ASSEMBLY, BADGE (BLACK) MAY W10190724 Contact Us For Availability
14
ASSEMBLY, BADGE (STAINLESS) MAY W10214168 Contact Us For Availability
14
ASSEMBLY, BADGE (OILED BRONZE) MAY W10214169 Contact Us For Availability
15
MAY 8026P065-60 MAY 8026P065-60 Contact Us For Availability
15
MAY W10213803 MAY W10213803 Contact Us For Availability
16
MAY 7718P033-60 MAY 7718P033-60 Contact Us For Availability
16
KIT, GLASS ASSY. (STAINLESS) MAY W10176184 Contact Us For Availability
16
MAY W10176224 MAY W10176224 Contact Us For Availability
17
MAY W10175995 MAY W10175995 Contact Us For Availability
17
MAY W10213722 MAY W10213722 Contact Us For Availability
18
MAY W10213724 MAY W10213724 Contact Us For Availability
18
MAY W10176126 MAY W10176126 Contact Us For Availability
19
MAY W10175998 MAY W10175998 Contact Us For Availability
20
MAY W10213792 MAY W10213792 Contact Us For Availability
20
INSULATION, FOIL MAY W10277580 Contact Us For Availability
21
SWITCH, HI LIMIT MAY 7403P899-60 Contact Us For Availability
21
MAY W10305979 MAY W10305979 Contact Us For Availability
22
MAY W10280325 MAY W10280325 Contact Us For Availability
23
MAY W10187003 MAY W10187003 Contact Us For Availability
24
MAY W10277586 MAY W10277586 Contact Us For Availability
25
MAY W10176036 MAY W10176036 Contact Us For Availability
25
TRIM, BOTTOM VENT (WHITE/BLACK/OILED BRONZE) MAY W10238700 Contact Us For Availability
26
MAY W10277423 MAY W10277423 Contact Us For Availability
26
MAY W10277424 MAY W10277424 Contact Us For Availability
27
MAY W10186984 MAY W10186984 Contact Us For Availability
28
LATCH, DOOR MAY W10213755 Contact Us For Availability
29
BULB, OVEN MAY W10169757 Contact Us For Availability
30
MAY W10213745 MAY W10213745 Contact Us For Availability
31
MAY W10176006 MAY W10176006 Contact Us For Availability
33
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
NI
MAY W10186989 MAY W10186989 Contact Us For Availability
NI
MAY W10213750 MAY W10213750 Contact Us For Availability
NI
INSULATION, DOOR (CORNER) MAY W10296505 Contact Us For Availability
NI
PAINT, SPRAY, (WHITE) MAY 350930 Contact Us For Availability
NI
ADHESIVE (LOCTITE (1/3 OZ.) SEALER, SILASTIC MAY 482338 Contact Us For Availability
NI
HARNESS, MEAT PROBE JACK MAY 5171P208-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, SPRAY, (BLACK) MAY 830864 Contact Us For Availability
NI
MAY W10172125 MAY W10172125 Contact Us For Availability
NI
HARNESS, MAIN MAY W10174752 Contact Us For Availability
NI
HARNESS, LATCH W/MEAT PROBE MAY W10209123 Contact Us For Availability
NI
JUMPER, SECONDARY THERMAL FUSE MAY W10277590 Contact Us For Availability
× ![]()
