Model Maytag JIM158XYRS0 ICE MAKER – Common Parts & Diagrams

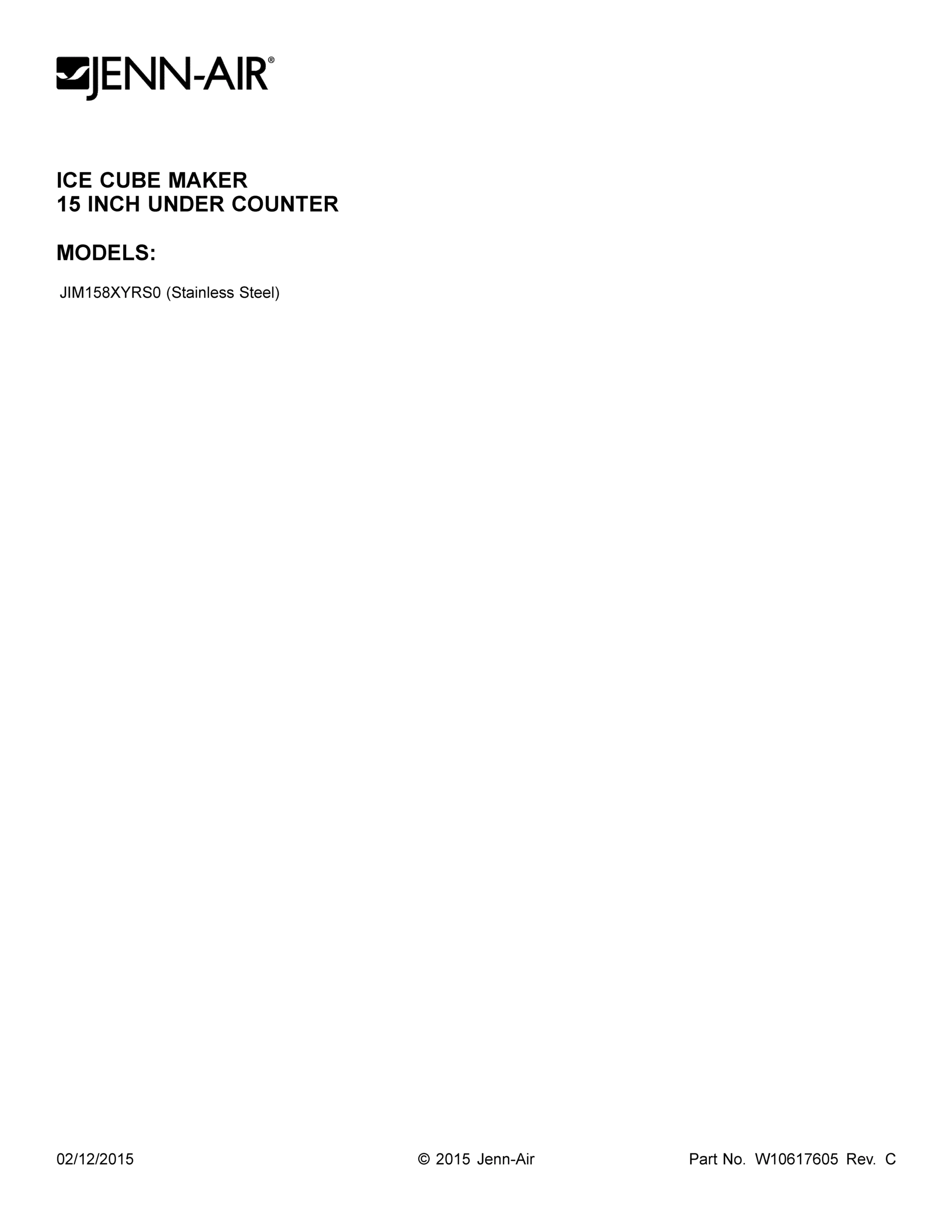

01 - COVER SHEET

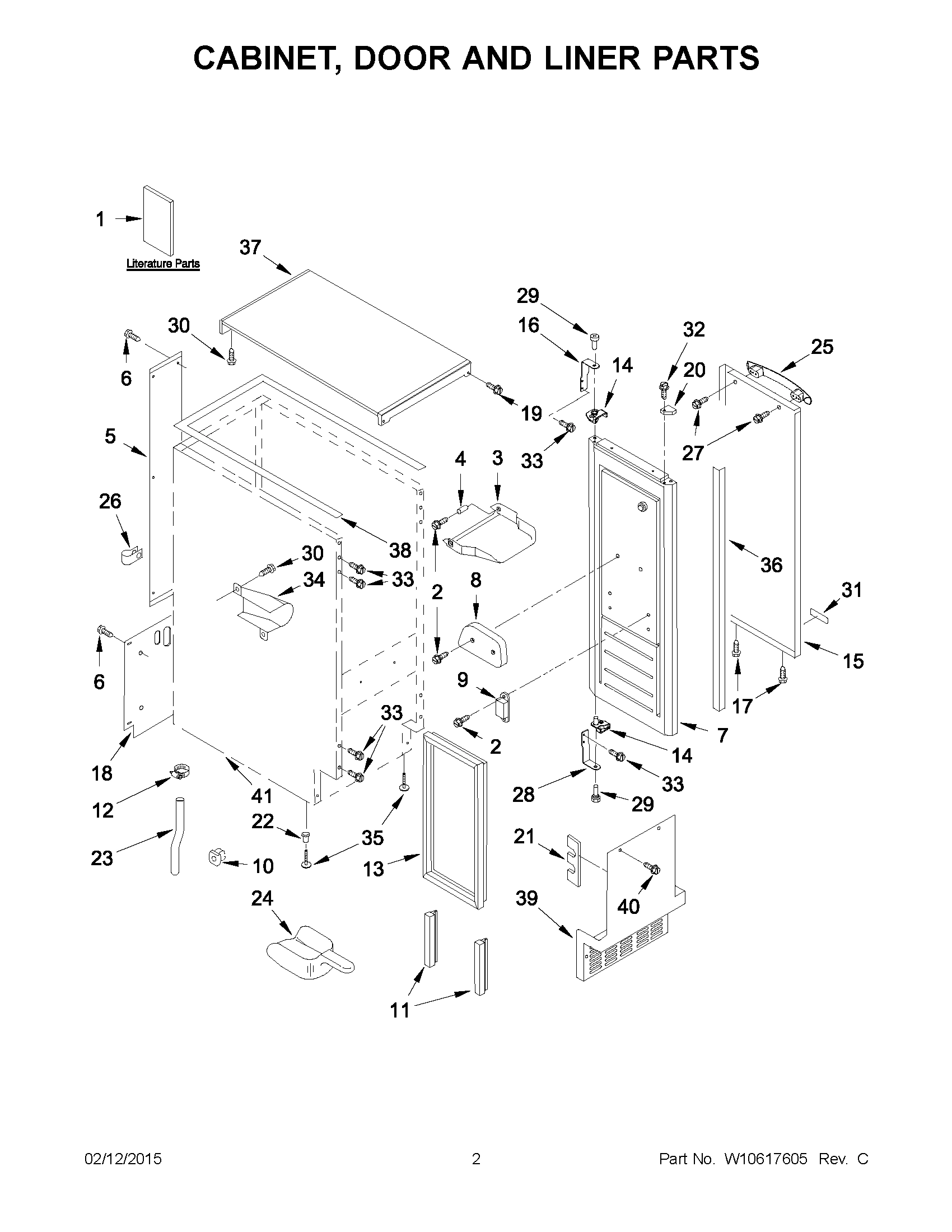

02 - CABINET, DOOR AND LINER PARTS

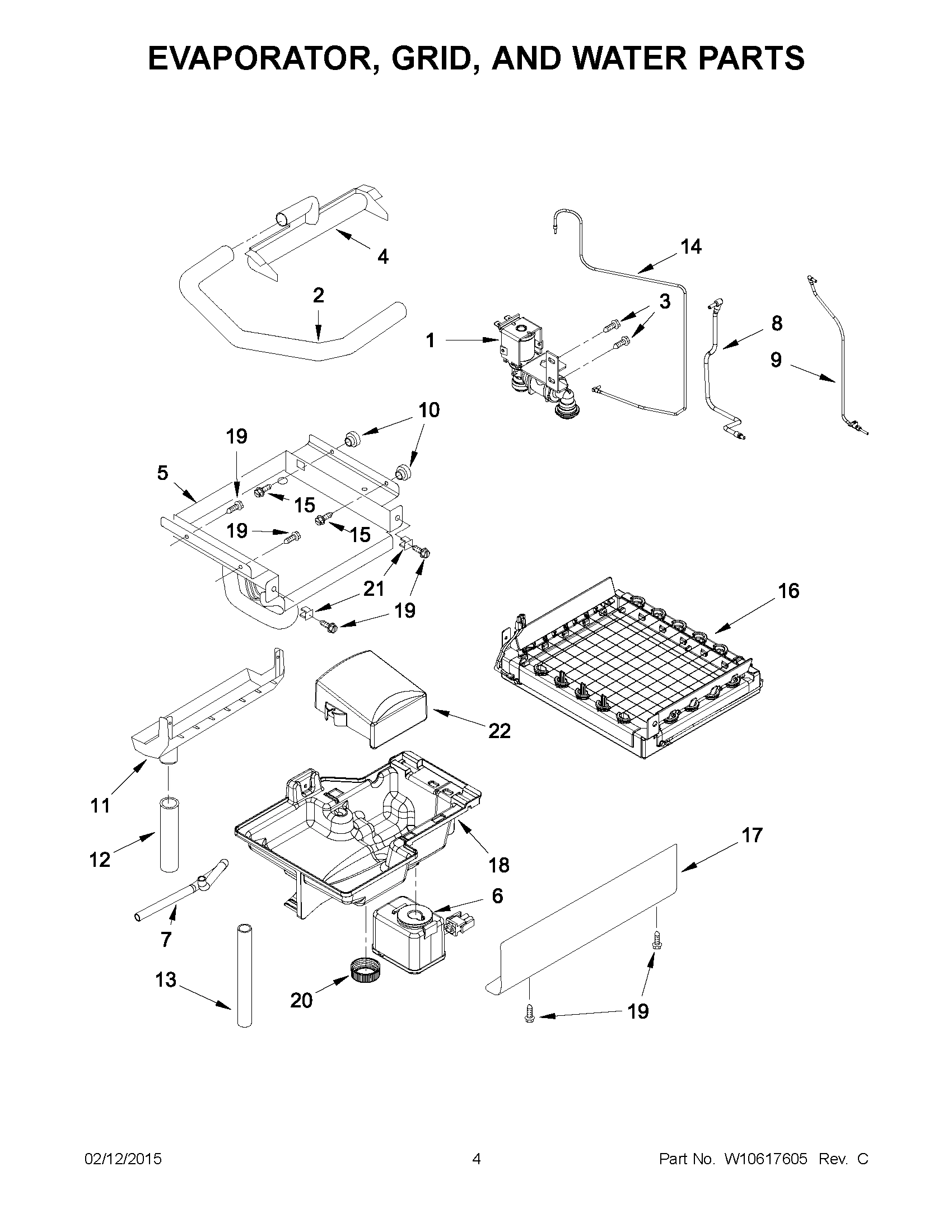

03 - EVAPORATOR, GRID, AND WATER PARTS

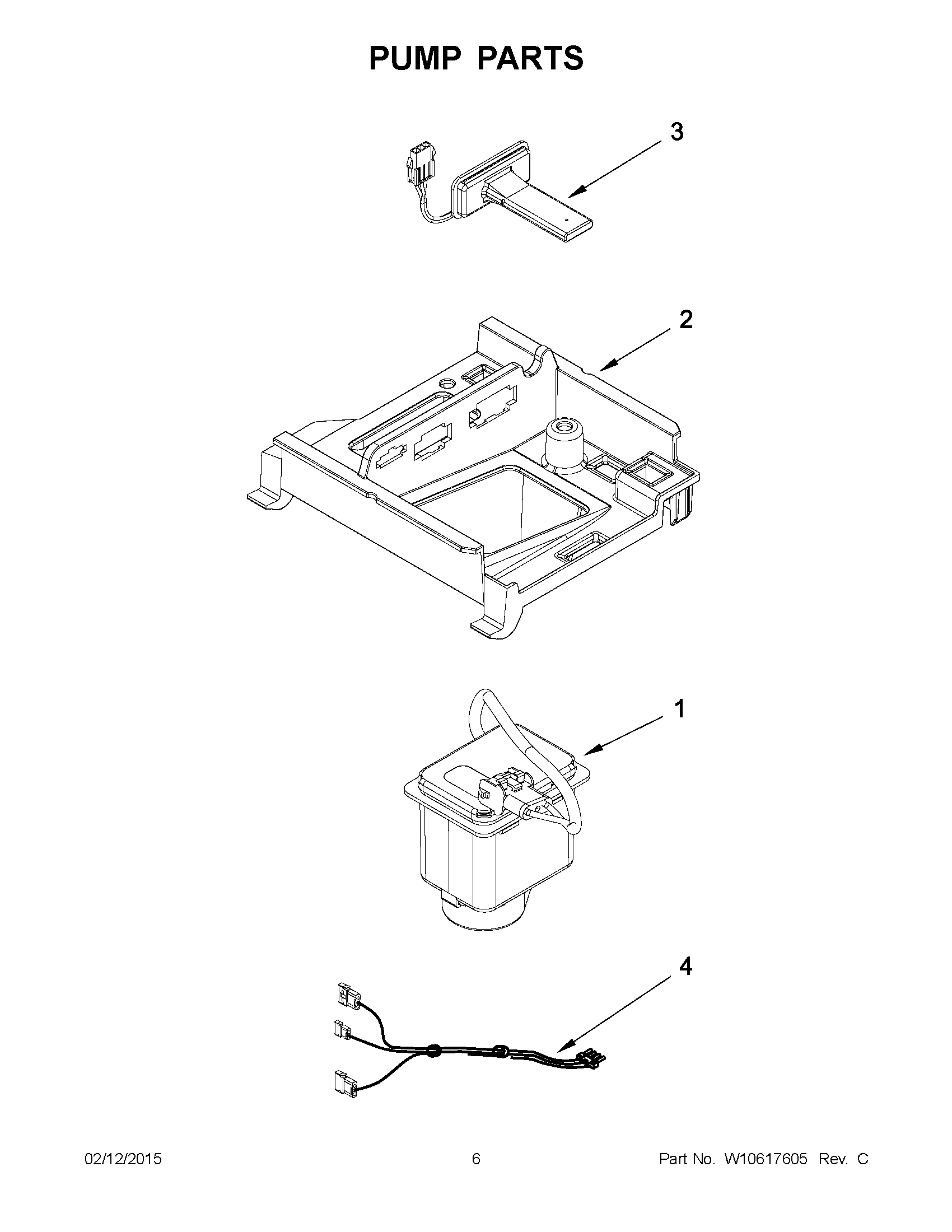

04 - PUMP PARTS

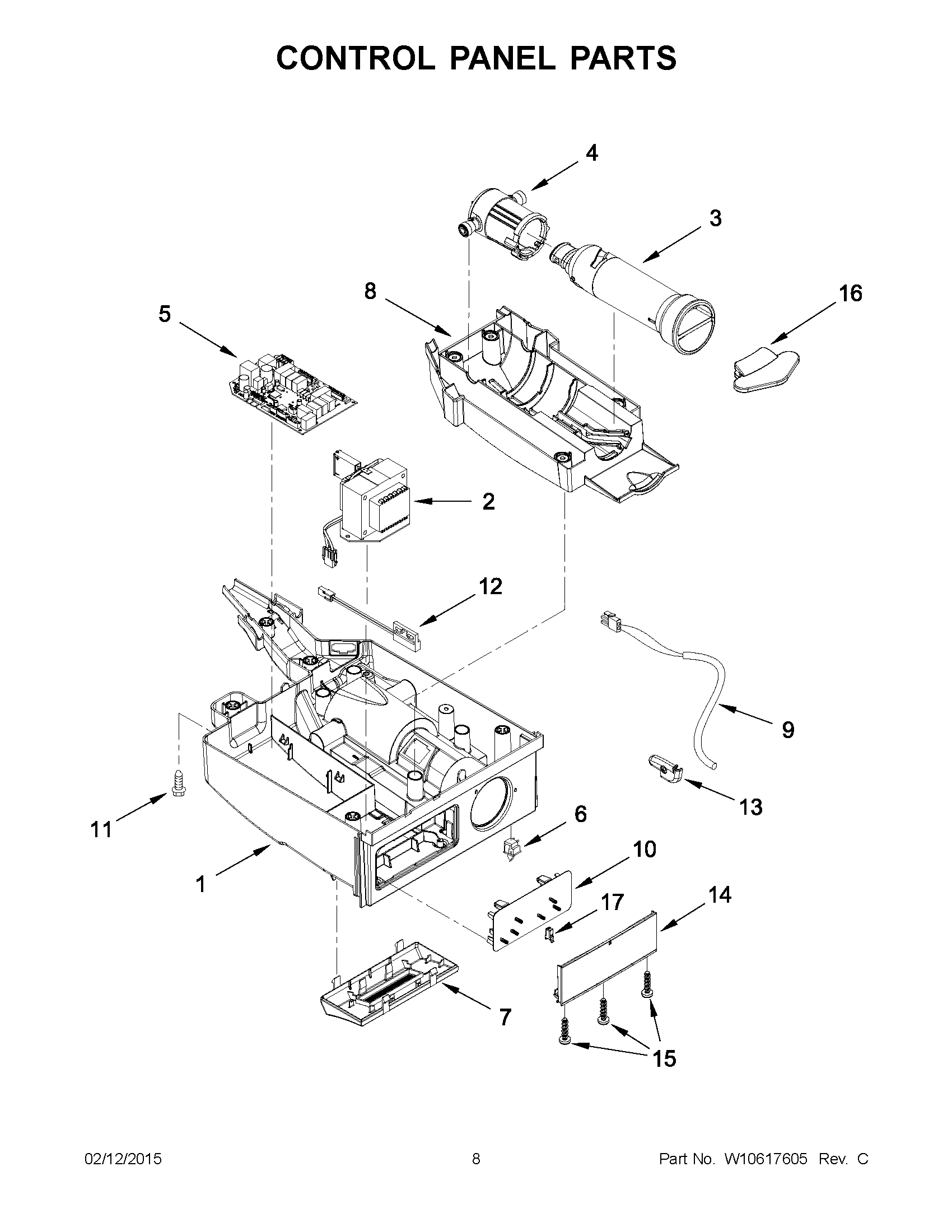

05 - CONTROL PANEL PARTS

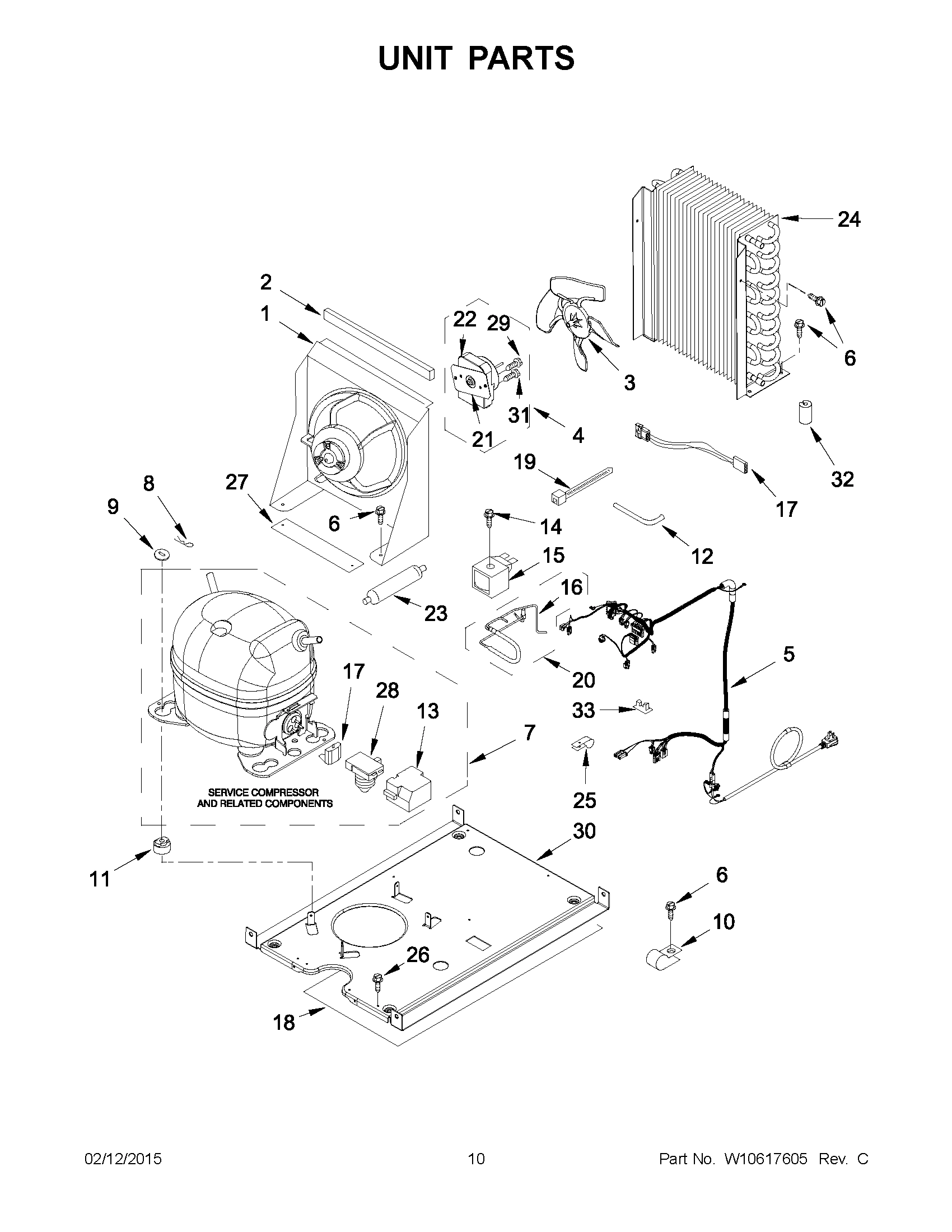

06 - UNIT PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JIM158XYRS0 ICE MAKER
1
MAY W10217918 MAY W10217918 Contact Us For Availability
1
MAY W10489122 MAY W10489122 Contact Us For Availability
1
MAY W10475405 MAY W10475405 Contact Us For Availability
1
BRACKET, FAN MOUNTING MAY 2185532 Contact Us For Availability
1A
MAY W10541636 MAY W10541636 Contact Us For Availability
1B
MAY W10492485 MAY W10492485 Contact Us For Availability
2
MAY W10635837 MAY W10635837 Contact Us For Availability
2
MAY W10489129 MAY W10489129 Contact Us For Availability
2
MAY W10485951 MAY W10485951 Contact Us For Availability
2
MAY 2185675 MAY 2185675 Contact Us For Availability
3
MAY 2185742 MAY 2185742 Contact Us For Availability
3
SCREW MAY 488208 Contact Us For Availability
3
MAY W10485962 MAY W10485962 Contact Us For Availability
3
MAY W10480323 MAY W10480323 Contact Us For Availability
3
MAY 2188935 MAY 2188935 Contact Us For Availability
4
MAY 2185678 MAY 2185678 Contact Us For Availability
4
MAY 2185523 MAY 2185523 Contact Us For Availability
4
MAY W10485955 MAY W10485955 Contact Us For Availability
4
MAY W10555394 MAY W10555394 Contact Us For Availability
4
ASSEMBLY, MOTOR AND MOUNTING PLATE MAY 2315558 Contact Us For Availability
5
MAY 2217394 MAY 2217394 Contact Us For Availability
5
MAY W10218037 MAY W10218037 Contact Us For Availability
5
MAY W10485960 MAY W10485960 Contact Us For Availability
5
MAY W10460856 MAY W10460856 Contact Us For Availability
6
MAY 489442 MAY 489442 Contact Us For Availability
6
MAY W10489125 MAY W10489125 Contact Us For Availability
6
SCREW MAY 304392 Contact Us For Availability
7
MAY W10502166 MAY W10502166 Contact Us For Availability
7
MAY W10539379 MAY W10539379 Contact Us For Availability
7
MAY W10492487 MAY W10492487 Contact Us For Availability
7
MAY W10482479 MAY W10482479 Contact Us For Availability
8
MAY W10486874 MAY W10486874 Contact Us For Availability
8
MAY W10678299 MAY W10678299 Contact Us For Availability
8
MAY W10475416 MAY W10475416 Contact Us For Availability
8
CLIP, COMPRESSOR MOUNTING MAY A201435 Contact Us For Availability
9
MAY W10529250 MAY W10529250 Contact Us For Availability
9
MAY W10218065 MAY W10218065 Contact Us For Availability
9
MAY W10511923 MAY W10511923 Contact Us For Availability
9
SHIM MAY A201441 Contact Us For Availability
10
MAY W10136999 MAY W10136999 Contact Us For Availability
10
MAY 836667 MAY 836667 Contact Us For Availability
10
MAY W10475428 MAY W10475428 Contact Us For Availability
10
MAY 2185960 MAY 2185960 Contact Us For Availability
11
MAY 2217367 MAY 2217367 Contact Us For Availability
11
SCREW (STAINLESS) MAY 3400884 Contact Us For Availability
11
MAY 2185625 MAY 2185625 Contact Us For Availability
11
GROMMET, COMPRESSOR MAY 2217318 Contact Us For Availability
12
MAY W10670799 MAY W10670799 Contact Us For Availability
12
MAY W10635836 MAY W10635836 Contact Us For Availability
12
MAY W10485964 MAY W10485964 Contact Us For Availability
12
MAY W10528572 MAY W10528572 Contact Us For Availability
13
MAY 2217294 MAY 2217294 Contact Us For Availability
13
MAY W10539377 MAY W10539377 Contact Us For Availability
13
MAY W10526623 MAY W10526623 Contact Us For Availability
13
MAY W10364944 MAY W10364944 Contact Us For Availability
14
MAY W10486559 MAY W10486559 Contact Us For Availability
14
MAY W10678300 MAY W10678300 Contact Us For Availability
14
MAY W10545363 MAY W10545363 Contact Us For Availability
14
MAY 489472 MAY 489472 Contact Us For Availability
14A
MAY W10486561 MAY W10486561 Contact Us For Availability
15
SCREW (STAINLESS) MAY 3400886 Contact Us For Availability
15
MAY W10553991 MAY W10553991 Contact Us For Availability
15
MAY 9741232N MAY 9741232N Contact Us For Availability
15
MAY W10206473 MAY W10206473 Contact Us For Availability
16
MAY W10476703 MAY W10476703 Contact Us For Availability
16
MAY W10485968 MAY W10485968 Contact Us For Availability
16
MAY W10566394 MAY W10566394 Contact Us For Availability
16
BODY, SOLENOID VALVE MAY 759113 Contact Us For Availability
17
MAY W10340986 MAY W10340986 Contact Us For Availability
17
MAY 2223877 MAY 2223877 Contact Us For Availability
17
MAY W10520264 MAY W10520264 Contact Us For Availability
18
COVER, UNIT MAY W10136199 Contact Us For Availability
18
MAY W10489137 MAY W10489137 Contact Us For Availability
18
SHIELD, HEAT MAY W10282061 Contact Us For Availability
19
MAY 8534075 MAY 8534075 Contact Us For Availability
19
TIE, WIRE MAY 851095 Contact Us For Availability
20
MAY W10501833 MAY W10501833 Contact Us For Availability
20
MAY W10503850 MAY W10503850 Contact Us For Availability
20
MAY W10534030 MAY W10534030 Contact Us For Availability
20A
MAY W10501849 MAY W10501849 Contact Us For Availability
21
MAY W10532250 MAY W10532250 Contact Us For Availability
21
GROMMET, SCREW MAY 3400909 Contact Us For Availability
21
PLATE, CONDENSER FAN MOTOR MOUNTING MAY 2301979 Contact Us For Availability
22
NUT MAY 3400240 Contact Us For Availability
22
MAY W10512292 MAY W10512292 Contact Us For Availability
22
MAY W10509333 MAY W10509333 Contact Us For Availability
23
MAY 2185989 MAY 2185989 Contact Us For Availability
23
MAY W10200037 MAY W10200037 Contact Us For Availability
24
MAY W10493422 MAY W10493422 Contact Us For Availability
24
MAY 2313624 MAY 2313624 Contact Us For Availability
25
MAY W10553448 MAY W10553448 Contact Us For Availability
25
CLAMP, CABLE MAY 2185788 Contact Us For Availability
26
MAY 2208136 MAY 2208136 Contact Us For Availability
26
MAY 488500 MAY 488500 Contact Us For Availability
27
MAY 3400237 MAY 3400237 Contact Us For Availability
27
PAD, FOAM MAY 2217397 Contact Us For Availability
28
MAY W10476696 MAY W10476696 Contact Us For Availability
28
MAY W10482495 MAY W10482495 Contact Us For Availability
29
MAY 2185712 MAY 2185712 Contact Us For Availability
29
MAY 8281197 MAY 8281197 Contact Us For Availability
30
MAY 489048 MAY 489048 Contact Us For Availability
30
MAY 2217445 MAY 2217445 Contact Us For Availability
31
BADGE, JENN-AIR (STAINLESS) MAY W10214168 Contact Us For Availability
31
MAY 8281196 MAY 8281196 Contact Us For Availability
32
SCREW MAY 348689 Contact Us For Availability
32
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
33
MAY W10495264 MAY W10495264 Contact Us For Availability
33
MAY 1115375 MAY 1115375 Contact Us For Availability
34
MAY 2185927 MAY 2185927 Contact Us For Availability
35
LEG, LEVELING MAY 3374849 Contact Us For Availability
36
GROMMET, EDGE GUARD (BLACK) MAY 2185964 Contact Us For Availability
37
MAY W10320117 MAY W10320117 Contact Us For Availability
38
MAY 2217293 MAY 2217293 Contact Us For Availability
39
MAY 2185571B MAY 2185571B Contact Us For Availability
40
MAY W10531302 MAY W10531302 Contact Us For Availability
NI
REFRIGERATION CHARGE 5.5 OZ (R-134A) MAY N/P Contact Us For Availability
NI
SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MAY 20000008 MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
× ![]()
