Model GE JGSP23WEV1WW Gas Range Or Dual Fuel – Common Parts & Diagrams
BODY PARTS

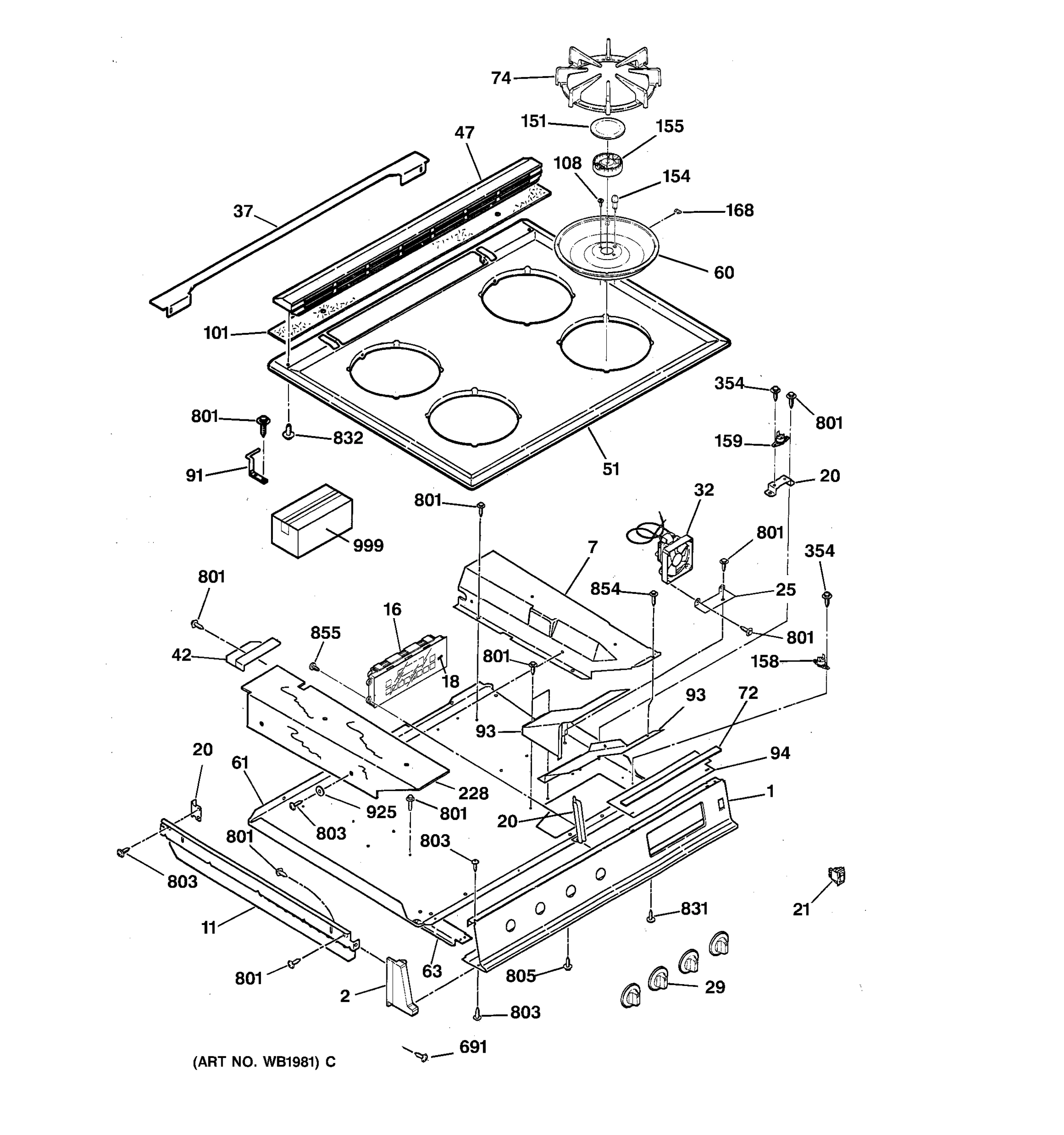

CONTROL PANEL & COOKTOP

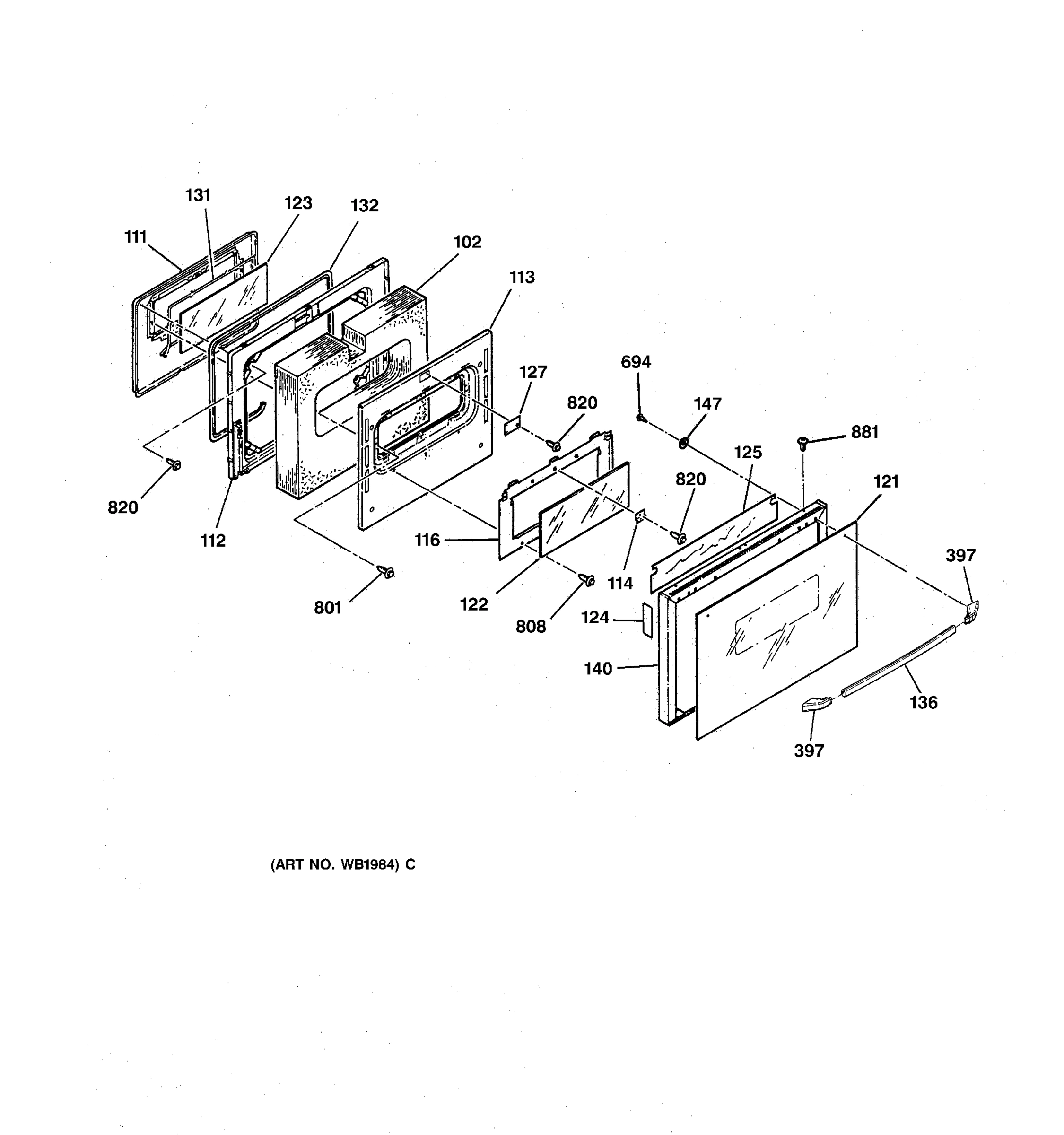

DOOR

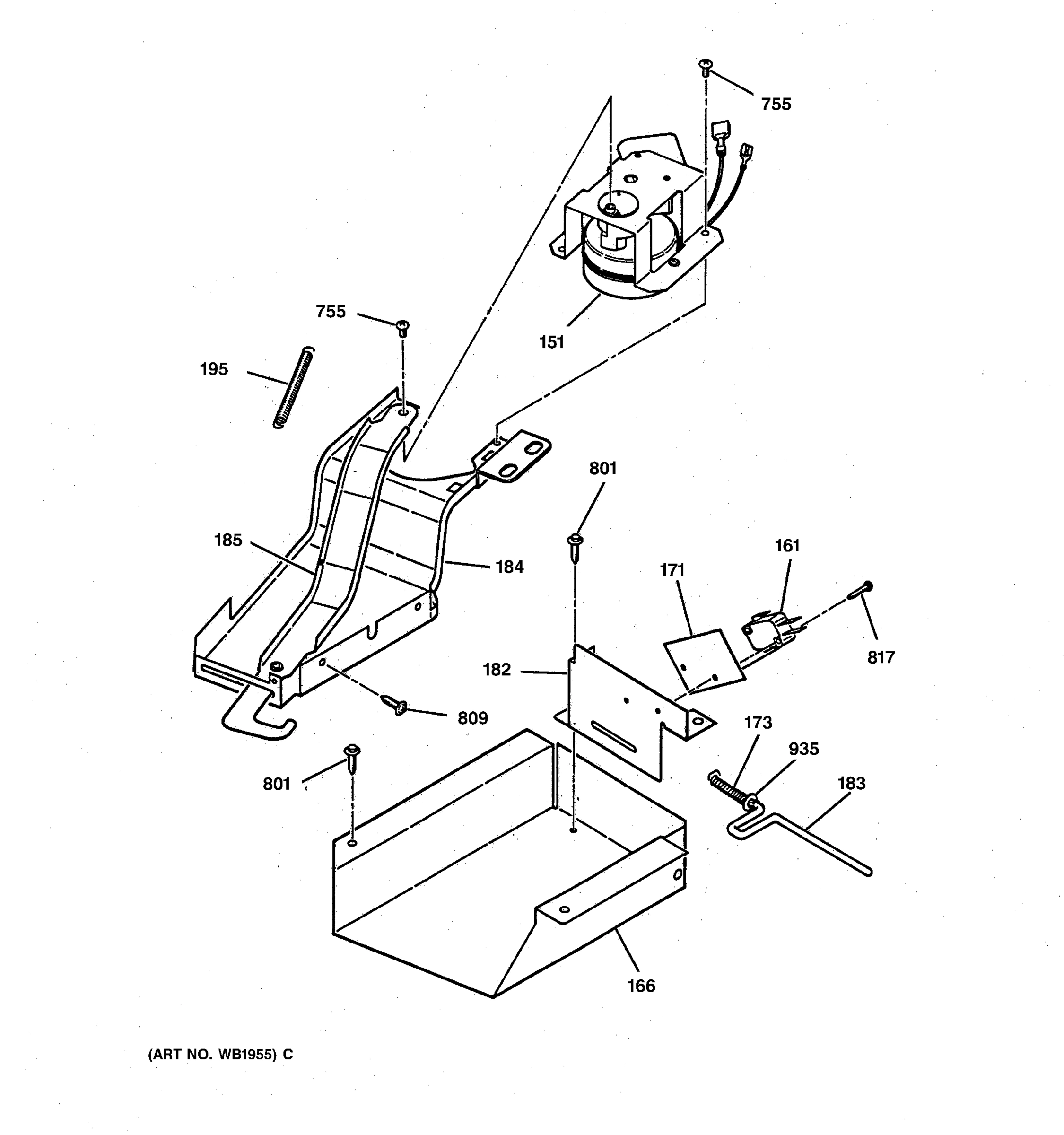

LOCK

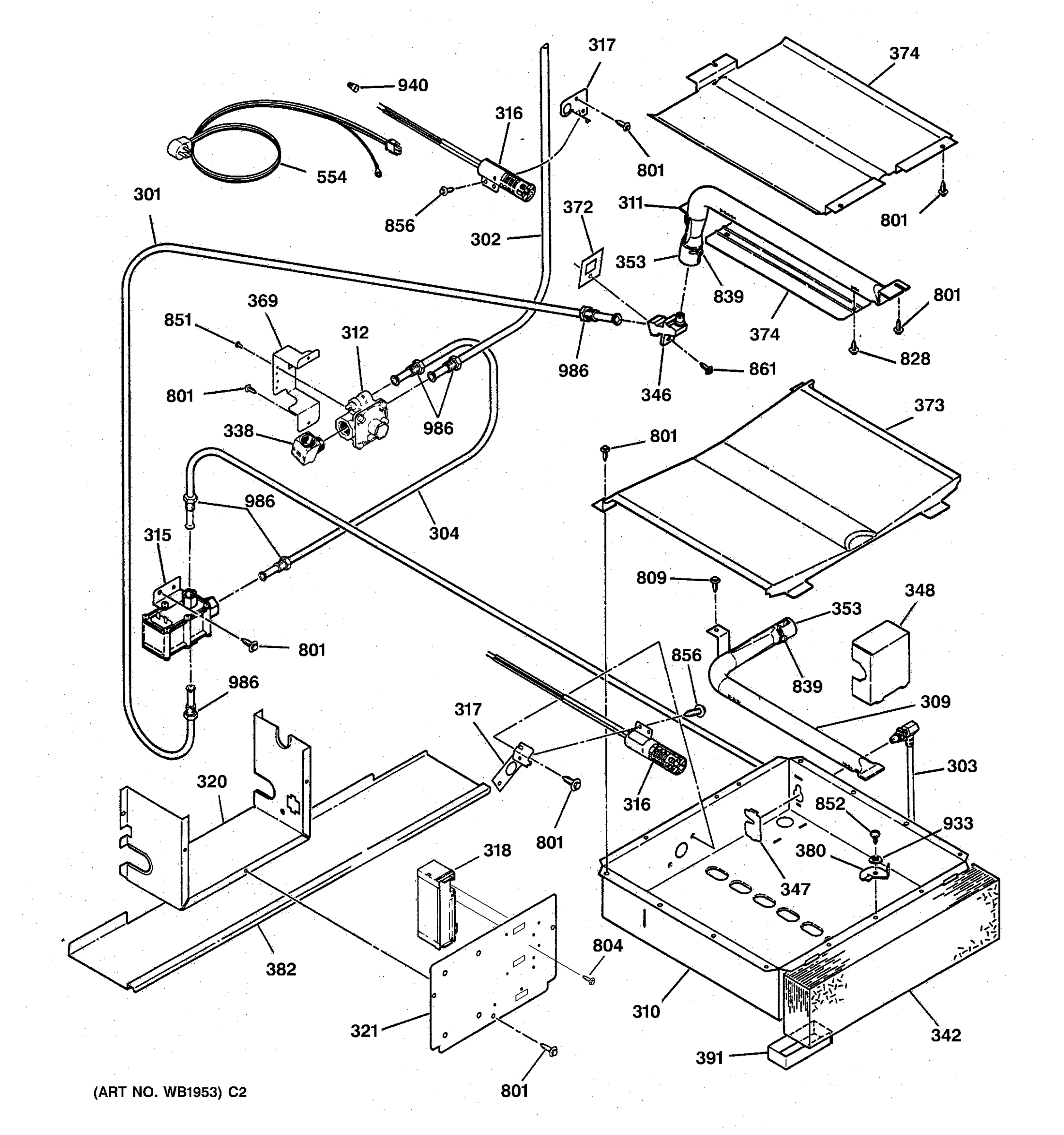

OVEN BURNER PARTS

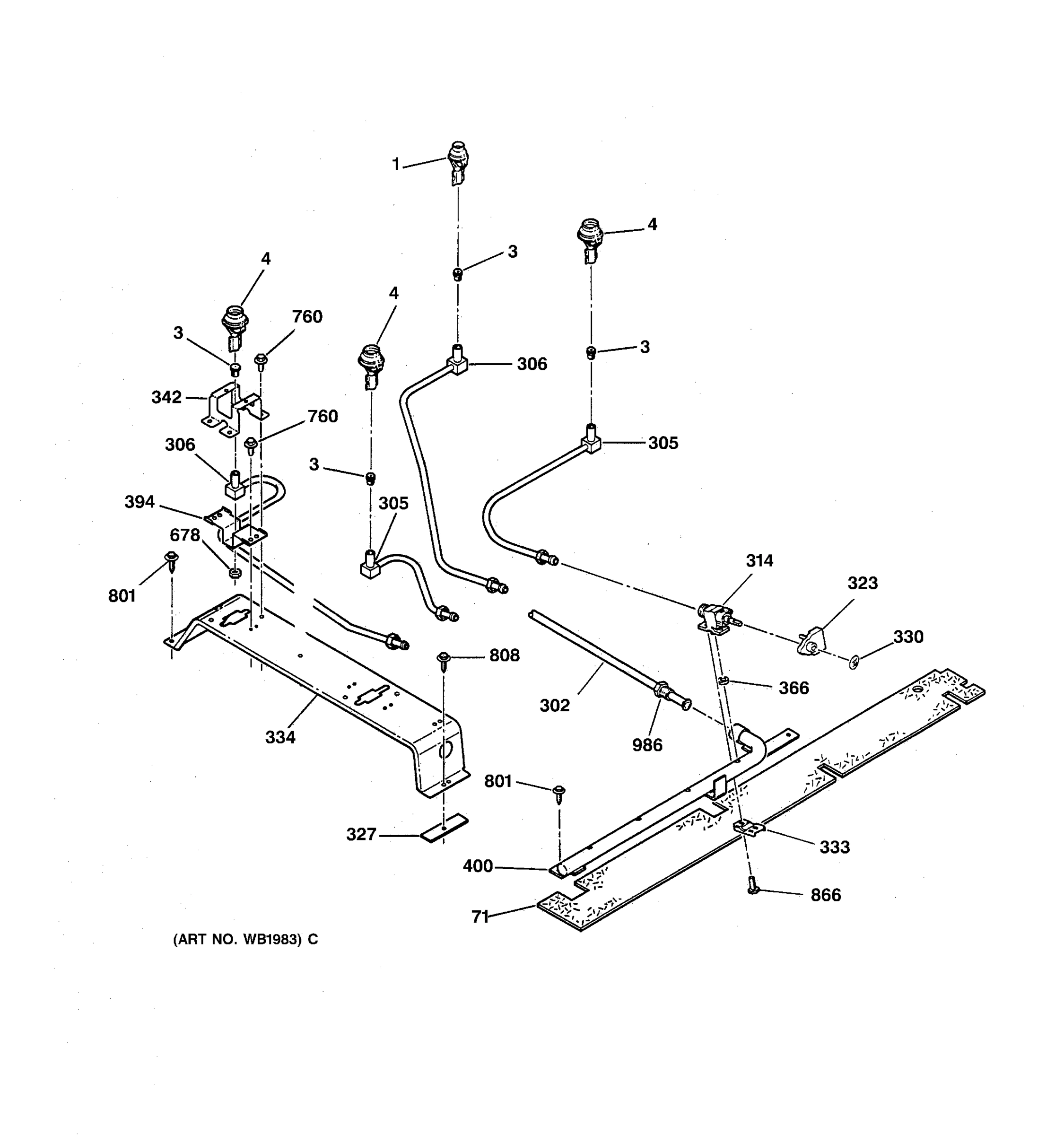

SURFACE BURNER PARTS
Common parts from model GE JGSP23WEV1WW Gas Range Or Dual Fuel
1
GEN WB16K0014 GEN WB16K0014 Contact Us For Availability
1
GEN WB36K5590 GEN WB36K5590 Contact Us For Availability
2
GEN WB54K5410 GEN WB54K5410 Contact Us For Availability
2
GEN WB54K5411 GEN WB54K5411 Contact Us For Availability
3
ORIFICE SPUD-LP-SM GEN WB28K5087 Contact Us For Availability
3
ORIFICE SPUD NG (#43) GEN WB28K0141 Contact Us For Availability
3
ORIF. SPUD (LP) .78LMM GEN WB28K0145 Contact Us For Availability
3
GEN WB28K5095 GEN WB28K5095 Contact Us For Availability
4
GEN WB16K0013 GEN WB16K0013 Contact Us For Availability
7
DUCT FAN GEN WB26M0001 Contact Us For Availability
11
EXTENSION BURN BOX SDE GEN WB64K5038 Contact Us For Availability
16
GEN WB27K5187 GEN WB27K5187 Contact Us For Availability
18
GEN WB27K5222 GEN WB27K5222 Contact Us For Availability
20
GEN WB02K5238 GEN WB02K5238 Contact Us For Availability
20
GEN WB02M0075 GEN WB02M0075 Contact Us For Availability
20
GEN WB02M0077 GEN WB02M0077 Contact Us For Availability
25
GEN WB02X9131 GEN WB02X9131 Contact Us For Availability
29
GEN WB03K5268 GEN WB03K5268 Contact Us For Availability
32
GEN WB26X0100 GEN WB26X0100 Contact Us For Availability
37
GEN WB07K5398 GEN WB07K5398 Contact Us For Availability
42
GEN WB34K5076 GEN WB34K5076 Contact Us For Availability
47
GEN WB34K5213 GEN WB34K5213 Contact Us For Availability
51
GEN WB62K5142 GEN WB62K5142 Contact Us For Availability
60
GEN WB31K5091 GEN WB31K5091 Contact Us For Availability
61
GEN WB64K5092 GEN WB64K5092 Contact Us For Availability
63
BBB STIFFENER GEN WB02X9110 Contact Us For Availability
63
BBB STIFFENER-RT GEN WB02X9132 Contact Us For Availability
71
GEN WB35K5107 GEN WB35K5107 Contact Us For Availability
72
GEN WB06K5014 GEN WB06K5014 Contact Us For Availability
91
GEN WB14X0109 GEN WB14X0109 Contact Us For Availability
91
GEN WB14X0110 GEN WB14X0110 Contact Us For Availability
93
GEN WB34K5074 GEN WB34K5074 Contact Us For Availability
93
GEN WB34K5075 GEN WB34K5075 Contact Us For Availability
94
GEN WB34K5153 GEN WB34K5153 Contact Us For Availability
101
GEN WB35K5037 GEN WB35K5037 Contact Us For Availability
102
OVEN DOOR INSULATION GEN WB35K5026 Contact Us For Availability
111
GEN WB55K5037 GEN WB55K5037 Contact Us For Availability
112
GEN WB55K5038 GEN WB55K5038 Contact Us For Availability
113
RETAINER OV DR INS GEN WB56X1910 Contact Us For Availability
114
GEN WB02M0001 GEN WB02M0001 Contact Us For Availability
116
PLATE GLASS MTG GEN WB02X9178 Contact Us For Availability
121
GEN WB57K5234 GEN WB57K5234 Contact Us For Availability
122
GEN WB57K5141 GEN WB57K5141 Contact Us For Availability
123
GLASS OV DR INNER GEN WB56X1907 Contact Us For Availability
124
GEN WB35K5104 GEN WB35K5104 Contact Us For Availability
125
GEN WB34K5091 GEN WB34K5091 Contact Us For Availability
127
GEN WB34K5227 GEN WB34K5227 Contact Us For Availability
136
GEN WB15T10031 GEN WB15T10031 Contact Us For Availability
140
GEN WB55K5053 GEN WB55K5053 Contact Us For Availability
147
SPACER DR HDL (BLK) GEN WB02K5312 Contact Us For Availability
151
GEN WB29K0042 GEN WB29K0042 Contact Us For Availability
151
GEN WB29K0045 GEN WB29K0045 Contact Us For Availability
155
HEAD BURNER MED GEN WB16K0011 Contact Us For Availability
155
HEAD BURNER SM GEN WB16K0012 Contact Us For Availability
161
GEN WB24X0416 GEN WB24X0416 Contact Us For Availability
166
GEN WB02X9126 GEN WB02X9126 Contact Us For Availability
168
ELECTRODE CLIP GEN WB01K0056 Contact Us For Availability
171
SWITCH INSULATOR GEN WB02X9129 Contact Us For Availability
173
GEN WB09X0242 GEN WB09X0242 Contact Us For Availability
182
GEN WB06X0007 GEN WB06X0007 Contact Us For Availability
183
PIN ACTUATOR SWITCH GEN WB02X9128 Contact Us For Availability
184
GEN WB02K5237 GEN WB02K5237 Contact Us For Availability
185
LOCK LEVER ASM GEN WB15K5015 Contact Us For Availability
195
SPRING LOCK GEN WB09X0243 Contact Us For Availability
221
GEN WB63K5191 GEN WB63K5191 Contact Us For Availability
221
BODY SIDE-SMOOTH GEN WB63X0415 Contact Us For Availability
222
LOWER FT PANEL-WHITE GEN WB56K5028 Contact Us For Availability
224
GEN WB02M0011 GEN WB02M0011 Contact Us For Availability
225
FLUE DEFLECTOR GASKET GEN WB02X9143 Contact Us For Availability
226
GEN WB15K5096 GEN WB15K5096 Contact Us For Availability
228
FLUE DEFL INSULATION-FR GEN WB02X9430 Contact Us For Availability
228
GEN WB35K5044 GEN WB35K5044 Contact Us For Availability
231
INSULATION-TOP & SIDE GEN WB02X9153 Contact Us For Availability
232
GEN WB35K5035 GEN WB35K5035 Contact Us For Availability
233
GEN WB02X9140 GEN WB02X9140 Contact Us For Availability
234
GEN WB35K5077 GEN WB35K5077 Contact Us For Availability
235
FLUE BOX INSULATION GEN WB02X9394 Contact Us For Availability
241
RACK OVN GEN WB48X0208 Contact Us For Availability
257
LAMP OVEN GEN BUY LOCAL Contact Us For Availability
258
OV LAMP LENS GASKET GEN WB02X9151 Contact Us For Availability
259
OV LAMP LENS GEN WB36X0754 Contact Us For Availability
260
GEN WB02K5303 GEN WB02K5303 Contact Us For Availability
262
GEN WB07K5343 GEN WB07K5343 Contact Us For Availability
262
GEN WB07K5344 GEN WB07K5344 Contact Us For Availability
266
GEN WB02K5334 GEN WB02K5334 Contact Us For Availability
267
SUPPORT DRAW RT & LT GEN WB56M0003 Contact Us For Availability
286
OV DR SPRING GEN WB09X0244 Contact Us For Availability
291
COVER ENAM WIPE GEN WB02X9152 Contact Us For Availability
292
BLOCK SLIDE REAR GEN WB02X9146 Contact Us For Availability
293
BLOCK SLIDE FRT GEN WB02X9148 Contact Us For Availability
296
GEN WB01M0018 GEN WB01M0018 Contact Us For Availability
301
GEN WB28K5016 GEN WB28K5016 Contact Us For Availability
302
TUBE 3/8 W/NUTS 65 INCH GEN WB28K5019 Contact Us For Availability
303
GEN WB28K5025 GEN WB28K5025 Contact Us For Availability
304
GEN WB28K5023 GEN WB28K5023 Contact Us For Availability
305
GEN WB28K5070 GEN WB28K5070 Contact Us For Availability
305
GEN WB28K5074 GEN WB28K5074 Contact Us For Availability
306
GEN WB28K5073 GEN WB28K5073 Contact Us For Availability
306
GEN WB28K5072 GEN WB28K5072 Contact Us For Availability
309
BURNER OV GEN WB28X0089 Contact Us For Availability
311
BURNER BRO GEN WB28X0088 Contact Us For Availability
312
GEN WB19K5020 GEN WB19K5020 Contact Us For Availability
314
GEN WB19K5027 GEN WB19K5027 Contact Us For Availability
314
GEN WB19K5028 GEN WB19K5028 Contact Us For Availability
315
VALVE CONT DUAL GEN WB21X0475 Contact Us For Availability
317
BRACKET IGN BR BURN GEN WB02X9155 Contact Us For Availability
318
SPARK MODULE GEN WB13K0025 Contact Us For Availability
320
GEN WB34K5146 GEN WB34K5146 Contact Us For Availability
321
GEN WB34K5226 GEN WB34K5226 Contact Us For Availability
330
GEN WB02K5125 GEN WB02K5125 Contact Us For Availability
334
GEN WB02K5361 GEN WB02K5361 Contact Us For Availability
338
GEN WB06X0080 GEN WB06X0080 Contact Us For Availability
342
GEN WB02K5380 GEN WB02K5380 Contact Us For Availability
342
GEN WB02K5381 GEN WB02K5381 Contact Us For Availability
342
GEN WB06X0081 GEN WB06X0081 Contact Us For Availability
346
ORIFICE FITTING BR GEN WB02X9156 Contact Us For Availability
348
SHIELD ORIF FIG GEN WB02X9159 Contact Us For Availability
353
SHUTTER AIR (RPR) GEN WB02X9014 Contact Us For Availability
366
GASKET GAS VALVE GEN WB06X0091 Contact Us For Availability
369
GEN WB02K5227 GEN WB02K5227 Contact Us For Availability
372
GEN WB06K5015 GEN WB06K5015 Contact Us For Availability
373
OVEN BURNER BAFFLE GEN WB49X0631 Contact Us For Availability
374
BAFFLE BURN BRO-253 GEN WB49X0629 Contact Us For Availability
374
BROILER BURNER BAFFLE-LO GEN WB49X0630 Contact Us For Availability
382
GEN WB34K5147 GEN WB34K5147 Contact Us For Availability
391
RETAINER OV ORIF INS GEN WB02X9176 Contact Us For Availability
394
GEN WB02K5367 GEN WB02K5367 Contact Us For Availability
397
GEN WB07K5319 GEN WB07K5319 Contact Us For Availability
400
GEN WB28K5008 GEN WB28K5008 Contact Us For Availability
678
GEN WB01K5196 GEN WB01K5196 Contact Us For Availability
803
GEN WB01X1176 GEN WB01X1176 Contact Us For Availability
805
GEN WB01X1113 GEN WB01X1113 Contact Us For Availability
811
SCREW TC8-32X.375FLNI GEN WB01X1172 Contact Us For Availability
815
SCREW GEN WB01K5139 Contact Us For Availability
817
SCREW ST4ABX.750FLPK GEN WB01X1346 Contact Us For Availability
831
GEN WB01X1132 GEN WB01X1132 Contact Us For Availability
839
AIR SHUTTER SCREW GEN WB01X1124 Contact Us For Availability
851
GEN WB01X5691 GEN WB01X5691 Contact Us For Availability
852
SCREW SHLDR SP PAN NI GEN WB01X1179 Contact Us For Availability
854
SCREW-BRT. NI. GEN WB01X1164 Contact Us For Availability
855
GEN WB01X1295 GEN WB01X1295 Contact Us For Availability
861
GEN WB01X1307 GEN WB01X1307 Contact Us For Availability
866
GEN WB01X1428 GEN WB01X1428 Contact Us For Availability
881
GEN WB01X1271 GEN WB01X1271 Contact Us For Availability
933
GEN WB01X1256 GEN WB01X1256 Contact Us For Availability
936
GEN WB02X9103 GEN WB02X9103 Contact Us For Availability
979
SPACER GEN WB01X1177 Contact Us For Availability
986
INVERTED NUT 3/8" GEN WB01X1117 Contact Us For Availability
999
GEN 31-10168 GEN 31-10168 Contact Us For Availability
999
GEN 31-13226 GEN 31-13226 Contact Us For Availability
999
GEN 49-8598 GEN 49-8598 Contact Us For Availability
999
GEN WB18K5354 GEN WB18K5354 Contact Us For Availability
999
GEN WB18K5375 GEN WB18K5375 Contact Us For Availability
999
GEN WB18K5376 GEN WB18K5376 Contact Us For Availability
999
GEN WB18K5518 GEN WB18K5518 Contact Us For Availability
999
GEN WB18K5557 GEN WB18K5557 Contact Us For Availability
999
GEN WB18K5638 GEN WB18K5638 Contact Us For Availability
× ![]()
