Model Whirlpool JGS9900CDS02 GAS RANGE – Common Parts & Diagrams
01 - COOKTOP PARTS

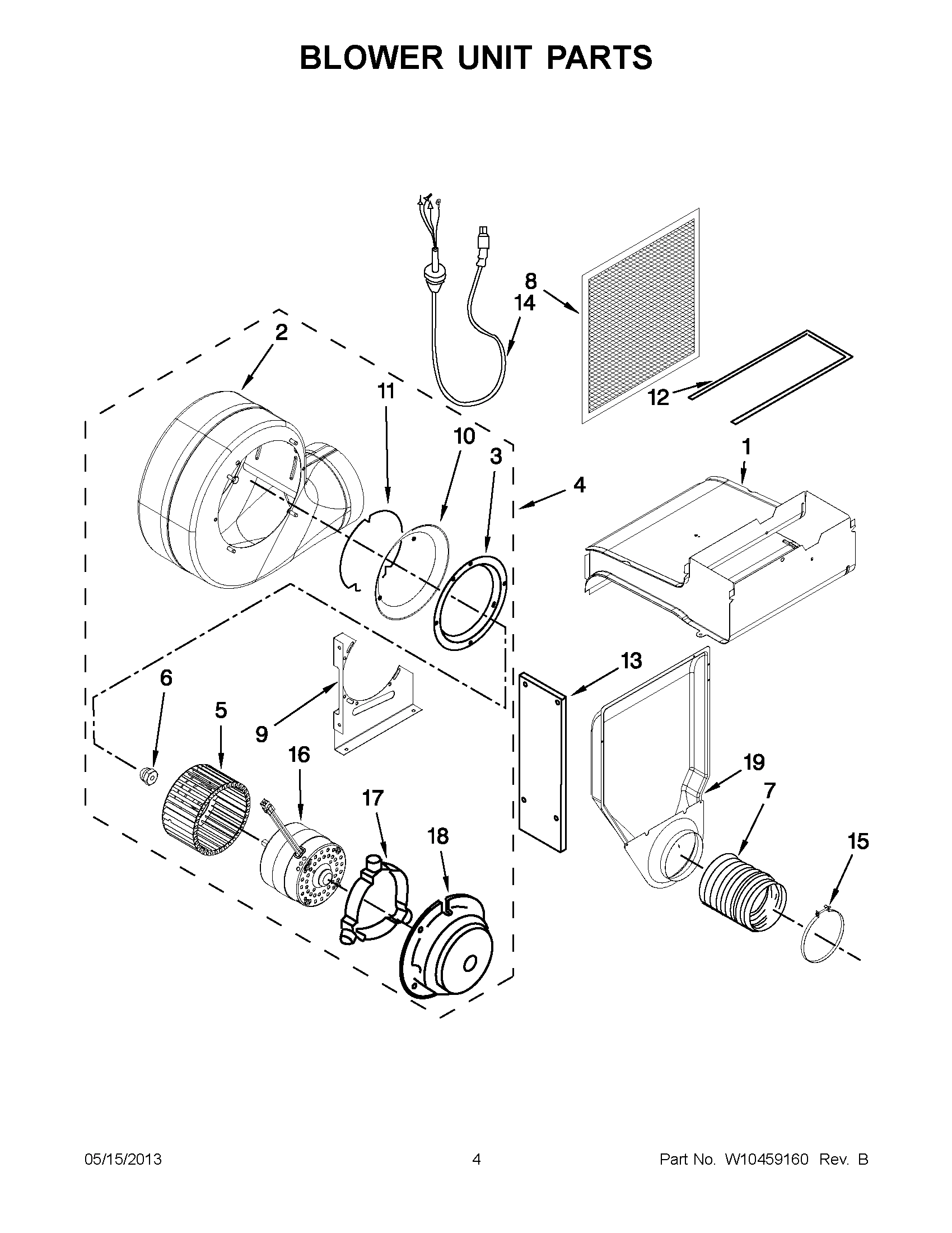

02 - BLOWER UNIT PARTS

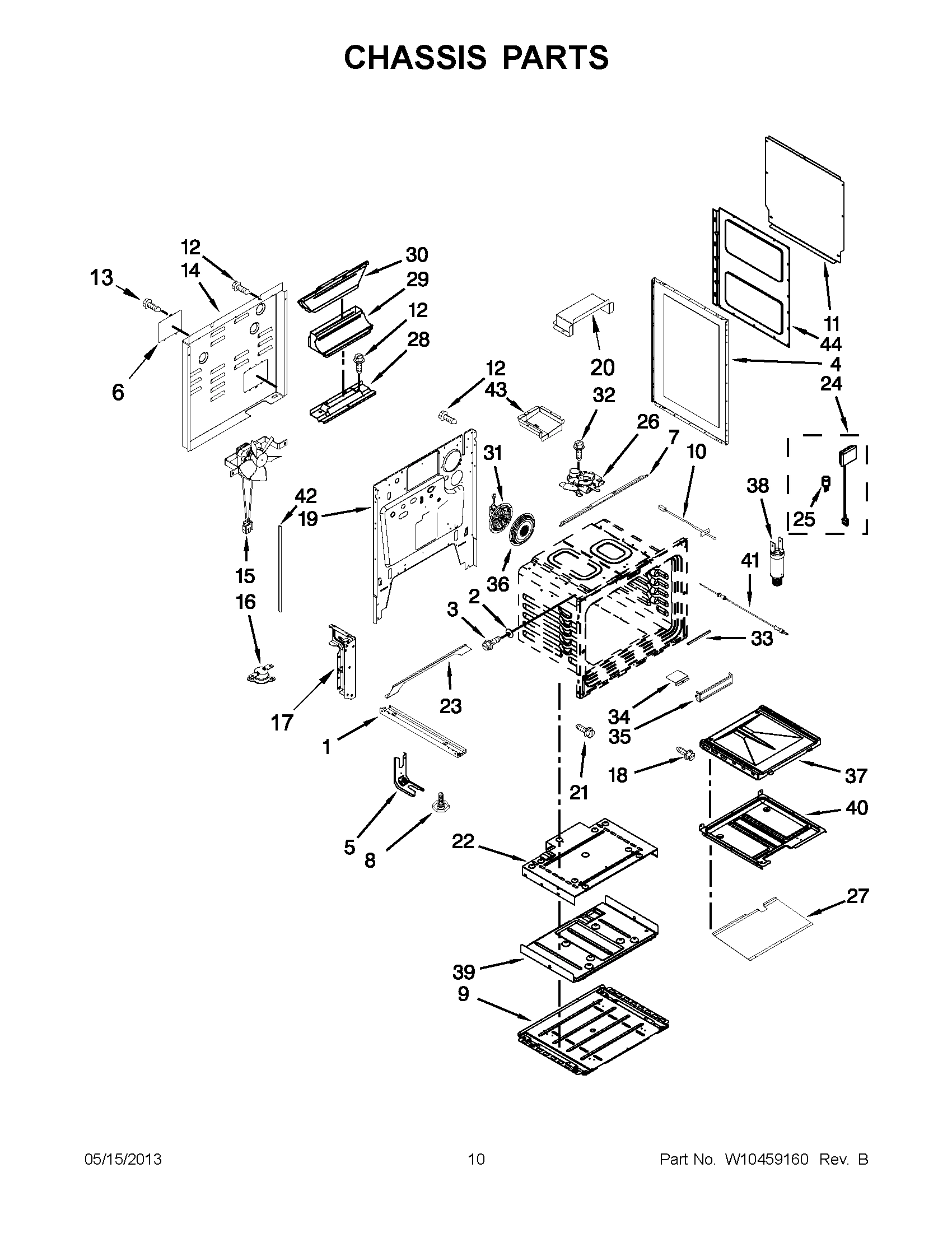

05 - CHASSIS PARTS

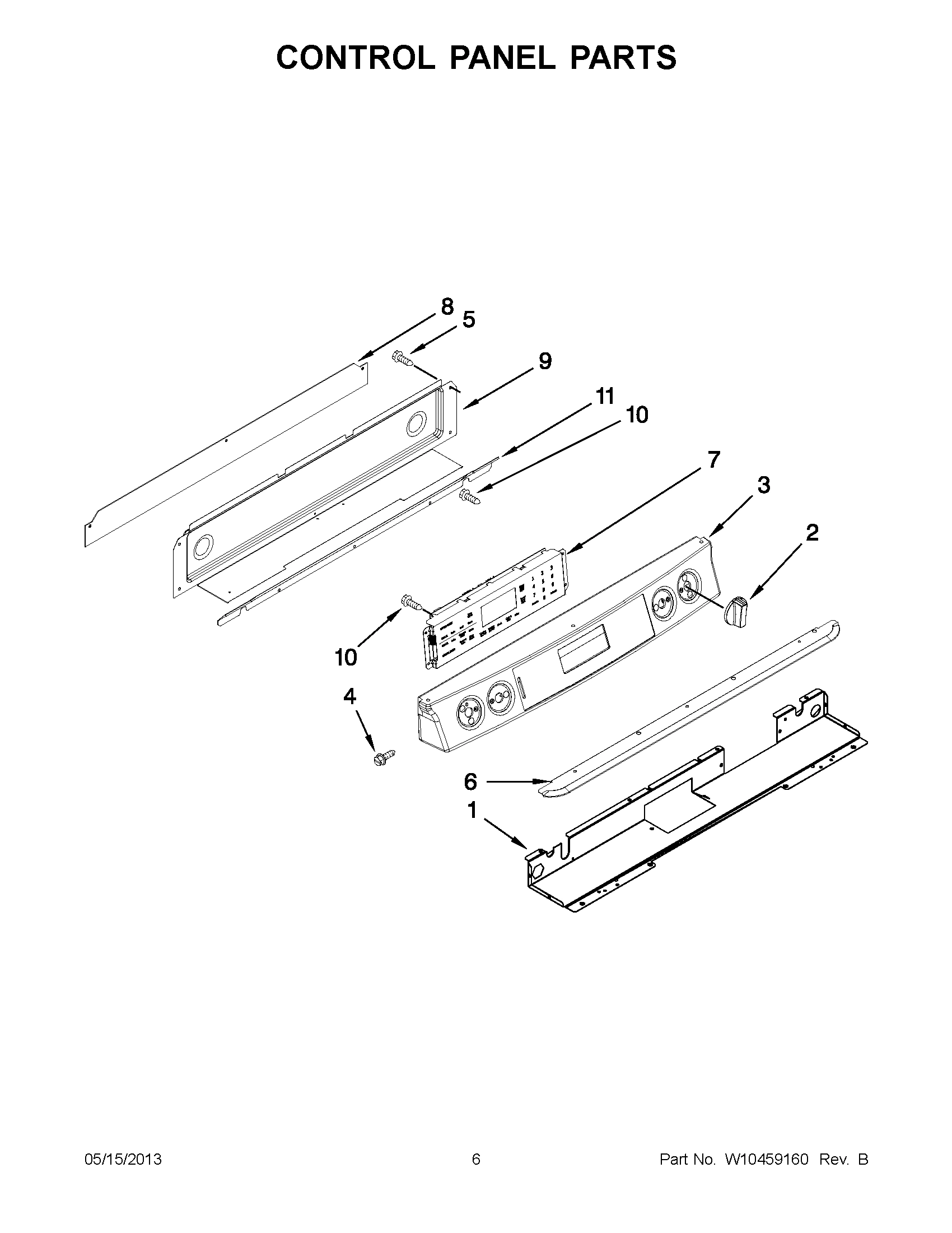

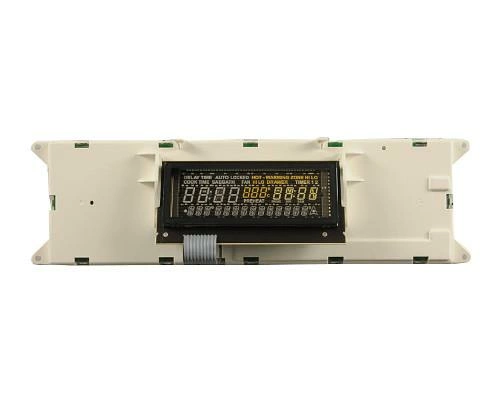

03 - CONTROL PANEL PARTS

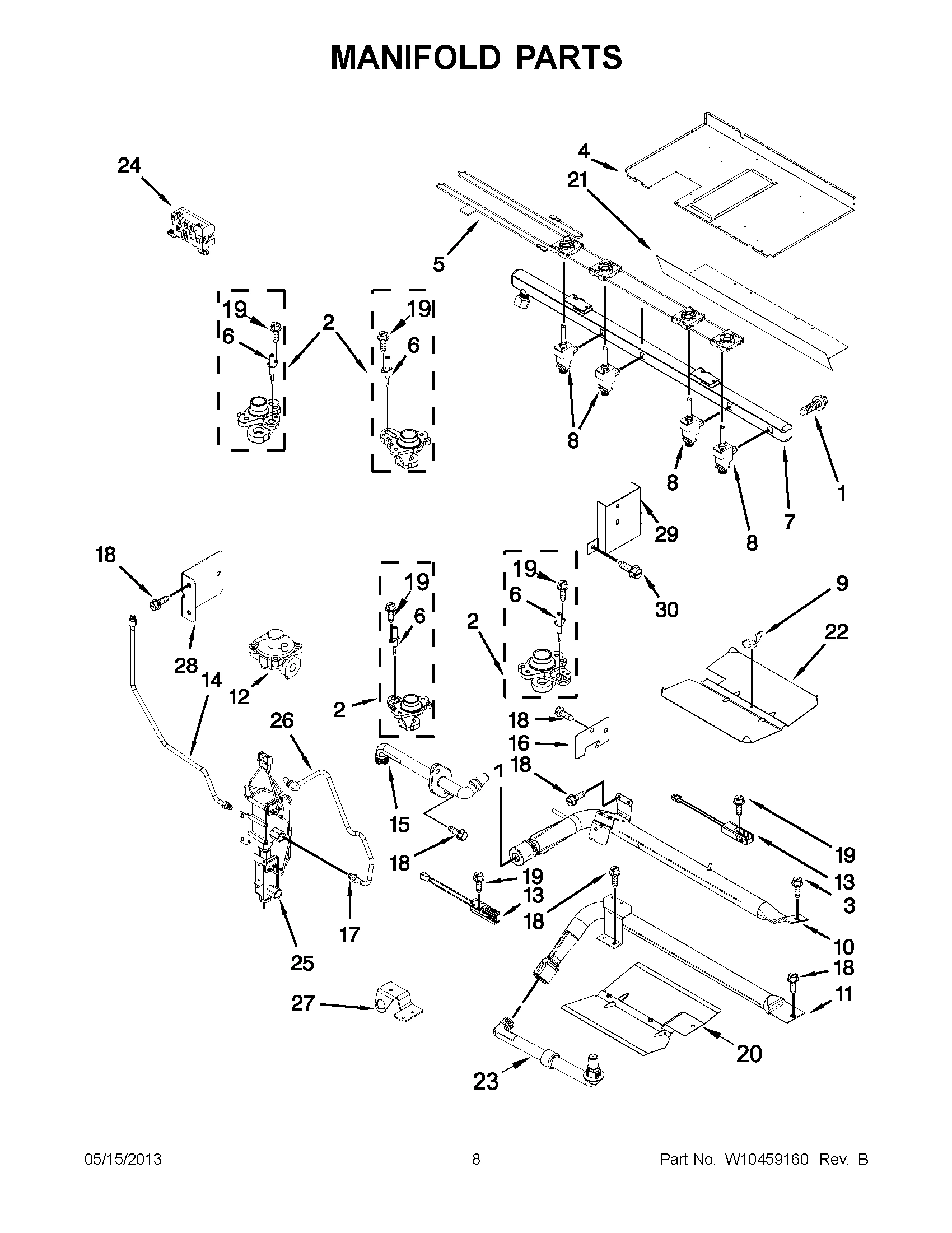

04 - MANIFOLD PARTS

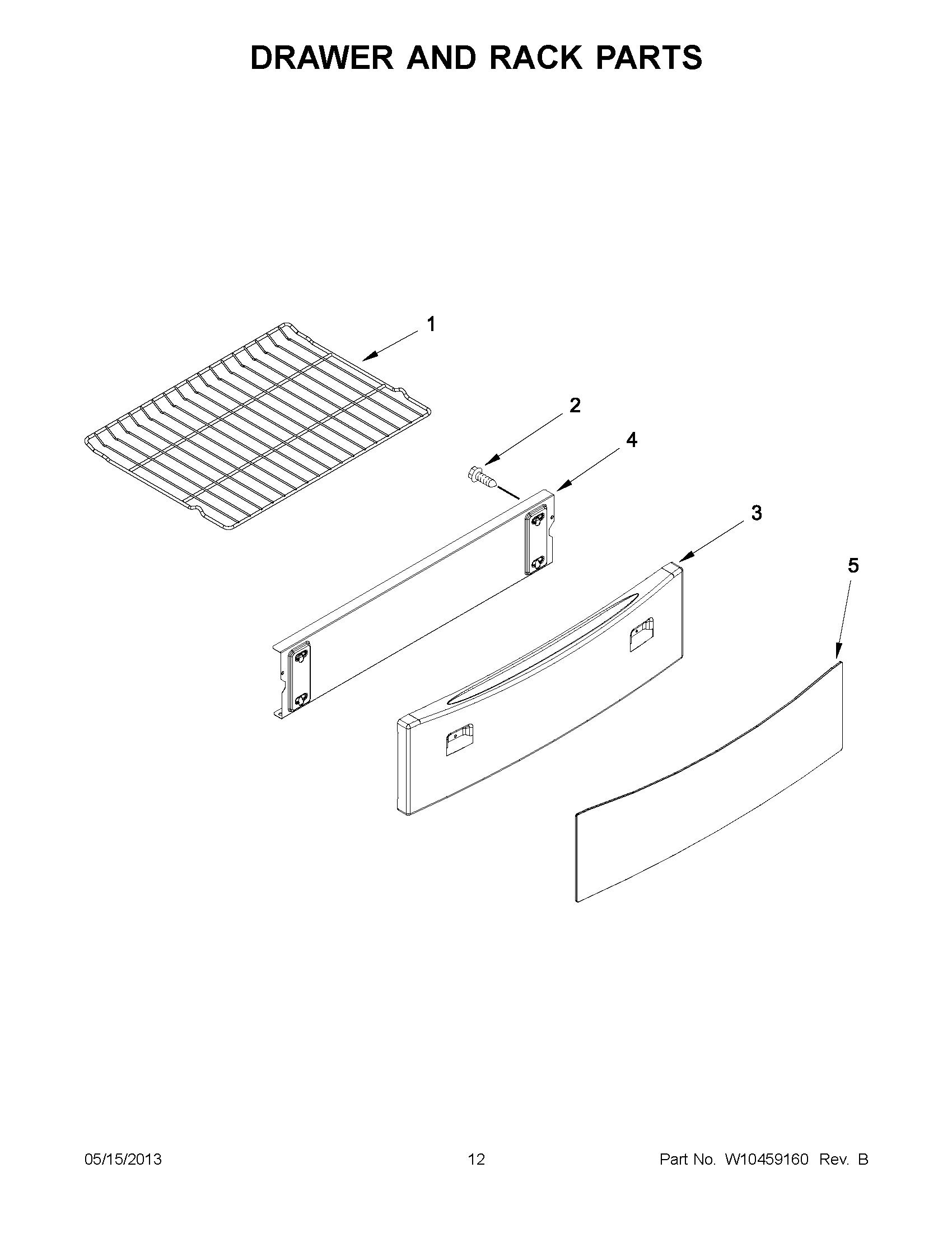

06 - DRAWER AND RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)

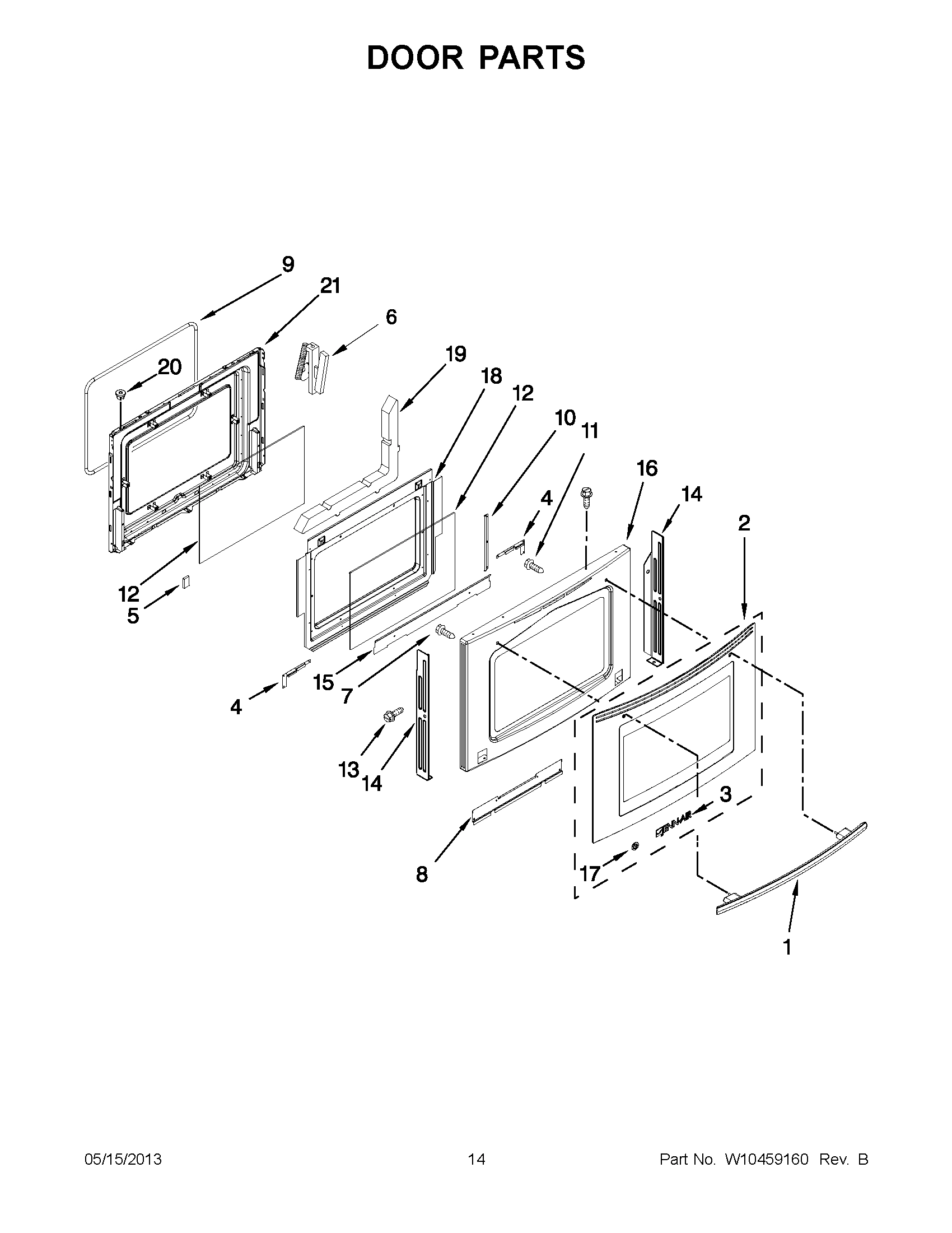

07 - DOOR PARTS
Common parts from model Whirlpool JGS9900CDS02 GAS RANGE
1
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
1
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
1
SUPPORT, PANEL WPL 3807F75151 Contact Us For Availability
1
SCREW WPL 7101P63960 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
2
TOP, MAIN (BLACK) WPL W10235921 Contact Us For Availability
2
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT) WPL 7527P06160 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT REAR) WPL 7527P08560 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT REAR) WPL 7527P08660 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRONT) WPL 7527P08760 Contact Us For Availability
2
ASSEMBLY, DOOR GLASS (STAINLESS) WPL W10301578 Contact Us For Availability
3
SCREW, SHOULDER WPL 7101P60460 Contact Us For Availability
3
Screw WPL 7101P36060 Contact Us For Availability
3
PANEL, DRAWER FRONT (BLACK) WPL 2416F08670 Contact Us For Availability
4
ASSEMBLY, BLOWER MOTOR WPL W10273267 Contact Us For Availability
4
PANEL, SHIELD (LEFT) WPL 2618F20251 Contact Us For Availability
4
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
4
BOTTOM, BURNER WPL 4011F47651 Contact Us For Availability
4
HANGER, ACCESS PANEL WPL 3806F01180 Contact Us For Availability
4
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
4
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
5
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
5
Screw WPL 7101P43460 Contact Us For Availability
5
SWITCH, RE-IGNITION (LEFT FRONT & LEFT REAR) WPL 7450P00360 Contact Us For Availability
5
SWITCH, RE-IGNITION (RIGHT FRONT & RIGHT REAR WPL 7450P00460 Contact Us For Availability
5
WASHER WPL 7109P08260 Contact Us For Availability
6
PANEL, ACCESS WPL 4005F61251 Contact Us For Availability
6
SHIELD, VENT WPL 3604F44645 Contact Us For Availability
6
IGNITOR, COOKTOP WPL 7432P12160 Contact Us For Availability
6
HINGE, DOOR WPL 7106P14360 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
PIPE,MANIFOLD WPL 7513P47360 Contact Us For Availability
8
FILTER, GREASE WPL 8310P00760 Contact Us For Availability
8
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
8
SHIELD, SIDE WPL 3604F43351 Contact Us For Availability
8
VALVE (RIGHT REAR) WPL 7502P47060 Contact Us For Availability
8
VALVE (LEFT REAR) WPL 7502P47160 Contact Us For Availability
8
VALVE (LEFT FRONT) WPL 7502P49360 Contact Us For Availability
8
VALVE (RIGHT FRONT) WPL 7502P54860 Contact Us For Availability
8
RETAINER, GLASS WPL 3804F31780 Contact Us For Availability
9
BRACKET, BLOWER MOUNT (RIGHT) WPL 3801F90651 Contact Us For Availability
9
BRACKET, BLOWER MOUNT (LEFT) WPL 3801F91251 Contact Us For Availability
9
PEDESTAL, BASE WPL W10271711 Contact Us For Availability
9
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
9
WING NUT WPL 7103P03060 Contact Us For Availability
10
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
Sensor, Oven WPL 7430P04160 Contact Us For Availability
10
SCREW WPL 7101P07760 Contact Us For Availability
10
BURNER, BROILER WPL 7505P34460 Contact Us For Availability
11
RETAINER WPL 8038P00360 Contact Us For Availability
11
SHIELD, LOWER WPL 3604F41651 Contact Us For Availability
11
SHIELD, WIRE WPL 3604F41951 Contact Us For Availability
11
Burner, Bake WPL 7505P32460 Contact Us For Availability
11
SCREW WPL 7101P37660 Contact Us For Availability
12
GASKET, PLENUM WPL 7201P14460 Contact Us For Availability
12
REGULATOR, PRESSURE WPL 7510P10060 Contact Us For Availability
12
Glass, Inner WPL 7902P43660 Contact Us For Availability
13
SCREW WPL 7101P33660 Contact Us For Availability
13
Screw (Black) WPL 7101P63360 Contact Us For Availability
13
IGNITOR, BROIL WPL 7432P14060 Contact Us For Availability
13
IGNITOR, BAKE WPL 7432P14360 Contact Us For Availability
14
CORD, POWER WPL 7402P12160 Contact Us For Availability
14
TUBING, BAKE WPL 7506P48160 Contact Us For Availability
14
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
15
CLAMP, HOSE WPL 7111P04760 Contact Us For Availability
15
FITTING, BROILER WPL 7507P42160 Contact Us For Availability
15
SHIELD WPL 3604F41851 Contact Us For Availability
16
SWITCH, LIMIT WPL 7450P03060 Contact Us For Availability
16
COVER,IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
17
ASSEMBLY, MOTOR BAND WPL 5700D52660 Contact Us For Availability
17
PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability
17
PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability
17
Nut, Mounting WPL 7103P19560 Contact Us For Availability
17
WASHER, FIBER WPL 7109P08460 Contact Us For Availability
18
COVER, MOTOR WPL 4005F53780 Contact Us For Availability
18
SCREW WPL 7101P50260 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
19
ASSEMBLY, PLENUM SIDE WPL 2801L03780 Contact Us For Availability
19
BACK, MAIN WPL 3804F31351 Contact Us For Availability
19
Screw WPL 7101P28260 Contact Us For Availability
19
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
20
COVER, DOOR LOCK WPL 4005F75051 Contact Us For Availability
20
Baffle, Bake Burner WPL 3601F33945 Contact Us For Availability
20
NUT, SNAP WPL 7103P14160 Contact Us For Availability
21
INSULATOR, BAFFLE WPL 7003P15460 Contact Us For Availability
21
Lining, Door WPL 2402W31219 Contact Us For Availability
22
COVER, BOTTOM INSULATION WPL 4005F81551 Contact Us For Availability
22
Baffle, Broil Burner WPL 3601F35845 Contact Us For Availability
23
SUPPORT, OVEN WPL 3807F61551 Contact Us For Availability
23
FITTING, BAKE WPL 7507P41060 Contact Us For Availability
24
ASSEMBLY, LIGHT WPL 7407P18060 Contact Us For Availability
25
BULB, OVEN WPL 899138001 Contact Us For Availability
25
VALVE, BAKE/BROIL WPL 7501P19360 Contact Us For Availability
26
TUBING (BROILER FITTING TO VALVE) WPL 7506P47560 Contact Us For Availability
27
CHANNEL, DUCT BAKE BURNER WPL 3818F12151 Contact Us For Availability
27
BRACKET, ORIFICE WPL 3801F68145 Contact Us For Availability
28
BRACKET, OVEN MOUNT WPL 8405P07360 Contact Us For Availability
29
EXTENSION, UPPER VENT WPL 8026P09260 Contact Us For Availability
29
BRACKET, REGULATOR SUPPORT WPL 3801F91351 Contact Us For Availability
30
ASSEMBLY, FLUE WPL 8407P01360 Contact Us For Availability
31
FAN, CONVECTION WPL W10206590 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
33
GASKET, TOP WPL 7201P14360 Contact Us For Availability
34
COVER, BURNER OPENING WPL 4005F73645 Contact Us For Availability
35
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
36
COVER WPL 3605F35019 Contact Us For Availability
37
Bottom, Lower Oven WPL 2205F05119 Contact Us For Availability
38
RECEPTACLE, MEAT PROBE WPL 7408P08660 Contact Us For Availability
39
RETAINER, BOTTOM INSULATION WPL 3804F31551 Contact Us For Availability
40
PAN, BAKE WPL 3401F09145 Contact Us For Availability
41
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
42
GUARD, EDGE WPL W10183566 Contact Us For Availability
43
COVER, DUAL BURNER ORIFICE WPL 4005F81751 Contact Us For Availability
44
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL WPL 241430 Contact Us For Availability
NI
KIT, LP GAS WPL W10258123 Contact Us For Availability
NI
WIRING HARNESS PARTS, HARNESS, MAIN WPL W10394671 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44760 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47960 Contact Us For Availability
NI
TUBING, SUPPLY WPL 7506P46460 Contact Us For Availability
NI
TUBING, SUPPLY WPL 7506P46860 Contact Us For Availability
NI
TUBING, INNER DUAL WPL 7506P47960 Contact Us For Availability
NI
TUBING, OUTER DUAL WPL 7506P48060 Contact Us For Availability
NI
TUBING, CROSSOVER WPL 7506P48260 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, WPL NP Contact Us For Availability
× ![]()
