Model Whirlpool JGS9900BDS16 GAS RANGE – Common Parts & Diagrams
08 - OPTIONAL PARTS (NOT INCLUDED)

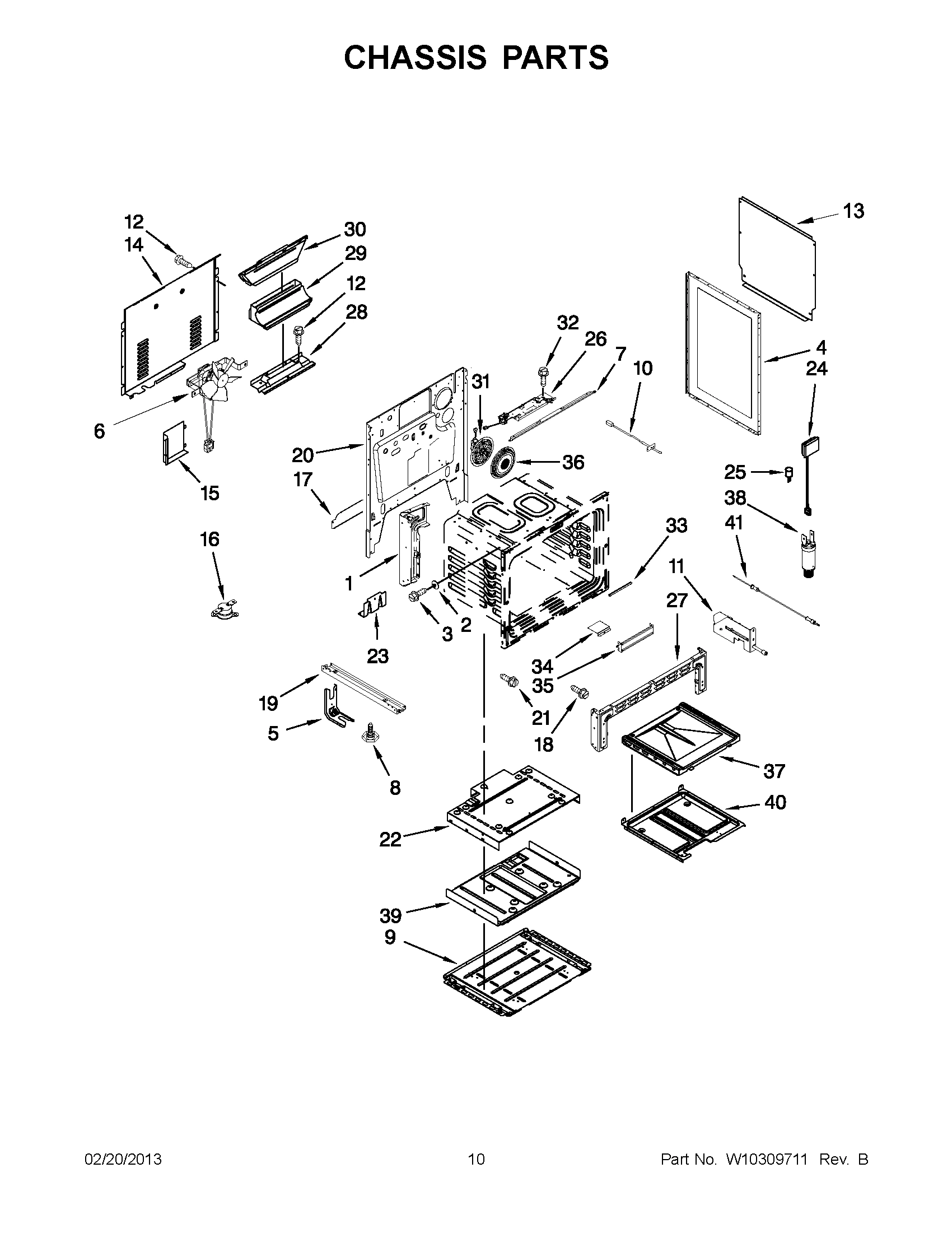

05 - CHASSIS PARTS

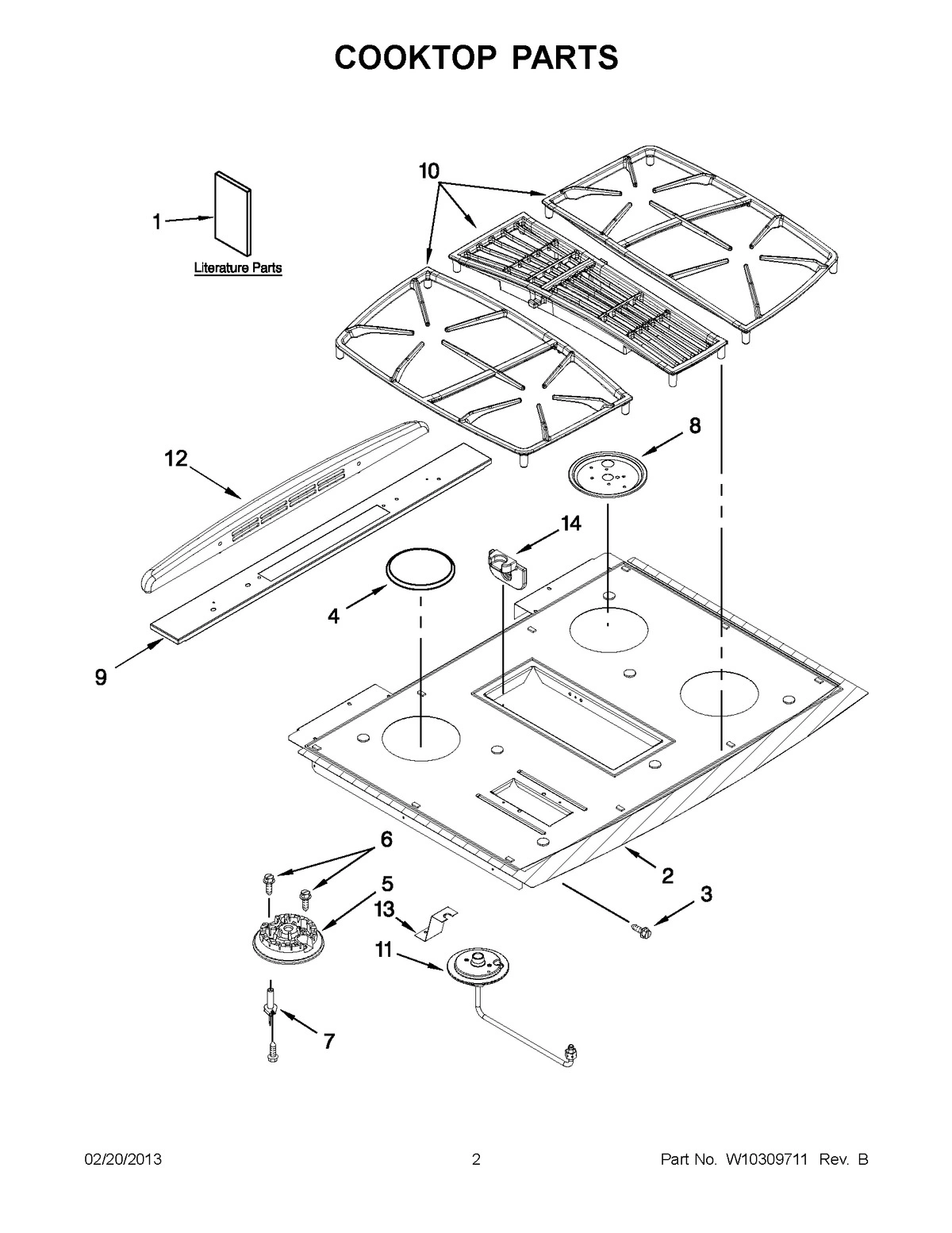

01 - COOKTOP PARTS

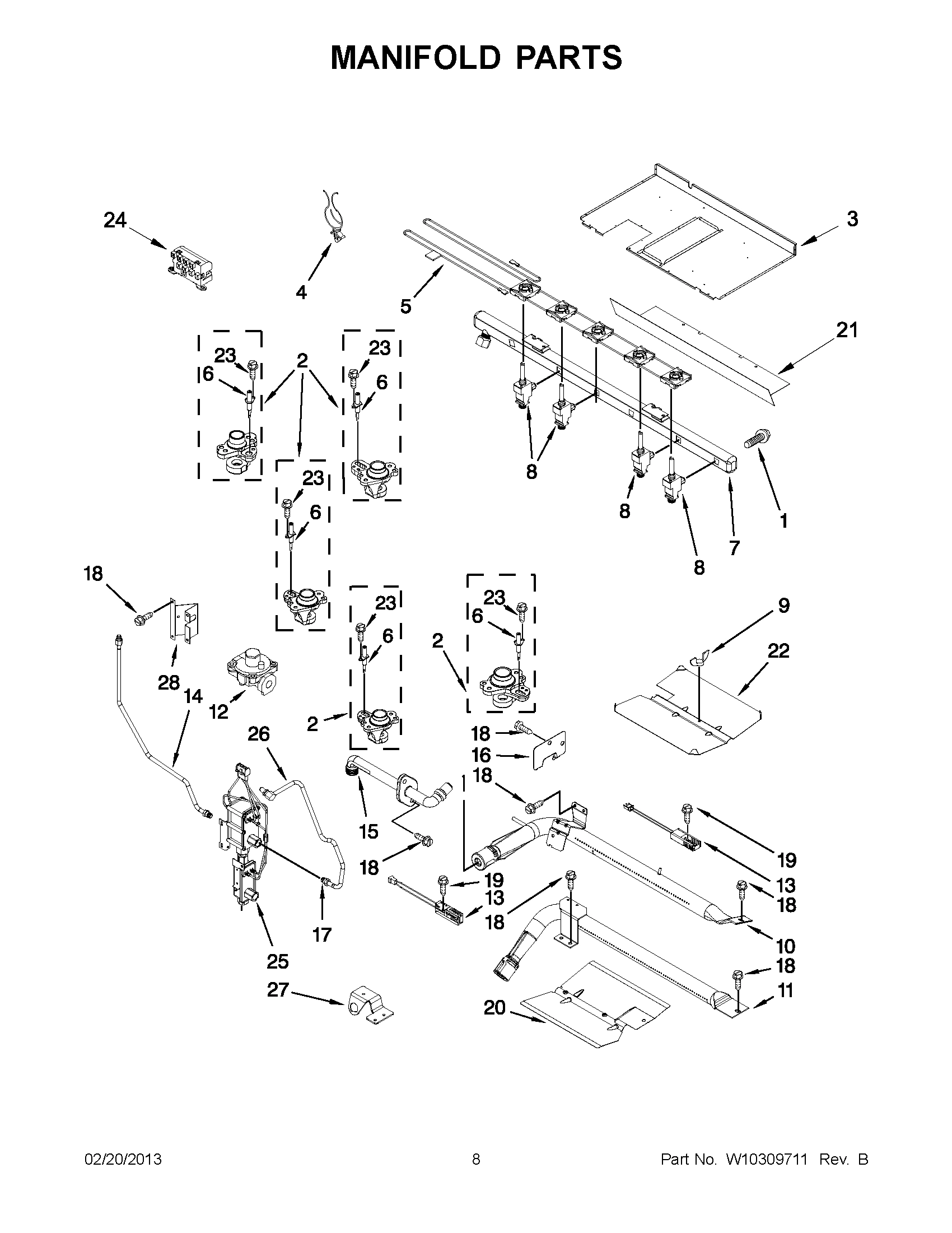

04 - MANIFOLD PARTS

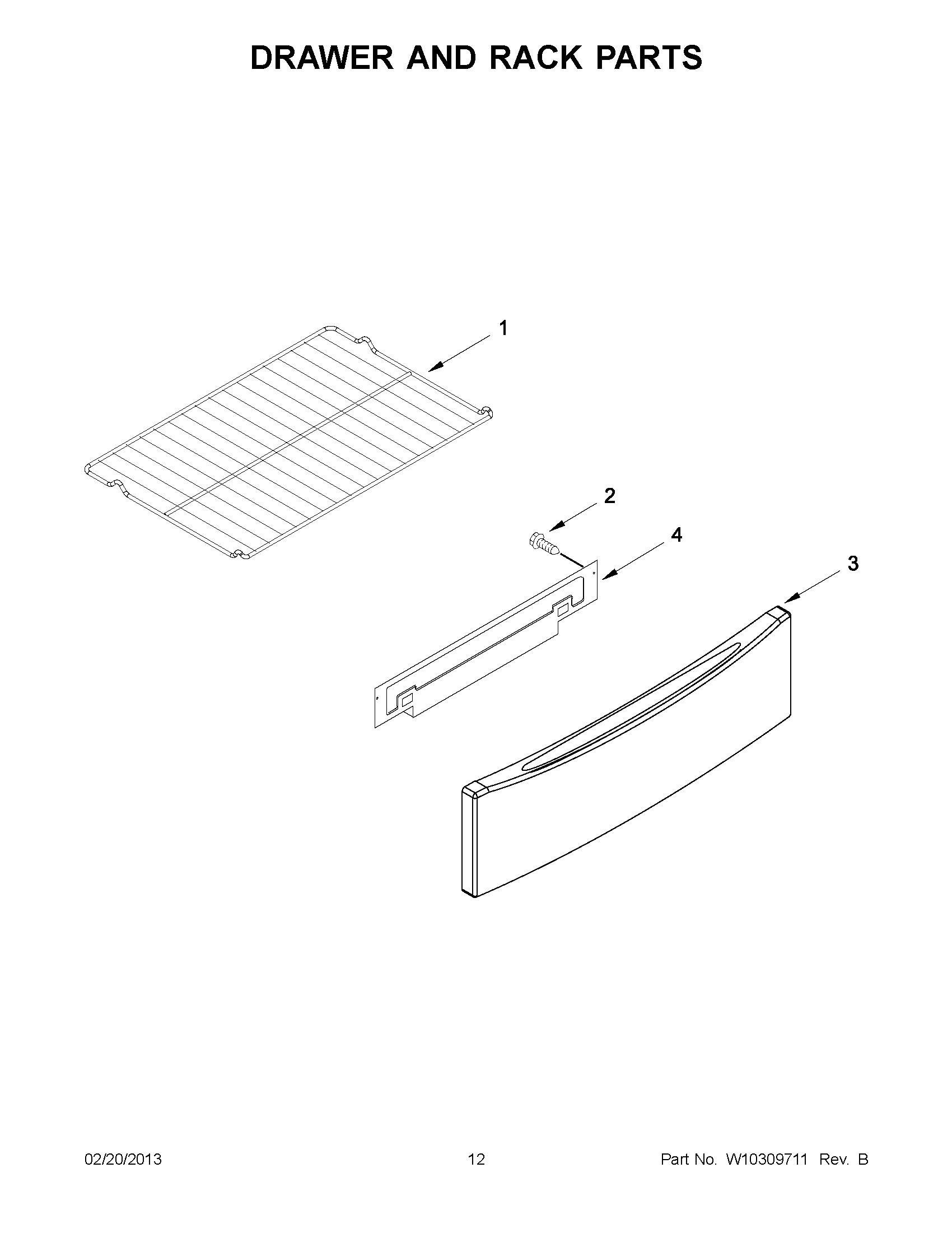

06 - DRAWER AND RACK PARTS

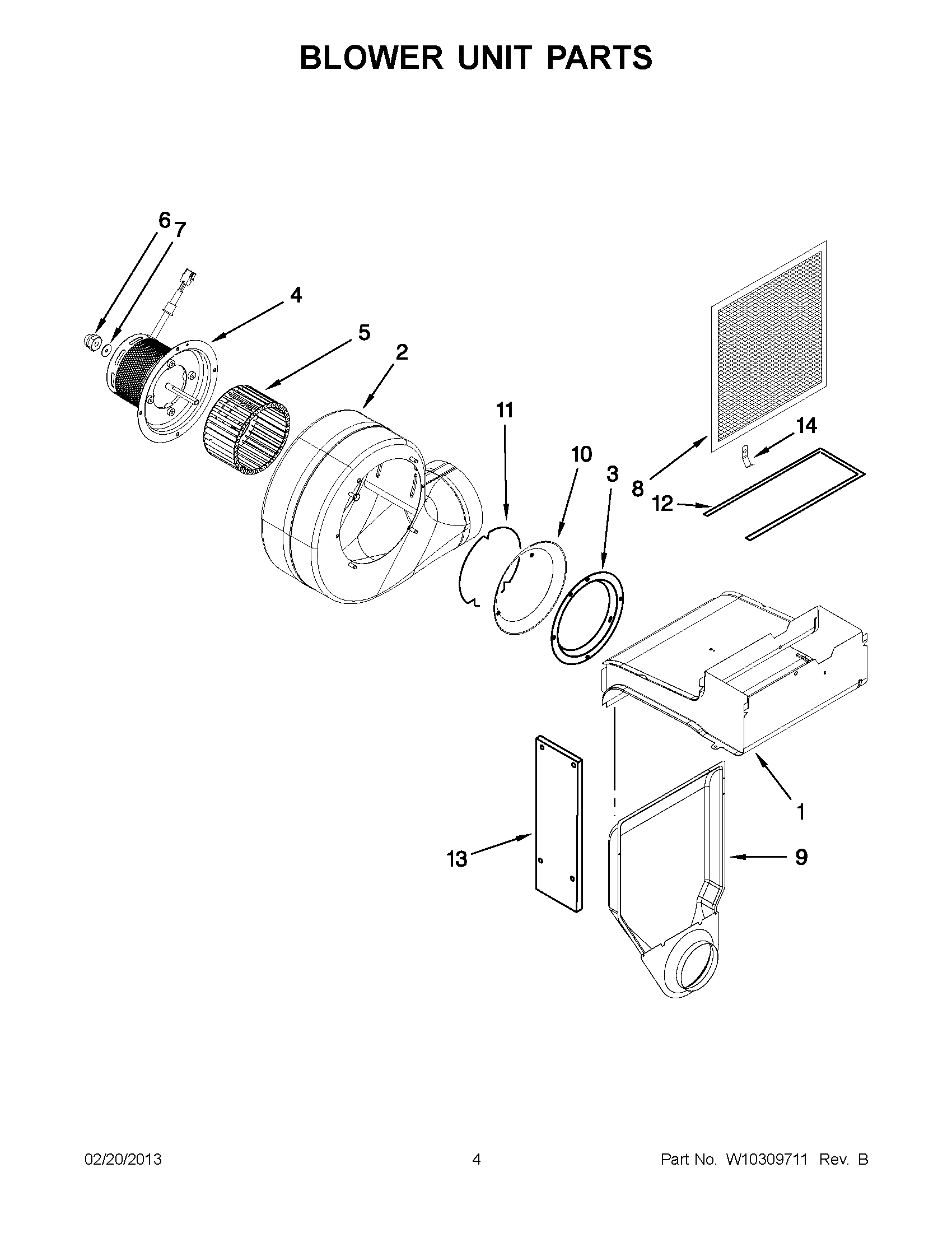

02 - BLOWER UNIT PARTS

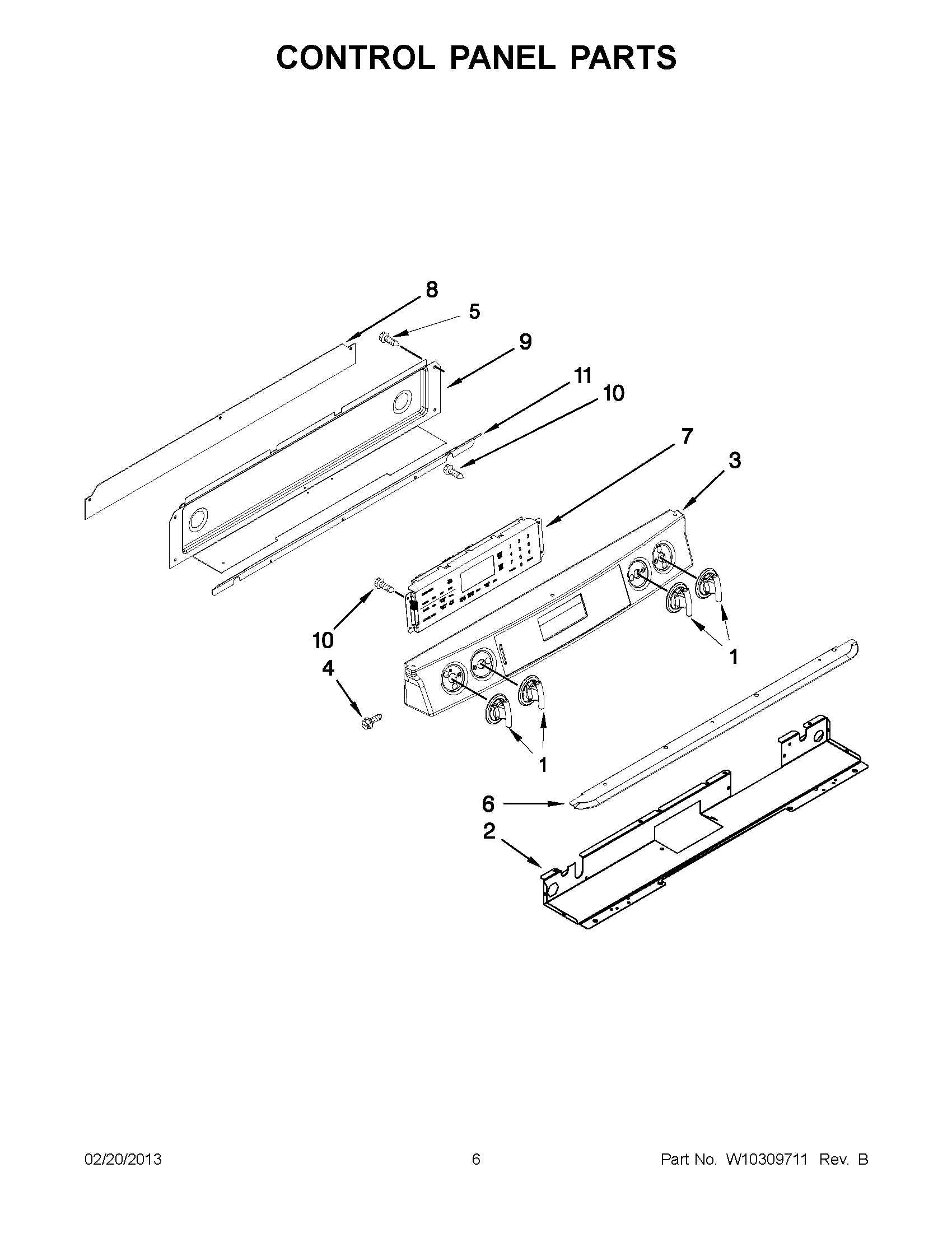

03 - CONTROL PANEL PARTS

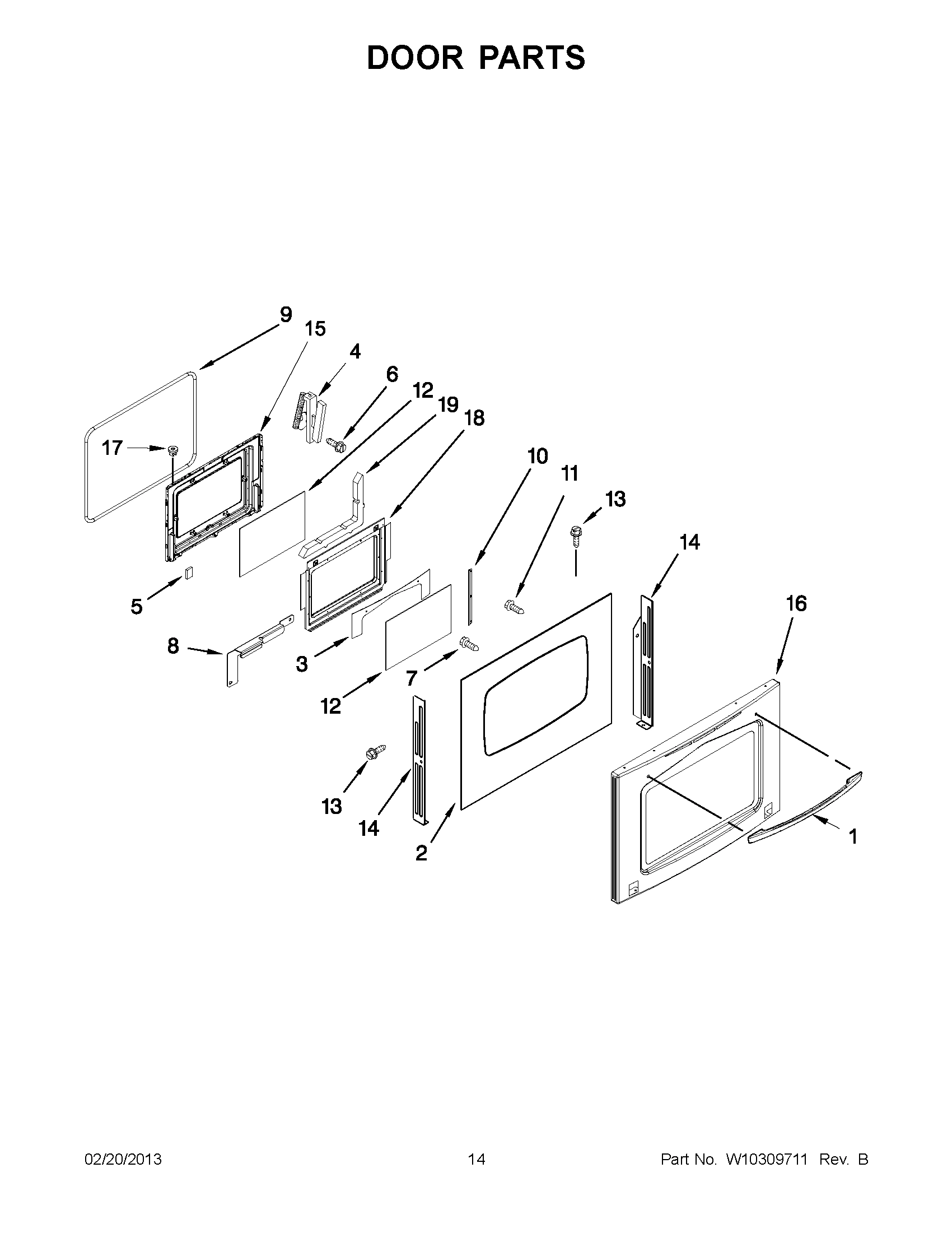

07 - DOOR PARTS
Common parts from model Whirlpool JGS9900BDS16 GAS RANGE
1
INSTRUCTIONS, DUCTING WPL 8101P18560 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P70160 Contact Us For Availability
1
INSTRUCTIONS LP CONVERSION WPL 8101P72560 Contact Us For Availability
1
CARD, FLOW TESTER WPL 8106P06860 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P75260 Contact Us For Availability
1
WIRING DIAGRAM WPL 8119P16460 Contact Us For Availability
1
TIPS, SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
TIPS, SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
SCREW WPL 7101P63960 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
ASSEMBLY,PLENUM WPL 2801W03480 Contact Us For Availability
1
KNOB, SIMMER WPL 7733P48060 Contact Us For Availability
1
KNOB, DUAL BURNER WPL 7733P48160 Contact Us For Availability
1
KNOB, METAL WPL 7733P48260 Contact Us For Availability
1
HANDLE, DOOR WPL 7701P47360 Contact Us For Availability
2
TOP, MAIN (STAINLESS) WPL 7920P22860 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT FRONT) WPL 7527P06160 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT REAR) WPL 7527P08560 Contact Us For Availability
2
HOLDER, ORIFICE (LEFT REAR) WPL 7527P08660 Contact Us For Availability
2
HOLDER, ORIFICE (RIGHT FRONT) WPL 7527P08760 Contact Us For Availability
2
BLOWER, SCROLL WPL 2822W00380 Contact Us For Availability
2
SUPPORT, PANEL WPL 3807F75151 Contact Us For Availability
2
GLASS, DOOR (COATED) WPL 7902P76860 Contact Us For Availability
3
BOTTOM, BURNER WPL 4011F47651 Contact Us For Availability
3
PANEL, DRAWER FRONT (BLACK) WPL 2416F08670 Contact Us For Availability
3
RING, INLET WPL 4026F00851 Contact Us For Availability
3
INSULATION, DOOR WPL 7002P46560 Contact Us For Availability
4
CAP, BURNER (BLACK (LEFT REAR)) WPL 7504P16560 Contact Us For Availability
4
CAP, BURNER (BLACK (RIGHT REAR)) WPL 7504P20260 Contact Us For Availability
4
CAP, BURNER (BLACK (RIGHT FRONT)) WPL 7504P20460 Contact Us For Availability
4
CAP, BURNER (BLACK, DUAL INNER) WPL 7504P24260 Contact Us For Availability
4
CAP, BURNER (BLACK, DUAL OUTER) WPL 7504P24360 Contact Us For Availability
4
CLIP, WIRE LOCK WPL 8019P01360 Contact Us For Availability
4
HANGER, ACCESS PANEL WPL 3806F01180 Contact Us For Availability
4
MOTOR, BLOWER WPL 5700D91960 Contact Us For Availability
4
HINGE, DOOR WPL 7106P14360 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT REAR) WPL 7505P30560 Contact Us For Availability
5
ASSEMBLY, BURNER (RIGHT FRONT) WPL 7505P30660 Contact Us For Availability
5
ASSEMBLY, BURNER (RIGHT REAR) WPL 7505P33960 Contact Us For Availability
5
ASSEMBLY, BURNER (LEFT FRONT) WPL 7505P34960 Contact Us For Availability
5
SWITCH, RE-IGNITION (RIGHT FRONT & RIGHT REAR WPL 7450P00460 Contact Us For Availability
5
SWITCH, IGNITOR (LEFT FRONT & LEFT REAR) WPL 7450P00760 Contact Us For Availability
5
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
5
WASHER WPL 7109P08260 Contact Us For Availability
5
Screw WPL 7101P43460 Contact Us For Availability
6
SCREW WPL 7101P60660 Contact Us For Availability
6
IGNITOR, COOKTOP WPL 7432P12160 Contact Us For Availability
6
Screw WPL 7101P28260 Contact Us For Availability
6
NUT WPL 7103P21260 Contact Us For Availability
6
SHIELD, VENT WPL 3604F44645 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
PIPE,MANIFOLD WPL 7513P47360 Contact Us For Availability
7
CONTROL, EOC III WPL 8507P23660 Contact Us For Availability
8
BOWL, DUAL WPL 3424F03909 Contact Us For Availability
8
VALVE (RIGHT REAR) WPL 7502P47060 Contact Us For Availability
8
VALVE (LEFT REAR) WPL 7502P47160 Contact Us For Availability
8
VALVE (LEFT FRONT) WPL 7502P49360 Contact Us For Availability
8
VALVE (RIGHT FRONT) WPL 7502P54860 Contact Us For Availability
8
FILTER, GREASE WPL 8310P00760 Contact Us For Availability
8
SHIELD, SIDE WPL 3604F43351 Contact Us For Availability
8
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
8
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
8
RETAINER, GLASS (LOWER) WPL 3804F31780 Contact Us For Availability
9
TRIM, COVER WPL 4005F78909 Contact Us For Availability
9
WING NUT WPL 7103P03060 Contact Us For Availability
9
ASSEMBLY, PLENUM SIDE WPL 2801L03780 Contact Us For Availability
9
COVER, BOTTOM WIRE WPL 4005F81051 Contact Us For Availability
10
GRATE (RIGHT) WPL 7518P33260 Contact Us For Availability
10
GRATE (LEFT) WPL 7518P33860 Contact Us For Availability
10
GRILL (CENTER) WPL 7772P05560 Contact Us For Availability
10
BURNER, BROILER WPL 7505P34460 Contact Us For Availability
10
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
11
Burner, Bake WPL 7505P32460 Contact Us For Availability
11
SCREW WPL 7101P37660 Contact Us For Availability
11
RETAINER WPL 8038P00360 Contact Us For Availability
11
SHIELD, WIRE WPL 3604F41951 Contact Us For Availability
12
COVER, VENT WPL 7724P20060 Contact Us For Availability
12
REGULATOR, PRESSURE WPL 7510P10060 Contact Us For Availability
12
GASKET, PLENUM WPL 7201P14460 Contact Us For Availability
12
Glass, Inner WPL 7902P43660 Contact Us For Availability
13
Screw WPL 7101P63360 Contact Us For Availability
13
IGNITOR, BROIL WPL 7432P14060 Contact Us For Availability
13
IGNITOR, BAKE WPL 7432P14360 Contact Us For Availability
13
COVER, MOTOR WPL 4005F53780 Contact Us For Availability
14
LOCATOR, GRATE WPL 8008P07560 Contact Us For Availability
14
RETAINER, FILTER WPL 3804F30451 Contact Us For Availability
14
TRIM, DOOR WPL 3608F13870 Contact Us For Availability
15
BRACKET, BLOWER MOUNT (RIGHT) WPL 3801F90651 Contact Us For Availability
15
BRACKET, BLOWER MOUNT (LEFT) WPL 3801F91251 Contact Us For Availability
15
FITTING, BROILER WPL 7507P42160 Contact Us For Availability
15
Lining, Door WPL 2402W31219 Contact Us For Availability
16
SWITCH, ROTARY FITTING WPL 7450P03060 Contact Us For Availability
16
COVER,IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
17
PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability
17
PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability
17
Nut, Mounting WPL 7103P19560 Contact Us For Availability
17
Nut, Snap (Black) WPL 7103P14160 Contact Us For Availability
18
SCREW WPL 7101P50260 Contact Us For Availability
18
BAFFLE, OVEN DOOR WINDOW WPL 3601F37351 Contact Us For Availability
19
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
19
INSULATION, OVEN DOOR WPL 7002P24660 Contact Us For Availability
20
BACK, MAIN WPL 3804F31351 Contact Us For Availability
20
Baffle, Bake Burner WPL 3601F33945 Contact Us For Availability
21
INSULATOR, BAFFLE WPL 7003P15460 Contact Us For Availability
22
COVER, BOTTOM INSULATION WPL 4005F81551 Contact Us For Availability
22
Baffle, Broil Burner WPL 3601F35845 Contact Us For Availability
23
SUPPORT, OVEN WPL 3807F61551 Contact Us For Availability
24
ASSEMBLY, LIGHT WPL 7407P18060 Contact Us For Availability
24
MODULE, SPARK WPL 7431P03860 Contact Us For Availability
25
BULB, OVEN WPL 899138001 Contact Us For Availability
25
VALVE, BAKE/BROIL WPL 7501P19360 Contact Us For Availability
26
ASSEMBLY, LATCH WPL 8002P08960 Contact Us For Availability
26
TUBING (BROILER FITTING TO VALVE) WPL 7506P47560 Contact Us For Availability
27
PEDESTAL, FRONT WPL 4020F03680 Contact Us For Availability
27
BRACKET, ORIFICE WPL 3801F68145 Contact Us For Availability
28
BRACKET, REGULATOR TO VALVE WPL 8405P07360 Contact Us For Availability
29
EXTENSION, UPPER VENT WPL 8026P09260 Contact Us For Availability
30
ASSEMBLY, FLUE WPL 8407P01360 Contact Us For Availability
31
FAN, CONVECTION WPL 7427P11360 Contact Us For Availability
32
Screw WPL 7101P37560 Contact Us For Availability
33
GASKET, TOP WPL 7201P14360 Contact Us For Availability
34
COVER, BURNER OPENING WPL 4005F73645 Contact Us For Availability
35
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
36
COVER WPL 3605F35019 Contact Us For Availability
37
Bottom, Lower Oven WPL 2205F05119 Contact Us For Availability
38
RECEPTACLE, MEAT PROBE WPL 7408P08660 Contact Us For Availability
39
RETAINER, BOTTOM INSULATION WPL 3804F31551 Contact Us For Availability
40
PAN, BAKE WPL 3401F09145 Contact Us For Availability
41
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
NI
ACCESSORIES, SS CLEANER WPL W10355016 Contact Us For Availability
NI
ACCESSORIES, KITCHEN & APPLIANCE CLEANER WPL W10355010 Contact Us For Availability
NI
ACCESSORIES, ALUMINUM FOIL (18`` X 25`) WPL 241430 Contact Us For Availability
NI
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44760 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P47960 Contact Us For Availability
NI
TUBING, SUPPLY WPL 7506P46460 Contact Us For Availability
NI
TUBING, INNER DUAL WPL 7506P47960 Contact Us For Availability
NI
TUBING, OUTER DUAL WPL 7506P48060 Contact Us For Availability
NI
TUBING, CROSSOVER WPL 7506P48260 Contact Us For Availability
NI
KIT, LP GAS WPL 7507P42060 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED, WPL NP Contact Us For Availability
× ![]()
