Model Whirlpool JGS8850CDW00 GAS RANGE – Common Parts &amp; Diagrams

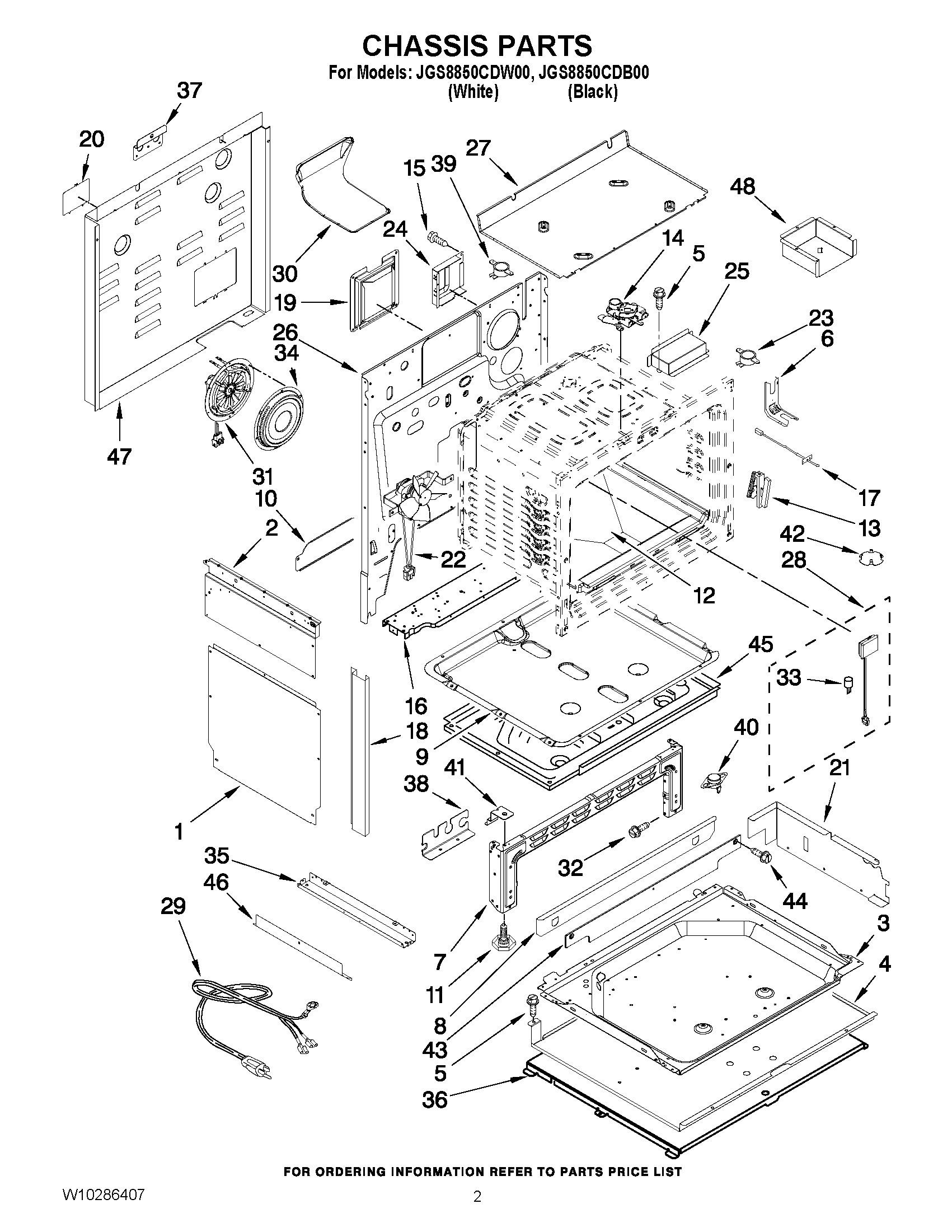

1

W10223164 Whirlpool Door Handle Backorder WPL W10223164 $199.68

1

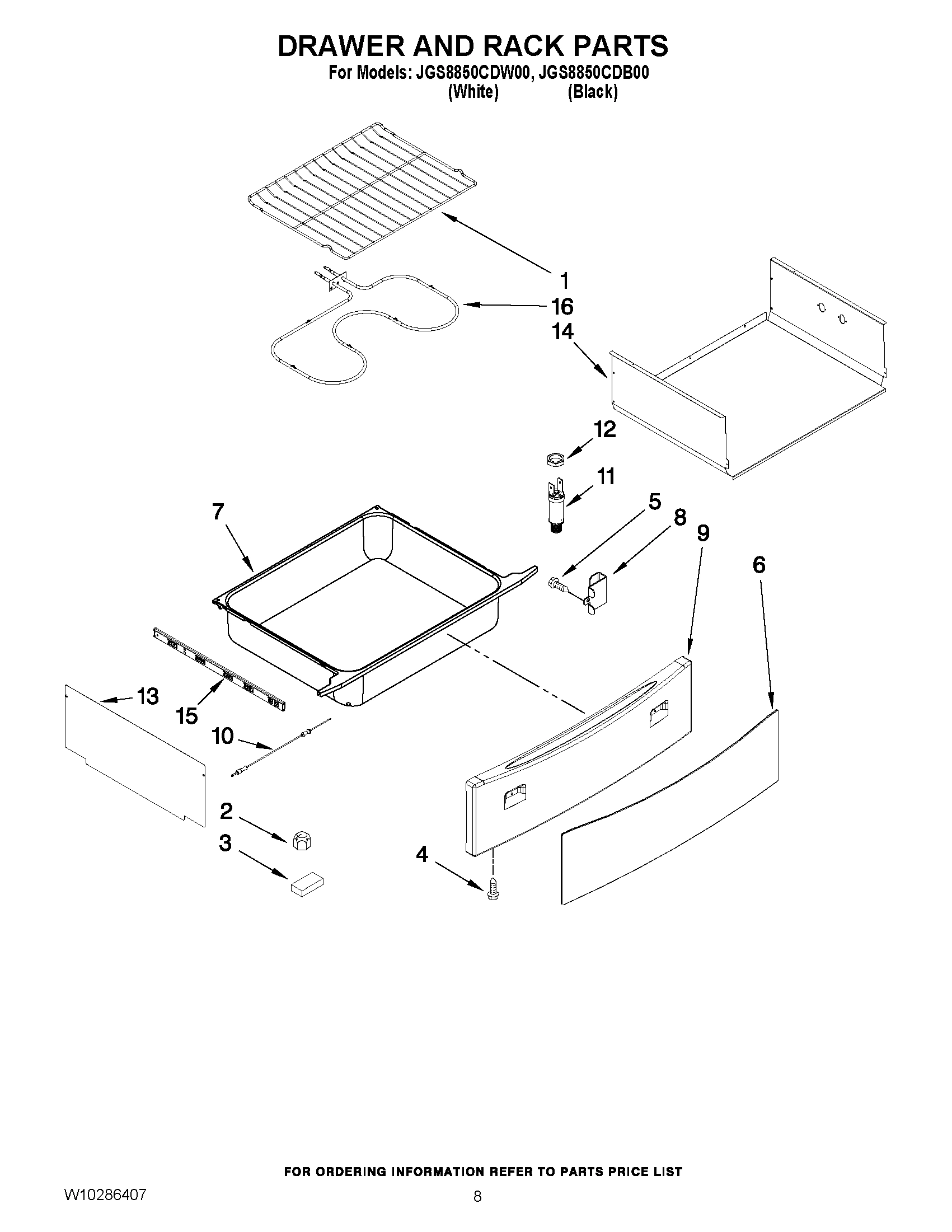

RACK, OVEN WPL 7801P17360 Contact Us For Availability

1

SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability

1

SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability

1

OWNERS MANUAL WPL W10235526 Contact Us For Availability

1

WIRING DIAGRAM BROCHURE, TIPS WPL W10235693 Contact Us For Availability

1

INSTALLATION INSTRUCTIONS WPL W10253459 Contact Us For Availability

1

SHIELD, LOWER SIDE WPL 3604F41651 Contact Us For Availability

2

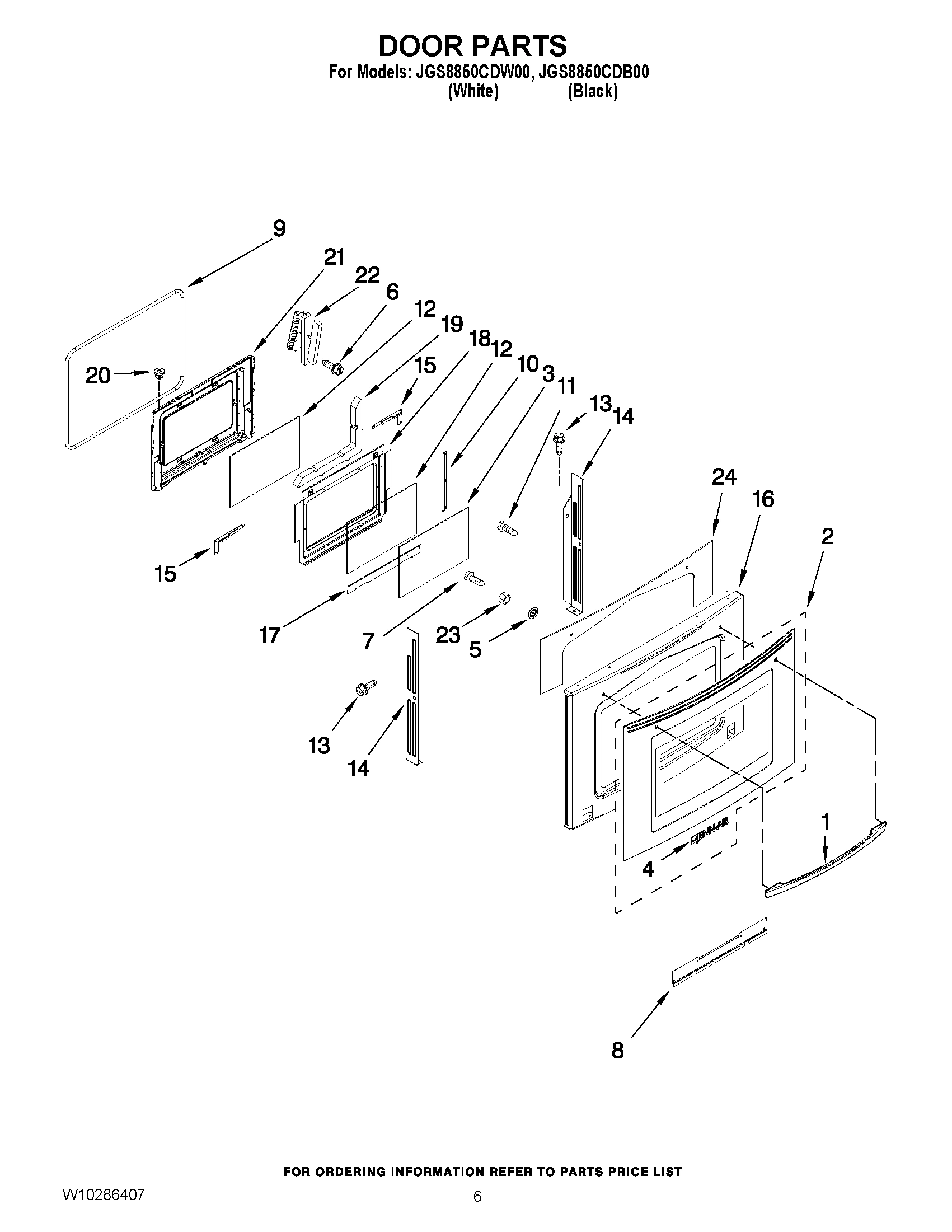

WPW10272332 Whirlpool Range Glass Door Backorder WPL WPW10272332 $226.32

2

GLASS, DOOR (WHITE) WPL W10272330 Contact Us For Availability

2

NUT, LOCKING WPL 7103P13960 Contact Us For Availability

2

SCREW WPL 7101P63660 Contact Us For Availability

2

PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability

2

PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability

3

Spacer, Rubber WPL 8010P13060 Contact Us For Availability

3

GLASS, DOOR (INNER COATED) WPL 7902P76860 Contact Us For Availability

4

W10190723 Whirlpool Compactor Nameplate Backorder WPL W10190723 $76.40

4

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $60.45

4

SCREW, PANEL WPL 7101P33860 Contact Us For Availability

4

SCREW WPL 7101P07760 Contact Us For Availability

4

SHIELD, DRAWER WPL 3604F32645 Contact Us For Availability

5

WASHER WPL 7109P08260 Contact Us For Availability

5

SCREW WPL 7101P42660 Contact Us For Availability

5

GASKET, DOOR TOP WPL 7201P14360 Contact Us For Availability

6

Screw WPL 7101P28260 Contact Us For Availability

6

GLASS ASSEMBLY (DRAWER) (BLACK) WPL 7922P05760 Contact Us For Availability

6

GLASS ASSEMBLY (DRAWER) (WHITE) WPL 7922P05860 Contact Us For Availability

6

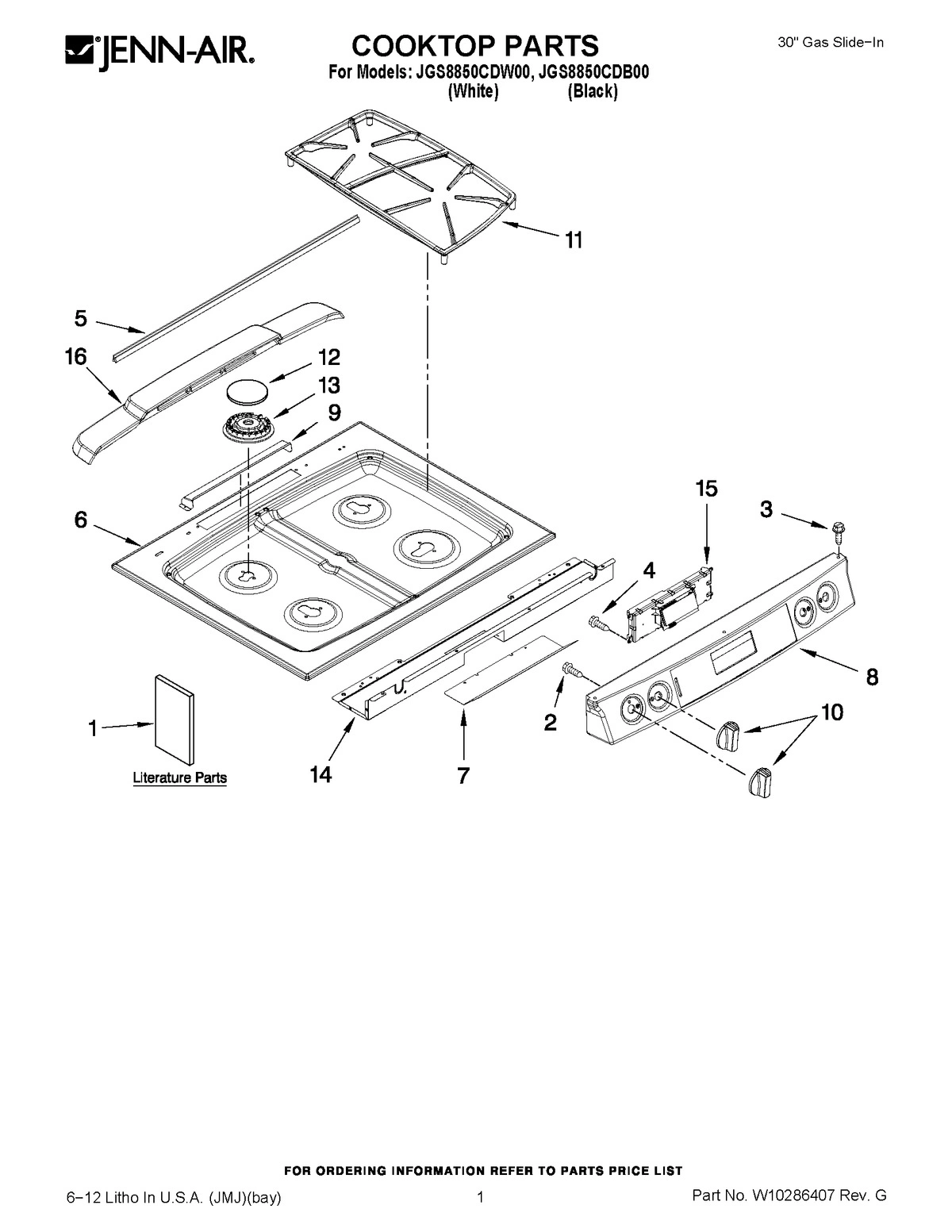

COOKTOP (BLACK) WPL W10202584 Contact Us For Availability

6

COOKTOP (WHITE) WPL W10204432 Contact Us For Availability

6

BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability

7

DRAWER, WARMING WPL 3405W04319 Contact Us For Availability

7

SHIELD, CONTROL WPL 7003P15460 Contact Us For Availability

7

OVEN, FRONT LOWER WPL W10271711 Contact Us For Availability

8

PANEL, CONTROL (BLACK) WPL W10235331 Contact Us For Availability

8

PANEL, CONTROL (WHITE) WPL W10235330 Contact Us For Availability

8

SCREW, IGNITOR WPL 7101P60660 Contact Us For Availability

8

BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability

8

SUPPORT, GLASS WPL 3804F31780 Contact Us For Availability

8

BAFFLE, OVEN FRONT WPL 3601F25145 Contact Us For Availability

9

WPW10162384 Whirlpool Door Gasket In Stock WPL WPW10162384 $76.58

9

Screw WPL 7101P43460 Contact Us For Availability

9

PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability

9

PANEL, DRAWER (WHITE) WPL 2416F08671 Contact Us For Availability

9

BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability

9

PAN, BURNER WPL 3401F04445 Contact Us For Availability

W10255423 Whirlpool Knob Backorder WPL W10255423 $15.98

W10255424 Whirlpool Knob Assembly Backorder WPL W10255424 $25.74

SCREW WPL 7101P50260 Contact Us For Availability

PROBE, MEAT WPL 7430P03860 Contact Us For Availability

Bracket, Glass WPL 3801F88651 Contact Us For Availability

EXTENTION, BACK WPL 3826F06651 Contact Us For Availability

PLATE, BROIL FITTING WPL 3605F26945 Contact Us For Availability

SCREW WPL 7101P37660 Contact Us For Availability

RECEPTACLE, MEAT PROBE JACK WPL 7408P08660 Contact Us For Availability

GRATE, BURNER WPL 7518P35860 Contact Us For Availability

FOOT, LEVELER WPL 7101P66060 Contact Us For Availability

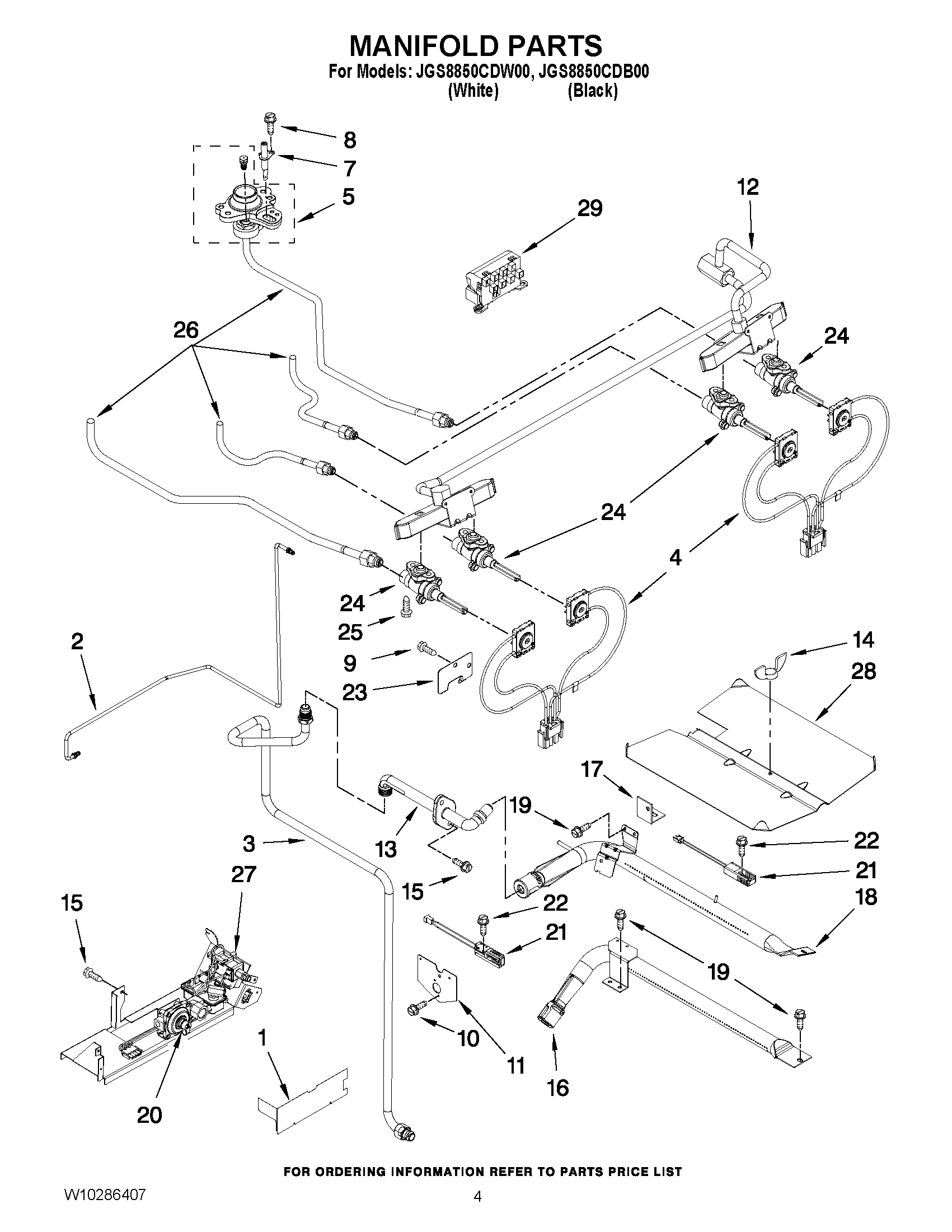

PIPE,MANIFOLD WPL 7513P47360 Contact Us For Availability

NUT WPL 7103P17760 Contact Us For Availability

Glass, Inner WPL 7902P43660 Contact Us For Availability

CAP, BURNER (BLACK 12.5K) WPL 7504P16560 Contact Us For Availability

CAP, BURNER (BLACK 5K) WPL 7504P20260 Contact Us For Availability

CAP, BURNER (BLACK 16K) WPL 7504P20460 Contact Us For Availability

CAP, BURNER (DUAL INNER) WPL 7504P24260 Contact Us For Availability

CAP, BURNER (DUAL OUTER) WPL 7504P24360 Contact Us For Availability

CAP, BURNER (BLACK, DUAL) WPL 7504P26060 Contact Us For Availability

BOTTOM, OVEN WPL 2205F05419 Contact Us For Availability

FITTING, BROIL WPL 7507P40760 Contact Us For Availability

SHIELD WARMING DRAWER WPL 3604F43551 Contact Us For Availability

HINGE WPL 7106P14360 Contact Us For Availability

BASE, BURNER (DUAL BURNER, LF) WPL 7505P34960 Contact Us For Availability

BASE, BURNER (5K LR) WPL 7540P03660 Contact Us For Availability

BASE, BURNER (12.5K, RR) WPL 7540P03760 Contact Us For Availability

BASE, BURNER (16K RF) WPL 7540P03860 Contact Us For Availability

NUT, WING WPL 7103P03060 Contact Us For Availability

BODY, WARM DRAWER WPL 2206F08745 Contact Us For Availability

TRIM, DOOR (BLACK) WPL 3608F13870 Contact Us For Availability

SUPPORT, CNTL PNL WPL 3807F75151 Contact Us For Availability

LATCH ASSEMBLY WPL 8002P08960 Contact Us For Availability

WPW10293200 Whirlpool Drawer Glide Backorder WPL WPW10293200 $82.93

SCREW WPL 7101P67660 Contact Us For Availability

RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability

RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability

CONTROL, (EOC) WPL 8507P22860 Contact Us For Availability

SCREW, LATCH LEVER WPL 7101P37560 Contact Us For Availability

BURNER, BAKE WPL 7505P25460 Contact Us For Availability

ELEMENT, WARMER WPL 7406P29460 Contact Us For Availability

FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability

FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability

COVER, VENT WPL 7724P20060 Contact Us For Availability

SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability

17

SUPPORT, BAKE BNR WPL 3807F48045 Contact Us For Availability

17

SHIELD, DOOR WPL 3604F41851 Contact Us For Availability

17

SENSOR, SHORT WPL 7430P04160 Contact Us For Availability

18

BURNER, BROIL WPL 7505P29360 Contact Us For Availability

18

TRIM, SIDE WPL 3608F13871 Contact Us For Availability

18

Baffle, Door WPL 3601F37351 Contact Us For Availability

19

Screw WPL 7101P36060 Contact Us For Availability

19

Insulation, Door WPL 7002P24660 Contact Us For Availability

19

RETAINER, CONV INSULATION WPL 3804F30051 Contact Us For Availability

20

VALVE/REGULATOR WPL 7510P07960 Contact Us For Availability

20

NUT, SNAP WPL 7103P14160 Contact Us For Availability

20

ACCESS PANEL WPL 4005F61251 Contact Us For Availability

21

IGNITOR (BAKE/BROIL) WPL 7432P10660 Contact Us For Availability

21

Lining, Door WPL 2402W31219 Contact Us For Availability

21

SHIELD, GAS (LOWER BACK) WPL W10256425 Contact Us For Availability

22

FAN, COOLING WPL 7427P09460 Contact Us For Availability

23

COVER,IGNITOR WIRE WPL 4005F42145 Contact Us For Availability

23

Nut WPL 7103P17660 Contact Us For Availability

23

SWITCH, LIMIT WPL 7450P03060 Contact Us For Availability

VALVE, TOP BURNER (LR 5K) WPL 7502P47060 Contact Us For Availability

VALVE, TOP BURNER (RR 9.2K) WPL 7502P47160 Contact Us For Availability

VALVE, TOP BURNER (LF (DUAL)) WPL 7502P49360 Contact Us For Availability

VALVE, TOP BURNER (RF 16K) WPL 7502P54860 Contact Us For Availability

INSULATION, FOIL WPL 7002P46560 Contact Us For Availability

25

SUPPORT, SCREW WPL 7101P63960 Contact Us For Availability

25

COVER, DOOR LOCK WPL 4005F75051 Contact Us For Availability

TUBE, BURNER (RF) WPL 7506P44560 Contact Us For Availability

TUBE, BURNER (RR) WPL 7506P44760 Contact Us For Availability

TUBE, BURNER (LR) WPL 7506P44860 Contact Us For Availability

TUBE, BURNER (TUBING, INNER DUAL) WPL 7506P46960 Contact Us For Availability

TUBE, BURNER (TUBING, OUTER DUAL) WPL 7506P47060 Contact Us For Availability

BACK, MAIN GAS WPL 3804F31351 Contact Us For Availability

27

VALVE, SAFETY WPL 7501P23260 Contact Us For Availability

27

BOTTOM,BURNER BOX WPL 4011F49651 Contact Us For Availability

28

BAFFLE, BAKE WPL 3601F23945 Contact Us For Availability

28

BAFFLE, BROIL WPL 3601F30745 Contact Us For Availability

28

LIGHT ASSEMBLY WPL 7407P18060 Contact Us For Availability

29

SPARK MODULE WPL 7431P03860 Contact Us For Availability

29

CORD, POWER WPL 7402P08660 Contact Us For Availability

30

BOX, ASSY VENT WPL 8026P09560 Contact Us For Availability

31

FAN, CONVECTION WPL W10206590 Contact Us For Availability

32

SCREW WPL 7101P01760 Contact Us For Availability

33

BULB-OVEN WPL 7407P10360 Contact Us For Availability

34

COVER, FAN WPL 3605F35019 Contact Us For Availability

35

PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability

36

SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability

37

SUPPORT, ELEMENT WPL 3807F63345 Contact Us For Availability

38

BRACKET,PWR SUPPLY WPL W10256422 Contact Us For Availability

39

SWITCH, HI-LIMIT (140F-120F) WPL 7403P64760 Contact Us For Availability

40

SWITCH, HI LIMIT (100F/85F) WPL 7403P65760 Contact Us For Availability

41

SUPPORT, OVEN (BOTTOM) WPL 3807F72745 Contact Us For Availability

42

PLUG- HOLE WPL 7718P03460 Contact Us For Availability

43

TRIM, FRT. FRAME WPL 7713P05460 Contact Us For Availability

44

Screw WPL 7101P63360 Contact Us For Availability

45

RETAINER, INSULATION WPL 3804F24551 Contact Us For Availability

46

EXTENSION, HEAT SHIELD WPL 3826F03451 Contact Us For Availability

47

COVER, REAR WIRE WPL 4005F81051 Contact Us For Availability

48

COVER, BURNER BOX (DUAL RING) WPL 4005F80751 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $21.50

W10160396 Whirlpool Wire Harness Backorder WPL W10160396 $85.18

W10173471 Whirlpool Wire Harness Backorder WPL W10173471 $13.00

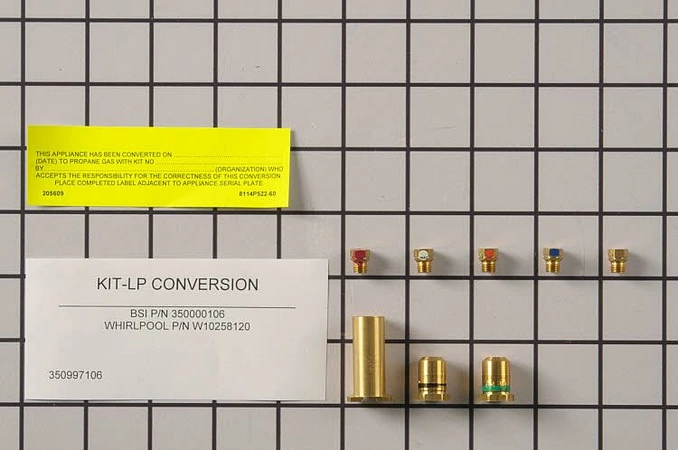

W10258120 Whirlpool Orifice Spud Assembly Backorder WPL W10258120 $133.47

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $60.66

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability

INSULATION, OVEN P1/P3K WPL 7002P07860 Contact Us For Availability

INSULATION, LOWER SIDES WPL 7002P44360 Contact Us For Availability

INSULATION, BACK WPL 7002P44560 Contact Us For Availability

INSULATION, FLUE WPL 7002P45160 Contact Us For Availability

INSULATION, WRAP WPL 7002P47160 Contact Us For Availability

INSULATION, FRONT FRAME WPL 7002P47460 Contact Us For Availability
