Model Whirlpool JGS8850CDS02 GAS RANGE – Common Parts & Diagrams

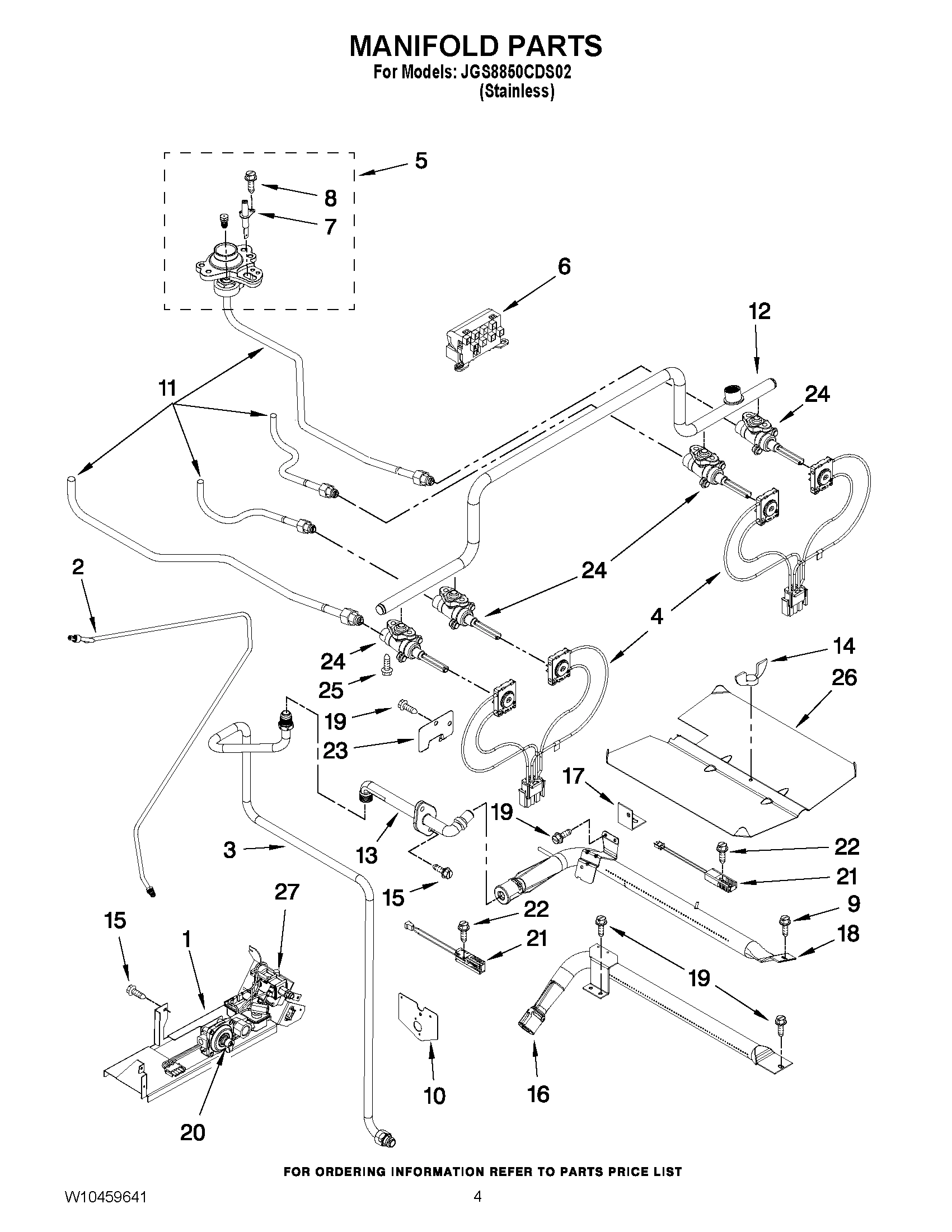

03 - MANIFOLD PARTS

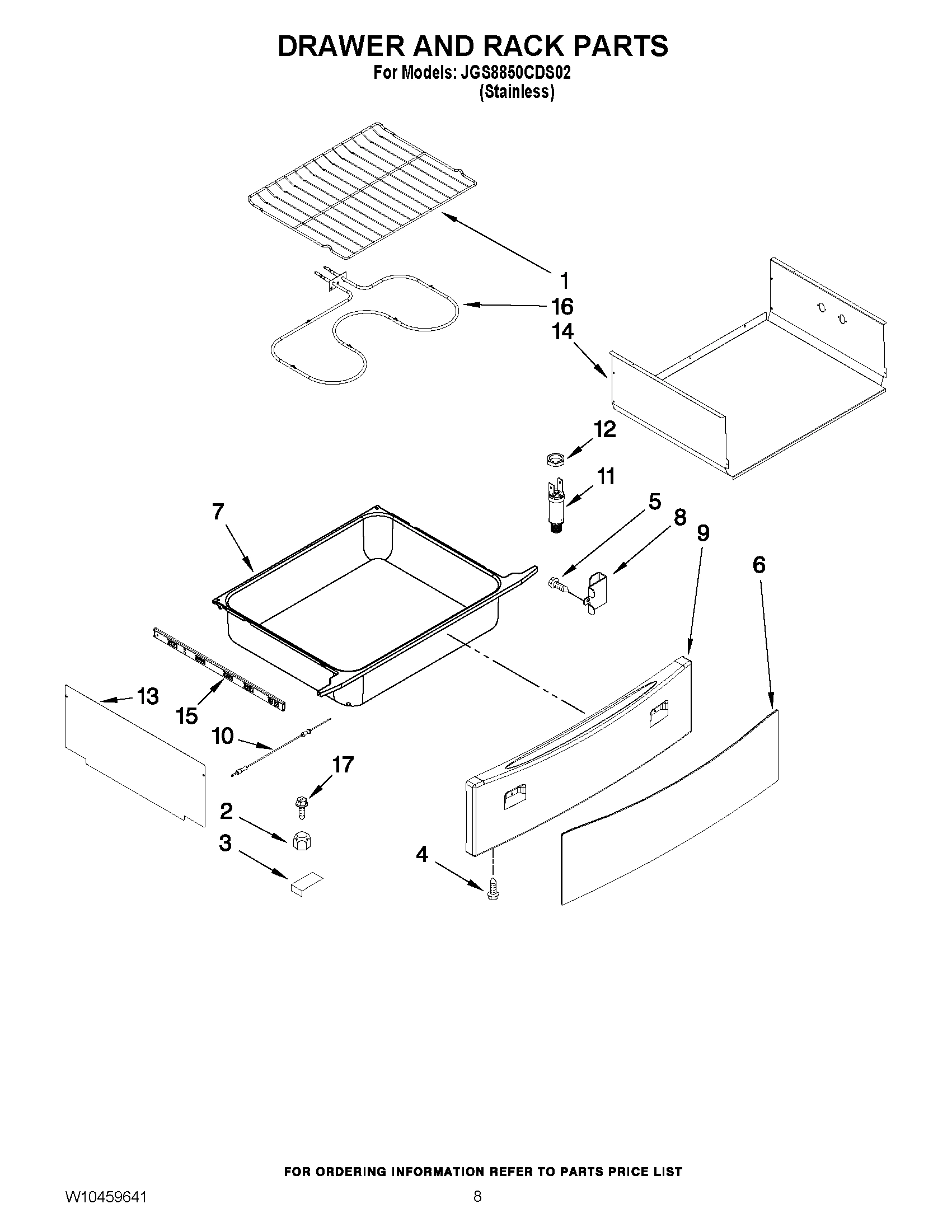

05 - DRAWER AND RACK PARTS

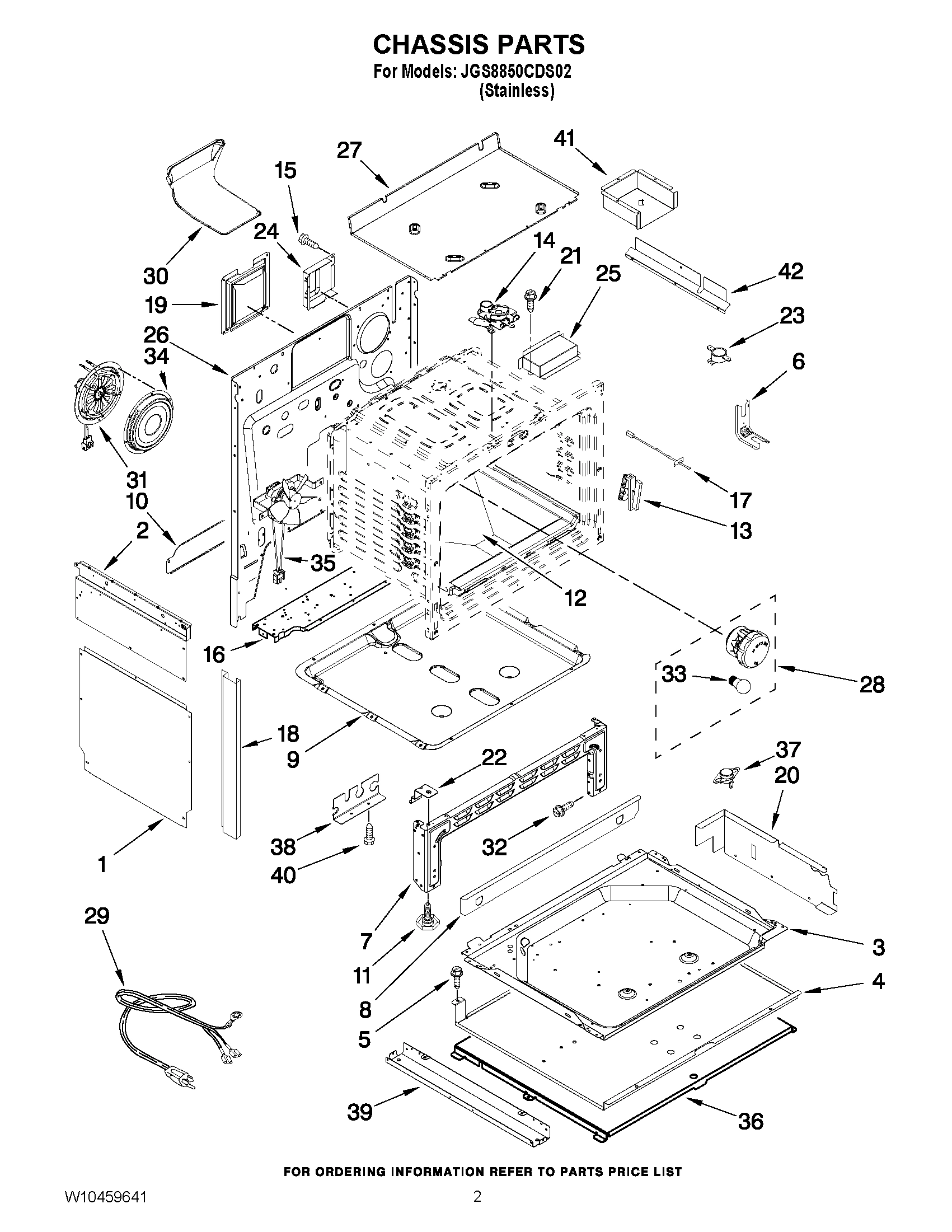

02 - CHASSIS PARTS

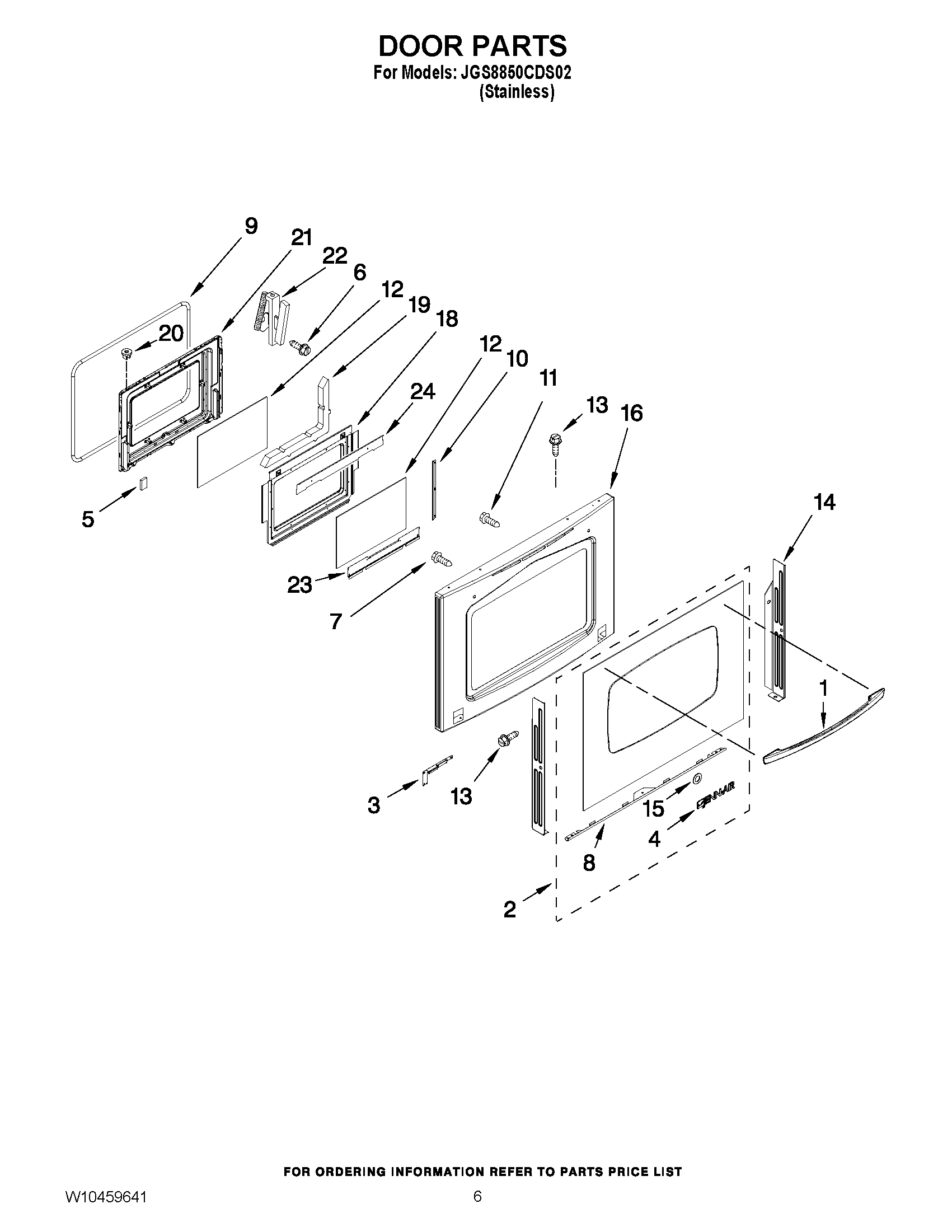

04 - DOOR PARTS
06 - OPTIONAL PARTS (NOT INCLUDED)

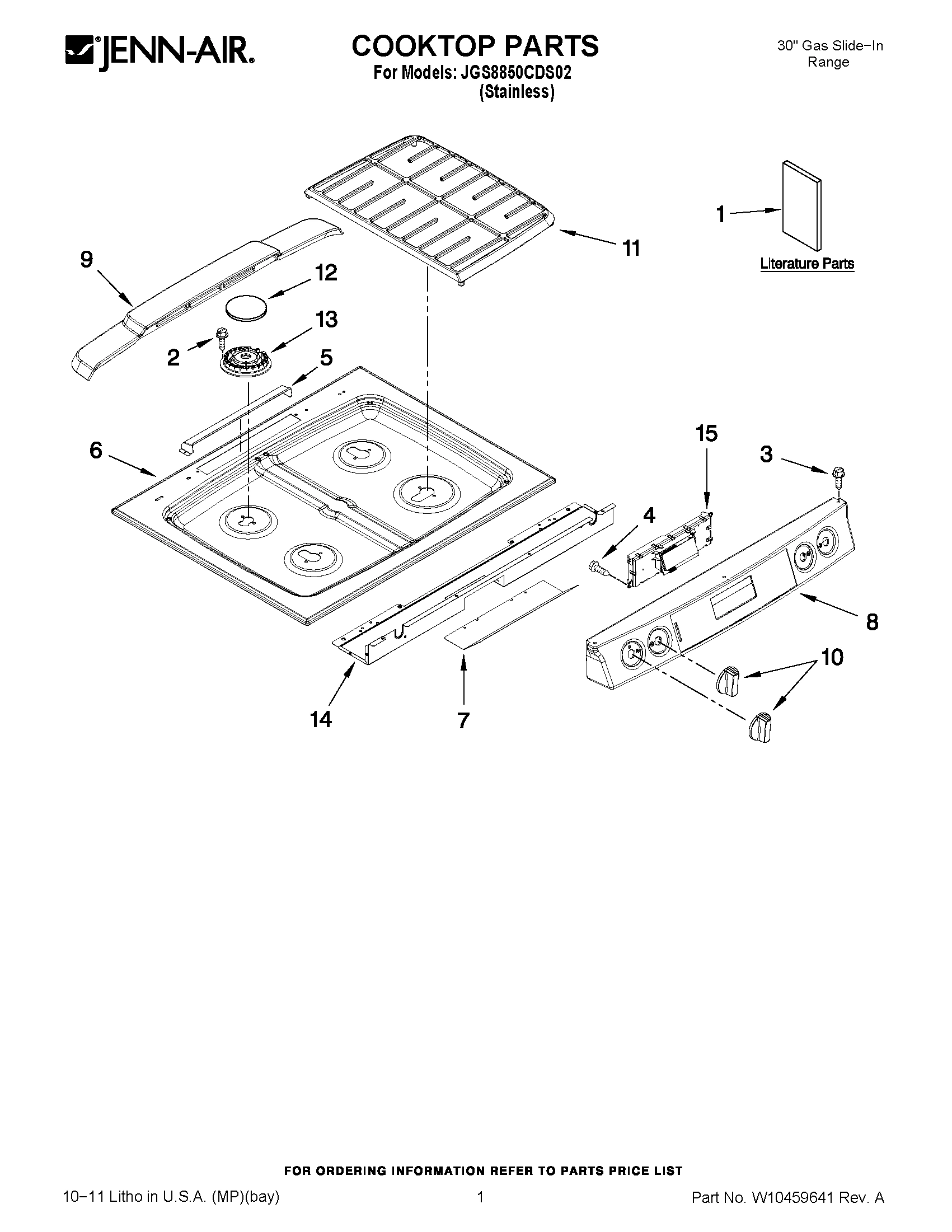

01 - COOKTOP PARTS
Common parts from model Whirlpool JGS8850CDS02 GAS RANGE
1
HANDLE, DOOR (STAINLESS) WPL W10223152 Contact Us For Availability
1
RACK, OVEN WPL 7801P17360 Contact Us For Availability
1
SHIELD, LOWER SIDE WPL 3604F41651 Contact Us For Availability
1
SAFE COOKING (ENGLISH) WPL 9762761 Contact Us For Availability
1
SAFE COOKING (FRENCH) WPL W10065852 Contact Us For Availability
1
OWNERS MANUAL BROCHURE, TIPS WPL W10235526 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL W10253459 Contact Us For Availability
1
DIAGRAM, WIRING WPL W10394691 Contact Us For Availability
2
NUT, LOCKING WPL 7103P13960 Contact Us For Availability
2
PANEL, SHIELD (LEFT) WPL 2618F20151 Contact Us For Availability
2
PANEL, SHIELD (RIGHT) WPL 2618F20651 Contact Us For Availability
2
GLASS, DOOR ASSEMBLY WPL W10301578 Contact Us For Availability
2
SCREW, BURNER WPL 7101P60660 Contact Us For Availability
3
Spacer, Rubber WPL 8010P13060 Contact Us For Availability
3
RETAINER, BOTTOM WPL 3804F24551 Contact Us For Availability
3
RETAINER, GLASS (RIGHT HAND) WPL 3804F30751 Contact Us For Availability
3
RETAINER, GLASS (LEFT HAND) WPL 3804F30851 Contact Us For Availability
3
SCREW WPL 7101P63560 Contact Us For Availability
4
SHIELD, DRAWER WPL 3604F32645 Contact Us For Availability
4
SCREW WPL 7101P07760 Contact Us For Availability
5
SPACER, RUBBER WPL 7109P08260 Contact Us For Availability
5
BAFFLE,VENT COVER WPL 3601F22145 Contact Us For Availability
6
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
6
SCREW WPL 7103P17660 Contact Us For Availability
6
COOKTOP (STAINLESS) WPL 2001D31250 Contact Us For Availability
7
DRAWER, WARMING WPL 3405W04319 Contact Us For Availability
7
OVEN, FRONT LOWER WPL W10271711 Contact Us For Availability
7
SCREW WPL 7101P42660 Contact Us For Availability
7
SHIELD, CONTROL WPL 7003P15460 Contact Us For Availability
8
PANEL, CONTROL (STAINLESS) WPL W10314414 Contact Us For Availability
8
BRACKET, DRAWER WPL 3801F88751 Contact Us For Availability
8
BAFFLE, OVEN FRONT WPL 3601F25145 Contact Us For Availability
8
SUPPORT, GLASS WPL W10331048 Contact Us For Availability
9
PANEL, DRAWER (BLACK) WPL 2416F08670 Contact Us For Availability
9
PAN, BURNER WPL 3401F04445 Contact Us For Availability
9
COVER, VENT WPL 7724P20060 Contact Us For Availability
10
PROBE, MEAT WPL 7430P03860 Contact Us For Availability
10
EXTENTION, BACK WPL 3826F06651 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
11
SCREW WPL 7101P37660 Contact Us For Availability
11
RECEPTACLE, MEAT PROBE JACK WPL 7408P08660 Contact Us For Availability
11
FOOT, LEVELER WPL 7101P66060 Contact Us For Availability
11
GRATE, BURNER WPL 7518P35860 Contact Us For Availability
12
NUT WPL 7103P17760 Contact Us For Availability
12
BOTTOM, OVEN WPL 2205F05419 Contact Us For Availability
12
Glass, Inner WPL 7902P43660 Contact Us For Availability
12
CAP, BURNER (BLACK 12.5K) WPL 7504P16560 Contact Us For Availability
12
CAP, BURNER (BLACK 5K) WPL 7504P20260 Contact Us For Availability
12
CAP, BURNER (BLACK 16K) WPL 7504P20460 Contact Us For Availability
12
CAP, BURNER (DUAL INNER) WPL 7504P24260 Contact Us For Availability
12
CAP, BURNER (DUAL OUTER) WPL 7504P24360 Contact Us For Availability
13
SHIELD WARMING DRAWER WPL 3604F43551 Contact Us For Availability
13
Screw WPL 7101P63360 Contact Us For Availability
13
BASE, BURNER (5K LR) WPL 7540P03660 Contact Us For Availability
13
BASE, BURNER (12K RR,LF) WPL 7540P03760 Contact Us For Availability
13
BASE, BURNER (16K RF) WPL 7540P03860 Contact Us For Availability
14
BODY, WARM DRAWER WPL 2206F08745 Contact Us For Availability
14
TRIM, DOOR WPL 3608F13870 Contact Us For Availability
14
SUPPORT, CNTL PNL WPL 3807F75151 Contact Us For Availability
15
SCREW, LATCH LEVER WPL 7101P37560 Contact Us For Availability
15
WASHER, FIBER WPL 7109P08460 Contact Us For Availability
15
CONTROL, (ERC) WPL 8507P22860 Contact Us For Availability
16
SUPPORT, VALVE/REG WPL 3807F64051 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
17
SUPPORT, BAKE BNR WPL 3807F48045 Contact Us For Availability
17
SCREW WPL 7101P07260 Contact Us For Availability
17
SENSOR, SHORT WPL 7430P04160 Contact Us For Availability
18
BURNER, BROIL WPL 7505P29360 Contact Us For Availability
18
Baffle, Door WPL 3601F37351 Contact Us For Availability
19
RETAINER, CONV INSULATION WPL 3804F30051 Contact Us For Availability
19
Insulation, Door WPL 7002P24660 Contact Us For Availability
20
VALVE/REGULATOR WPL 7510P07960 Contact Us For Availability
20
SHIELD, GAS (LOWER BACK) WPL W10256425 Contact Us For Availability
20
Nut, Snap (Black) WPL 7103P14160 Contact Us For Availability
21
Screw WPL 7101P43460 Contact Us For Availability
21
IGNITOR (BAKE/BROIL) WPL 7432P10660 Contact Us For Availability
21
Lining, Door WPL 2402W31219 Contact Us For Availability
22
Screw WPL 7101P28260 Contact Us For Availability
22
HINGE, DOOR WPL 7106P14360 Contact Us For Availability
22
SUPPORT, OVEN BTM. WPL 3807F72745 Contact Us For Availability
23
COVER,IGNITOR WIRE WPL 4005F42145 Contact Us For Availability
23
SWITCH, LIMIT WPL 7450P03060 Contact Us For Availability
23
RETAINER, GLASS WPL 3804F31780 Contact Us For Availability
24
VALVE, TOP BURNER (LR 5K) WPL 7502P47060 Contact Us For Availability
24
VALVE, TOP BURNER (RR/LF 9.2K) WPL 7502P47160 Contact Us For Availability
24
VALVE, TOP BURNER (DUAL RING) WPL 7502P49360 Contact Us For Availability
24
VALVE, TOP BURNER (RF 16K) WPL 7502P54860 Contact Us For Availability
24
COVER, ACCESS WPL 4005F81051 Contact Us For Availability
24
SHIELD, DOOR WPL 3604F41851 Contact Us For Availability
25
SUPPORT, SCREW WPL 7101P33860 Contact Us For Availability
25
COVER, DOOR LOCK WPL 4005F75051 Contact Us For Availability
26
BAFFLE, BAKE (BAKE) WPL 3601F23945 Contact Us For Availability
26
BAFFLE, BAKE (BROIL) WPL 3601F30745 Contact Us For Availability
26
BACK, MAIN GAS WPL 3804F31351 Contact Us For Availability
27
VALVE, SAFETY WPL 7501P23260 Contact Us For Availability
27
BOTTOM,BURNER BOX WPL 4011F49651 Contact Us For Availability
28
LIGHT ASSEMBLY WPL 7407P18060 Contact Us For Availability
29
CORD, POWER WPL 7402P08660 Contact Us For Availability
30
BOX, ASSY VENT WPL 8026P09560 Contact Us For Availability
31
FAN, COVECTION WPL W10206590 Contact Us For Availability
32
SCREW WPL 7101P01760 Contact Us For Availability
33
BULB-OVEN WPL 7407P10360 Contact Us For Availability
34
COVER, FAN WPL 3605F35019 Contact Us For Availability
36
SHIELD, HEAT POUCH WPL 3604F32751 Contact Us For Availability
37
SWITCH, HI-LIMIT WPL 7403P65760 Contact Us For Availability
38
BRACKET,PWR SUPPLY WPL W10256422 Contact Us For Availability
39
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
41
COVER,BURNER BOX (DUAL RING BNR) WPL 4005F80751 Contact Us For Availability
42
EXTENSION, HEAT SHIELD WPL 3826F03451 Contact Us For Availability
NI
ALL PURPOSE APPLIANCE CLEANER WPL 31682 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, LOWER SIDES WPL 7002P44360 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P44560 Contact Us For Availability
NI
INSULATION, DRAWER WPL 7002P47160 Contact Us For Availability
NI
INSULATION, FRONT FRAME WPL 7002P47460 Contact Us For Availability
NI
STAINLESS STEEL CLEANER & POLISH WPL 31462 Contact Us For Availability
NI
GAS GRATE & DRIP PAN CLEANER WPL 31617 Contact Us For Availability
NI
Screw, Ground WPL 7101P02760 Contact Us For Availability
NI
MAGNETIC DOOR SPACER WPL 8010P14660 Contact Us For Availability
NI
WOK WPL AO142 Contact Us For Availability
NI
DRYING RACK WPL DRYINGRACK Contact Us For Availability
× ![]()
