Model Whirlpool JGR8890ADP20 GAS RANGE – Common Parts & Diagrams

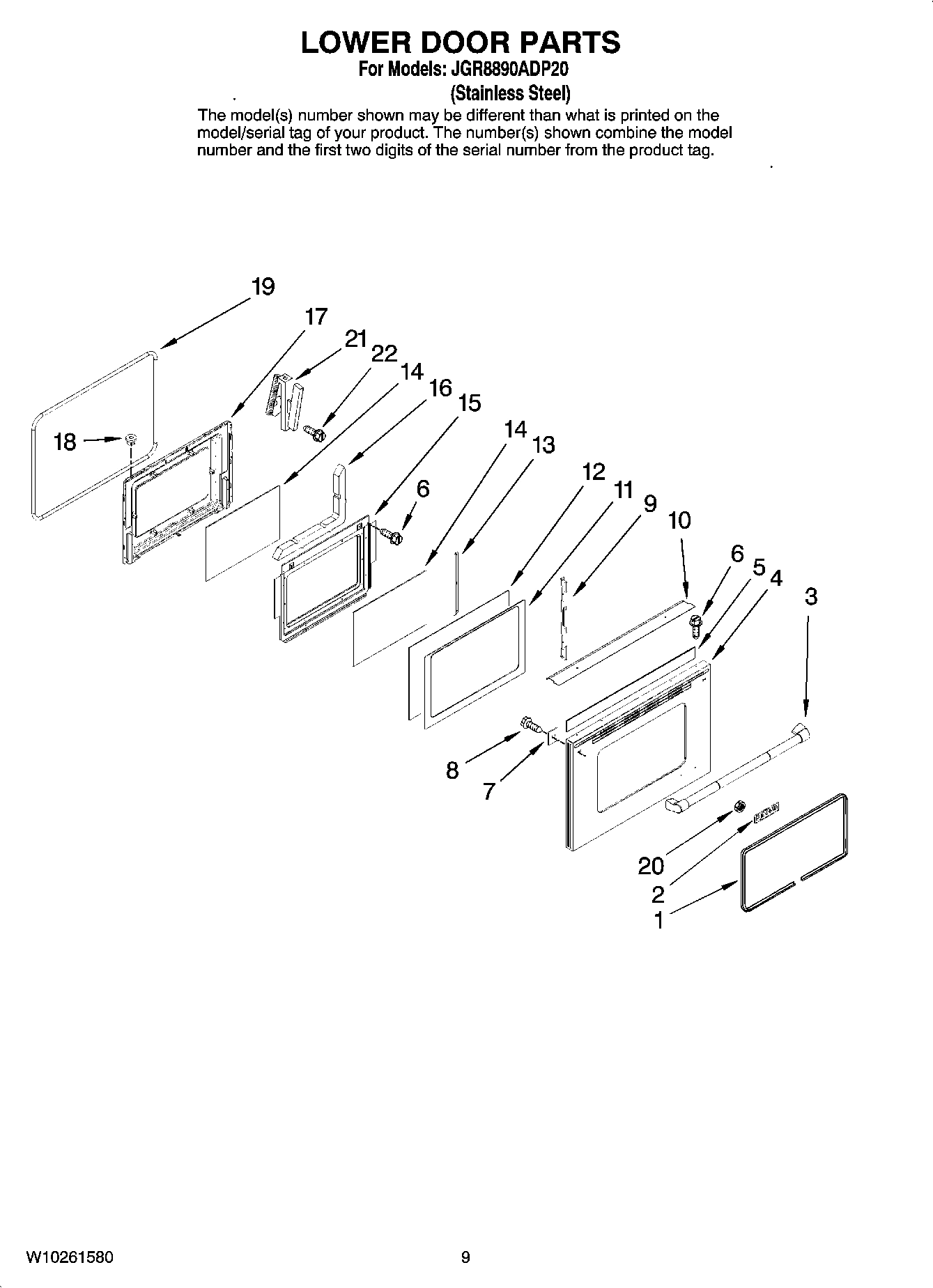

06 - LOWER DOOR PARTS

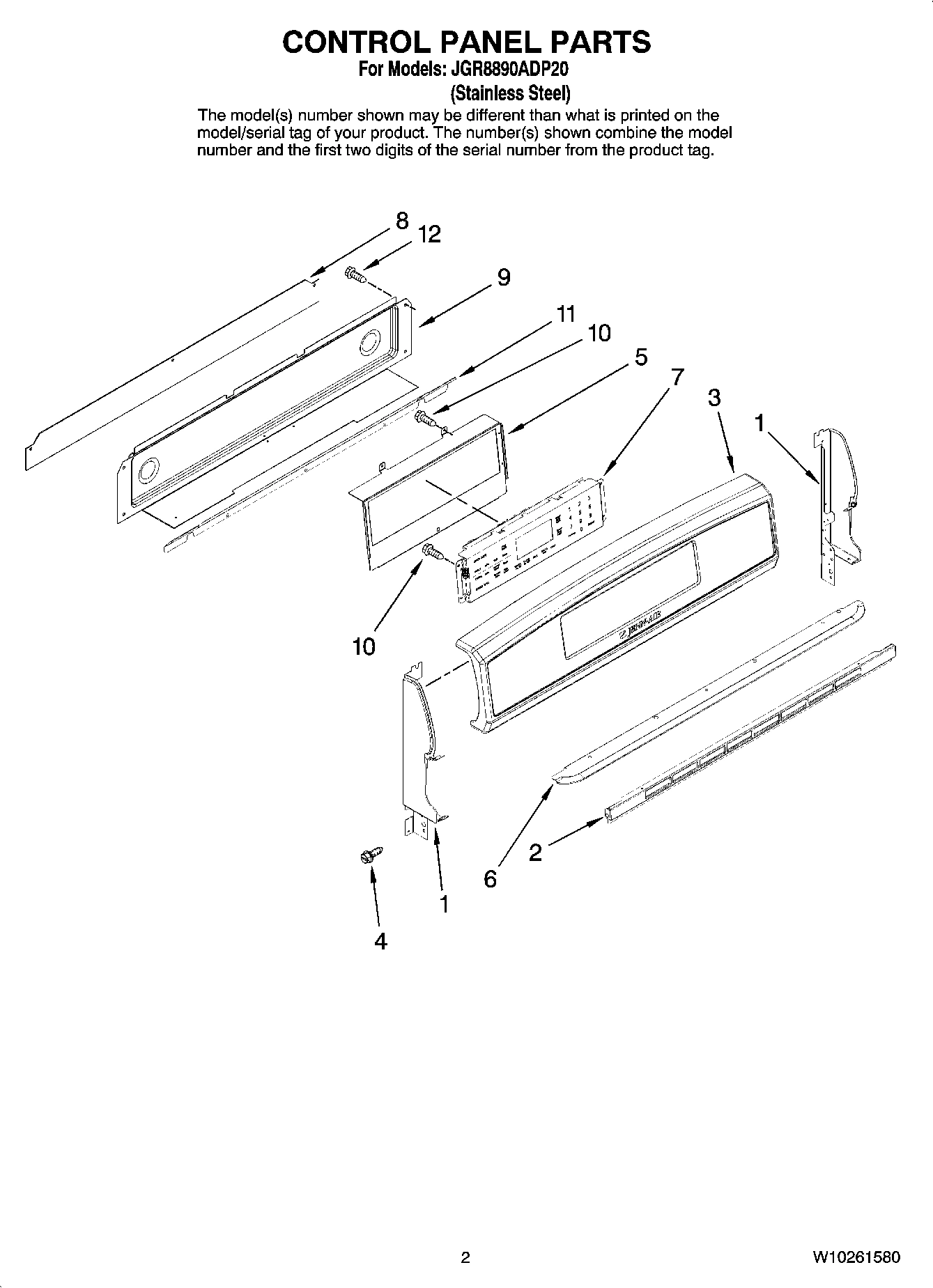

02 - CONTROL PANEL PARTS

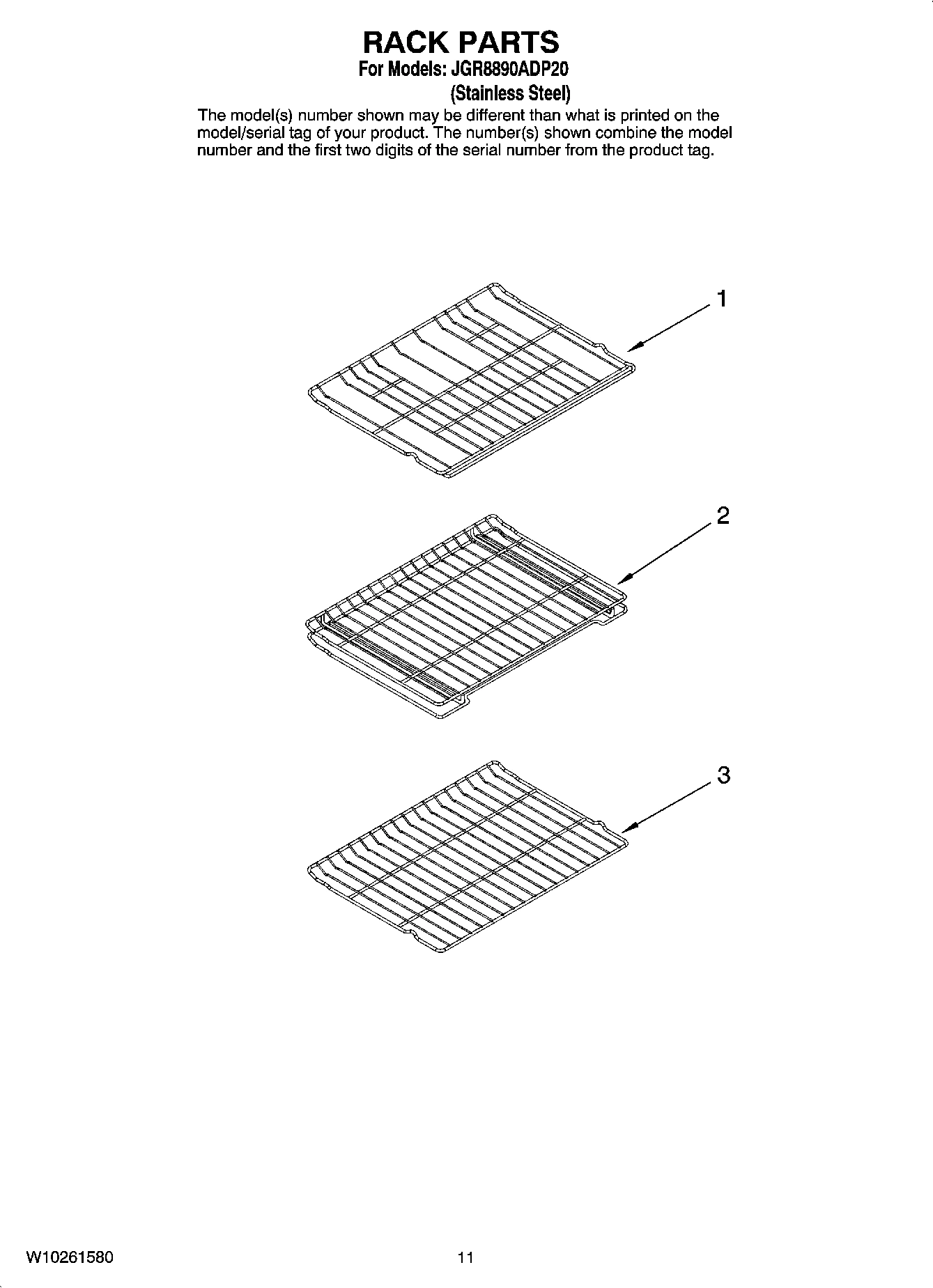

07 - RACK PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)

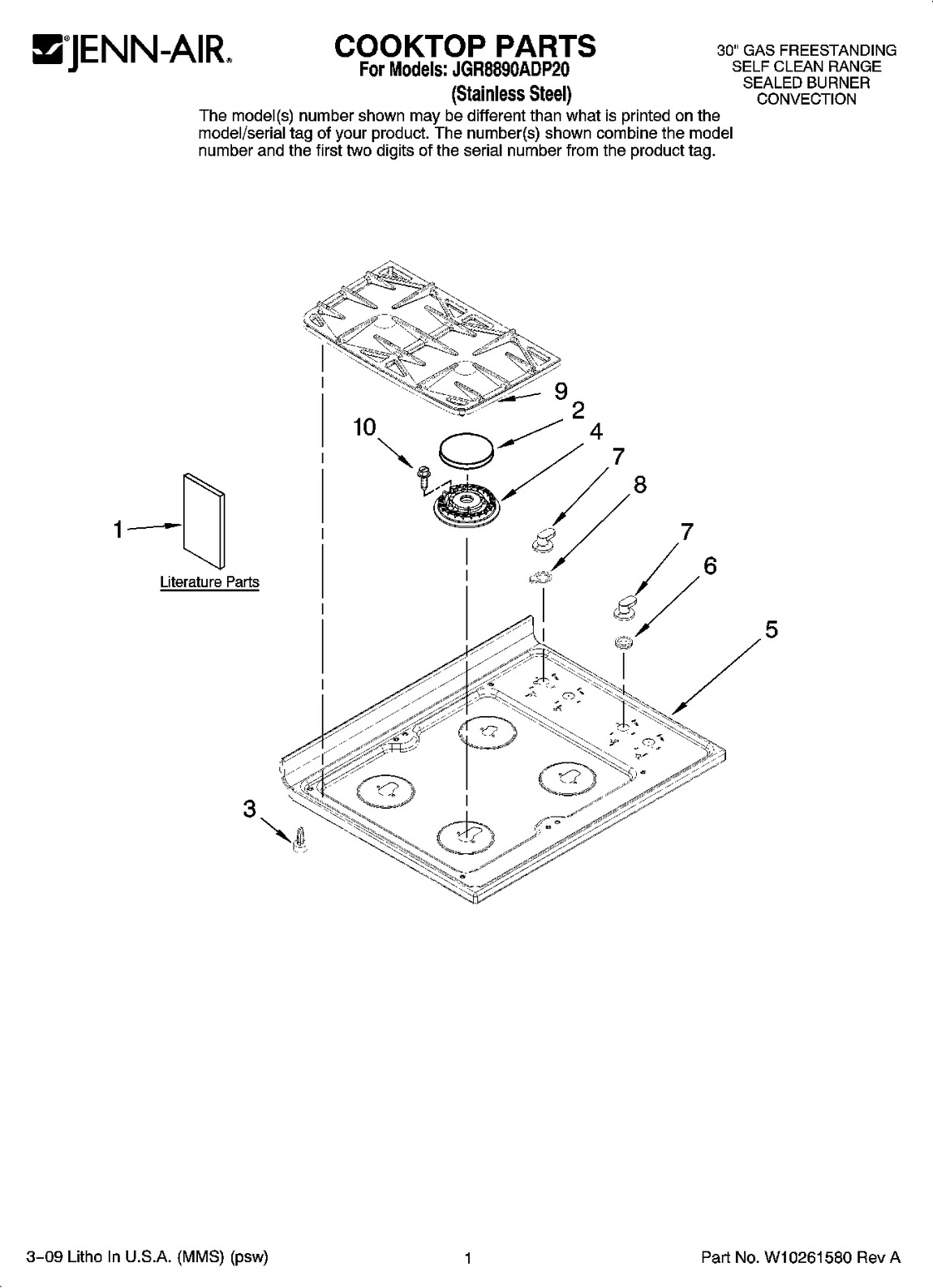

01 - COOKTOP PARTS

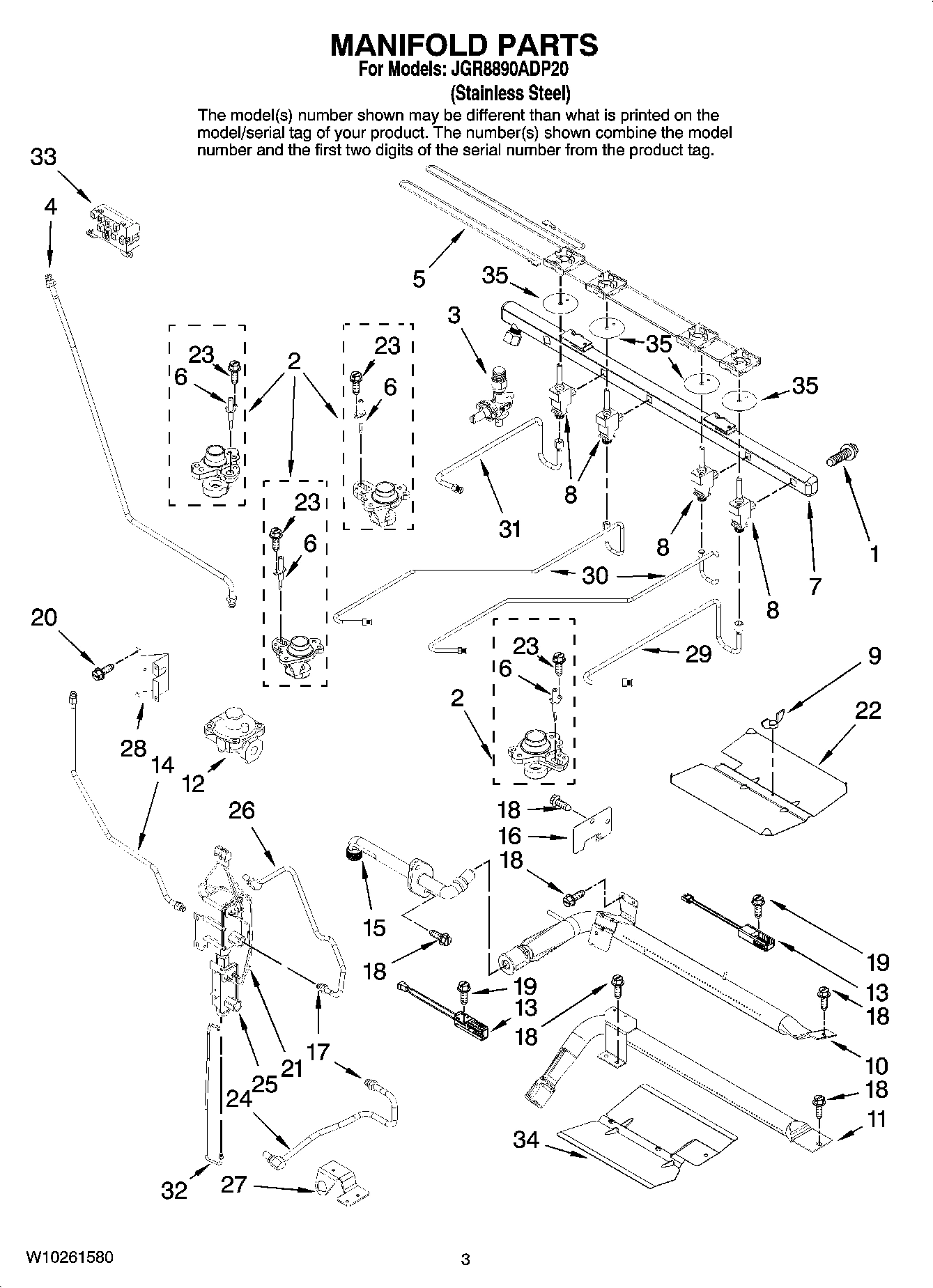

03 - MANIFOLD PARTS

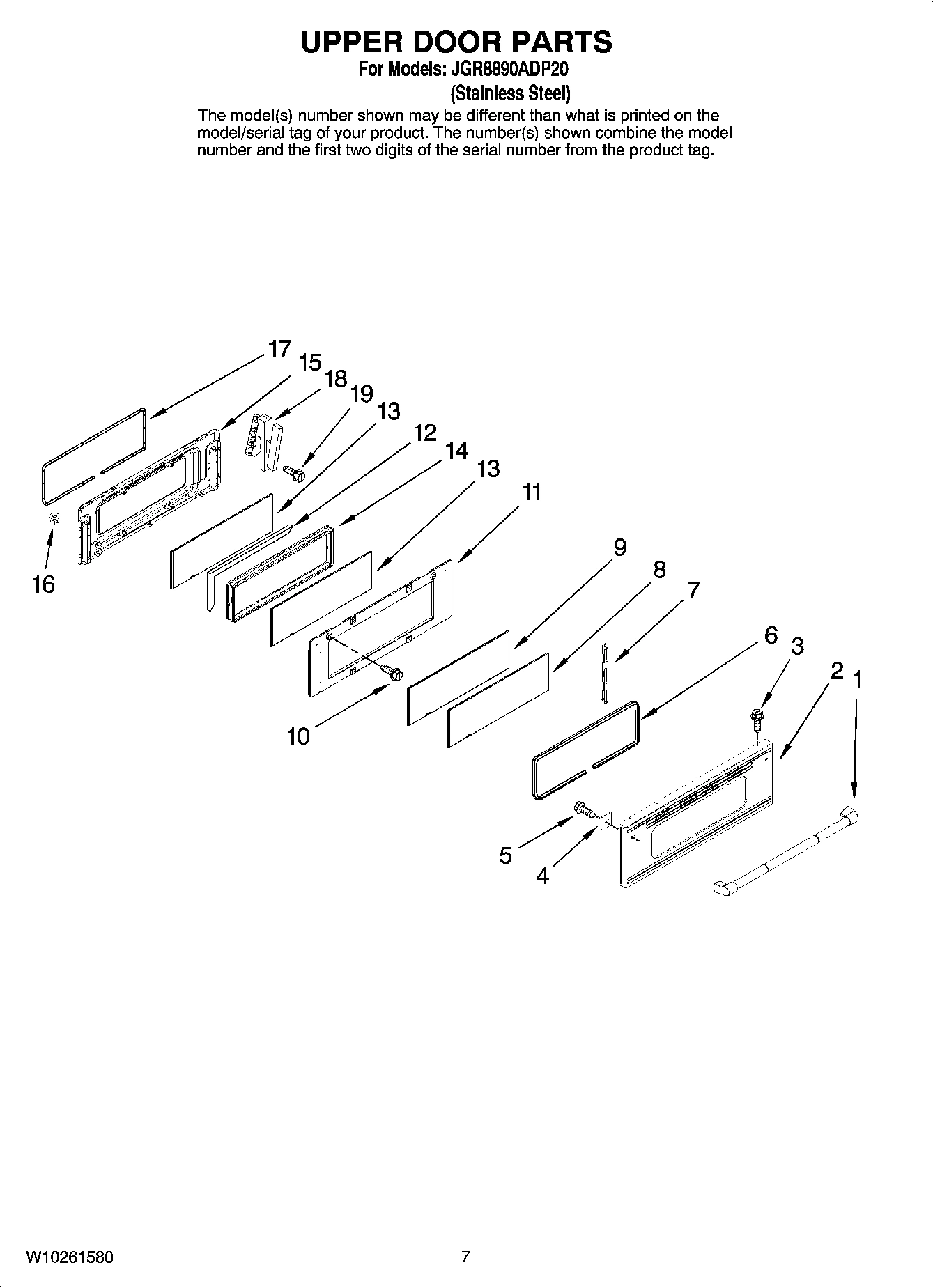

05 - UPPER DOOR PARTS

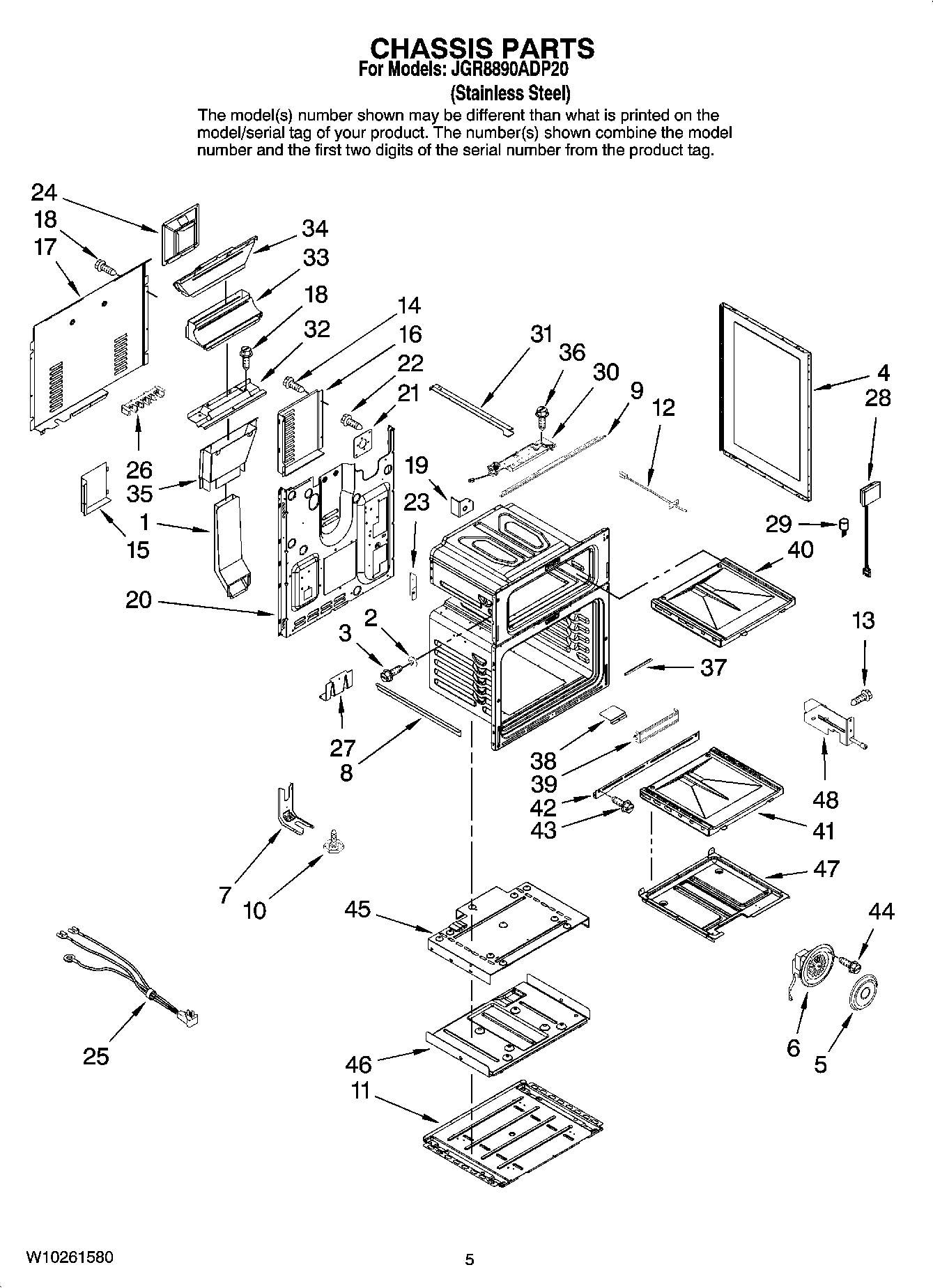

04 - CHASSIS PARTS
Common parts from model Whirlpool JGR8890ADP20 GAS RANGE
1
Support, Backguard (Right) WPL 3807F73370 Contact Us For Availability
1
Support, Backguard (Left) WPL 3807F73470 Contact Us For Availability
1
Rack, Upper Oven WPL 7801P15960 Contact Us For Availability
1
Installation Instructions WPL 8101P72860 Contact Us For Availability
1
Owners Manual WPL 8113P71660 Contact Us For Availability
1
Screw, Valve (4) WPL 7101P63960 Contact Us For Availability
1
Handle, Door WPL 7701P47560 Contact Us For Availability
1
Extension, Lower Vent WPL 3826W04745 Contact Us For Availability
2
Trim, Vent WPL 3608F12109 Contact Us For Availability
2
Rack, Telescoping WPL 7801P14360 Contact Us For Availability
2
Cap, Burner (RR-SM) WPL 7504P20260 Contact Us For Availability
2
Cap, Burner (LF-EX-LG) WPL 7504P20460 Contact Us For Availability
2
Cap, Burner (LR & RF-MED) WPL 7504P24160 Contact Us For Availability
2
HOLDER, ORIFICE ((LF)) WPL 7527P02160 Contact Us For Availability
2
HOLDER, ORIFICE ((LR & RF)) WPL 7527P02260 Contact Us For Availability
2
HOLDER, ORIFICE ((RR)) WPL 7527P02360 Contact Us For Availability
2
Panel, Door WPL 7760P21760 Contact Us For Availability
2
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
3
Panel, Control (Incl. Overlay) WPL 2602M18209 Contact Us For Availability
3
Rack, Lwr Oven (2) WPL 7801P17360 Contact Us For Availability
3
Glide, Main Top WPL 8016P02260 Contact Us For Availability
3
Valve, Shut Off (Incl. Screw) WPL 7502P56560 Contact Us For Availability
3
Screw WPL 7101P61860 Contact Us For Availability
4
Burner (LR & RF) WPL 7540P04360 Contact Us For Availability
4
Tubing, Manifold to Valve WPL 7506P42260 Contact Us For Availability
4
Plate, Back (2) (Handle Mtg.) WPL 8038P04060 Contact Us For Availability
4
Panel, Side (2) WPL 2618F19470 Contact Us For Availability
5
Bracket, Control WPL W10163277 Contact Us For Availability
5
Cooktop (BLK) WPL 2001N29209 Contact Us For Availability
5
Harness, Igniter (Incl. Switches) WPL 7450P10760 Contact Us For Availability
5
Screw WPL 7101P66860 Contact Us For Availability
5
Plate, Convection WPL 3605F33819 Contact Us For Availability
6
Shield, Vent WPL 3604F39809 Contact Us For Availability
6
Ignitor, Top Burner (4) WPL 7432M12660 Contact Us For Availability
6
Fan, Convection WPL 7427P10360 Contact Us For Availability
7
Knob, Control (4) WPL W10175696 Contact Us For Availability
7
Control Assy. (Incl. Membrane Switch) WPL W10162916 Contact Us For Availability
7
Pipe, Manifold WPL 7513P53060 Contact Us For Availability
7
Retainer, Glass Support (2) WPL 3804F18445 Contact Us For Availability
7
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
8
Shield, Sight WPL 8036P02560 Contact Us For Availability
8
Valve (RR) WPL 7502P56160 Contact Us For Availability
8
Valve (LR & RF) WPL 7502P56260 Contact Us For Availability
8
VALVE ((LF)) WPL 7502P56460 Contact Us For Availability
8
Glass, Outer Door WPL 7902P75360 Contact Us For Availability
8
Spacer, Side Panel (Long) WPL 3823F01551 Contact Us For Availability
9
Cover, Rear Wire WPL 4005F80451 Contact Us For Availability
9
Grate, Burner (2) (Incl. Bumpers) WPL 7518P42260 Contact Us For Availability
9
Nut WPL 7103P03060 Contact Us For Availability
9
Glass, Inner Door WPL 7902P54260 Contact Us For Availability
9
Bracket, Cooktop WPL 3801F92480 Contact Us For Availability
10
Screw WPL 7101P50060 Contact Us For Availability
10
Screw (8) WPL 7101P68560 Contact Us For Availability
10
Burner, Broiler WPL 7505P32360 Contact Us For Availability
10
SCREW WPL 7101P37660 Contact Us For Availability
10
Foot, Leveler (4) WPL 7101P50760 Contact Us For Availability
11
Shield, Wire WPL 3604F40551 Contact Us For Availability
11
Burner, Bake WPL 7505P32460 Contact Us For Availability
11
Baffle, Door WPL 3601F35445 Contact Us For Availability
11
Base, Gemini WPL 4003F07051 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Regulator, Pressure WPL 7510P08960 Contact Us For Availability
12
Insulation (2) WPL 7002P48860 Contact Us For Availability
12
SENSOR, OVEN (LOWER OVEN) WPL 7430P04160 Contact Us For Availability
12
Sensor, Oven (Upper Oven) WPL 7430P04560 Contact Us For Availability
13
Igniter (Broil) WPL 7432P13060 Contact Us For Availability
13
Igniter (Bake) WPL 7432P14360 Contact Us For Availability
13
Glass, Inner (2) WPL 7902P52160 Contact Us For Availability
13
Screw WPL 7101P34760 Contact Us For Availability
14
Tubing (Broiler Fitting To Valve) WPL 7506P42960 Contact Us For Availability
14
Frame, Glass WPL 7907P03460 Contact Us For Availability
15
Fitting, Broiler WPL 7507P40060 Contact Us For Availability
15
Liner, Door WPL 2402W24819 Contact Us For Availability
15
Cover, Conv. Motor WPL 4005F74151 Contact Us For Availability
16
Insulation WPL 7002P24660 Contact Us For Availability
16
Nut, Snap (2) WPL 7103P14160 Contact Us For Availability
16
COVER, IGNITER WPL 4005F42145 Contact Us For Availability
16
Cover, Bottom Wire WPL 4005F74351 Contact Us For Availability
17
Liner, Door WPL 2402W31219 Contact Us For Availability
17
Nut, Mounting WPL 7103P19560 Contact Us For Availability
17
Gasket, Door WPL 7201P09160 Contact Us For Availability
17
Cover, Upper Wire WPL 4005F65551 Contact Us For Availability
18
Screw WPL 7101P36060 Contact Us For Availability
18
Hinge, Door (2) WPL 7106P14860 Contact Us For Availability
19
Screw (4) WPL 7101P28260 Contact Us For Availability
19
Bracket (Right) WPL 3801F70551 Contact Us For Availability
19
Bracket (Left) WPL 3801F70651 Contact Us For Availability
20
Palnut (2) WPL 7103P16660 Contact Us For Availability
20
Back, Main WPL W10180198 Contact Us For Availability
21
Hinge, Door (2) WPL 7106P14360 Contact Us For Availability
21
Harness, Triple Valve WPL 5171P60360 Contact Us For Availability
21
Plate, Broil Fitting WPL 3807F64745 Contact Us For Availability
22
Screw WPL 7101P38860 Contact Us For Availability
22
Baffle, Broil Burner WPL 3601F35845 Contact Us For Availability
23
Support, Upr Oven (Right) WPL 3807F64345 Contact Us For Availability
23
Support, Upr Oven (Left) WPL 3807F64445 Contact Us For Availability
24
Tubing, Bake Burner (Incl. Orifice) WPL 7507P39560 Contact Us For Availability
24
Retainer, Insulation WPL 3804F27045 Contact Us For Availability
25
Valve, Bake/Broil WPL 7501P22160 Contact Us For Availability
25
Cord, Power WPL 7402P11160 Contact Us For Availability
26
Tubing, Broil Burner (Incl. Orifice) WPL 7507P39660 Contact Us For Availability
26
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
27
Bracket, Orfice WPL 3801F68145 Contact Us For Availability
27
Support, Lwr Oven WPL 3807F58051 Contact Us For Availability
28
Bracket, Regulator WPL 3801F69151 Contact Us For Availability
28
Light Assy. (2) WPL 7407P17960 Contact Us For Availability
29
Tubing (RF) WPL 7506P37860 Contact Us For Availability
29
Bulb, Light (2) WPL 899138001 Contact Us For Availability
30
Tubing (LR & LF) WPL 7506P37960 Contact Us For Availability
30
Latch, Door Lock WPL 8002P07760 Contact Us For Availability
31
Tubing (RR) WPL 7506P41860 Contact Us For Availability
31
Bottom, Burner Box (Right) WPL W10163331 Contact Us For Availability
31
Bottom, Burner Box (Left) WPL W10163332 Contact Us For Availability
32
Tubing, Manifold to Valve WPL 7506P42860 Contact Us For Availability
32
Baffle, Vent Seal WPL 3601F32150 Contact Us For Availability
33
Module, Spark WPL 7431P06460 Contact Us For Availability
33
Extension, Upper Vent WPL 3826W04245 Contact Us For Availability
34
Baffle, Bake Burner WPL 3601F33945 Contact Us For Availability
34
Flue Assy., Upper WPL 4022W05545 Contact Us For Availability
35
Cover, Valve Swtch WPL 7724P19460 Contact Us For Availability
35
Flue Assy., Lower WPL 3826W05245 Contact Us For Availability
36
Screw WPL 7101P37560 Contact Us For Availability
37
Seal, Front Frame WPL 7212P06660 Contact Us For Availability
38
Cover, Burner Opening (2) WPL 4005F73645 Contact Us For Availability
39
Baffle, Lower Oven Vent WPL 3601F30819 Contact Us For Availability
40
Bottom, Upper Oven WPL 2205F05519 Contact Us For Availability
41
Bottom, Lower Oven WPL 2205F05119 Contact Us For Availability
42
Trim, Kickplate WPL 3608F08870 Contact Us For Availability
43
Screw (2) WPL 7101P63360 Contact Us For Availability
44
Screw WPL 7101P38560 Contact Us For Availability
45
Cover, Bottom Insulation WPL 4005F69545 Contact Us For Availability
46
Retainer, Bottom Insulation WPL 3804F21245 Contact Us For Availability
47
Pan, Bake (Upper) WPL 3401F09045 Contact Us For Availability
47
PAN, BAKE (LOWER) WPL 3401F09145 Contact Us For Availability
48
SWTCH-LITE WPL 7450P10860 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
Harness, Spark WPL W10202388 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
Harness, Sensor WPL 5171P36060 Contact Us For Availability
NI
Harness, Side Mount Lock WPL 5171P46760 Contact Us For Availability
NI
Harness, Gas WPL 5171P60160 Contact Us For Availability
NI
Harness, Door Position WPL 5175P36560 Contact Us For Availability
NI
Screw, Ground WPL 7101P28760 Contact Us For Availability
NI
Blocks, Bare Wire Adapter (Kit of 3) WPL 7401P15760 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability
NI
Clip, Wire WPL 8019P01360 Contact Us For Availability
NI
Clip, Harness WPL 8019P02660 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI3609A64 Contact Us For Availability
NI
SPLICING WIRES--25FT. LENGTH WPL ARI3610A95 Contact Us For Availability
NI
Refinishing Material WPL ARI3611A64 Contact Us For Availability
NI
INSULATION WPL ARI3612A45 Contact Us For Availability
NI
ACCESSORY PARTS WPL ARI3613A84 Contact Us For Availability
NI
WIRING HARNESS PARTS WPL ARI3614A56 Contact Us For Availability
NI
Spuds, LP Gas (Kit of 4) WPL 5789A60260 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI3607A67 Contact Us For Availability
NI
Kit, LP Conv. WPL W10196413 Contact Us For Availability
NI
Insulation, Wrap (Upper Oven) WPL 7002P31060 Contact Us For Availability
NI
Insulation, Wrap (Lower Oven) WPL 7002P41360 Contact Us For Availability
NI
Insulation, Back (Upper Oven) WPL 7002P41560 Contact Us For Availability
NI
Insulation WPL 7002P41960 Contact Us For Availability
NI
WPL ARI3608A26 WPL ARI3608A26 Contact Us For Availability
× ![]()
