Model Maytag JGR8875RDB1 GAS RANGE – Common Parts & Diagrams

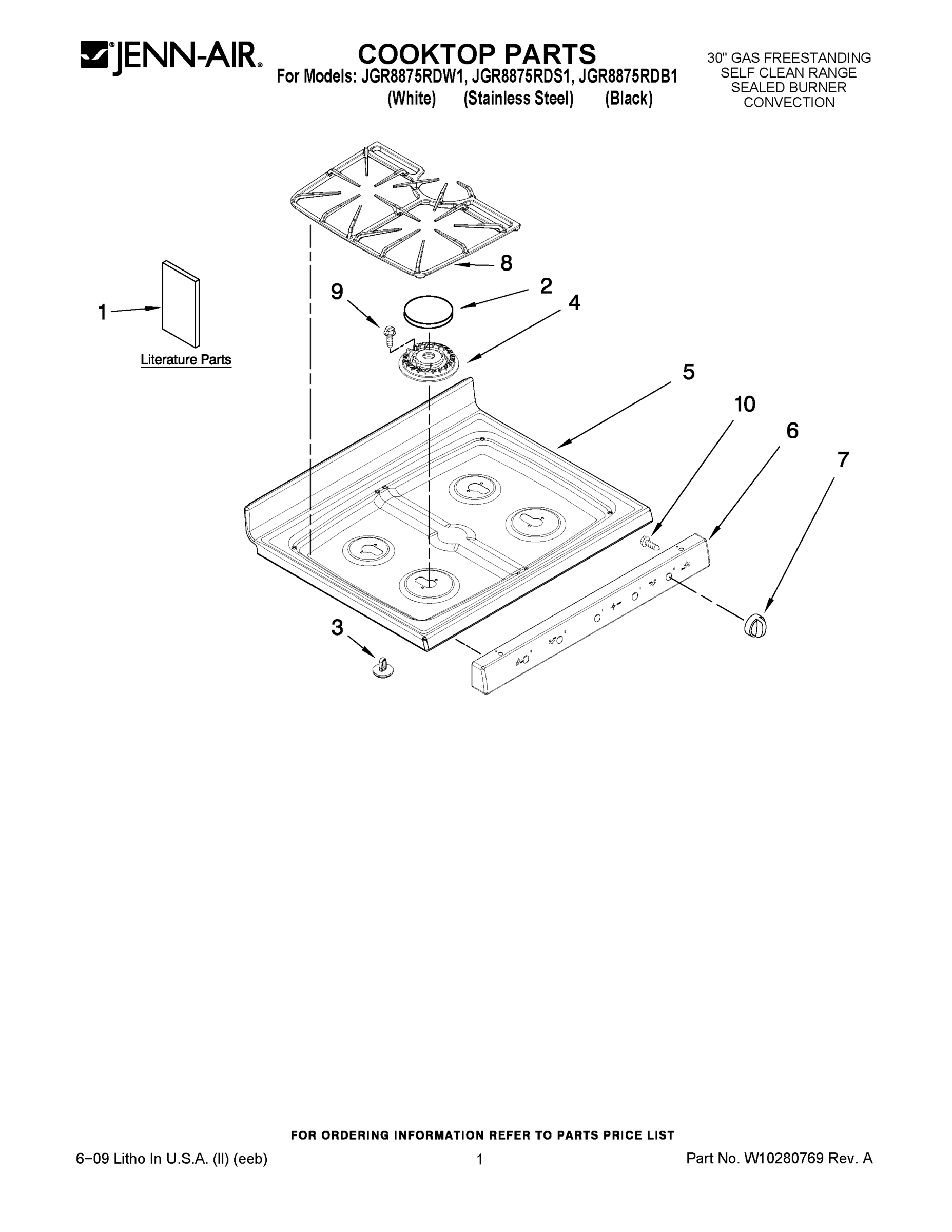

01 - COOKTOP PARTS
02 - CONTROL PANEL PARTS
03 - CHASSIS PARTS
04 - MANIFOLD PARTS
05 - DOOR PARTS
06 - DRAWER AND RACK PARTS
07 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JGR8875RDB1 GAS RANGE
1
TIP, SAFE COOKING (ENGLISH) MAY 9762761 Contact Us For Availability
1
TIP, SAFE COOKING (FRENCH) MAY W10065852 Contact Us For Availability
1
Endcap, Right Hand (Black) MAY 3807F702-70 Contact Us For Availability
1
Endcap, Right Hand (White) MAY 3807F702-71 Contact Us For Availability
1
Endcap, Left Hand (Black) MAY 3807F703-70 Contact Us For Availability
1
Endcap, Left Hand (White) MAY 3807F703-71 Contact Us For Availability
1
MAY 8026P080-60 MAY 8026P080-60 Contact Us For Availability
1
MAY 71003231 MAY 71003231 Contact Us For Availability
1
Trim, Top (Black) MAY 3608F139-70 Contact Us For Availability
1
Trim, Top (White) MAY 3608F139-71 Contact Us For Availability
1
RACK, OVEN (3) MAY W10179196 Contact Us For Availability
2
CAP, BURNER (CTR) (BLACK) MAY 7504P136-60 Contact Us For Availability
2
CAP, BURNER (RR & LR) (BLACK) MAY 7504P137-60 Contact Us For Availability
2
CAP, BURNER (LF) (BLACK) MAY 7504P138-60 Contact Us For Availability
2
CAP, BURNER (CTR) (GRAY) MAY 7504P139-60 Contact Us For Availability
2
CAP, BURNER (RR & LR) (GRAY) MAY 7504P140-60 Contact Us For Availability
2
CAP, BURNER (LF) (GRAY) MAY 7504P141-60 Contact Us For Availability
2
CAP, BURNER (RF) (GRAY) MAY 7504P205-60 Contact Us For Availability
2
CAP, BURNER (RF) (BLACK) MAY 7504P219-60 Contact Us For Availability
2
MAY 3604F383-09 MAY 3604F383-09 Contact Us For Availability
2
MAY 3604F383-81 MAY 3604F383-81 Contact Us For Availability
2
Spacer, Side Panel MAY 8010P148-60 Contact Us For Availability
2
MAY 7527P095-60 MAY 7527P095-60 Contact Us For Availability
2
MAY 7527P097-60 MAY 7527P097-60 Contact Us For Availability
2
MAY 7527P101-60 MAY 7527P101-60 Contact Us For Availability
2
MAY 7527P124-60 MAY 7527P124-60 Contact Us For Availability
2
MAY 7527P125-60 MAY 7527P125-60 Contact Us For Availability
2
MAY W10176584 MAY W10176584 Contact Us For Availability
2
Spacer, Bumper MAY 8010P130-60 Contact Us For Availability
3
Spacer, Snap-In MAY 8010P149-60 Contact Us For Availability
3
MAY W10218207 MAY W10218207 Contact Us For Availability
3
MAY W10218208 MAY W10218208 Contact Us For Availability
3
MAY W10218209 MAY W10218209 Contact Us For Availability
3
Support, Oven Bottom MAY 3807P680-45 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY 7701P467-60 Contact Us For Availability
3
Drawer MAY 3405F037-80 Contact Us For Availability
4
MAY 7540P043-60 MAY 7540P043-60 Contact Us For Availability
4
BURNER (CTR) MAY 8286181 Contact Us For Availability
4
BURNER (LF) MAY 8286182 Contact Us For Availability
4
BURNER (RF) MAY 8286183 Contact Us For Availability
4
MAY 7431P053-60 MAY 7431P053-60 Contact Us For Availability
4
Panel, Side (2) (White) MAY 2618F172-58 Contact Us For Availability
4
Panel, Side (2) (Black) MAY 2618F172-69 Contact Us For Availability
4
MAY 74002979 MAY 74002979 Contact Us For Availability
4
MAY 7506P361-60 MAY 7506P361-60 Contact Us For Availability
4
Liner, Door MAY 2402W297-19 Contact Us For Availability
5
MAY 2001F287-09 MAY 2001F287-09 Contact Us For Availability
5
MAY 2001F287-81 MAY 2001F287-81 Contact Us For Availability
5
COVER, UPPER MAY 4005F804-51 Contact Us For Availability
5
PLATE, CONVECT MAY 3605F305-19 Contact Us For Availability
5
MAY W10173438 MAY W10173438 Contact Us For Availability
5
MAY 7902P436-60 MAY 7902P436-60 Contact Us For Availability
5
MAY 2416F104-70 MAY 2416F104-70 Contact Us For Availability
5
MAY 2416F104-71 MAY 2416F104-71 Contact Us For Availability
6
MAY 2616F328-09 MAY 2616F328-09 Contact Us For Availability
6
IGNITOR, TOP BURNER (4) MAY 2616F328-81 Contact Us For Availability
6
MAY 3604F381-19 MAY 3604F381-19 Contact Us For Availability
6
MAY 7002P373-60 MAY 7002P373-60 Contact Us For Availability
6
MAY 7427P108-60 MAY 7427P108-60 Contact Us For Availability
6
TAPE (WHITE) MAY 8270P139-60 Contact Us For Availability
6
Panel, Inner MAY 3605P337-51 Contact Us For Availability
7
KNOB, CONTROL (5) (BRUSHED CHROME) MAY 7733P389-60 Contact Us For Availability
7
MAY 8507P351-60 MAY 8507P351-60 Contact Us For Availability
7
MAY 7101P376-60 MAY 7101P376-60 Contact Us For Availability
7
BRACKET, ANTI-TIP MAY 3801F656-51 Contact Us For Availability
7
MAY 7513P524-60 MAY 7513P524-60 Contact Us For Availability
7
Drawer, Stop MAY 8038P037-60 Contact Us For Availability
8
GRATE, BURNER (2) (BLACK) MAY 7518P190-60 Contact Us For Availability
8
GRATE, BURNER (2) (GRAY) MAY 7518P192-60 Contact Us For Availability
8
MAY 7101P426-60 MAY 7101P426-60 Contact Us For Availability
8
FRAME, FRONT (NOT SERVICED) MAY N/P Contact Us For Availability
8
VALVE (CTR) MAY 7502P499-60 Contact Us For Availability
8
VALVE (LR/RR/RF) MAY 7502P500-60 Contact Us For Availability
8
VALVE (LF) MAY 7502P501-60 Contact Us For Availability
8
MAY 7002P246-60 MAY 7002P246-60 Contact Us For Availability
9
MAY 3801F945-51 MAY 3801F945-51 Contact Us For Availability
9
Hinge, Receiver MAY 7106P125-60 Contact Us For Availability
9
MAY 7103P030-60 MAY 7103P030-60 Contact Us For Availability
9
Retainer, Insulation MAY 3601F380-51 Contact Us For Availability
9
RAIL, DRAWER MAY 3406P034-51 Contact Us For Availability
10
MAY 7101P388-60 MAY 7101P388-60 Contact Us For Availability
10
MAY 7101P500-60 MAY 7101P500-60 Contact Us For Availability
10
MAY 7101P507-60 MAY 7101P507-60 Contact Us For Availability
10
MAY W10160904 MAY W10160904 Contact Us For Availability
10
Hinge, Door MAY 7106P124-60 Contact Us For Availability
10
Shaft, Storage Drawer Roller MAY 7118P032-60 Contact Us For Availability
11
MAY 4005F748-51 MAY 4005F748-51 Contact Us For Availability
11
MAY 2205F053-19 MAY 2205F053-19 Contact Us For Availability
11
MAY 31945701 MAY 31945701 Contact Us For Availability
11
GLASS, OUTER DOOR (WHITE) MAY 7902P784-60 Contact Us For Availability
11
GLASS, OUTER DOOR (BLACK) MAY 7902P792-60 Contact Us For Availability
11
MAY W10272883 MAY W10272883 Contact Us For Availability
12
MAY 7101P434-60 MAY 7101P434-60 Contact Us For Availability
12
Sensor, Oven MAY 7430P041-60 Contact Us For Availability
12
MAY 7501P233-60 MAY 7501P233-60 Contact Us For Availability
12
MAY 3608F126-70 MAY 3608F126-70 Contact Us For Availability
12
MAY 3608F126-71 MAY 3608F126-71 Contact Us For Availability
13
MAY 3601P356-45 MAY 3601P356-45 Contact Us For Availability
13
IGNITOR (BAKE) MAY 7432P136-60 Contact Us For Availability
13
MAY 7101P633-60 MAY 7101P633-60 Contact Us For Availability
14
MAY 3196160 MAY 3196160 Contact Us For Availability
14
MAY 7506P368-60 MAY 7506P368-60 Contact Us For Availability
14
Trim, Lower Door (Black) MAY 3608F092-70 Contact Us For Availability
14
Trim, Lower Door (White) MAY 3608F092-71 Contact Us For Availability
15
MAY 3605F146-51 MAY 3605F146-51 Contact Us For Availability
15
MAY 7507P357-60 MAY 7507P357-60 Contact Us For Availability
15
MAY W10208307 MAY W10208307 Contact Us For Availability
15
Tape, Double Sided (White) MAY W10208308 Contact Us For Availability
16
MAY 4005P704-51 MAY 4005P704-51 Contact Us For Availability
16
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
16
MAY 3196165 MAY 3196165 Contact Us For Availability
17
Screw (2) MAY 71001394 Contact Us For Availability
17
Screw MAY 7101P282-60 Contact Us For Availability
17
ORIFICE, BURNER (LF) MAY 7509P120-60 Contact Us For Availability
17
ORIFICE, BURNER (LR/RF/RR) MAY 7509P123-60 Contact Us For Availability
17
ORIFICE, BURNER (CTR) MAY 7509P124-60 Contact Us For Availability
18
MAY 4005F753-45 MAY 4005F753-45 Contact Us For Availability
18
MAY 3801P857-45 MAY 3801P857-45 Contact Us For Availability
18
MAY 3801P858-45 MAY 3801P858-45 Contact Us For Availability
19
COVER, LOWER WIRE MAY 4005P703-51 Contact Us For Availability
19
MAY 7002P484-60 MAY 7002P484-60 Contact Us For Availability
20
Back, Main MAY 4002F347-51 Contact Us For Availability
20
Tape, Foil (3``) MAY 8270P090-60 Contact Us For Availability
21
Seal, Oven MAY W10162385 Contact Us For Availability
21
MAY 7507P366-60 MAY 7507P366-60 Contact Us For Availability
21
BRACKET, WINDOW (2) MAY 3801F886-51 Contact Us For Availability
22
MAY 7101P336-60 MAY 7101P336-60 Contact Us For Availability
22
MAY 3601P336-45 MAY 3601P336-45 Contact Us For Availability
22
MAY 7103P176-60 MAY 7103P176-60 Contact Us For Availability
23
Screw MAY 7101P485-60 Contact Us For Availability
23
MAY 8273062 MAY 8273062 Contact Us For Availability
23
Screw (White) MAY 3196166 Contact Us For Availability
23
Screw (Black) MAY 3196168 Contact Us For Availability
24
Clip (4) MAY 7112P158-60 Contact Us For Availability
25
MAY 7402P109-60 MAY 7402P109-60 Contact Us For Availability
26
Bracket, Oven Bottom MAY 3801P822-45 Contact Us For Availability
28
Light Assembly MAY 7407P181-60 Contact Us For Availability
30
Latch, Door Lock MAY 8002P104-60 Contact Us For Availability
31
RETAINER, INSULATION MAY 3804F300-51 Contact Us For Availability
32
MAY 3604P409-51 MAY 3604P409-51 Contact Us For Availability
34
MAY 74011187 MAY 74011187 Contact Us For Availability
36
MAY 7002P494-60 MAY 7002P494-60 Contact Us For Availability
39
BRACKET, OVEN SUPPORT MAY 3801P798-51 Contact Us For Availability
42
MAY 7003P142-60 MAY 7003P142-60 Contact Us For Availability
43
MAY 74008798 MAY 74008798 Contact Us For Availability
44
BAKE PAN MAY 3401F082-45 Contact Us For Availability
NI
MAY 7002P424-60 MAY 7002P424-60 Contact Us For Availability
NI
MAY 7002P492-60 MAY 7002P492-60 Contact Us For Availability
NI
MAY 7101P027-60 MAY 7101P027-60 Contact Us For Availability
NI
MAY 5789A601-60 MAY 5789A601-60 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 240132 Contact Us For Availability
NI
MAY 241430 MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL (TOUCH-UP SELF-CLEAN(1/2 MAY 242756 Contact Us For Availability
NI
REFINISHING MATERIAL (INSULATION, FIBERGLASS MAY 261514 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BLACK) MAY 350939 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
MAY 4392900 MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE PORCELAIN (2 MAY 511873 Contact Us For Availability
NI
MAY 5171P894-60 MAY 5171P894-60 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) MAY 799340 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
CLIP, WIRE MAY 8019P026-60 Contact Us For Availability
× ![]()
