Model Whirlpool JGC9430BDB GAS COOK-TOP – Common Parts & Diagrams

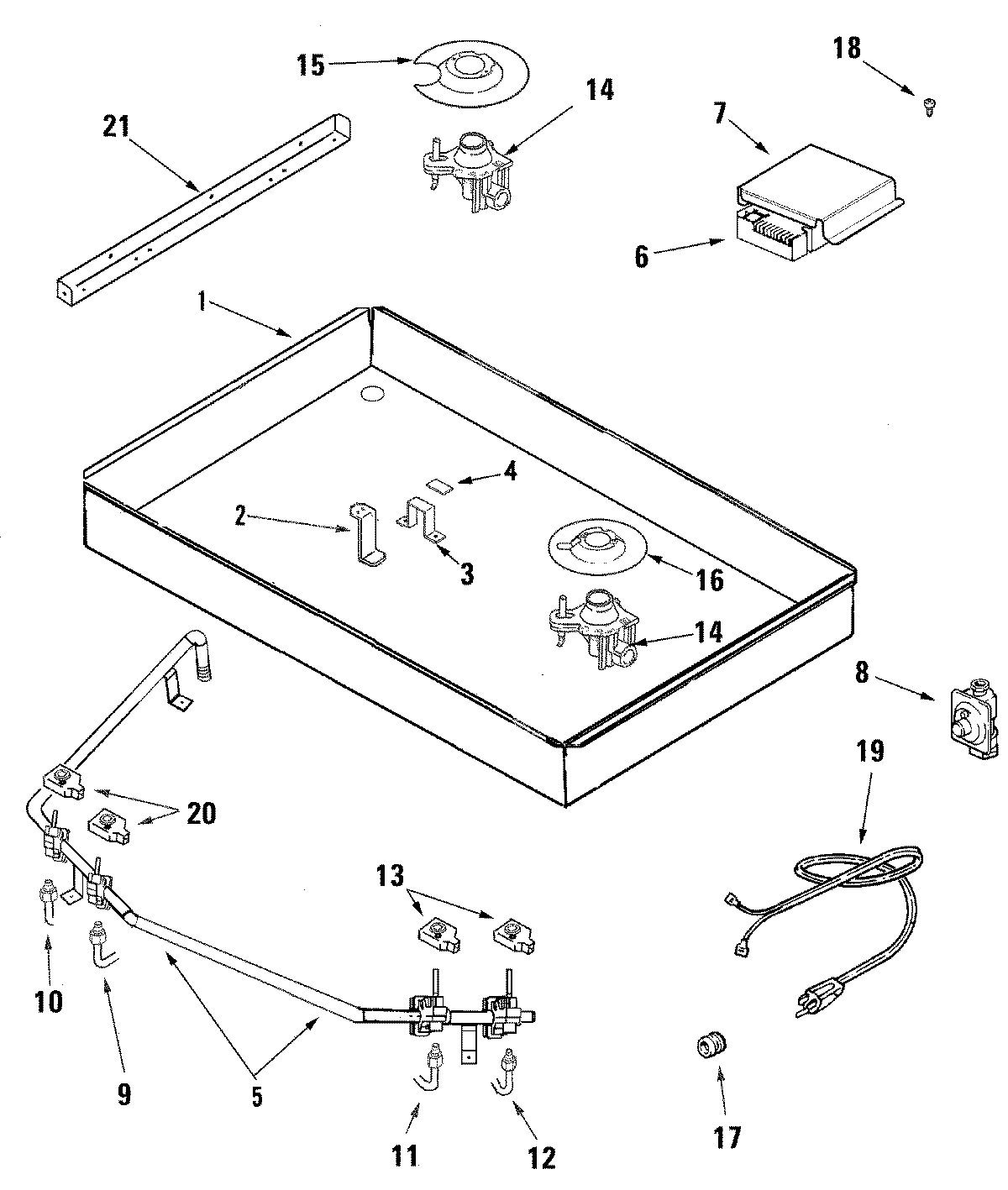

01 - BODY

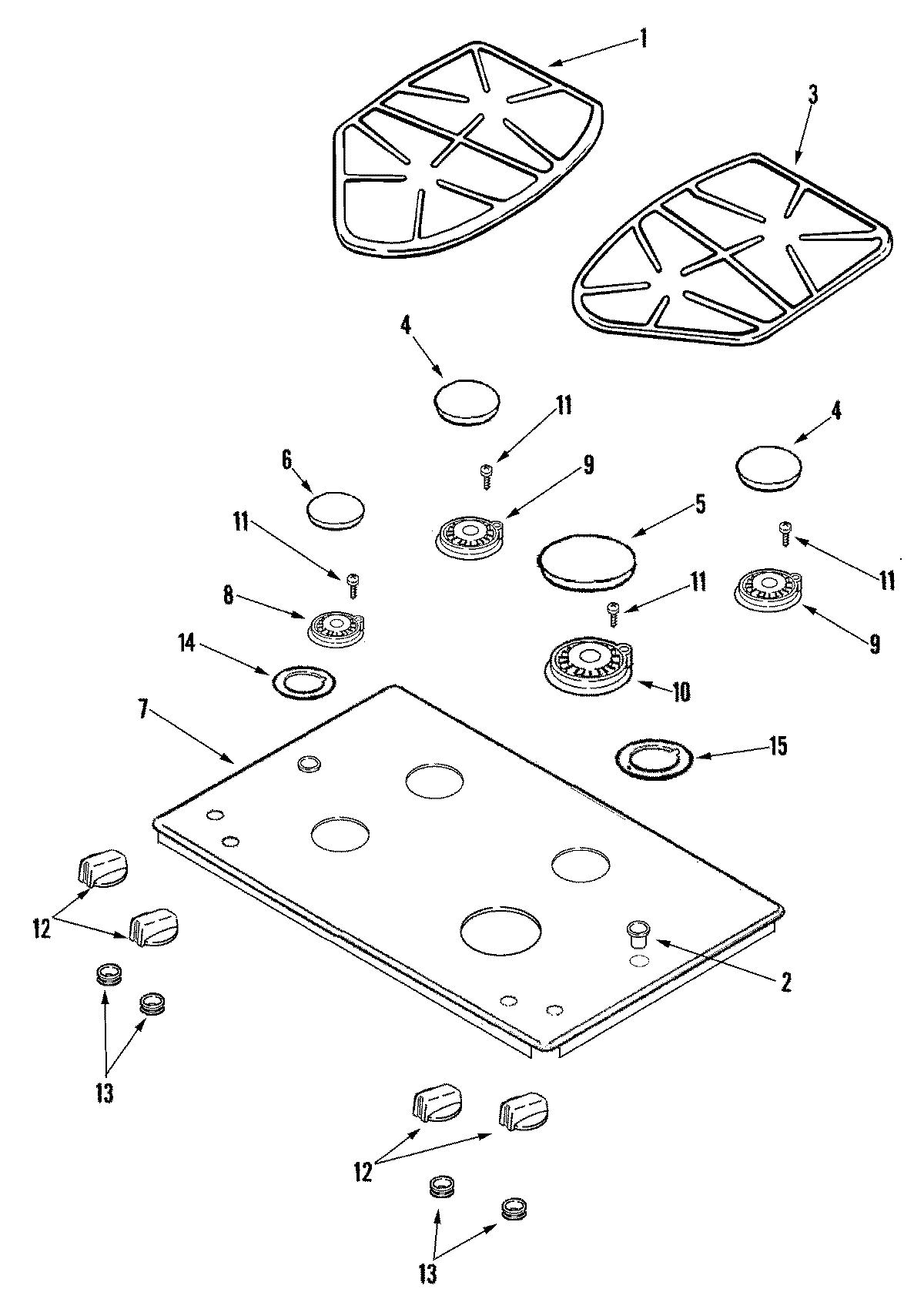

03 - TOP ASSEMBLY
02 - SUPPLEMENTAL INFORMATION

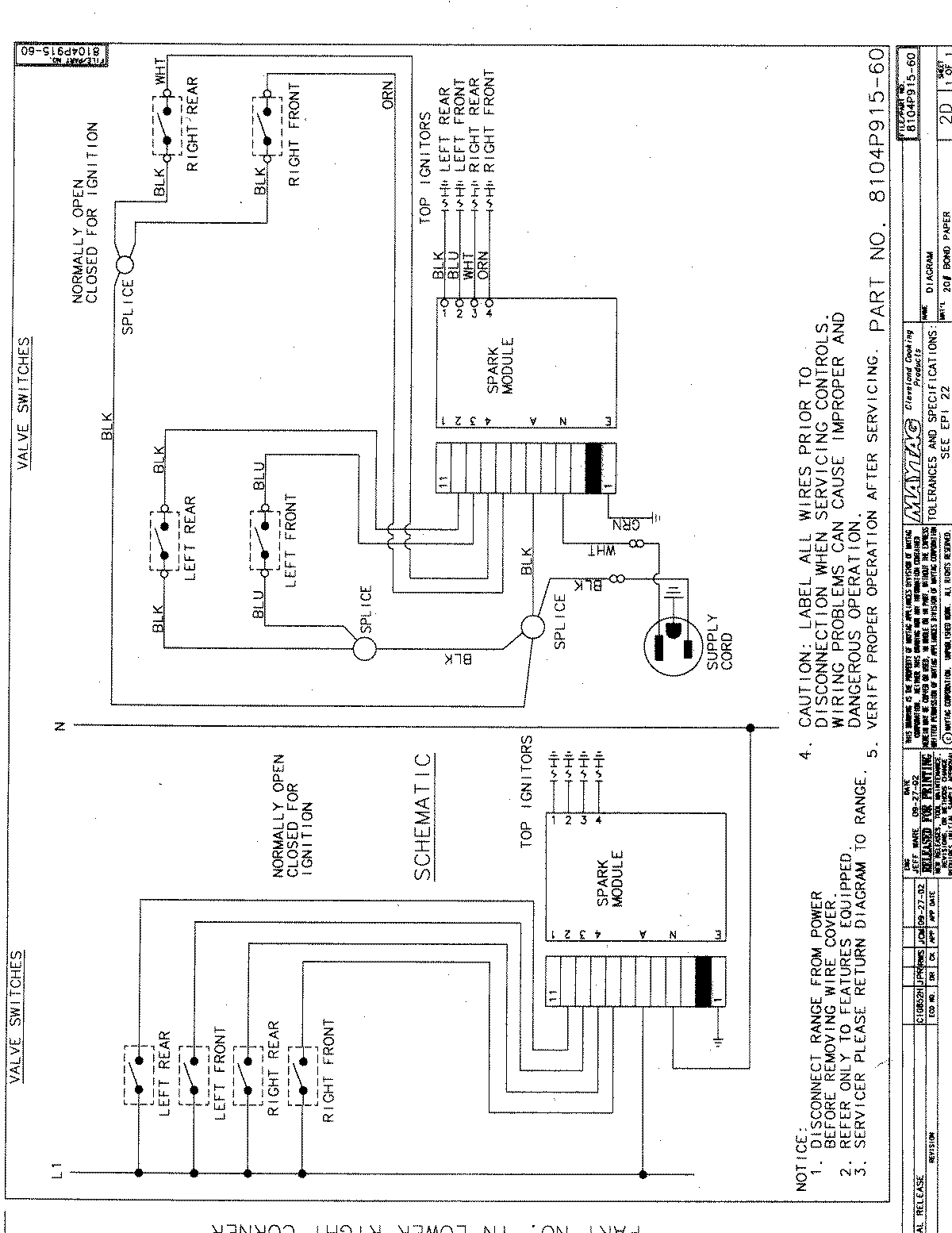

04 - WIRING INFORMATION
Common parts from model Whirlpool JGC9430BDB GAS COOK-TOP
1
GRATE (BLK-RT) WPL 74008001 Contact Us For Availability
1
GRATE (BLK-LT) WPL 7518P45660 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8111P50860 Contact Us For Availability
1
MANUAL, USE & CARE WPL 8112P34160 Contact Us For Availability
2
WASHER WPL 74007982 Contact Us For Availability
2
GROMMET, GRATE FOOT (BLK) WPL 74007981 Contact Us For Availability
2
RING, RETAINING WPL 74007983 Contact Us For Availability
2
HARNESS, MAIN WPL 5171P81960 Contact Us For Availability
2
HARNESS, MAIN WPL 5171P93960 Contact Us For Availability
3
GRATE (BLK-RT) WPL 7518P45760 Contact Us For Availability
3
KIT, LP CONVERSION WPL 74007746 Contact Us For Availability
4
CAP, BURNER (MED-BLK) WPL 74007749 Contact Us For Availability
5
CAP, BURNER (EX-LRG/BLK) WPL 74007750 Contact Us For Availability
7
GLASS TOP ASY (BLK) WPL 7920P17660 Contact Us For Availability
9
TUBE, BURNER (LF) WPL 74007974 Contact Us For Availability
10
TUBE, BURNER (LR) WPL 74007975 Contact Us For Availability
11
TUBE, BURNER (RF) WPL 74007976 Contact Us For Availability
12
TUBE, BURNER (RR) WPL 74007977 Contact Us For Availability
12
KNOB WPL 7733P50360 Contact Us For Availability
14
HOLDER, ORIFICE (15K) WPL 74007999 Contact Us For Availability
14
HOLDER, ORIFICE (9.2) WPL 74007970 Contact Us For Availability
15
PLATE, ORIFICE HOLDER (SML) WPL 74011125 Contact Us For Availability
16
PLATE, ORIFICE HOLDER (LRG) WPL 74011124 Contact Us For Availability
17
BUSHING - STRAIN RELIEF WPL 550707 Contact Us For Availability
19
CORD, POWER WPL 74007817 Contact Us For Availability
21
BRACKET, STIFFENER WPL 74010767 Contact Us For Availability
21
BRACKET, STIFFENER WPL W10188061 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003203 Contact Us For Availability
× ![]()
