Whirlpool JGC8536ADW GAS COOK-TOP Parts List

1

BOX, BURNER WPL 74007727 Contact Us For Availability

View on Model

1

GRATE, BURNER (GRY-LT) WPL 74007743 Contact Us For Availability

View on Model

1

GRATE, BURNER (GRY-RT) WPL 74007744 Contact Us For Availability

View on Model

2

BRACKET, ORIFICE HOLDER (CTR) WPL 74007760 Contact Us For Availability

View on Model

2

GRATE, BURNER (GRY-CTR) WPL 74007745 Contact Us For Availability

View on Model

3

BRACKET, ORIFICE HOLDER (LT) WPL 74007761 Contact Us For Availability

View on Model

3

CAP, BURNER (SMR-GRY) WPL 74007422 Contact Us For Availability

View on Model

4

WP74007752 Whirlpool Burner Cap (Medium Gray) Backorder WPL WP74007752 $73.98

View on Model

4

BRACKET, ORIFICE HOLDER (RT) WPL 74007762 Contact Us For Availability

View on Model

5

WP74007420 Whirlpool Large Gray Burner Cap Backorder WPL WP74007420 $96.72

View on Model

5

MANIFOLD PIPE/VALVE ASSEMBLY WPL 74007728 Contact Us For Availability

View on Model

6

WP74007705 Whirlpool Grommet Backorder WPL WP74007705 $4.57

View on Model

6

COVER, BURNER VALVE WPL 7724P00460 Contact Us For Availability

View on Model

7

WP8286828 Whirlpool Spark Module Backorder WPL WP8286828 $239.68

View on Model

7

TOP, MAIN (WHT) WPL 74007732 Contact Us For Availability

View on Model

8

74007734 Whirlpool Burner Assembly In Stock WPL 74007734 $63.39

View on Model

8

COVER, SPARK MODULE WPL 74005933 Contact Us For Availability

View on Model

9

74007735 Whirlpool Burner Assembly In Stock WPL 74007735 $69.83

View on Model

9

W11087445 Whirlpool Pressure Regulator In Stock WPL W11087445 $201.32

View on Model

10

74007736 Whirlpool Gas Range Cooktop Burner A In Stock WPL 74007736 $77.50

View on Model

10

TUBE, BURNER (LF) WPL 74007755 Contact Us For Availability

View on Model

11

74007756 Whirlpool Oven Burner Tube Backorder WPL 74007756 $57.34

View on Model

11

W11772394 Whirlpool Screw In Stock WPL W11772394 $8.39

View on Model

12

WP7733P410-60 Whirlpool Surface Burner Knob, In Stock WPL WP7733P410-60 $13.28

View on Model

12

TUBE, BURNER (RF) WPL 74007757 Contact Us For Availability

View on Model

13

WP74009336 Whirlpool Oven Top Igniter In Stock WPL WP74009336 $26.17

View on Model

13

WP8273062 Whirlpool Screw In Stock WPL WP8273062 $5.30

View on Model

13

TUBE, BURNER (RR) WPL 74007758 Contact Us For Availability

View on Model

14

TUBE, BURNER (CTR) WPL 74007759 Contact Us For Availability

View on Model

15

74009553 Whirlpool Orifice Holder In Stock WPL 74009553 $50.79

View on Model

15

WP7527P002-60 Whirlpool Orifice Holder In Stock WPL WP7527P002-60 $51.03

View on Model

15

WP7527P003-60 Whirlpool Orifice Holder In Stock WPL WP7527P003-60 $58.92

View on Model

15

WP7527P004-60 Whirlpool Orifice Holder Backorder WPL WP7527P004-60 $66.48

View on Model

16

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

View on Model

17

BUSHING - STRAIN RELIEF WPL 550707 Contact Us For Availability

View on Model

18

3188867 Whirlpool Oven Power Cord Backorder WPL 3188867 $131.32

View on Model

19

WP74007753 Whirlpool BU Switch In Stock WPL WP74007753 $65.98

View on Model

20

SWITCH, BURNER (CTR) WPL 74007773 Contact Us For Availability

View on Model

21

WP74007774 Whirlpool Switch Button In Stock WPL WP74007774 $65.98

View on Model

NI

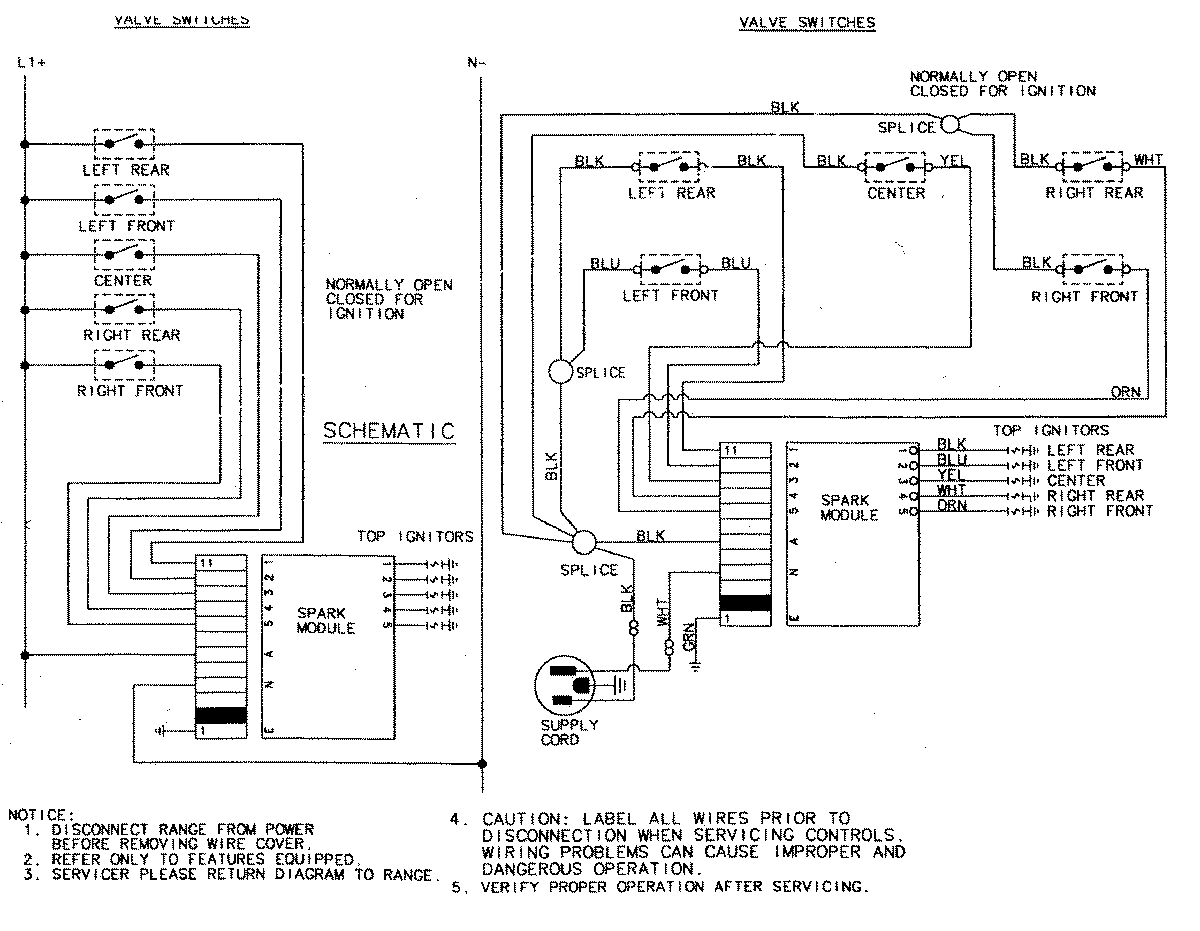

WIRING INFORMATION WPL 15003199 Contact Us For Availability

View on Model
