  • Whirlpool JGC1536ADW15 Parts List

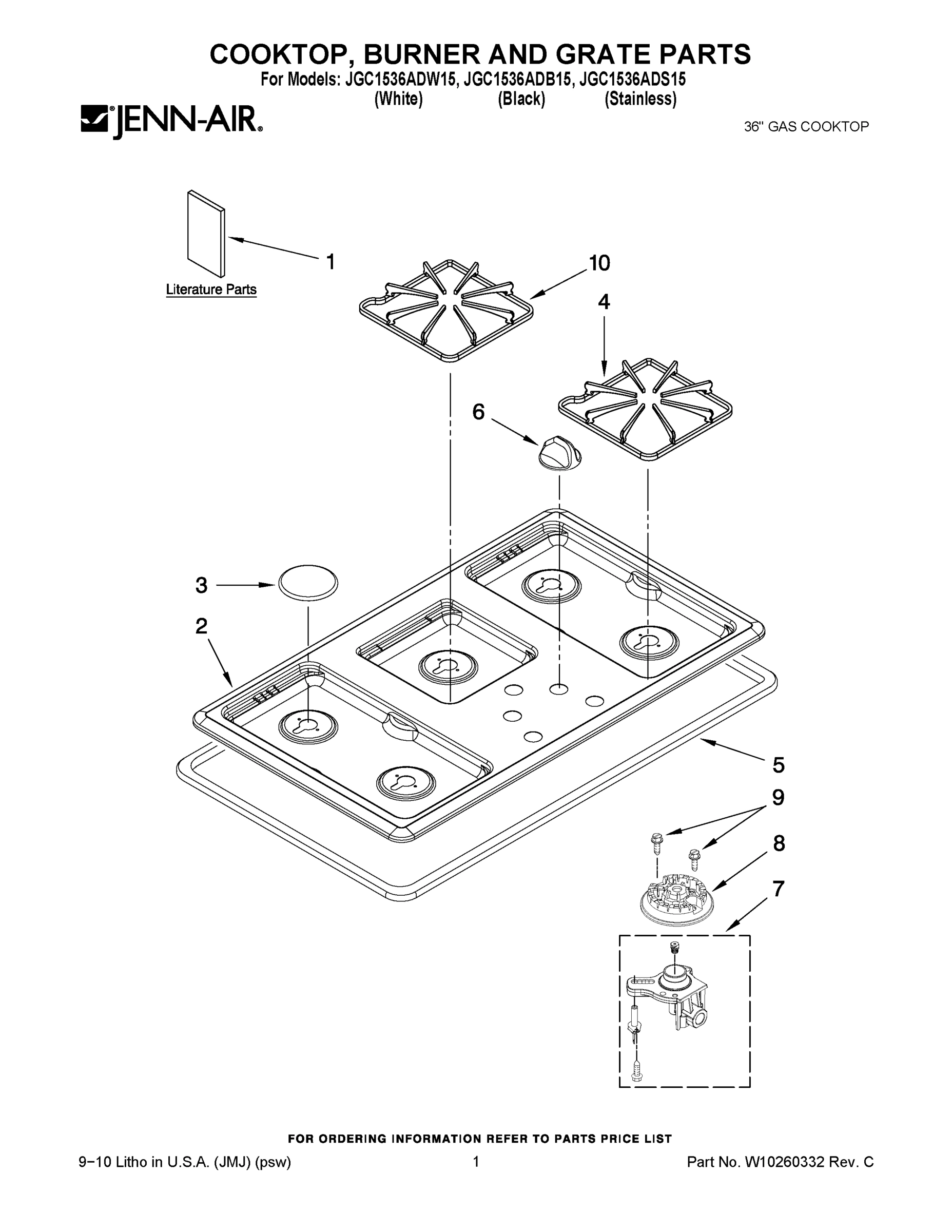

Model Whirlpool JGC1536ADW15 GAS COOK-TOP – Common Parts & Diagrams

1
Safe Cooking Tips (French)
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
View on Model
1
Wiring Diagram (English)
Wiring Diagram (English) WPL W10204418 Contact Us For Availability
View on Model
1
Wiring Diagram (French)
Wiring Diagram (French) WPL W10205174 Contact Us For Availability
View on Model
1

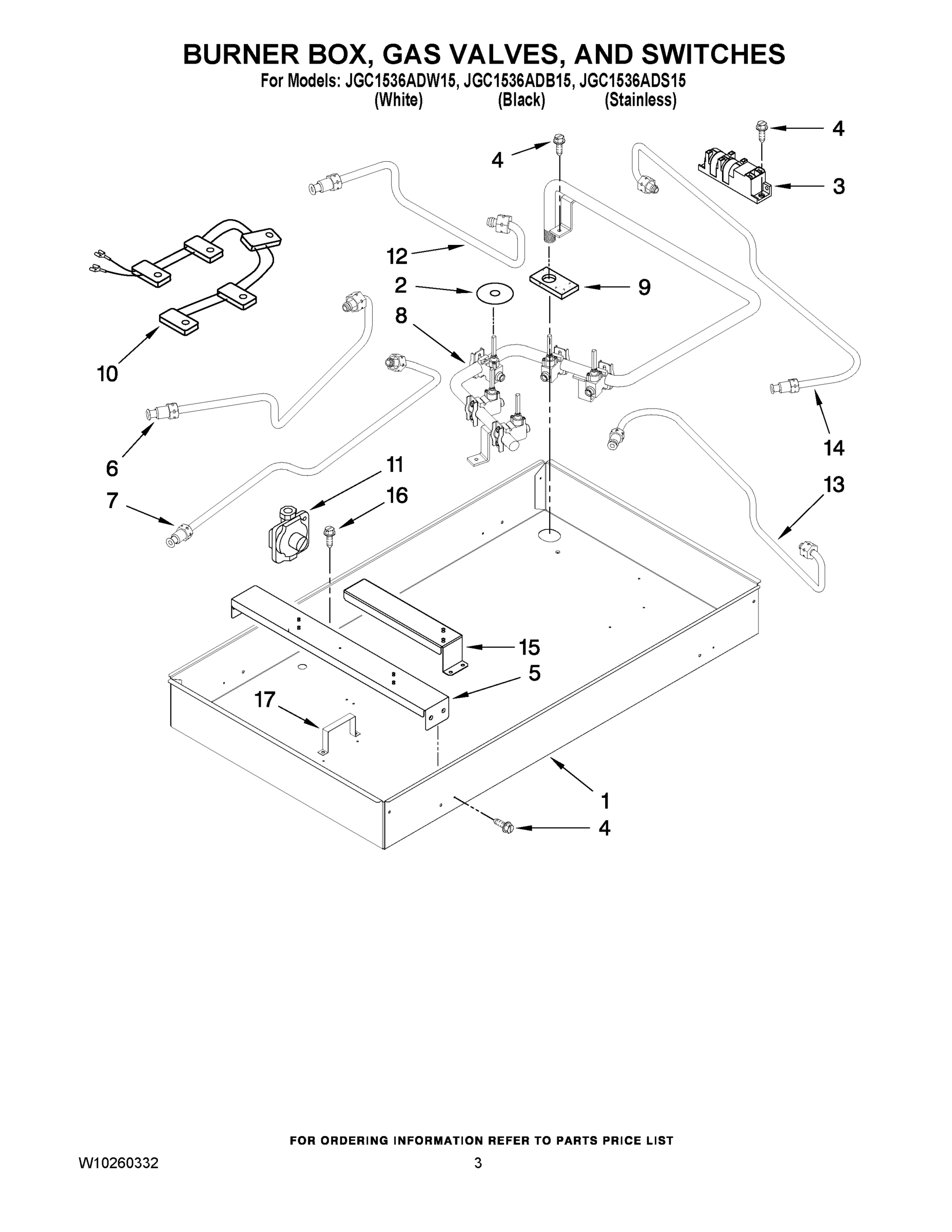

Burner Box
Burner Box WPL W10176504 Contact Us For Availability
View on Model
2
Cooktop (Stainless)
Cooktop (Stainless) WPL 2001N29555 Contact Us For Availability
View on Model
2
Cooktop (Black)
Cooktop (Black) WPL 2001N29709 Contact Us For Availability
View on Model
2
Cooktop (White)
Cooktop (White) WPL 2001N29781 Contact Us For Availability
View on Model
2
Seal, Valve Shaft
Seal, Valve Shaft WPL 8008P06560 Contact Us For Availability
View on Model
3
CAP, BURNER (12.5K BLACK)
CAP, BURNER (12.5K BLACK) WPL 7504P16560 Contact Us For Availability
View on Model
3
CAP, BURNER (5K BLACK)
CAP, BURNER (5K BLACK) WPL 7504P20260 Contact Us For Availability
View on Model
3
CAP, BURNER (15K BLACK)
CAP, BURNER (15K BLACK) WPL 7504P20460 Contact Us For Availability
View on Model
3
Spark Module
Spark Module WPL 7431P06660 Contact Us For Availability
View on Model
4
Grate, Burner (4) (Black)
Grate, Burner (4) (Black) WPL 7518P43560 Contact Us For Availability
View on Model
4
SCREW
SCREW WPL 7101P42660 Contact Us For Availability
View on Model
5
Seal, Foam
Seal, Foam WPL 8270P10760 Contact Us For Availability
View on Model
5
Bracket, Orifice Holder (2)
Bracket, Orifice Holder (2) WPL 3801F87751 Contact Us For Availability
View on Model
6
KNOB, CONTROL (5) (BLACK)
KNOB, CONTROL (5) (BLACK) WPL W10168627 Contact Us For Availability
View on Model
6
Tubing, Gas (Left Front)
Tubing, Gas (Left Front) WPL 7506P34360 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (CTR)
HOLDER, ORIFICE (CTR) WPL 74007786 Contact Us For Availability
View on Model
7
HOLDER, ORIFICE (RF)
HOLDER, ORIFICE (RF) WPL 7527P11460 Contact Us For Availability
View on Model
7
Tubing, Gas (Left Rear)
Tubing, Gas (Left Rear) WPL 7506P34460 Contact Us For Availability
View on Model
8
Pipe, Manifold (Includes Valves)
Pipe, Manifold (Includes Valves) WPL 7513P51560 Contact Us For Availability
View on Model
9
Screw
Screw WPL 7101P68560 Contact Us For Availability
View on Model
9
Seal, Manifold Pipe Inlet
Seal, Manifold Pipe Inlet WPL 7208P02460 Contact Us For Availability
View on Model
10
Grate, Center (Black)
Grate, Center (Black) WPL 7518P43660 Contact Us For Availability
View on Model
11
REGULATOR, PRESSURE
REGULATOR, PRESSURE WPL 7510P09360 Contact Us For Availability
View on Model
12
Tubing, Gas (Center)
Tubing, Gas (Center) WPL 7506P34560 Contact Us For Availability
View on Model
13
Tubing, Gas (Right Front)
Tubing, Gas (Right Front) WPL 7506P34660 Contact Us For Availability
View on Model
14
Tubing, Gas (Right Rear)
Tubing, Gas (Right Rear) WPL 7506P34760 Contact Us For Availability
View on Model
15
Bracket, Center Orifice Holder
Bracket, Center Orifice Holder WPL 3801F87651 Contact Us For Availability
View on Model
16
Screw, Ground
Screw, Ground WPL 7101P46060 Contact Us For Availability
View on Model
17
Bracket, Support
Bracket, Support WPL 3801F92551 Contact Us For Availability
View on Model
NI
Screw
Screw WPL 7101P06260 Contact Us For Availability
View on Model
NI
Cord, Power
Cord, Power WPL 7402P08760 Contact Us For Availability
View on Model
NI
Conversion Kit LP
Conversion Kit LP WPL 7509P17360 Contact Us For Availability
View on Model
NI
Strain Relief
Strain Relief WPL 8007P00360 Contact Us For Availability
View on Model
NI
Wire Tie
Wire Tie WPL 8019P03860 Contact Us For Availability
View on Model
NI
Wire, Jumper (White)
Wire, Jumper (White) WPL W10177768 Contact Us For Availability
View on Model
NI
Wire, Jumper (Orange)
Wire, Jumper (Orange) WPL W10177769 Contact Us For Availability
View on Model
