Model Whirlpool JF42SSFXDA01 REFRIGERATOR – Common Parts &amp; Diagrams

1

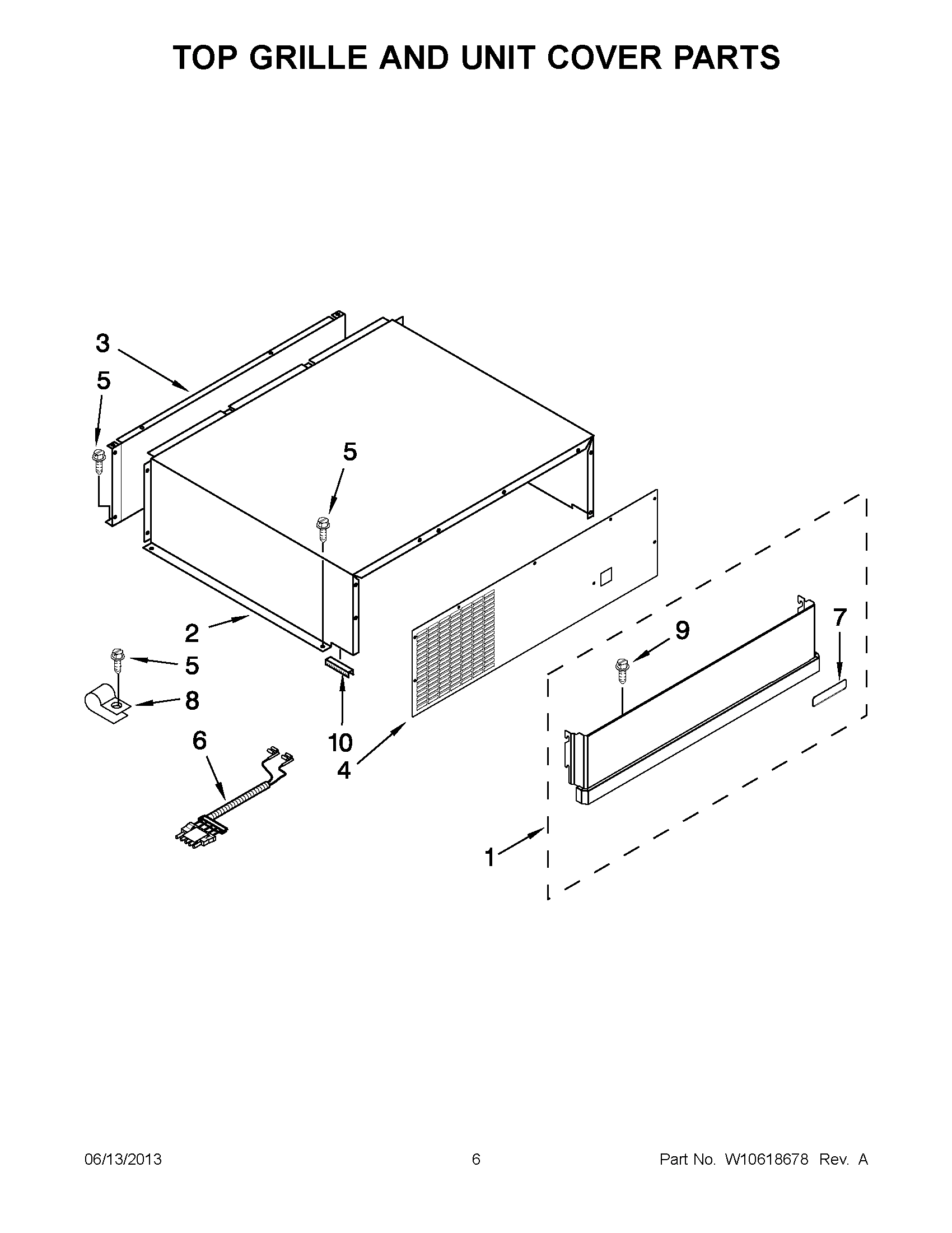

TOP GRILLE ASSEMBLY WPL W10321125 Contact Us For Availability

1

ASSEMBLY, CRISPER PAN (INCLUDES ITEM 2) (RIGH WPL W10407630 Contact Us For Availability

2

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $24.52

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $90.46

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $4.82

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $9.35

4

W10482373 Whirlpool Refrigerator Jumper Wire In Stock WPL W10482373 $86.94

4

W11650036 Whirlpool Slide Backorder WPL W11650036 $247.39

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

4

UNIT COVER, FRONT WPL W10185625 Contact Us For Availability

5

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $57.60

5

WP2303091 Whirlpool Refrigerator Electronic C Backorder WPL WP2303091 $266.36

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

5

SCREW WPL W10061370 Contact Us For Availability

6

2317939 Whirlpool Refrigerator Deflector Backorder WPL 2317939 $107.90

6

W11565275 Whirlpool Refrigerator Water Tube Backorder WPL W11565275 $42.66

6

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $81.47

6

TUBE, OIL TRAP SUCTION WPL W10306442 Contact Us For Availability

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $56.66

7

W10187549 Whirlpool Refrigerator Support Backorder WPL W10187549 $207.46

7

W10219166 Whirlpool Refrigerator Heater Backorder WPL W10219166 $118.73

7

W10273367 Whirlpool Refrigerator Door Hinge Backorder WPL W10273367 $23.49

7

W10273369 Whirlpool Refrigerator Door Hinge Backorder WPL W10273369 $23.46

7

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $60.45

7

Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability

7

Cam, Mullion (Top) WPL 2316857 Contact Us For Availability

8

WP1106508 Whirlpool Refrigerator Gasket In Stock WPL WP1106508 $6.17

8

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $6.32

8

SCROLL ASSEMBLY WPL W10321092 Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $65.65

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $19.00

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $5.30

9

WPW10192907 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10192907 $147.13

9

WPW10298244 Whirlpool Refrigerator Handle Backorder WPL WPW10298244 $231.12

9

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

9

ASSEMBLY, ICE PAN WPL 2306174 Contact Us For Availability

2306175 Whirlpool Refrigerator Front Pan Backorder WPL 2306175 $63.61

W11177574 Whirlpool Refrigerator Screw Backorder WPL W11177574 $8.89

W11671461 Whirlpool Evaporator Motor In Stock WPL W11671461 $126.78

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $114.94

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

2327511 Whirlpool Refrigerator Pan Backorder WPL 2327511 $217.98

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $4.67

WPW10298179 Whirlpool Refrigerator Handle Backorder WPL WPW10298179 $232.70

WPW10427079-includeCORE Whirlpool WPW10427079 Backorder WPL WPW10427079-includeCORE $345.87

SWITCH ASSEMBLY, ICE MAKER WPL W10321131 Contact Us For Availability

2309230 Whirlpool Refrigerator Clip Backorder WPL 2309230 $10.02

2309231 Whirlpool Refrigerator Clip Backorder WPL 2309231 $37.72

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

WP2256367 Whirlpool Refrigerator Front Pan In Stock WPL WP2256367 $117.86

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $6.02

Diffuser Assembly WPL 2320523 Contact Us For Availability

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $65.00

TUBE, DISCHARGE ASSEMBLY WPL W10404239 Contact Us For Availability

LADDER, SHELF (SIDE) WPL W10213472 Contact Us For Availability

LADDER, SHELF (CENTER) WPL W10246602 Contact Us For Availability

14

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $135.30

14

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

14

W10482185 Whirlpool Refrigerator Wire Harness Backorder WPL W10482185 $162.16

15

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $13.24

15

W10195924 Whirlpool Refrigerator Evaporator Backorder WPL W10195924 $235.96

15

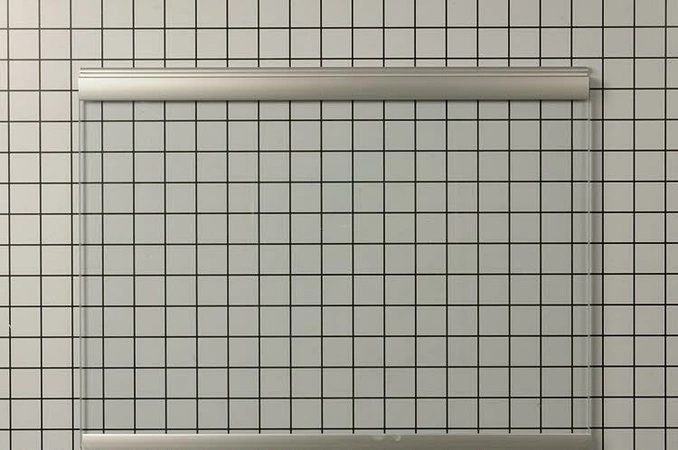

WPW10198701 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10198701 $159.40

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $36.39

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $344.53

W10757973-includeCORE Whirlpool W10757973 Ref Backorder WPL W10757973-includeCORE $462.17

W10757993-includeCORE Whirlpool W10757993 Ref Backorder WPL W10757993-includeCORE $462.17

W11623101 Whirlpool Heater-Pan Backorder WPL W11623101 $235.26

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $6.87

2309400 Whirlpool Pan Gasket Backorder WPL 2309400 $73.86

W10508673 Whirlpool Refrigerator Wire Harness In Stock WPL W10508673 $86.94

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $20.37

DIFFUSER, CRISPER (COMPLETE) WPL 2268249 Contact Us For Availability

SCREW WPL W10005070 Contact Us For Availability

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $224.88

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $202.84

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $15.88

W11218690 Whirlpool Refrigerator Door Hinge Backorder WPL W11218690 $50.70

W11430640 Whirlpool Glass Shelf Backorder WPL W11430640 $219.61

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $7.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $19.11

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

MULLION ASSEMBLY (LEFT SIDE DOOR) WPL 2307938 Contact Us For Availability

Gasket, Front (Crisper Cover) WPL 2309396 Contact Us For Availability

20

W10323746 Whirlpool Refrigerator Cantilever B Backorder WPL W10323746 $70.72

20

DIVIDER, FREEZER BINS WPL W10290822 Contact Us For Availability

20

GASKET, FRONT (DELI COVER) WPL 2309395 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $63.40

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $231.54

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $231.78

W10323598 Whirlpool Refrigerator Cantilever B Backorder WPL W10323598 $68.67

W10716209 Whirlpool Refrigerator Support Backorder WPL W10716209 $36.94

SCREW (WHITE) WPL 8281251 Contact Us For Availability

W11403572 Whirlpool Refrigerator Bracket Backorder WPL W11403572 $46.00

W11676540 Whirlpool Refrigerator Cup Fill Backorder WPL W11676540 $13.58

WPW10131132 Whirlpool Refrigerator Door Compr Backorder WPL WPW10131132 $48.16

SHIELD WPL 2317927 Contact Us For Availability

SCREW WPL 2001377 Contact Us For Availability

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $58.44

2302956 Whirlpool Refrigerator Slide In Stock WPL 2302956 $217.43

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $166.20

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $60.03

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $126.34

SUPPORT, SLIDE (LEFT HAND) WPL 2306105 Contact Us For Availability

24

WP2222981 Whirlpool Refrigerator Gasket Backorder WPL WP2222981 $150.78

24

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

24

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $48.87

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

WPW10323035 Whirlpool Refrigerator Cantilever Backorder WPL WPW10323035 $53.80

LOCKING CLIP, BIN (RIGHT HAND) WPL 2327393 Contact Us For Availability

LOCKING CLIP, BIN (LEFT HAND) WPL 2327394 Contact Us For Availability

26

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $4.82

26

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $4.82

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $40.09

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

28

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

28

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $4.82

28

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $7.52

29

2310164 Whirlpool Refrigerator Wire Harness Backorder WPL 2310164 $86.94

29

W10337505 Whirlpool Refrigerator Door Hinge Backorder WPL W10337505 $91.20

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $34.20

30

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.91

30

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $198.86

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

31

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $5.30

32

Skirt-Grille, Bottom (Black) WPL 2209025B Contact Us For Availability

33

2314023 Whirlpool Bushing Backorder WPL 2314023 $33.25

33

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $4.82

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $64.73

34

Grille Base, Front WPL 2325188B Contact Us For Availability

35

W10321055 Whirlpool Refrigerator Bracket Backorder WPL W10321055 $18.65

36

W10847927 Whirlpool Refrigerator Extension Backorder WPL W10847927 $66.34

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $58.05

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $53.31

39

W10427101 Whirlpool Refrigerator Wire Harness Backorder WPL W10427101 $628.82

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

41

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

42

WPW10356040-includeCORE Whirlpool WPW10356040 Backorder WPL WPW10356040-includeCORE $269.85

43

W11755873 Whirlpool Bracket Backorder WPL W11755873 $50.40

44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

46

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $103.52

47

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $60.93

100

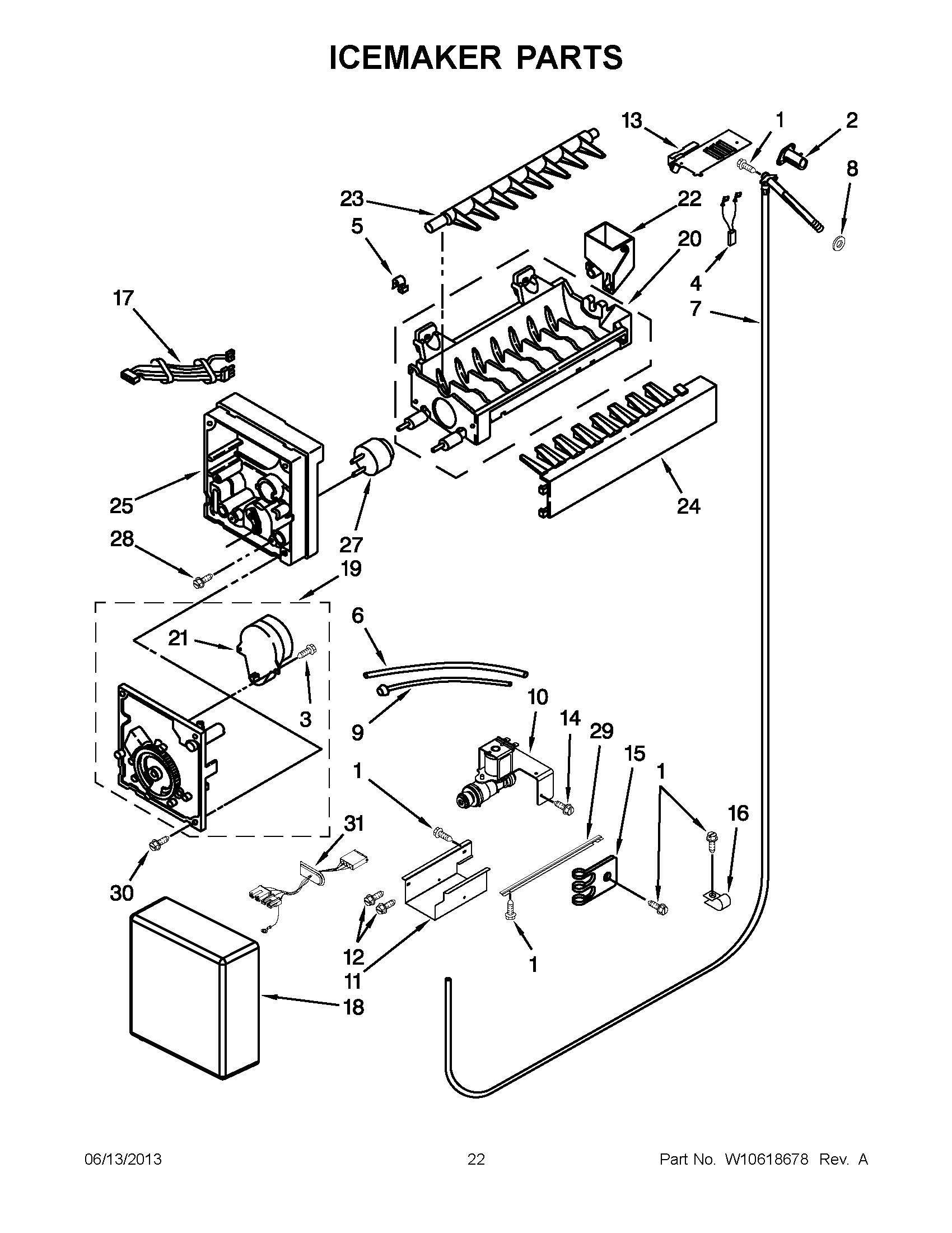

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $205.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

VALVE, ACCESS WPL 978029 Contact Us For Availability
