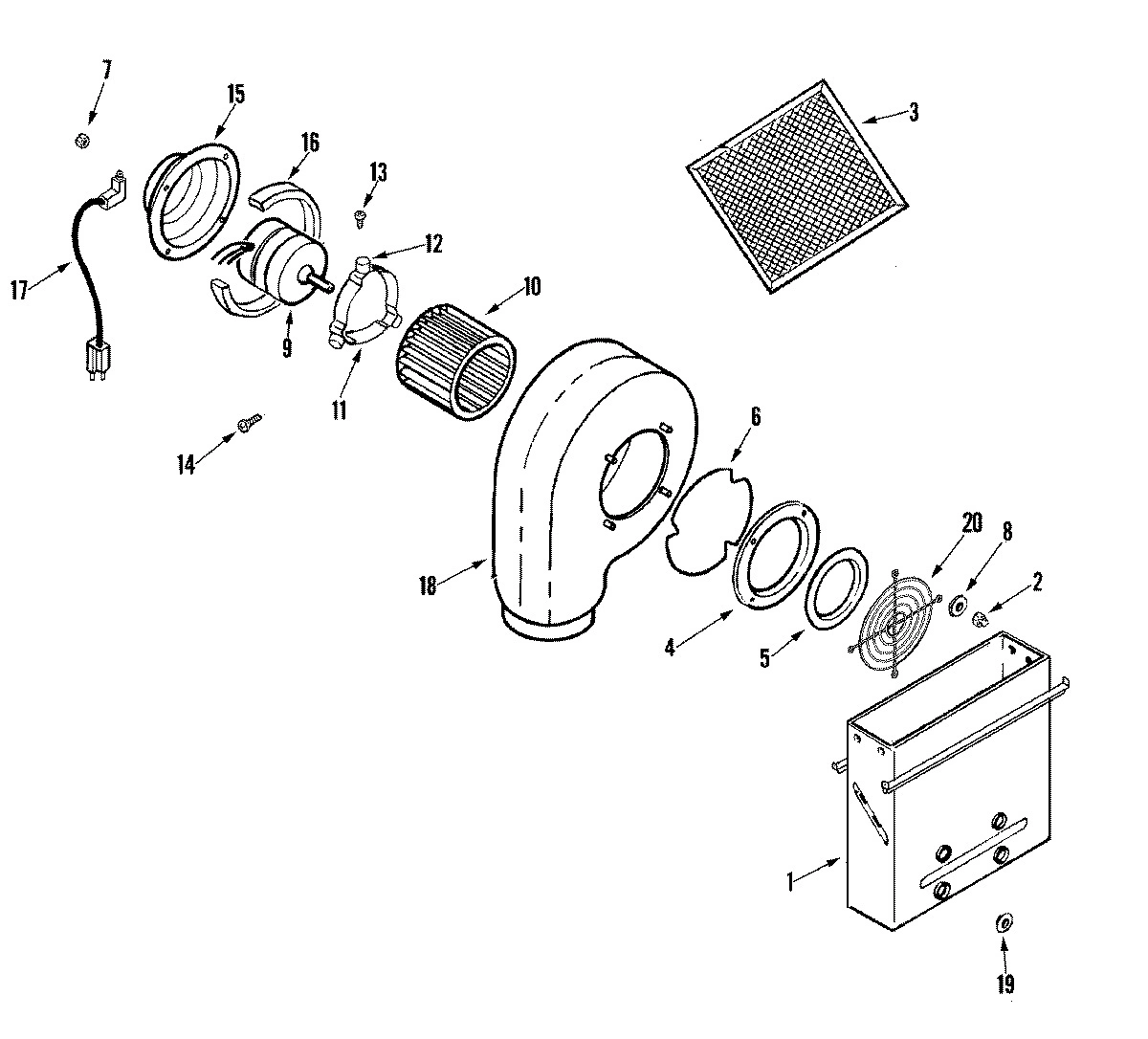

Model Whirlpool JED8430BDF ELECTRIC COOK-TOP – Common Parts &amp; Diagrams

1

BOTTOM, BURNER BOX WPL 74007640 Contact Us For Availability

1

MANUAL, USE & CARE WPL 74005321 Contact Us For Availability

1

MANUAL, USE & CARE (FRCH) WPL 74005322 Contact Us For Availability

1

TAPE, VINYL WPL 71003485 Contact Us For Availability

1

TOP ASSEMBLY (WHT) WPL 74010843 Contact Us For Availability

1

WIRING INFORMATION (FRC) WPL 15003347 Contact Us For Availability

2

CORD, FAN RECEPTACLE WPL 71003476 Contact Us For Availability

2

WIRE, INDICATOR WPL 71003629 Contact Us For Availability

2

GRILL, AIR (LHT GRAY) WPL 71003482 Contact Us For Availability

3

WP7739P121-60 Whirlpool Fan Knob Backorder WPL WP7739P121-60 $45.68

3

HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability

3

HARNESS, INFINITE WPL 71003475 Contact Us For Availability

4

WP74010839 Whirlpool Burner Knob In Stock WPL WP74010839 $15.20

4

HARNESS, ELEMENT (LT) WPL 74011189 Contact Us For Availability

4

BOX, JUNCTION WPL Y706173 Contact Us For Availability

4

COVER, JUNCTION BOX WPL Y706174 Contact Us For Availability

4

HARNESS, ELEMENT (LT) WPL 71003630 Contact Us For Availability

5

WPY706102 Whirlpool Grommet Backorder WPL WPY706102 $5.70

5

RING, RESTRICTOR WPL Y704761 Contact Us For Availability

5

LIGHT, HOT WPL 71003486 Contact Us For Availability

5

HARNESS, ELEMENT (RT) WPL 71003631 Contact Us For Availability

5

HARNESS, ELEMENT (RT) WPL 74011188 Contact Us For Availability

6

BRACKET, SWITCH PLATE WPL 74004940 Contact Us For Availability

6

HARNESS, SUPPLY WPL 74009258 Contact Us For Availability

7

WP9782182 Whirlpool Wire Backorder WPL WP9782182 $61.12

7

WPY707702 Whirlpool Locknut Backorder WPL WPY707702 $4.82

7

PLATE, ELEMENT SUPPORT WPL 71003467 Contact Us For Availability

8

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.61

8

WP74009254 Whirlpool Fan Switch In Stock WPL WP74009254 $135.01

8

WASHER (1``) WPL 74001521 Contact Us For Availability

8

COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability

9

W11088181 Whirlpool Surface Element Switch In Stock WPL W11088181 $70.95

9

WP74008248 Whirlpool Infinite Switch In Stock WPL WP74008248 $53.27

9

WP74011242 Whirlpool Oven Infinite Switch In Stock WPL WP74011242 $60.81

9

MOTOR, DOWNDRAFT WPL Y706132 Contact Us For Availability

10

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $5.02

10

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

10

BOX, LIGHT WPL Y706061 Contact Us For Availability

11

BAND, MOTOR WPL Y707393 Contact Us For Availability

11

BRACKET, FILLER (REAR) WPL 71003470 Contact Us For Availability

12

WP71003558 Whirlpool Isolator Backorder WPL WP71003558 $7.84

12

WP74005965 Whirlpool Knob Sleeve Backorder WPL WP74005965 $44.27

13

74007134 Whirlpool Oven Spring Element Suppor Backorder WPL 74007134 $7.72

13

SCREW WPL 707407 Contact Us For Availability

13

SCREW WPL 7101P34960 Contact Us For Availability

NUT WPL 707161 Contact Us For Availability

SCREW WPL Y707402 Contact Us For Availability

ELEMENT, (6`` RADIANT) 1200W WPL 74007124 Contact Us For Availability

ELEMENT, (6`` RADIANT) 1200W WPL 74007125 Contact Us For Availability

W10823703 Whirlpool Surface Element Backorder WPL W10823703 $224.63

WPW10162365 Whirlpool Surface Element Backorder WPL WPW10162365 $268.33

COVER, MOTOR WPL Y704760 Contact Us For Availability

ELEMENT (8`` RADIANT) 2200W WPL 74007251 Contact Us For Availability

16

FOAM, URETHANE WPL Y715957 Contact Us For Availability

17

CORD, POWER (MOTOR) WPL Y702733 Contact Us For Availability

18

SCROLL, BLOWER ASSY. WPL 712008 Contact Us For Availability

19

PLUG, HOLE WPL Y706193 Contact Us For Availability

20

GUARD, BLOWER WPL 71001534 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003346 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003739 Contact Us For Availability

NI

WIRING INFORMATION WPL 15003738 Contact Us For Availability
