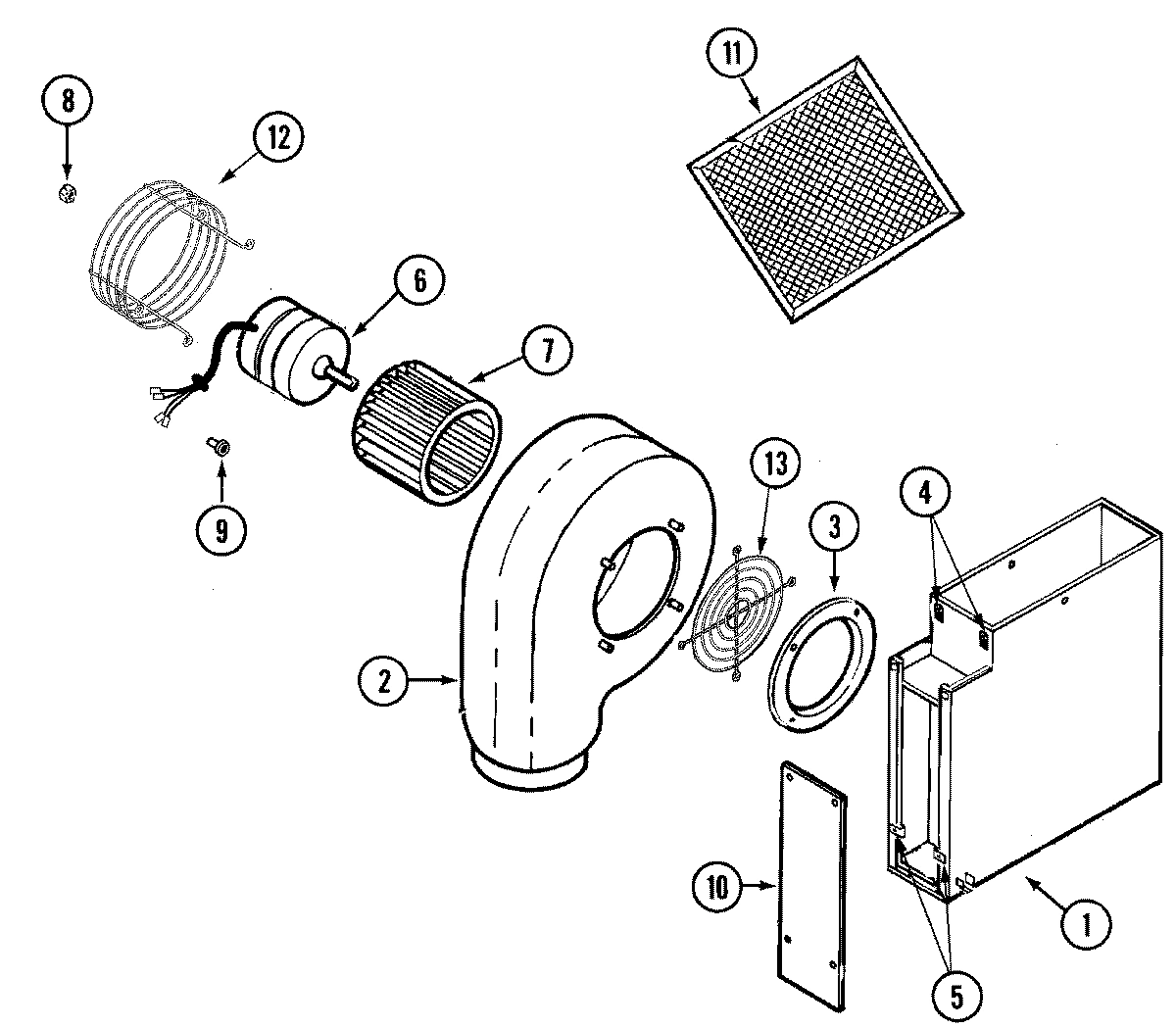

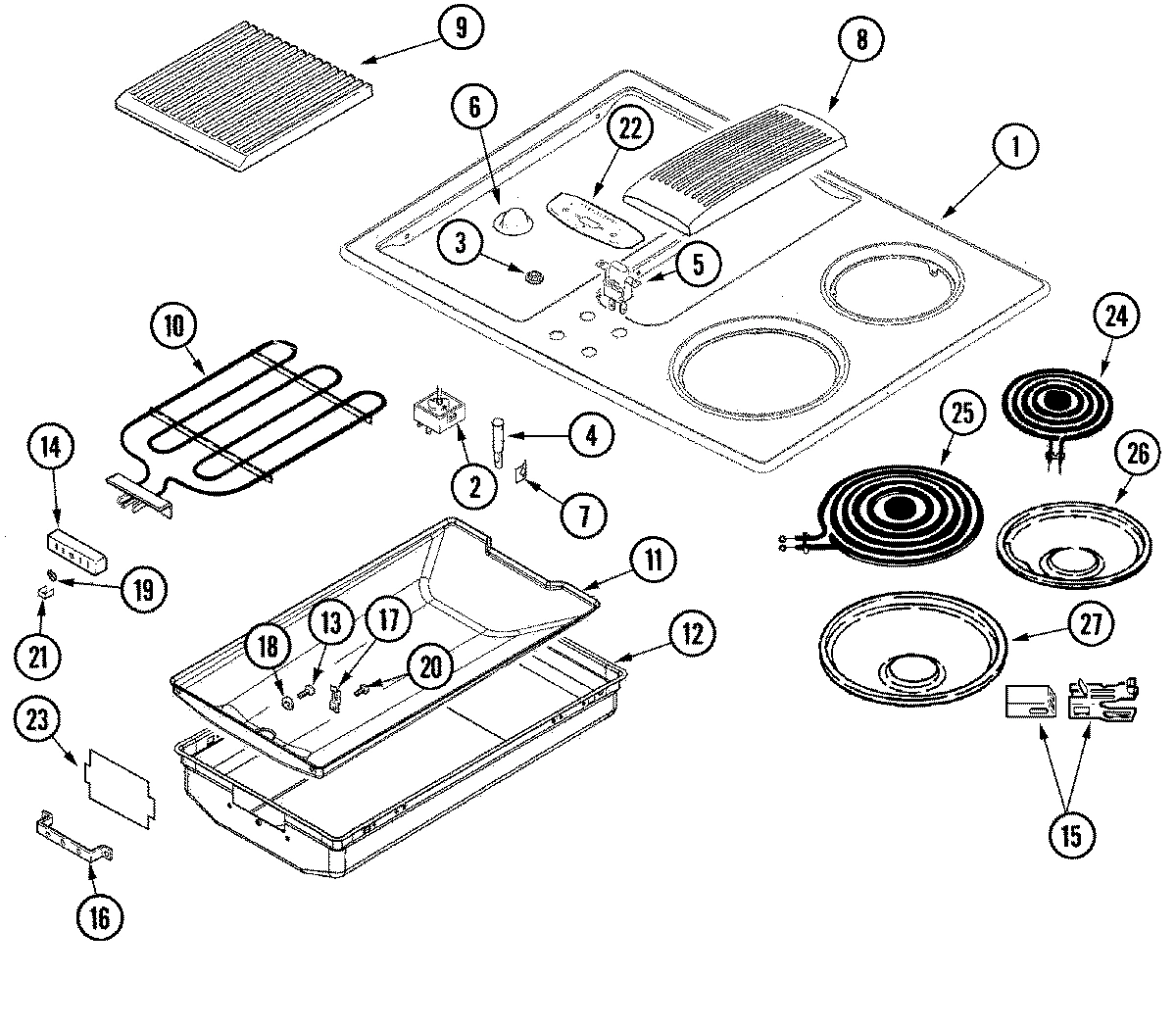

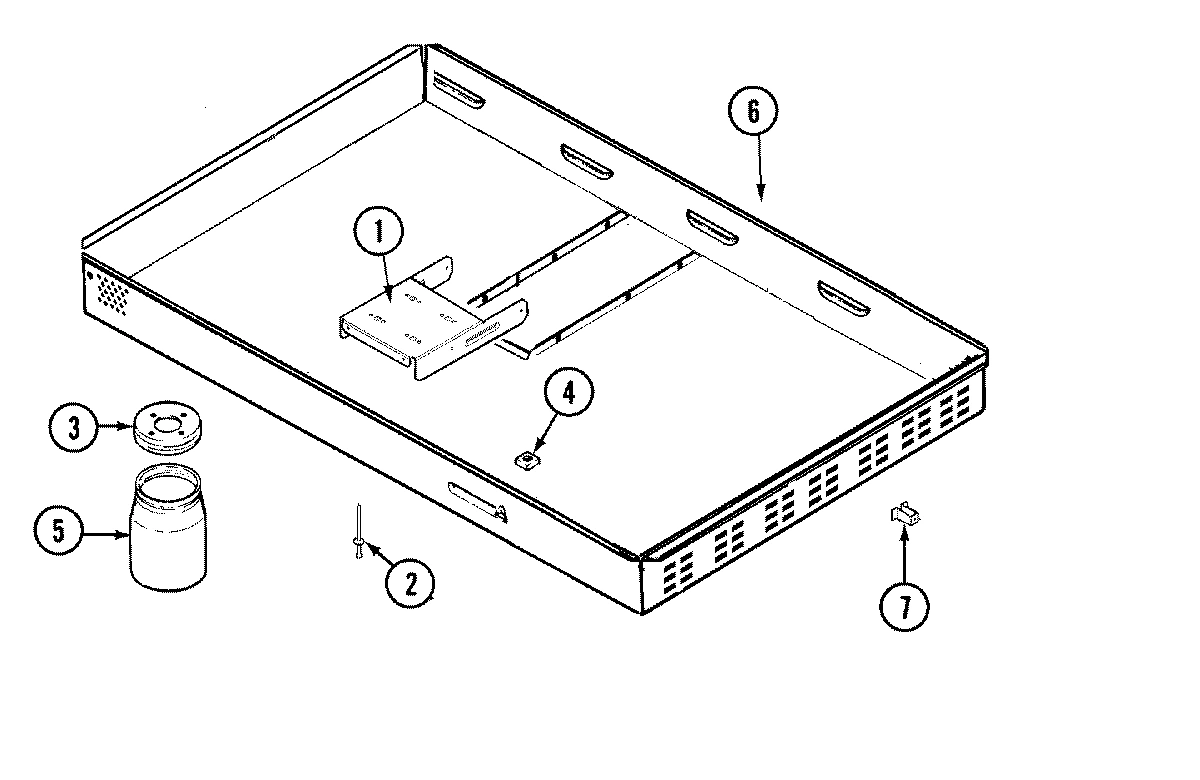

Model Whirlpool JED8130ADW ELECTRIC COOK-TOP – Common Parts &amp; Diagrams

1

PAD, SPACER WPL 715938 Contact Us For Availability

1

BRACKET, SWITCH SUPPORT WPL 74005833 Contact Us For Availability

1

TOP, MAIN (WHT) WPL 74005900 Contact Us For Availability

2

W11088181 Whirlpool Surface Element Switch In Stock WPL W11088181 $70.95

2

WP210720 Whirlpool Rivet Backorder WPL WP210720 $8.89

2

WASHER WPL Y707664 Contact Us For Availability

2

SCREW WPL 7101P30960 Contact Us For Availability

2

GASKET, SWITCH WPL Y705255 Contact Us For Availability

3

LID, JAR WPL Y04100296 Contact Us For Availability

3

PALNUT WPL 71001561 Contact Us For Availability

4

LIGHT, INDICATOR (BLUE) WPL 74005804 Contact Us For Availability

5

12001452 Whirlpool Relay Change Backorder WPL 12001452 $144.19

5

WPY707869 Whirlpool Drain Jar Backorder WPL WPY707869 $48.41

5

SWITCH, FAN (WHT) WPL 71001563 Contact Us For Availability

6

W11106384 Whirlpool Knob Backorder WPL W11106384 $53.17

6

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

6

BOX, BURNER WPL 74005867 Contact Us For Availability

7

WP7112P152-60 Whirlpool Clip Backorder WPL WP7112P152-60 $7.62

7

WPY707985 Whirlpool Wheel Assembly Backorder WPL WPY707985 $116.81

7

CLIP, RETAINER WPL Y700503 Contact Us For Availability

8

NUT, ACORN WPL 74005786 Contact Us For Availability

8

GRILL, AIR (WHT) WPL 74005793 Contact Us For Availability

9

WP71001171 Whirlpool Screw Backorder WPL WP71001171 $4.82

9

GRATE, GRILL WPL 74005795 Contact Us For Availability

9

GRATE, GRILL WPL 74006513 Contact Us For Availability

WP74004005 Whirlpool Screw Backorder WPL WP74004005 $4.82

WPW10310263 Whirlpool Grille Element Backorder WPL WPW10310263 $258.26

Y708862 Whirlpool Speed Nut Backorder WPL Y708862 $9.78

PLATE, COVER WPL 71001759 Contact Us For Availability

PLATE, WIRE COVER WPL 74005868 Contact Us For Availability

PLATE, COVER WPL Y707681 Contact Us For Availability

ELEMENT, GRILL WPL 74005553 Contact Us For Availability

INSULATOR WPL Y700449 Contact Us For Availability

11

WP707929 Whirlpool Grease Filter In Stock WPL WP707929 $21.28

11

RETAINER, FILTER WPL Y707688 Contact Us For Availability

11

PAN, GRILL INSERT WPL 74005797 Contact Us For Availability

12

CAGE, MOTOR WPL 74005787 Contact Us For Availability

12

PLUG, HOLE WPL Y706193 Contact Us For Availability

12

PAN, GRILL (LT) WPL 74005799 Contact Us For Availability

13

WP12990527 Whirlpool Microwave Screw In Stock WPL WP12990527 $3.49

13

GUARD, BLOWER WPL 71001534 Contact Us For Availability

13

WASHER (1``) WPL 74001521 Contact Us For Availability

14

WPY708730 Whirlpool Terminal Block In Stock WPL WPY708730 $71.74

15

WP74007474 Whirlpool Dishwasher Element Recep Backorder WPL WP74007474 $98.74

16

BRACKET, RECEPTACLE WPL 74005798 Contact Us For Availability

17

74004835 Whirlpool Clip In Stock WPL 74004835 $7.31

18

WASHER WPL 74005796 Contact Us For Availability

19

M0282009 Whirlpool Air Conditioner Nut Backorder WPL M0282009 $8.89

20

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

21

CLIP, SHUNT WPL Y700450 Contact Us For Availability

22

W10341820 Whirlpool Fan Switch Backorder WPL W10341820 $210.14

23

INSULATOR, CERAMIC BLOCK WPL 74005866 Contact Us For Availability

24

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $30.71

24

WPY04100165 Whirlpool Surface Element In Stock WPL WPY04100165 $53.72

25

WP3191454 Whirlpool Surface Element Backorder WPL WP3191454 $134.26

25

WPY04100166 Whirlpool Oven 8" Surface Element In Stock WPL WPY04100166 $30.89

26

715877 Whirlpool Electric Range 6" Chrome Dri In Stock WPL 715877 $5.16

27

715878 Whirlpool Range 8" Chrome Drip Pan In Stock WPL 715878 $5.43

WIRE, YELLOW 18 WPL 74005841 Contact Us For Availability

WIRE, BLUE 20 WPL 74005844 Contact Us For Availability

WIRE, VIOLET 15 WPL 74005842 Contact Us For Availability

WIRE, BROWN 14, 15 WPL 74005843 Contact Us For Availability

29

COOKBOOK----NA WPL 16008409 Contact Us For Availability

29

GUIDE, COOKING (TRILINGUAL) WPL 74005475 Contact Us For Availability

29

MANUAL, SERVICE WPL EC00100 Contact Us For Availability

30

MANUAL, USE & CARE WPL 74005526 Contact Us For Availability

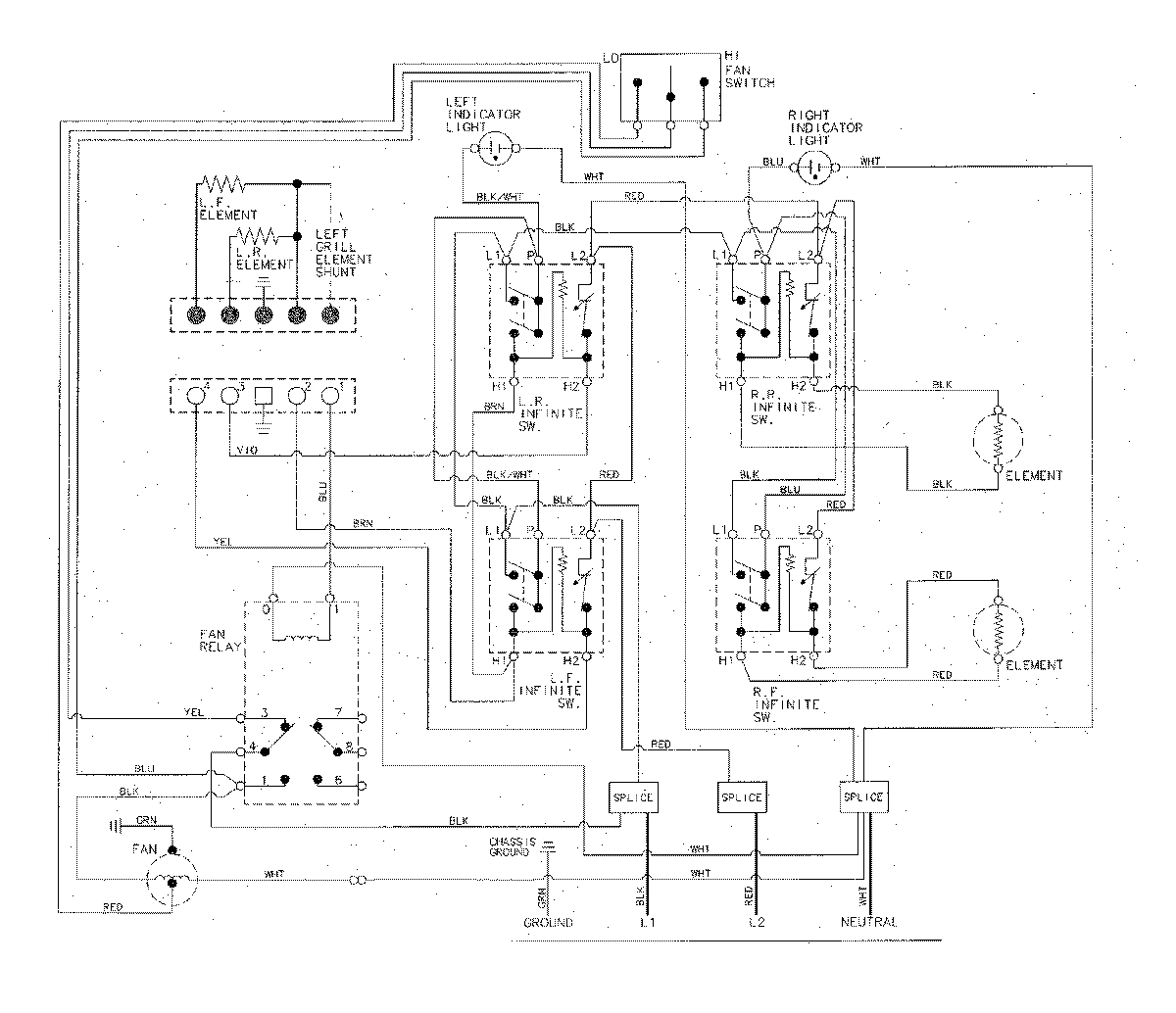

NI

WIRING INFORMATION WPL 15002807 Contact Us For Availability
