Model Whirlpool JEC9530ADB ELECTRIC COOK-TOP – Common Parts & Diagrams

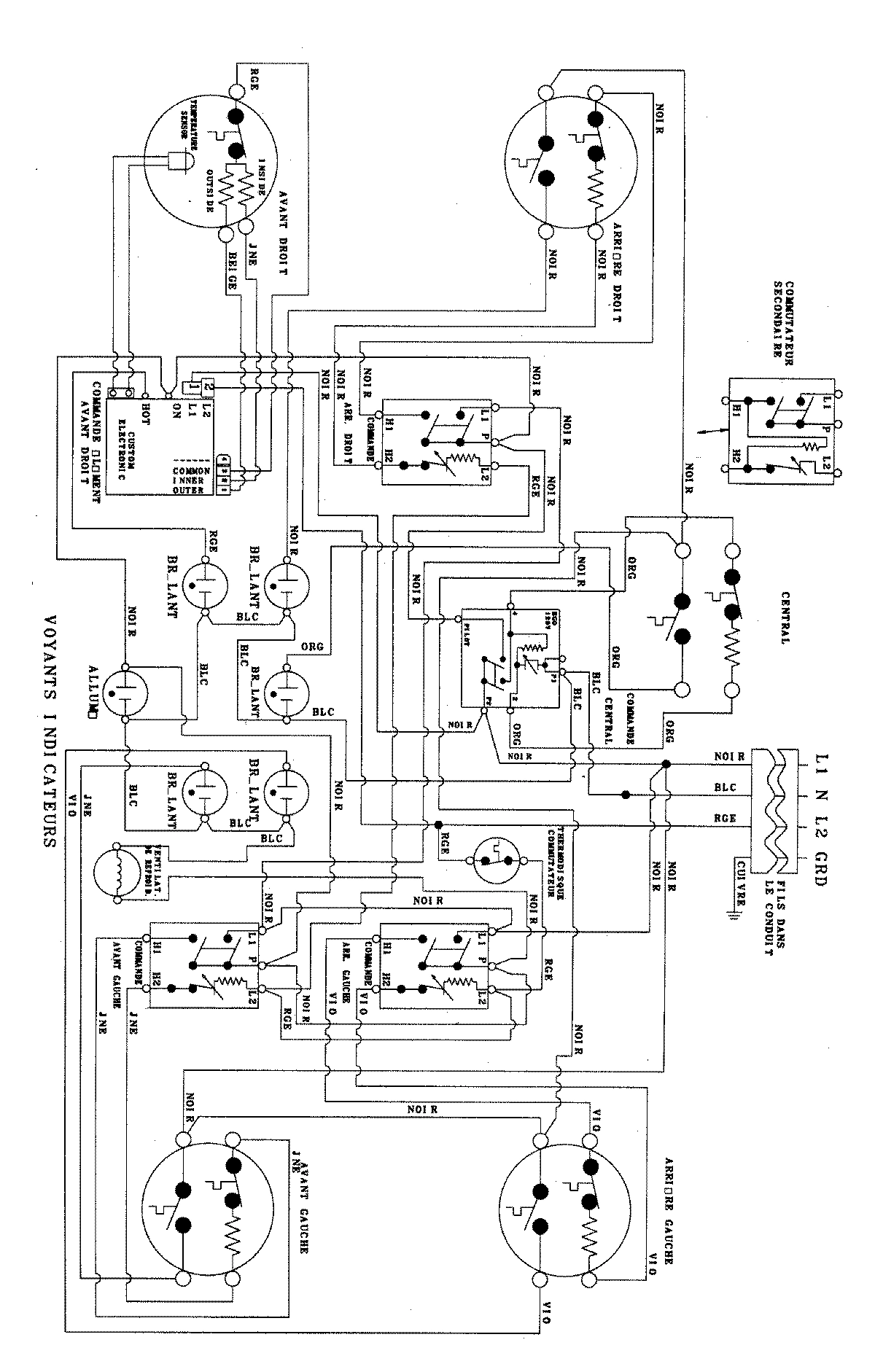

04 - WIRING INFORMATION (FRC)

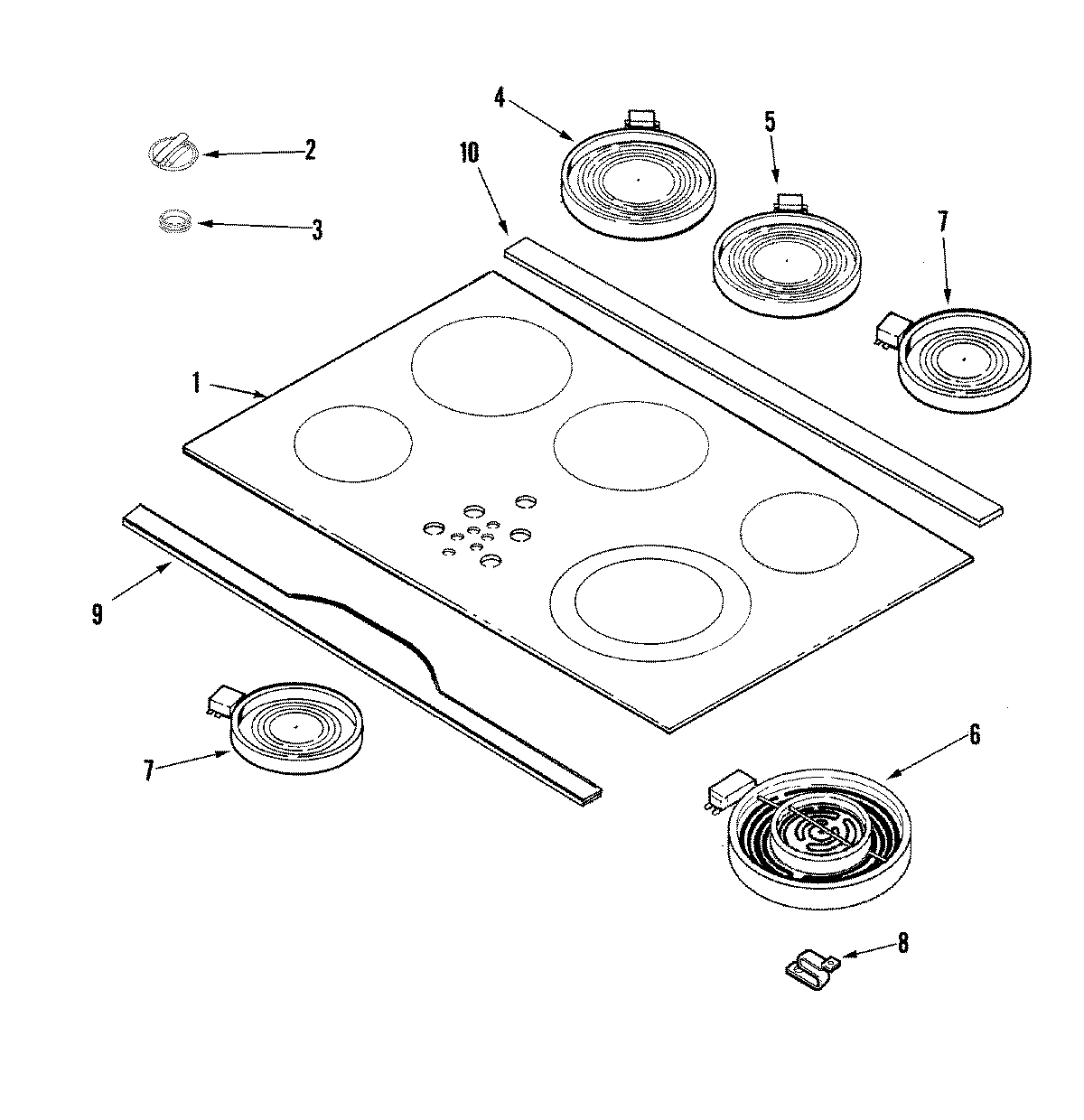

02 - TOP ASSEMBLY

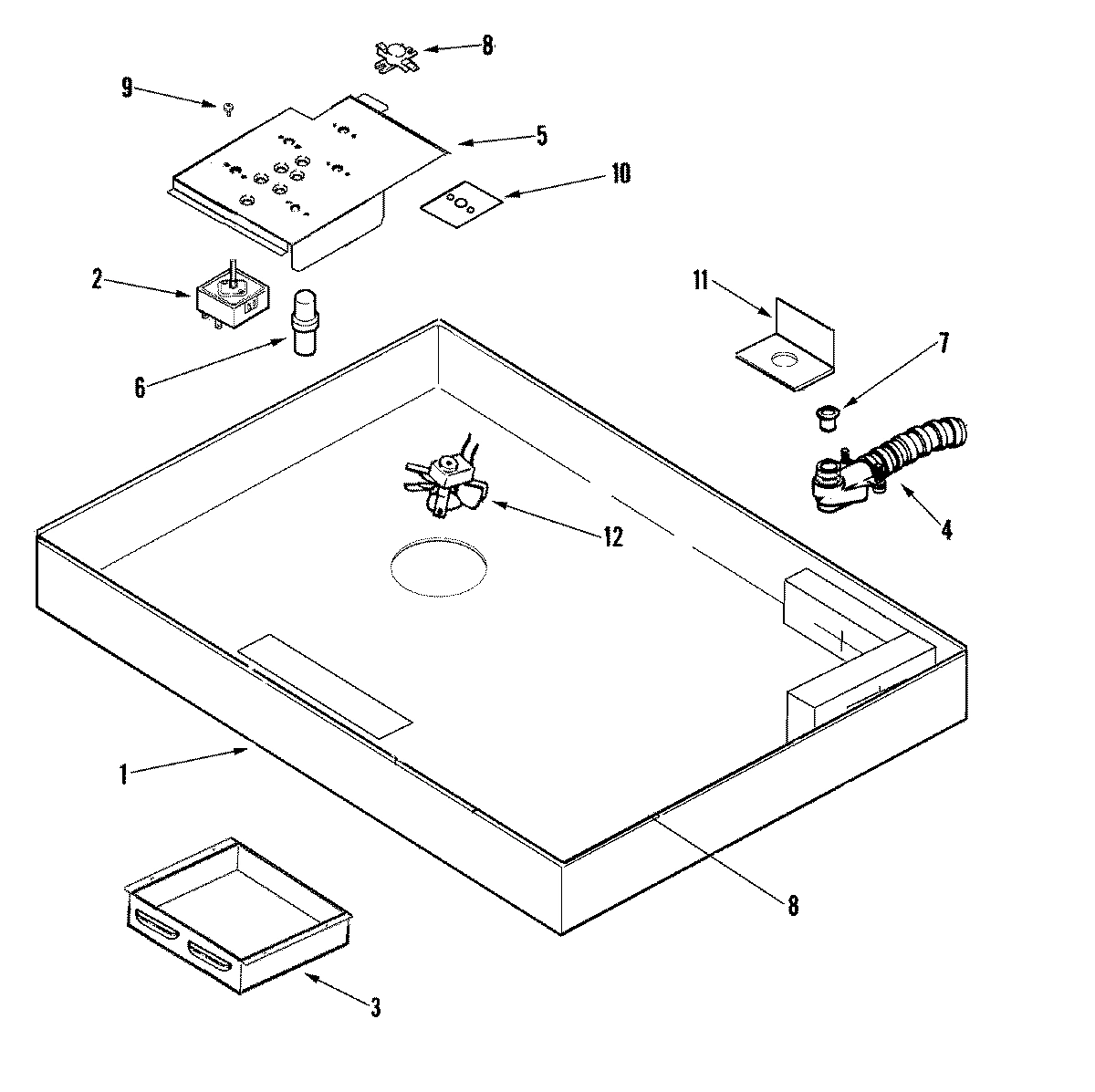

01 - BODY

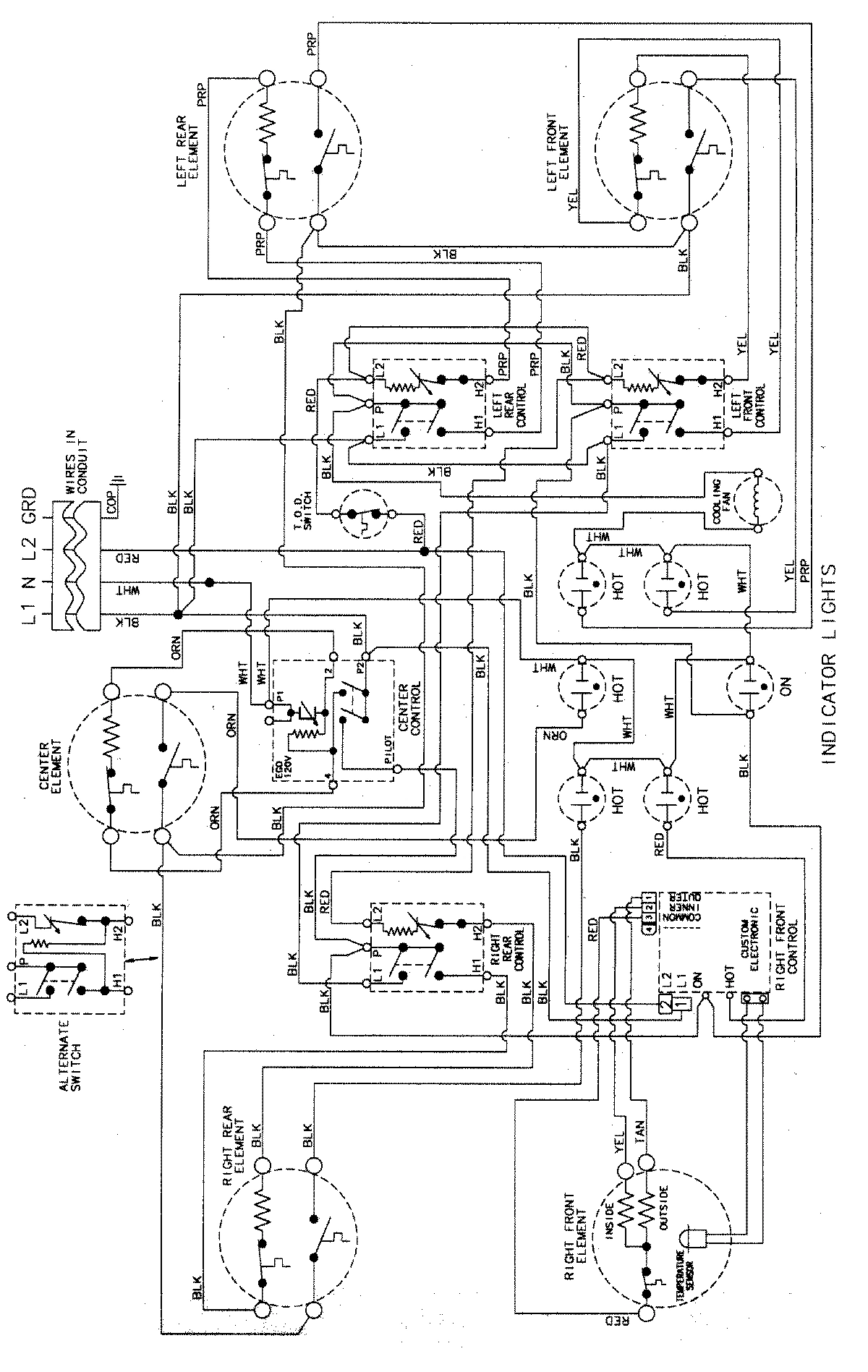

03 - WIRING INFORMATION

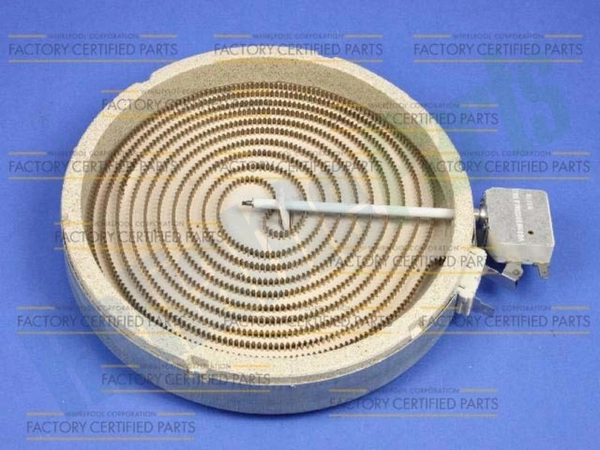

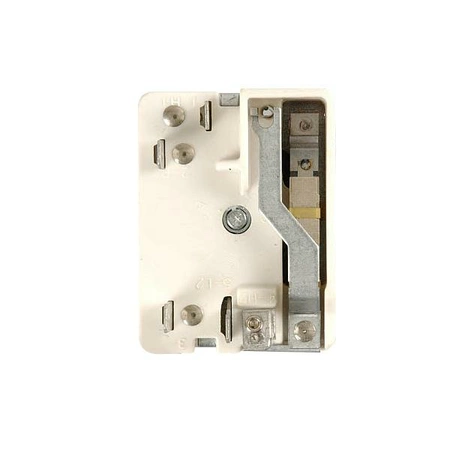

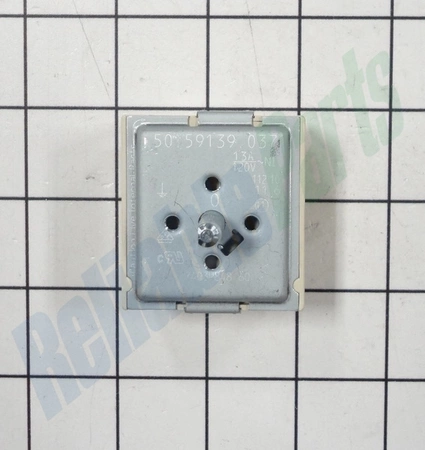

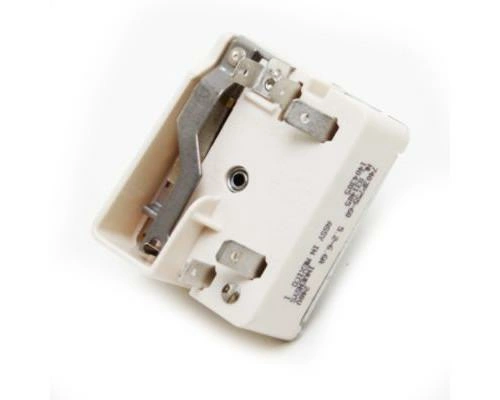

Common parts from model Whirlpool JEC9530ADB ELECTRIC COOK-TOP
1
BOTTOM, BURNER BOX WPL 74008067 Contact Us For Availability
2
GASKET, SWITCH WPL 74008253 Contact Us For Availability
2
WASHER WPL 74008077 Contact Us For Availability
2
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
3
BAFFLE, BOTTOM WPL 74007836 Contact Us For Availability
4
CONNECTOR, ANGLE WPL 74007891 Contact Us For Availability
4
CONDUIT, 1/2`` FLEXIBLE (48``) WPL 74007892 Contact Us For Availability
4
HARNESS/CONDUIT ASY WPL 74008070 Contact Us For Availability
4
HARNESS/CONDUIT ASY WPL 74010989 Contact Us For Availability
4
HARNESS, SWITCH (RT) WPL 74010996 Contact Us For Availability
5
ELEMENT, WARMING WPL 74008571 Contact Us For Availability
5
COVER, WIRE WPL 74008069 Contact Us For Availability
5
PLATE, SWITCH WPL 74008076 Contact Us For Availability
6
ELEMENT, DUAL (3000W) WPL 74008228 Contact Us For Availability
6
HOT LIGHT/WIRE HARNESS ASY WPL 74011007 Contact Us For Availability
6
LIGHT, INDICATOR WPL Y706125 Contact Us For Availability
7
GROMMET, ANTI-SHORT WPL 74004222 Contact Us For Availability
8
SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability
8
THERMOSTAT, SNAP ACTING WPL 7403P22760 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
11
HARNESS (CTL/ELEMENT) WPL 74008073 Contact Us For Availability
11
BRACKET, CONDUIT/HARNESS ASY. WPL 74007893 Contact Us For Availability
12
MANUAL, USE & CARE WPL 74008078 Contact Us For Availability
12
FAN, COOLING WPL 74008068 Contact Us For Availability
12
CAPACITOR WPL 74008307 Contact Us For Availability
13
COOKTOP CLEANING CREME 4 OZ WPL 20001080 Contact Us For Availability
NI
WIRING INFORMATION WPL 15003406 Contact Us For Availability
× ![]()
