Model Whirlpool JE3842XRA ELECTRIC RANGE – Common Parts & Diagrams

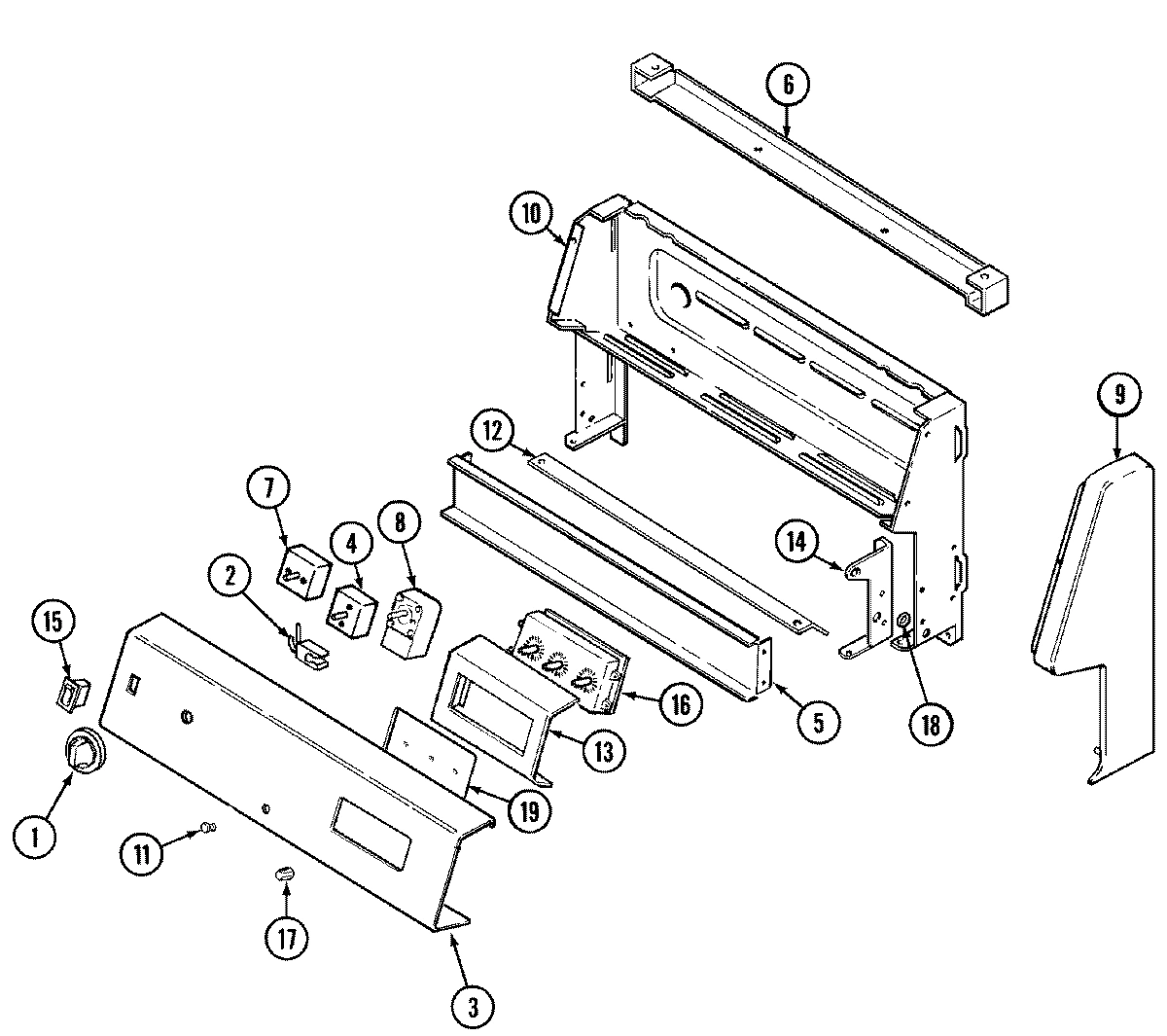

02 - CONTROL PANEL

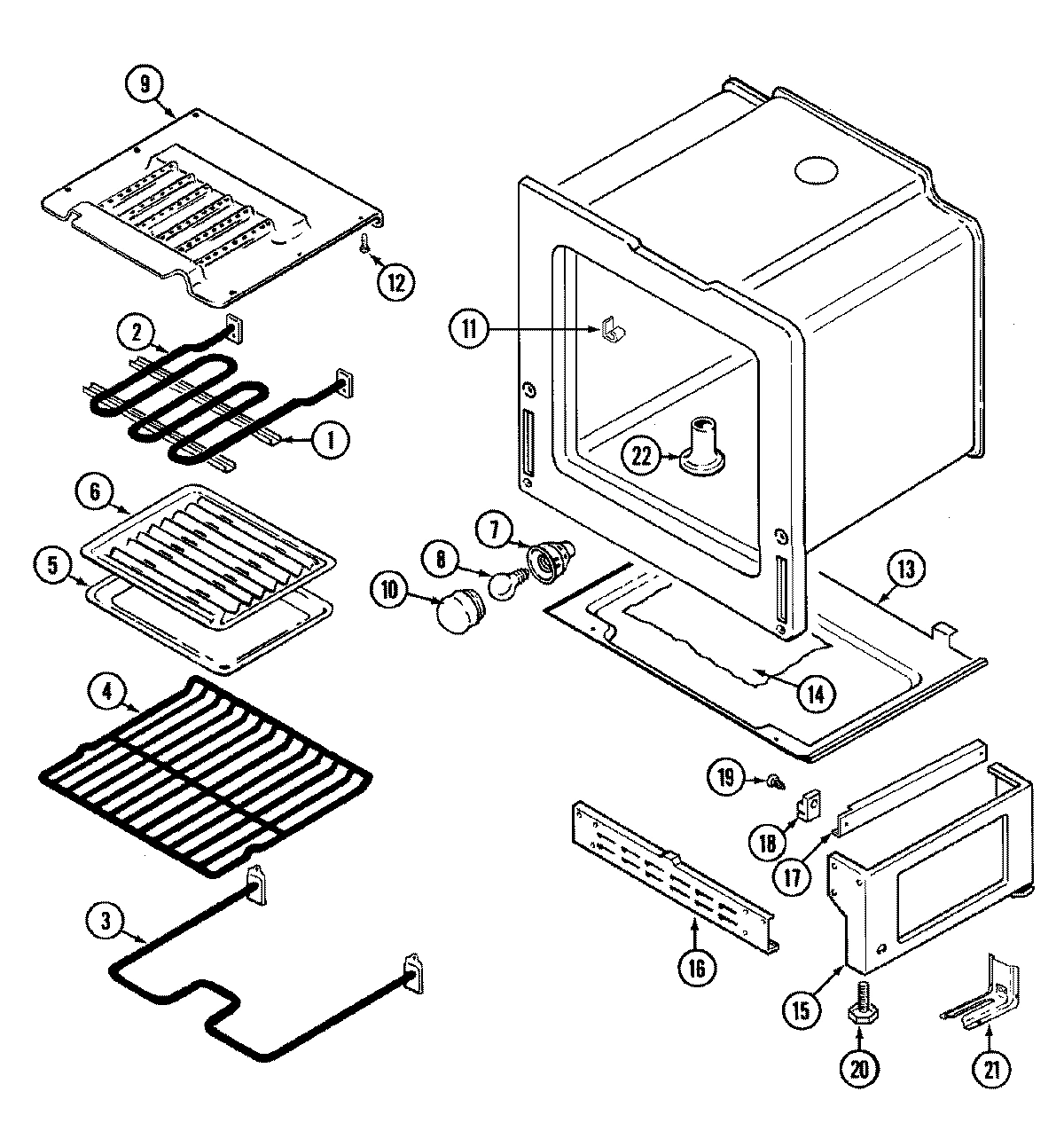

04 - OVEN/BASE

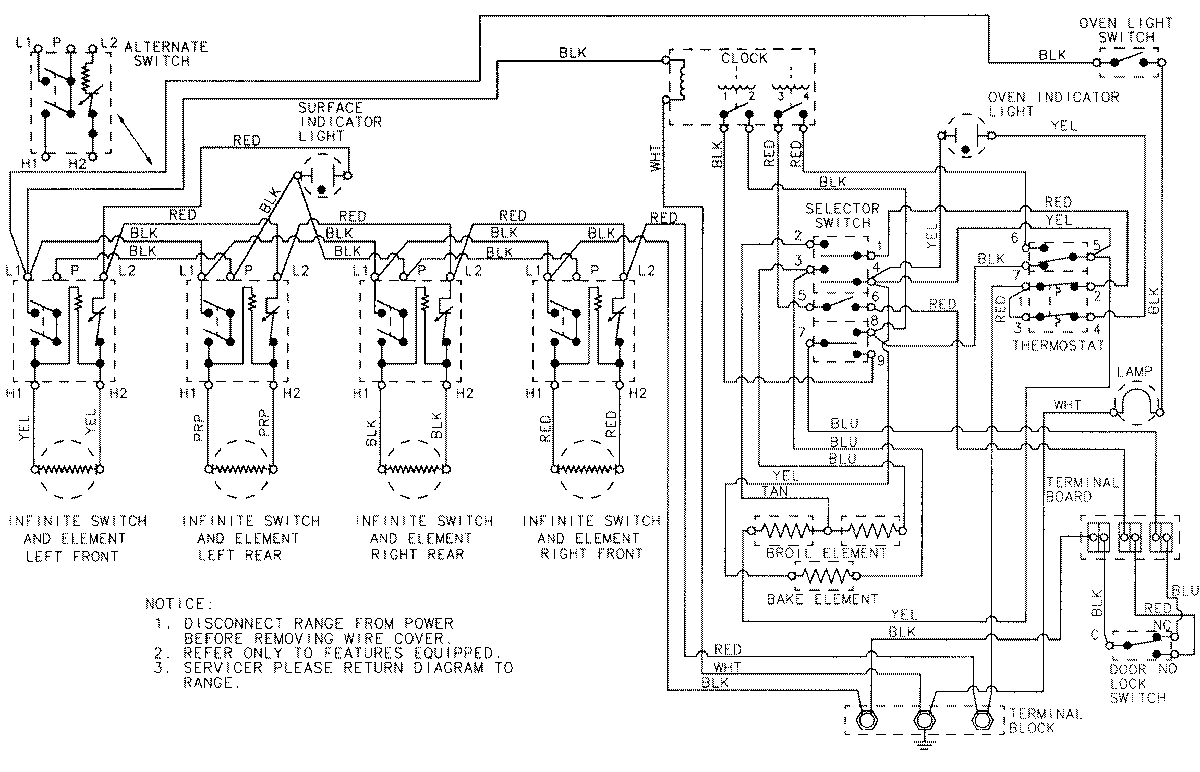

06 - WIRING INFORMATION

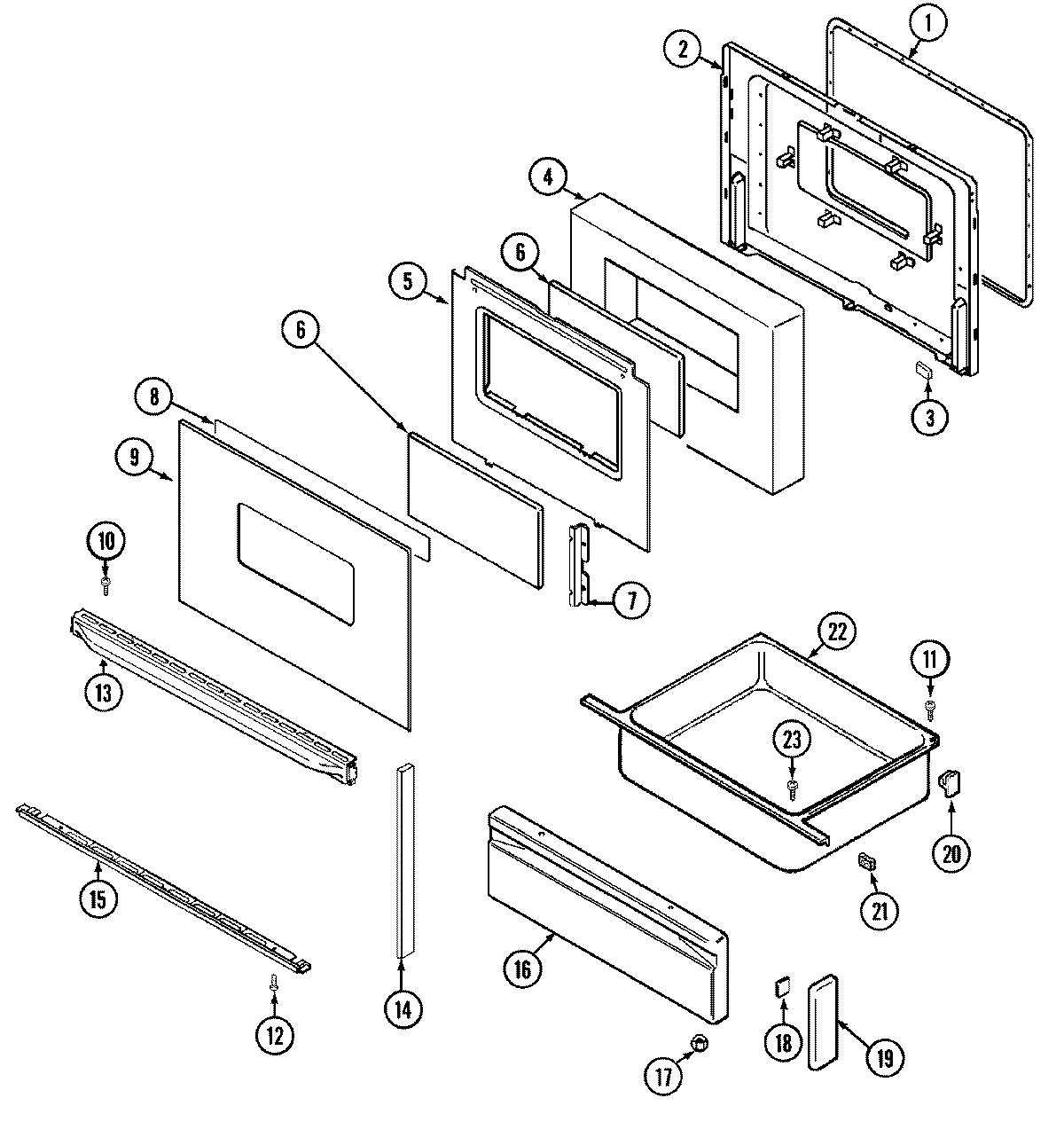

03 - DOOR/DRAWER

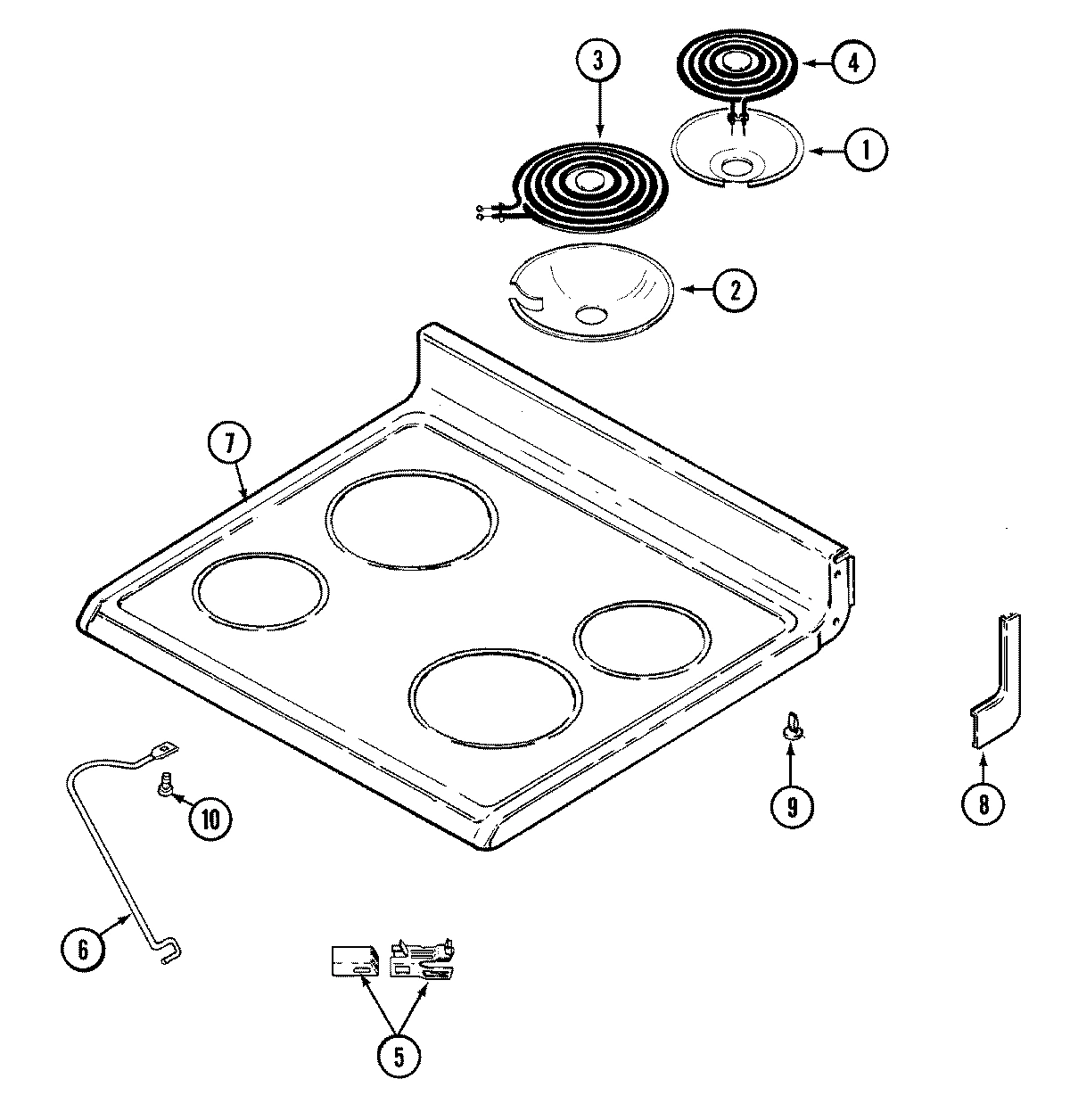

05 - TOP ASSEMBLY

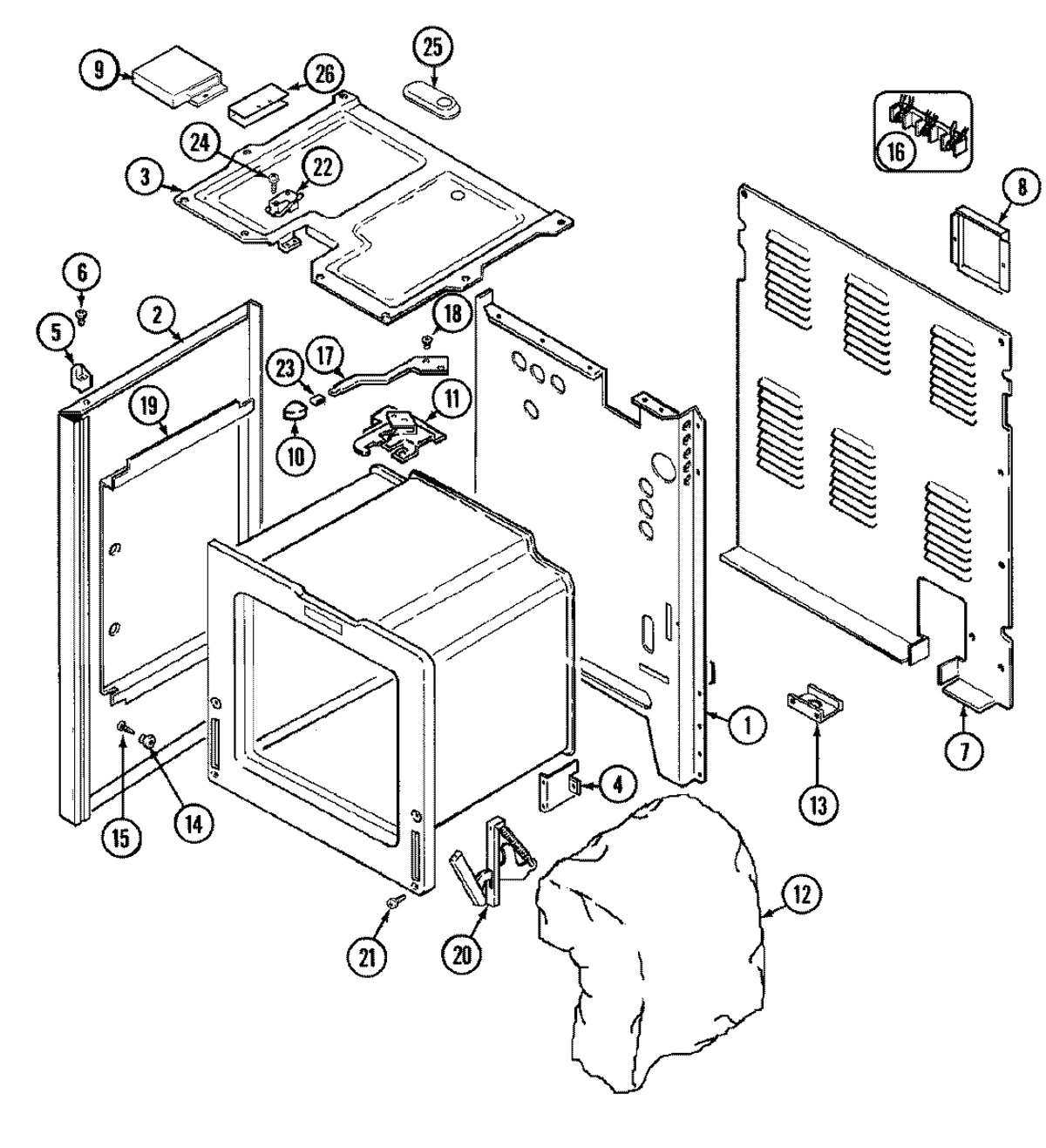

01 - BODY
Common parts from model Whirlpool JE3842XRA ELECTRIC RANGE
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P30060 Contact Us For Availability
1
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
1
BOWL, DRIP (6``W/HOLE-BLK) WPL 7725P04060 Contact Us For Availability
1
SHIELD, WIRE WPL 3604F21851 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
2
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
2
SCREW WPL 7101P34560 Contact Us For Availability
2
ELEMENT, BROIL WPL 7406P07260 Contact Us For Availability
2
LINING, DOOR WPL 2402W20919 Contact Us For Availability
2
LINING, DOOR WPL 74003244 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
3
PANEL, CONTROL (BLK) WPL 74002775 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
4
SWITCH, SELECTOR WPL 7403P34260 Contact Us For Availability
4
INSULATION, DOOR WPL 74001842 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
BRACE, LWR BKGD WPL 3802F08751 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
5
SCREW WPL 7118P01360 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
6
EXTENSION, CONTROL PANEL WPL 4001F06451 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
GLASS, INNER WPL 74001841 Contact Us For Availability
6
SUPPORT, PROP WPL 7809P01460 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
RETAINER, GLASS WPL 74001844 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W10384 Contact Us For Availability
7
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
8
SCREW WPL 7101P30960 Contact Us For Availability
8
THERMOSTAT WPL 7404P10060 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
8
NUT, SPEED WPL 7103P12960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
COVER, TERMINAL BLOCK ACCES WPL 4005F37651 Contact Us For Availability
9
END CAP, PANEL (LT-BLK)----NA WPL 74001342 Contact Us For Availability
9
END CAP, PANEL (RT-BLK) WPL 74001343 Contact Us For Availability
9
END CAP (RT-BLK) WPL 7726P04660 Contact Us For Availability
9
END CAP (LT-BLK) WPL 7726P05060 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
GLASS, DOOR (OUTER-BLK) WPL 74003431 Contact Us For Availability
9
GLASS, DOOR (BLK) WPL 7902P32160 Contact Us For Availability
9
GLIDE WPL 74001663 Contact Us For Availability
9
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
10
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
10
HANDLE, LATCH (BLK) WPL 7701P08860 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
11
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
HARNESS, PANEL TO TOP WPL 5175D04960 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
12
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 4804F03860 Contact Us For Availability
13
SCREW (WHT) WPL 7101P34860 Contact Us For Availability
13
BRACKET, CLOCK WPL 3801F31745 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 74003429 Contact Us For Availability
13
HANDLE, DOOR (BLK) WPL 7701P14460 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
14
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
14
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
14
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74002084 Contact Us For Availability
14
END CAP, DOOR (BLK) WPL 74003430 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
TAPE, END CAP WPL 8270P09360 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
15
SWITCH, ROCKER (BLK) WPL 7403P06760 Contact Us For Availability
15
PEDESTAL (SIDES) WPL 74001669 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
TRIM, BOTTOM (BLK) WPL 74003432 Contact Us For Availability
15
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
16
CLOCK WPL 7601P17060 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
BOARD, TERMINAL WPL 7401P04160 Contact Us For Availability
17
KNOB, CLOCK WPL 7711P46660 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
NUT, LOCK WPL 7103P13960 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
NUT, SPEED WPL 7103P04460 Contact Us For Availability
19
GASKET WPL 7201P05660 Contact Us For Availability
19
GLASS, CLOCK WPL 7902P10960 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
20
HARNESS LOOSE WIRES WPL 5125A32160 Contact Us For Availability
20
HARNESS, BKGD WPL 5170D14860 Contact Us For Availability
20
NUT WPL 7103P08260 Contact Us For Availability
20
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
21
MANUAL, USE & CARE WPL 74002476 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
21
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
22
GUIDE, QUICK REF - JENN-AIR WPL 16000326 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
22
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
22
SWITCH, DOOR LOCK WPL 74001822 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
SCREW WPL 7101P07260 Contact Us For Availability
23
CLIP, LATCH HANDLE WPL 7112P00360 Contact Us For Availability
24
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
25
COVER VENT WPL 4005F35045 Contact Us For Availability
25
SCREW, HINGE WPL 7101P01760 Contact Us For Availability
26
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001147 Contact Us For Availability
× ![]()
