Model Whirlpool JDS9860BDW21 GAS RANGE – Common Parts & Diagrams

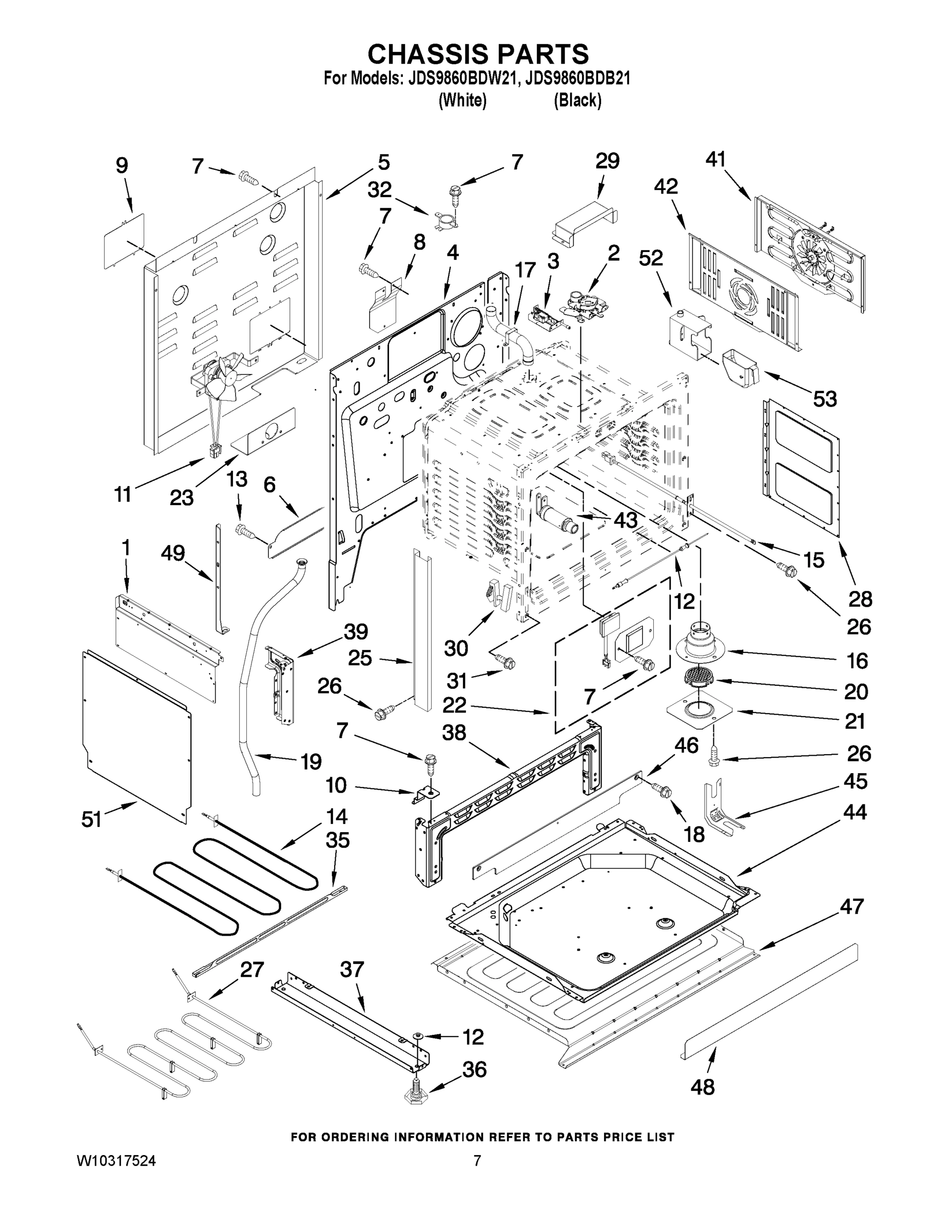

05 - CHASSIS PARTS

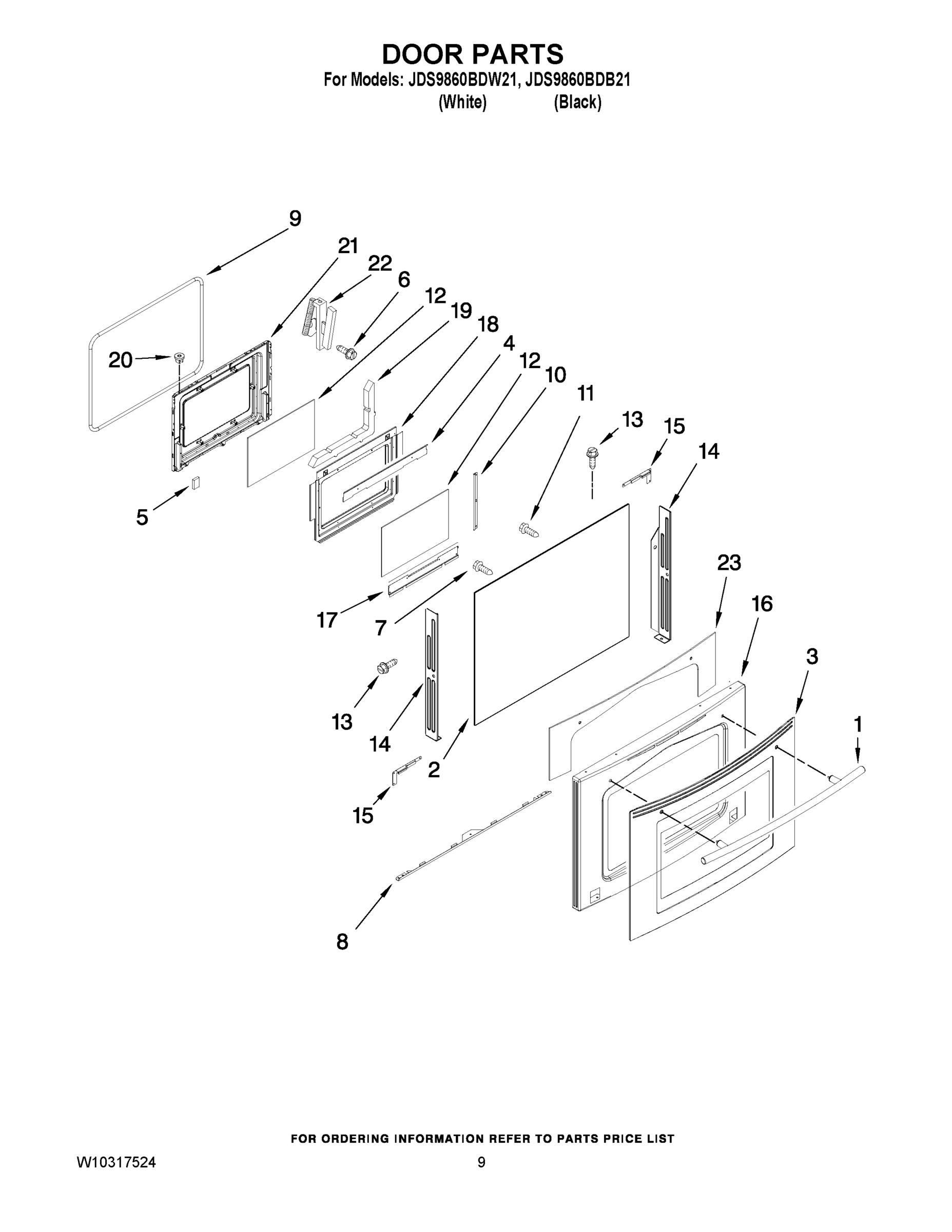

06 - DOOR PARTS

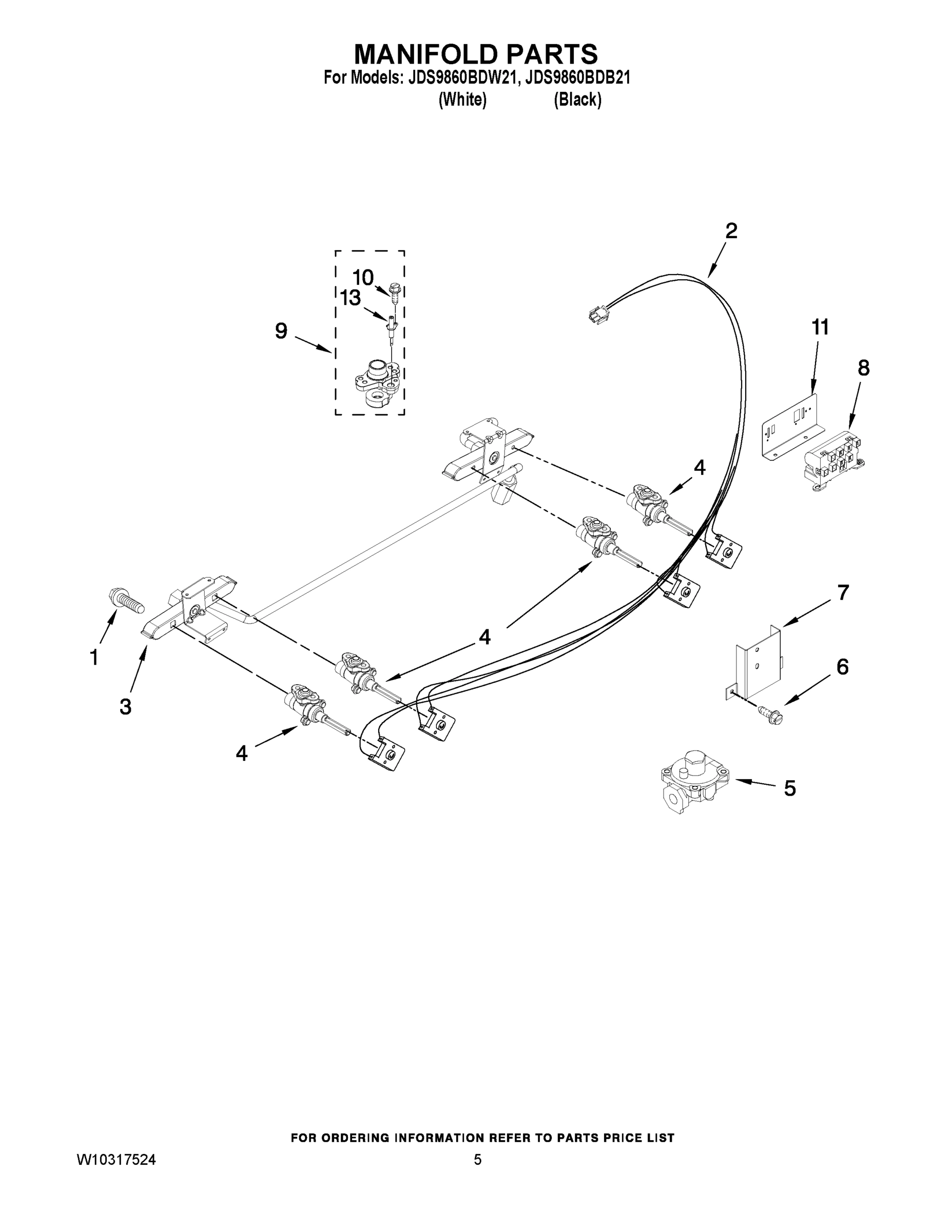

04 - MANIFOLD PARTS

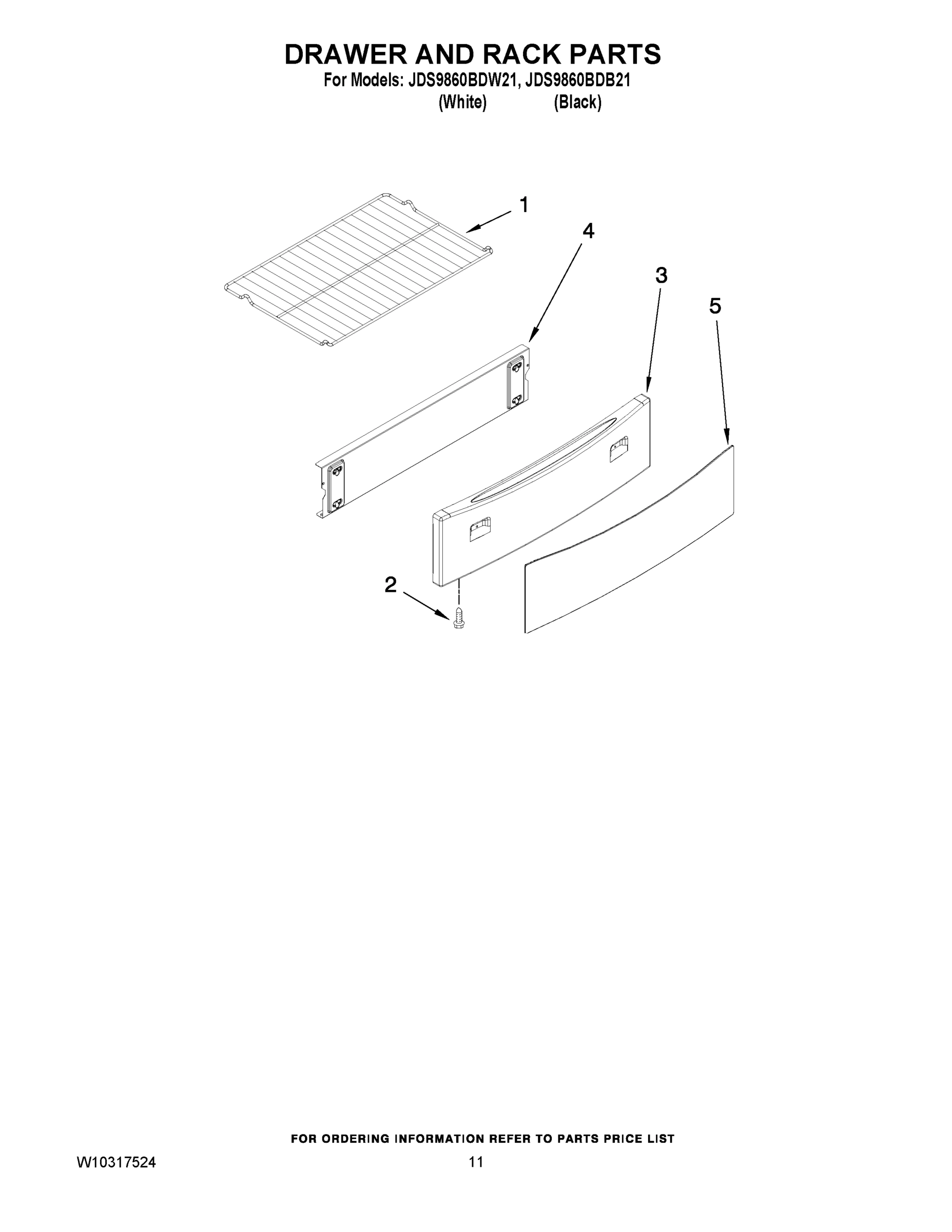

07 - DRAWER AND RACK PARTS

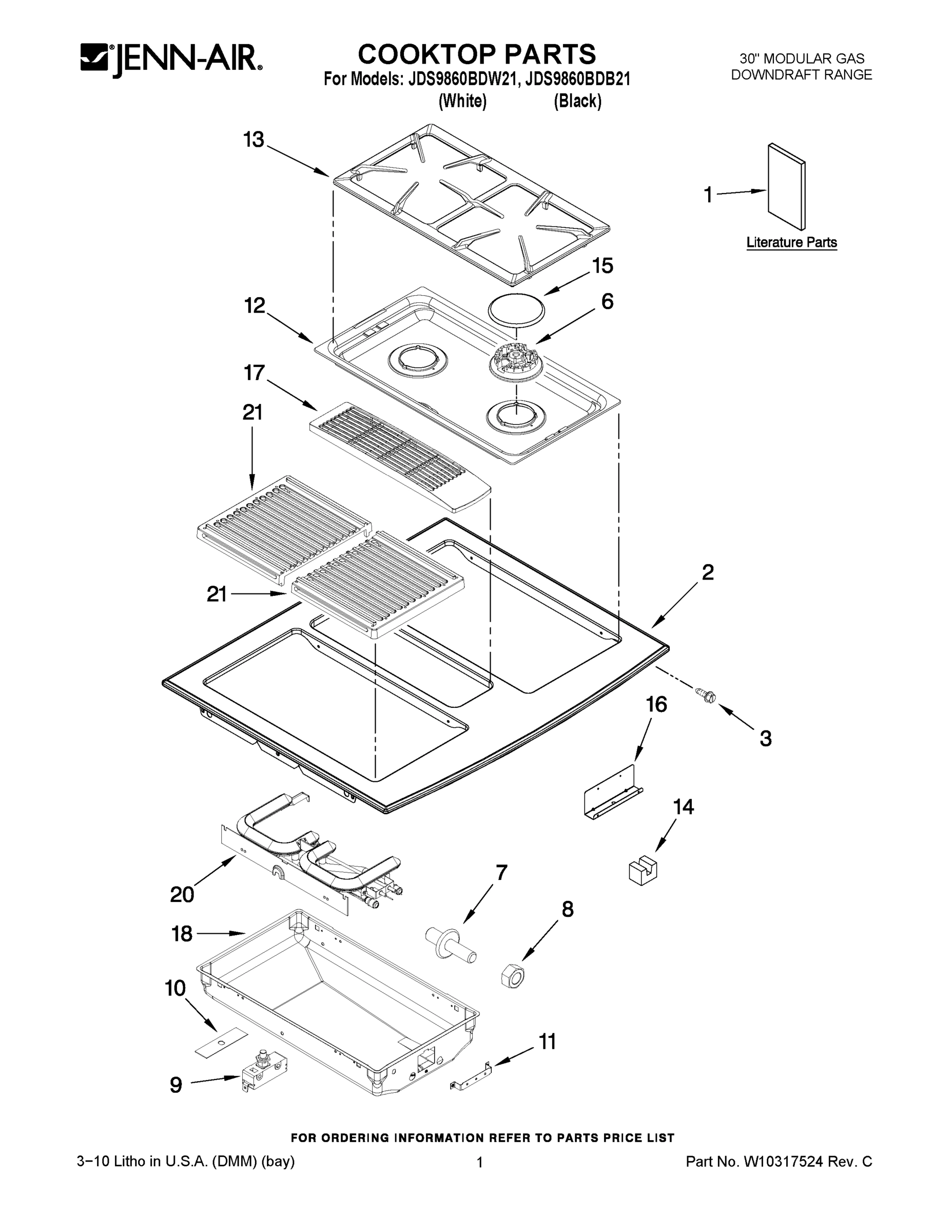

01 - COOKTOP PARTS

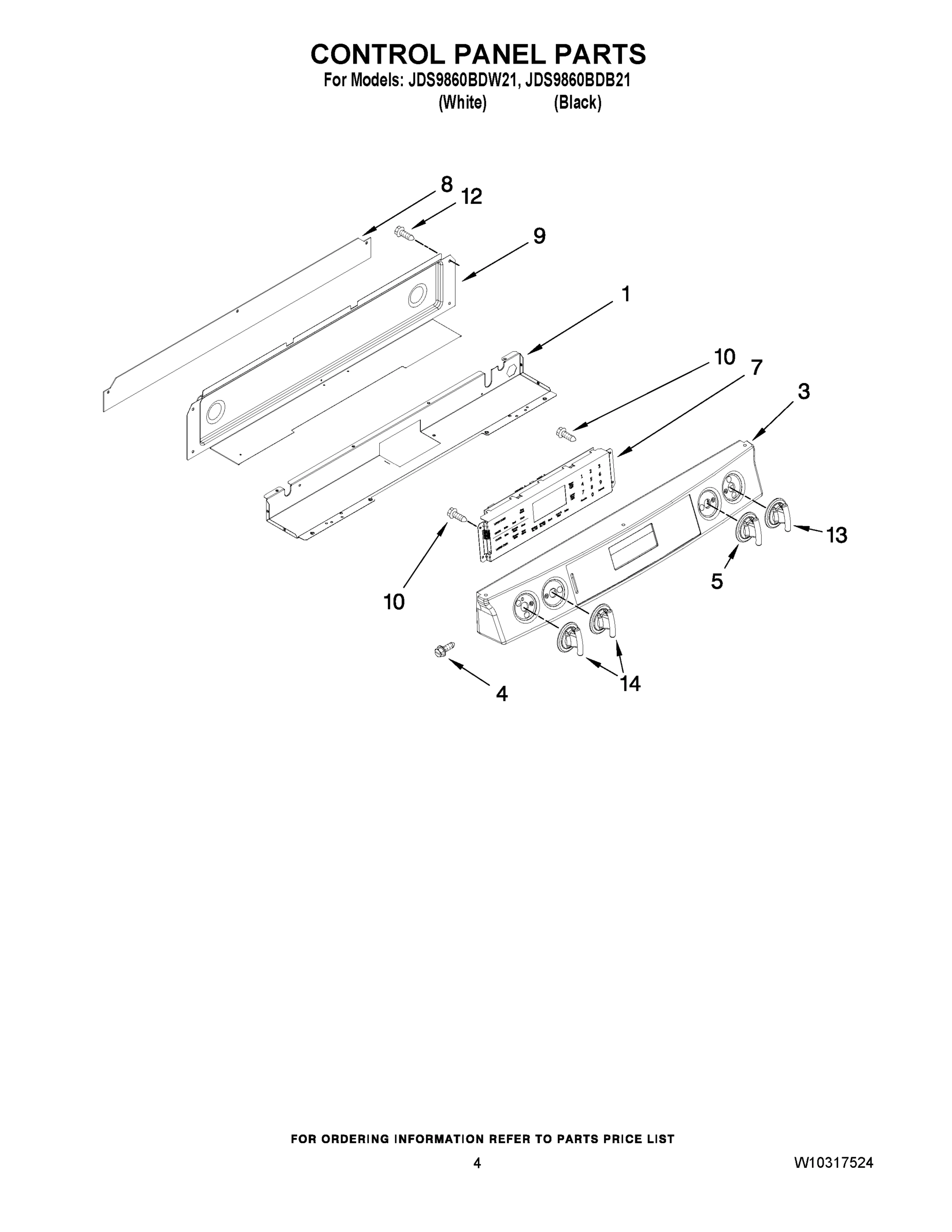

03 - CONTROL PANEL PARTS
08 - OPTIONAL PARTS (NOT INCLUDED)

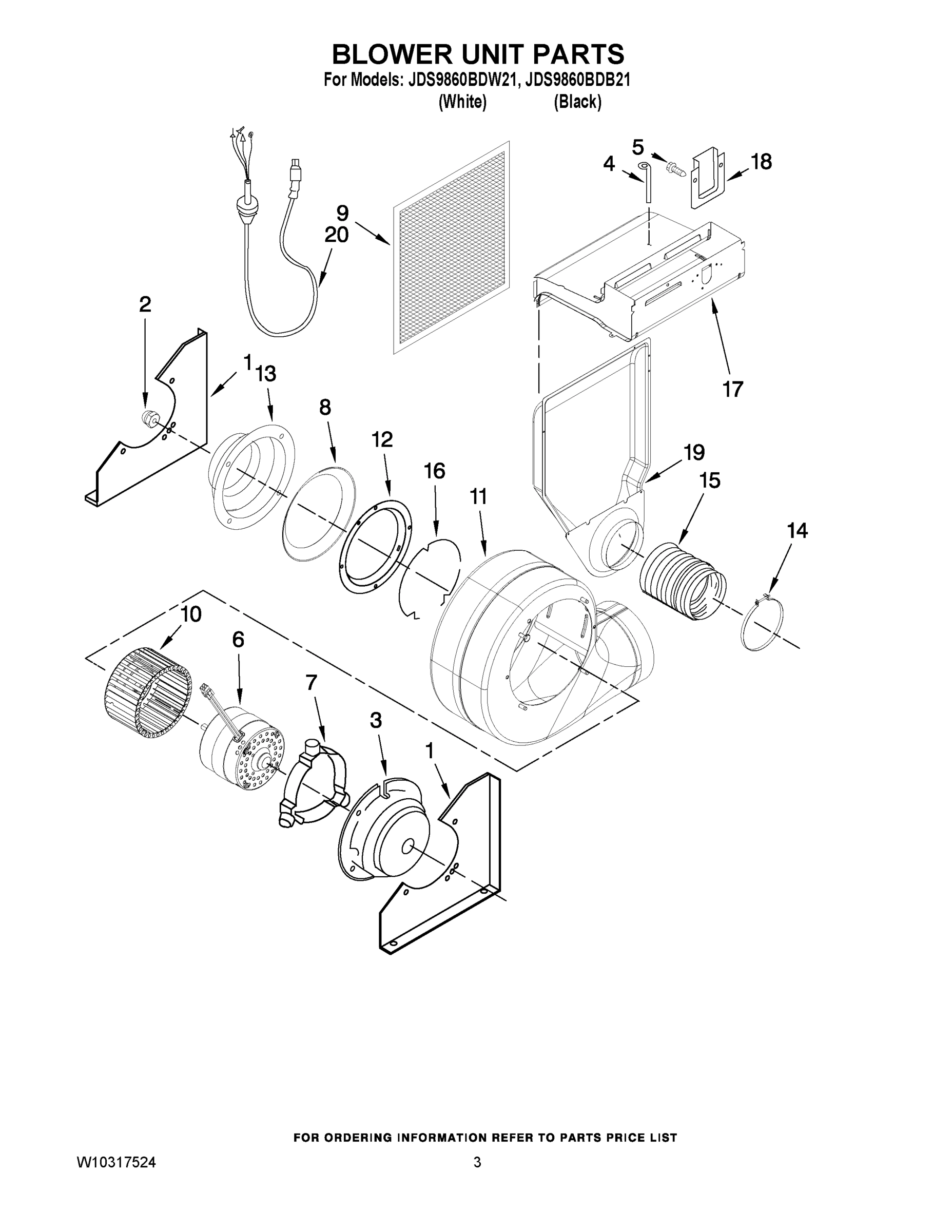

02 - BLOWER UNIT PARTS
Common parts from model Whirlpool JDS9860BDW21 GAS RANGE
1
HANDLE, DOOR WPL 7701P47360 Contact Us For Availability
1
Screw, Valve (4) WPL 7101P63960 Contact Us For Availability
1
RACK, OVEN (3) WPL 7801P17360 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS WPL 8101P70260 Contact Us For Availability
1
CARD, FLOW TESTER WPL 8106P06860 Contact Us For Availability
1
USE & CARE GUIDE WPL 8113P75360 Contact Us For Availability
1
WIRING DIAGRAM (USA) WPL 8119P39460 Contact Us For Availability
1
WIRING DIAGRAM (CANADA) WPL 8119P39560 Contact Us For Availability
1
Safe Cooking Tips (English) WPL 9762761 Contact Us For Availability
1
Safe Cooking Tips (French) WPL W10065852 Contact Us For Availability
1
SUPPORT, CONTROL WPL 3807F73751 Contact Us For Availability
1
BRACKET, MOUNT WPL 3801F63151 Contact Us For Availability
2
GLASS, COATED WPL 7902P76860 Contact Us For Availability
2
SCREW WPL 7101P37660 Contact Us For Availability
2
HARNESS, IGNITER (WITH SWITCHES) WPL 7450P00560 Contact Us For Availability
2
TOP, MAIN (BLACK) WPL W10202594 Contact Us For Availability
2
TOP, MAIN (WHITE) WPL W10204446 Contact Us For Availability
2
LOCKNUT WPL 7103P16260 Contact Us For Availability
3
PANEL, CONTROL (WHITE) WPL W10206069 Contact Us For Availability
3
PANEL, CONTROL (BLACK) WPL W10206070 Contact Us For Availability
3
GLASS, DOOR (WHITE) WPL 7922P05060 Contact Us For Availability
3
GLASS, DOOR (BLACK) WPL 7922P05160 Contact Us For Availability
3
PIPE, MANIFOLD WPL 7513P49660 Contact Us For Availability
3
PANEL, DRAWER FRNT (BLACK) WPL 2416F08670 Contact Us For Availability
3
PANEL, DRAWER FRNT (WHITE) WPL 2416F08671 Contact Us For Availability
3
COVER, MOTOR WPL 4005F53780 Contact Us For Availability
4
Screw WPL 7101P63360 Contact Us For Availability
4
SHIELD WPL 3604F41851 Contact Us For Availability
4
VALVE (RIGHT REAR) WPL 7502P47060 Contact Us For Availability
4
VALVE (LIFT FRONT/REAR) WPL 7502P54760 Contact Us For Availability
4
VALVE (RIGHT FRONT) WPL 7502P54860 Contact Us For Availability
4
PANEL, INNER WPL 3806F01180 Contact Us For Availability
4
STOP, FILTER WPL 7809P03060 Contact Us For Availability
5
SPACER, RUBBER WPL 7109P08260 Contact Us For Availability
5
SCREW WPL 7101P42660 Contact Us For Availability
5
REGULATOR, PRESSURE WPL 7510P07760 Contact Us For Availability
5
GLASS, DRAWER (BLACK) WPL 7922P05760 Contact Us For Availability
5
GLASS, DRAWER (WHITE) WPL 7922P05860 Contact Us For Availability
5
KNOB, RIGHT FRONT WPL 7733P47960 Contact Us For Availability
6
Screw WPL 7101P28260 Contact Us For Availability
6
SCREW WPL 7103P17660 Contact Us For Availability
6
BURNER, HEAD (RIGHT FRONT) WPL 7540P04760 Contact Us For Availability
7
BRACKET, REGULATOR TO VALVE WPL 3801F91351 Contact Us For Availability
7
PIN, LOCATOR WPL 7113P02060 Contact Us For Availability
7
CONTROL (GAS) WPL 8507P23160 Contact Us For Availability
7
ASSY., MOTOR BAND WPL 5700D52660 Contact Us For Availability
8
SUPPORT, GLASS WPL 8020P07460 Contact Us For Availability
8
Module, Spark WPL 7431P06460 Contact Us For Availability
8
NUT WPL 7103P16060 Contact Us For Availability
8
SHIELD, SIGHT WPL 3604F43351 Contact Us For Availability
8
RING, RESTRICTOR WPL 4026F00951 Contact Us For Availability
9
HOLDER, ORIFICE (RIGHT FRONT) WPL 7527P08160 Contact Us For Availability
9
HOLDER, ORIFICE (RIGHT REAR) WPL 7527P08460 Contact Us For Availability
9
SWITCH, INFINITE WPL 7450P01260 Contact Us For Availability
9
COVER, REAR WIRE WPL 4005F81051 Contact Us For Availability
9
FILTER, GREASE WPL 8310P00660 Contact Us For Availability
10
Bracket, Glass WPL 3801F88651 Contact Us For Availability
10
SWITCH, INSULATOR WPL 7003P12960 Contact Us For Availability
10
SCREW WPL 7101P07760 Contact Us For Availability
10
WHEEL, BLOWER WPL 7114P00560 Contact Us For Availability
11
Support, Spark Module WPL 3807F75245 Contact Us For Availability
11
CLIP, TERMINAL BLOCK WPL 7112P15060 Contact Us For Availability
11
ASSY., SCROLL BLWR WPL 2822W00180 Contact Us For Availability
12
Screw WPL 7101P43460 Contact Us For Availability
12
Glass, Inner (2) WPL 7902P43660 Contact Us For Availability
12
TOP, BLACK WPL 2001F27081 Contact Us For Availability
12
RING, INLET WPL 4026F00851 Contact Us For Availability
13
IGNITOR (RF, RR) WPL 7432M12660 Contact Us For Availability
13
IGNITOR (GRILL BURNER) WPL 7432P11260 Contact Us For Availability
13
GRATE WPL 7518P34160 Contact Us For Availability
13
KNOB, RIGHT REAR WPL 7733P47860 Contact Us For Availability
13
ADAPTER, RING RESTRICTOR WPL 2818F00180 Contact Us For Availability
14
BLOCK, SUPPORT WPL 8255P41260 Contact Us For Availability
14
CLAMP, HOSE WPL 7111P04760 Contact Us For Availability
15
RETAINER, GLASS (RIGHT) WPL 3804F30751 Contact Us For Availability
15
RETAINER, GLASS (LEFT) WPL 3804F30851 Contact Us For Availability
15
CAP, BURNER (BLACK RR) WPL 7504P20260 Contact Us For Availability
15
CAP, BURNER (BLACK RF) WPL 7504P20460 Contact Us For Availability
15
DUCT, FLEXIBLE WPL 8032P00360 Contact Us For Availability
16
FRAME, DOOR (BLACK) WPL 3603F07570 Contact Us For Availability
16
FRAME, DOOR (WHITE) WPL 3603F07571 Contact Us For Availability
16
SUPPORT, CARTRIDGE PAN WPL 3807F74351 Contact Us For Availability
16
RETAINER WPL 8038P00360 Contact Us For Availability
17
TUBE, VENT UPPER WPL 8026P09460 Contact Us For Availability
17
RETAINER, GLASS WPL 3804F31780 Contact Us For Availability
17
GRILLE, AIR WPL 7772P04560 Contact Us For Availability
17
ASSEMBLY, PLENUM WPL 2801W03380 Contact Us For Availability
18
COVER, VENT WPL 4005F77980 Contact Us For Availability
18
Baffle, Door WPL 3601F37351 Contact Us For Availability
18
GRILLE PAN, LEFT WPL 3401F09919 Contact Us For Availability
19
DRAIN, TUBE WPL 7506P40660 Contact Us For Availability
19
Insulation, Door WPL 7002P24660 Contact Us For Availability
19
SIDE, PLENUM WPL 2801L03780 Contact Us For Availability
20
SMOKE ELIMINATOR WPL 8034P00860 Contact Us For Availability
20
NUT, SNAP WPL 7103P14160 Contact Us For Availability
20
BURNER, GRILLE WPL 7505P29060 Contact Us For Availability
20
CORD, POWER WPL 7402P10460 Contact Us For Availability
21
PLATE, SMOKE ELIM. WPL 3605F34445 Contact Us For Availability
21
Lining, Door WPL 2402W31219 Contact Us For Availability
21
GRATE, GRILLE WPL 7518P07060 Contact Us For Availability
22
LIGHT ASSEMBLY WPL 7407P18060 Contact Us For Availability
22
Hinge, Door (2) WPL 7106P14360 Contact Us For Availability
23
BRKT., PSR SUPPLY WPL 3801F91151 Contact Us For Availability
23
INSULATION, FOIL WPL 7002P46560 Contact Us For Availability
25
TRIM, SIDE (BLACK) WPL 3608F13870 Contact Us For Availability
25
TRIM, SIDE (WHITE) WPL 3608F13871 Contact Us For Availability
27
ELEMENT, BAKE WPL 7406P43960 Contact Us For Availability
28
RETAINER, INSULATION WPL 3804F30051 Contact Us For Availability
29
COVER, DOOR LATCH WPL 4005F75051 Contact Us For Availability
32
SWITCH, HI-LIMIT WPL 7403P85560 Contact Us For Availability
35
SUPPORT, ELEMENT WPL 3807F75445 Contact Us For Availability
36
LEG, LEVELING WPL 7101P66060 Contact Us For Availability
37
PEDESTAL, BOTTOM WPL 4020W03580 Contact Us For Availability
38
BASE, PEDESTAL WPL W10271711 Contact Us For Availability
39
PEDESTAL, REAR (RIGHT) WPL 4020F03280 Contact Us For Availability
39
PEDESTAL, REAR (LEFT) WPL 4020F03380 Contact Us For Availability
41
CONVECTION ASSY WPL W10213813 Contact Us For Availability
42
COVER WPL W10312218 Contact Us For Availability
43
RECEPTACLE, PROBE WPL 7408P08660 Contact Us For Availability
44
RETAINER, INSUL. WPL 3804F30551 Contact Us For Availability
45
BRACKET, ANTI-TIP WPL 3801F65651 Contact Us For Availability
46
TRIM, FRT. FRAME WPL 7713P05460 Contact Us For Availability
47
RETAINER, INSULATION (BTM) WPL 3804F31251 Contact Us For Availability
49
SUPPORT, OVEN REAR WPL 3807F73251 Contact Us For Availability
51
SHIELD, LOWER SIDE WPL 3604F41651 Contact Us For Availability
52
HOUSING, GREASE CUP WPL 8312P19160 Contact Us For Availability
53
CUP, GREASE WPL 8312P19060 Contact Us For Availability
NI
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) WPL 799344 Contact Us For Availability
NI
INSULATION, WRAP WPL 7002P46660 Contact Us For Availability
NI
INSULATION, BOTTOM WPL 7002P46760 Contact Us For Availability
NI
INSULATION, BACK WPL 7002P46860 Contact Us For Availability
NI
TUBING, LF WPL 7506P46260 Contact Us For Availability
NI
TUBING, LR WPL 7506P46360 Contact Us For Availability
NI
TUBING, SUPPLY WPL 7506P46460 Contact Us For Availability
NI
TUBING, RF WPL 7506P46560 Contact Us For Availability
NI
TUBING, RR WPL 7506P46660 Contact Us For Availability
NI
REFINISHING MATERIAL (GREASE) WPL 261582 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
NI
HARNESS, MAIN WPL 5171P53060 Contact Us For Availability
NI
HARNESS, SENSOR WPL 5171P53760 Contact Us For Availability
NI
HARNESS, SPARK WPL 5171P78760 Contact Us For Availability
NI
LP CONVERSION KIT WPL 7507P41760 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (KIT, PORCELAIN REPAIR ( WPL 799832 Contact Us For Availability
NI
CORD, POWER (CANADA) WPL W10221108 Contact Us For Availability
× ![]()
