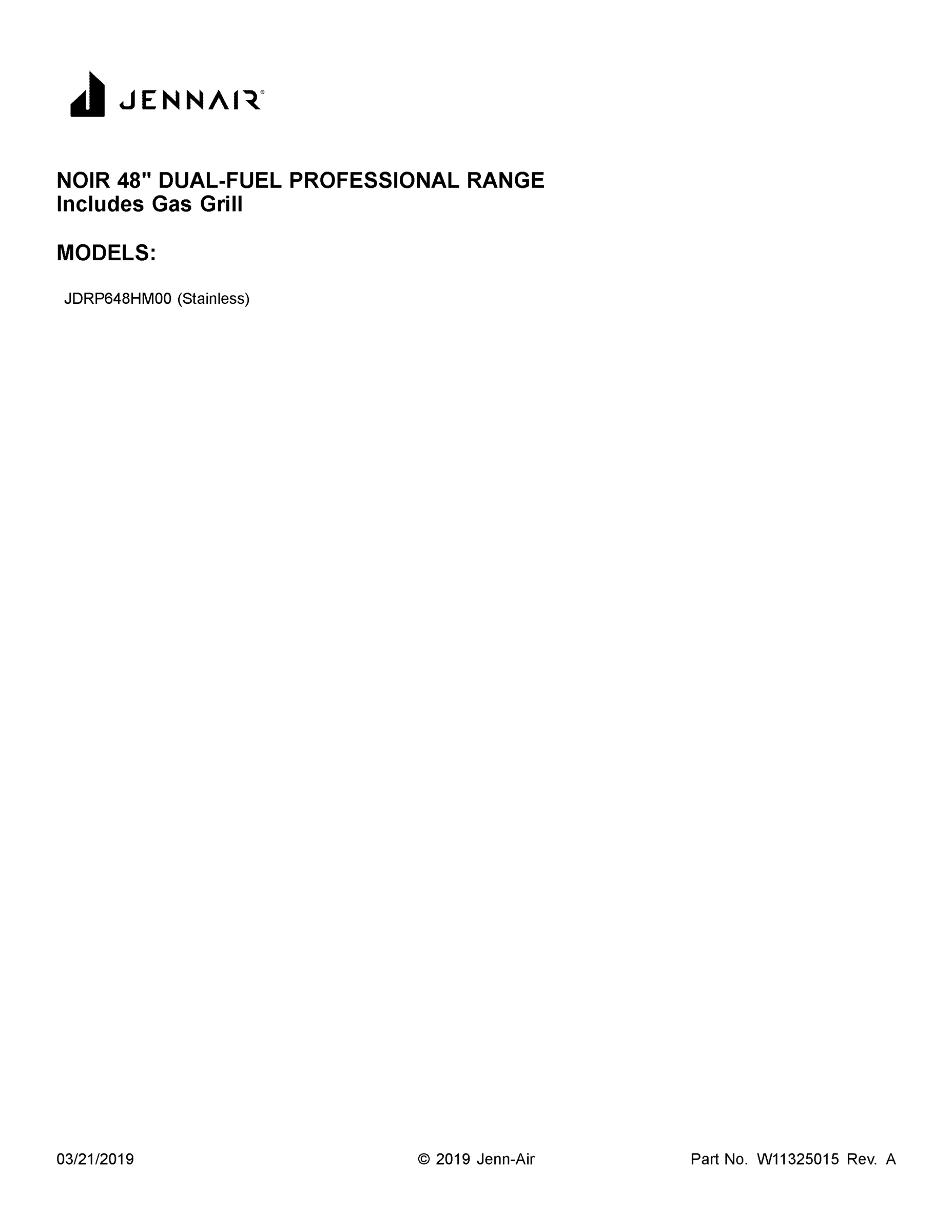

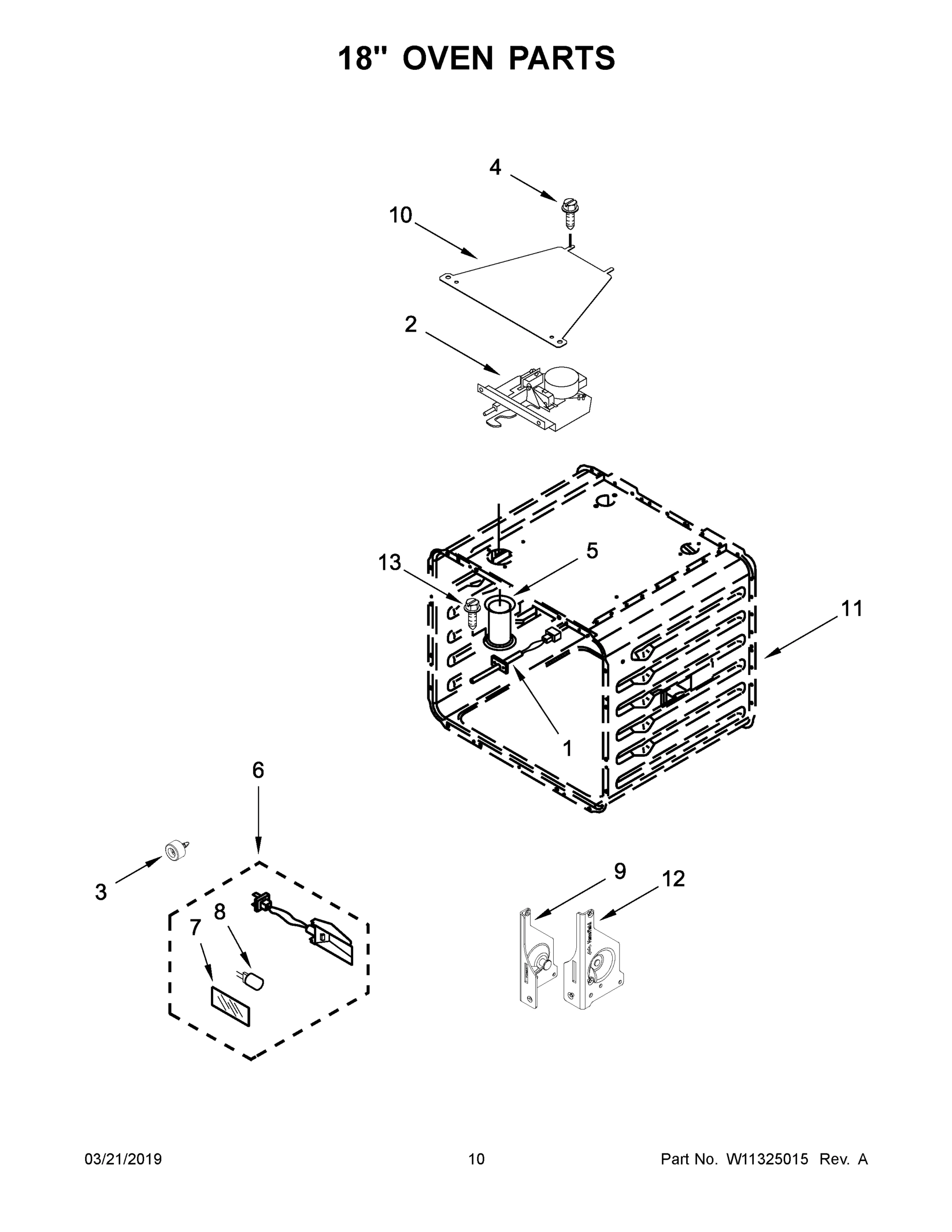

Model Whirlpool JDRP648HM00 RANGE/OVEN, DUAL FUEL, PROFESSIONAL, 48 INCH – Common Parts &amp; Diagrams

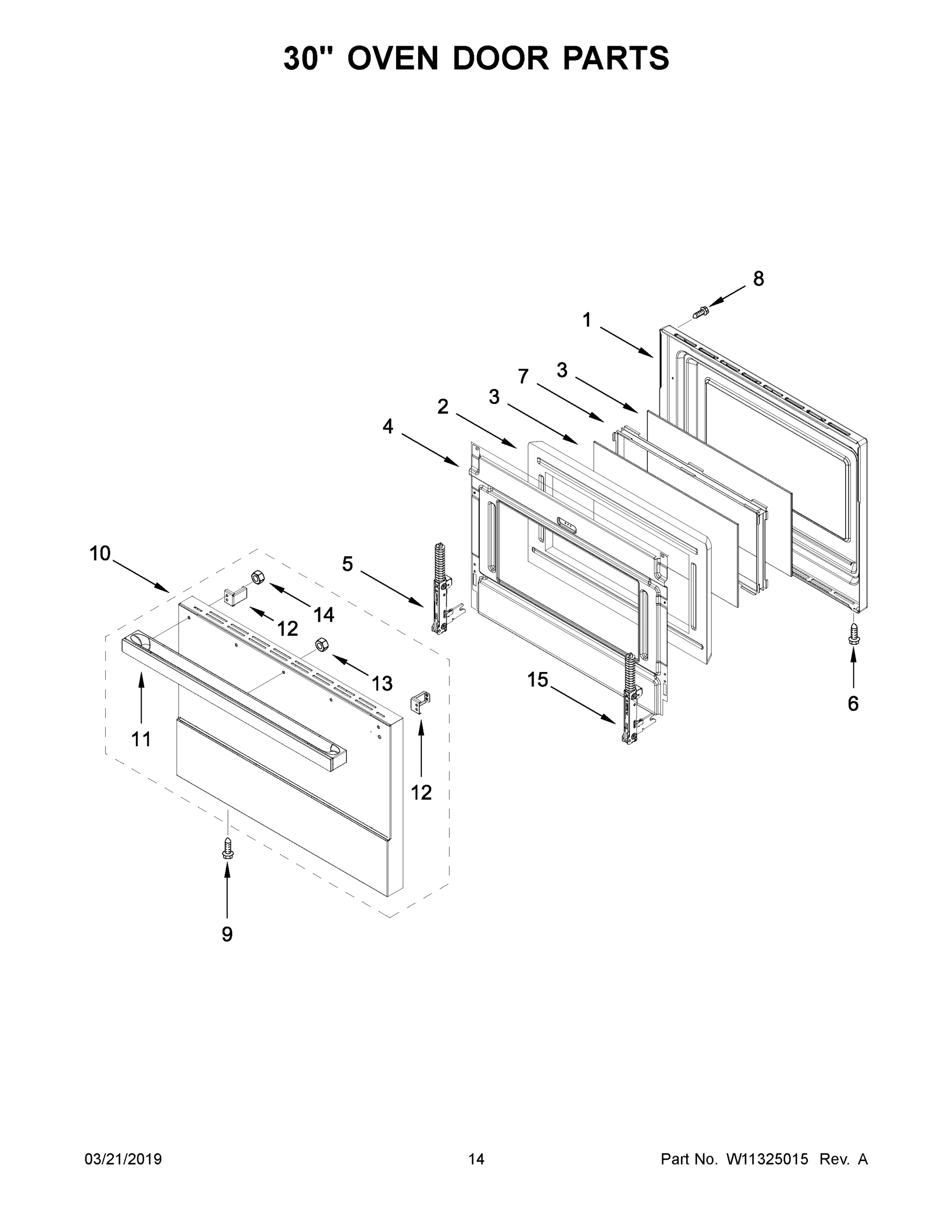

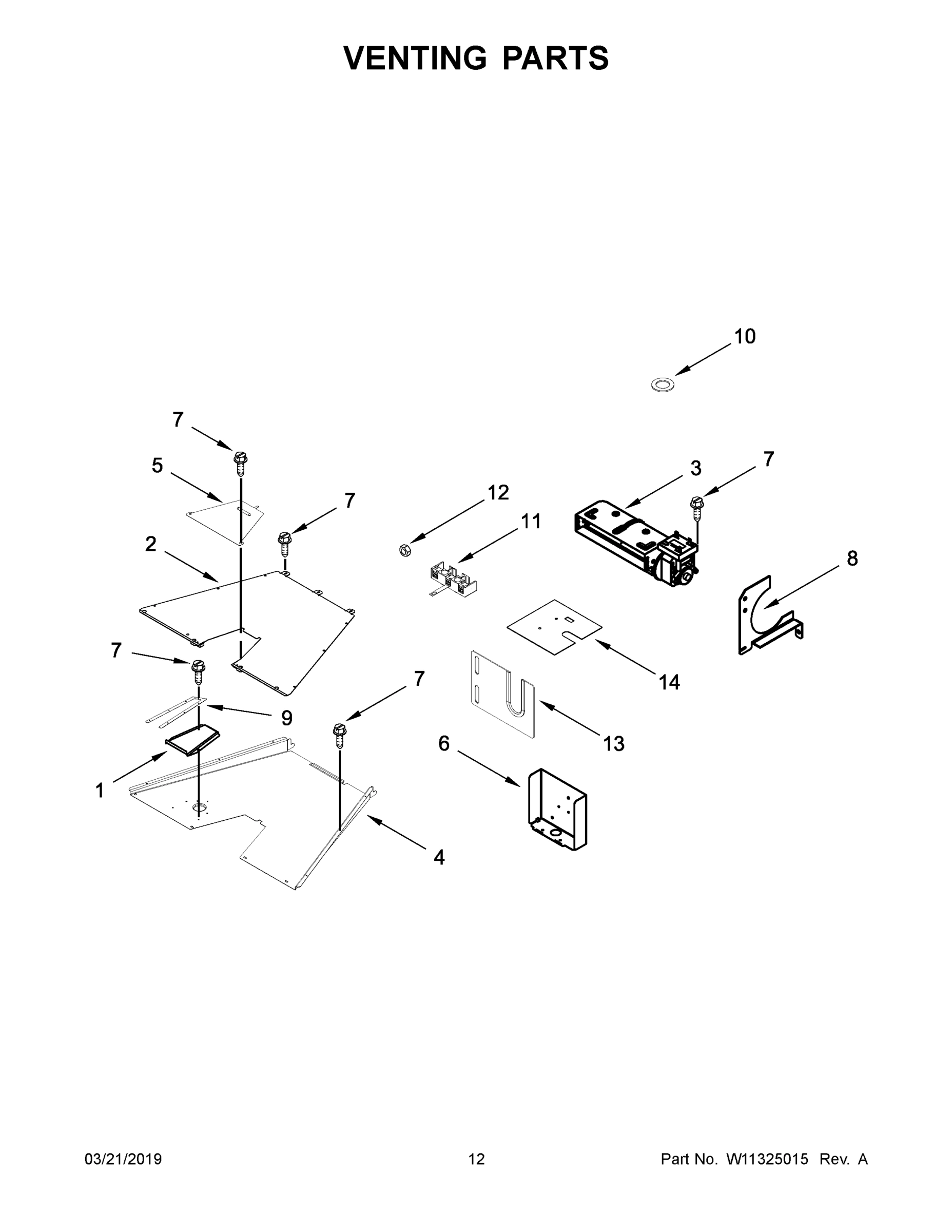

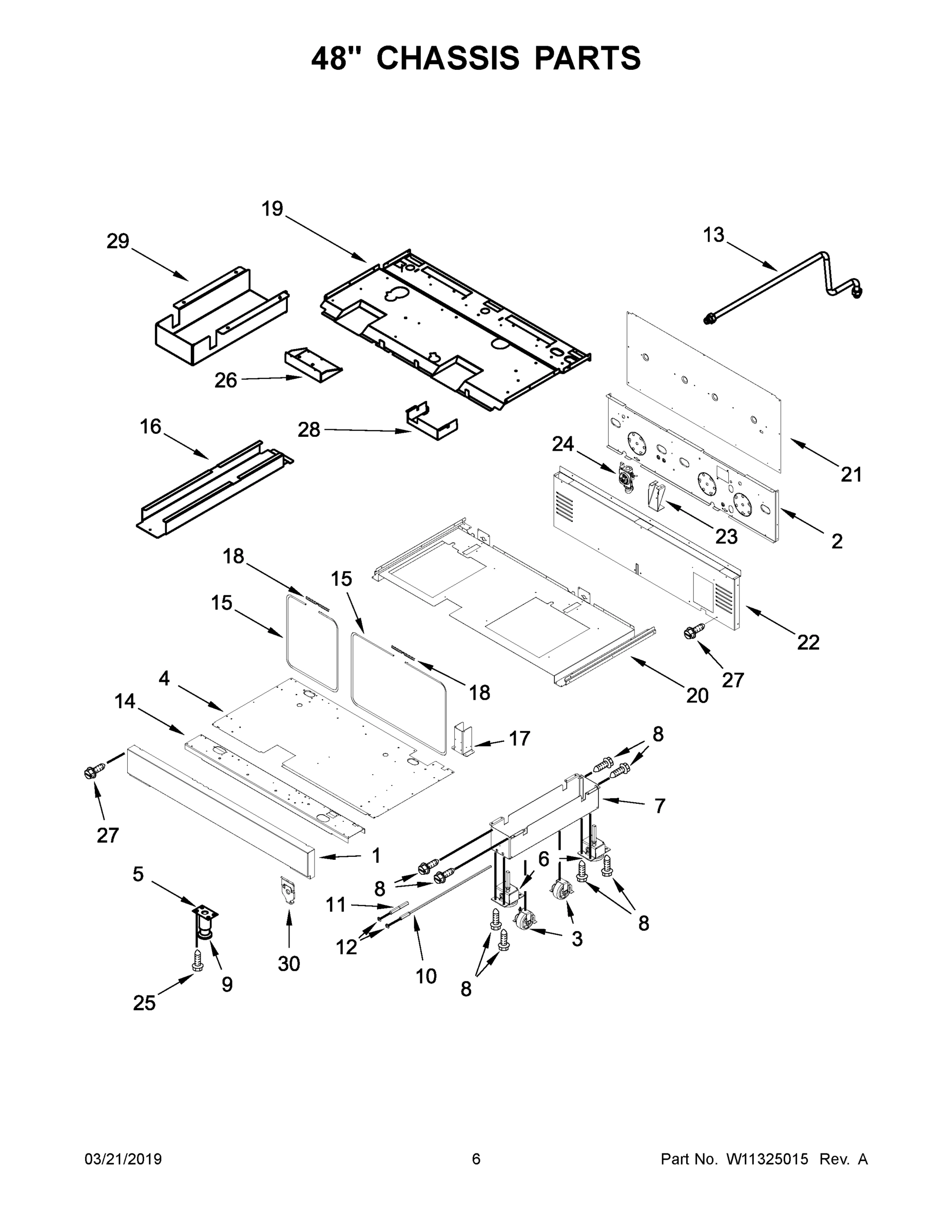

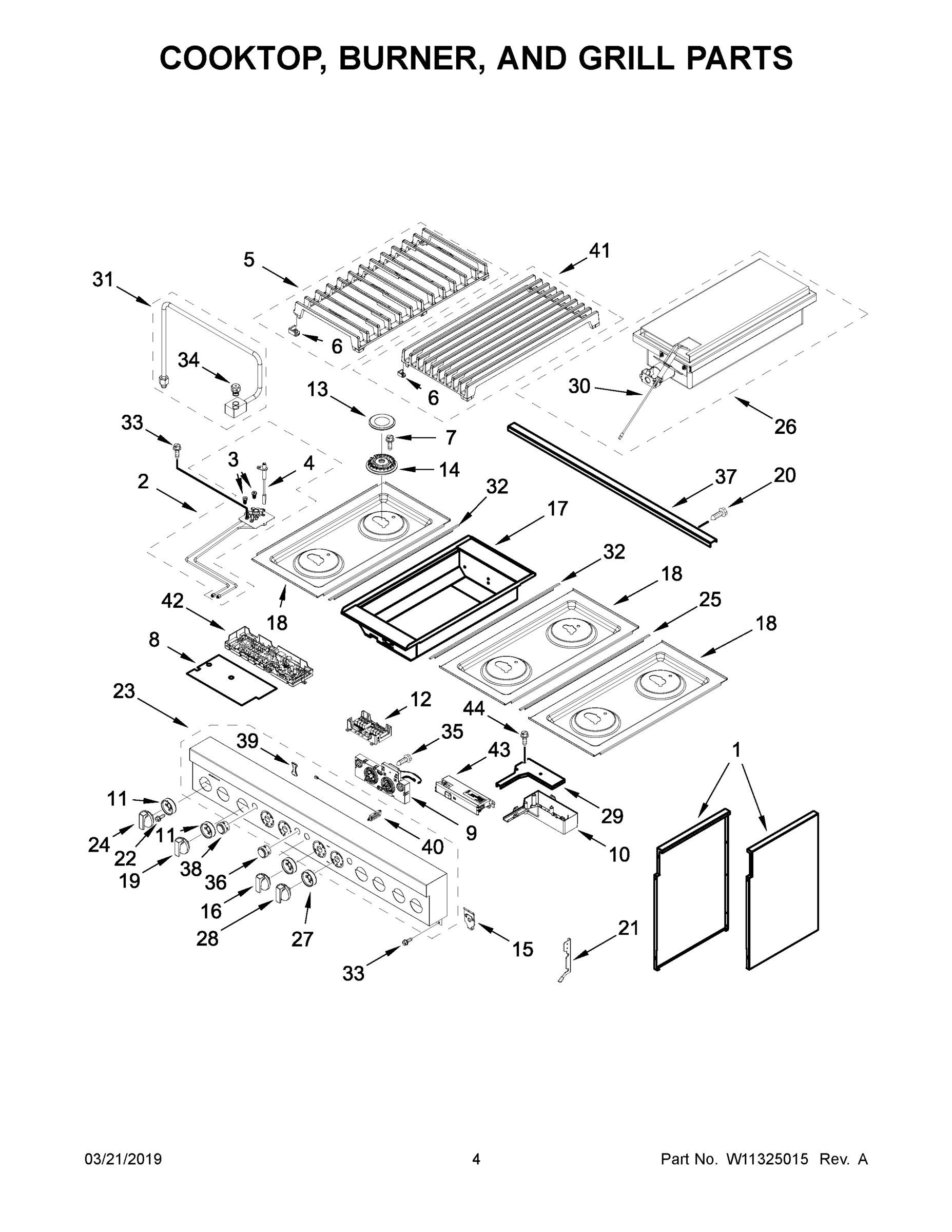

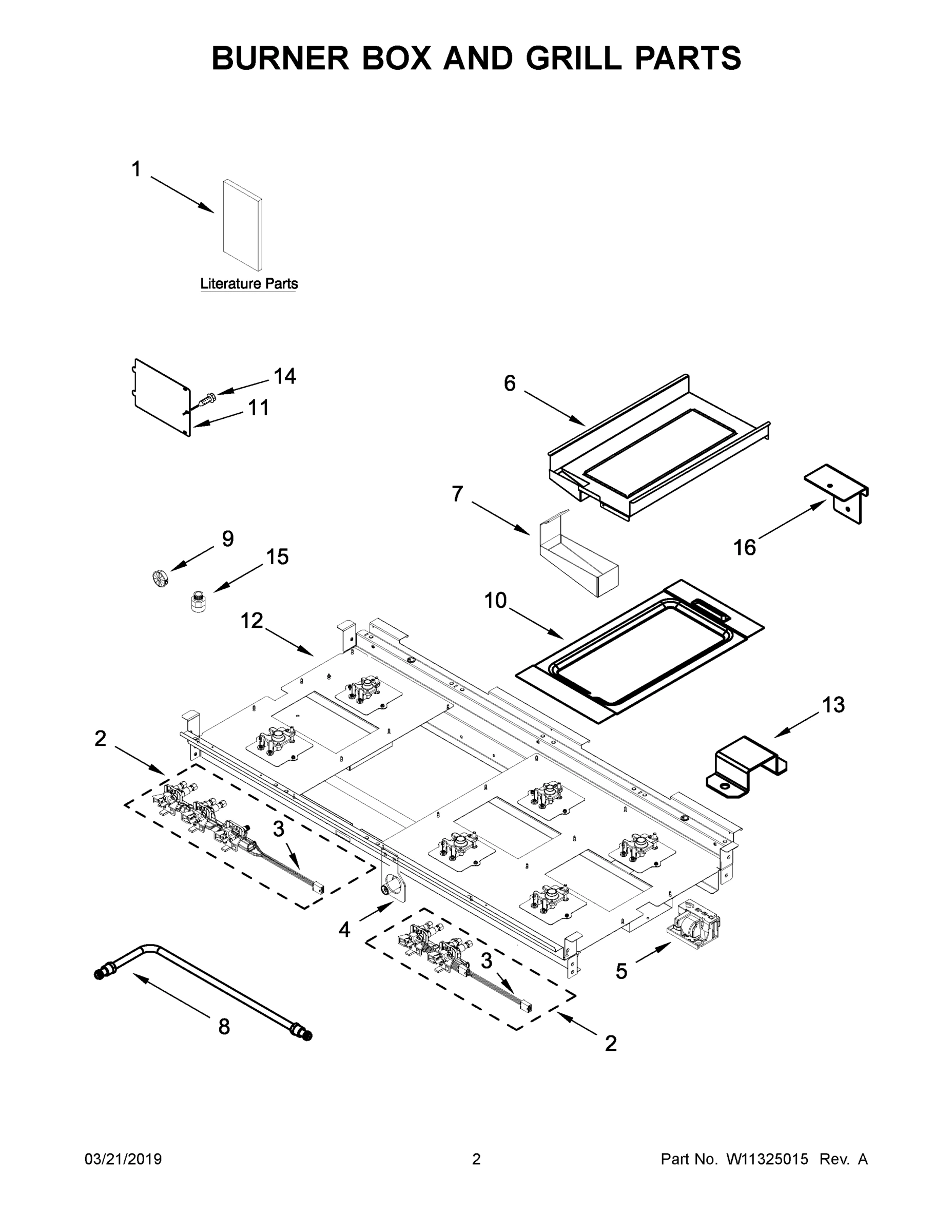

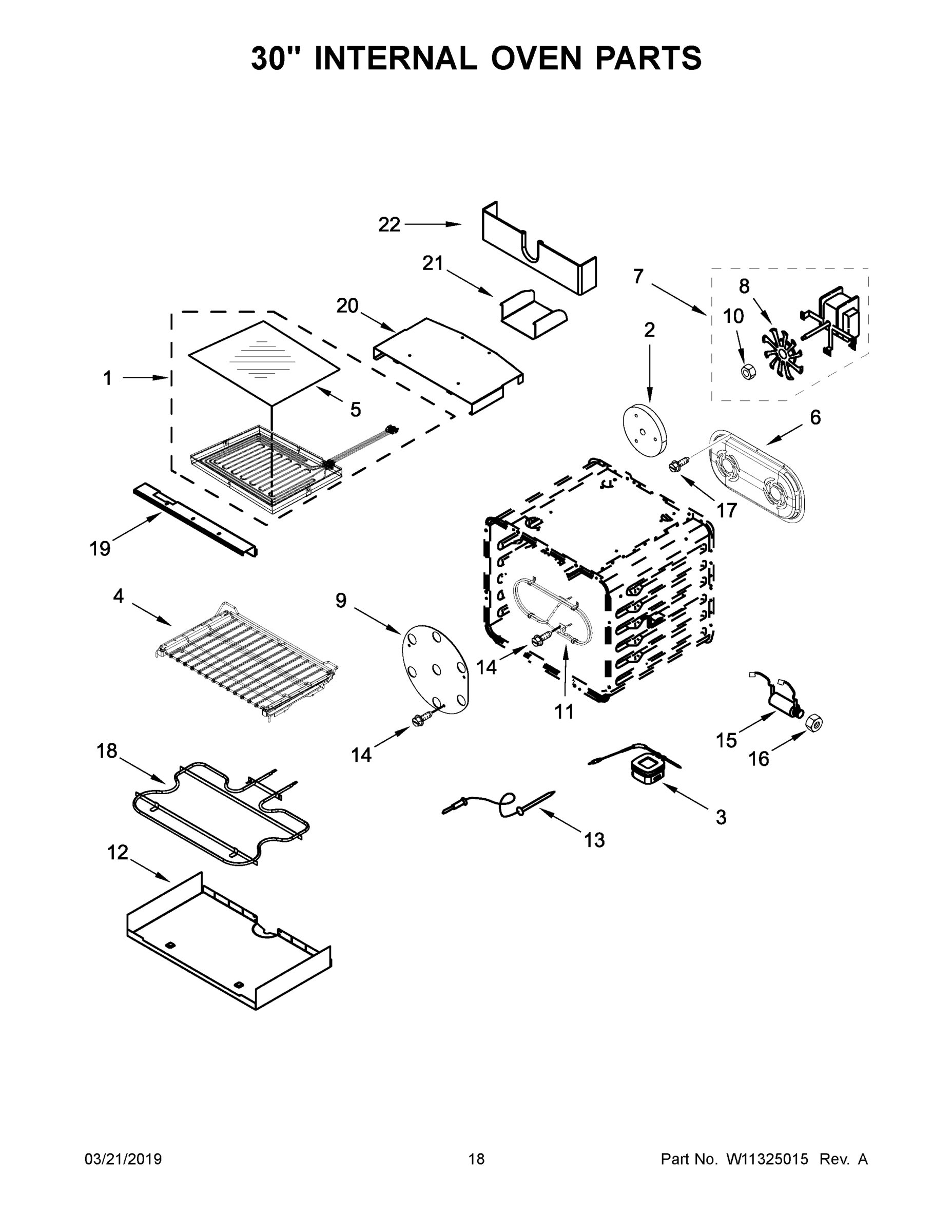

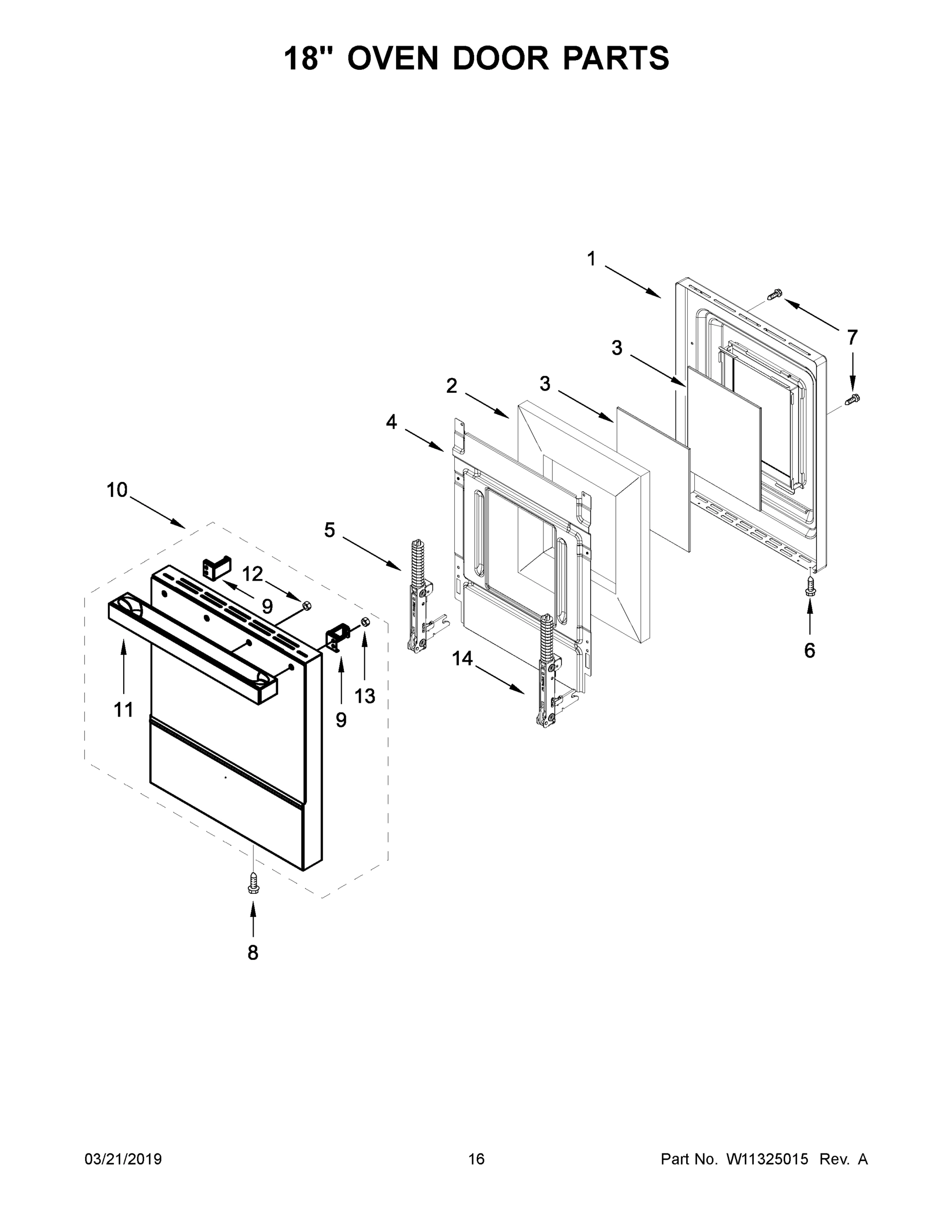

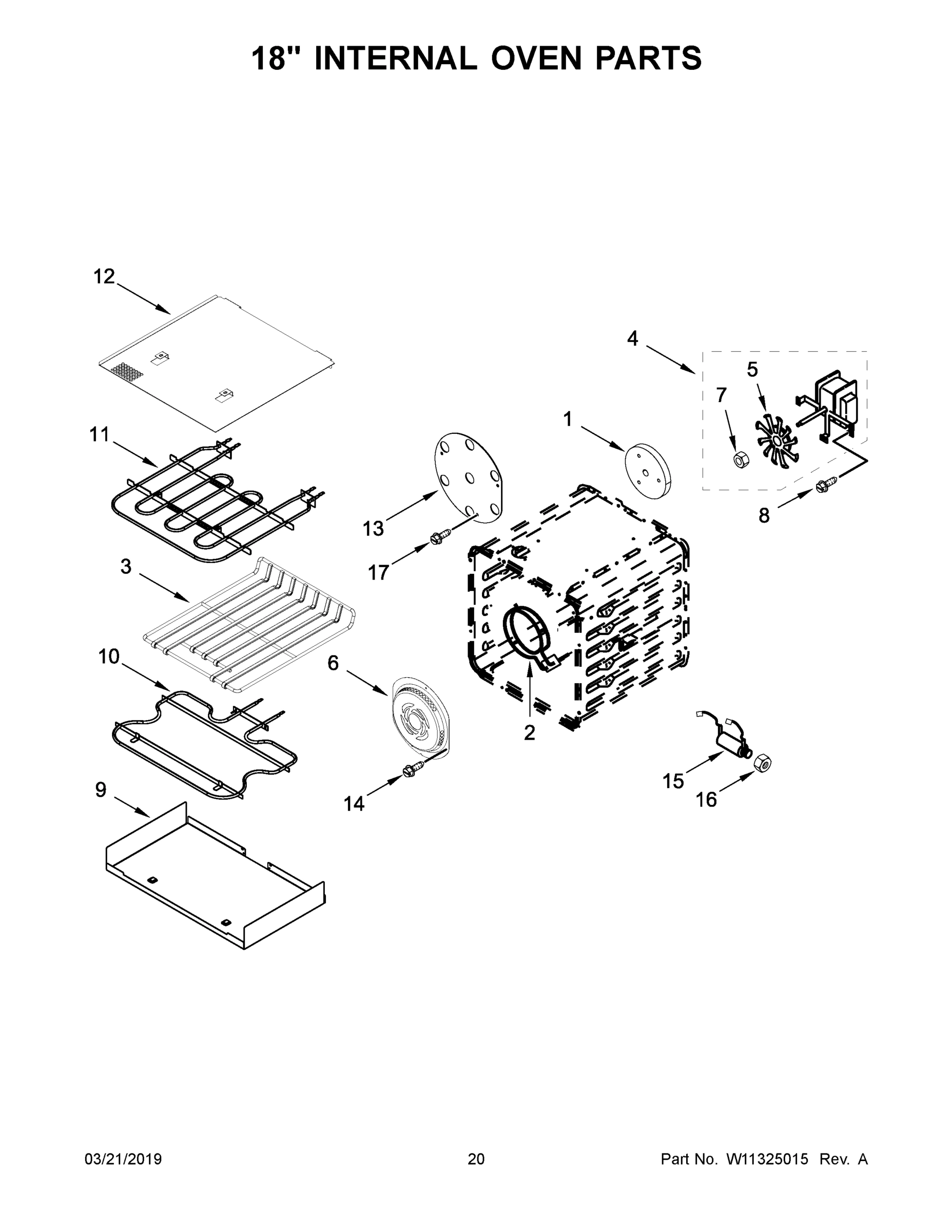

1

W11317946 Whirlpool Cover Plate Backorder WPL W11317946 $229.47

1

W11318335 Whirlpool Glass Frame Backorder WPL W11318335 $228.68

1

W11318831 Whirlpool Glass Frame Backorder WPL W11318831 $228.68

1

W11321067 Whirlpool Complete Side Assembly Backorder WPL W11321067 $236.22

1

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $87.84

1A

W11320596 Whirlpool Side Assembly Backorder WPL W11320596 $231.56

2

W10859573 Whirlpool Range Oven Temperature Se In Stock WPL W10859573 $145.18

2

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $136.72

2

W11319741 Whirlpool Orifice Holder Backorder WPL W11319741 $74.92

2

W11643125 Whirlpool Element Backorder WPL W11643125 $80.94

2

W11688507 Whirlpool Insulation Backorder WPL W11688507 $15.03

2

INSULATION, DOOR WPL W10321285 Contact Us For Availability

2

BACK, CHASSIS WPL W11105913 Contact Us For Availability

2

INSULATION, DOOR WPL W10884821 Contact Us For Availability

2A

W11319746 Whirlpool Orifice Holder Backorder WPL W11319746 $74.92

2B

ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER FRONT) WPL W10892471 Contact Us For Availability

2C

ASSEMBLY, ORIFICE HOLDER (RIGHT CENTER REAR) WPL W10892724 Contact Us For Availability

2D

ASSEMBLY, ORIFICE HOLDER (RIGHT FRONT) WPL W10892726 Contact Us For Availability

2E

ASSEMBLY, ORIFICE HOLDER (RIGHT REAR) WPL W10892474 Contact Us For Availability

3

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.67

3

W11111351 Whirlpool Range Rack Backorder WPL W11111351 $97.65

3

W11317951 Whirlpool Glass Door Backorder WPL W11317951 $110.22

3

W11318341 Whirlpool Meat Probe Backorder WPL W11318341 $133.38

3

W11318823 Whirlpool Door Glass Backorder WPL W11318823 $110.22

3

W11643164 Whirlpool Orifice Spud Backorder WPL W11643164 $61.92

3

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

3A

W10892418 Whirlpool Range Orifice Spud Backorder WPL W10892418 $65.42

3B

W10892440 Whirlpool Spud Orifice Backorder WPL W10892440 $60.76

3C

W11661909 Whirlpool Range Orifice Spud Backorder WPL W11661909 $62.32

3D

W10892429 Whirlpool Orifice Spud Backorder WPL W10892429 $60.76

4

W11320536 Whirlpool Duct Backorder WPL W11320536 $147.34

4

W11563568 Whirlpool Range Rack Backorder WPL W11563568 $282.23

4

W11573760 Whirlpool Surface Igniter In Stock WPL W11573760 $12.94

4

SCREW WPL 7101P42660 Contact Us For Availability

4

RETAINER, GLASS WPL W11194818 Contact Us For Availability

4

RETAINER, GLASS WPL W11194821 Contact Us For Availability

4A

W11238756 Whirlpool Surface Igniter Backorder WPL W11238756 $44.53

5

W11516449 Whirlpool Grate Burner In Stock WPL W11516449 $156.61

5

W11568941 Whirlpool Door Hinge Assembly In Stock WPL W11568941 $81.93

5

WP9759118 Whirlpool Mounting Plate Backorder WPL WP9759118 $106.48

5

HINGE, DOOR (LEFT) WPL W11096982 Contact Us For Availability

5

GLASS, BROIL ELEMENT WPL W11193191 Contact Us For Availability

5

TUBE, VENT WPL W10288078 Contact Us For Availability

5A

W11516481 Whirlpool Grate Burner Backorder WPL W11516481 $156.61

5B

W11516462 Whirlpool Burner Grate Backorder WPL W11516462 $156.61

6

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $75.59

6

W11113808 Whirlpool Convection Foam In Place Backorder WPL W11113808 $169.11

6

W11193480 Whirlpool Screw Backorder WPL W11193480 $8.89

6

W11232487 Whirlpool Convection Baffle Backorder WPL W11232487 $145.50

6

W11233684 Whirlpool Range Light Assembly Backorder WPL W11233684 $66.86

6

W11550692 Whirlpool Bumper In Stock WPL W11550692 $7.60

7

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.56

7

W10908710 Whirlpool Mounting Bracket Backorder WPL W10908710 $93.63

7

W11447718 Whirlpool Refrigerator Screw In Stock WPL W11447718 $11.38

7

W11685616 Whirlpool Fan Motor In Stock WPL W11685616 $167.46

7

WPW10272594 Whirlpool Window Frame Backorder WPL WPW10272594 $131.13

8

W11320149 Whirlpool Insulator Backorder WPL W11320149 $82.93

8

W11320150 Whirlpool Convection Fan Backorder WPL W11320150 $230.71

8

W11690596 Whirlpool Screw Backorder WPL W11690596 $12.45

8

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

8

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $36.61

9

W10162096 Whirlpool Screw Backorder WPL W10162096 $13.89

9

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.21

9

W11319204-includeCORE Whirlpool W11319204 Ran Backorder WPL W11319204-includeCORE $370.37

9

WP9759117 Whirlpool Leveling Foot Backorder WPL WP9759117 $99.66

9

TRAY, HIDDEN BAKE WPL W11110223 Contact Us For Availability

9

RECEIVER, HINGE (LEFT) WPL W11096294 Contact Us For Availability

W10115869 Whirlpool Shaft Backorder WPL W10115869 $71.42

W10160858 Whirlpool Lid Cover Backorder WPL W10160858 $52.78

W10794042 Whirlpool Nut Backorder WPL W10794042 $8.38

W11315556 Whirlpool Glass Door Backorder WPL W11315556 $1,147.89

W11315558 Whirlpool Door Glass Backorder WPL W11315558 $771.25

ELEMENT, HIDDEN BAKE WPL W11045324 Contact Us For Availability

COVER, WIFI OUTER WPL W11205795 Contact Us For Availability

W10115793 Whirlpool Shaft Backorder WPL W10115793 $51.02

W10116010 Whirlpool Broil Element Backorder WPL W10116010 $92.28

W10116434 Whirlpool Element Backorder WPL W10116434 $233.91

W11317889 Whirlpool Knob Bezel Backorder WPL W11317889 $68.99

W11317893 Whirlpool Door Handle Backorder WPL W11317893 $386.10

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $16.66

HANDLE, DOOR WPL W11125539 Contact Us For Availability

489504 Whirlpool Range Ring Backorder WPL 489504 $4.67

W10160855 Whirlpool Heat Shield Backorder WPL W10160855 $97.27

W11317894 Whirlpool Mounting Bracket Backorder WPL W11317894 $54.25

W11317945-includeCORE Whirlpool W11317945 Ran Backorder WPL W11317945-includeCORE $320.87

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

TRAY, HIDDEN BAKE WPL W11109421 Contact Us For Availability

RECEIVER, HINGE (RIGHT) WPL W11096293 Contact Us For Availability

W10261523 Whirlpool Plate Backorder WPL W10261523 $52.04

W11198435 Whirlpool Nut Backorder WPL W11198435 $8.89

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

W11319224 Whirlpool Burner Cap Backorder WPL W11319224 $176.24

W11320154 Whirlpool Range Gas Tubing Backorder WPL W11320154 $121.57

WP9755542 Whirlpool Oven Meat Probe In Stock WPL WP9755542 $90.51

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $81.78

999299 Whirlpool Nut Backorder WPL 999299 $8.89

W11319683 Whirlpool Burner Head In Stock WPL W11319683 $135.55

W11320602 Whirlpool Support Backorder WPL W11320602 $68.99

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $4.82

HINGE, DOOR (RIGHT) WPL W11096981 Contact Us For Availability

14A

W11319673 Whirlpool Burner Head In Stock WPL W11319673 $130.95

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $123.53

8186589 Whirlpool Jack Probe Backorder WPL 8186589 $117.46

W11318207 Whirlpool Clip Assembly Backorder WPL W11318207 $7.62

W11568813 Whirlpool Door Hinge In Stock WPL W11568813 $62.54

W11675844 Whirlpool Oven Gasket In Stock WPL W11675844 $46.05

15A

W11115326 Whirlpool Gasket Backorder WPL W11115326 $134.15

16

W11050145 Whirlpool HVAC Air Duct Backorder WPL W11050145 $112.33

16

W11231343 Whirlpool Lock Nut Backorder WPL W11231343 $8.89

16

W11317886 Whirlpool Knob Backorder WPL W11317886 $221.32

W10115819 Whirlpool Brace Backorder WPL W10115819 $33.58

W10739592 Whirlpool Screw Backorder WPL W10739592 $9.99

W10850807 Whirlpool Screw Backorder WPL W10850807 $4.82

WPL W11174429 WPL W11174429 Contact Us For Availability

18

W10216520 Whirlpool Retainer Backorder WPL W10216520 $35.62

18

W11316700 Whirlpool Cooktop Backorder WPL W11316700 $309.53

18

ELEMENT, HIDDEN BAKE WPL W10115995 Contact Us For Availability

18A

W11316701 Whirlpool Cooktop Backorder WPL W11316701 $309.53

18B

W11328008 Whirlpool Cooktop Backorder WPL W11328008 $309.53

19

W11112336 Whirlpool Broil Bracket Backorder WPL W11112336 $54.25

19

W11328010 Whirlpool Range Knob Backorder WPL W11328010 $221.32

19

TOP, CHASSIS WPL W11037132 Contact Us For Availability

20

CHASSIS, BOTTOM WPL W11040800 Contact Us For Availability

20

BRACKET, BROIL TOP WPL W11158843 Contact Us For Availability

20

WPL 7101P33860 WPL 7101P33860 Contact Us For Availability

21

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $52.76

21

W11111391 Whirlpool Wire Cover Backorder WPL W11111391 $56.33

21

PANEL, BACK TOP WPL W11103335 Contact Us For Availability

21A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $52.76

22

W11674763 Whirlpool Screw Backorder WPL W11674763 $8.89

22

PANEL, BACK BOTTOM WPL W11034123 Contact Us For Availability

22

COVER PLATE, TERMINAL HOLE WPL W11170823 Contact Us For Availability

23

W11320155 Whirlpool Mounting Bracket Backorder WPL W11320155 $54.25

23

WPL W11253771 WPL W11253771 Contact Us For Availability

24

W11106948 Whirlpool Pressure Regulator In Stock WPL W11106948 $192.24

24

W11317537 Whirlpool Knob In Stock WPL W11317537 $107.33

25

3400518 Whirlpool Oven Foot Mount Screw Backorder WPL 3400518 $8.39

25

W10271524 Whirlpool Trim Top Backorder WPL W10271524 $154.56

26

W11328568 Whirlpool Burner Grille Backorder WPL W11328568 $407.48

26

DRAWER, APPLIANCE MANAGER WPL W11106341 Contact Us For Availability

27

W11317892 Whirlpool Bezel Knob Backorder WPL W11317892 $69.07

28

W11317539 Whirlpool Knob Backorder WPL W11317539 $91.17

28

CABINET, APPLIANCE MANAGER WPL W11106335 Contact Us For Availability

29

CHANNEL, WIRE WPL W11084360 Contact Us For Availability

29

WPL W11205794 WPL W11205794 Contact Us For Availability

30

WPL W11174598 WPL W11174598 Contact Us For Availability

31

WPL W11197929 WPL W11197929 Contact Us For Availability

32

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $99.23

34

W10892423 Whirlpool Orifice Spud Backorder WPL W10892423 $65.42

35

WP3400814 Whirlpool Screw Backorder WPL WP3400814 $2.67

36

W11319196 Whirlpool Push Button Backorder WPL W11319196 $11.98

37

WPL W11156418 WPL W11156418 Contact Us For Availability

38

W11318857 Whirlpool Push Button Backorder WPL W11318857 $11.98

39

WPL W10896369 WPL W10896369 Contact Us For Availability

40

W11318855 Whirlpool Antenna Backorder WPL W11318855 $150.69

41

W11516484 Whirlpool Grate-Gril Backorder WPL W11516484 $227.06

42

W11328373-includeCORE Whirlpool W11328373 Ran Backorder WPL W11328373-includeCORE $334.97

43

W11234290 Whirlpool Electronic Control Board Backorder WPL W11234290 $115.50

44

WPL 7101P62460 WPL 7101P62460 Contact Us For Availability

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.44

W10160195 Whirlpool Cover Backorder WPL W10160195 $247.79

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $34.82

W10282812 Whirlpool Insulation Assembly Backorder WPL W10282812 $69.11

W10285449 Whirlpool Backsplash Backorder WPL W10285449 $825.29

W11316873 Whirlpool Knob Bezel Backorder WPL W11316873 $53.54

W11317495 Whirlpool Knob Bezel Backorder WPL W11317495 $53.54

W11317499 Whirlpool Knob Bezel Backorder WPL W11317499 $85.98

W11317786 Whirlpool Wire Harness Backorder WPL W11317786 $86.03

W11317789 Whirlpool Wire Harness Backorder WPL W11317789 $150.69

W11317791 Whirlpool Wire Harness Backorder WPL W11317791 $78.27

W11323012 Whirlpool Burner Cap Backorder WPL W11323012 $115.49

W11323014 Whirlpool Range Burner Cap Backorder WPL W11323014 $367.49

W11323015 Whirlpool Range Burner Cap Backorder WPL W11323015 $104.99

W11323024 Whirlpool Range Knob Bezel Backorder WPL W11323024 $53.54

W11323061 Whirlpool Knob Bezel Backorder WPL W11323061 $53.54

W11323062 Whirlpool Range Bezel Knob Backorder WPL W11323062 $201.60

W11323067 Whirlpool Knob Bezel Backorder WPL W11323067 $53.54

W11323068 Whirlpool Knob Bezel Backorder WPL W11323068 $201.60

W11428599 Whirlpool Conversion Kit In Stock WPL W11428599 $31.02

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $34.64

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $4.82

WP9759877 Whirlpool Retainer Backorder WPL WP9759877 $12.58

ACCESSORY PARTS, CLEANER, COOKTOP WPL 31464 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

SCREW, ANTI-TIP KIT WPL 7101P48560 Contact Us For Availability

CORD, POWER WPL W11212216 Contact Us For Availability

WPL W11297779 WPL W11297779 Contact Us For Availability

ACCESSORY PARTS, STAINLESS STEEL CLEANER & PO WPL 4396920 Contact Us For Availability

ACCESSORY PARTS, BACKSPLASH (ADJUSTABLE) WPL 8284755 Contact Us For Availability

ACCESSORY PARTS, KIT, HIGH ALTITUDE KIT, BURN WPL W11238043 Contact Us For Availability

INSULATION, WRAP, 18" WPL W10282820 Contact Us For Availability
