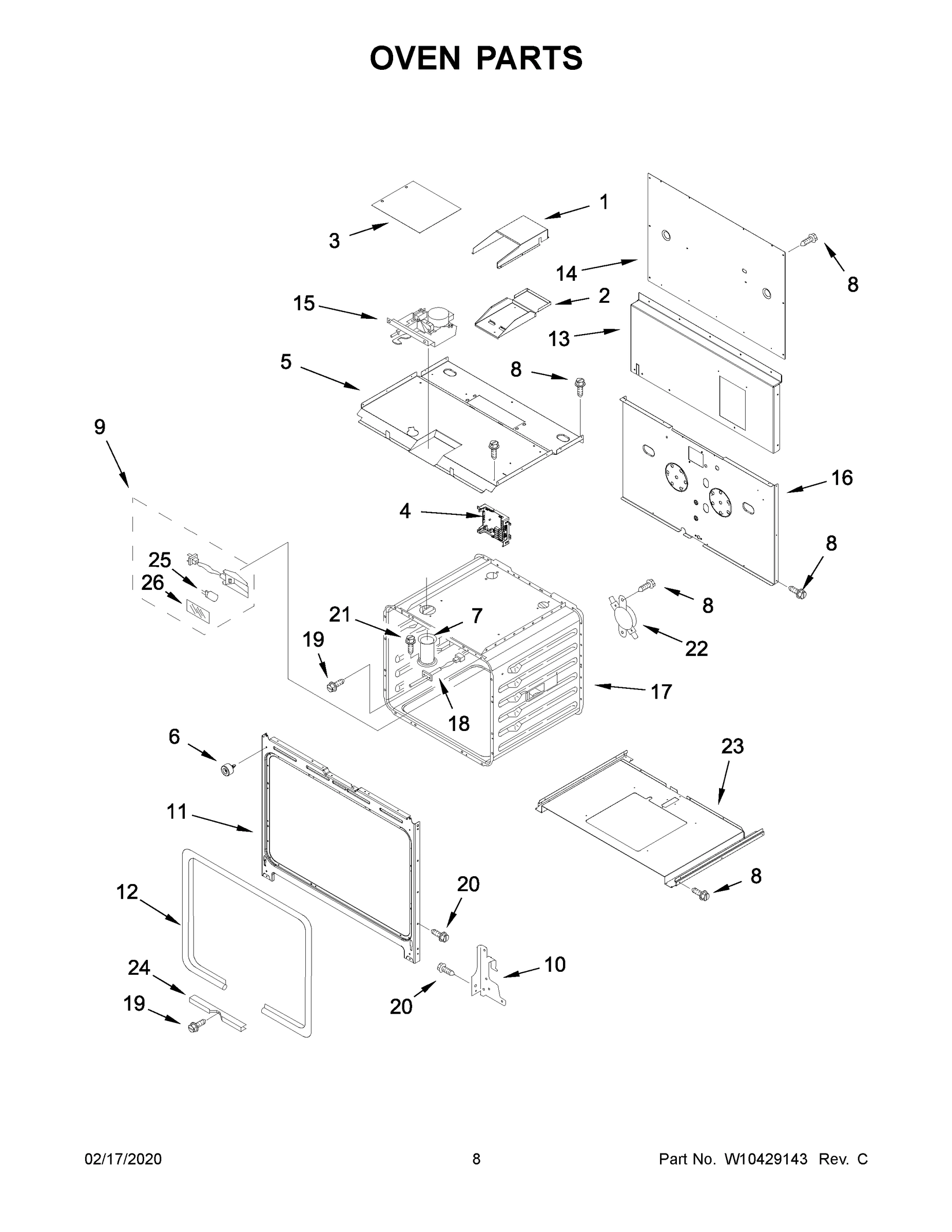

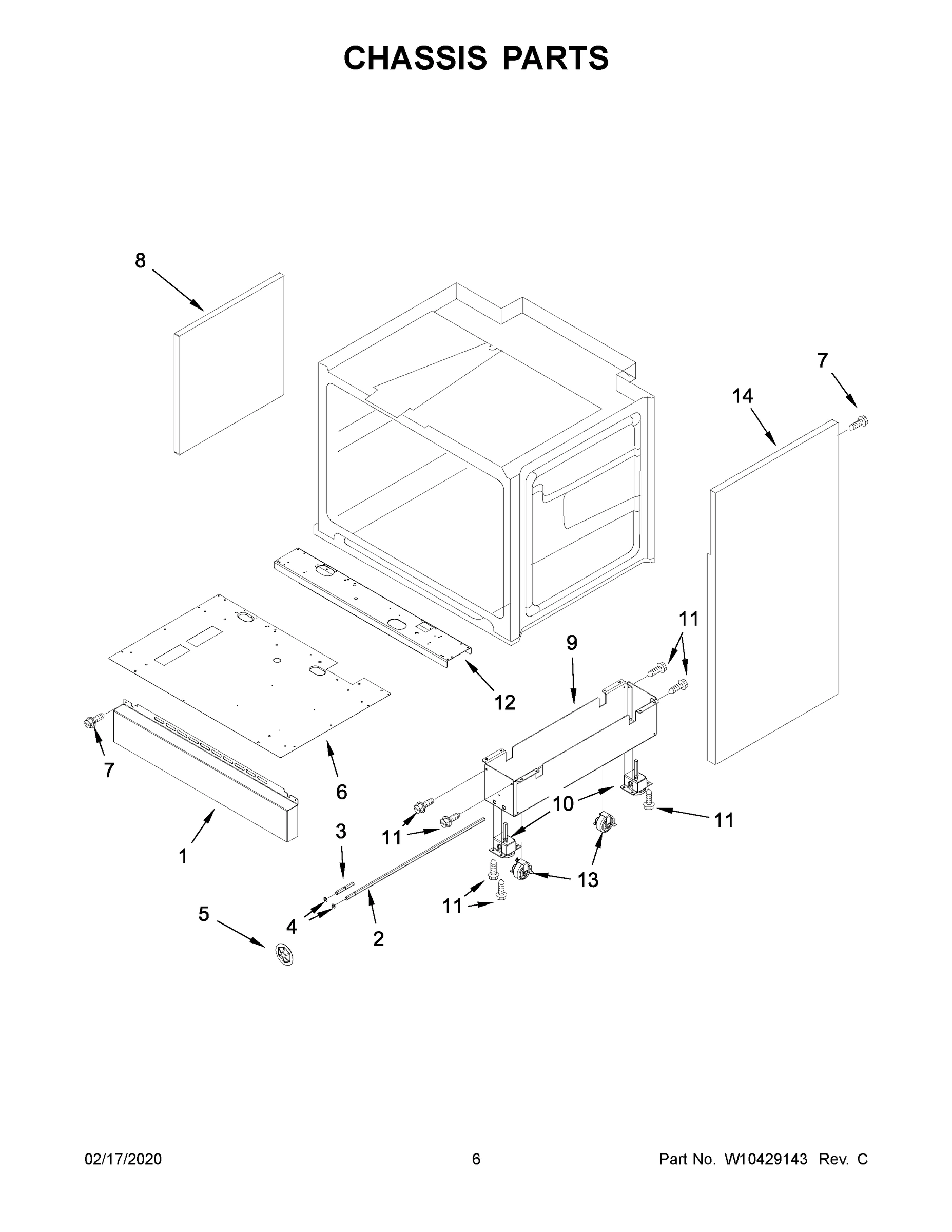

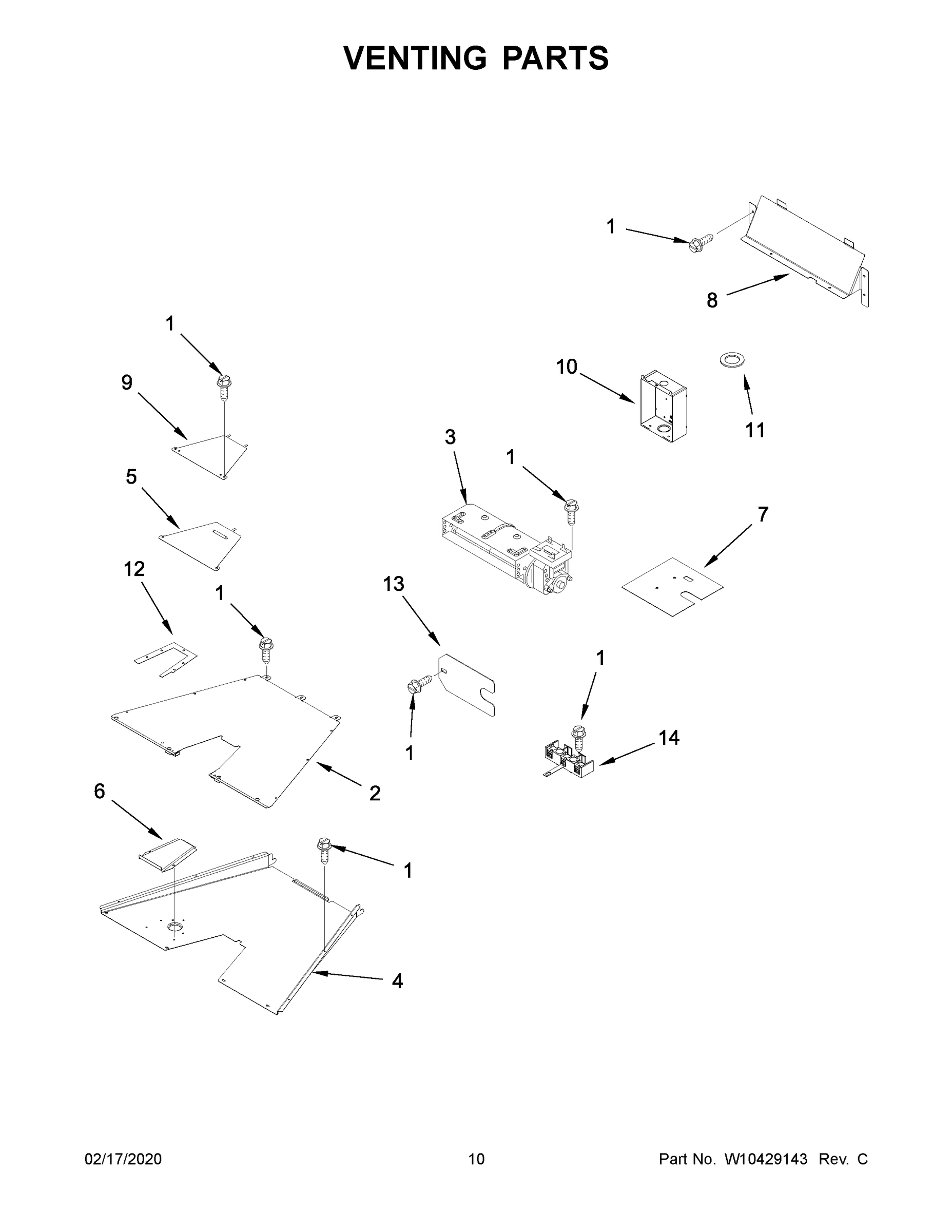

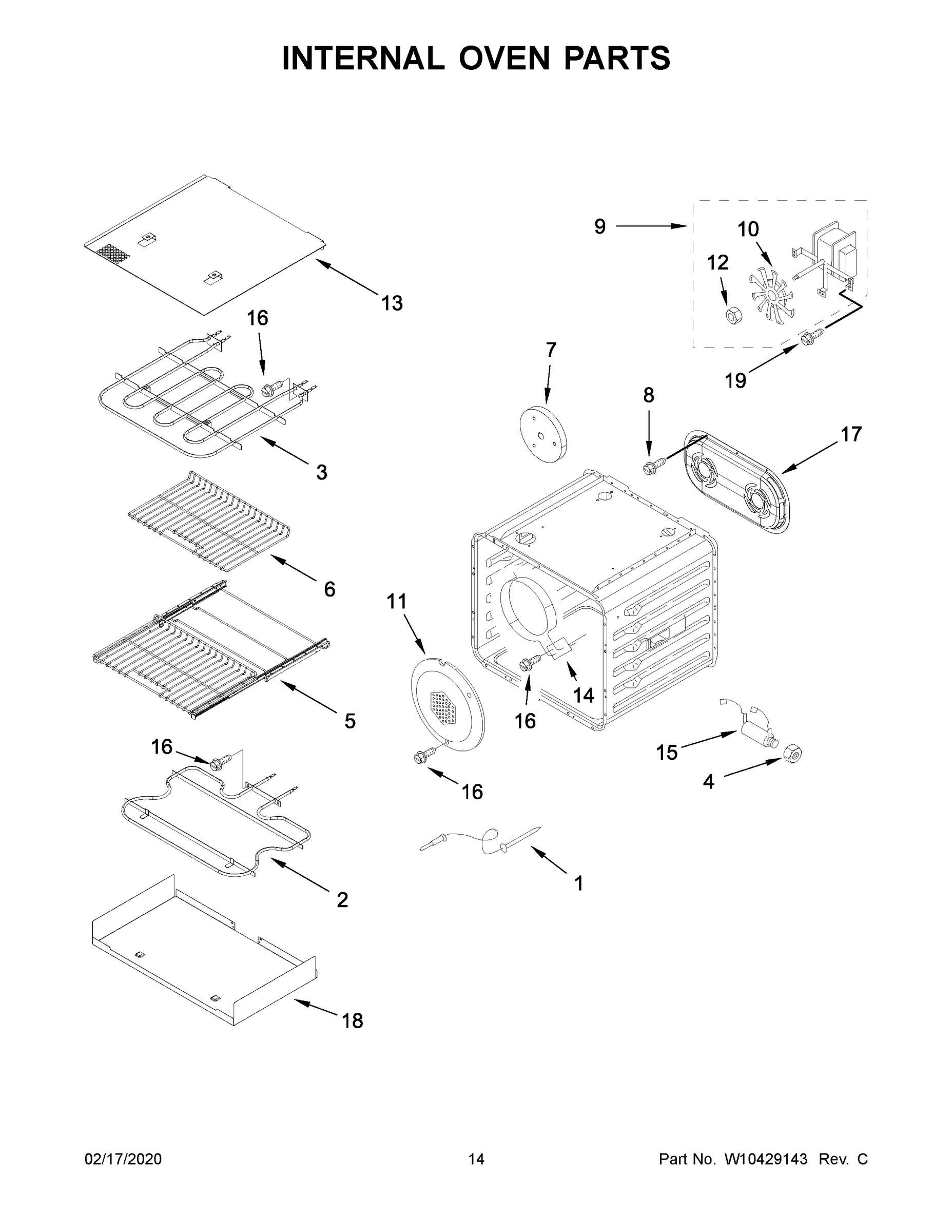

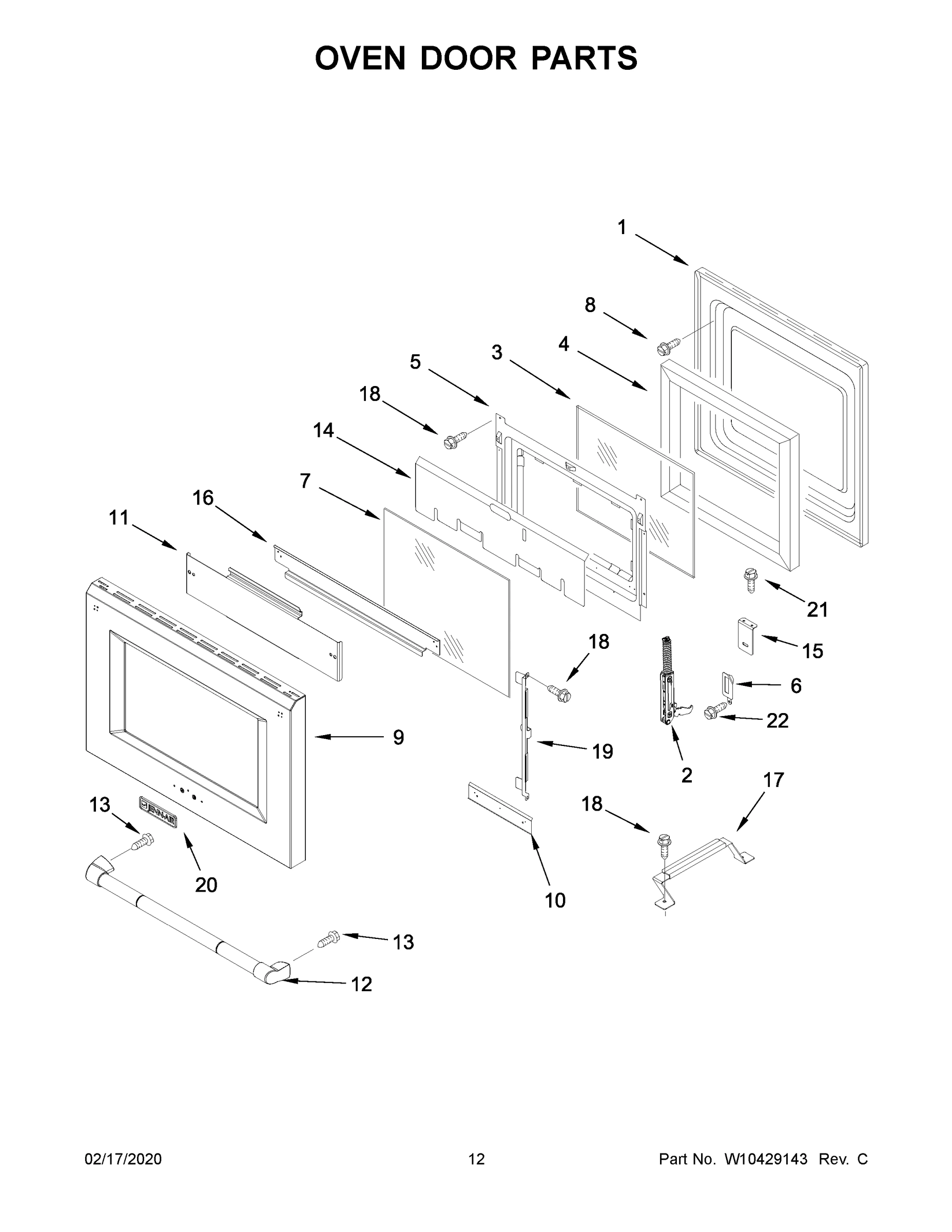

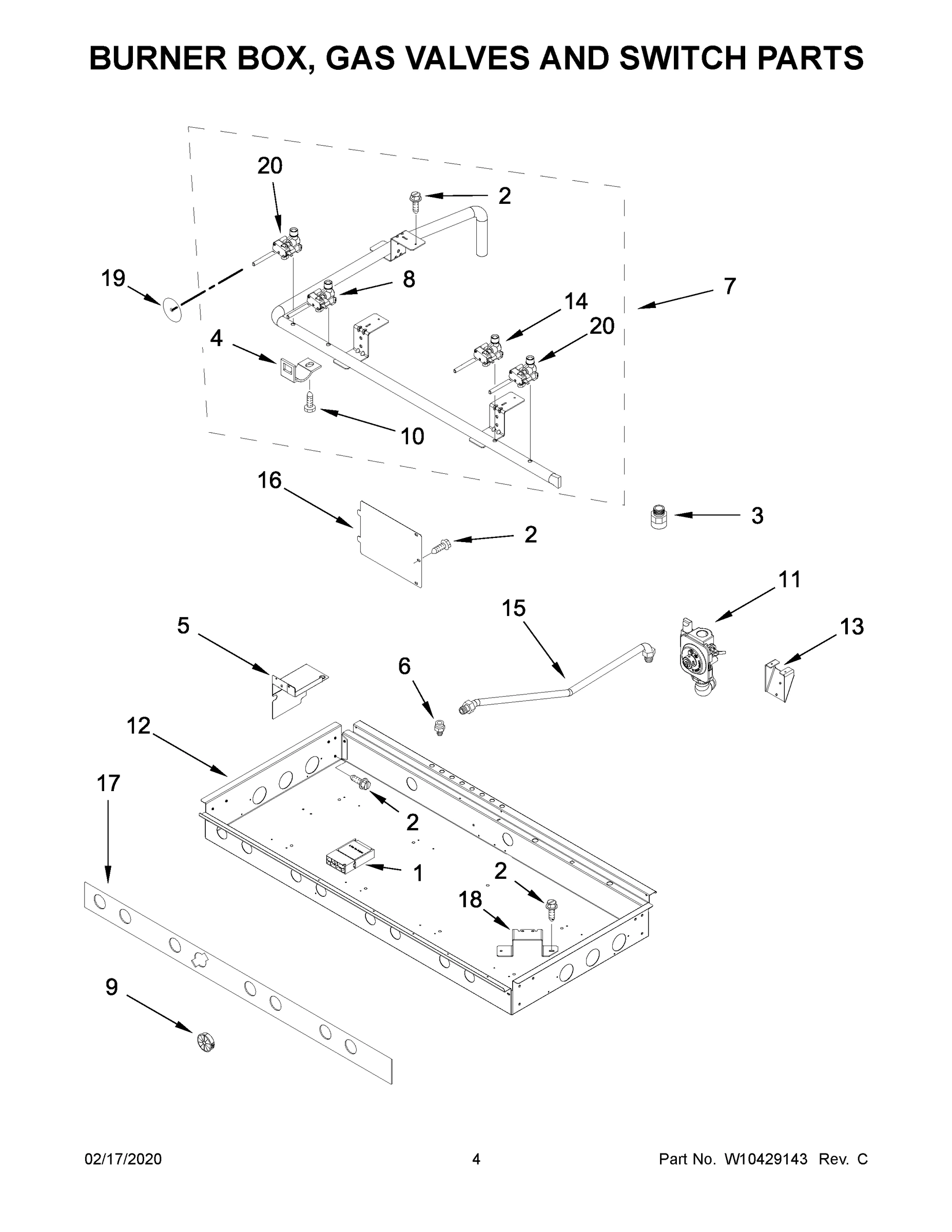

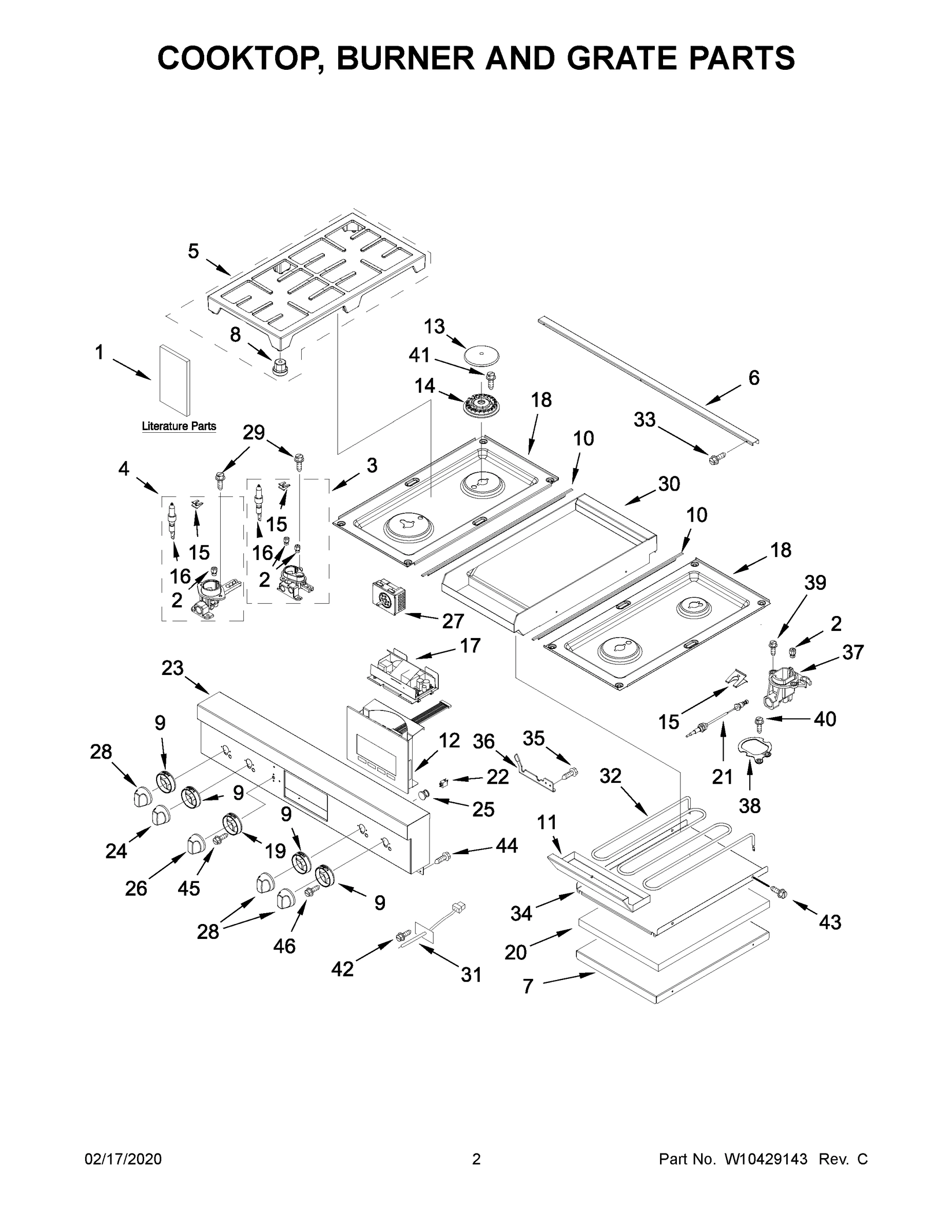

Model Whirlpool JDRP536WP02 RANGE/OVEN, DUAL FUEL, FREESTANDING, 36 INCH – Common Parts &amp; Diagrams

1

WPW10475147 Whirlpool Spark Module In Stock WPL WPW10475147 $275.47

1

KICKPLATE WPL W10145766 Contact Us For Availability

1

ASSEMBLY, DRAWER WPL W10235557 Contact Us For Availability

2

W10115869 Whirlpool Shaft Backorder WPL W10115869 $71.42

2

W10657945 Whirlpool Orifice Spud Backorder WPL W10657945 $63.78

2

W10774099 Whirlpool Range Hinge Left 36" Backorder WPL W10774099 $74.20

2

W10853036 Whirlpool Mounting Bracket Backorder WPL W10853036 $60.39

2A

W10774098 Whirlpool Door Hinge Backorder WPL W10774098 $74.20

2B

W11051480 Whirlpool Orifice Assembly Backorder WPL W11051480 $63.78

3

4453115 Whirlpool Range Adapter Backorder WPL 4453115 $84.97

3

W10115793 Whirlpool Shaft Backorder WPL W10115793 $51.02

3

W10239444 Whirlpool Foam Seal Backorder WPL W10239444 $75.95

3

WPW10226005 Whirlpool Door Glass Backorder WPL WPW10226005 $214.15

3

WPW10245511 Whirlpool Blower In Stock WPL WPW10245511 $268.02

3

WPW10364555 Whirlpool Orifice Holder Backorder WPL WPW10364555 $79.78

4

489504 Whirlpool Range Ring Backorder WPL 489504 $4.67

4

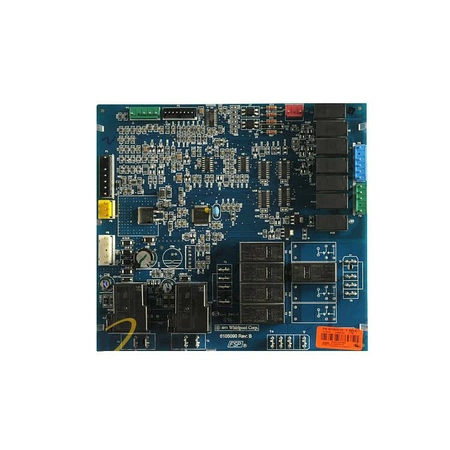

W10876298-includeCORE Whirlpool W10876298 Ran Backorder WPL W10876298-includeCORE $333.49

4

WPW10364556 Whirlpool Orifice Holder Backorder WPL WPW10364556 $72.01

5

W11344501 Whirlpool Burner Grate Backorder WPL W11344501 $145.94

5

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $4.82

5

TOP, CHASSIS WPL W10267896 Contact Us For Availability

6

4453116 Whirlpool Range Adapter Backorder WPL 4453116 $123.53

6

W10105790 Whirlpool Bumper Backorder WPL W10105790 $4.67

6

W10115876 Whirlpool Cover Backorder WPL W10115876 $63.23

6

W10269217 Whirlpool Trim Top Assembly Backorder WPL W10269217 $208.96

6

W10822069 Whirlpool Range Rack Backorder WPL W10822069 $80.76

7

9759721 Whirlpool Range Insulator Backorder WPL 9759721 $81.78

7

W11688507 Whirlpool Insulation Backorder WPL W11688507 $15.03

7

GLASS, INNER WPL W10188327 Contact Us For Availability

7

TUBE, VENT WPL W10288061 Contact Us For Availability

8

WPW10292297 Whirlpool Screw Backorder WPL WPW10292297 $5.02

8

WPW10371235 Whirlpool Burner Valve Backorder WPL WPW10371235 $220.90

8

SCREW WPL 7101P42660 Contact Us For Availability

9

W10249333 Whirlpool Range Mounting Bracket Backorder WPL W10249333 $186.81

9

W10860984 Whirlpool Fan Motor In Stock WPL W10860984 $103.37

9

WPW10307114 Whirlpool Light Backorder WPL WPW10307114 $81.59

W10291193 Whirlpool Trim Top Backorder WPL W10291193 $99.23

W10467022 Whirlpool Box Terminal Backorder WPL W10467022 $91.88

W10859931 Whirlpool Foot Level Backorder WPL W10859931 $75.59

WP4455605 Whirlpool Left Hand Hinge In Stock WPL WP4455605 $76.03

10A

WP4455606 Whirlpool Right Hand Hinge Backorder WPL WP4455606 $71.56

11

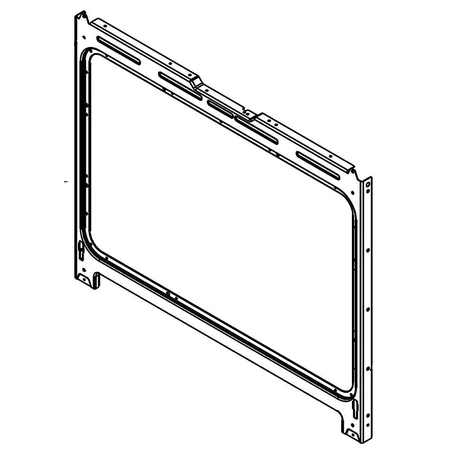

W10160867 Whirlpool Front Frame Backorder WPL W10160867 $127.50

11

W10261523 Whirlpool Plate Backorder WPL W10261523 $52.04

11

W10276497 Whirlpool Drip Tray Backorder WPL W10276497 $241.35

W10145770 Whirlpool Door Handle Backorder WPL W10145770 $227.97

W10270397 Whirlpool Vent Seal Backorder WPL W10270397 $12.21

W11676901 Whirlpool Range Gasket Backorder WPL W11676901 $45.89

ASSEMBLY, KEYPAD WPL W10464535 Contact Us For Availability

13

W10145391 Whirlpool Rear Cover Backorder WPL W10145391 $63.77

13

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

13

WPW10256034 Whirlpool Burner Cap Backorder WPL WPW10256034 $93.42

13A

WPW10256032 Whirlpool Burner Cap Backorder WPL WPW10256032 $62.99

13B

WPW10364463 Whirlpool Burner Cap Backorder WPL WPW10364463 $39.29

W10116434 Whirlpool Element Backorder WPL W10116434 $233.91

W10269208 Whirlpool Rear Cover Backorder WPL W10269208 $124.40

WP9761958 Whirlpool Range Terminal Block In Stock WPL WP9761958 $16.66

WPW10385583 Whirlpool Burner Valve Backorder WPL WPW10385583 $220.25

14A

WPW10256027 Whirlpool Burner Head Backorder WPL WPW10256027 $65.16

14B

WPW10282515 Whirlpool Burner Head Backorder WPL WPW10282515 $105.40

15

W10115715 Whirlpool Bracket Mounting Backorder WPL W10115715 $22.03

15

W10256046 Whirlpool Clip Backorder WPL W10256046 $7.63

15

W11029221 Whirlpool Door Latch In Stock WPL W11029221 $136.72

15A

8286863 Whirlpool Oven Clip Backorder WPL 8286863 $56.00

16

W10833887 Whirlpool Surface Igniter In Stock WPL W10833887 $18.61

16

BACK, CHASSIS WPL W10324087 Contact Us For Availability

17

WPW10145531-includeCORE Whirlpool WPW10145531 Backorder WPL WPW10145531-includeCORE $265.73

18

W10352969 Whirlpool Cooktop Assembly Backorder WPL W10352969 $226.52

18

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $70.71

18

BRACKET, BURNER WPL W10560553 Contact Us For Availability

18A

W10352968 Whirlpool Cooktop Backorder WPL W10352968 $226.18

19

W10189177 Whirlpool Seal Switch Backorder WPL W10189177 $6.07

19

WP4449154 Whirlpool Screw Backorder WPL WP4449154 $4.82

19

WP9759229 Whirlpool Mounting Bracket Backorder WPL WP9759229 $129.98

20

WPW10159578 Whirlpool Refrigerator Nameplate Backorder WPL WPW10159578 $60.61

20

WPW10385582 Whirlpool Burner Valve Backorder WPL WPW10385582 $226.71

20

SCREW WPL 4449040 Contact Us For Availability

21

W10146042 Whirlpool Surface Igniter Backorder WPL W10146042 $12.72

21

W11233072 Whirlpool Screw In Stock WPL W11233072 $11.38

22

W10116151 Whirlpool Indicator Light Backorder WPL W10116151 $52.62

22

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

22

WP4449751 Whirlpool Range Oven Thermostat Fix In Stock WPL WP4449751 $87.84

23

W10235536 Whirlpool Main Bottom Backorder WPL W10235536 $120.58

23

W11444937 Whirlpool Control Panel Backorder WPL W11444937 $409.61

24

W11368870 Whirlpool Retainer Assembly Backorder WPL W11368870 $14.02

25

W10294500 Whirlpool Light Lens Backorder WPL W10294500 $4.67

25

WPW10169757 Whirlpool Light Bulb In Stock WPL WPW10169757 $36.61

26

W10169756 Whirlpool Light Lens Backorder WPL W10169756 $27.56

27

WPW10116113 Whirlpool Infinite Switch Backorder WPL WPW10116113 $255.83

29

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $4.82

30

W10625221 Whirlpool Module Backorder WPL W10625221 $722.92

31

W10319835 Whirlpool Sensor Backorder WPL W10319835 $159.31

32

W10138296 Whirlpool Element Grille Backorder WPL W10138296 $230.64

34

W10145620 Whirlpool Bottom Model Backorder WPL W10145620 $69.70

36

W10130760 Whirlpool Bracket Mounting Backorder WPL W10130760 $52.76

36A

W10130759 Whirlpool Mounting Bracket Backorder WPL W10130759 $52.76

37

W10282659 Whirlpool Orifice Holder Backorder WPL W10282659 $29.48

38

8286930 Whirlpool Oven Gasket Backorder WPL 8286930 $66.95

39

W11676349 Whirlpool Screw Backorder WPL W11676349 $8.89

44

WPL 3400099 WPL 3400099 Contact Us For Availability

W10116182 Whirlpool Wire Harness Backorder WPL W10116182 $98.86

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $72.44

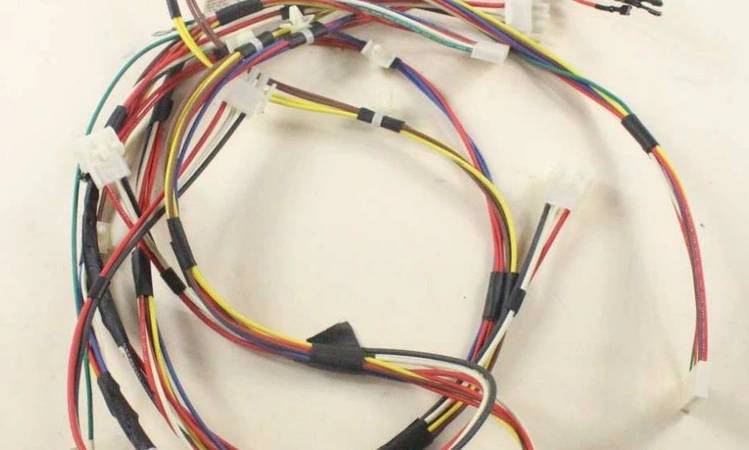

W10145988 Whirlpool Wire Harness Backorder WPL W10145988 $118.55

W10216179 Whirlpool Wok Ring In Stock WPL W10216179 $34.82

W10344051 Whirlpool Wire Harness Backorder WPL W10344051 $93.75

W10830809 Whirlpool Harness Wire Backorder WPL W10830809 $253.96

W11321066 Whirlpool Power Cord Backorder WPL W11321066 $74.04

W11544575 Whirlpool Anti-Tip Bracket Backorder WPL W11544575 $34.64

W11688743 Whirlpool Insulation Backorder WPL W11688743 $153.60

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $48.31

FOLLOWING PARTS NOT ILLUSTRATED WPL NP Contact Us For Availability

INSULATION, BACK WPL W10282815 Contact Us For Availability
