Model Whirlpool JDF15 FREEZER – Common Parts &amp; Diagrams

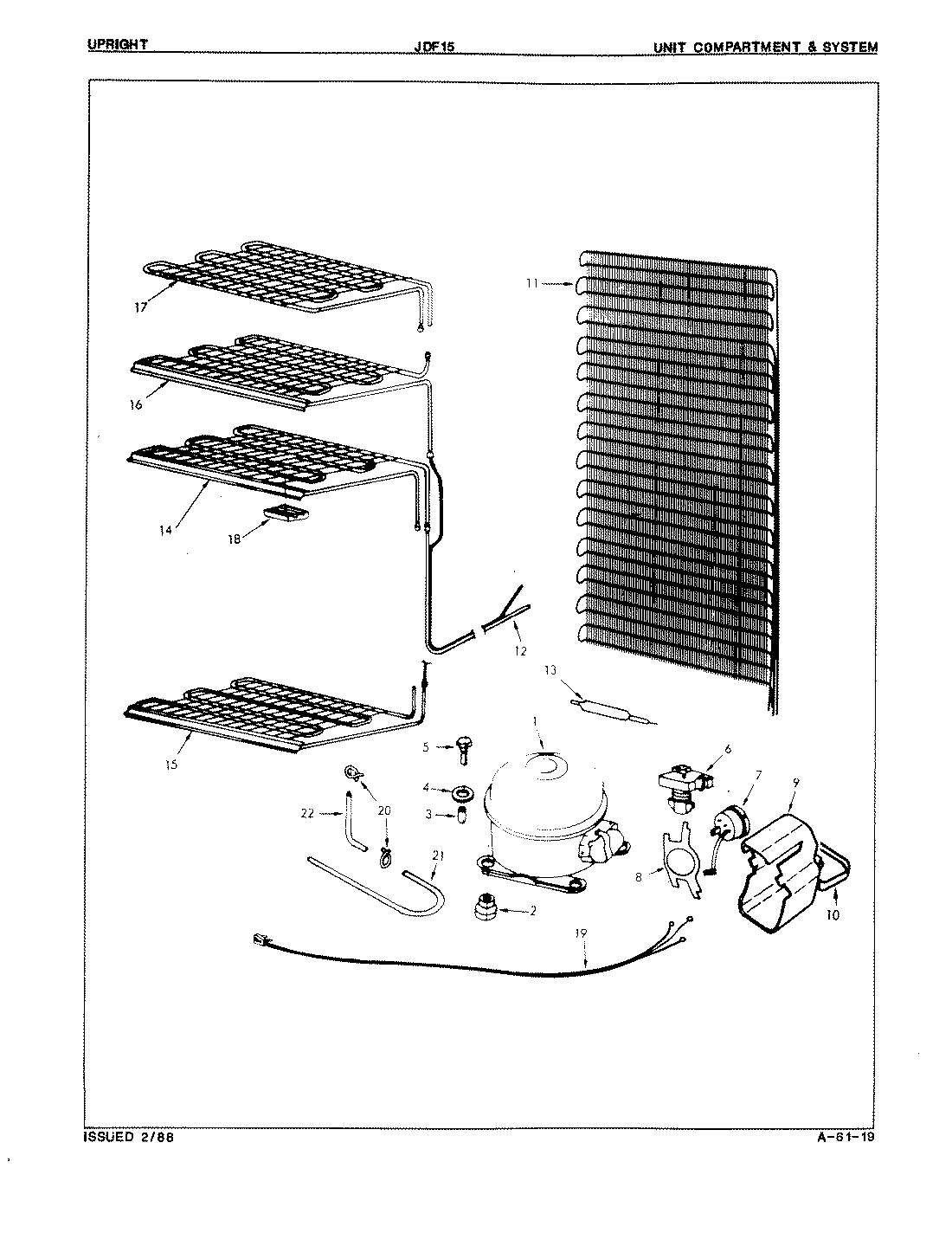

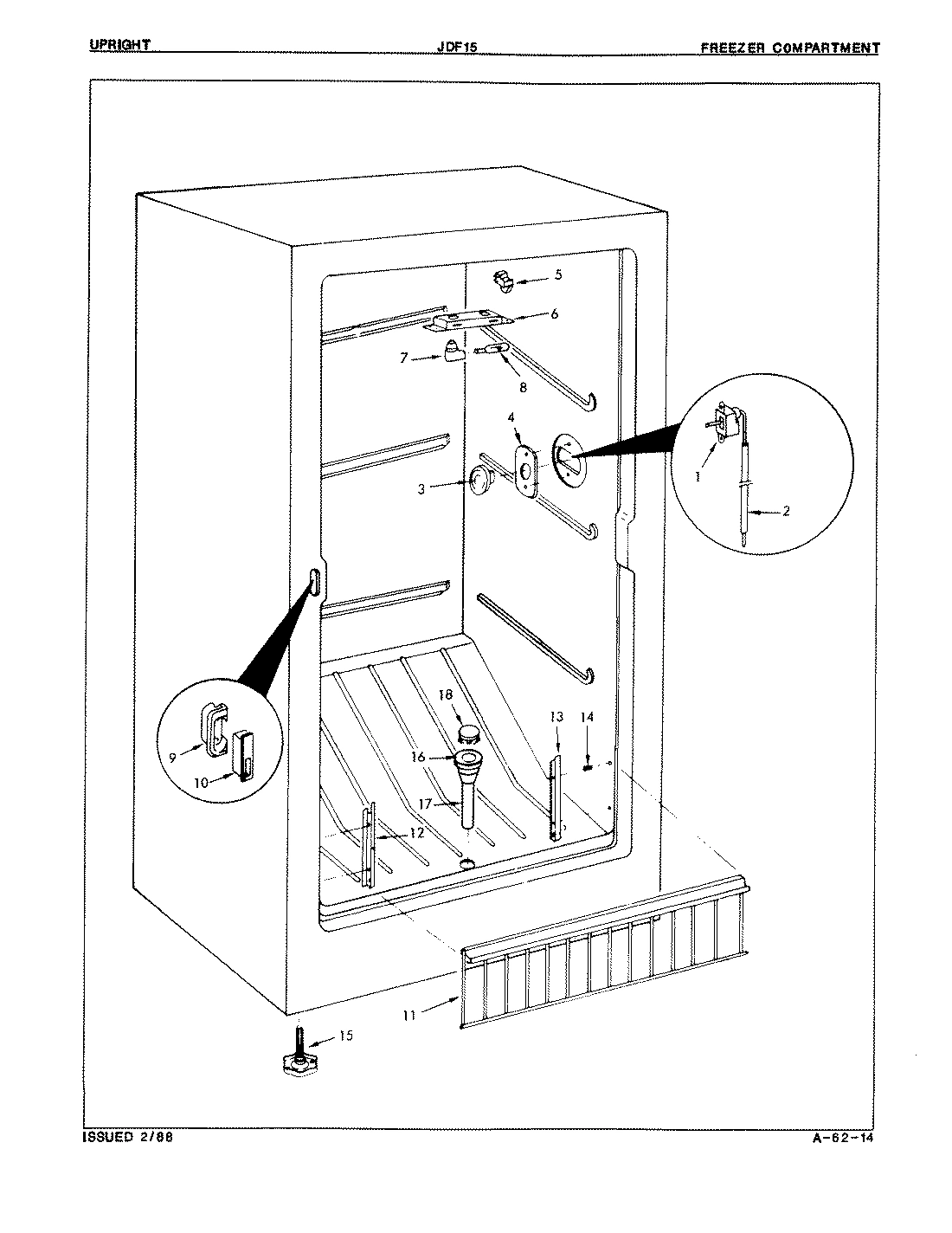

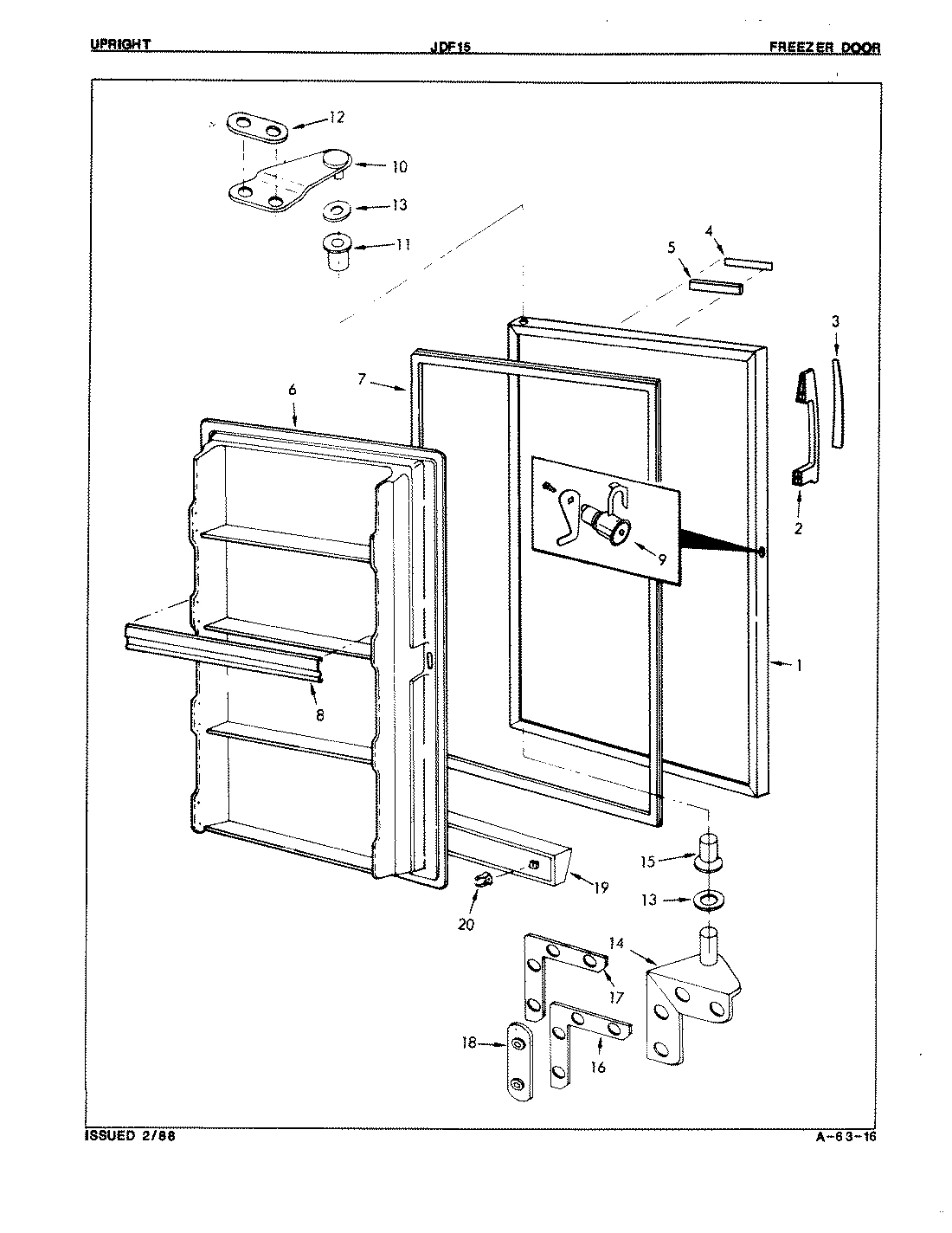

1

WPW10068250 Whirlpool Dishwasher Screw Backorder WPL WPW10068250 $2.67

1

COMPRESSOR WPL RMC2501 Contact Us For Availability

1

CLIP WPL 04585501 Contact Us For Availability

1

WIRE HARNESS WPL 04898002 Contact Us For Availability

1

TEMP CONTROL WPL Y04667503 Contact Us For Availability

1

FOAM BLOCK WPL 04697501 Contact Us For Availability

1

INSULATION WPL 04697704 Contact Us For Availability

1

OUTER PANEL WPL 04752505WW Contact Us For Availability

2

GROMMET WPL 00469102 Contact Us For Availability

2

PLASTIC TUBING WPL 40081 Contact Us For Availability

2

SCREW, DOOR HANDLE WPL 4000253 Contact Us For Availability

2

SCREW, DOOR HANDLE MTG. WPL 4000423 Contact Us For Availability

2

DOOR HANDLE WPL 596202 Contact Us For Availability

3

SLEEVE WPL 00469401 Contact Us For Availability

3

CONTROL KNOB WPL Y00530815 Contact Us For Availability

3

HANDLE TRIM WPL 592568 Contact Us For Availability

4

WASHER WPL 00541703 Contact Us For Availability

4

PLATE CONTROL WPL 04667301 Contact Us For Availability

4

NAMEPLATE BEZEL WPL 04843401 Contact Us For Availability

5

SCREW COMP MTG WPL Y04703209 Contact Us For Availability

5

SWITCH, LIGHT WPL 669871 Contact Us For Availability

5

NAMEPLATE WPL 04933813 Contact Us For Availability

6

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $5.02

6

RELAY WPL 04167646 Contact Us For Availability

6

U NUT WPL 04684101 Contact Us For Availability

6

BRACKET, LIGHT MOUNT WPL Y04855101 Contact Us For Availability

6

INNER PANEL WPL 04752903 Contact Us For Availability

6

SCREW WPL Y04589901 Contact Us For Availability

7

WP4357099 Whirlpool Refrigerator Door Gasket Backorder WPL WP4357099 $170.60

7

OVERLOAD WPL 5306781 Contact Us For Availability

7

RECEPTACLE, BULB WPL Y04553701 Contact Us For Availability

8

CLIP, OVERLOAD WPL 651901 Contact Us For Availability

8

LAMP WPL 2017405 Contact Us For Availability

8

DOOR SHELF TRIM WPL 04552109 Contact Us For Availability

9

3-35284-001 Whirlpool Freezer Door Lock Backorder WPL 3-35284-001 $15.25

9

WP4159193 Whirlpool Screw Backorder WPL WP4159193 $5.01

9

COVER, TERMINAL WPL 651891 Contact Us For Availability

9

RETAINER WPL 04295102 Contact Us For Availability

9

WASHER, LOCK WPL 04841704 Contact Us For Availability

9

LOCK BODY WPL Y04689701 Contact Us For Availability

9

CLIP WPL Y04689703 Contact Us For Availability

9

KEY WPL Y04689704 Contact Us For Availability

CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability

CLIP WPL 04529001 Contact Us For Availability

DRAIN PLUG WPL 04602801 Contact Us For Availability

SCREW WPL 04637502 Contact Us For Availability

STRIKE WPL 04938602 Contact Us For Availability

TOP HINGE WPL 04771603 Contact Us For Availability

11

CONDENSER KIT WPL RA4388010 Contact Us For Availability

11

GATE, GE WPL 04840802 Contact Us For Availability

12

HEAT EXCHANGER WPL 04846501 Contact Us For Availability

12

SUPPORT, BRACKET WPL 655872 Contact Us For Availability

12

TAPPING PLATE WPL 04938101 Contact Us For Availability

13

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $22.83

13

SUPPORT, GATE (RT) WPL 655871 Contact Us For Availability

13

WASHER WPL 521851 Contact Us For Availability

WP8204624 Whirlpool Bolt Backorder WPL WP8204624 $10.90

EVAP SHELF WPL 04813306 Contact Us For Availability

SCREW WPL 4000371 Contact Us For Availability

BOTTOM HINGE WPL 04771704 Contact Us For Availability

SCREW WPL 40001512 Contact Us For Availability

15

EVAP SHELF WPL 04813401 Contact Us For Availability

15

LEG, LEVELING WPL 60128 Contact Us For Availability

15

UPPER BUSHING WPL 660363 Contact Us For Availability

16

EVAP SHELF WPL 04813507 Contact Us For Availability

16

DRAIN GROMMET WPL 04557001 Contact Us For Availability

16

SHIM WPL Y04529701 Contact Us For Availability

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WASHER WPL 00541733 Contact Us For Availability

EVAP SHELF TOP WPL 04813601 Contact Us For Availability

SLEEVE WPL 04587901 Contact Us For Availability

SHIM WPL Y04529702 Contact Us For Availability

18

DRAIN PLUG WPL 04641201 Contact Us For Availability

18

NUT WPL 04543401 Contact Us For Availability

WP4-60461-005 Whirlpool Refrigerator Grille Backorder WPL WP4-60461-005 $76.70

SCREW WPL 04303701 Contact Us For Availability

CLAMP WPL 04317101 Contact Us For Availability

TUNNEL SUCTION LINE WPL 04701401 Contact Us For Availability

RET TUNNEL WPL 04701501 Contact Us For Availability

JUMPER TUBE WPL 04826404 Contact Us For Availability

LINE CORD WPL Y00075401 Contact Us For Availability

20

1-80247-101 Whirlpool Refrigerator Clip Backorder WPL 1-80247-101 $6.94

20

WP90767 Whirlpool Screw In Stock WPL WP90767 $4.26

20

CLAMP WPL 04384004 Contact Us For Availability

21

DRAIN HOSE WPL 04557302 Contact Us For Availability

22

DRAIN TUBE WPL Y04576601 Contact Us For Availability
