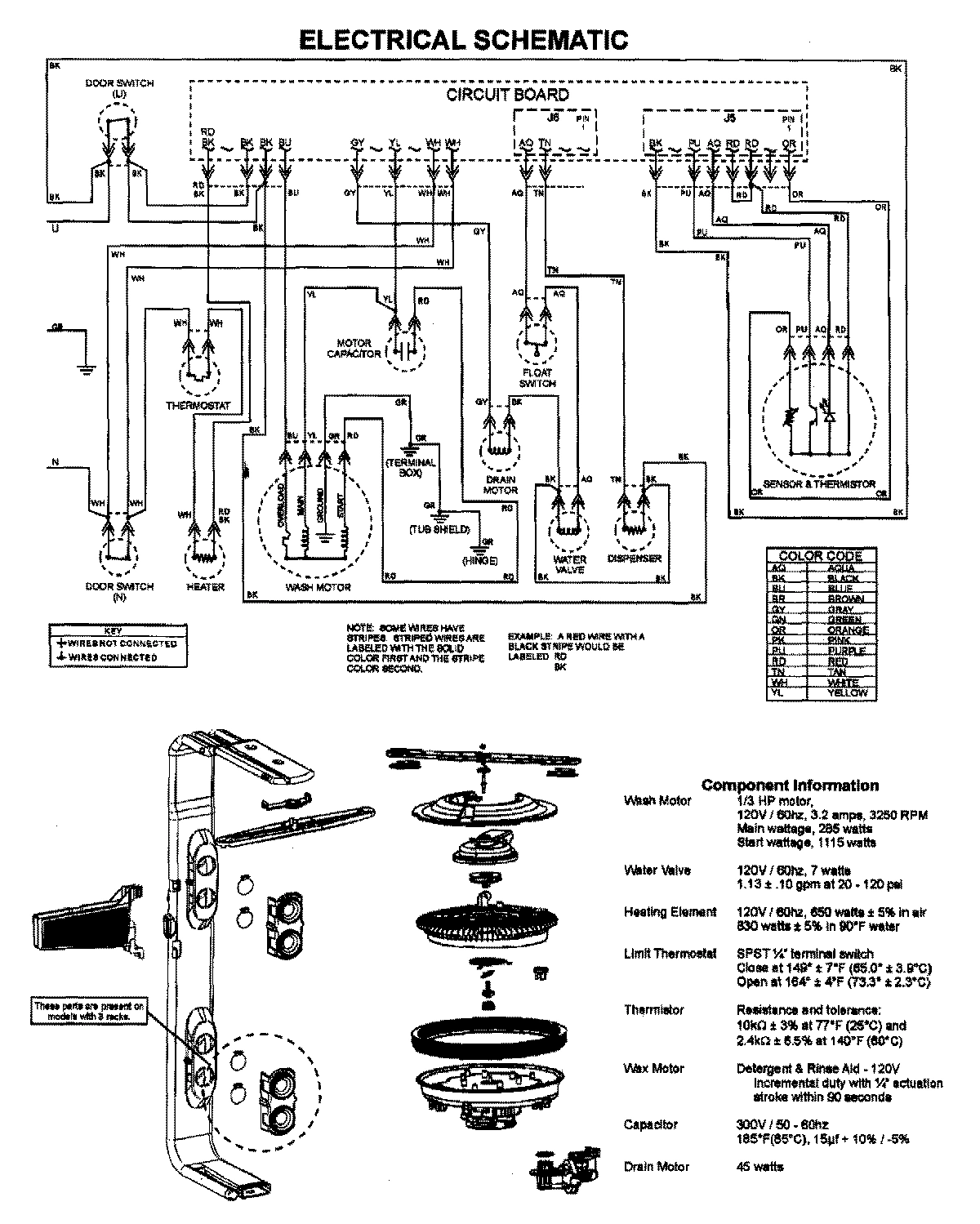

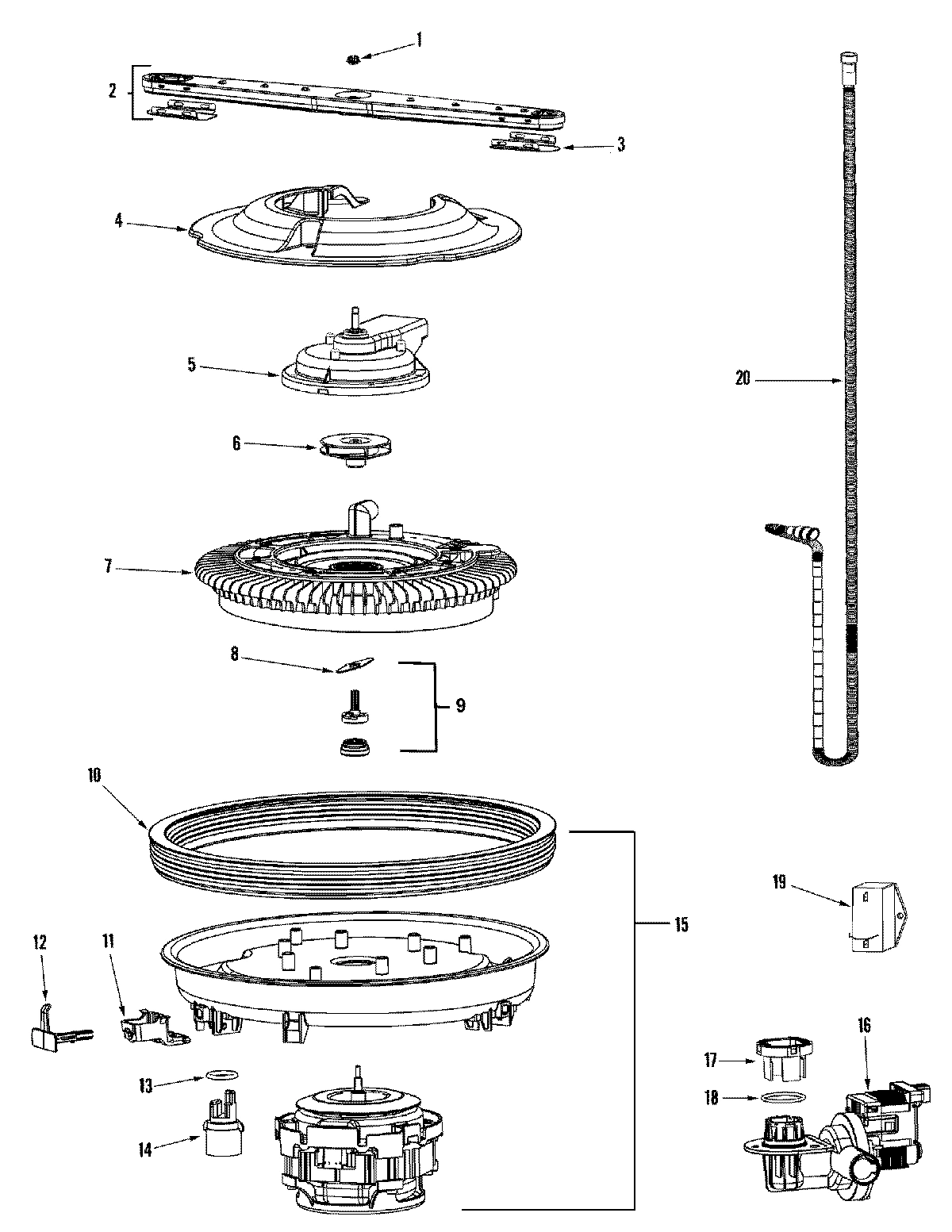

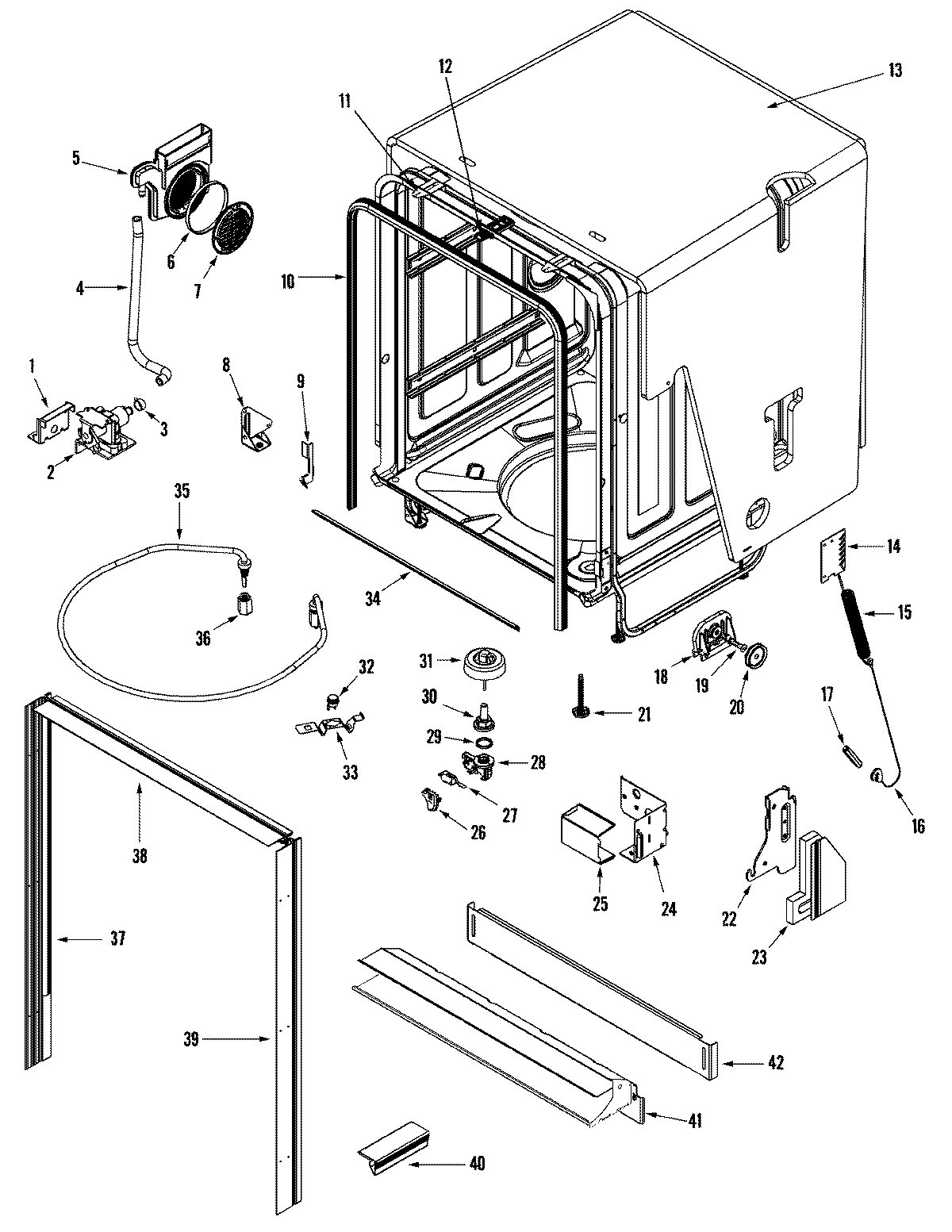

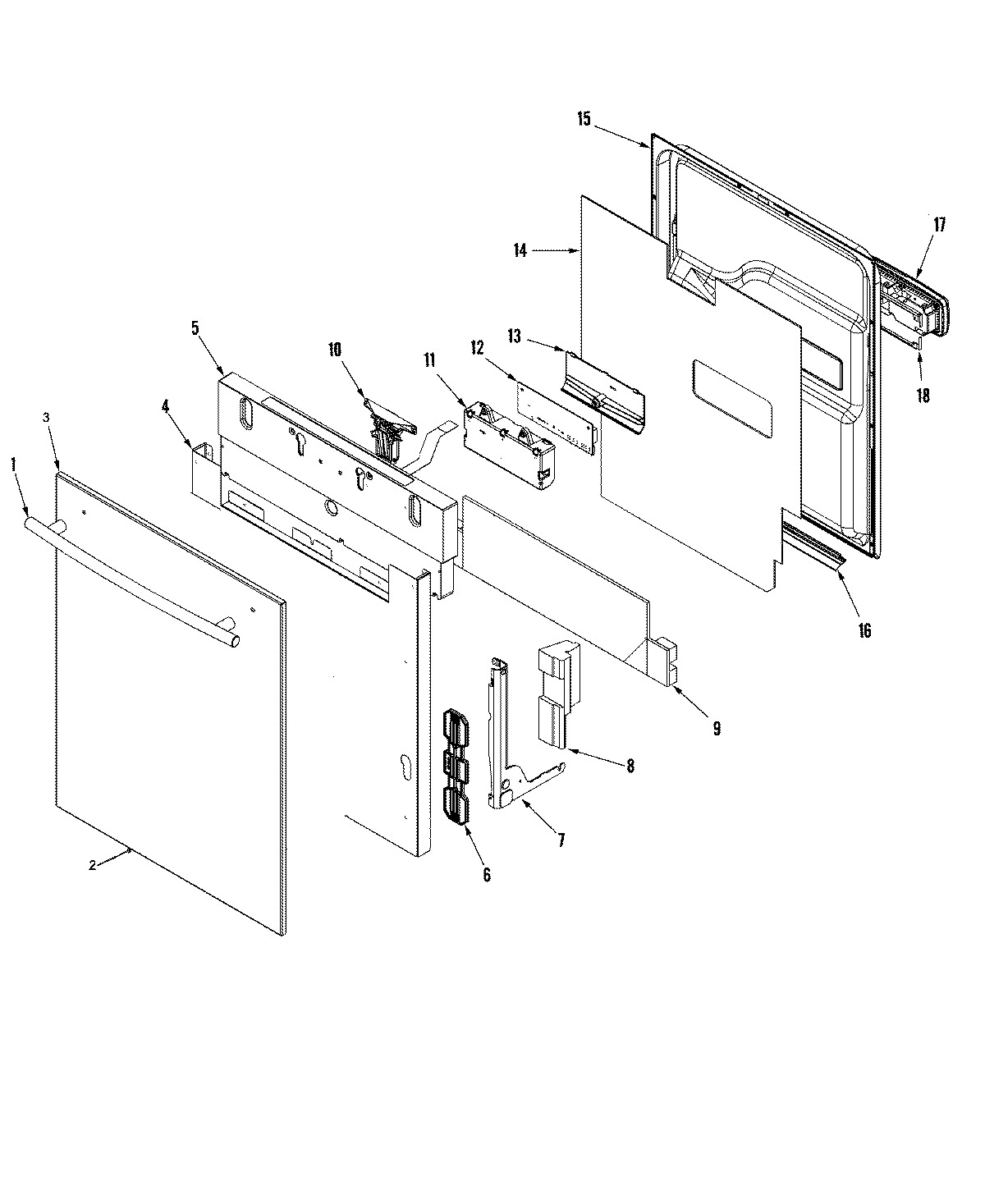

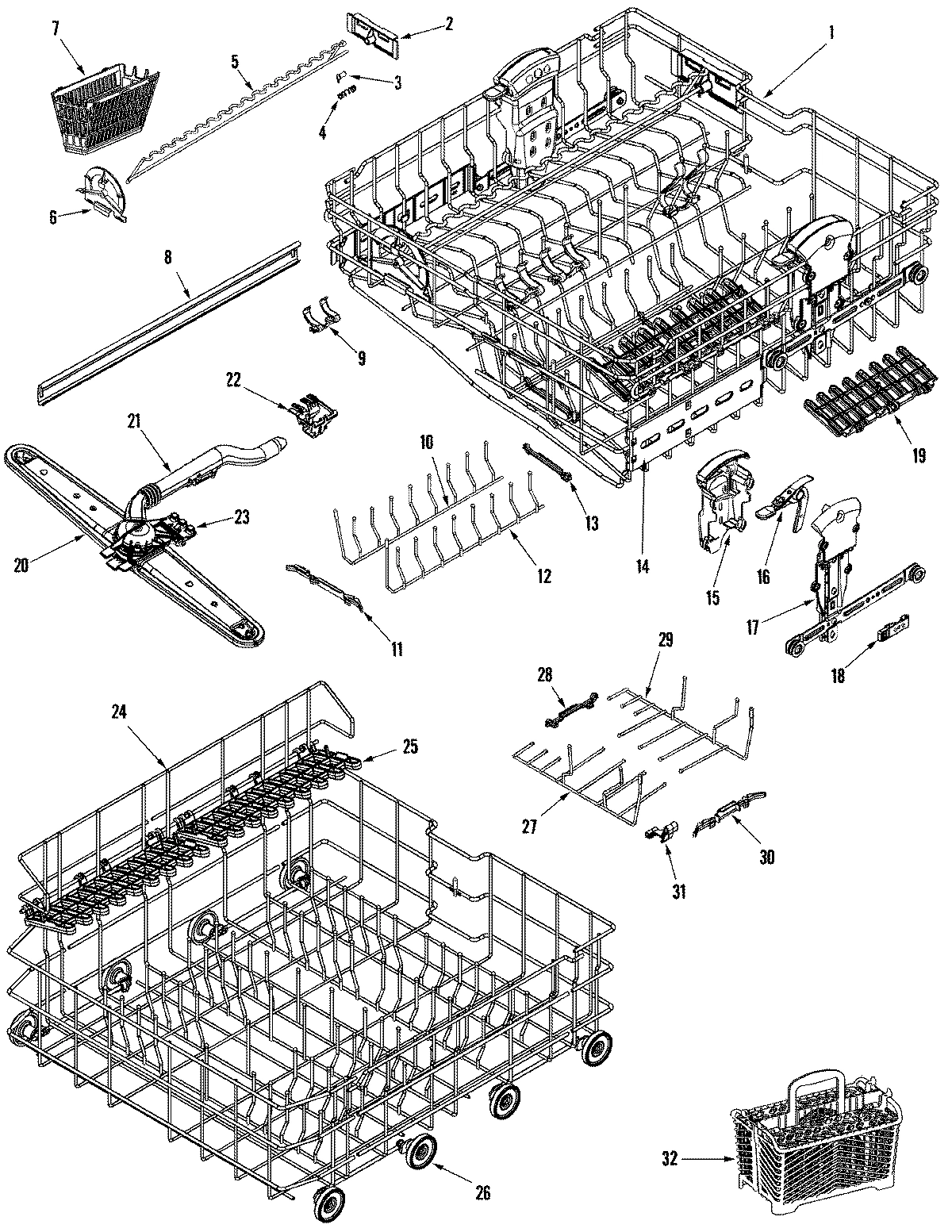

Model Whirlpool JDB1270AWF DISHWASHER – Common Parts &amp; Diagrams

1

WP99003083 Whirlpool Dishwasher Wash Cap Backorder WPL WP99003083 $5.87

1

BRACKET, WATER VALVE WPL 99002629 Contact Us For Availability

1

BAR, TOWEL WPL 99003088 Contact Us For Availability

1

STUDS, TOWEL BAR WPL 99003089 Contact Us For Availability

1

SCREW-TRUSS HEAD 1/4-20 T20 WPL 99003154 Contact Us For Availability

1

MANUAL, USE & CARE (JDB-5) WPL 6919200 Contact Us For Availability

1

Guide, Use & Care WPL W10164024 Contact Us For Availability

2

W11082871 Whirlpool Dishwasher Inlet Valve In Stock WPL W11082871 $119.87

2

WASHER, HANDLE WPL 74009194 Contact Us For Availability

2

BUSHING, TOWEL BAR WPL 99003420 Contact Us For Availability

2

WASHER, NYLON WPL 99003421 Contact Us For Availability

2

PANEL, DEOCRATOR (WHT GLASS) WPL 99003423 Contact Us For Availability

2

MANUAL, SERVICE DW WPL 16022783 Contact Us For Availability

3

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $5.02

3

SHIELD, RADIANT WPL 99002653 Contact Us For Availability

3

TOP CAP (WHT) WPL 99003445 Contact Us For Availability

3

GUIDE, ENERGY (REV C) WPL 99003348 Contact Us For Availability

4

SCREW WPL 99002666 Contact Us For Availability

4

GUARD, FILTER (DARK GRAY) WPL 99003084 Contact Us For Availability

4

DAMPER (6``X 18``) WPL 99002934 Contact Us For Availability

4

SUPPORT, INNER DOOR (WHT) WPL 99003433 Contact Us For Availability

4

MISC. PARTS PACKAGE WPL 99002854 Contact Us For Availability

4

MISC PARTS PACKAGE WPL W10182534 Contact Us For Availability

5

SCREW, DISCHARGE HOUSING WPL 99002664 Contact Us For Availability

5

INLET, AIR/WATER WPL 99003028 Contact Us For Availability

5

DISCHARGE HOUSING ASSY (UPR) WPL 99003145 Contact Us For Availability

5

PANEL, CONTROL (WHT) WPL 99003426 Contact Us For Availability

5

HARNESS, WIRE WPL 99003308 Contact Us For Availability

6

WP99002659 Whirlpool Impeller Backorder WPL WP99002659 $46.21

6

SCREW, IMPELLER WPL 99002987 Contact Us For Availability

6

FASTENER, PANEL WPL 99003096 Contact Us For Availability

6

ANCHOR, PANEL FASTENER WPL 99003095 Contact Us For Availability

7

WPW10118637 Whirlpool Dishwasher Bracket Backorder WPL WPW10118637 $186.41

7

WPW10192799 Whirlpool Dishwasher Accumulator In Stock WPL WPW10192799 $144.02

7

GRILL,AIR/WATER INLET WPL 99003078 Contact Us For Availability

7

SCREW, STAINLESS PAN HEAD WPL 99002668 Contact Us For Availability

7

SCREW WPL 99001075 Contact Us For Availability

7

BRACKET, HINGE (LT) WPL 99002929 Contact Us For Availability

7

WRAP, FOAM WPL 99003049 Contact Us For Availability

8

WP99003282 Whirlpool Dishwasher Rail Stop Backorder WPL WP99003282 $4.82

8

RAIL, INNER SLIDE WPL 99003066 Contact Us For Availability

8

CAGE, BALL BEARING WPL 99003069 Contact Us For Availability

8

BRACKET, SUPPORT (LT) WPL 99002636 Contact Us For Availability

8

CHOPPER WPL 99003427 Contact Us For Availability

8

BLOCK, FOAM (LT) WPL 99003046 Contact Us For Availability

8

BLOCK, FOAM (RT) WPL 99003047 Contact Us For Availability

9

CLIP, CUP (LT GRAY) WPL 99003107 Contact Us For Availability

9

TRIM, CORNER EDGE (LWR-LT) WPL 99003038 Contact Us For Availability

9

SEAL KIT, METAL CHOPPER SLEEVE WPL 99003341 Contact Us For Availability

9

BARRIER, FOAM WPL 99003048 Contact Us For Availability

WP99003337 Whirlpool Door Seal Backorder WPL WP99003337 $171.11

WPW10275768 Whirlpool Door Latch In Stock WPL WPW10275768 $48.40

TINE, FOLD AWAY (LT) WPL 99003104 Contact Us For Availability

GASKET, MOTOR MOUNT WPL 99003055 Contact Us For Availability

SWITCH, DOOR WPL 99002751 Contact Us For Availability

11

WP99003106 Whirlpool Latch Assembly Backorder WPL WP99003106 $4.82

11

LEVER, MOTOR MOUNT WPL 99003056 Contact Us For Availability

11

BRACKET, CABINET MOUNTING WPL 99002648 Contact Us For Availability

TINE, FOLD AWAY (RT) WPL 99003103 Contact Us For Availability

STRIKER, DOOR WPL 99003357 Contact Us For Availability

PLUNGER, MOTOR MOUNT WPL 99003057 Contact Us For Availability

BOARD, CONTROL WPL 99003158 Contact Us For Availability

BOARD, CONTROL WPL 99003432 Contact Us For Availability

Board, Control WPL 99003614 Contact Us For Availability

BOARD, CONTROL WPL W10169341 Contact Us For Availability

99002651 Whirlpool Dishwasher Turbidity Senso Backorder WPL 99002651 $14.02

WP99003105 Whirlpool Dishwasher Fold-Away Tin Backorder WPL WP99003105 $6.90

WPW10223013 Whirlpool Dishwasher Insulation P Backorder WPL WPW10223013 $59.09

FASTENER, INSULATION WPL 99002640 Contact Us For Availability

HOUSING, BOARD (TOP) WPL 99002575 Contact Us For Availability

WPW10120019 Whirlpool Dishwasher Sensor Backorder WPL WPW10120019 $146.08

GUARD, RACK (HIGH SIDE) WPL 99003063 Contact Us For Availability

GUARD, RACK (LOW SIDE) WPL 99003064 Contact Us For Availability

INSULATION, DOOR WPL 99003044 Contact Us For Availability

WP99003118 Whirlpool Door Spring Backorder WPL WP99003118 $14.00

COVER, RACK ADJUSTER WPL 99003191 Contact Us For Availability

Wash Motor Assy. WPL 6919963 Contact Us For Availability

WASH MOTOR ASSY SEAL NOT INCL WPL 99002980 Contact Us For Availability

DOOR, INNER (W/DAMPER) WPL 99003140 Contact Us For Availability

WP99003446 Whirlpool Door Cable In Stock WPL WP99003446 $5.30

LEVER, RACK ADJUSTER WPL 99003192 Contact Us For Availability

SCREW, TRUSS HEAD (10-18X.75) WPL 99002740 Contact Us For Availability

DRAIN PUMP ASSEMBLY WPL 99003141 Contact Us For Availability

SEAL, DOOR (BTM) WPL 99003045 Contact Us For Availability

WPW10153533 Whirlpool Dishwasher Adjuster Backorder WPL WPW10153533 $104.00

KNOB, RINSE AID (W/O-RING) WPL 99003060 Contact Us For Availability

SCREW (T15) 8-18 X .500 WPL 99003010 Contact Us For Availability

RACK ADJUSTER ASSY (RT) WPL 99003195 Contact Us For Availability

FLAPPER, DRAIN PUMP VALVE WPL 99002815 Contact Us For Availability

SEAL, BASE WPL 99002270 Contact Us For Availability

DETERGENT/RINSE AID DISPENSER WPL 99003320 Contact Us For Availability

WP33002917 Whirlpool Screw Backorder WPL WP33002917 $4.82

STABILIZER, RACK ADJUSTER WPL 99003193 Contact Us For Availability

BRACKET, CABLE WPL 99002607 Contact Us For Availability

BRACKET, CABLE WPL 99003686 Contact Us For Availability

O-RING, DRAIN PUMP WPL 99002857 Contact Us For Availability

BRACKET, DISPENSER WPL 99002465 Contact Us For Availability

SHELF, CUP (UPR) WPL 99003065 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET WPL 99002609 Contact Us For Availability

SHOULDER BOLT, CABLE BRACKET WPL 99003687 Contact Us For Availability

NUT, 10-24 WPL 99003688 Contact Us For Availability

SCREW 10-32X.400 (T-20 HEAD) WPL 99002601 Contact Us For Availability

CAPACITOR, MOTOR WPL 99002665 Contact Us For Availability

20

WP99002652 Whirlpool Drain Hose In Stock WPL WP99002652 $95.29

21

WPW10143258 Whirlpool Dishwasher Leg Leveler Backorder WPL WPW10143258 $9.90

21

WASH MANIFOLD ASSY (UPR) WPL 99003142 Contact Us For Availability

22

CLIP, UPR WASH MANIFOLD (BACK) WPL 99003071 Contact Us For Availability

22

SUPPORT, HINGE (RT) WPL 99002927 Contact Us For Availability

22

SUPPORT, HINGE (LT) WPL 99002928 Contact Us For Availability

CLIP, UPR WASH MANIFOLD (FRT) WPL 99003072 Contact Us For Availability

BACKER, HINGE SEAL (LT) WPL 99002761 Contact Us For Availability

BACKER, HINGE SEAL (RT) WPL 99002762 Contact Us For Availability

BACKER, HINGE SEAL (RT) WPL 99003150 Contact Us For Availability

BACKER, HINGE SEAL (LT) WPL 99003151 Contact Us For Availability

24

CAP, RACK (METALLIC GRAY) WPL 99003062 Contact Us For Availability

24

RACK ASSEMBLY (LWR) WPL 99003099 Contact Us For Availability

24

BRACKET, JUNCTION BOX SUPPORT WPL 99002637 Contact Us For Availability

25

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

25

SHELF, CUP (LWR) WPL 99003074 Contact Us For Availability

25

COVER, JUNCTION BOX WPL 99002638 Contact Us For Availability

26

WP99003149 Whirlpool Rack Wheel In Stock WPL WP99003149 $9.56

26

COVER, SWITCH WPL 99003079 Contact Us For Availability

27

TINE, CONVERTIBLE (FRT) WPL 99003112 Contact Us For Availability

27

SWITCH, FLOAT WPL 99002631 Contact Us For Availability

28

WP99003003 Whirlpool Dishwasher Convertible T Backorder WPL WP99003003 $4.82

28

HOLDER, FLOAT SWITCH WPL 99003031 Contact Us For Availability

29

TINE, CONVERTIBLE (REAR) WPL 99003113 Contact Us For Availability

31

LATCH, SECONDARY CONV. TINE WPL 99003116 Contact Us For Availability

31

FLOAT (DARK GRAY) WPL 99003080 Contact Us For Availability

32

WP6-918873 Whirlpool Silverware Basket In Stock WPL WP6-918873 $38.54

32

COVER, SILVERWARE BASKET WPL 99003102 Contact Us For Availability

32

THERMO WPL 99002633 Contact Us For Availability

33

WPL 99001008 WPL 99001008 Contact Us For Availability

34

WP99003041 Whirlpool Dishwasher Trim Backorder WPL WP99003041 $69.04

35

W10283681 Whirlpool Dishwasher Heater Backorder WPL W10283681 $97.52

35

WPL 99002973 WPL 99002973 Contact Us For Availability

36

WPL 99003033 WPL 99003033 Contact Us For Availability

37

WPL 99003034 WPL 99003034 Contact Us For Availability

37

WPL 99003128 WPL 99003128 Contact Us For Availability

38

WPL 99003036 WPL 99003036 Contact Us For Availability

39

WPL 99002692 WPL 99002692 Contact Us For Availability

39

WPL 99003035 WPL 99003035 Contact Us For Availability

39

WPL 99003129 WPL 99003129 Contact Us For Availability

40

WPL 99002703 WPL 99002703 Contact Us For Availability

41

WPL 99003131 WPL 99003131 Contact Us For Availability

41

WPL 99003153 WPL 99003153 Contact Us For Availability

42

WPL 99001194 WPL 99001194 Contact Us For Availability

42

WPL 99002698 WPL 99002698 Contact Us For Availability

42

WPL 99002766 WPL 99002766 Contact Us For Availability

43

WPL 99003087 WPL 99003087 Contact Us For Availability
