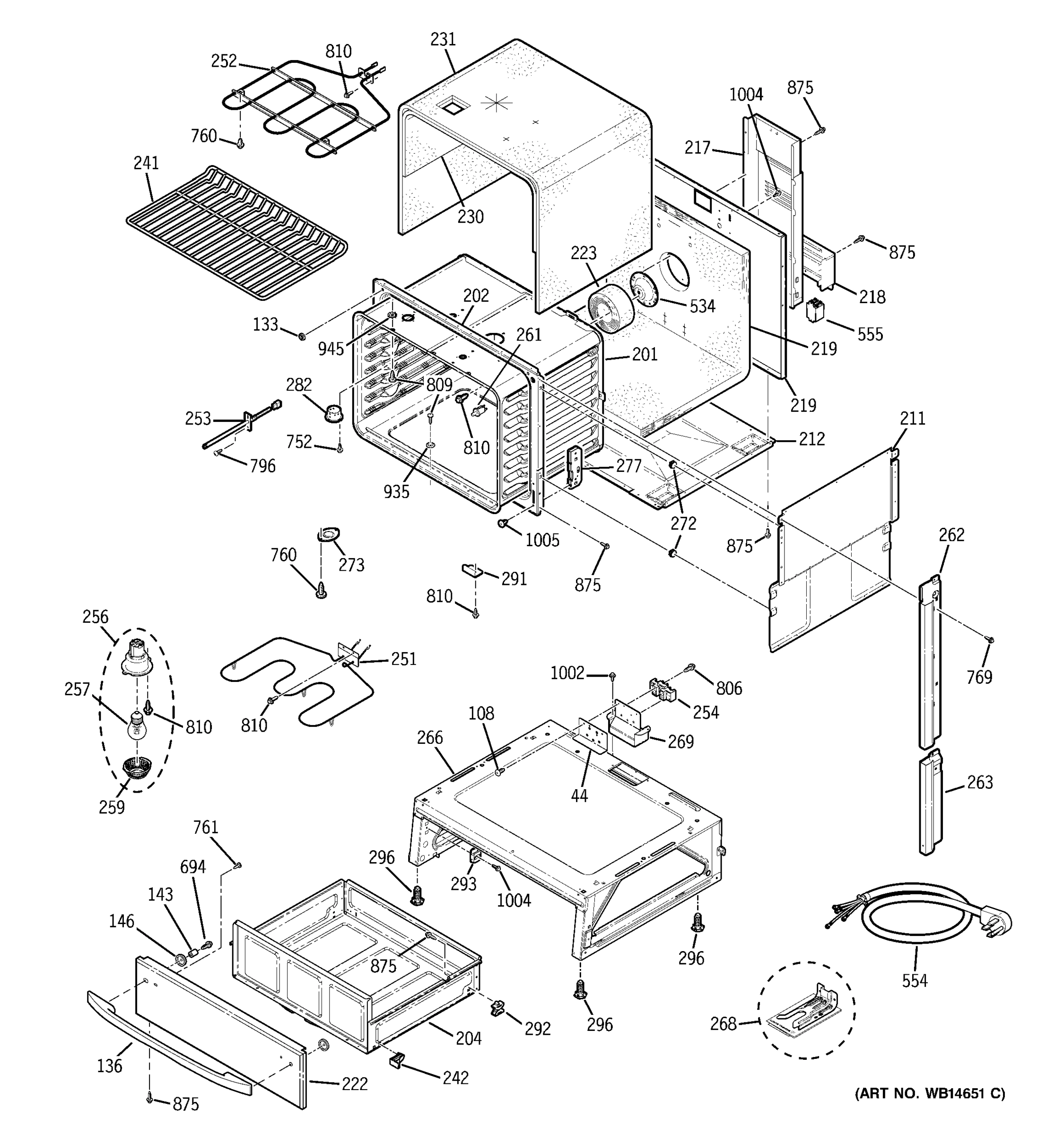

Model GE JCS905WK4WW Electric Range – Common Parts &amp; Diagrams

1

WB36T10668 GE Range Control Panel Assembly Backorder GEN WB36T10668 $148.60

19

WB24T10119 GE Oven Infinite Switch Control In Stock GEN WB24T10119 $85.82

20

WB02T10046 GE Oven Crystal Retainer In Stock GEN WB02T10046 $7.54

21

WB24T10012 GE Oven Infinite Switch In Stock GEN WB24T10012 $45.49

22

WB02X10744 GE Oven Gasket Faceplate Backorder GEN WB02X10744 $7.17

23

WB24T10134 GE Oven Infinite Control Switch In Stock GEN WB24T10134 $119.20

26

GEN WB02X10742 GEN WB02X10742 Contact Us For Availability

27

GEN WB36T10570 GEN WB36T10570 Contact Us For Availability

29

GEN WB03T10079 GEN WB03T10079 Contact Us For Availability

29

KNOB PROFILE SU GEN WB03T10078 Contact Us For Availability

30

WB25T10056 GE Range Light Indicator In Stock GEN WB25T10056 $9.29

33

WB18T10349 GE Oven Module Indicator Light Backorder GEN WB18T10349 $22.04

34

WB25T10022 GE Oven Snap-In Lens Backorder GEN WB25T10022 $7.54

37

GEN WB36K10239 GEN WB36K10239 Contact Us For Availability

37

GEN WB07K10157 GEN WB07K10157 Contact Us For Availability

50

WB02T10320 GE Oven Left Hand Maintop Gasket Backorder GEN WB02T10320 $7.54

50

GEN WB02T10319 GEN WB02T10319 Contact Us For Availability

53

WB30T10124 GE Oven 6" Radiant Warmer Element Backorder GEN WB30T10124 $102.59

57

WB30T10141 GE Range Radiant Element Bridge Backorder GEN WB30T10141 $261.23

58

WB30T10122 GE Oven Radiant Dual Element Backorder GEN WB30T10122 $138.01

60

WB09X40389 GE Radiant Element Spring Backorder GEN WB09X40389 $7.54

101

WB35X30052 GE Oven Door Insulation Assembly Backorder GEN WB35X30052 $7.54

102

WB35K10025 GE Oven Side Door Insulation Backorder GEN WB35K10025 $7.54

112

WB55T10179 GE Range Door Lining Assembly Backorder GEN WB55T10179 $141.06

113

WB02T10371 GE Oven Retainer Insulation Backorder GEN WB02T10371 $65.53

117

WB56T10373 GE Oven Door Retainer Kit Backorder GEN WB56T10373 $984.18

122

WB57K5230 GE Oven Inner Glass Door Backorder GEN WB57K5230 $166.50

132

WB04T10050 GE Oven Door Gasket In Stock GEN WB04T10050 $51.02

133

WB01T10022 GE Oven Door Bumper Backorder GEN WB01T10022 $7.54

133

WB01T10026 GE Oven Door Pad Backorder GEN WB01T10026 $7.54

133

WB01T10052 GE Oven Foam Tape Backorder GEN WB01T10052 $7.54

136

HANDLE PRF DRAWER BK GEN WB15T10136 Contact Us For Availability

136

HANDLE PRF DRAWER (WH) GEN WB15T10138 Contact Us For Availability

140

GEN WB57T10348 GEN WB57T10348 Contact Us For Availability

140

GEN WB57T10319 GEN WB57T10319 Contact Us For Availability

142

WB02T10453 GE Oven Composite Stud Backorder GEN WB02T10453 $7.54

144

WB02T10452 GE Oven Reinforcement Spacer Backorder GEN WB02T10452 $12.27

204

WB55T10178 GE Oven Mechanical Drawer Body Ass Backorder GEN WB55T10178 $163.65

217

GEN WB34K10049 GEN WB34K10049 Contact Us For Availability

218

WB34T10054 GE Oven Right Rear Lower Cover Wir Backorder GEN WB34T10054 $25.38

241

WB48T10021 GE Oven Rack Backorder GEN WB48T10021 $88.94

242

WB48T10068 GE Oven Wedge Drawer Backorder GEN WB48T10068 $24.53

251

WB44K10009 GE Range Bake Element In Stock GEN WB44K10009 $97.60

252

WB44T10043 GE Oven Broil Unit Assembly In Stock GEN WB44T10043 $85.31

253

WB23T10015 GE Oven Sensor Probe In Stock GEN WB23T10015 $29.40

256

WB08T10002 GE Oven 40W 120V Cooktop Lamp Bulb In Stock GEN WB08T10002 $33.11

259

WB25T10002 GE Oven Bulb Lens In Stock GEN WB25T10002 $12.82

261

WB24T10160 GE Oven High AMP SPDT Switch Backorder GEN WB24T10160 $14.50

262

WB07T10522 GE Range Vertical Trim Side Right Backorder GEN WB07T10522 $83.63

268

GEN WB02T10137 GEN WB02T10137 Contact Us For Availability

269

WB17T10021 GE Oven Mount Terminal Block Backorder GEN WB17T10021 $21.19

272

WB02T10034 GE Oven Body Side Support Backorder GEN WB02T10034 $7.54

277

GEN WB10T10083 GEN WB10T10083 Contact Us For Availability

281

WB10X20965 GE Oven Right Door Hinge Backorder GEN WB10X20965 $163.10

281

WB10X30494 GE Left Door Hinge Backorder GEN WB10X30494 $57.99

282

WB38X33650 GE Vent Tube Backorder GEN WB38X33650 $15.90

292

WB02X33180 GE Oven Drawer Glide In Stock GEN WB02X33180 $10.46

293

WB48T10013 GE Oven Drawer Support In Stock GEN WB48T10013 $12.08

296

WB02X10521 GE Oven Leveling Leg In Stock GEN WB02X10521 $18.24

338

WB56T10105 GE Oven Inner Window Assembly In Stock GEN WB56T10105 $143.29

555

WB18T10352 GE Oven Relay Backorder GEN WB18T10352 $73.04

699

WB1M1 GE Oven Screw Backorder GEN WB1M1 $7.25

WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 Backorder GEN WB01T10110 $7.54

WB1K5029 GE Oven Screw Backorder GEN WB1K5029 $7.54

WB1K5062 GE Oven Screw Backorder GEN WB1K5062 $7.54

GEN WB01K5185 GEN WB01K5185 Contact Us For Availability

804

WB02T10324 GE Oven Screw 6-20 GXB IHXW 3/8 NI Backorder GEN WB02T10324 $7.54

GEN 29-5634 GEN 29-5634 Contact Us For Availability

GEN 31-10482 GEN 31-10482 Contact Us For Availability

GEN 31-10623 GEN 31-10623 Contact Us For Availability

GEN 31-10651 GEN 31-10651 Contact Us For Availability

GEN 31-14740 GEN 31-14740 Contact Us For Availability

1002

WB01T10017 GE Oven 8-18 AB Screw IHW 3/8 S NS Backorder GEN WB01T10017 $7.54

1005

WB01T10008 GE Oven Screw 10-32 In Stock GEN WB01T10008 $13.23

1006

WB01T10053 GE Oven 8-32 TPT FLR Screw Backorder GEN WB01T10053 $7.54
