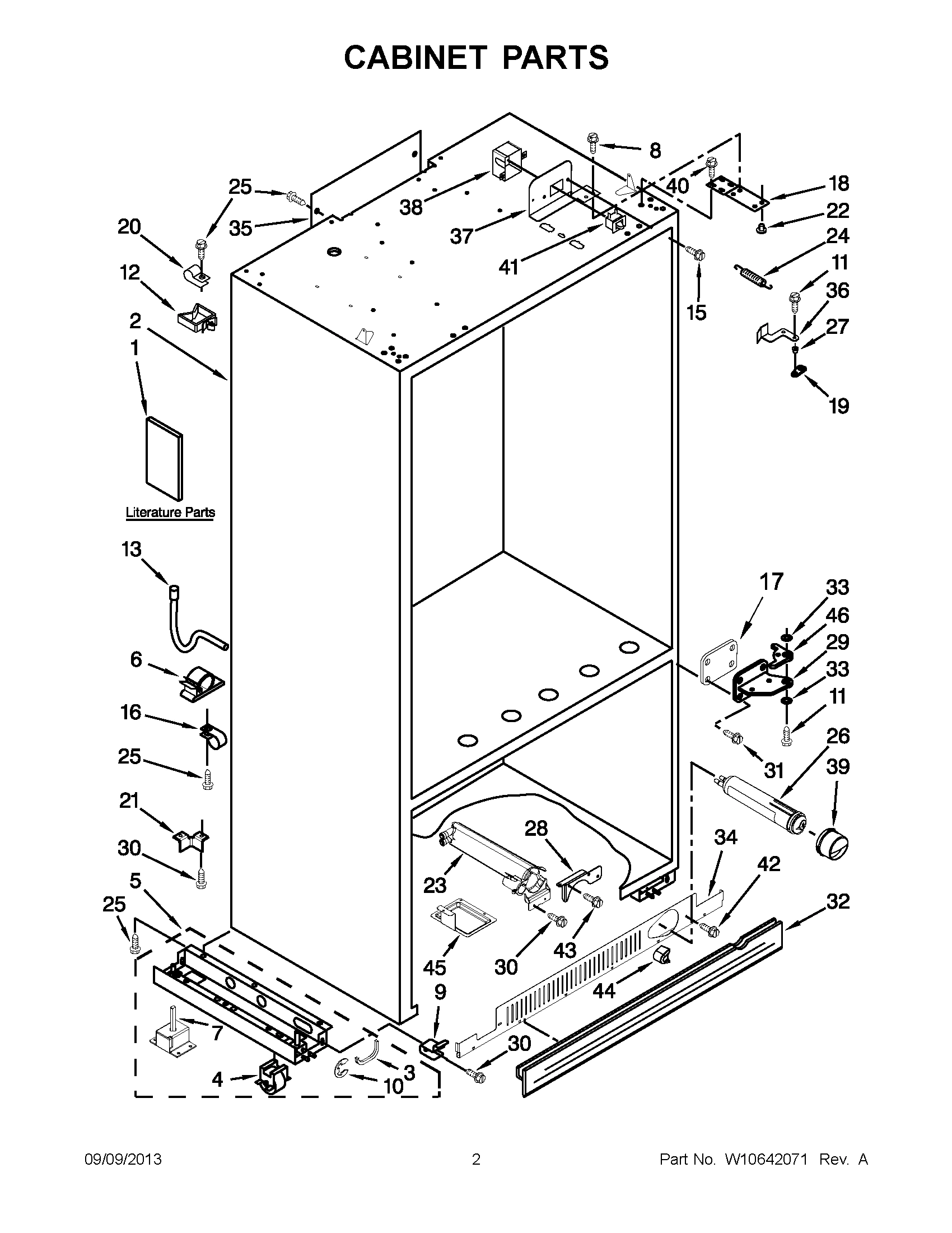

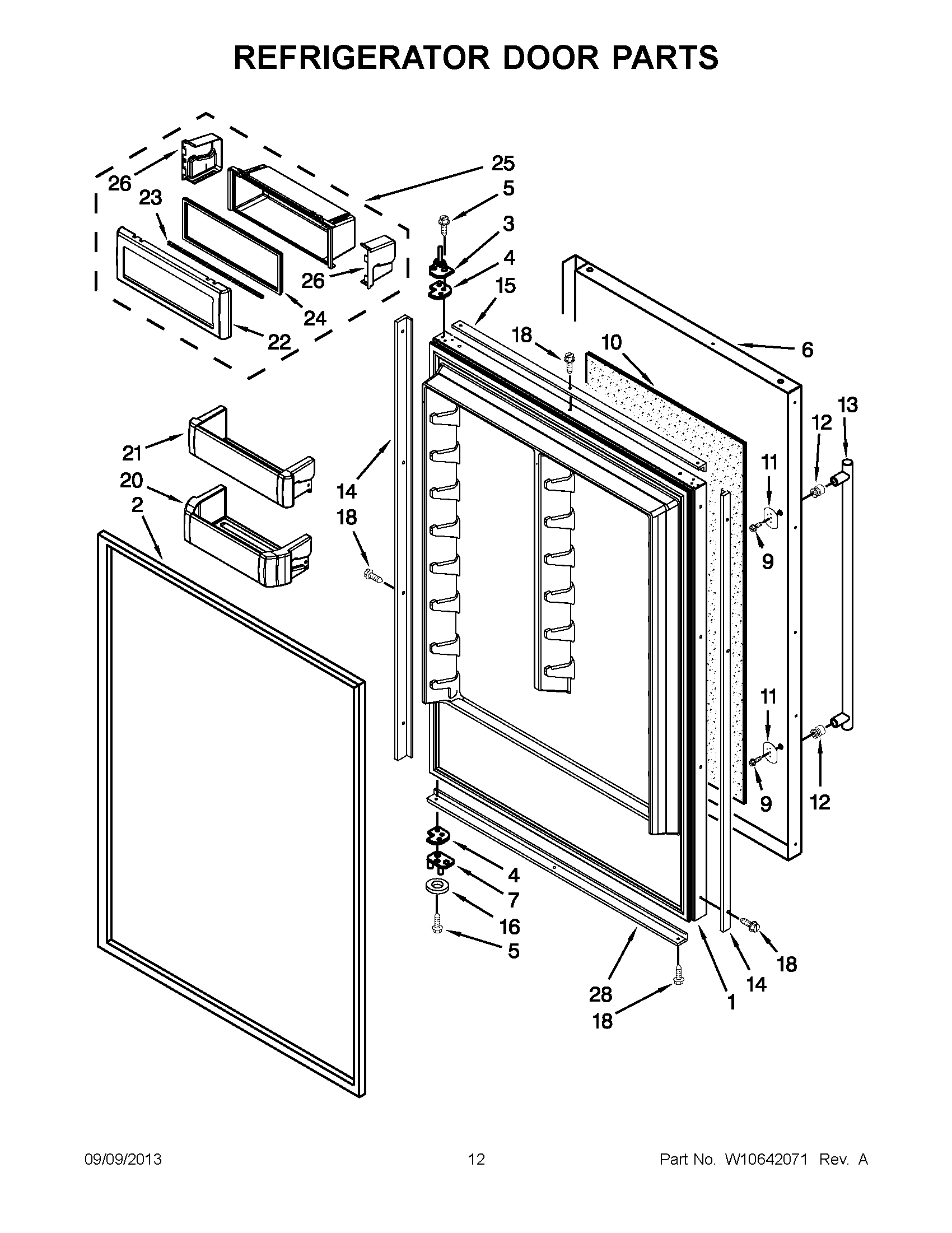

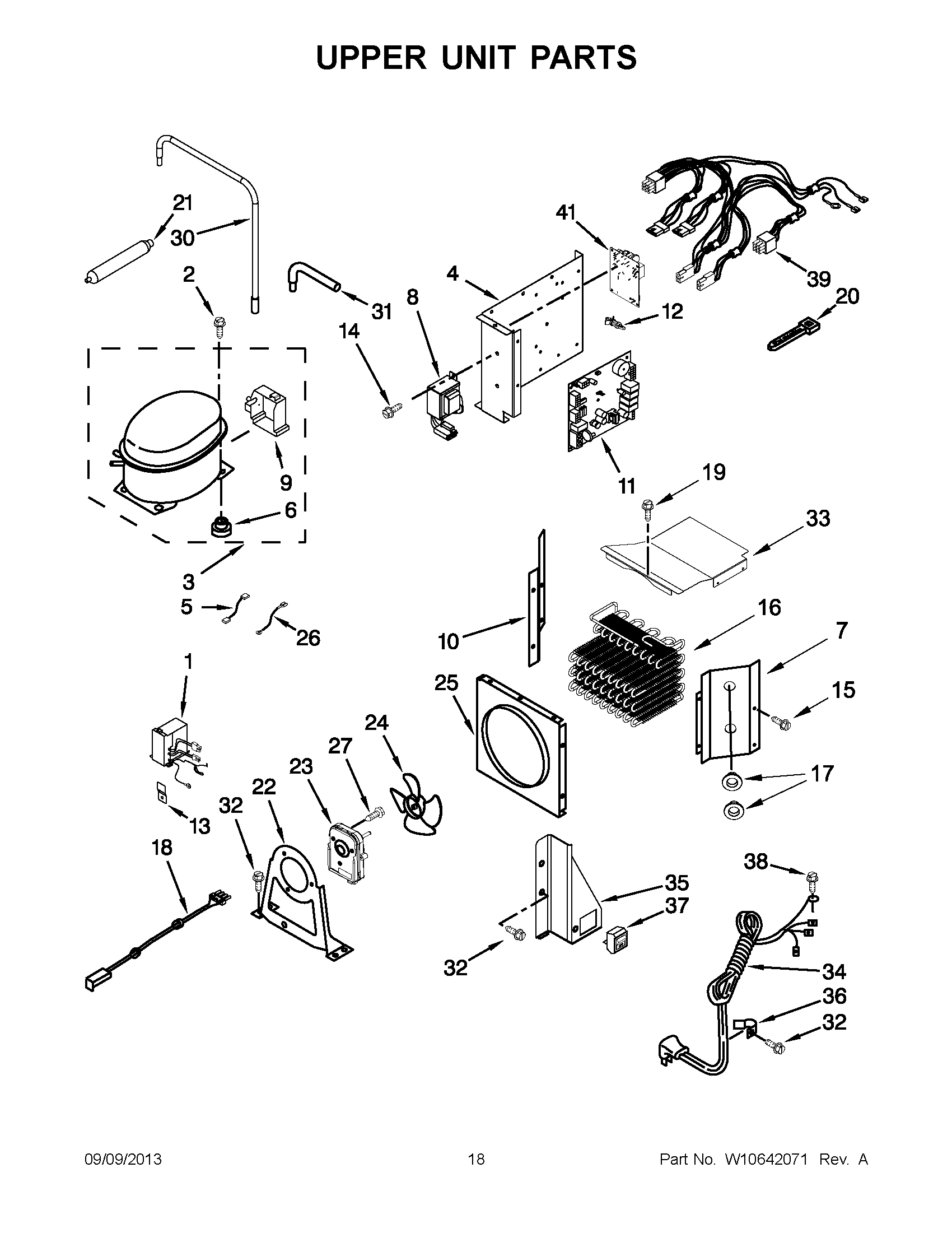

Model Whirlpool JB36SSFXRA02 36`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

1

WPW10449006 Whirlpool Refrigerator Inverter B Backorder WPL WPW10449006 $256.55

1

DOOR, REFRIGERATOR WPL W10192039 Contact Us For Availability

2

2302709 Whirlpool Refrigerator Door Gasket In Stock WPL 2302709 $190.54

2

W10388653 Whirlpool Refrigerator Tube Backorder WPL W10388653 $24.52

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $90.46

2

COVER, UNIT WPL W10624563 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $13.64

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $9.35

4

W10482373 Whirlpool Refrigerator Jumper Wire In Stock WPL W10482373 $86.94

4

W11650036 Whirlpool Slide Backorder WPL W11650036 $247.39

4

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $81.47

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $32.24

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $60.93

5

SCREW WPL W10061370 Contact Us For Availability

5

UNIT COVER, FRONT WPL W10185625 Contact Us For Availability

6

W11565275 Whirlpool Refrigerator Water Tube Backorder WPL W11565275 $42.66

6

WPW10298179 Whirlpool Refrigerator Handle Backorder WPL WPW10298179 $232.70

6

TUBE, OIL TRAP SUCTION WPL W10306442 Contact Us For Availability

6

SKIN, DOOR WPL W10523730 Contact Us For Availability

7

2005032 Whirlpool Refrigerator Leveler Backorder WPL 2005032 $135.30

7

2316805 Whirlpool Refrigerator Door Hinge Backorder WPL 2316805 $148.24

7

2316807 Whirlpool Refrigerator Door Hinge Backorder WPL 2316807 $148.24

7

2317847 Whirlpool Refrigerator Water Tube Backorder WPL 2317847 $56.66

7

WP2268393 Whirlpool Refrigerator Heater Backorder WPL WP2268393 $118.28

8

WP1106508 Whirlpool Refrigerator Gasket In Stock WPL WP1106508 $6.17

8

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $6.32

8

WPW10214168 Whirlpool Refrigerator Nameplate Backorder WPL WPW10214168 $60.45

8

SCROLL ASSEMBLY WPL W10321092 Contact Us For Availability

8

Transformer WPL 2303033 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $65.65

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $19.00

9

W11624996 Whirlpool Refrigerator FIP Gasket In Stock WPL W11624996 $106.84

9

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $5.30

9

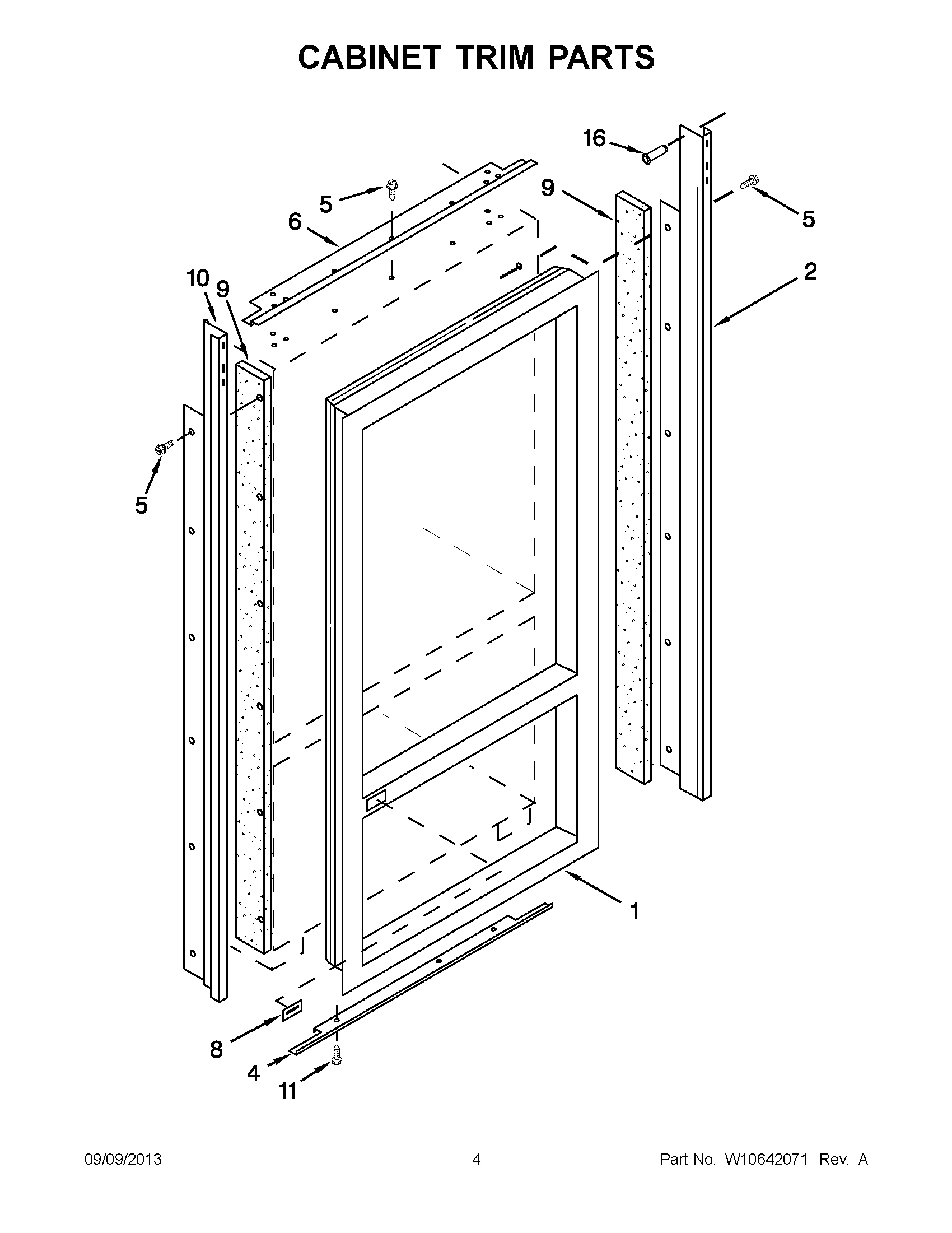

SEAL, SIDE TRIM WPL 2005925 Contact Us For Availability

9

ASSEMBLY, ICE PAN WPL 2306174 Contact Us For Availability

W11671461 Whirlpool Evaporator Motor In Stock WPL W11671461 $126.78

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $114.94

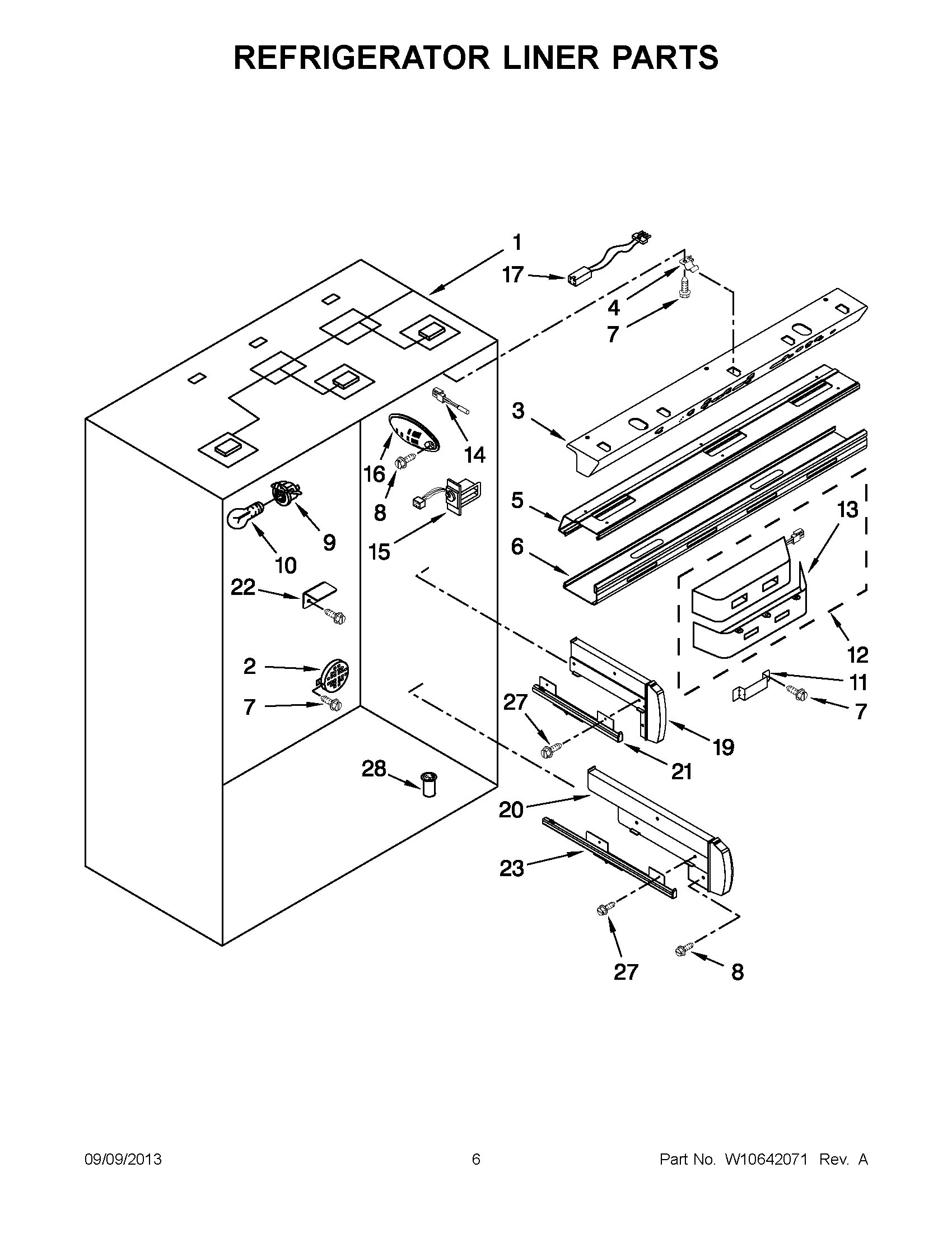

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $7.71

Filler, Foam WPL 2327469 Contact Us For Availability

W11177574 Whirlpool Refrigerator Screw Backorder WPL W11177574 $8.89

W11671527 Whirlpool Retainer Assembly Backorder WPL W11671527 $13.91

WPW10427079-includeCORE Whirlpool WPW10427079 Backorder WPL WPW10427079-includeCORE $345.87

SWITCH ASSEMBLY, ICE MAKER WPL W10321131 Contact Us For Availability

SHIELD, VALVE ELECTRICAL WPL W10129653 Contact Us For Availability

W10127710 Whirlpool Refrigerator Plate Backorder WPL W10127710 $15.88

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $24.18

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $5.02

WPW10168981 Whirlpool Refrigerator Handle Stu Backorder WPL WPW10168981 $11.69

Diffuser Assembly WPL 2320523 Contact Us For Availability

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $65.00

WP2221231 Whirlpool Refrigerator Shield Backorder WPL WP2221231 $65.03

WPW10298244 Whirlpool Refrigerator Handle Backorder WPL WPW10298244 $231.12

TUBE, DISCHARGE ASSEMBLY WPL W10404239 Contact Us For Availability

Duct, Air Flow (Icemaker) WPL 2317006 Contact Us For Availability

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $19.90

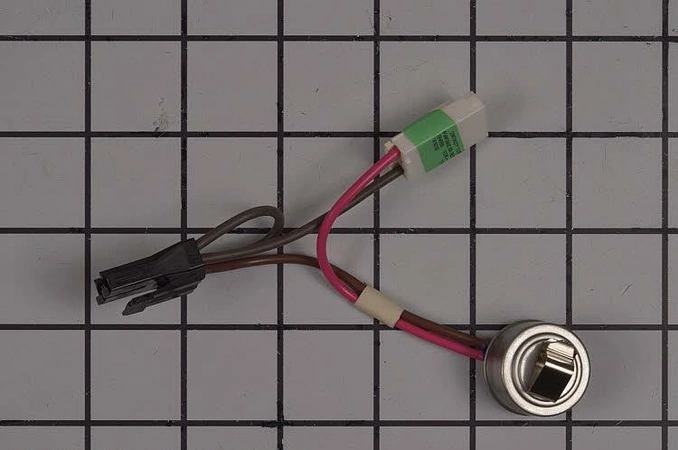

W10482185 Whirlpool Refrigerator Wire Harness Backorder WPL W10482185 $162.16

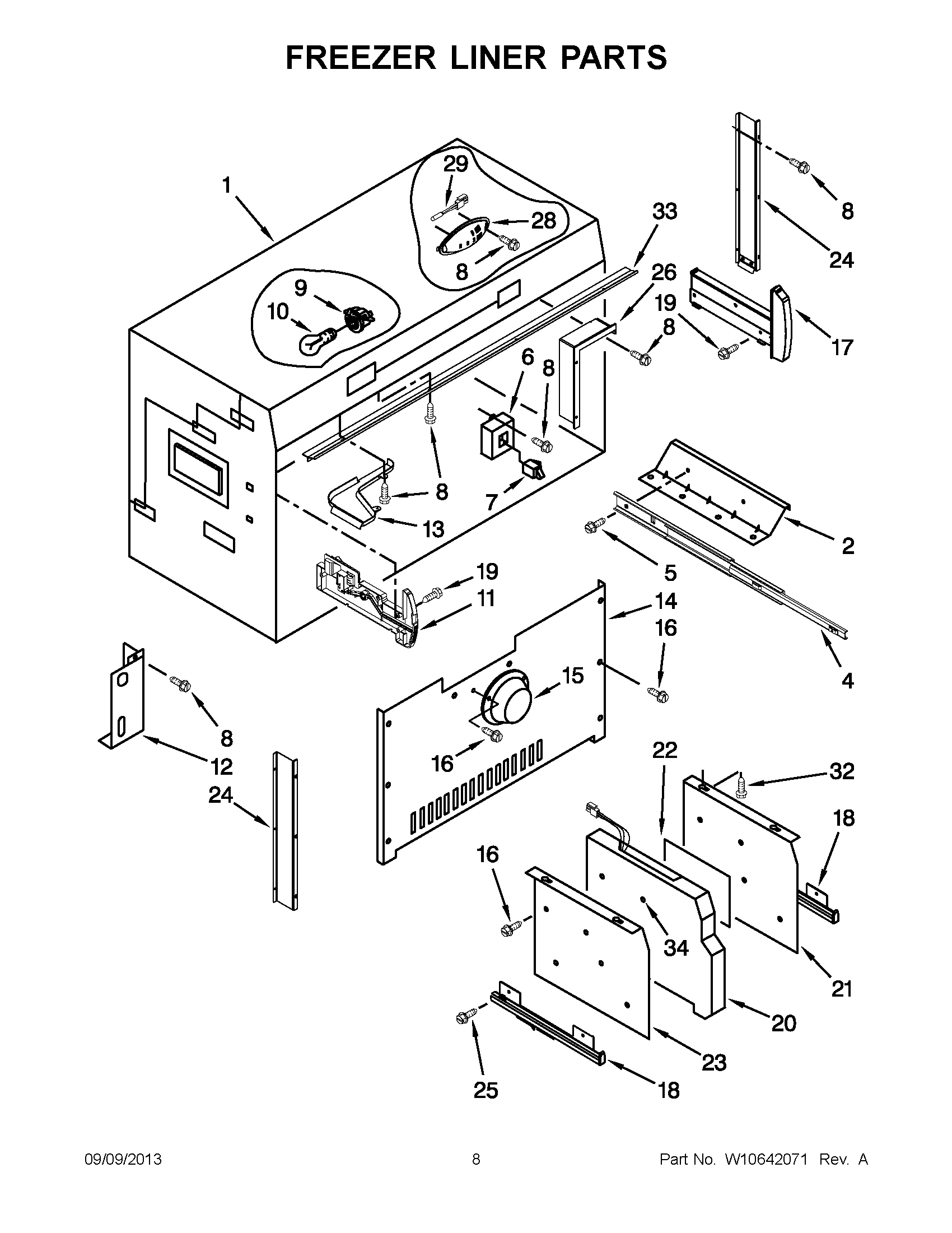

Cover, Evaporator WPL 2268380 Contact Us For Availability

SPACER, DOOR SIDE EDGE WPL 2300026 Contact Us For Availability

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $13.24

WP2221296 Whirlpool Air Baffle In Stock WPL WP2221296 $198.86

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WPW10195923 Whirlpool Refrigerator Evaporator Backorder WPL WPW10195923 $211.02

SPACER, DOOR-SKIN (WHITE) WPL 2300024 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

W10331955 Whirlpool Clamp Backorder WPL W10331955 $6.50

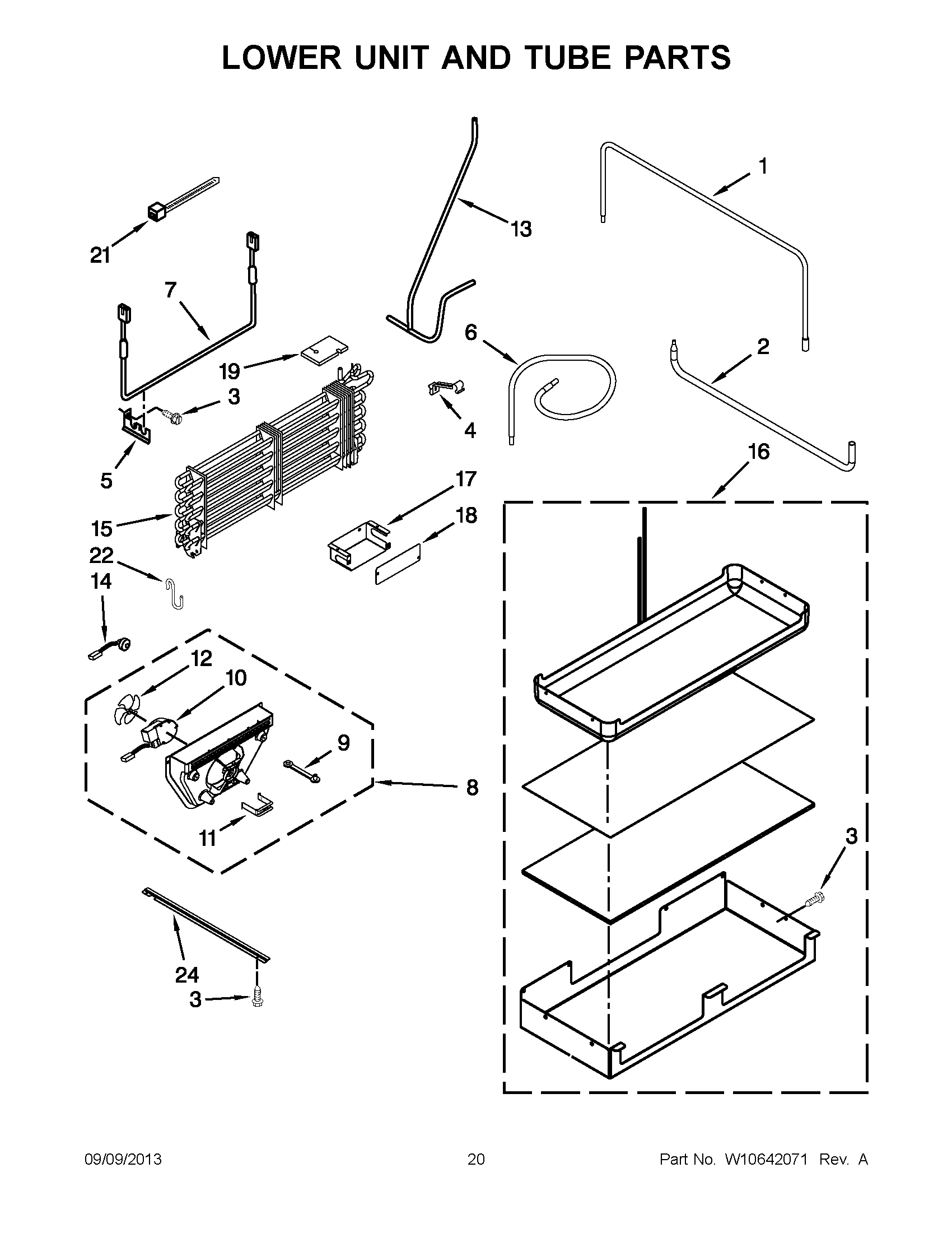

W10591457 Whirlpool Refrigerator Condenser Backorder WPL W10591457 $164.17

W11623101 Whirlpool Heater-Pan Backorder WPL W11623101 $235.26

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $4.82

2207470 Whirlpool Refrigerator Hinge Shim Backorder WPL 2207470 $36.39

2306106 Whirlpool Refrigerator Track Backorder WPL 2306106 $11.76

2310164 Whirlpool Refrigerator Wire Harness Backorder WPL 2310164 $86.94

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $9.35

W10508673 Whirlpool Refrigerator Wire Harness In Stock WPL W10508673 $86.94

2257644 Whirlpool Refrigerator Door Hinge Backorder WPL 2257644 $123.12

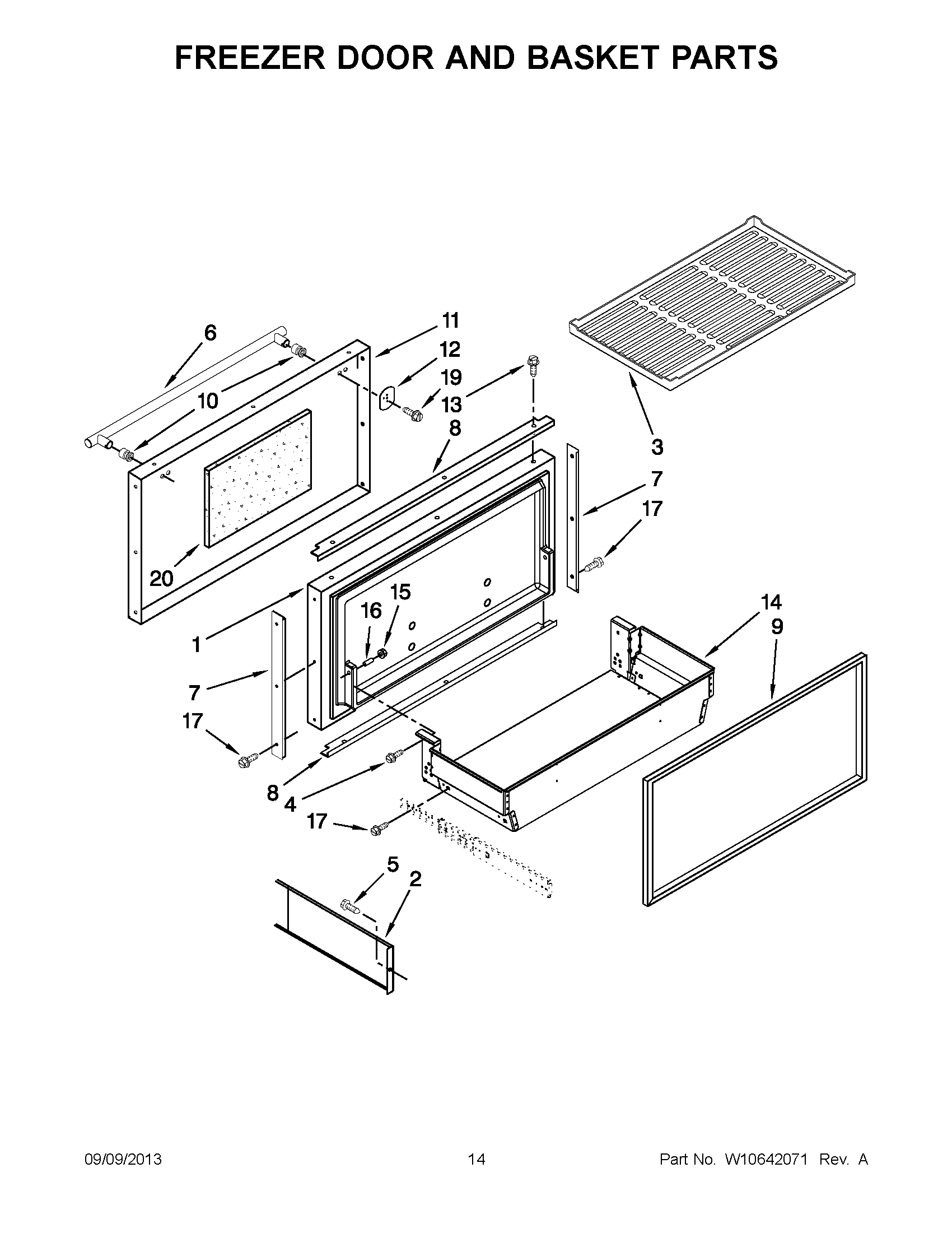

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $224.88

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $202.84

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $7.51

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

W10279393 Whirlpool Refrigerator Wire Harness Backorder WPL W10279393 $108.44

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $19.11

WP308544 Whirlpool Screw In Stock WPL WP308544 $4.82

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $3.49

20

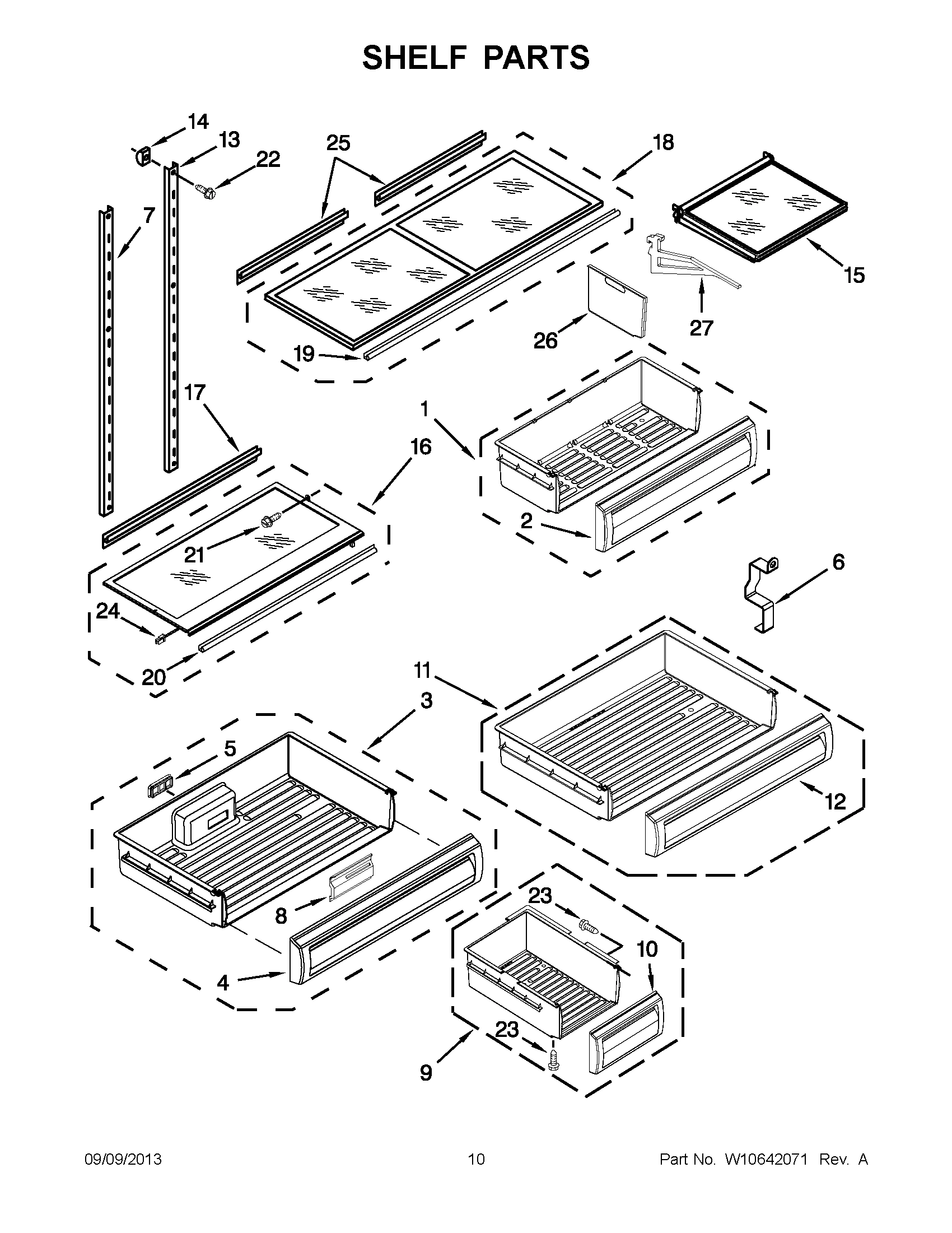

W10323749 Whirlpool Refrigerator Cantilever B Backorder WPL W10323749 $90.41

20

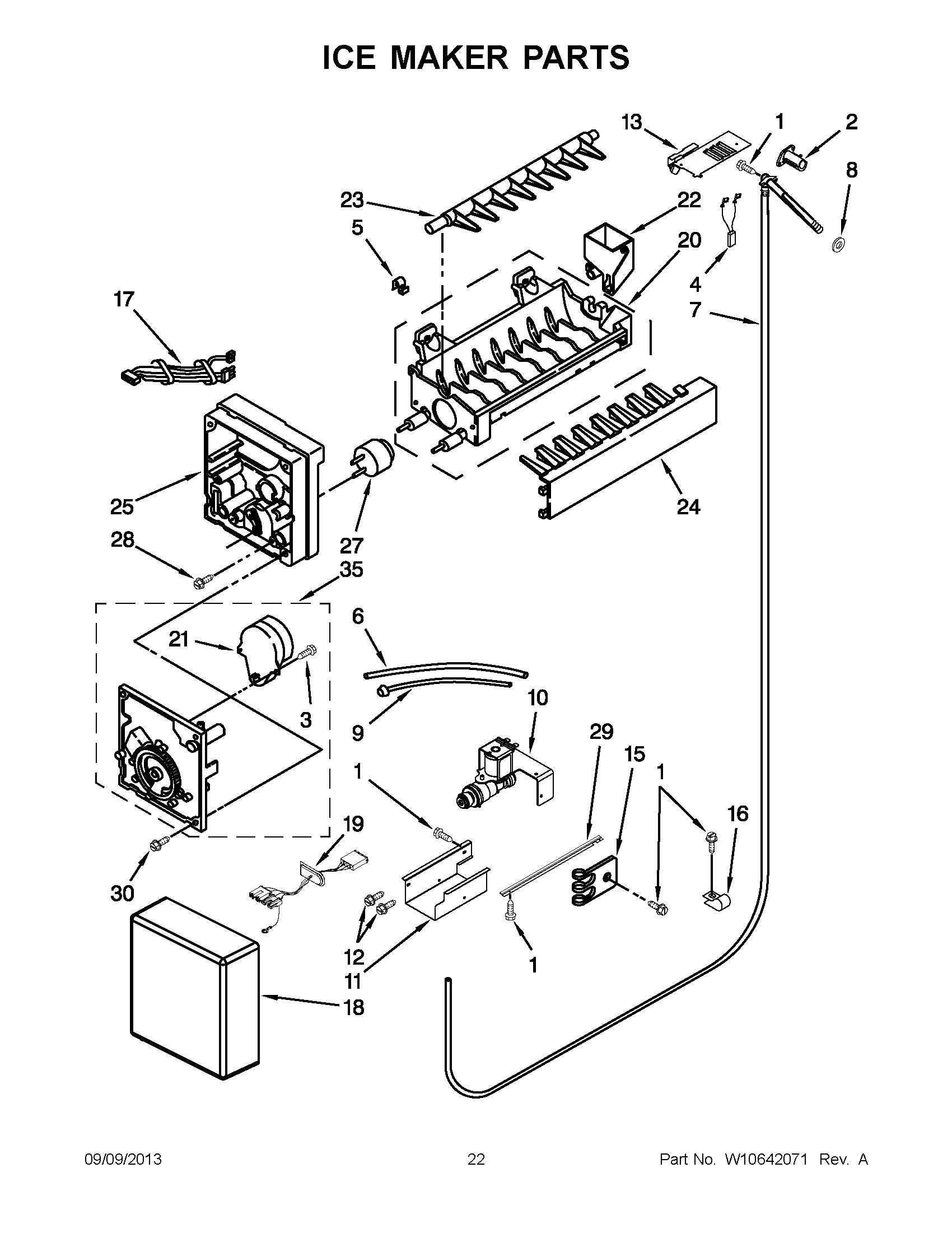

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

20

DIVIDER, FREEZER BINS WPL W10290822 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $63.40

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $231.54

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $231.78

W10716209 Whirlpool Refrigerator Support Backorder WPL W10716209 $36.94

W11590561 Whirlpool Refrigerator Cantilever B Backorder WPL W11590561 $58.78

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $20.37

W11676540 Whirlpool Refrigerator Cup Fill Backorder WPL W11676540 $13.58

SHIELD WPL 2317927 Contact Us For Availability

LID, UTILITY WPL 2309255 Contact Us For Availability

2302956 Whirlpool Refrigerator Slide In Stock WPL 2302956 $217.43

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $166.20

W11578915 Whirlpool Condenser Motor In Stock WPL W11578915 $60.03

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $63.89

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $126.34

SUPPORT, SLIDE (LEFT HAND) WPL 2306105 Contact Us For Availability

RAIL, UTILITY WPL 2309256 Contact Us For Availability

2309257 Whirlpool Gasket Backorder WPL 2309257 $52.71

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $66.33

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $48.87

BRACKET, EVAPORATOR COVER (LEFT HAND) WPL 2320512 Contact Us For Availability

BRACKET, EVAPORATOR COVER (RIGHT HAND) WPL 2327339 Contact Us For Availability

25

W10323044 Whirlpool Refrigerator Cantilever B Backorder WPL W10323044 $85.32

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

25

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

26

WPW10323172 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323172 $4.82

26

WPW10323173 Whirlpool Refrigerator Retainer E Backorder WPL WPW10323173 $4.82

26

Bracket, Air Return WPL 2317902 Contact Us For Availability

27

W10187549 Whirlpool Refrigerator Support Backorder WPL W10187549 $207.46

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $40.09

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.89

W10001280 Whirlpool Refrigerator Screw Backorder WPL W10001280 $5.85

W11755873 Whirlpool Bracket Backorder WPL W11755873 $50.40

WP2317844 Whirlpool Refrigerator Cover Backorder WPL WP2317844 $7.52

SPACER, DOOR-SKIN (WHITE) WPL 2300023 Contact Us For Availability

29

2005101 Whirlpool Refrigerator Bottom Hinge Backorder WPL 2005101 $62.84

29

2320559 Whirlpool Bracket Backorder WPL 2320559 $64.63

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $34.20

30

W10624944 Whirlpool Refrigerator Tube In Stock WPL W10624944 $20.76

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.49

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $25.40

32

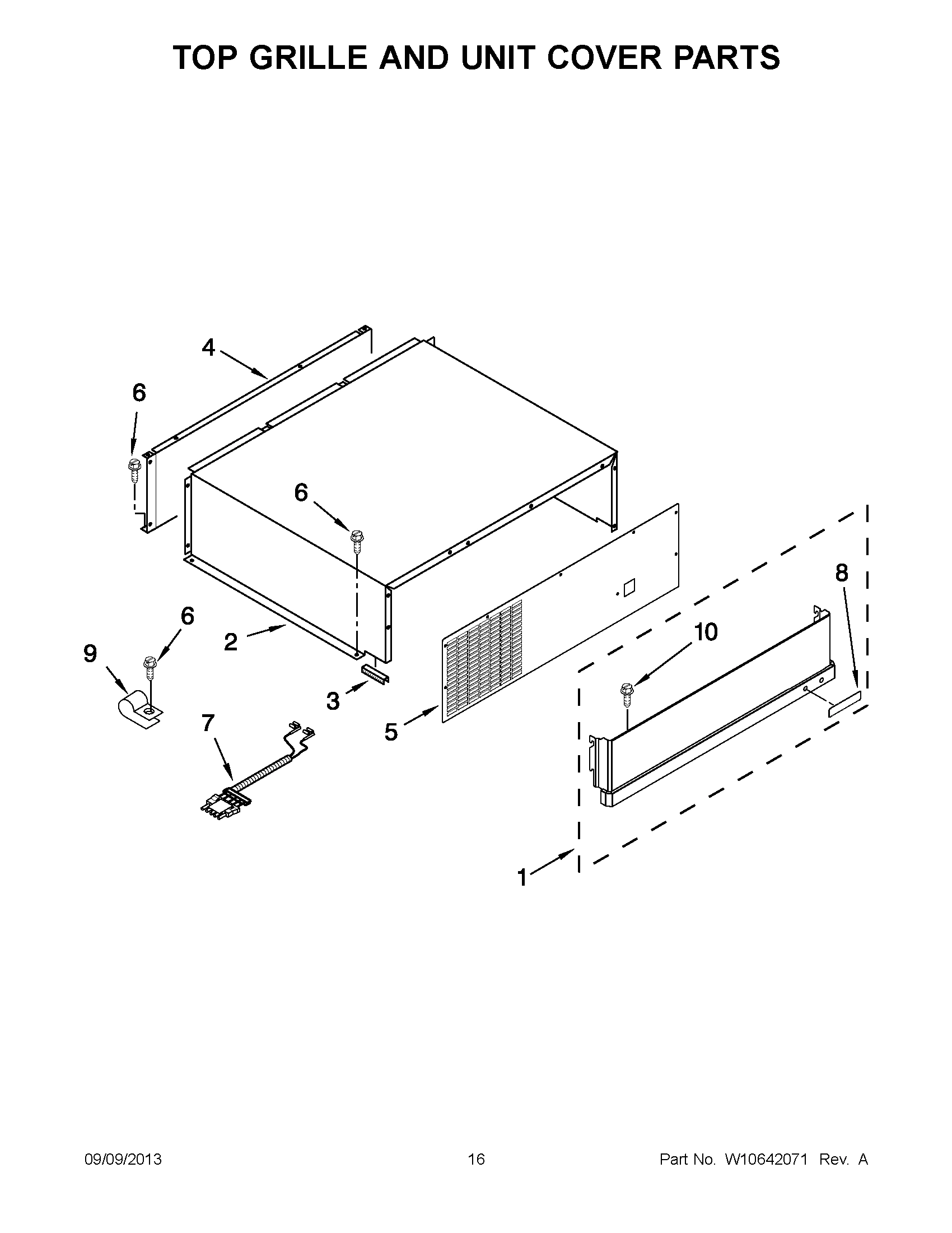

WP2209024B Whirlpool Refrigerator Front Grill Backorder WPL WP2209024B $115.21

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $5.30

33

WP2006346 Whirlpool Refrigerator Washer In Stock WPL WP2006346 $6.87

33

AIR DEFLECTOR ASSEMBLY WPL W10135431 Contact Us For Availability

34

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $4.82

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $64.73

34

WP2325187B Whirlpool Refrigerator Front Grill Backorder WPL WP2325187B $125.39

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $102.30

35

W10321055 Whirlpool Refrigerator Bracket Backorder WPL W10321055 $18.65

36

W10847927 Whirlpool Refrigerator Extension Backorder WPL W10847927 $66.34

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $58.05

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $53.31

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $22.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.89

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

41

WPW10356040-includeCORE Whirlpool WPW10356040 Backorder WPL WPW10356040-includeCORE $269.85

43

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

45

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $103.52

46

W10188434 Whirlpool Refrigerator Hinge Gap Backorder WPL W10188434 $46.96

100

WPW10277450 Whirlpool Refrigerator Icemaker In Stock WPL WPW10277450 $205.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $80.02

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $67.02

VALVE, ACCESS WPL 978029 Contact Us For Availability

FOLLOWING PARTS NOT ILLUSTRATED, WPL NP Contact Us For Availability

CLEANER, STAINLESS STEEL (2 OZ) WPL 8537055 Contact Us For Availability
