Model Ipso IT120L Dryer – Common Parts & Diagrams
Interior Control Box
Exterior Control Box - RM Control Suffix

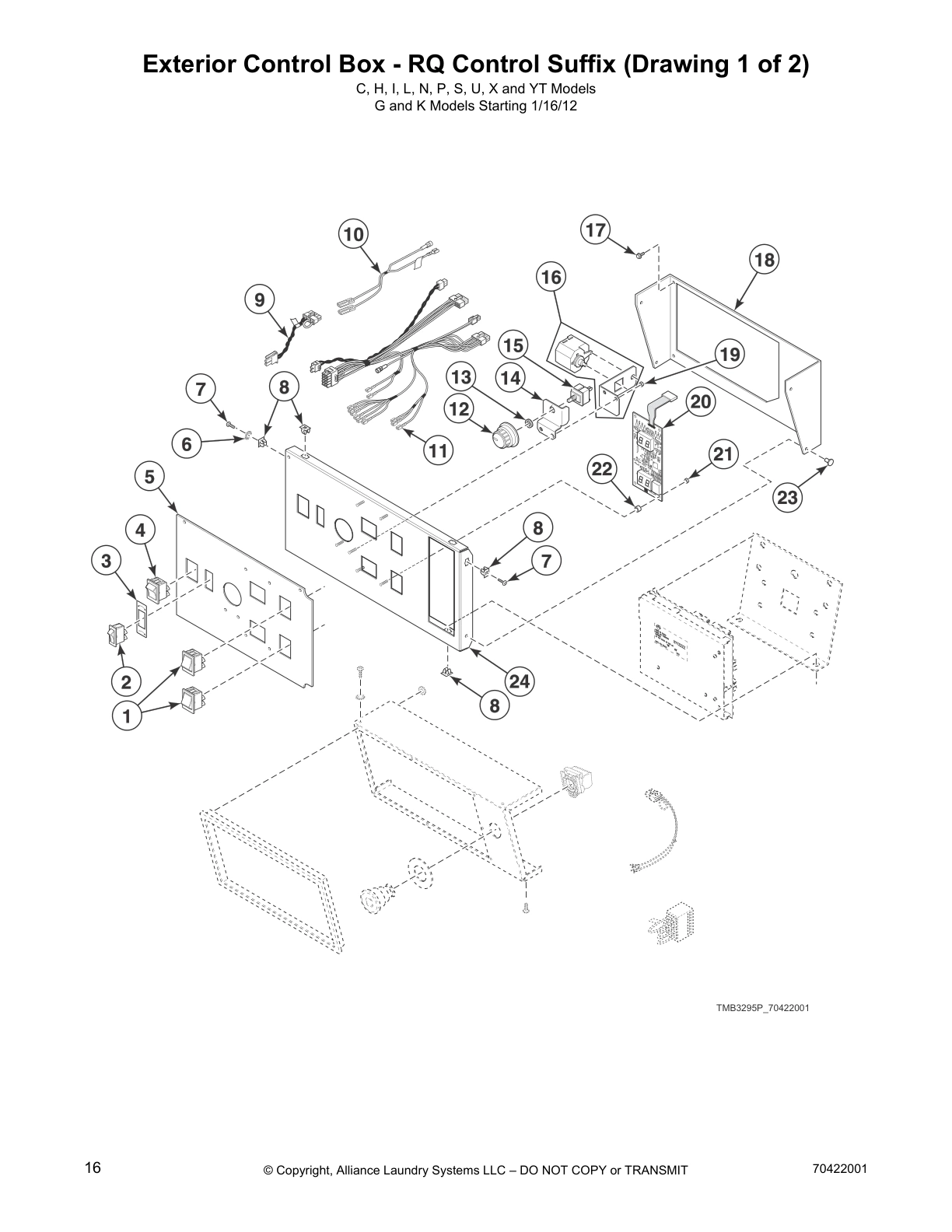

Exterior Control Box - RQ Control Suffix (Drawing 1 of 2)

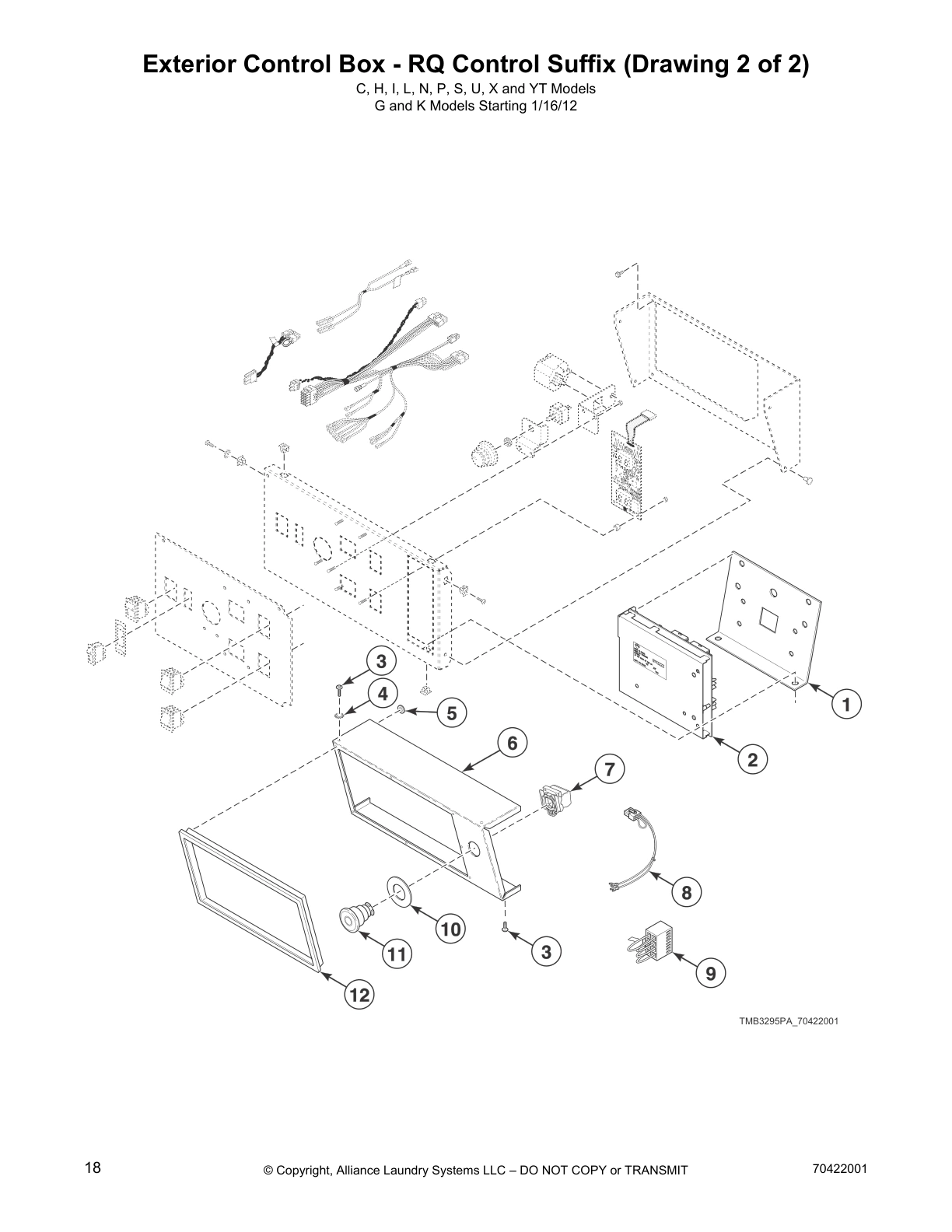

Exterior Control Box - RQ Control Suffix (Drawing 2 of 2)

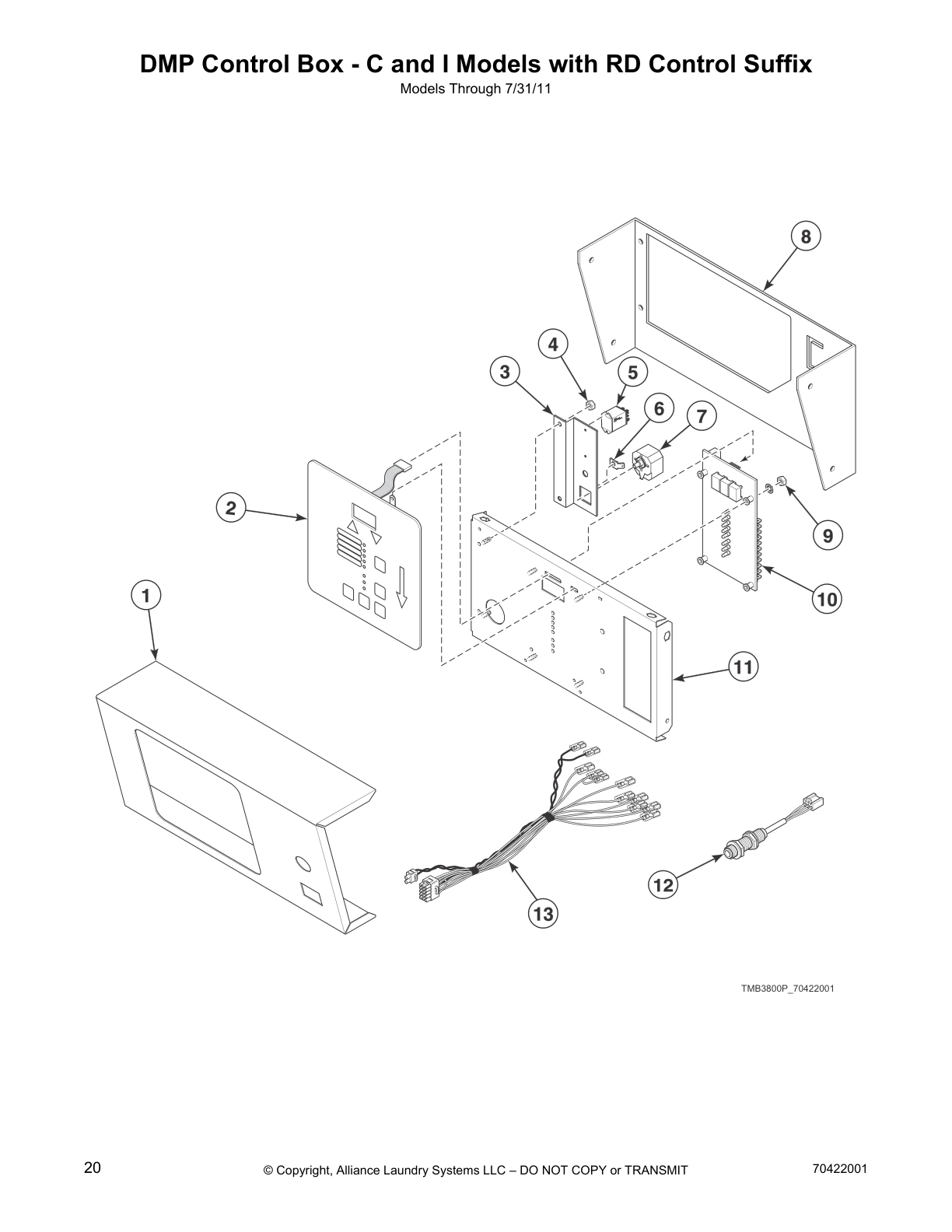

DMP Control Box - C and I Models with RD Control Suffix

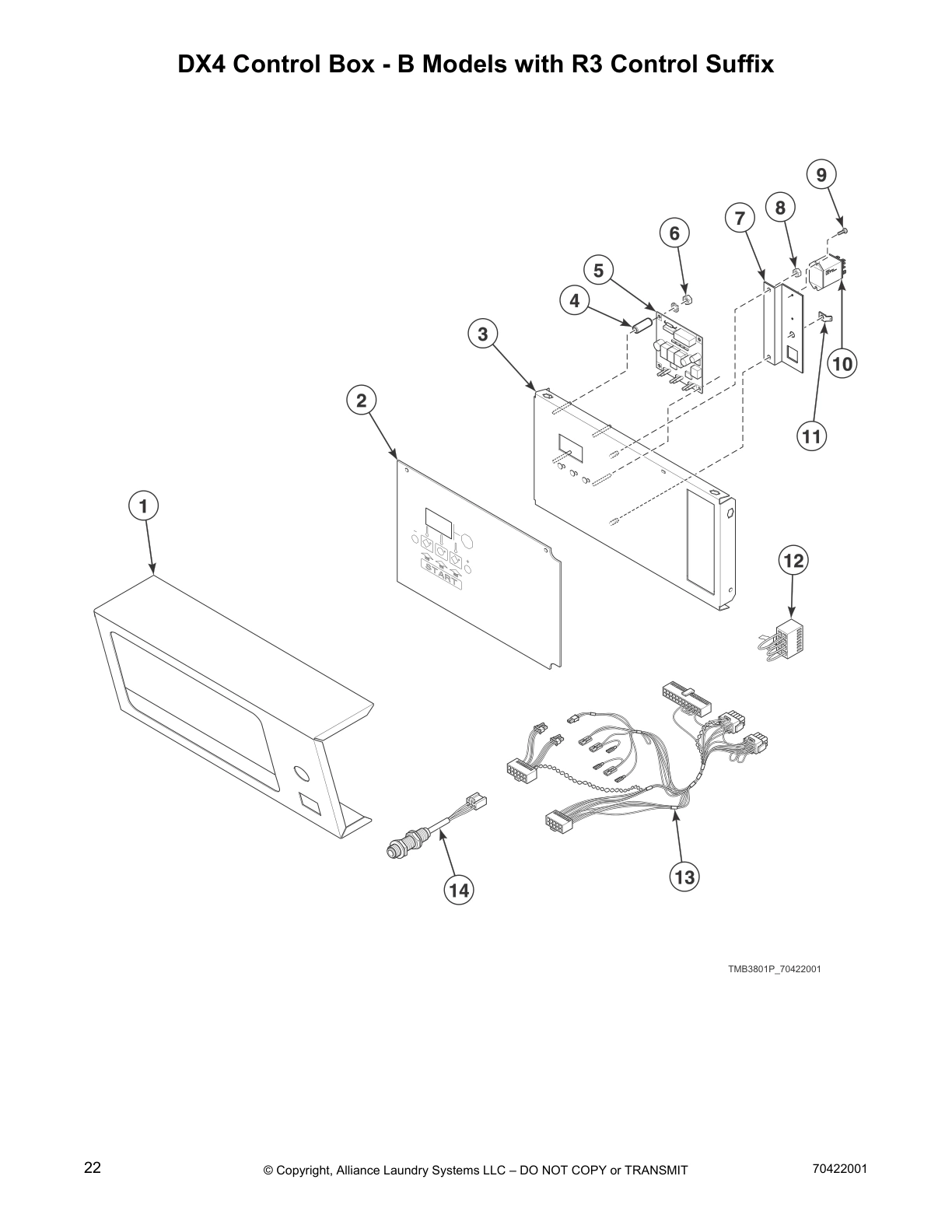

DX4 Control Box - B Models with R3 Control Suffix

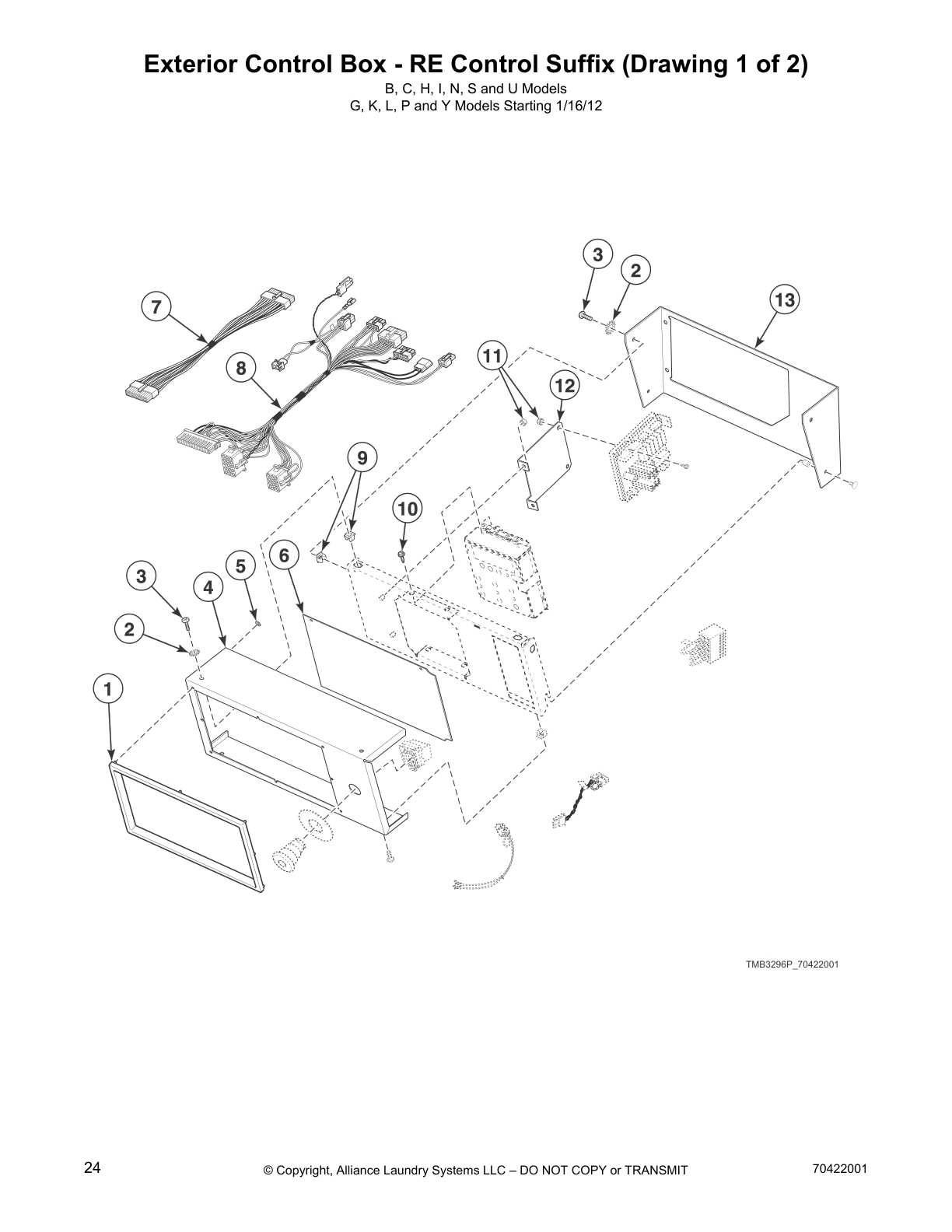

Exterior Control Box - RE Control Suffix (Drawing 1 of 2)

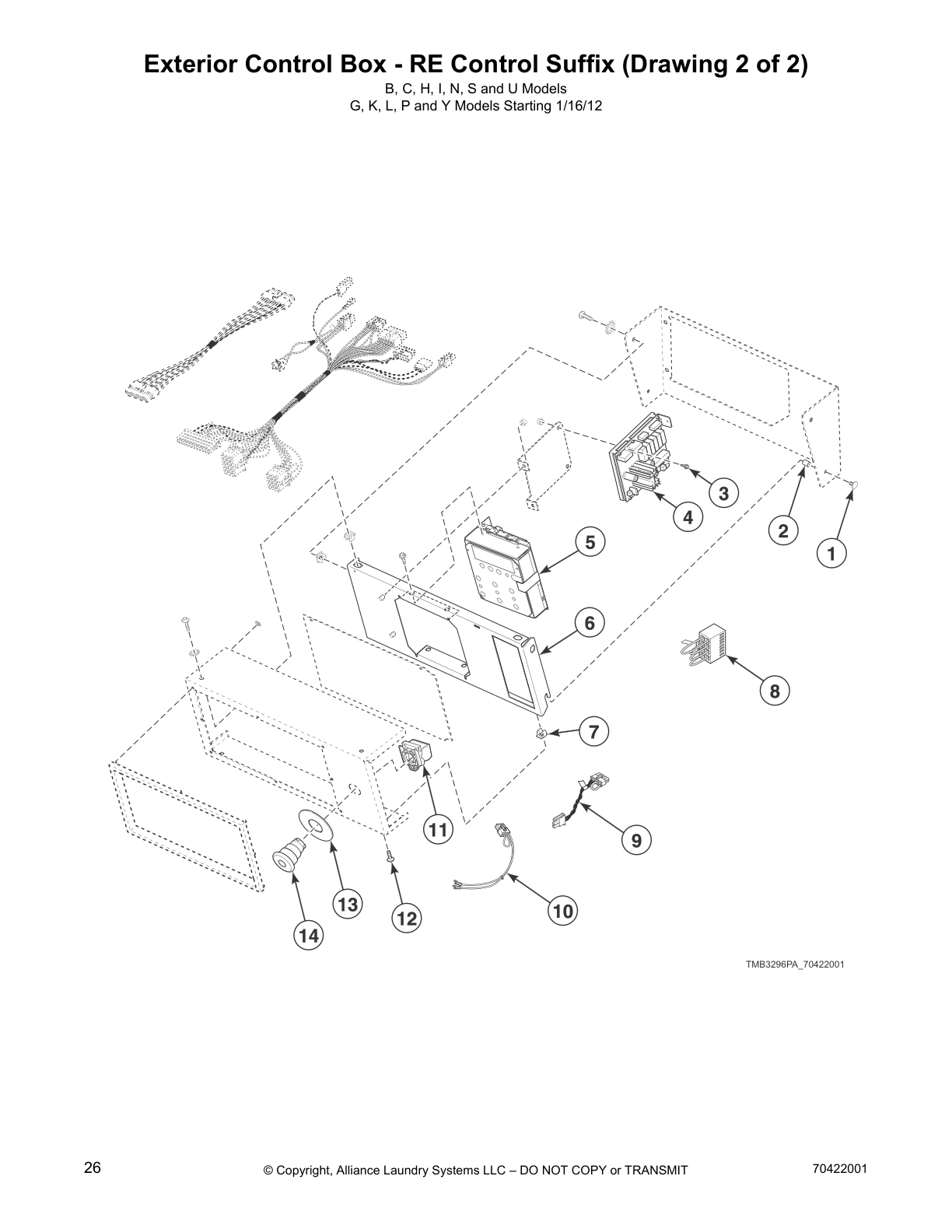

Exterior Control Box - RE Control Suffix (Drawing 2 of 2)

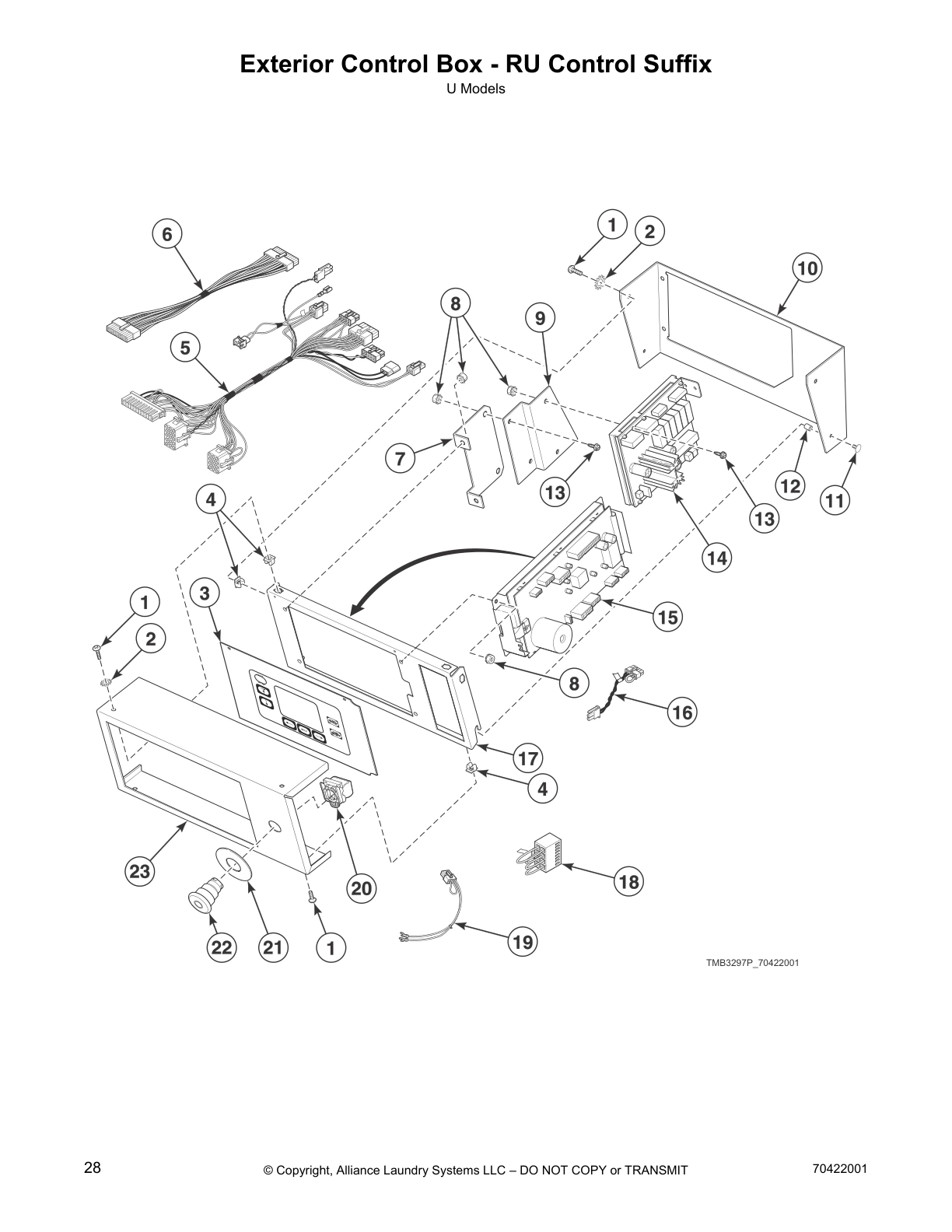

Exterior Control Box - RU Control Suffix

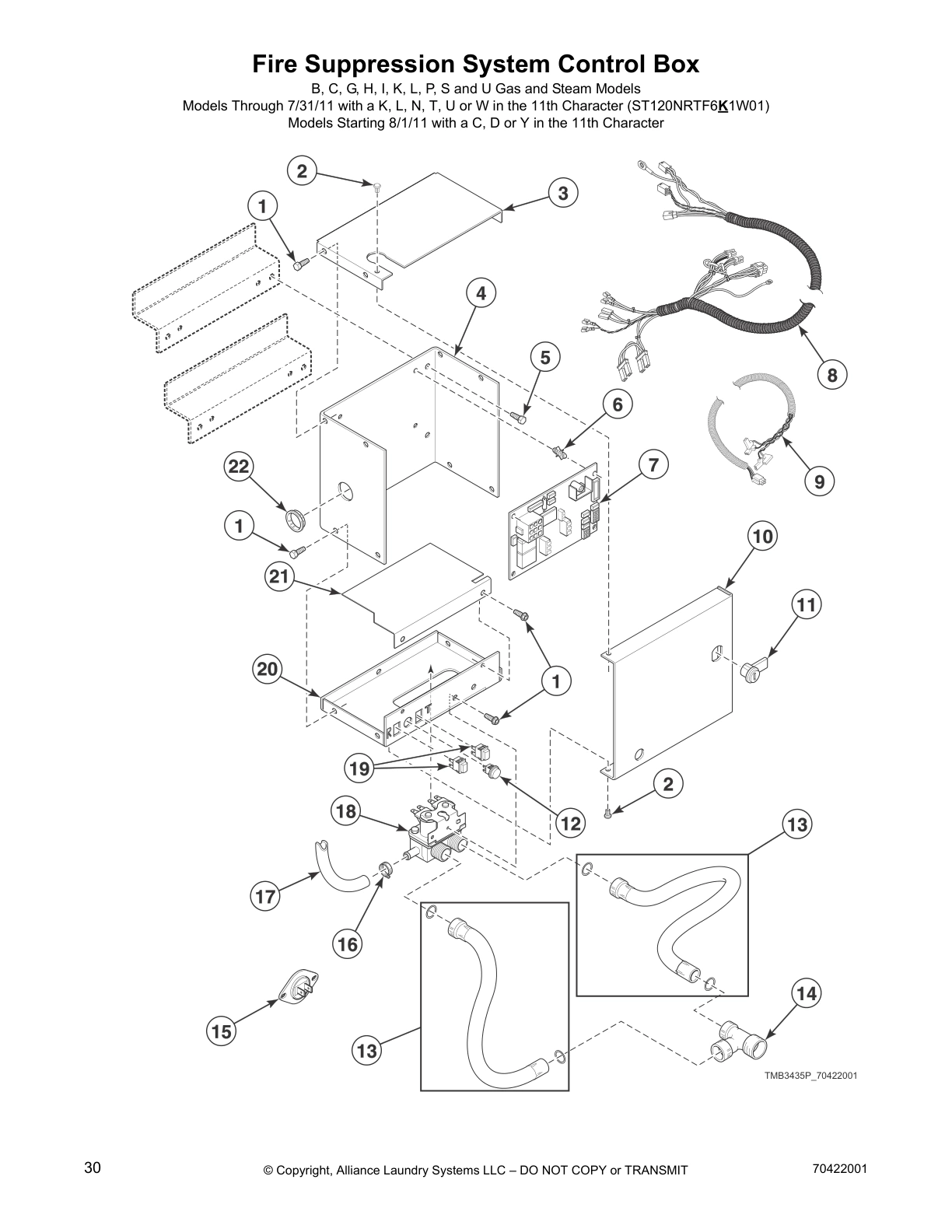

Fire Suppression System Control Box

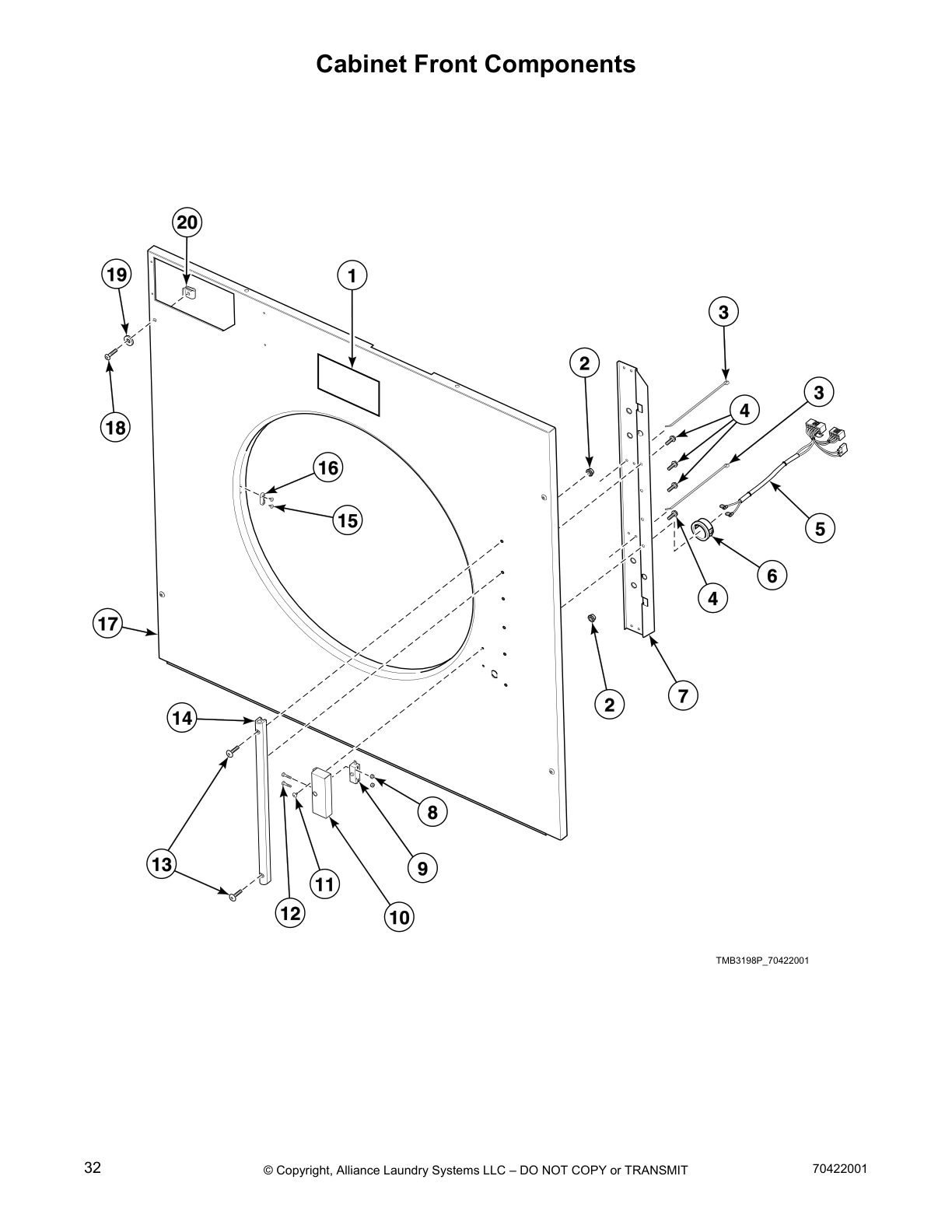

Cabinet Front Components

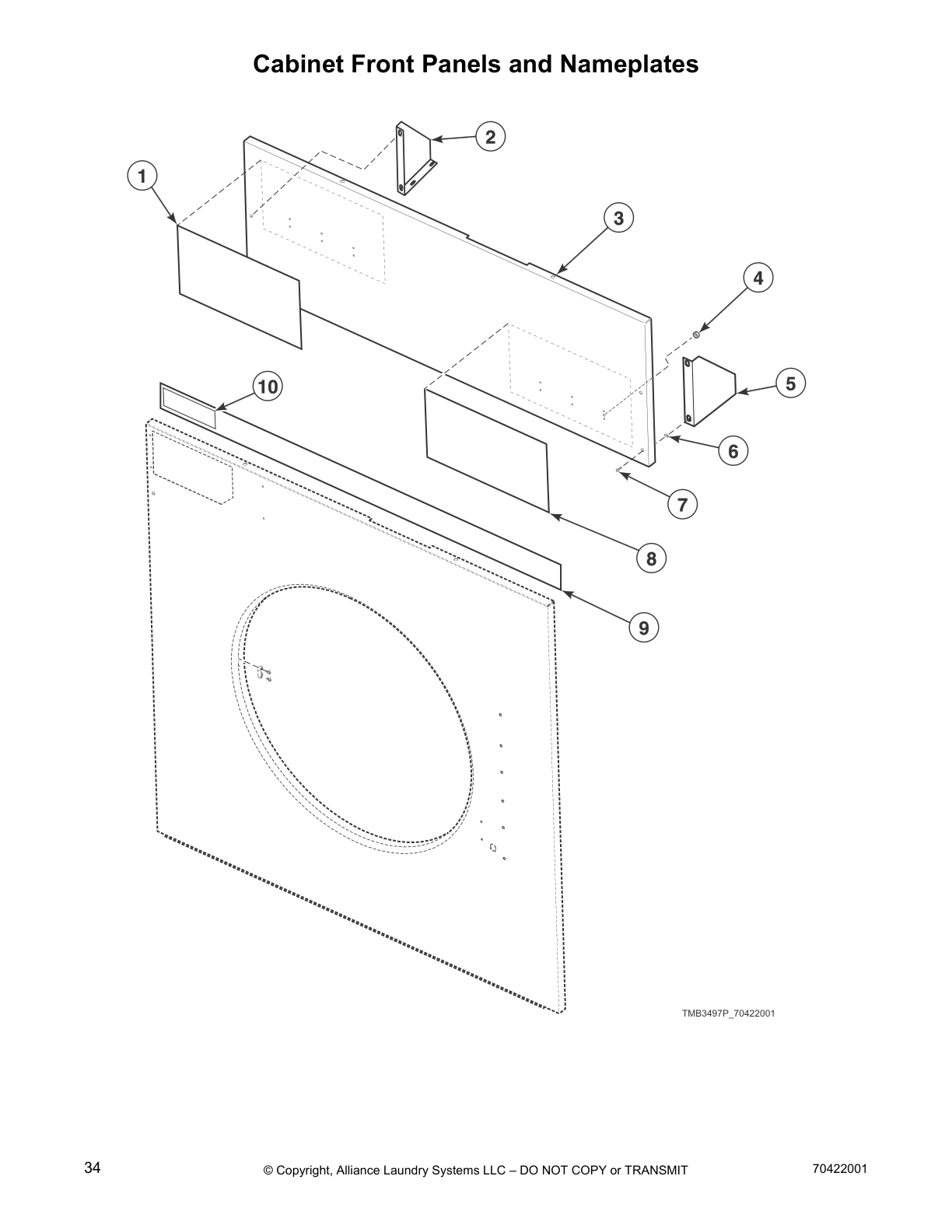

Cabinet Front Panels and Nameplates

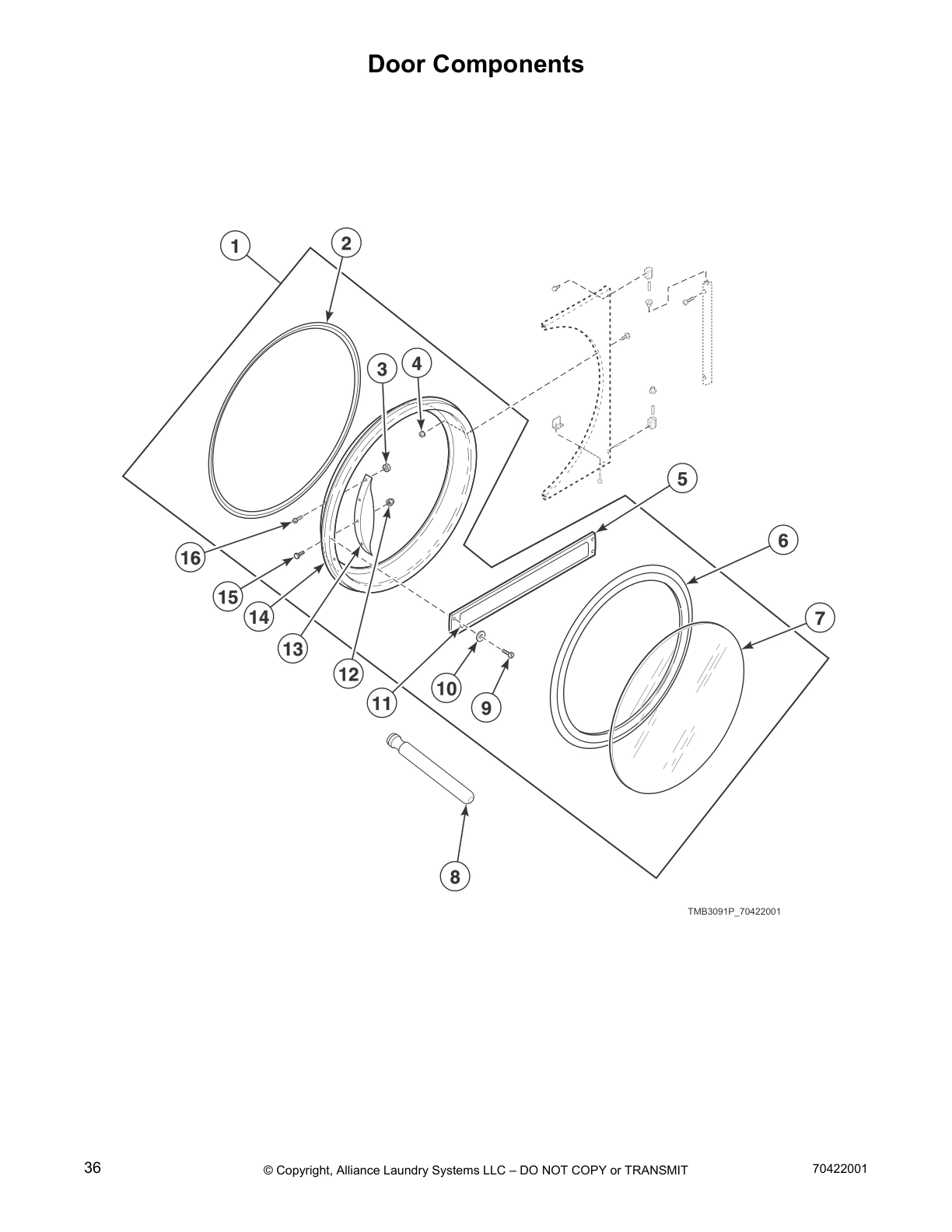

Door Components

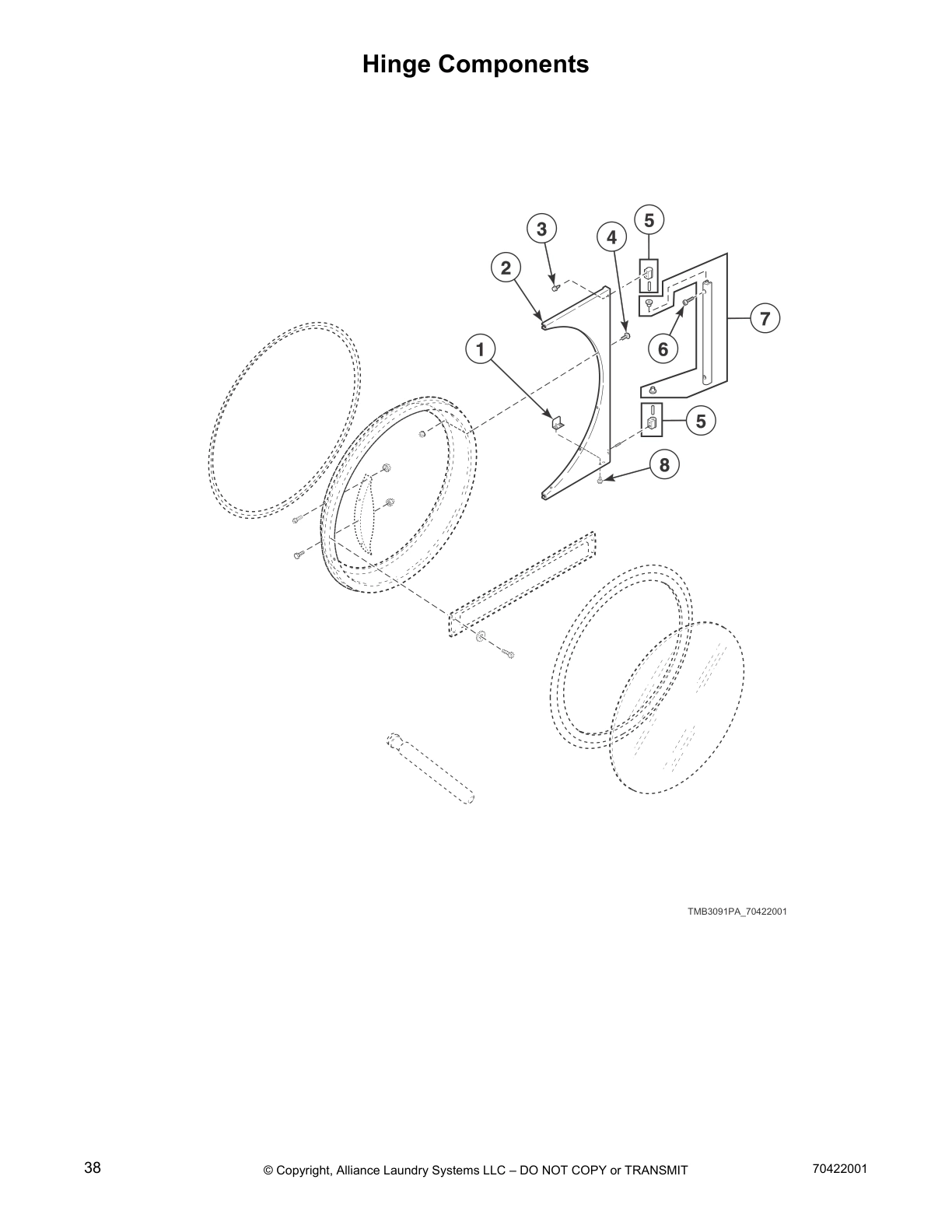

Hinge Components

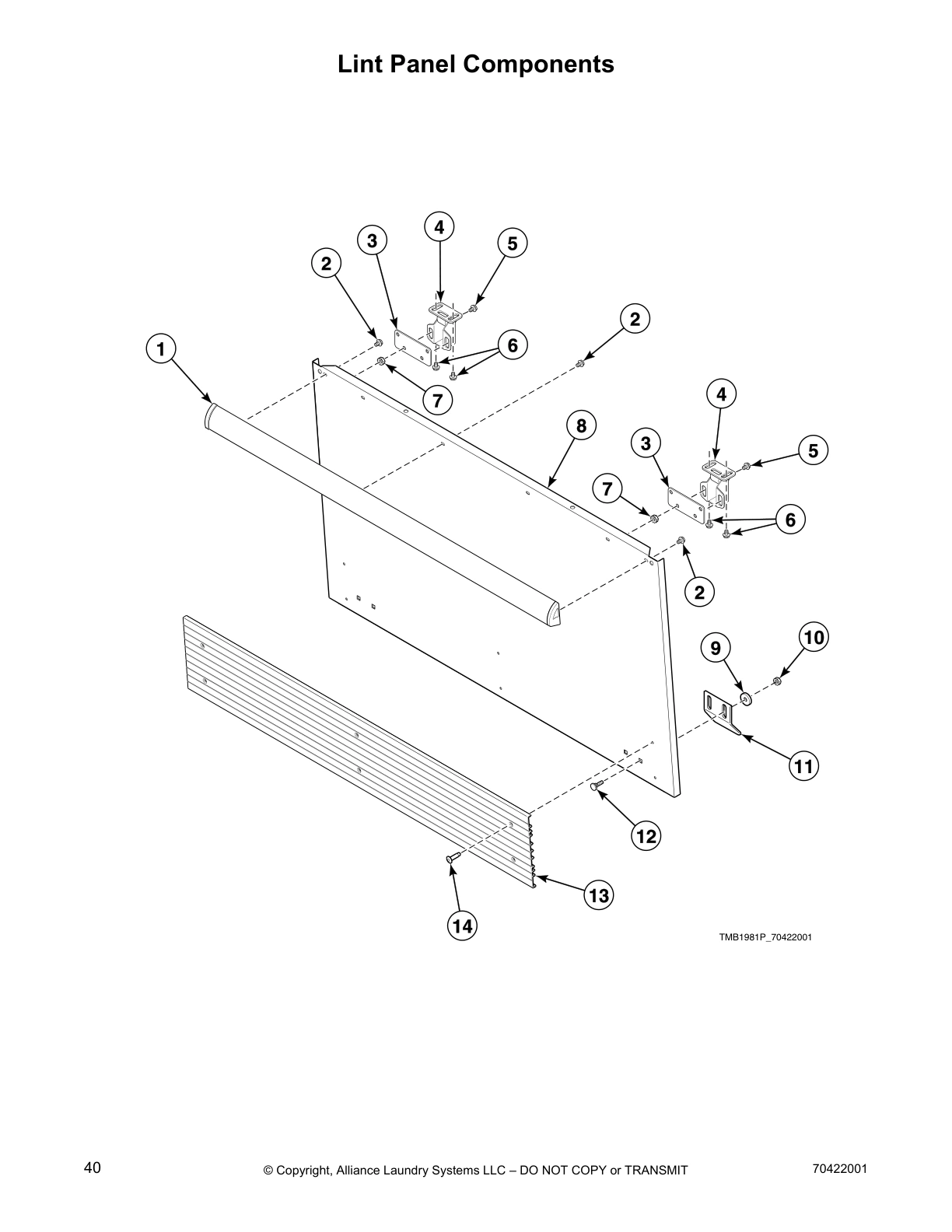

Lint Panel Components

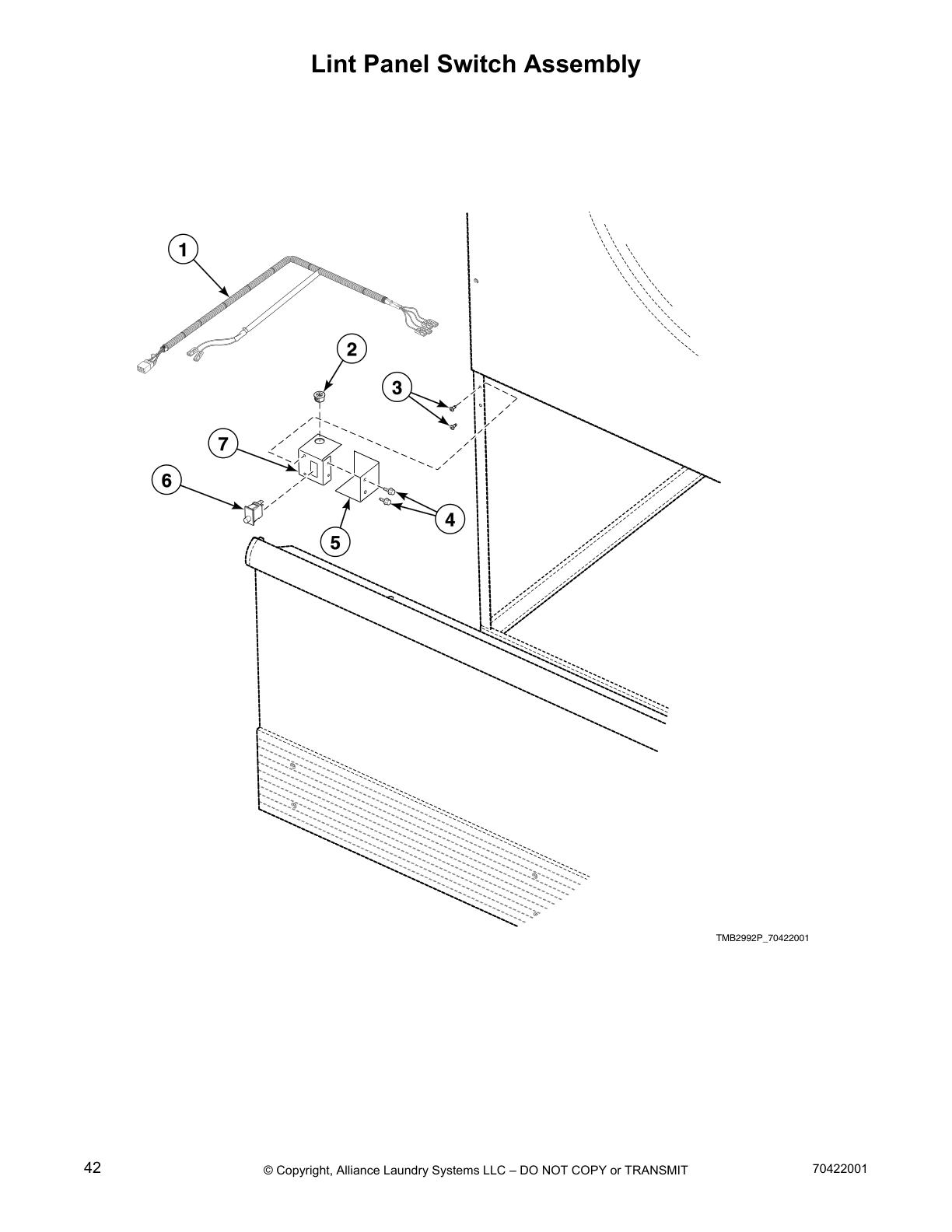

Lint Panel Switch Assembly

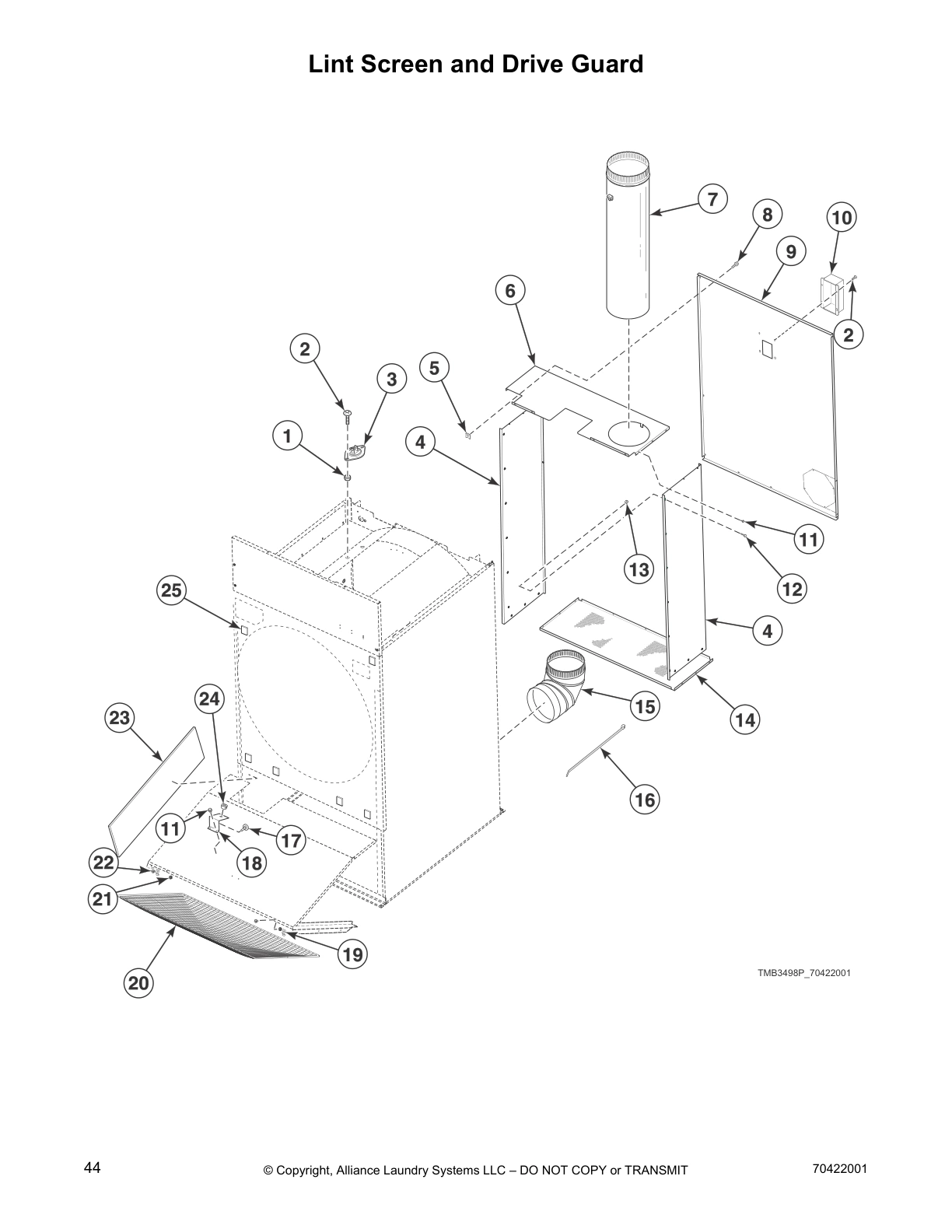

Lint Screen and Drive Guard

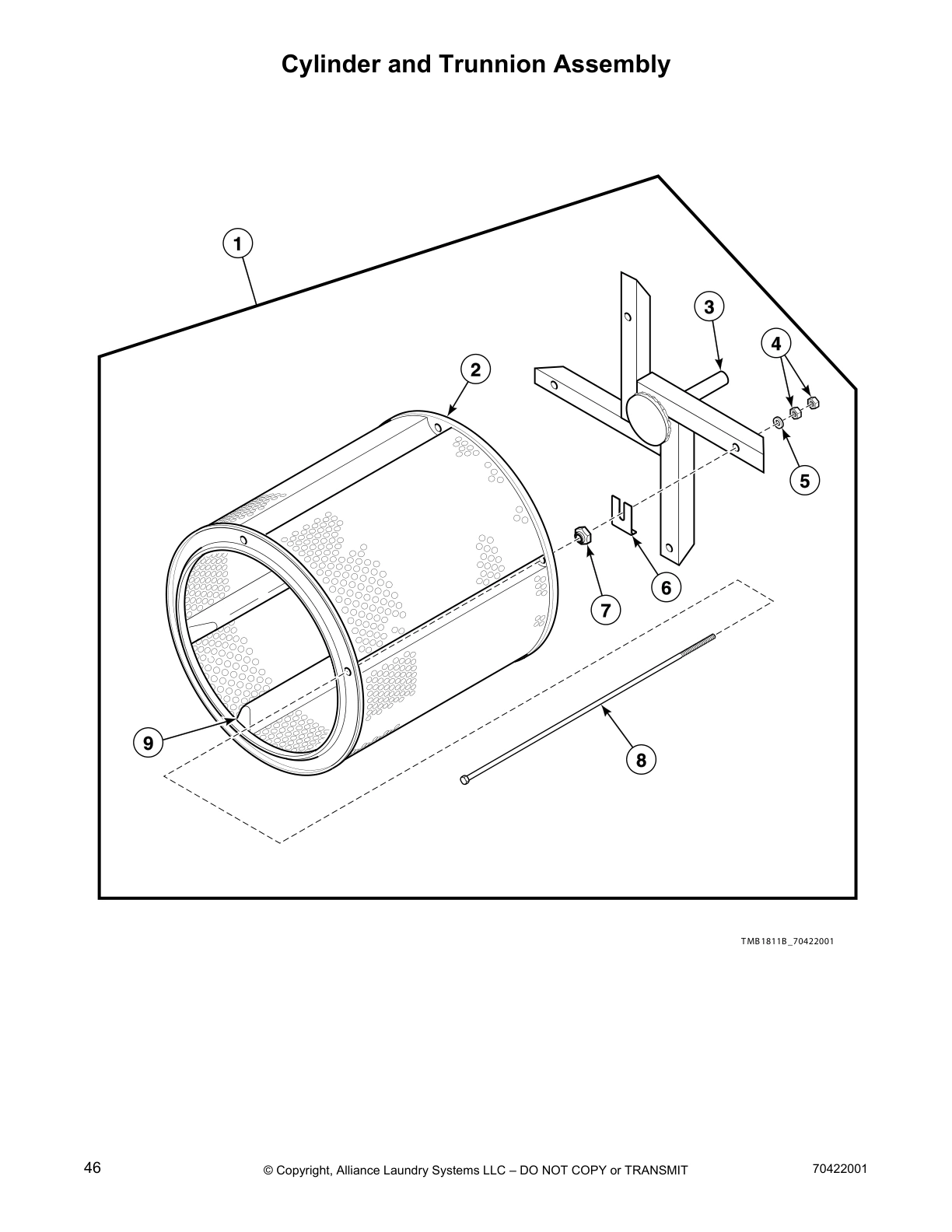

Cylinder and Trunnion Assembly

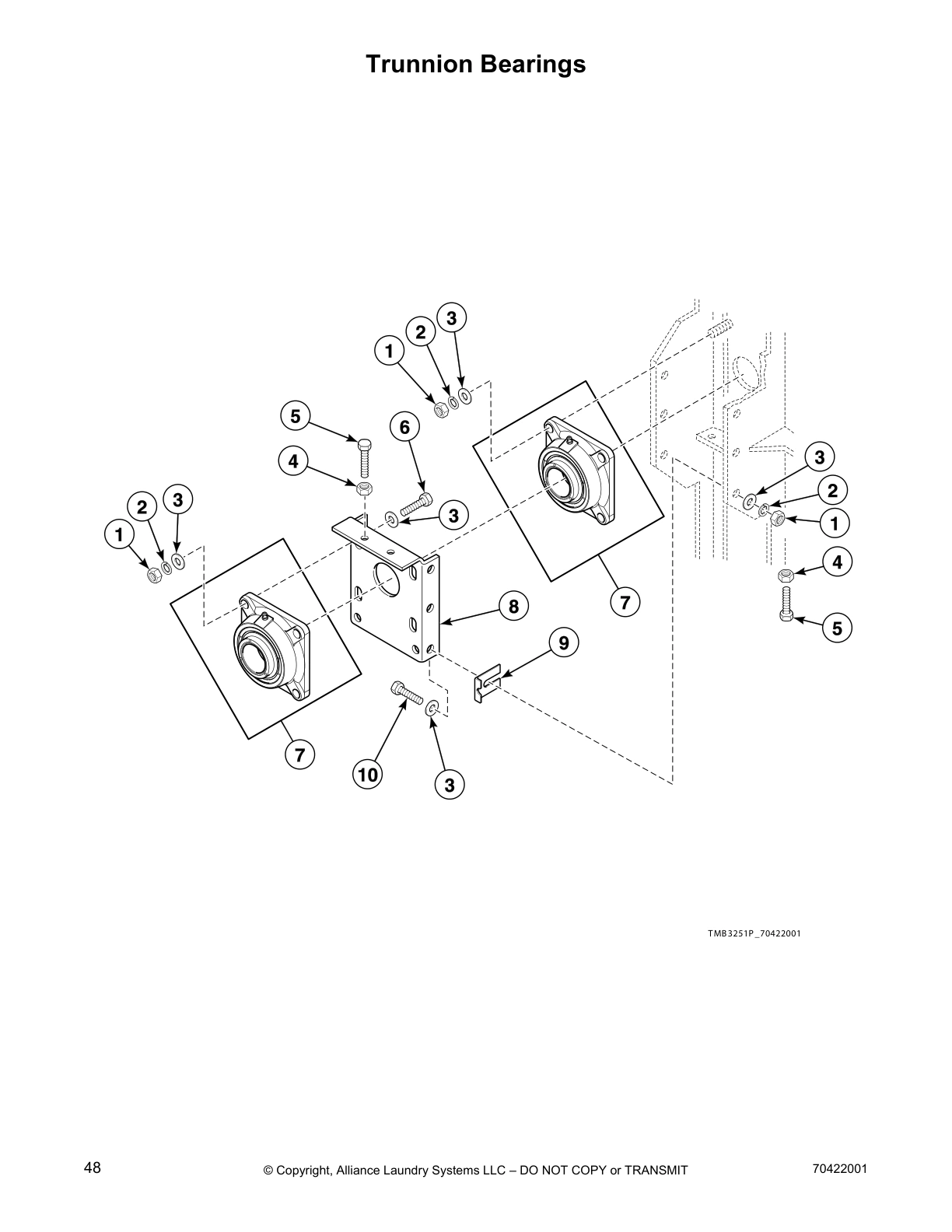

Trunnion Bearings

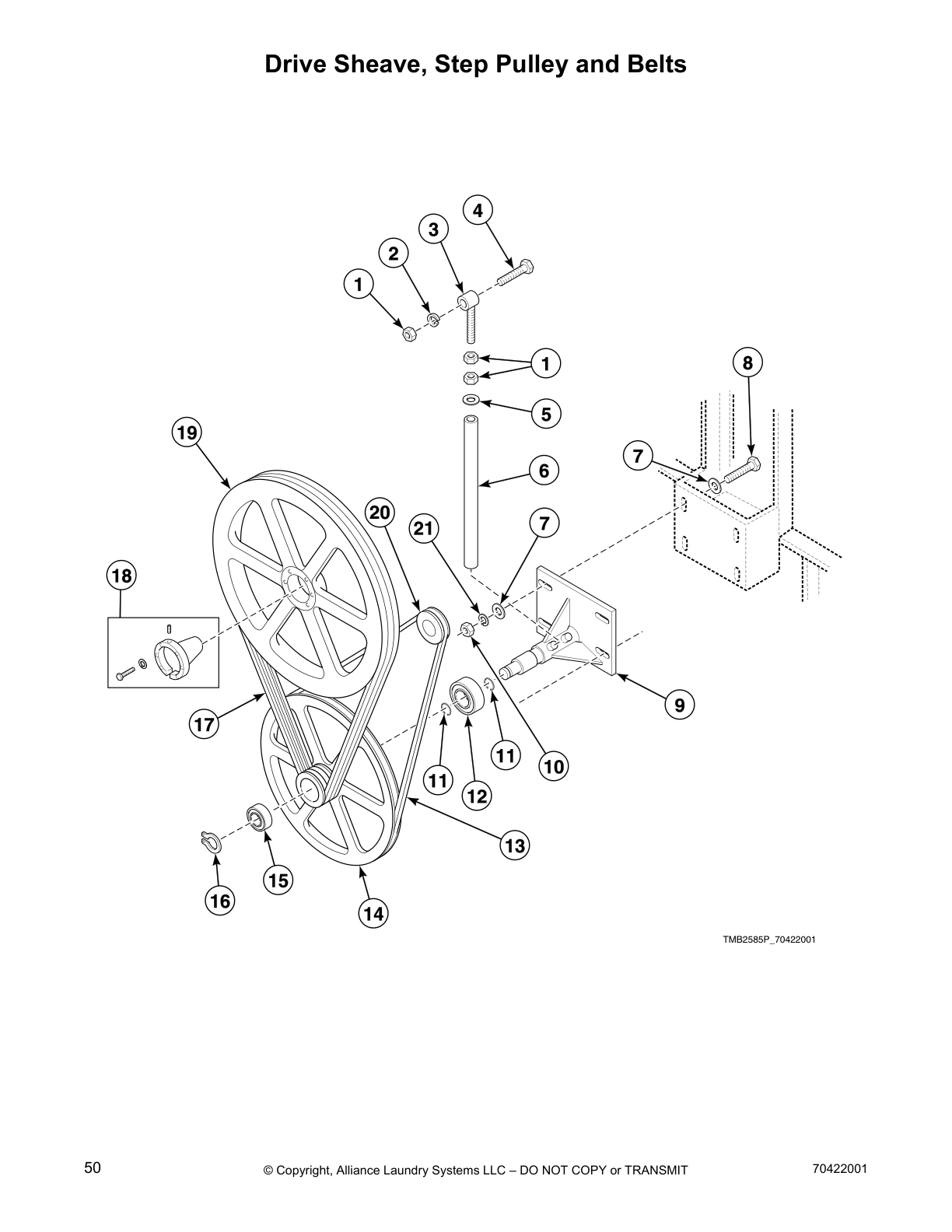

Drive Sheave, Step Pulley and Belts

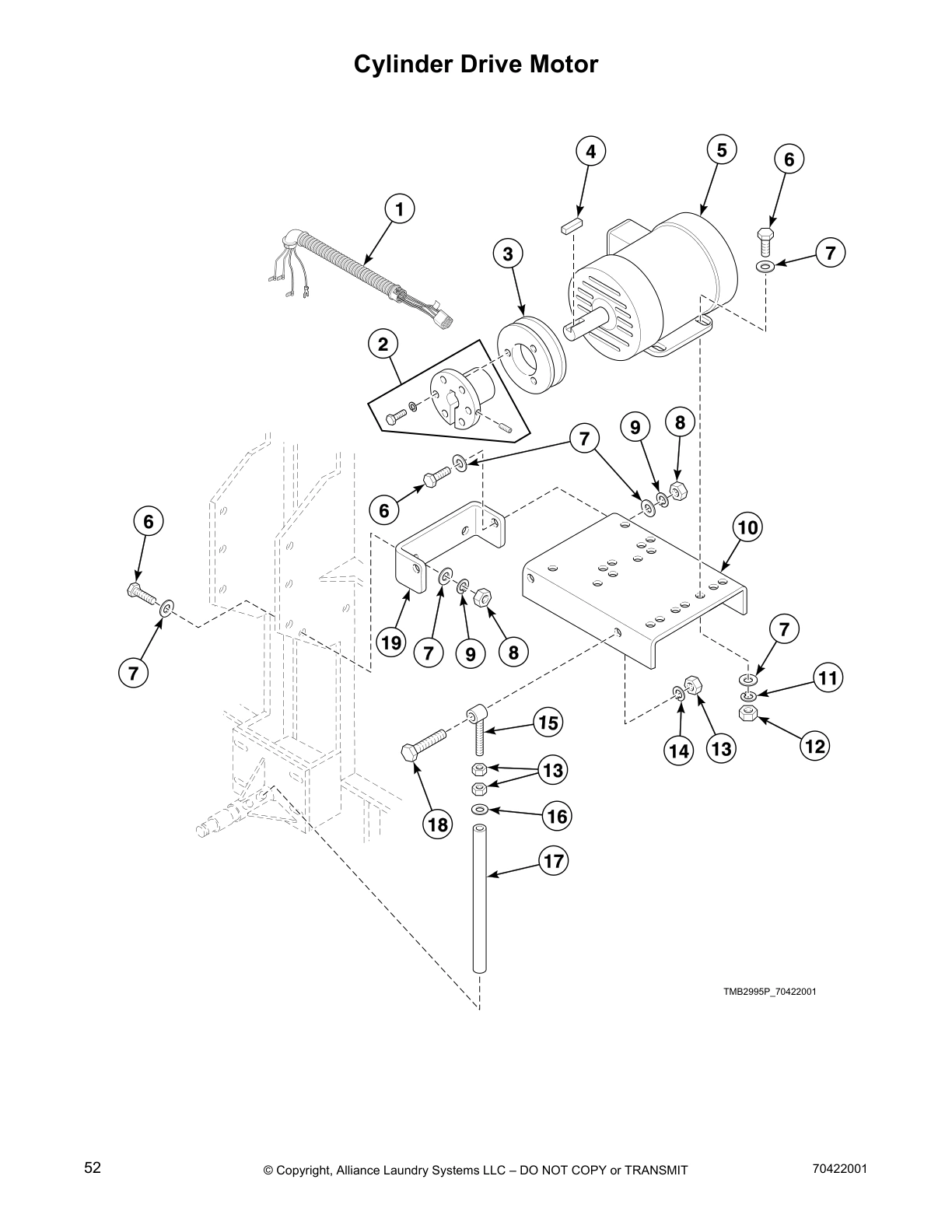

Cylinder Drive Motor

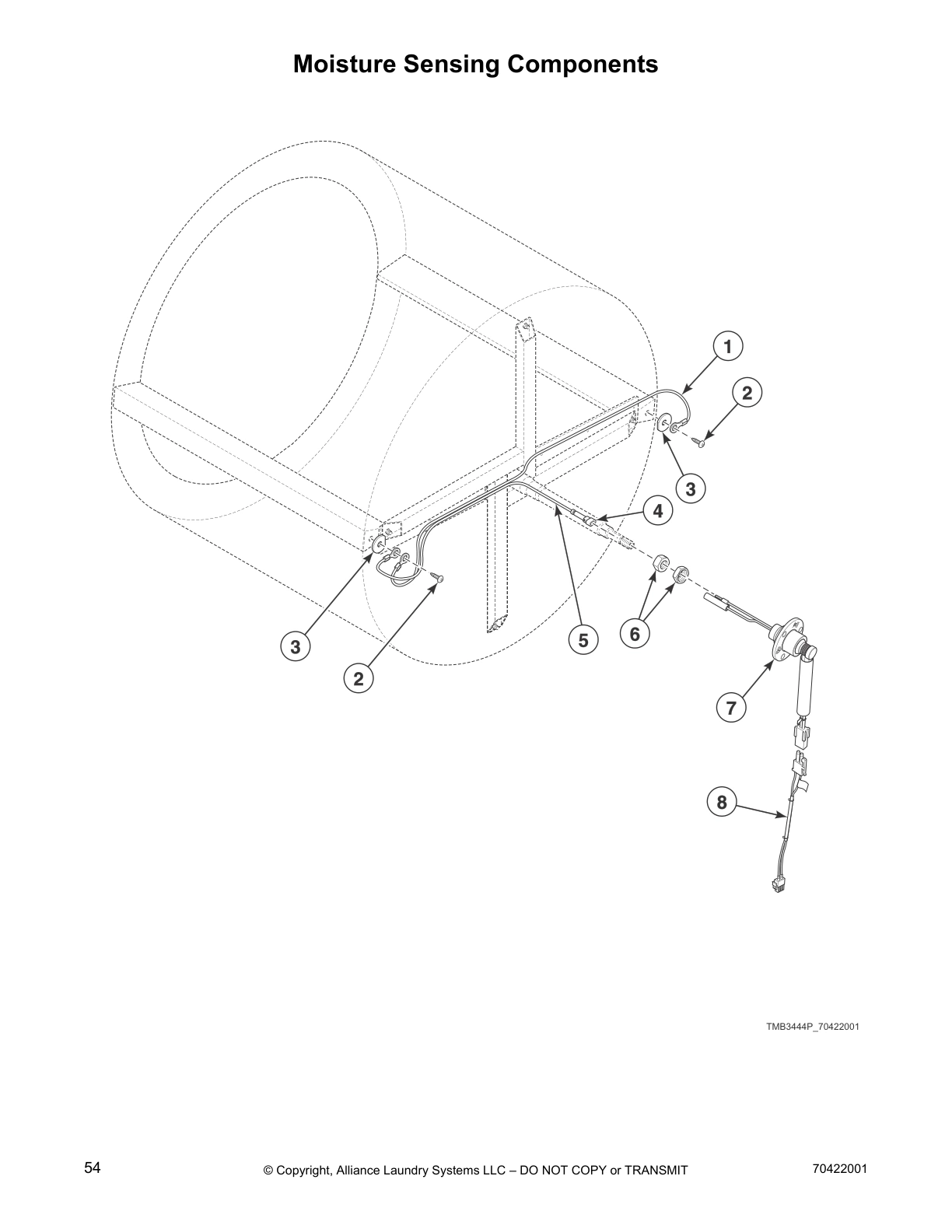

Moisture Sensing Components

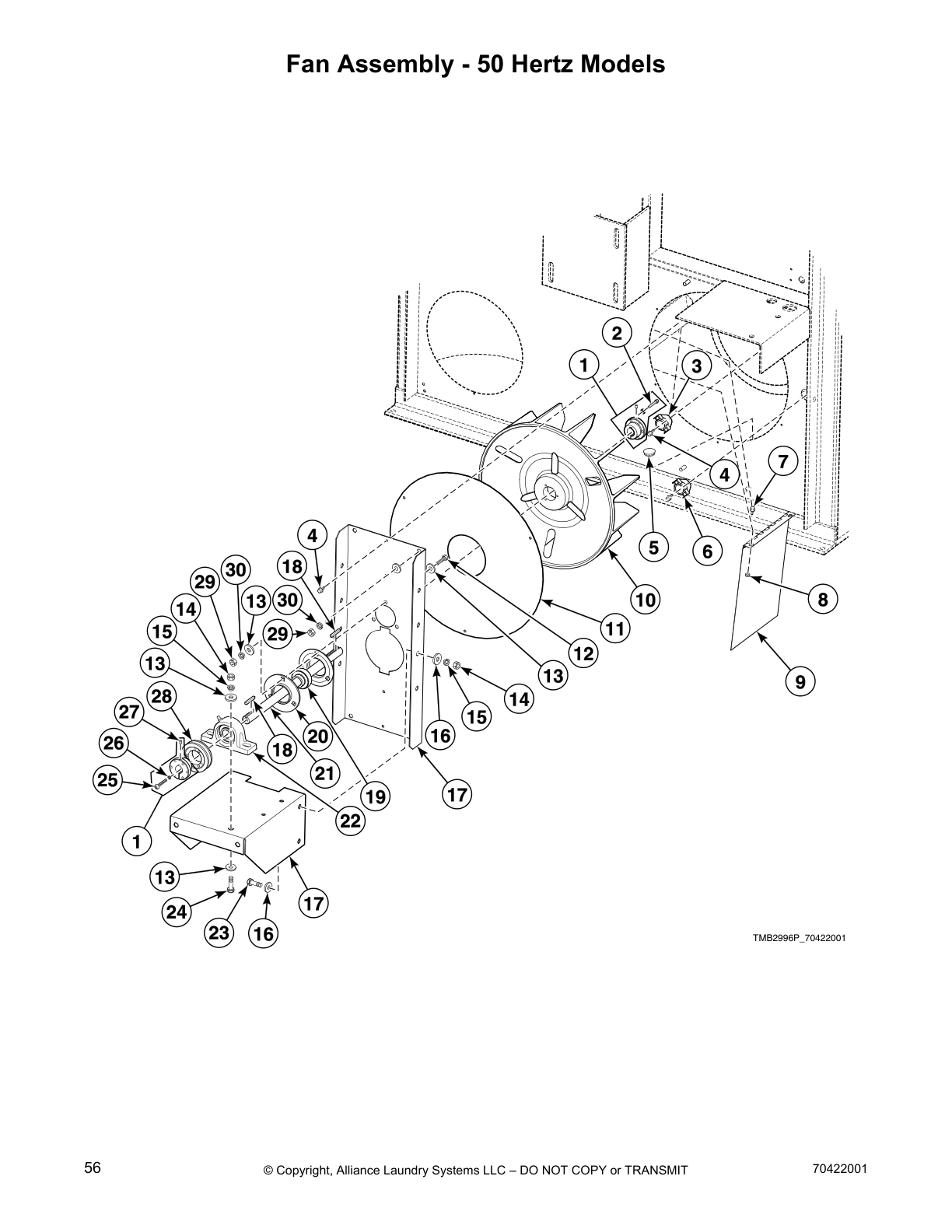

Fan Assembly - 50 Hertz Models

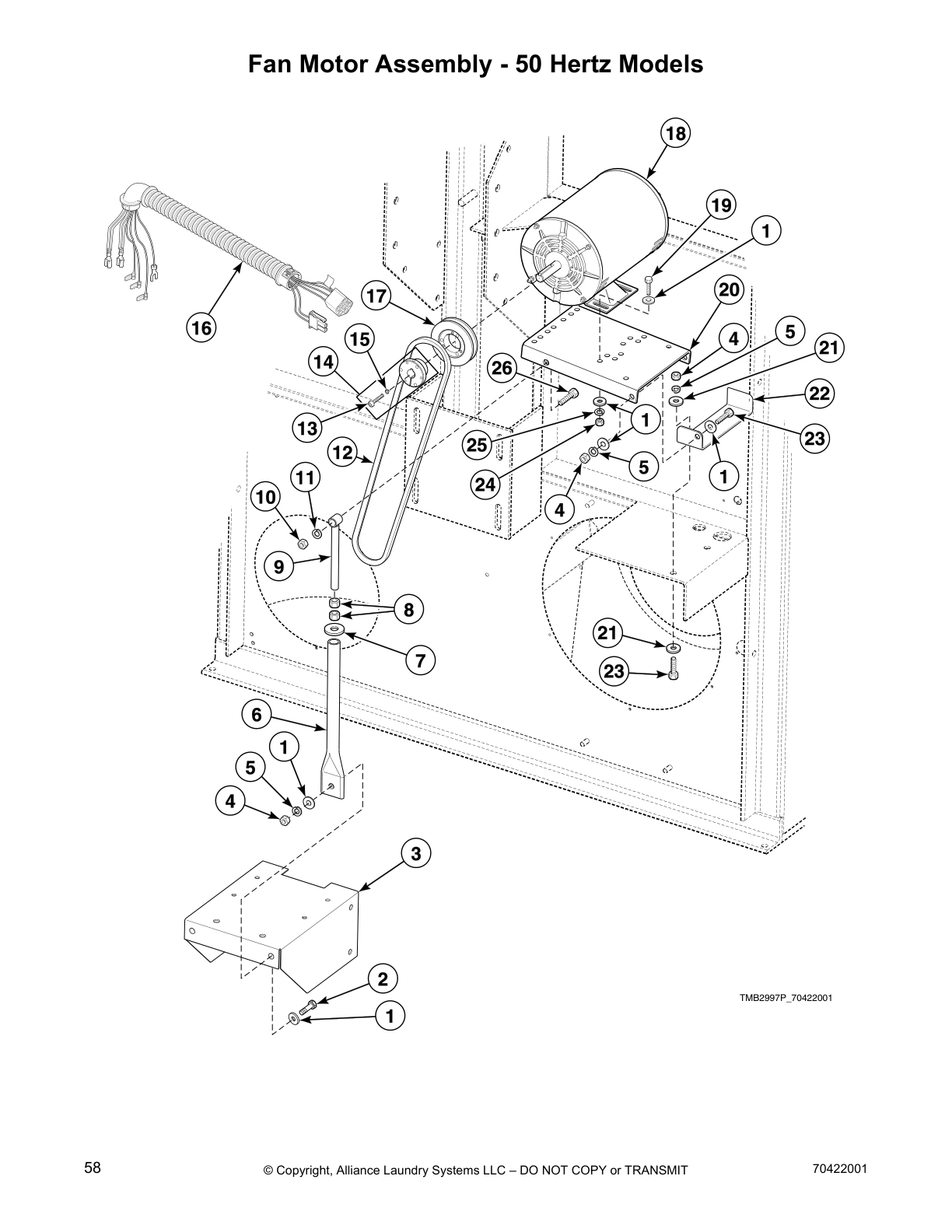

Fan Motor Assembly - 50 Hertz Models

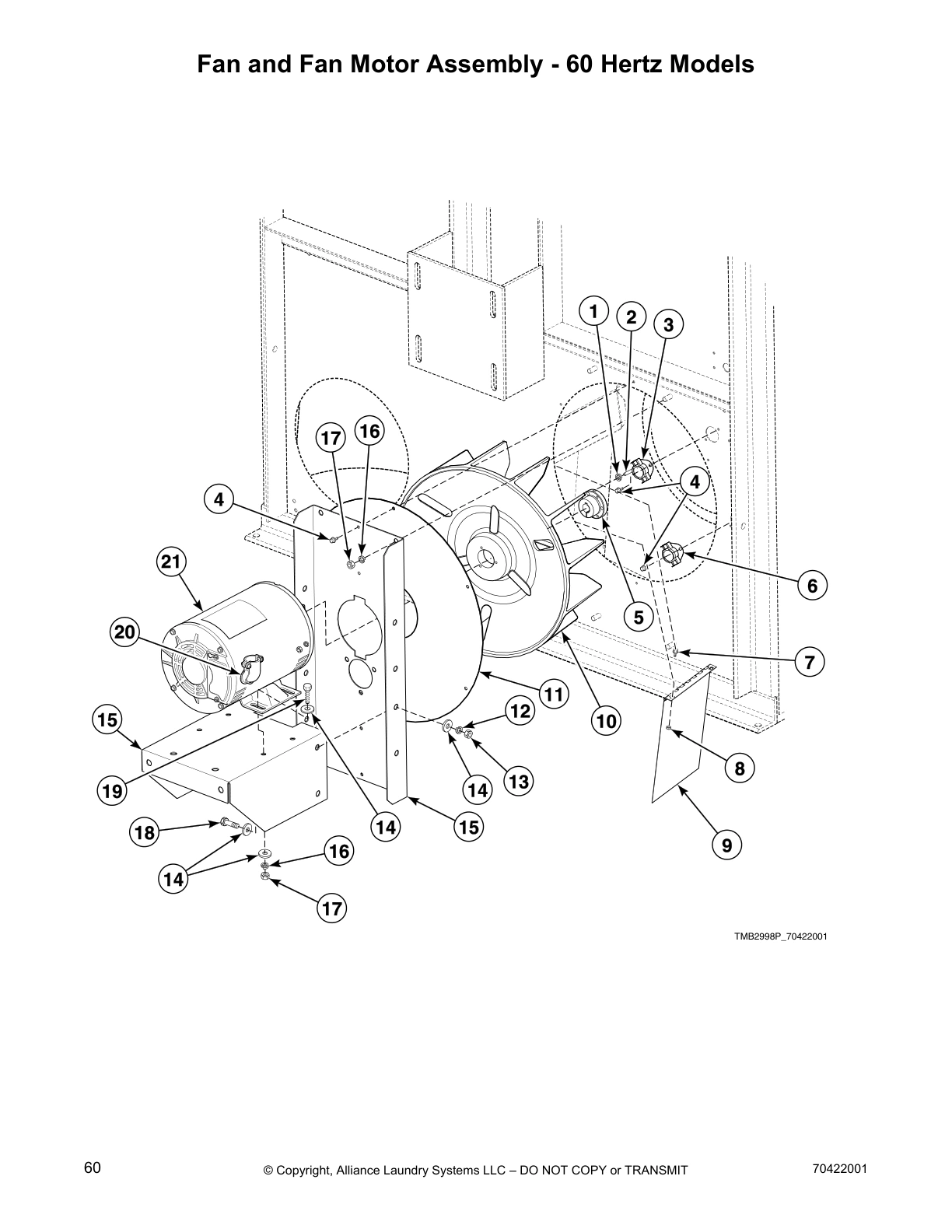

Fan and Fan Motor Assembly - 60 Hertz Models

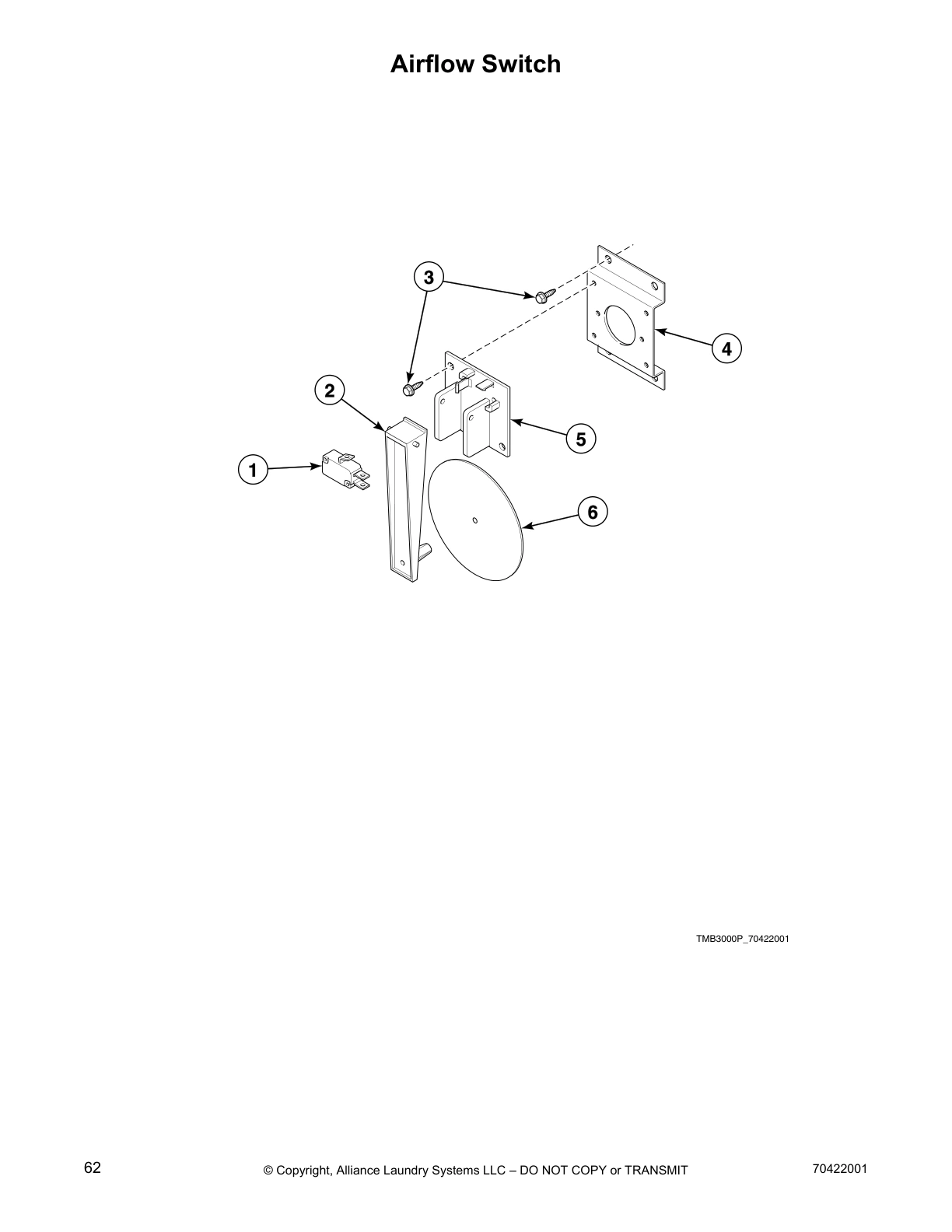

Airflow Switch

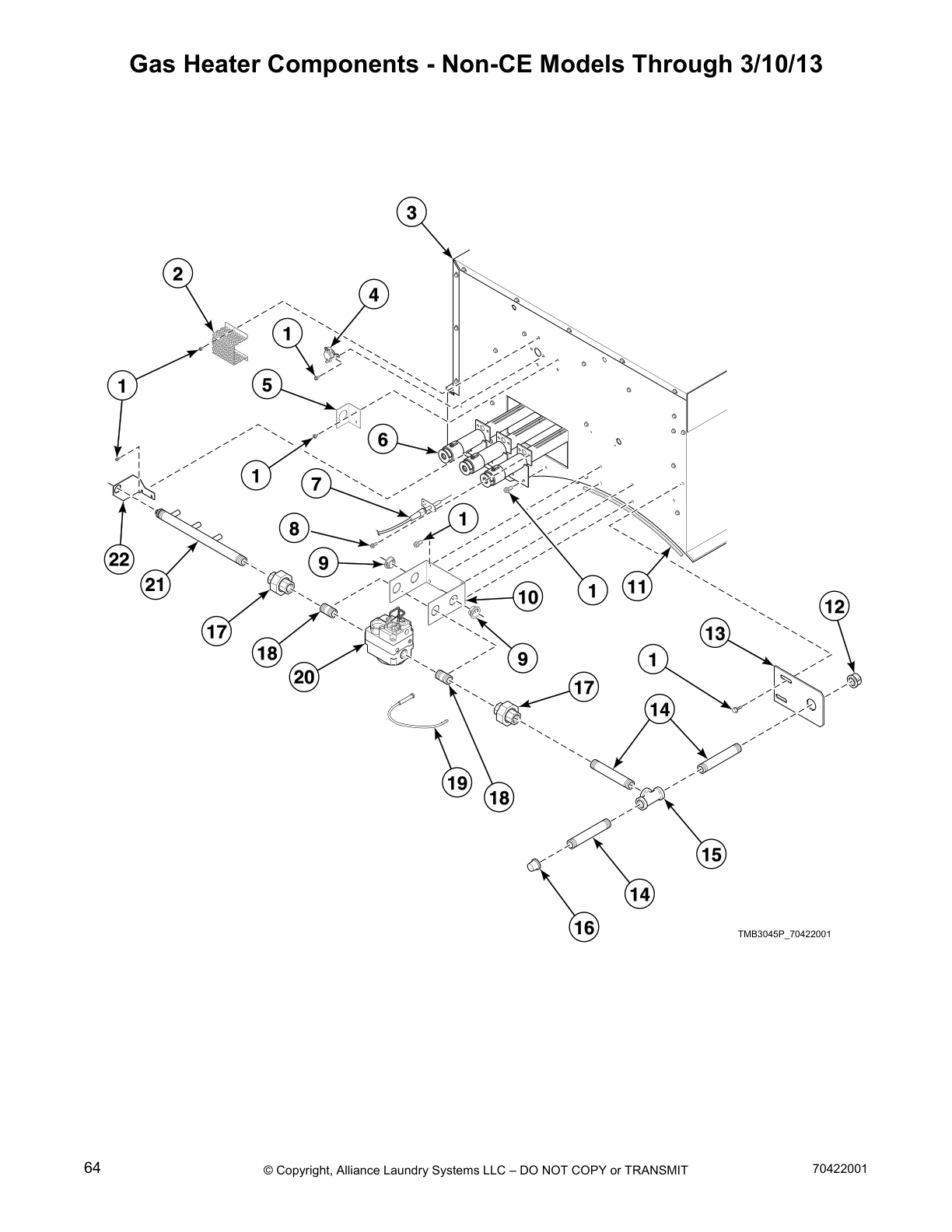

Gas Heater Components - Non-CE Models Through 3/10/13

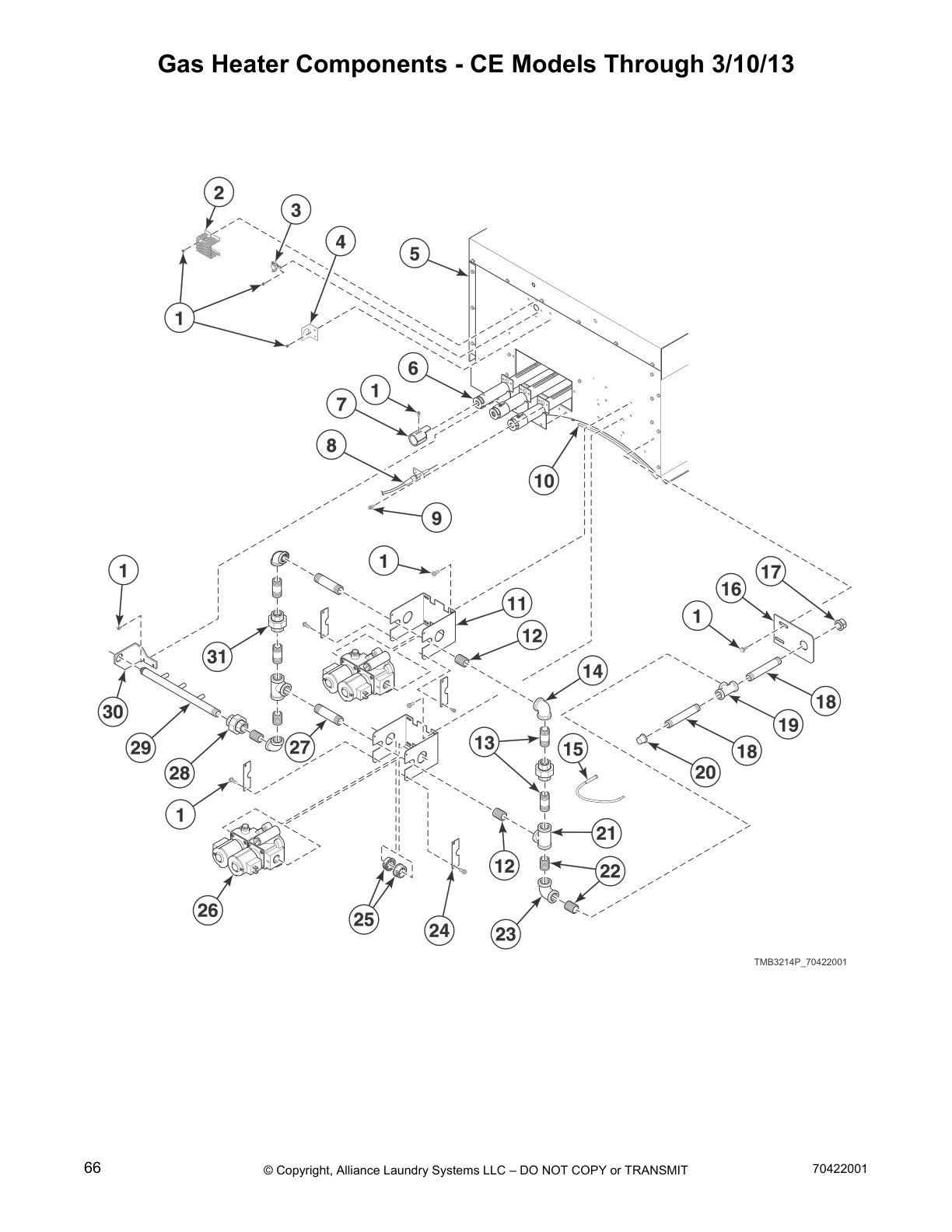

Gas Heater Components - CE Models Through 3/10/13

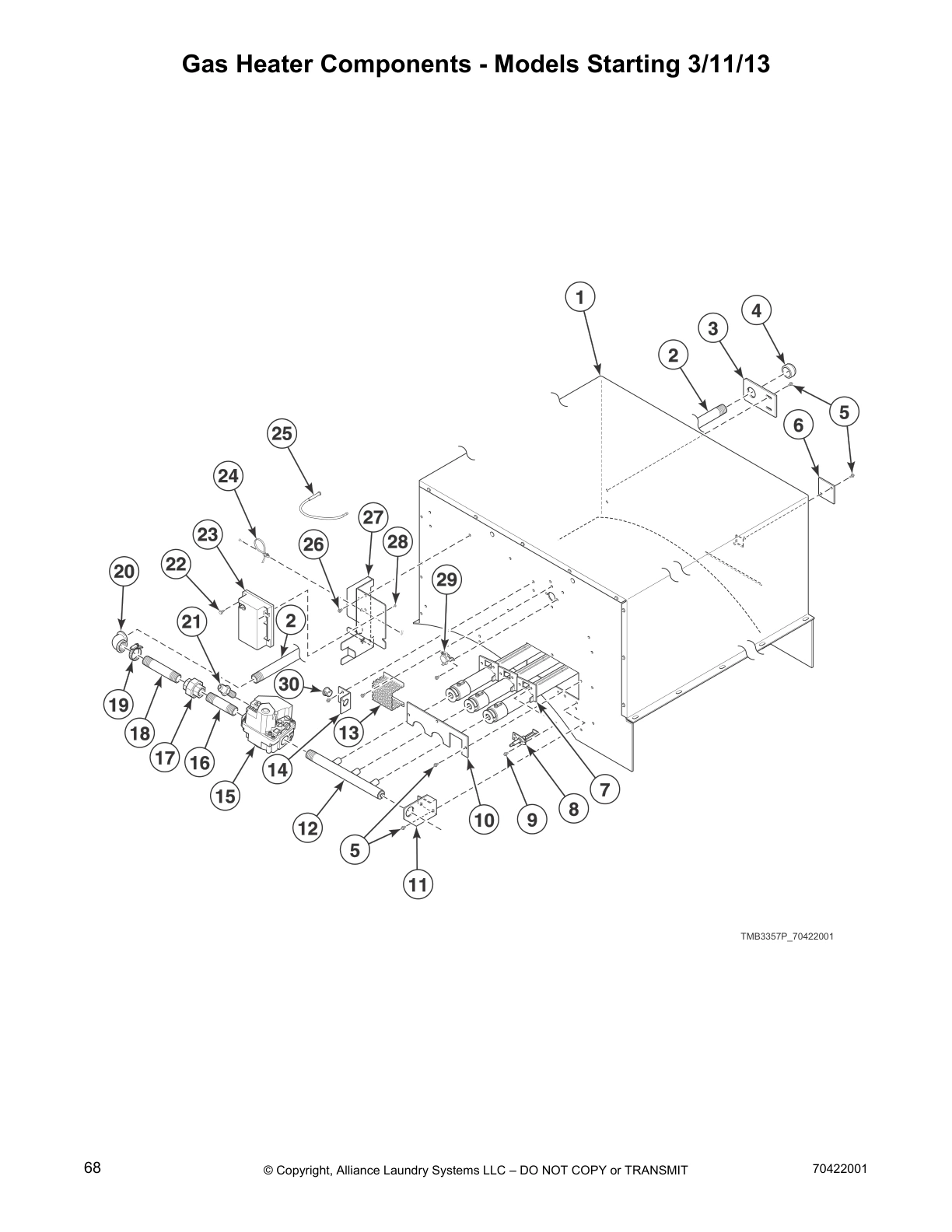

Gas Heater Components - Models Starting 3/11/13

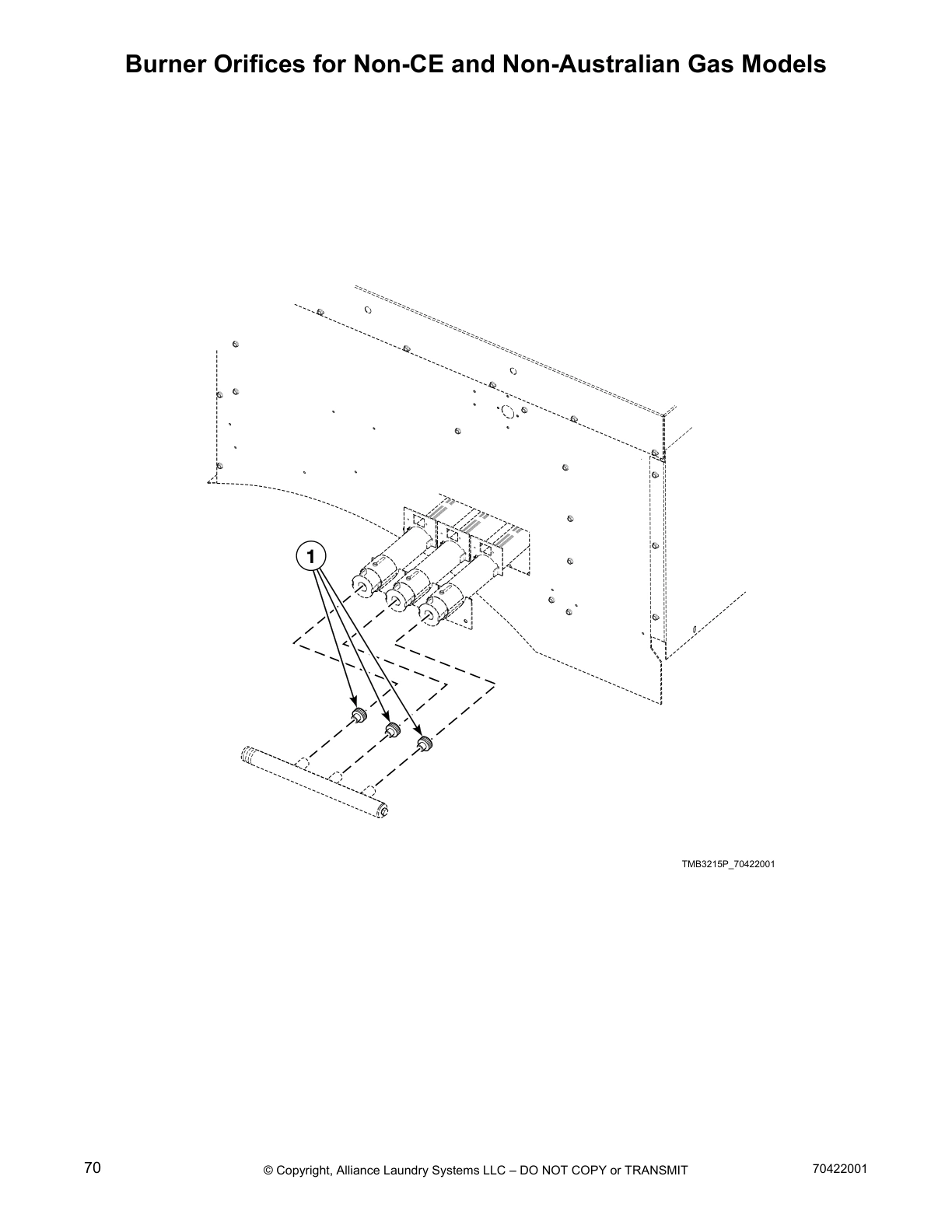

Burner Orifices for Non-CE and Non-Australian Gas Models

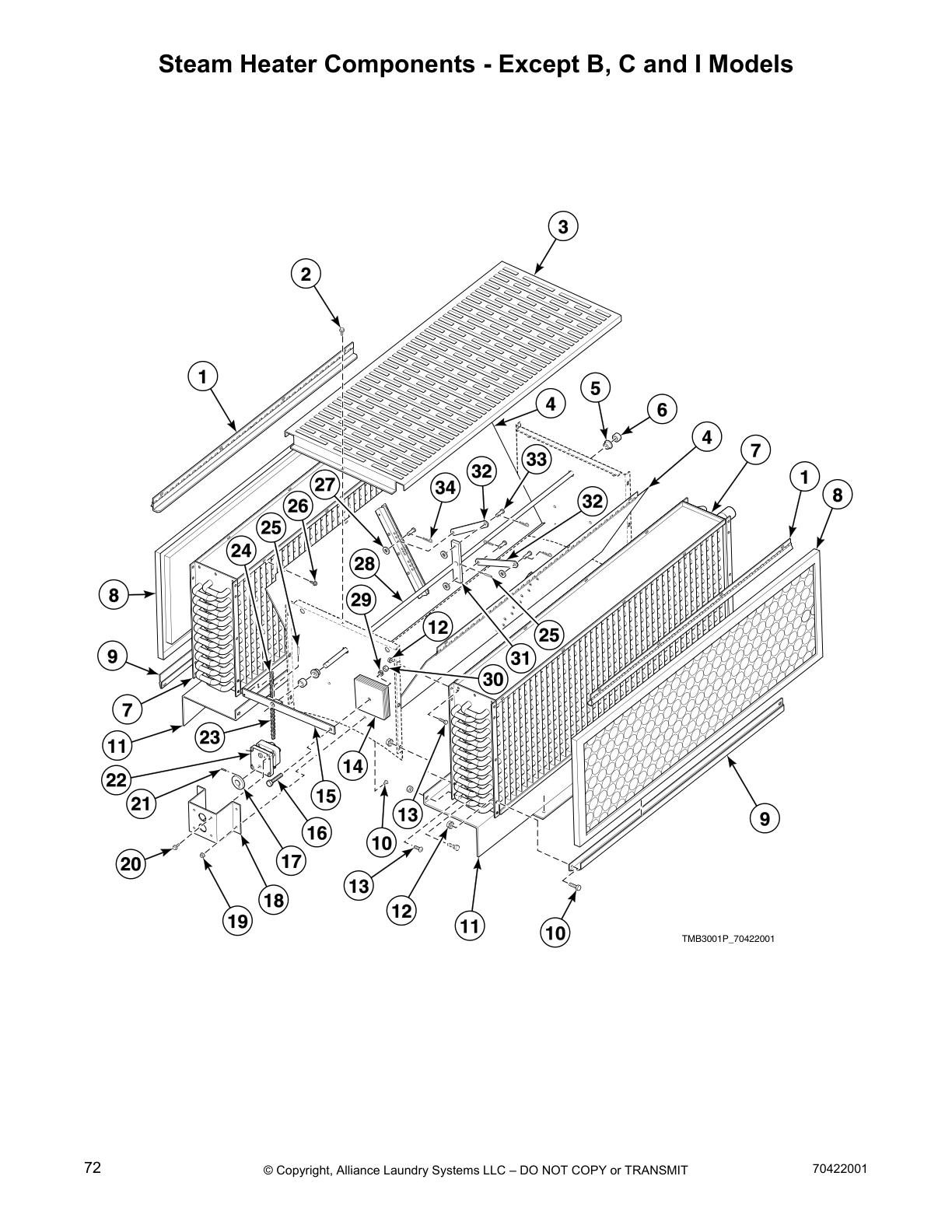

Steam Heater Components - Except B, C and I Models

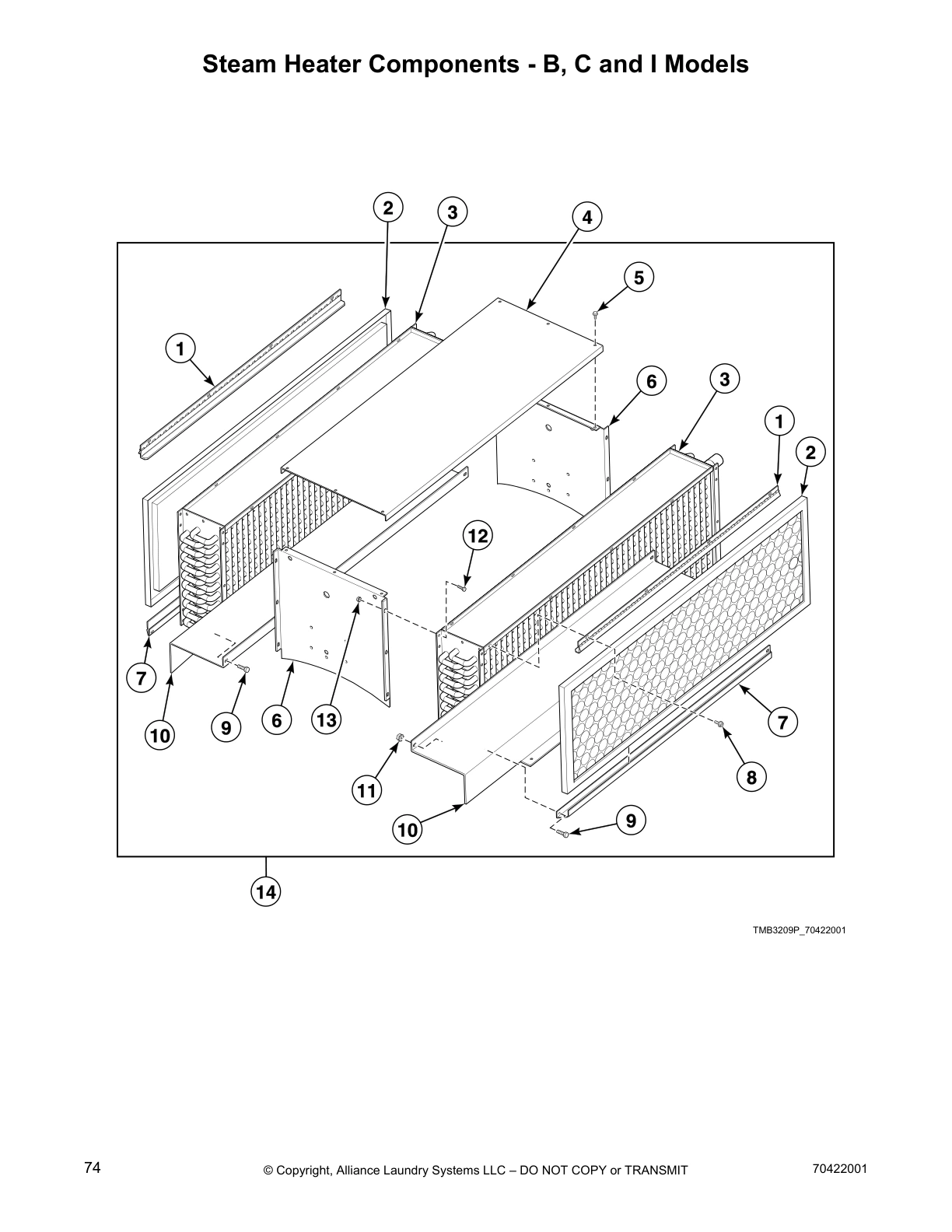

Steam Heater Components - B, C and I Models

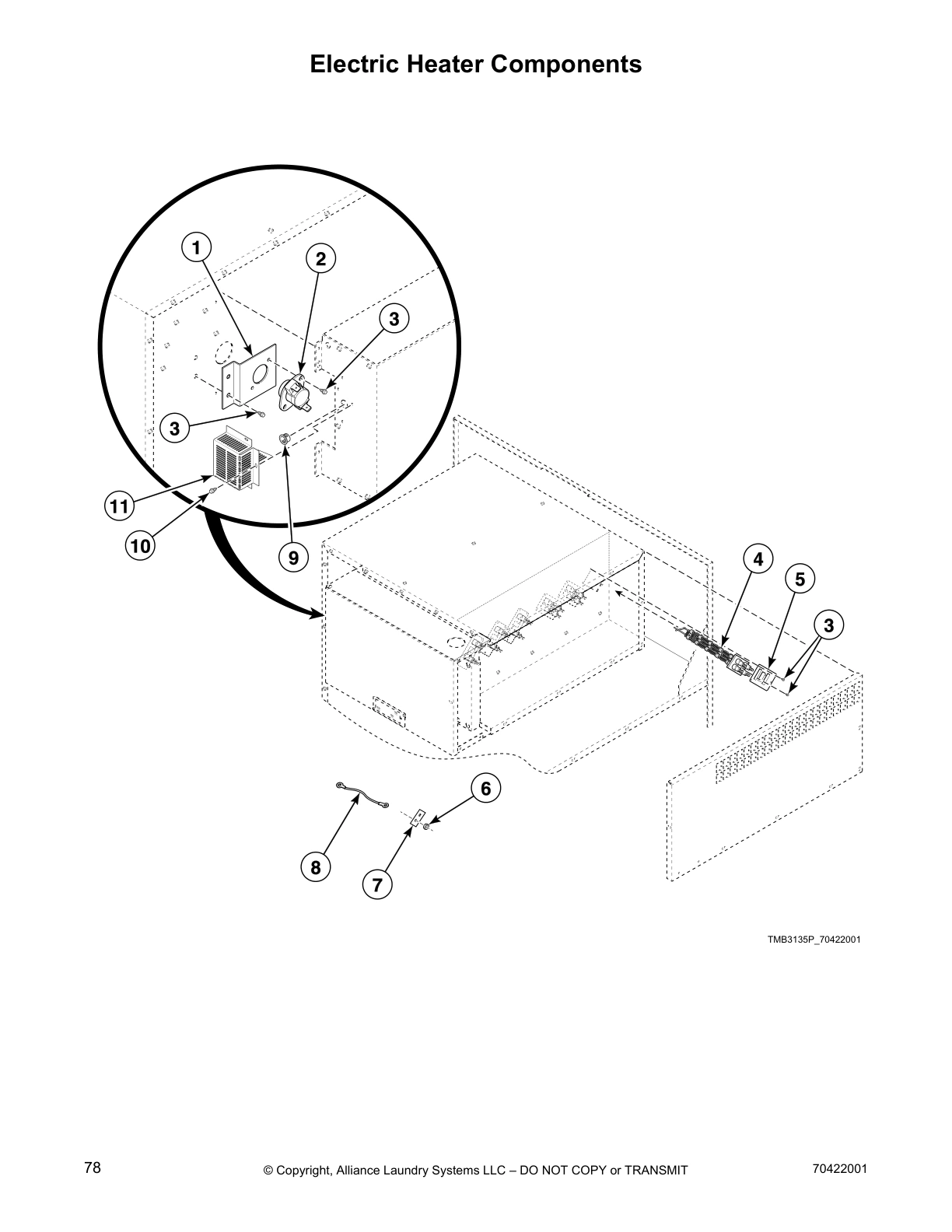

Electric Heater Components

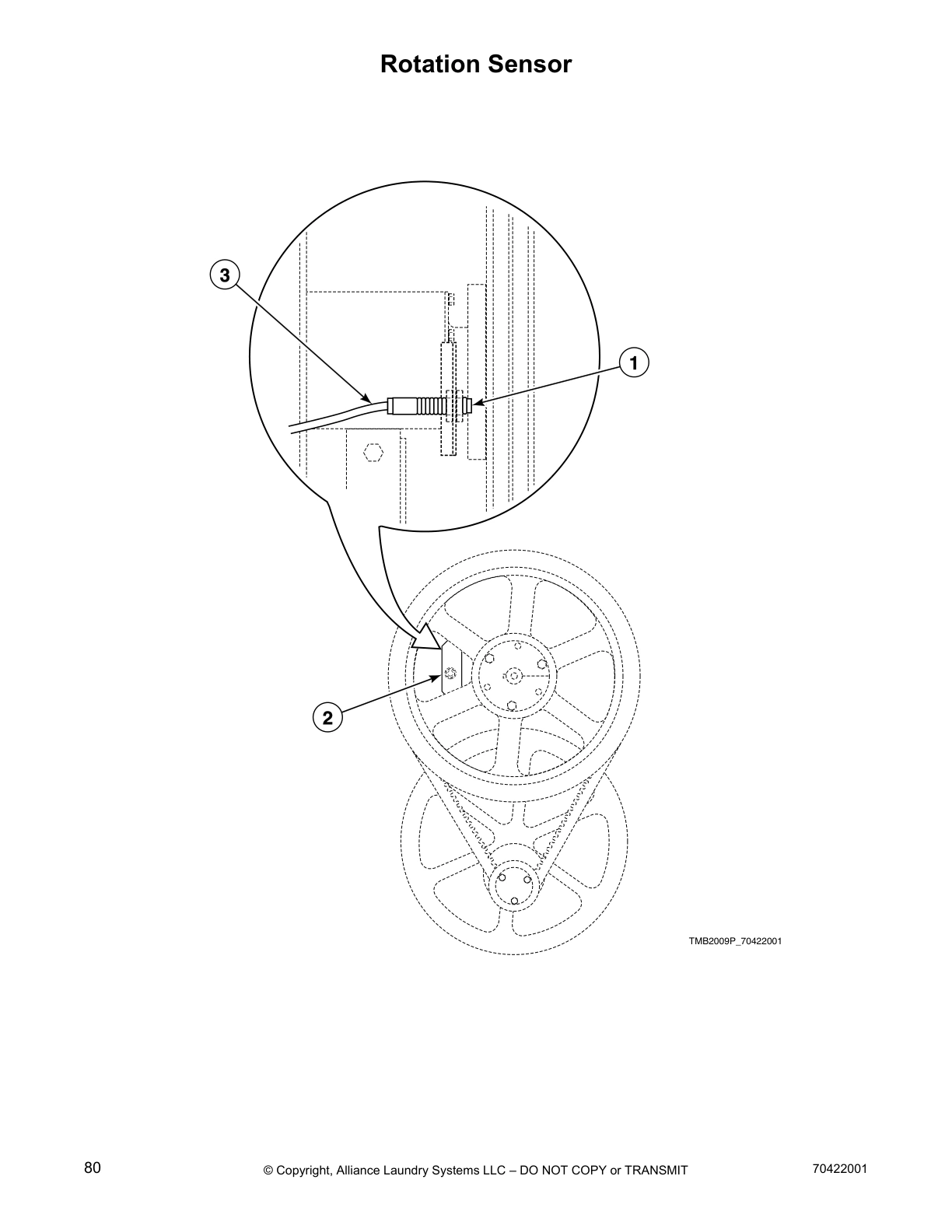

Rotation Sensor

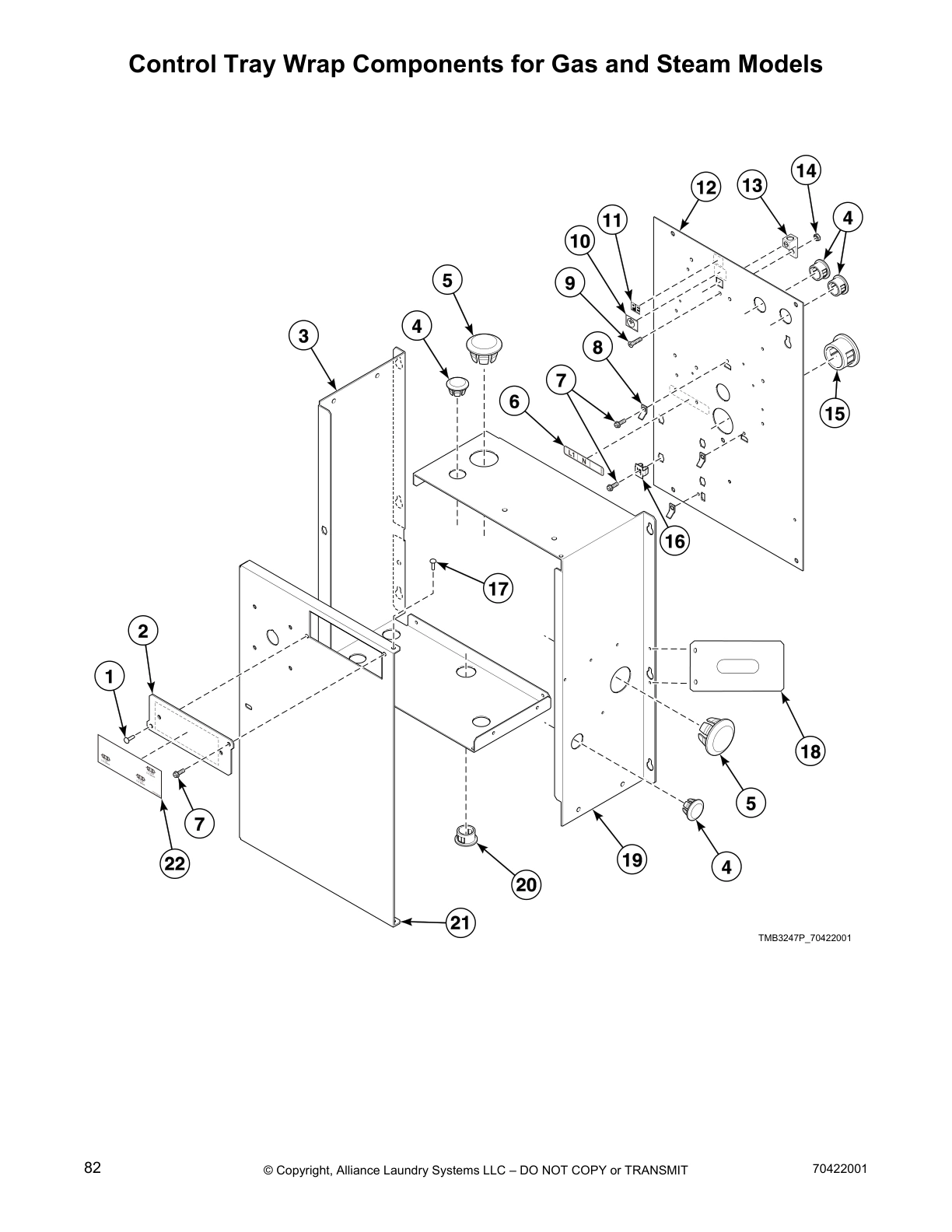

Control Tray Wrap Components for Gas and Steam Models

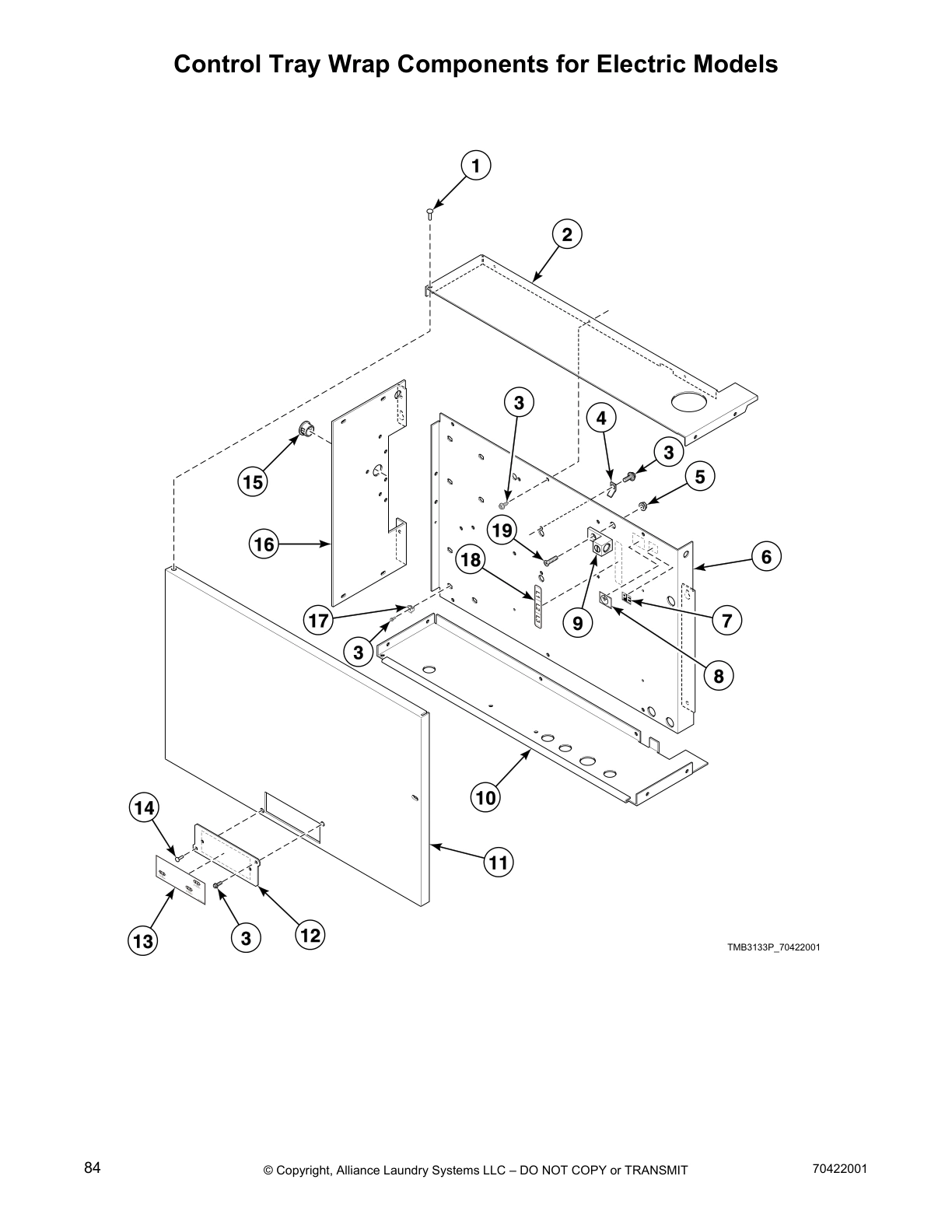

Control Tray Wrap Components for Electric Models

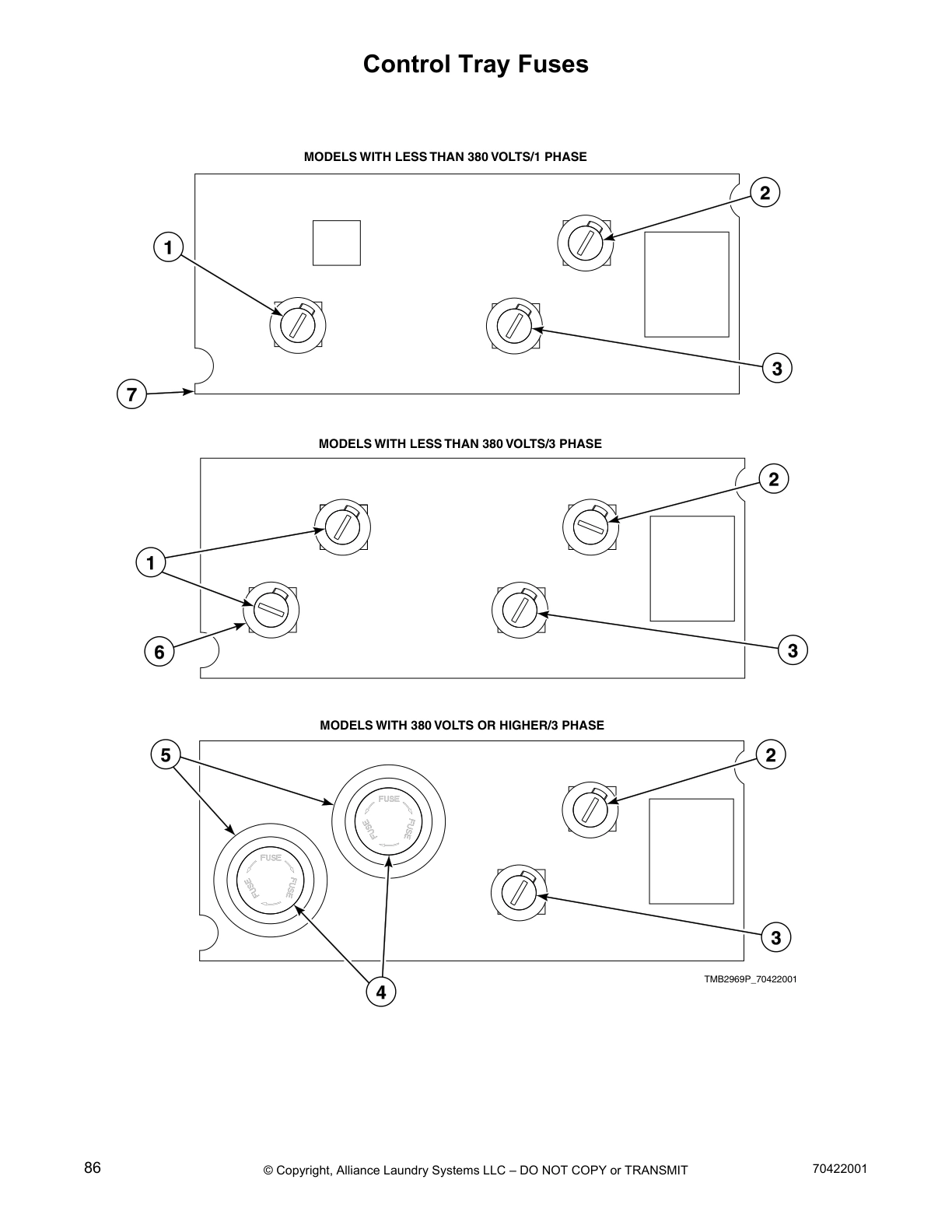

Control Tray Fuses

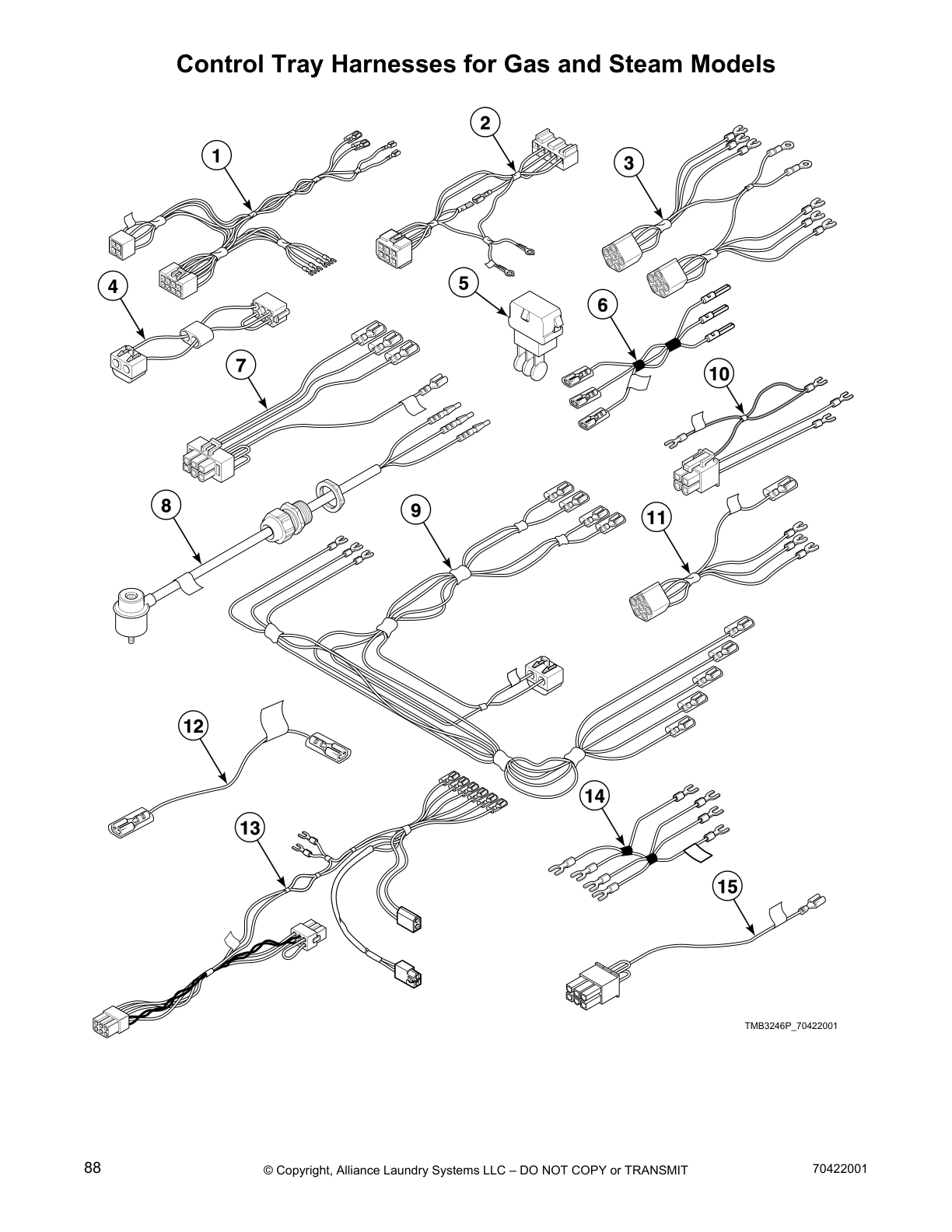

Control Tray Harnesses for Gas and Steam Models

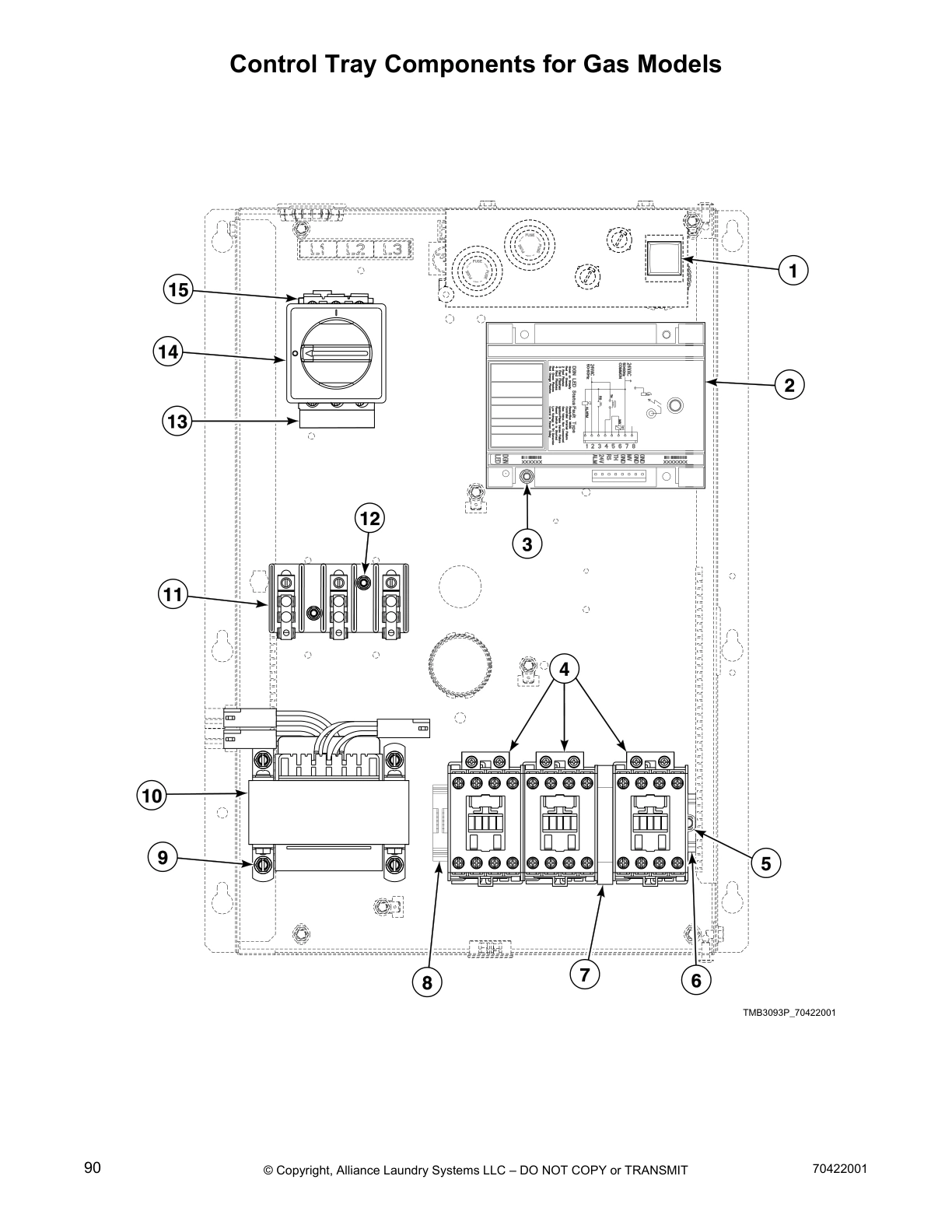

Control Tray Components for Gas Models
Control Tray Components for Steam Models

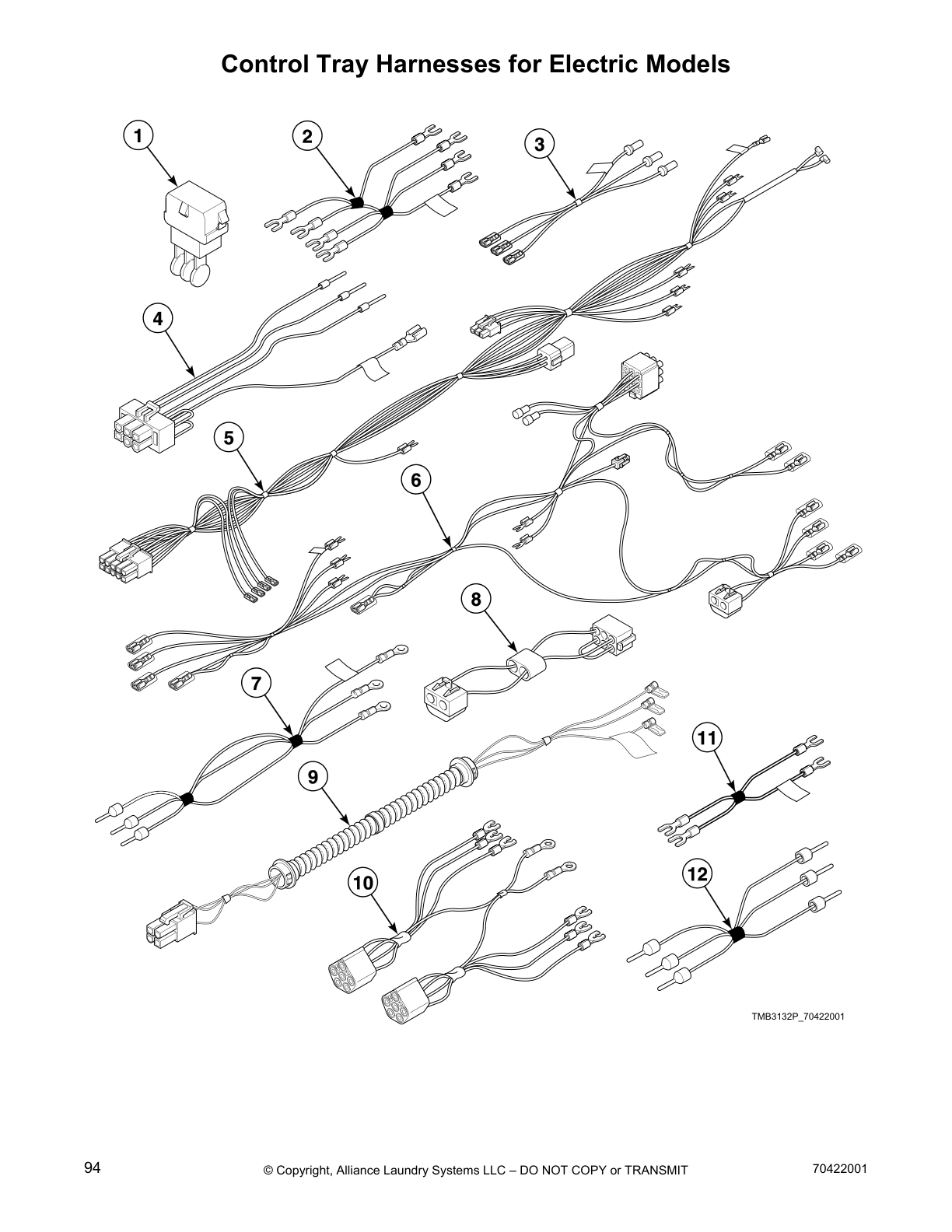

Control Tray Harnesses for Electric Models

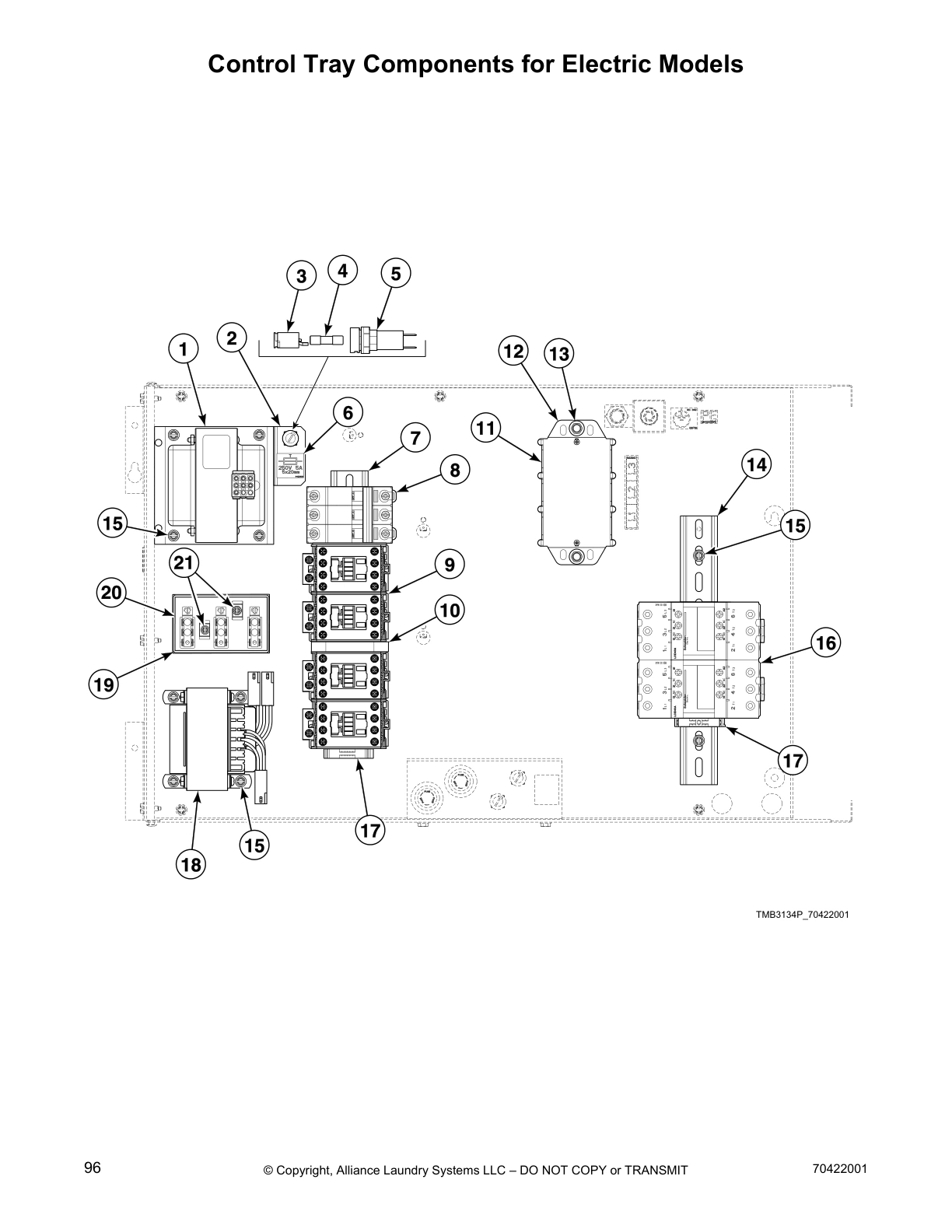

Control Tray Components for Electric Models
Common parts from model Ipso IT120L Dryer
SPQ 298P4P SPQ 298P4P Contact Us For Availability
Pop Rivet SPQ 44035002 Contact Us For Availability
SPQ H88301411 SPQ H88301411 Contact Us For Availability
Stove Partition Gasket SPQ M4577P3 Contact Us For Availability
SPQ M411506 SPQ M411506 Contact Us For Availability
SPQ 70313602 SPQ 70313602 Contact Us For Availability
SPQ 44139801P SPQ 44139801P Contact Us For Availability
SPQ 44074401 SPQ 44074401 Contact Us For Availability
SPQ M413509 SPQ M413509 Contact Us For Availability
1
Fuse SPQ 70406701 Contact Us For Availability
1
Nameplate SPQ 44046801 Contact Us For Availability
1
Door Assembly SPQ 44112101 Contact Us For Availability
1
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
1
Handle and Caps Assembly SPQ 44049901 Contact Us For Availability
1
Base Harness SPQ 44162701 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44054802 Contact Us For Availability
1
Cylinder Motor Harness SPQ 44162901 Contact Us For Availability
1
Rib Wire SPQ 44208101 Contact Us For Availability
1
Bushing SPQ M412917P Contact Us For Availability
1
Washer SPQ 56552 Contact Us For Availability
1
Gas Stove Assembly SPQ 44248801 Contact Us For Availability
1
Burner Orifice SPQ 70684118 Contact Us For Availability
1
Rotation Sensor SPQ F8066201 Contact Us For Availability
1
Pop Rivet SPQ 70058502 Contact Us For Availability
1
Network Capacitor Assembly SPQ M413863 Contact Us For Availability
1
Junction Box Harness SPQ 44136701P Contact Us For Availability
2
Door Ring Gasket SPQ M400661 Contact Us For Availability
2
Screw SPQ 70126301 Contact Us For Availability
2
Door Hinge SPQ 44075207B Contact Us For Availability
2
Bushing SPQ 44077702P Contact Us For Availability
2
Cylinder Assembly SPQ 44054801 Contact Us For Availability
2
Motor SPQ H87529129P Contact Us For Availability
2
SPQ H8800901H SPQ H8800901H Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Pipe Tee SPQ 44174201 Contact Us For Availability
2
Pipe Elbow SPQ 20391 Contact Us For Availability
2
Rotation Sensor Bracket SPQ 44111101 Contact Us For Availability
2
Fuse Holder SPQ 70406501 Contact Us For Availability
2
Reversing Contactor Jumper SPQ 44157401 Contact Us For Availability
2
Reversing Contactor Jumper Assembly SPQ 44136901 Contact Us For Availability
3
Fuse Holder Cap SPQ 70406601 Contact Us For Availability
3
SPQ 44046301P SPQ 44046301P Contact Us For Availability
3
Pop Rivet SPQ 430725 Contact Us For Availability
3
Front Access Panel SPQ B12389801 Contact Us For Availability
3
Screw SPQ 70442101 Contact Us For Availability
3
Cylinder Assembly SPQ 44194101 Contact Us For Availability
3
SPQ H87520466 SPQ H87520466 Contact Us For Availability
3
Washer SPQ 44238902 Contact Us For Availability
3
Igniter Cover SPQ 44236501 Contact Us For Availability
3
Fuse SPQ 51783 Contact Us For Availability
3
Rotation Sensor Kit SPQ 7010P Contact Us For Availability
3
Hole Plug SPQ 44159001 Contact Us For Availability
3
Reversing Contactor Jumper Assembly SPQ 44139501 Contact Us For Availability
4
Control Box Top SPQ 44065401 Contact Us For Availability
4
Front Access Panel SPQ 44012608 Contact Us For Availability
4
Hinge Cam Kit SPQ M400044 Contact Us For Availability
4
Roller Catch SPQ 44014001 Contact Us For Availability
4
SPQ 44160201 SPQ 44160201 Contact Us For Availability
4
Trunnion Assembly SPQ 44194102 Contact Us For Availability
4
1 Circuit Plug Housing SPQ 44370401 Contact Us For Availability
4
SPQ 44237401 SPQ 44237401 Contact Us For Availability
4
Screw SPQ M400985 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
Ground Decal SPQ 00177 Contact Us For Availability
4
Fuse Holder Body SPQ 70329501 Contact Us For Availability
4
Ferrite Core Assembly SPQ 44136801 Contact Us For Availability
5
Hinge Cam Kit SPQ M4772P3 Contact Us For Availability
5
Output Harness SPQ 44013317 Contact Us For Availability
5
Control Box Housing SPQ 44065101 Contact Us For Availability
5
Lint Panel SPQ H87020202 Contact Us For Availability
5
Lint Panel Switch Cover SPQ 44026801 Contact Us For Availability
5
Nut SPQ M409788 Contact Us For Availability
5
Spacer SPQ H88213996 Contact Us For Availability
5
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
L.P. Gas Conversion Kit SPQ 44087801 Contact Us For Availability
5
Male Tab Terminal SPQ F8223801 Contact Us For Availability
5
Contactor SPQ 802492 Contact Us For Availability
6
Door Glass SPQ 44008201P Contact Us For Availability
6
Nut SPQ 44013308 Contact Us For Availability
6
Nut SPQ 44012609B Contact Us For Availability
6
Screw SPQ M4773P3 Contact Us For Availability
6
Switch Assembly SPQ 70413401 Contact Us For Availability
6
SPQ 44160401 SPQ 44160401 Contact Us For Availability
6
Transformer SPQ M411072 Contact Us For Availability
6
Washer SPQ H96427513 Contact Us For Availability
6
SPQ M411165 SPQ M411165 Contact Us For Availability
6
SPQ 44157601 SPQ 44157601 Contact Us For Availability
6
Nut SPQ M400035 Contact Us For Availability
6
SPQ H96428628 SPQ H96428628 Contact Us For Availability
6
SPQ H87529111P SPQ H87529111P Contact Us For Availability
6
Airflow Switch Vane SPQ 70319202 Contact Us For Availability
6
Burner SPQ 44196401P Contact Us For Availability
6
Thermostat SPQ M411404 Contact Us For Availability
6
SPQ 44155601P SPQ 44155601P Contact Us For Availability
7
SPQ 70261401 SPQ 70261401 Contact Us For Availability
7
Control SPQ D501523 Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ 44162501 Contact Us For Availability
7
Screw SPQ 70033504 Contact Us For Availability
7
Nut SPQ M400977 Contact Us For Availability
7
Lint Panel Switch Bracket SPQ 44013401 Contact Us For Availability
7
SPQ M411187 SPQ M411187 Contact Us For Availability
7
Spacer SPQ 44193301 Contact Us For Availability
7
SPQ 44048301P SPQ 44048301P Contact Us For Availability
7
SPQ 44053001P SPQ 44053001P Contact Us For Availability
7
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
7
SPQ H8900530H SPQ H8900530H Contact Us For Availability
7
L.P. Gas Conversion Kit SPQ 70159601 Contact Us For Availability
7
Jumper Harness Assembly SPQ 44186701 Contact Us For Availability
8
Pop Rivet SPQ 70211902P Contact Us For Availability
8
Control Harness SPQ 44063801P Contact Us For Availability
8
SPQ M400770 SPQ M400770 Contact Us For Availability
8
Door Hinge Lug Assembly SPQ 70409801 Contact Us For Availability
8
SPQ H88412101 SPQ H88412101 Contact Us For Availability
8
Bolt SPQ 44193302 Contact Us For Availability
8
SPQ H96428008 SPQ H96428008 Contact Us For Availability
8
SPQ 44052901P SPQ 44052901P Contact Us For Availability
8
Moisture Sensor Harness Assembl SPQ 44209201 Contact Us For Availability
8
SPQ F230739 SPQ F230739 Contact Us For Availability
8
SPQ M414230P SPQ M414230P Contact Us For Availability
8
Jumper Configuration Assembly SPQ M413930P Contact Us For Availability
9
Sensor Harness Assembly SPQ 44162601 Contact Us For Availability
9
SPQ 44001801 SPQ 44001801 Contact Us For Availability
9
SPQ 44008401P SPQ 44008401P Contact Us For Availability
9
SPQ 44012202 SPQ 44012202 Contact Us For Availability
9
SPQ 44160301P SPQ 44160301P Contact Us For Availability
9
SPQ M401402 SPQ M401402 Contact Us For Availability
9
Cylinder Rib Assembly SPQ 44055501 Contact Us For Availability
9
SPQ 44048501 SPQ 44048501 Contact Us For Availability
9
SPQ F430909 SPQ F430909 Contact Us For Availability
9
SPQ 70329401P SPQ 70329401P Contact Us For Availability
9
Network Capacitor Assembly SPQ 44251601 Contact Us For Availability
10
Transformer SPQ M414312P Contact Us For Availability
10
Control Mounting Bracket SPQ 44099502 Contact Us For Availability
10
Control Box Cover SPQ 44065201 Contact Us For Availability
10
Door Switch Cover SPQ 44001301 Contact Us For Availability
10
Guard Extension SPQ 44222501 Contact Us For Availability
10
Screw SPQ H88012034 Contact Us For Availability
10
Fan and Bushing Assembly SPQ M414546 Contact Us For Availability
10
Nut SPQ H88412093 Contact Us For Availability
10
Gas Valve Bracket SPQ M411259 Contact Us For Availability
10
Stove Gasket SPQ M411505 Contact Us For Availability
10
Burner Hole Cover SPQ 44249701 Contact Us For Availability
10
Reversing Contactor Harness SPQ 44139601P Contact Us For Availability
10
Interlock Contactor SPQ F330186P Contact Us For Availability
11
Key SPQ 70155601 Contact Us For Availability
11
Pop Rivet SPQ 44099501W Contact Us For Availability
11
Lint Panel Clip SPQ 44017801 Contact Us For Availability
11
Belt SPQ M400015 Contact Us For Availability
11
Ball Bearing SPQ H88603477 Contact Us For Availability
11
Blower Cover SPQ H96358007 Contact Us For Availability
11
Manifold End Bracket SPQ 44173801 Contact Us For Availability
11
Motor Contactor Harness SPQ 44137001P Contact Us For Availability
12
Temperature Knob SPQ 44104601 Contact Us For Availability
12
Spacer SPQ 44099505 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
12
Nut SPQ 44028903 Contact Us For Availability
12
Bolt SPQ 44017901 Contact Us For Availability
12
Belt SPQ H87672374 Contact Us For Availability
12
Screw SPQ H8753170H Contact Us For Availability
12
Spud Holder Weldment SPQ 44390001 Contact Us For Availability
12
Fuse Cover SPQ 70313301 Contact Us For Availability
12
Contactor Box Base SPQ 44133701 Contact Us For Availability
13
Door Handle SPQ M414215 Contact Us For Availability
13
Kickplate SPQ 70117609 Contact Us For Availability
13
Bushing SPQ 44079301 Contact Us For Availability
13
Thermostat Cover SPQ M414477 Contact Us For Availability
13
Ground Lug Connector SPQ M411283 Contact Us For Availability
14
Pop Rivet SPQ 44035001 Contact Us For Availability
14
Belt Set SPQ M4696P3 Contact Us For Availability
14
Jumper Calibration Wire SPQ 431264 Contact Us For Availability
14
Hose Fitting SPQ 44069101 Contact Us For Availability
14
Door Ring and Handle Assembly SPQ 44007901 Contact Us For Availability
14
Pop Rivet SPQ 70126401 Contact Us For Availability
14
Cable Tie SPQ 44160501 Contact Us For Availability
14
Nut SPQ F430232 Contact Us For Availability
14
Reversing Contactor Jumper Wire SPQ 44136401 Contact Us For Availability
15
High Temperature Ignition Lead SPQ 44061602P Contact Us For Availability
15
Door Ring Assembly SPQ 44112001 Contact Us For Availability
15
Temperature Sensor Assembly SPQ H87494019 Contact Us For Availability
15
Bushing SPQ M414367 Contact Us For Availability
15
Motor SPQ H608P3 Contact Us For Availability
15
Gas Valve Kit SPQ M4883P3 Contact Us For Availability
15
Expansion Clip SPQ 44071501 Contact Us For Availability
15
Screw SPQ F8206901 Contact Us For Availability
16
Front Panel SPQ 44166601 Contact Us For Availability
16
Screw SPQ 44326004B Contact Us For Availability
16
Fan Motor SPQ 44242601 Contact Us For Availability
16
Pipe Union SPQ 44087701 Contact Us For Availability
16
Gas Valve SPQ 44166702 Contact Us For Availability
17
Front Panel SPQ M401223 Contact Us For Availability
17
Lint Screen Clip SPQ B12308601 Contact Us For Availability
17
Bushing SPQ H96428487 Contact Us For Availability
17
Motor Base SPQ H87520334 Contact Us For Availability
17
Pipe Bracket SPQ M411498 Contact Us For Availability
17
Pipe Nipple SPQ 44249501 Contact Us For Availability
17
End Stop SPQ 70121001 Contact Us For Availability
18
Hose SPQ 44073302 Contact Us For Availability
18
Washer SPQ 44012402 Contact Us For Availability
18
Lint Screen SPQ 44051301 Contact Us For Availability
18
Sheave SPQ M400063 Contact Us For Availability
18
Rod End SPQ H8752985HP Contact Us For Availability
18
Bearing Mounting Flangette SPQ H8752006H Contact Us For Availability
18
Base Bracket SPQ 44046401P Contact Us For Availability
18
Pipe Cap SPQ 44165901 Contact Us For Availability
18
Pipe Union SPQ M411419 Contact Us For Availability
18
High Temperature Ignition Lead SPQ M411417 Contact Us For Availability
18
Contactor Box Side SPQ 44175801 Contact Us For Availability
18
Transformer SPQ M414229P Contact Us For Availability
19
Nut SPQ 44078003 Contact Us For Availability
19
Insulation SPQ H96418413 Contact Us For Availability
19
Screw SPQ H8752251H Contact Us For Availability
19
Blower Shaft SPQ H8768212H Contact Us For Availability
19
Nipple SPQ H85101673 Contact Us For Availability
19
Hose Clamp SPQ 44252301 Contact Us For Availability
19
Fuse Cover SPQ 44158901 Contact Us For Availability
19
Insulator SPQ M414228P Contact Us For Availability
20
Felt Pad SPQ 44063602 Contact Us For Availability
20
Panel Locator SPQ 44099601 Contact Us For Availability
20
Contactor Box Cover SPQ 70178701 Contact Us For Availability
20
Rod End SPQ M413171 Contact Us For Availability
20
Sheave SPQ H8768302H Contact Us For Availability
20
Screw SPQ 44252401 Contact Us For Availability
20
Terminal Block SPQ M413862 Contact Us For Availability
21
Fuse Holder Cap SPQ 430642 Contact Us For Availability
21
Control Box Base SPQ 44065301 Contact Us For Availability
21
Thermostat SPQ M412000 Contact Us For Availability
21
SPQ 44157701 SPQ 44157701 Contact Us For Availability
21
Plug SPQ 44134001 Contact Us For Availability
22
Control Plate and Studs Assembly SPQ D512218P Contact Us For Availability
22
Mixing Valve Shield Bracket SPQ 44065701 Contact Us For Availability
22
SPQ H96428693 SPQ H96428693 Contact Us For Availability
22
Plug SPQ 44104801 Contact Us For Availability
22
Ignition Control SPQ 44249401 Contact Us For Availability
23
Expansion Clip SPQ 70364103 Contact Us For Availability
23
Vent Pipe SPQ M411593 Contact Us For Availability
23
SPQ 22688 SPQ 22688 Contact Us For Availability
24
SPQ M411537 SPQ M411537 Contact Us For Availability
24
High Voltage Suppression Cable SPQ 70458601P Contact Us For Availability
25
SPQ M402144 SPQ M402144 Contact Us For Availability
26
SPQ H88001565 SPQ H88001565 Contact Us For Availability
26
Thermostat SPQ 44239703 Contact Us For Availability
27
SPQ 44048901 SPQ 44048901 Contact Us For Availability
28
SPQ H87520284 SPQ H87520284 Contact Us For Availability
28
Snap Bushing SPQ 44245701 Contact Us For Availability
29
SPQ M400013 SPQ M400013 Contact Us For Availability
30
SPQ 70142 SPQ 70142 Contact Us For Availability
30
Burner SPQ 44249301 Contact Us For Availability
NI
SPQ 44240301 SPQ 44240301 Contact Us For Availability
NI
SPQ 44186101 SPQ 44186101 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
Manifold SPQ 44166801 Contact Us For Availability
NI
SPQ 44079601 SPQ 44079601 Contact Us For Availability
NI
SPQ 70182601 SPQ 70182601 Contact Us For Availability
NI
Screw SPQ 70030401 Contact Us For Availability
NI
SPQ 02788 SPQ 02788 Contact Us For Availability
NI
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
NI
SPQ 44012206 SPQ 44012206 Contact Us For Availability
NI
SPQ M405535 SPQ M405535 Contact Us For Availability
NI
SPQ 44160302 SPQ 44160302 Contact Us For Availability
NI
SPQ 44055502 SPQ 44055502 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ 44191203 SPQ 44191203 Contact Us For Availability
NI
SPQ H96357751 SPQ H96357751 Contact Us For Availability
NI
Moisture Sensor Test Wires SPQ 70468901 Contact Us For Availability
NI
SPQ M409967 SPQ M409967 Contact Us For Availability
NI
Airflow Switch Kit SPQ 70319201 Contact Us For Availability
NI
SPQ 70429601P SPQ 70429601P Contact Us For Availability
NI
SPQ M4973P3 SPQ M4973P3 Contact Us For Availability
NI
SPQ M412997 SPQ M412997 Contact Us For Availability
NI
SPQ M4975P3 SPQ M4975P3 Contact Us For Availability
NI
SPQ M4578P3 SPQ M4578P3 Contact Us For Availability
NI
Rotation Sensor Harness SPQ 44201701 Contact Us For Availability
NI
SPQ M414276 SPQ M414276 Contact Us For Availability
NI
SPQ 70306901 SPQ 70306901 Contact Us For Availability
NI
Jumper Harness Assembly SPQ M413510 Contact Us For Availability
NI
Network Capacitor Harness Assembly SPQ 44139901P Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
SPQ 44143401P SPQ 44143401P Contact Us For Availability
NI
SPQ 44136301P SPQ 44136301P Contact Us For Availability
NI
SPQ 44136201P SPQ 44136201P Contact Us For Availability
× ![]()
