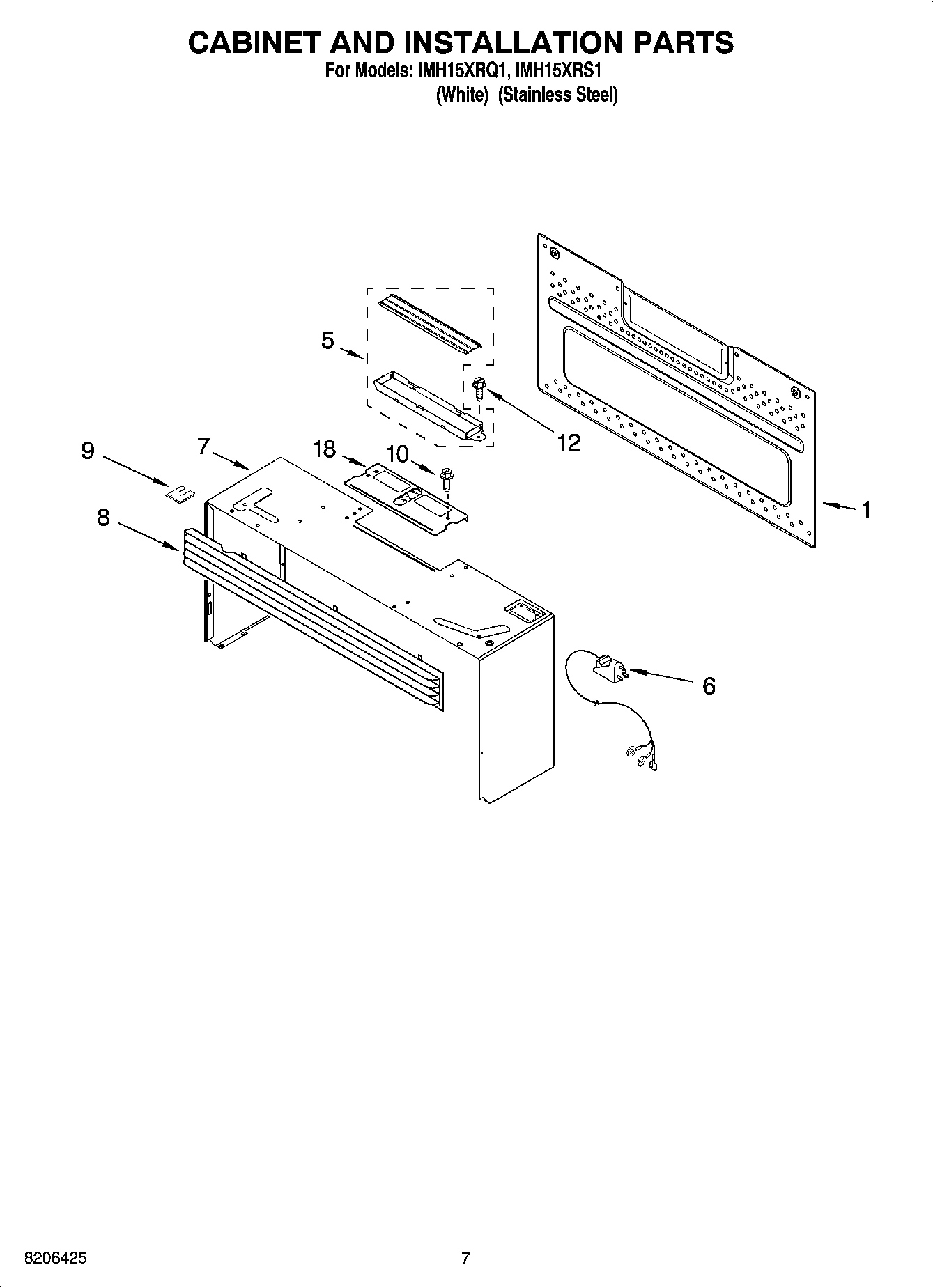

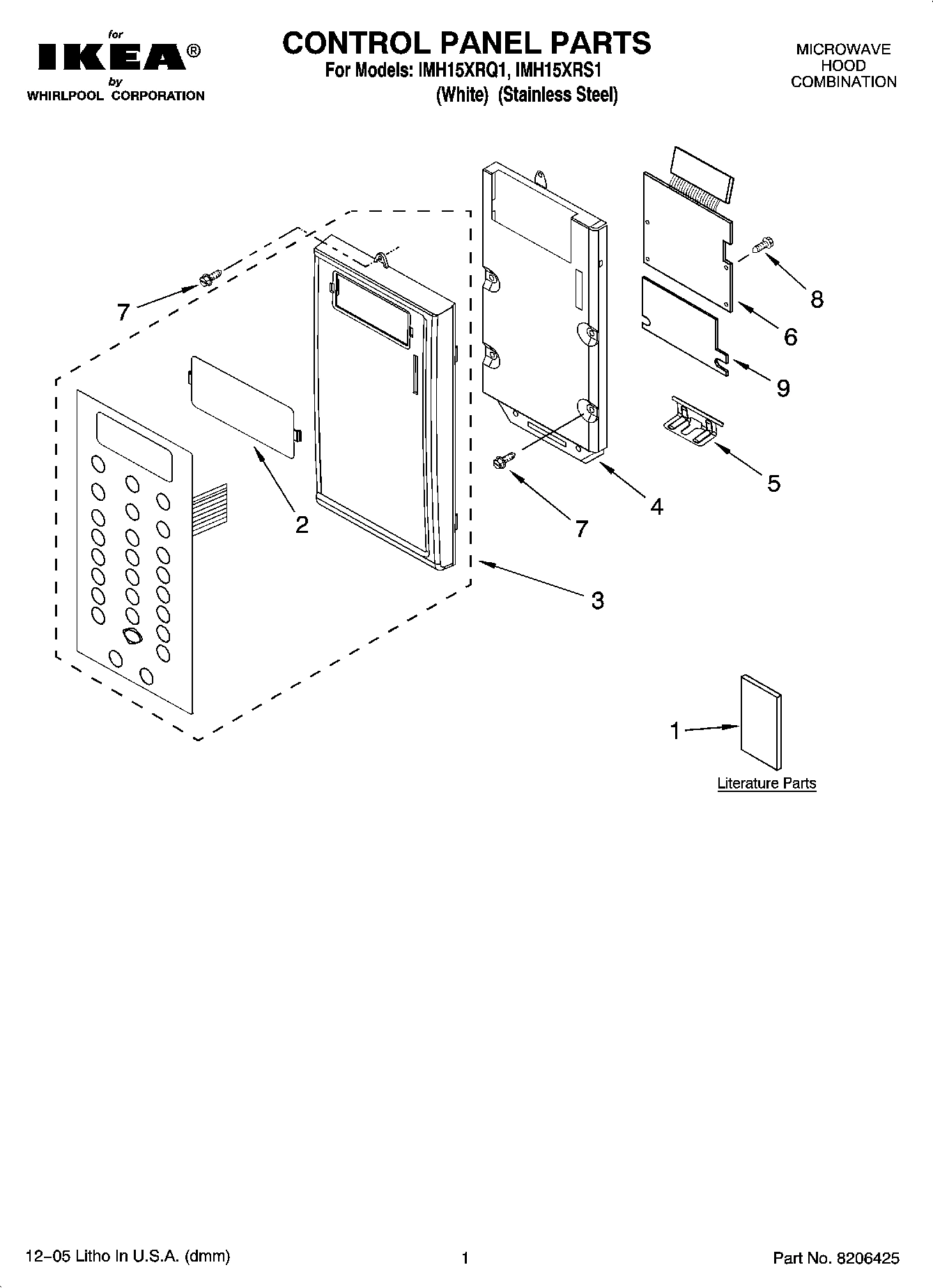

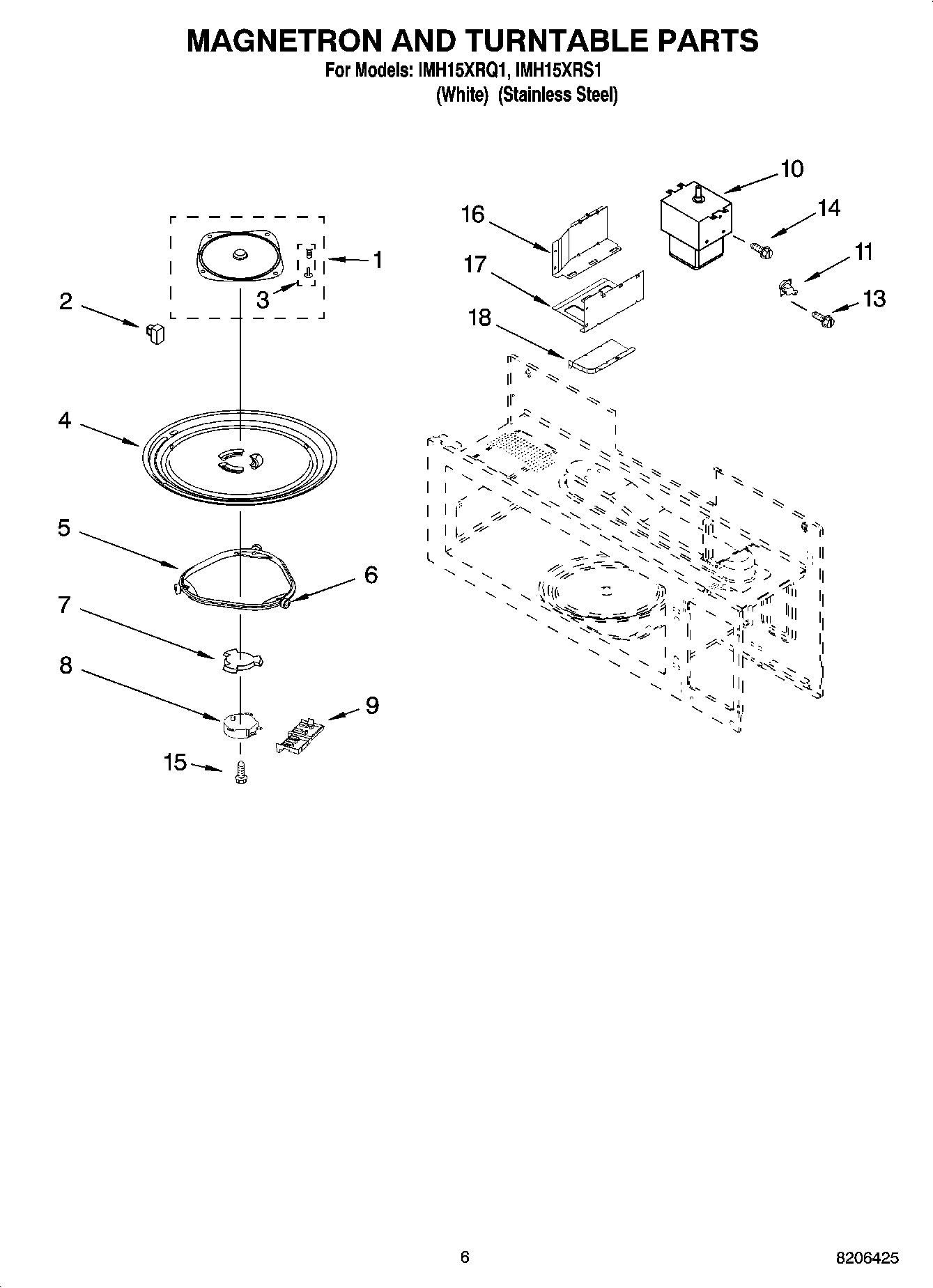

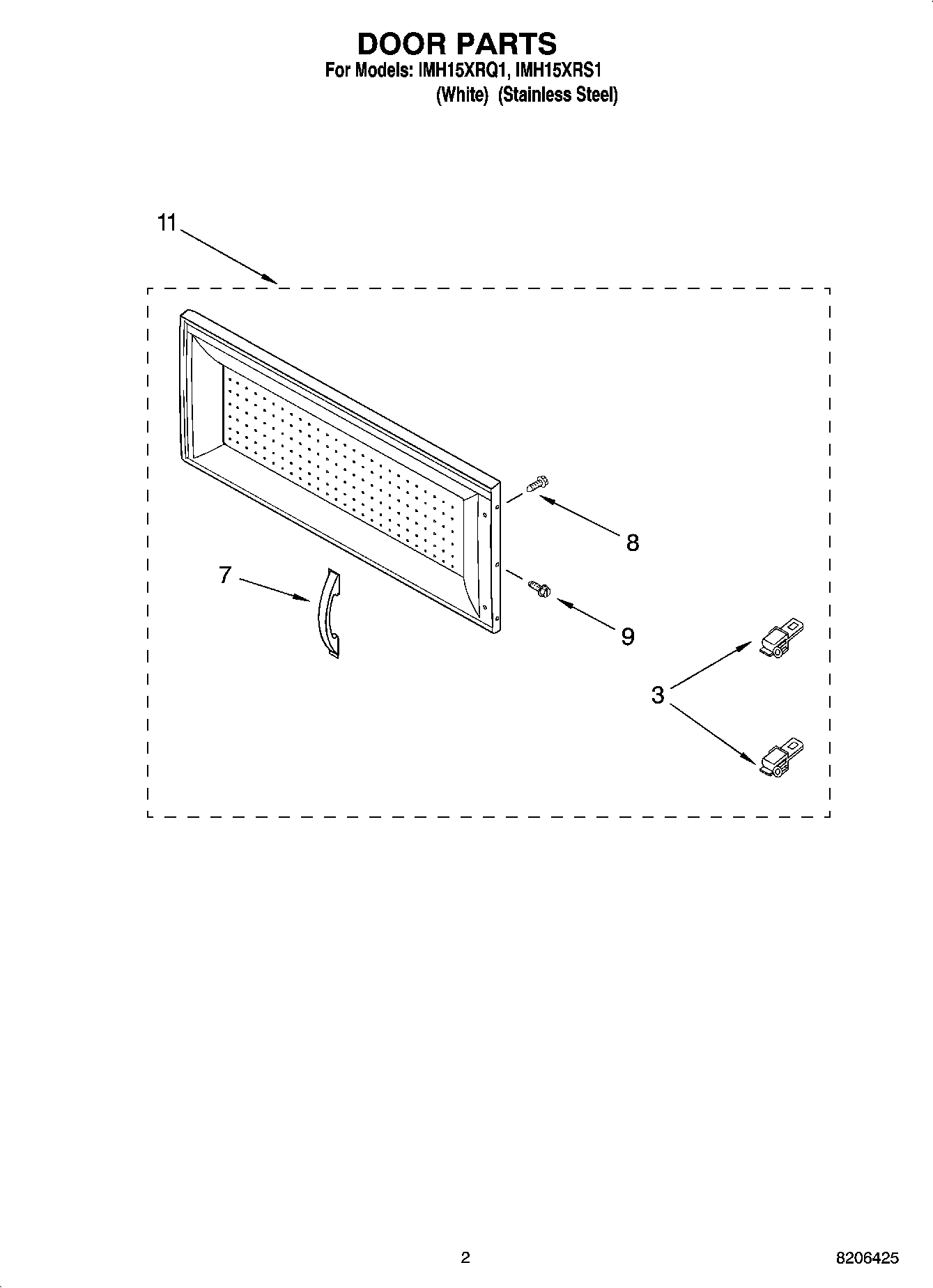

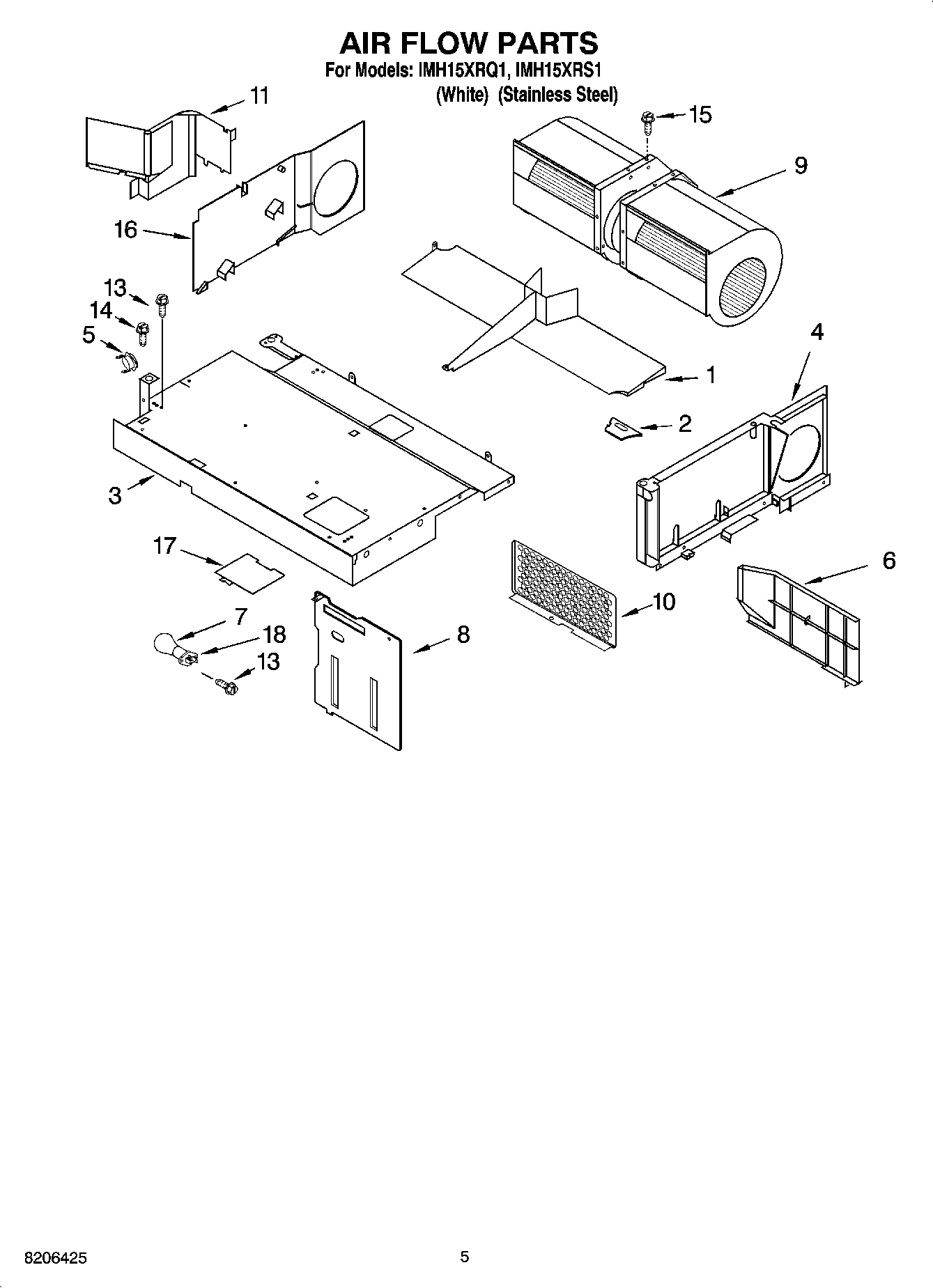

Model Whirlpool IMH15XRS1 MICROWAVE HOOD COMBINATION – Common Parts &amp; Diagrams

1

Deflector, Air WPL 8185096 Contact Us For Availability

1

Cover, Inlet WPL 8185255 Contact Us For Availability

1

Installation Instructions WPL 8184732 Contact Us For Availability

1

Use & Care Guide WPL 8205341 Contact Us For Availability

1

English WPL 8205342 Contact Us For Availability

1

French WPL 8205343 Contact Us For Availability

1

Tech Sheet Cook Guide Label WPL 8205344 Contact Us For Availability

2

Socket, Motor Wire WPL 8185097 Contact Us For Availability

2

Cover (4) WPL 8169448 Contact Us For Availability

2

Lens WPL 4393739 Contact Us For Availability

3

Latch, Door WPL 4393913 Contact Us For Availability

3

Base Plate (Includes 5) WPL 8205563 Contact Us For Availability

3

Nails/Bushings (5 of each) WPL 8184549 Contact Us For Availability

3

Panel, Control (White) WPL 8205564 Contact Us For Availability

3

Panel, Control (Stainless Steel) WPL 8205567 Contact Us For Availability

4

Turntable WPL 4393799 No Longer Available

4

Air Guide (Right) WPL 8185098 Contact Us For Availability

4

Bracket, Control WPL 8183821 Contact Us For Availability

5

W10843943 Whirlpool Microwave Vent Damper In Stock WPL W10843943 $50.07

5

W11252182 Whirlpool Glass Tray Support In Stock WPL W11252182 $23.22

5

Thermostat WPL 4393945 Contact Us For Availability

5

Plate, Hinge WPL 4393744 Contact Us For Availability

6

W10708076 Whirlpool Microwave Power Cord In Stock WPL W10708076 $5.77

6

Wheel, Plastic WPL 4393861 Contact Us For Availability

6

Deflector, Cooling Air WPL 8185099 Contact Us For Availability

6

PCB Assembly WPL 8205565 Contact Us For Availability

7

4393777 Whirlpool Microwave Door Handle - Whi In Stock WPL 4393777 $65.76

7

8169738 Whirlpool Microwave Door Handle In Stock WPL 8169738 $84.48

7

8206232A Whirlpool Microwave 40W 125V Incande In Stock WPL 8206232A $3.39

7

W10435116 Whirlpool Microwave Turntable Rolle Backorder WPL W10435116 $16.57

7

Case, Outer (White) WPL 8185091 Contact Us For Availability

7

Case, Outer (Black) WPL 8185093 Contact Us For Availability

8

8183948 Whirlpool Microwave Oven Vent Grille In Stock WPL 8183948 $29.01

8

8184608 Whirlpool Microwave Oven Vent Grille In Stock WPL 8184608 $30.59

8

W10642989 Whirlpool Microwave Oven Turntable In Stock WPL W10642989 $88.39

8

Cooling Air Guide WPL 8185215 Contact Us For Availability

8

Screw WPL 4393346 Contact Us For Availability

9

8169479 Whirlpool Microwave Screw Backorder WPL 8169479 $3.22

9

8206334 Whirlpool Microwave Mounting Bracket In Stock WPL 8206334 $2.83

9

Motor, Fan WPL 8184825 Contact Us For Availability

9

Cover, Terminal WPL 4393756 Contact Us For Availability

9

Foil, PCB WPL 8185122 Contact Us For Availability

10

W10844213 Whirlpool Microwave Magnetron Backorder WPL W10844213 $200.18

10

WP4393834 Whirlpool Microwave Screw Backorder WPL WP4393834 $4.77

10

Shield WPL 8204736 Contact Us For Availability

Spring, Interlock (2) WPL 8169438 Contact Us For Availability

Air Guide, Sealing Plate WPL 8204996 Contact Us For Availability

Door, Complete (White) WPL 8205562 Contact Us For Availability

Door, Complete (Stainless Steel) WPL 8205566 Contact Us For Availability

Thermostat WPL 8184829 Contact Us For Availability

12

Plate, Cam (2) WPL 8183824 Contact Us For Availability

12

Screw WPL 4393828 Contact Us For Availability

13

Screw WPL 8169474 Contact Us For Availability

13

Screw WPL 4393838 Contact Us For Availability

14

WP8181660 Whirlpool Screw In Stock WPL WP8181660 $3.22

14

Screw WPL 8169478 Contact Us For Availability

15

Screw WPL 4393833 Contact Us For Availability

15

Screw WPL 4393830 Contact Us For Availability

16

Air Guide (Left) WPL 8185115 Contact Us For Availability

16

Left Block, Magnetron WPL 8205583 Contact Us For Availability

17

Cover, Light (White Model) WPL 8185118 Contact Us For Availability

17

Cover, Light (SS Model) WPL 8205030 Contact Us For Availability

17

Middle Block, Magnetron WPL 8205584 Contact Us For Availability

8169539 Whirlpool Microwave Light Bulb Socket Backorder WPL 8169539 $35.16

8205948 Whirlpool Microwave Mount In Stock WPL 8205948 $9.19

WP8169704 Whirlpool Screw In Stock WPL WP8169704 $3.50

Right Block, Magnetron WPL 8205585 Contact Us For Availability

Cover, Motor WPL 8185090 Contact Us For Availability

Upper Template WPL 8185479 Contact Us For Availability

Miscellaneous WPL ARI76418A4 Contact Us For Availability

28

W11707984 Whirlpool Thermal Fuse In Stock WPL W11707984 $23.48

29

Thermostat WPL 4393710 Contact Us For Availability

31

Block, Air Guide Magnetron WPL 8205581 Contact Us For Availability

32

W11380570 Whirlpool Microwave Screw In Stock WPL W11380570 $10.17

36

4393836 Whirlpool Microwave Screw Backorder WPL 4393836 $6.22

37

Screw WPL 4393839 Contact Us For Availability
