Model Huebsch HU200S Dryer – Common Parts & Diagrams
Interior Control Box
Dual Digital Control - F in the 7th Position (Drawing 1 of 2)

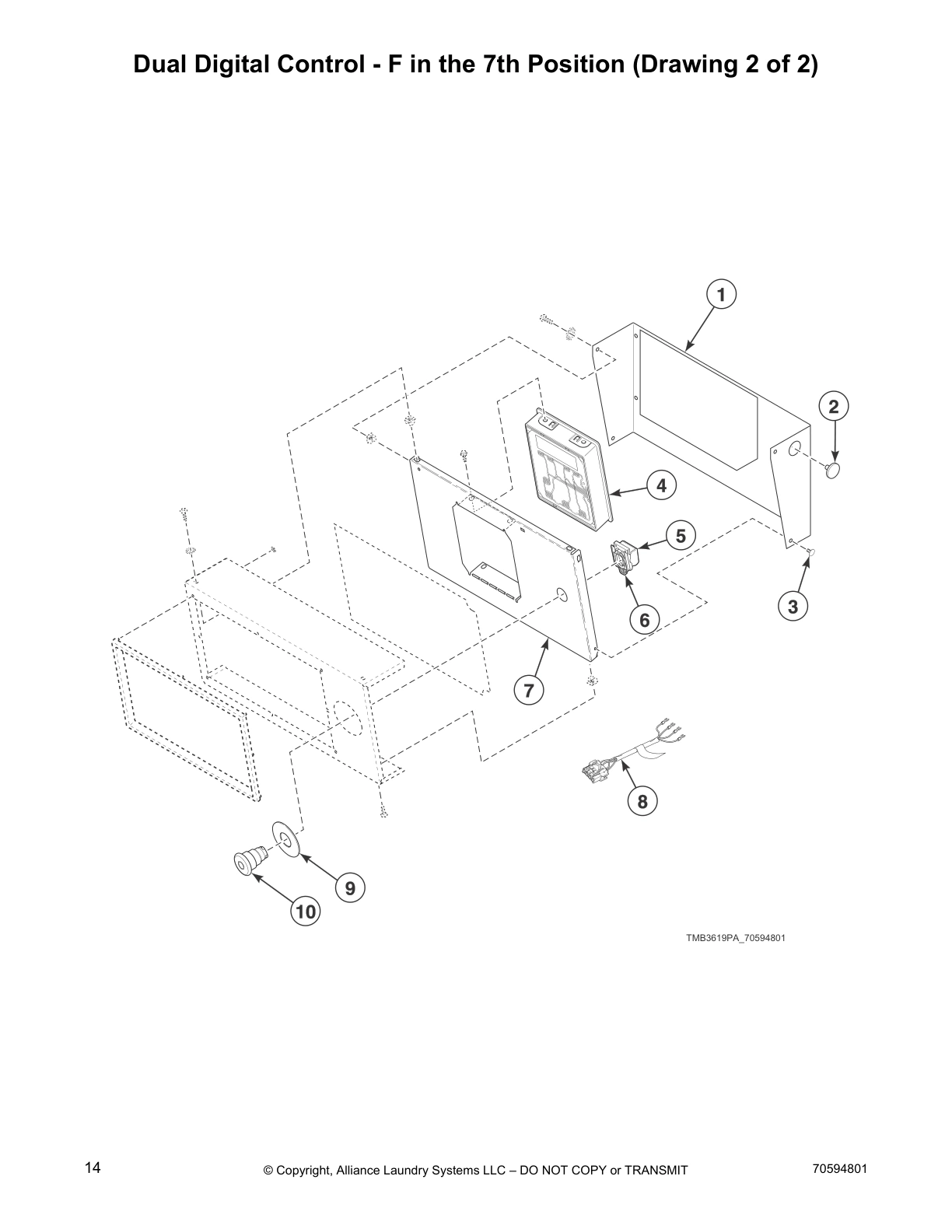

Dual Digital Control - F in the 7th Position (Drawing 2 of 2)

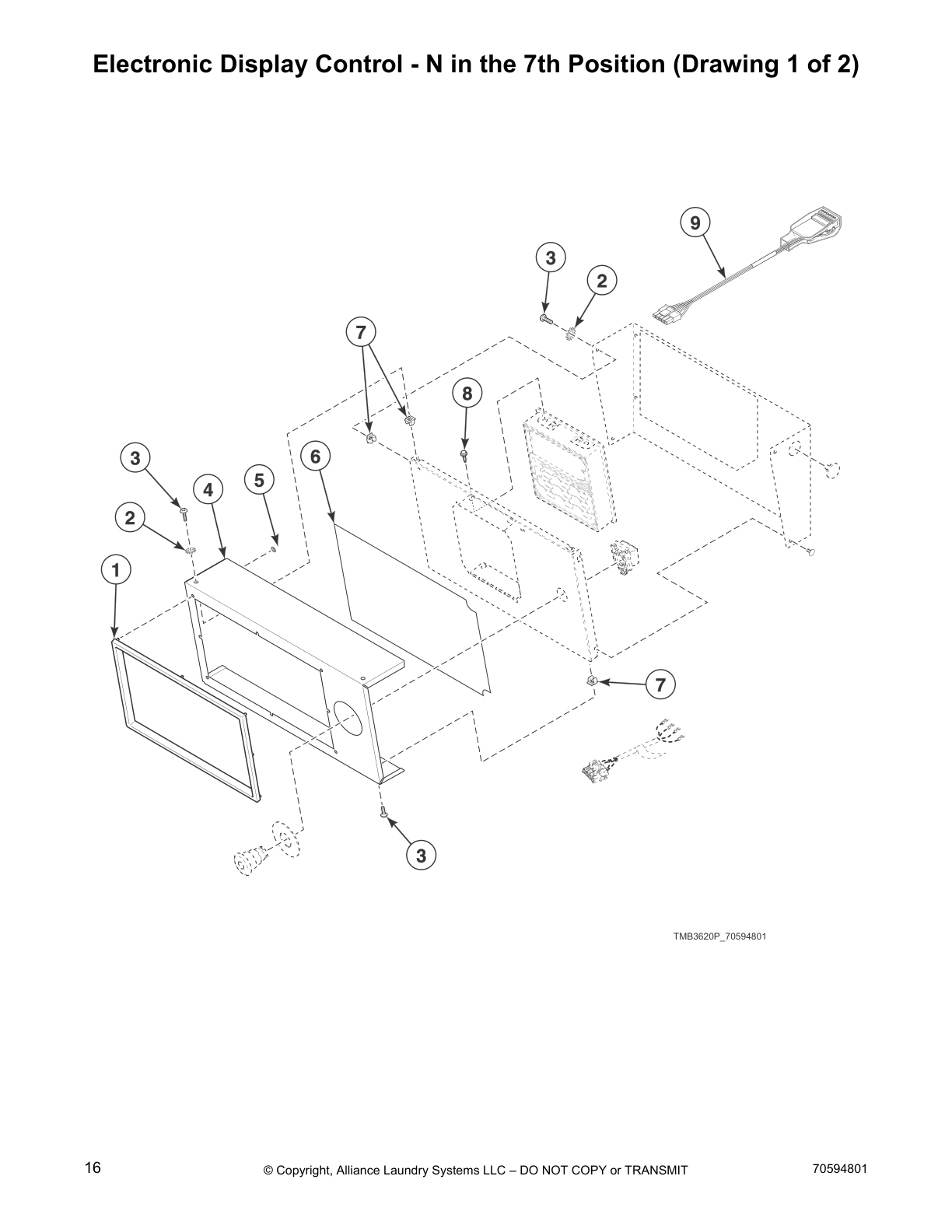

Electronic Display Control - N in the 7th Position (Drawing 1 of 2)

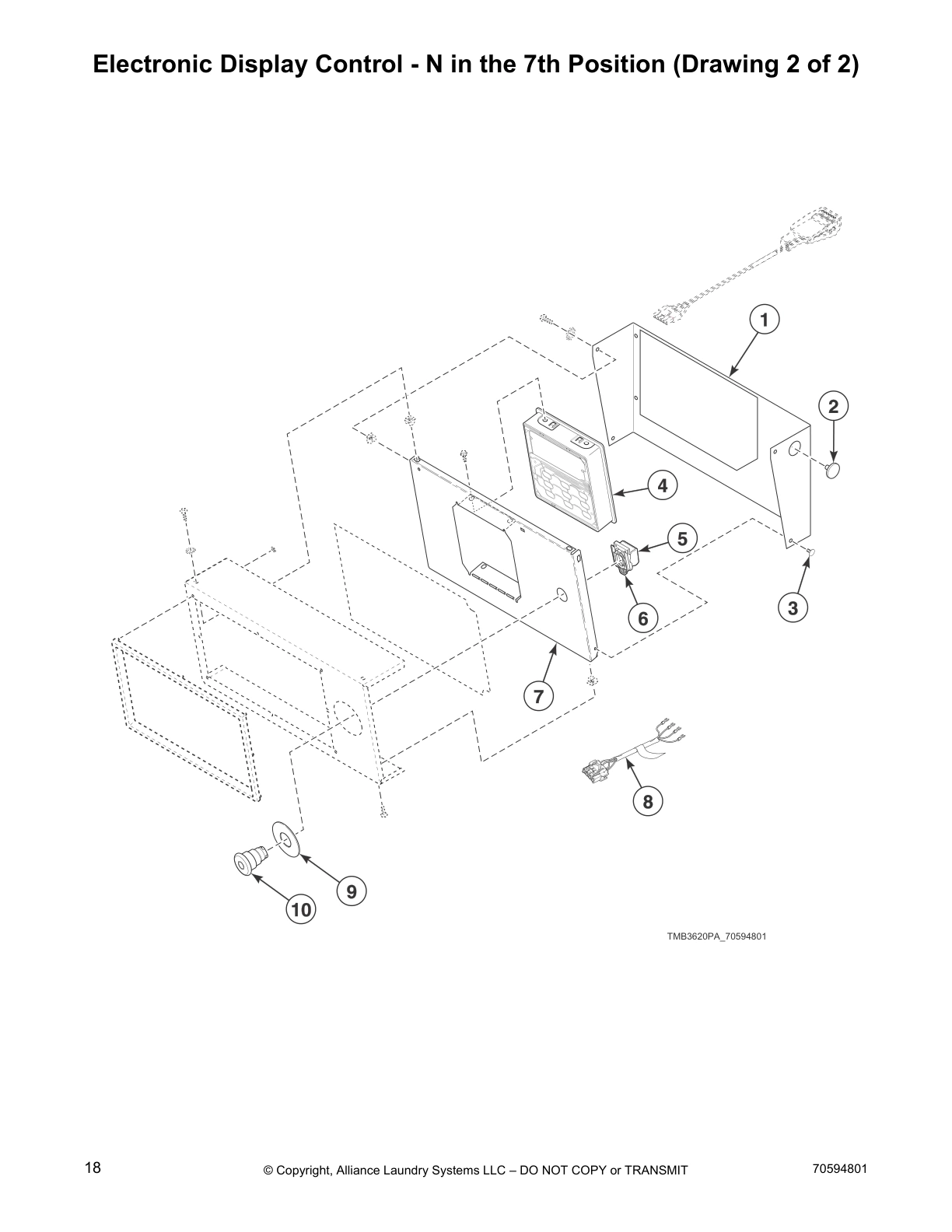

Electronic Display Control - N in the 7th Position (Drawing 2 of 2)

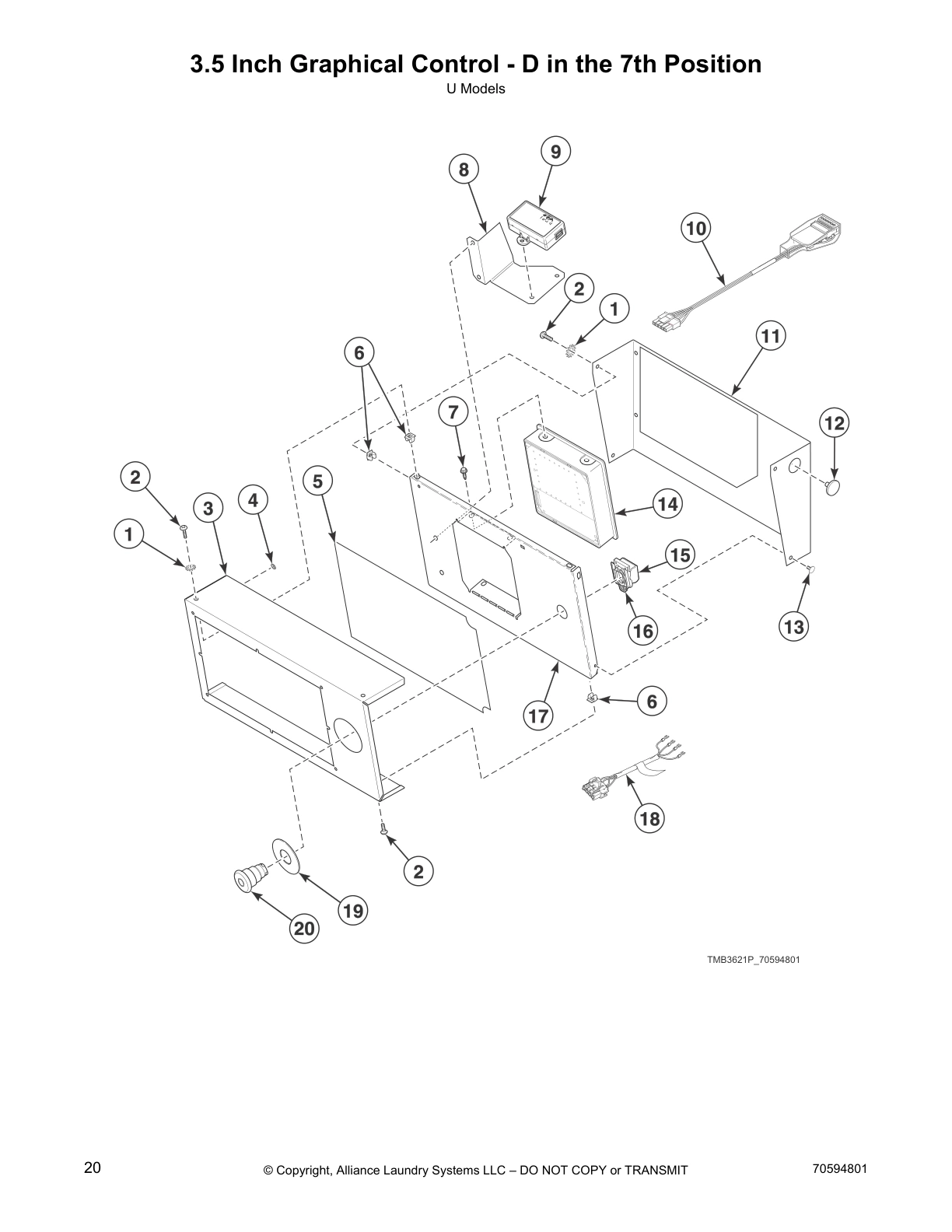

3.5 Inch Graphical Control - D in the 7th Position

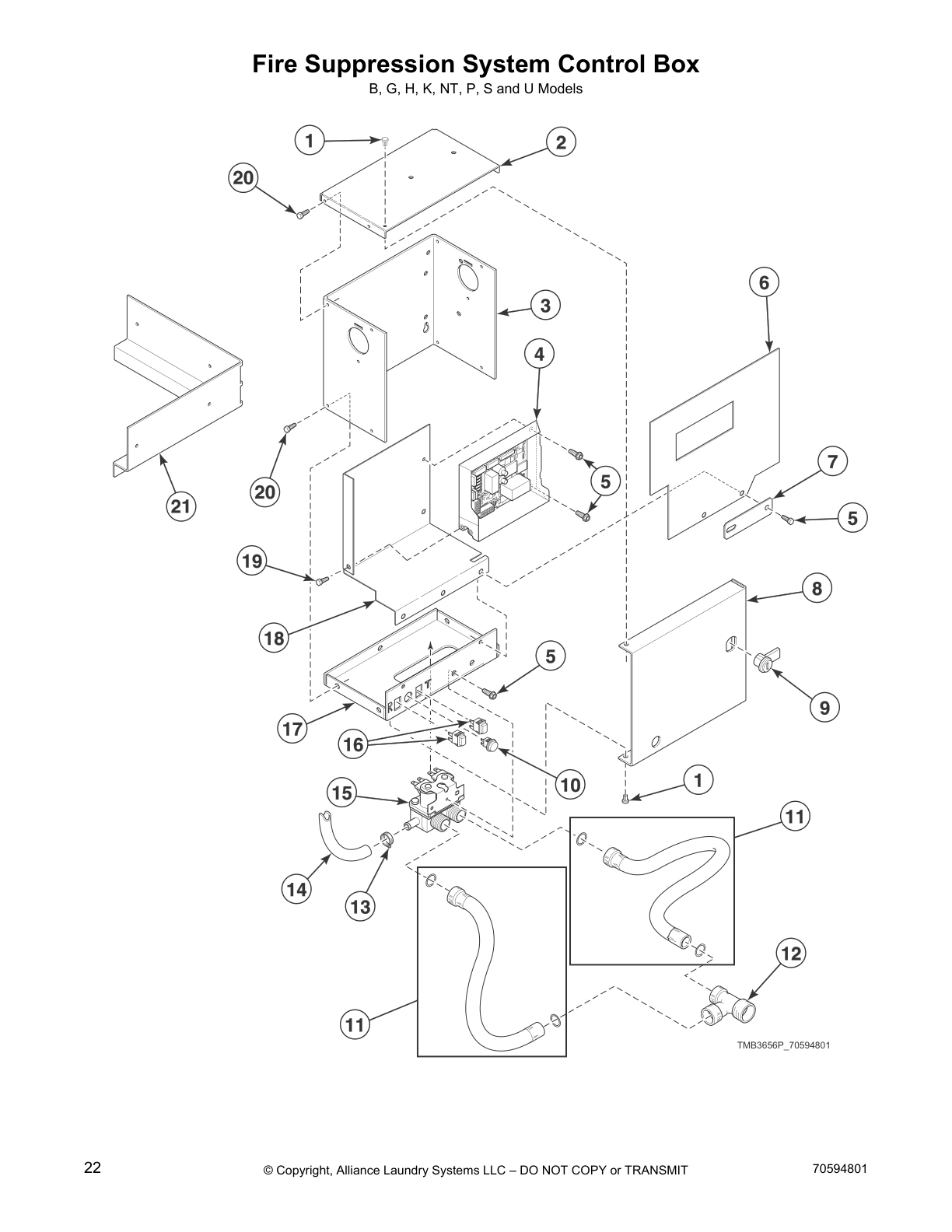

Fire Suppression System Control Box

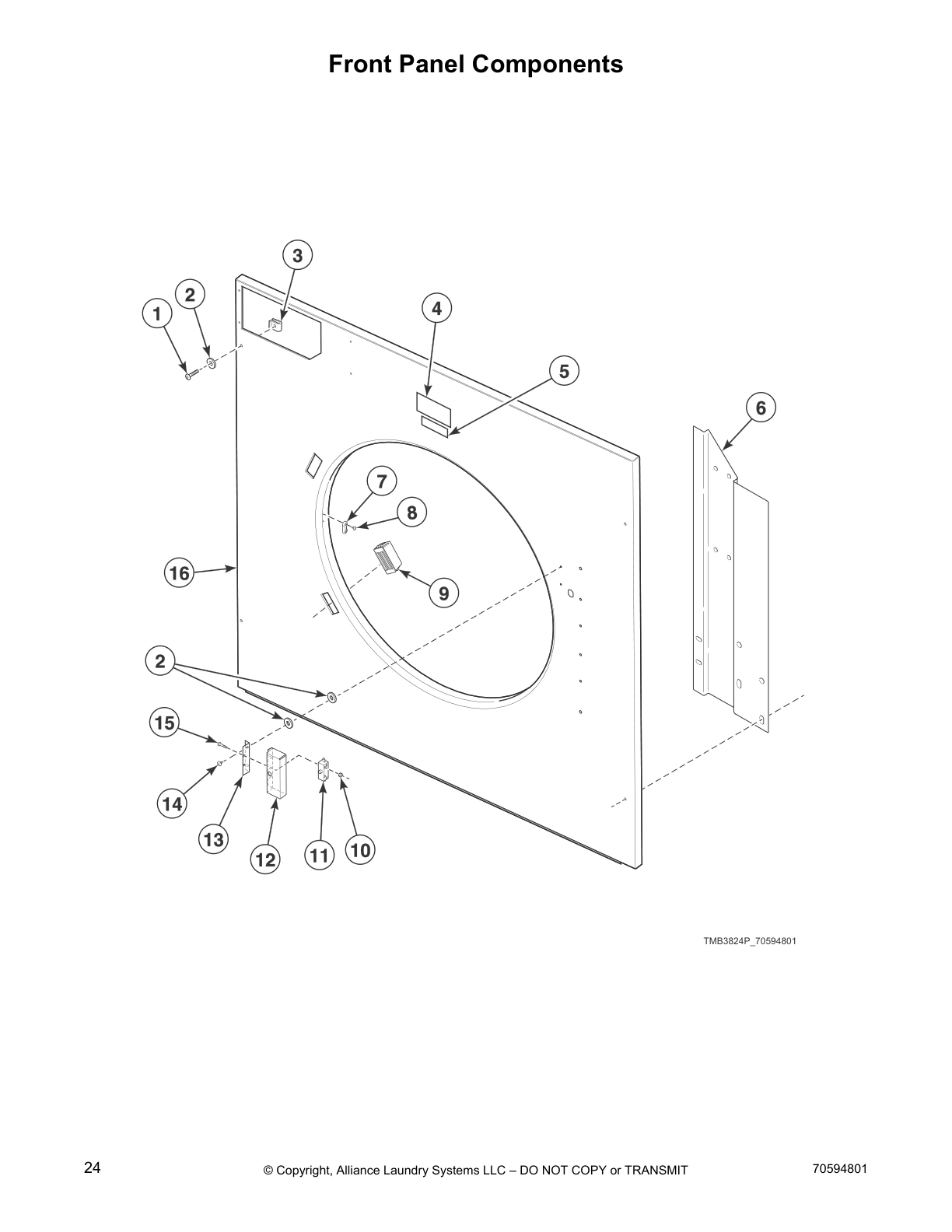

Front Panel Components

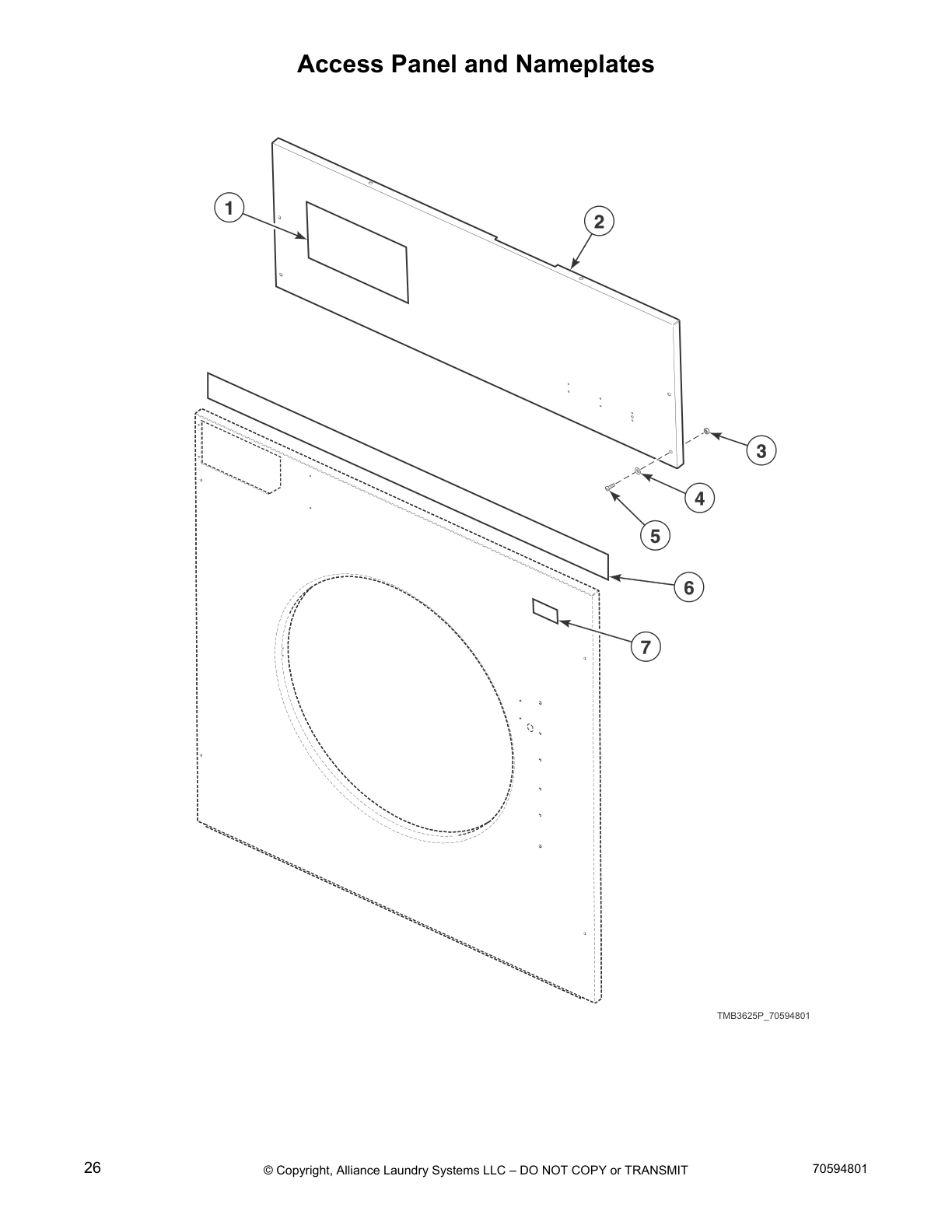

Access Panel and Nameplates

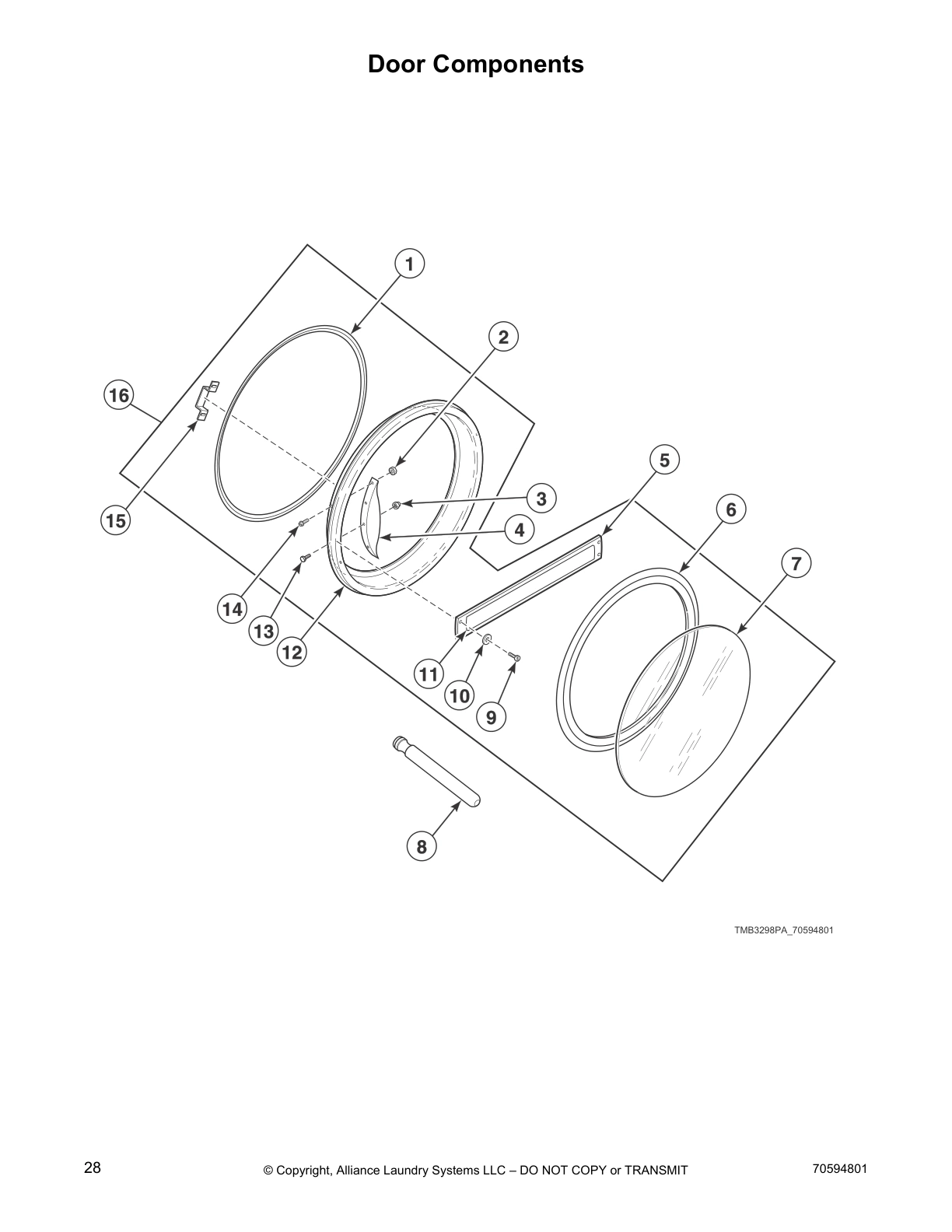

Door Components

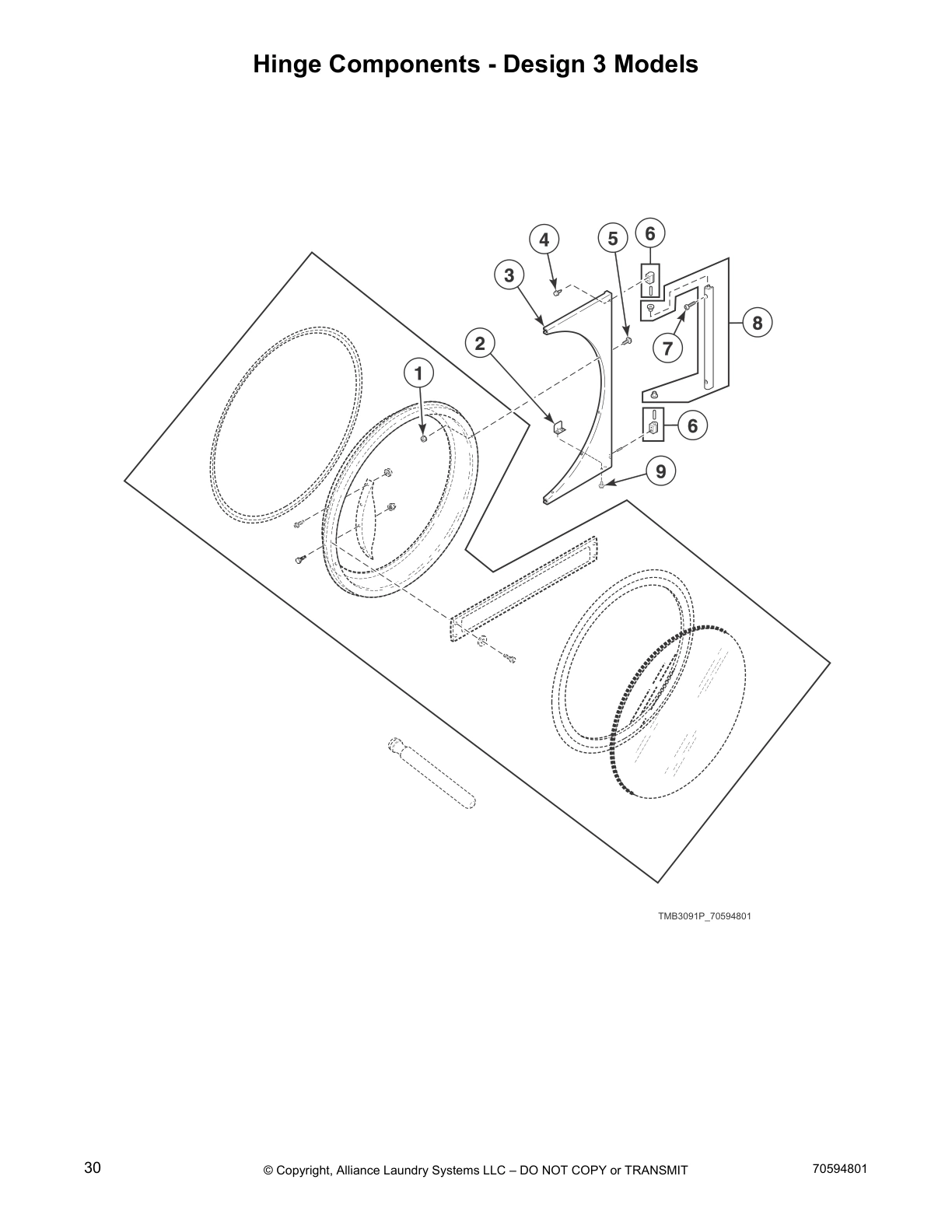

Hinge Components - Design 3 Models

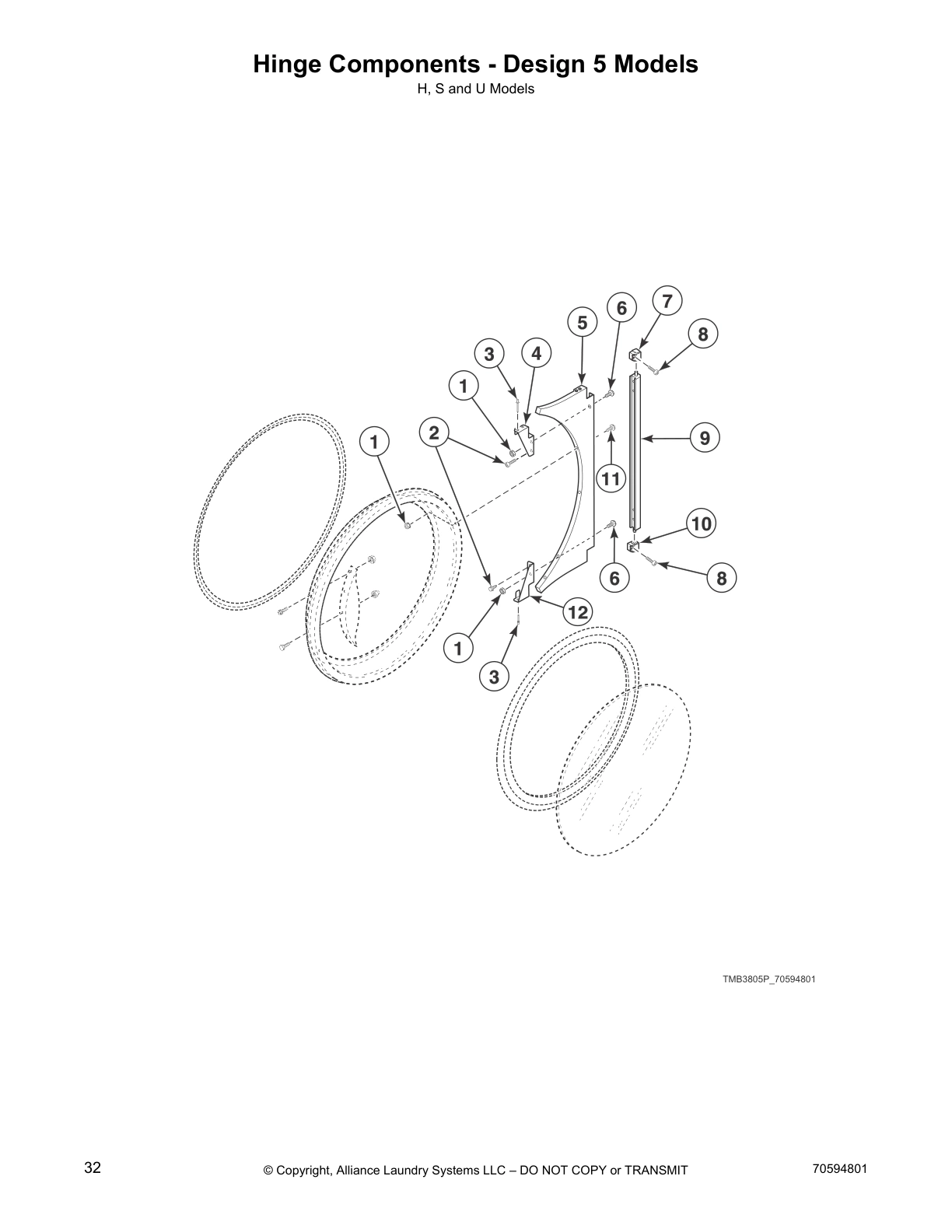

Hinge Components - Design 5 Models

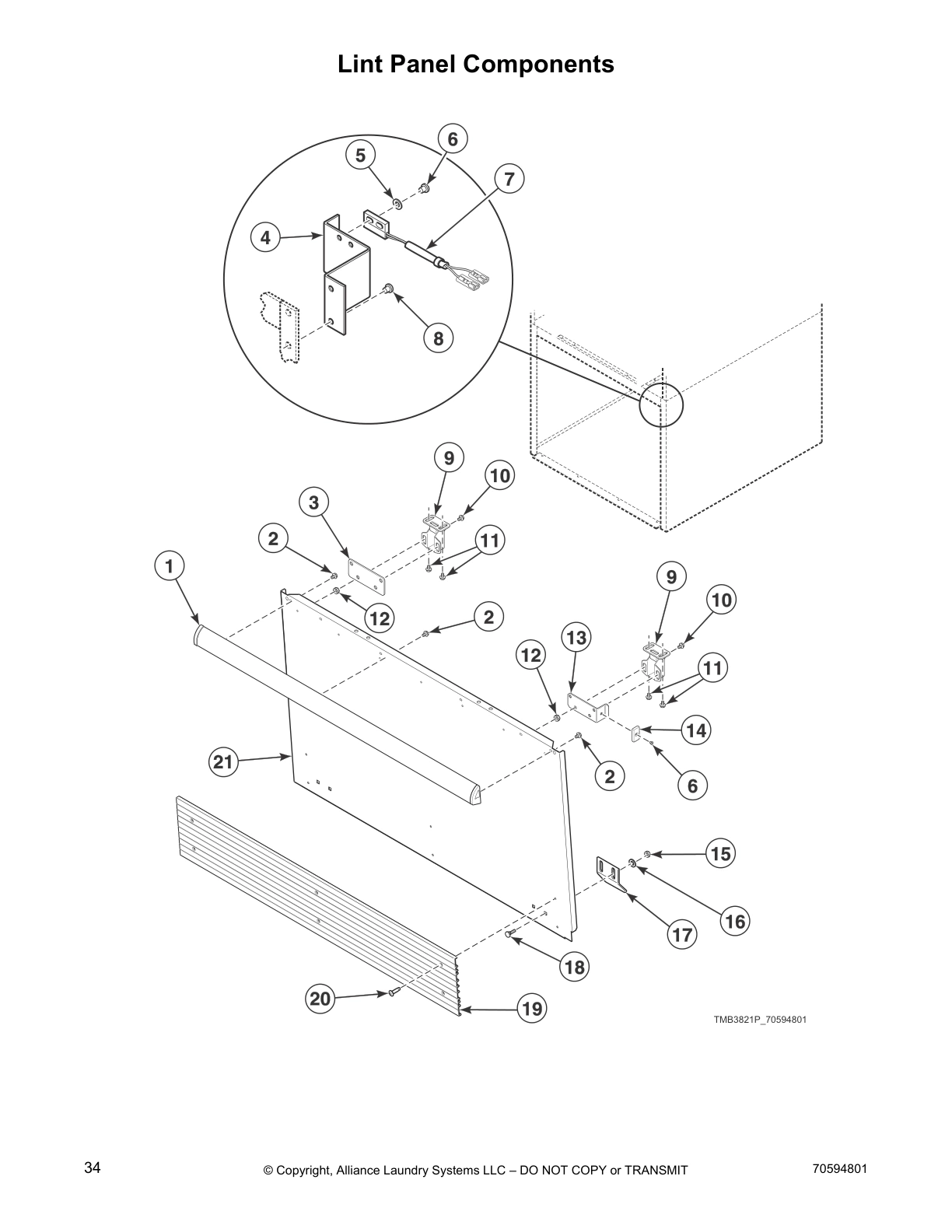

Lint Panel Components

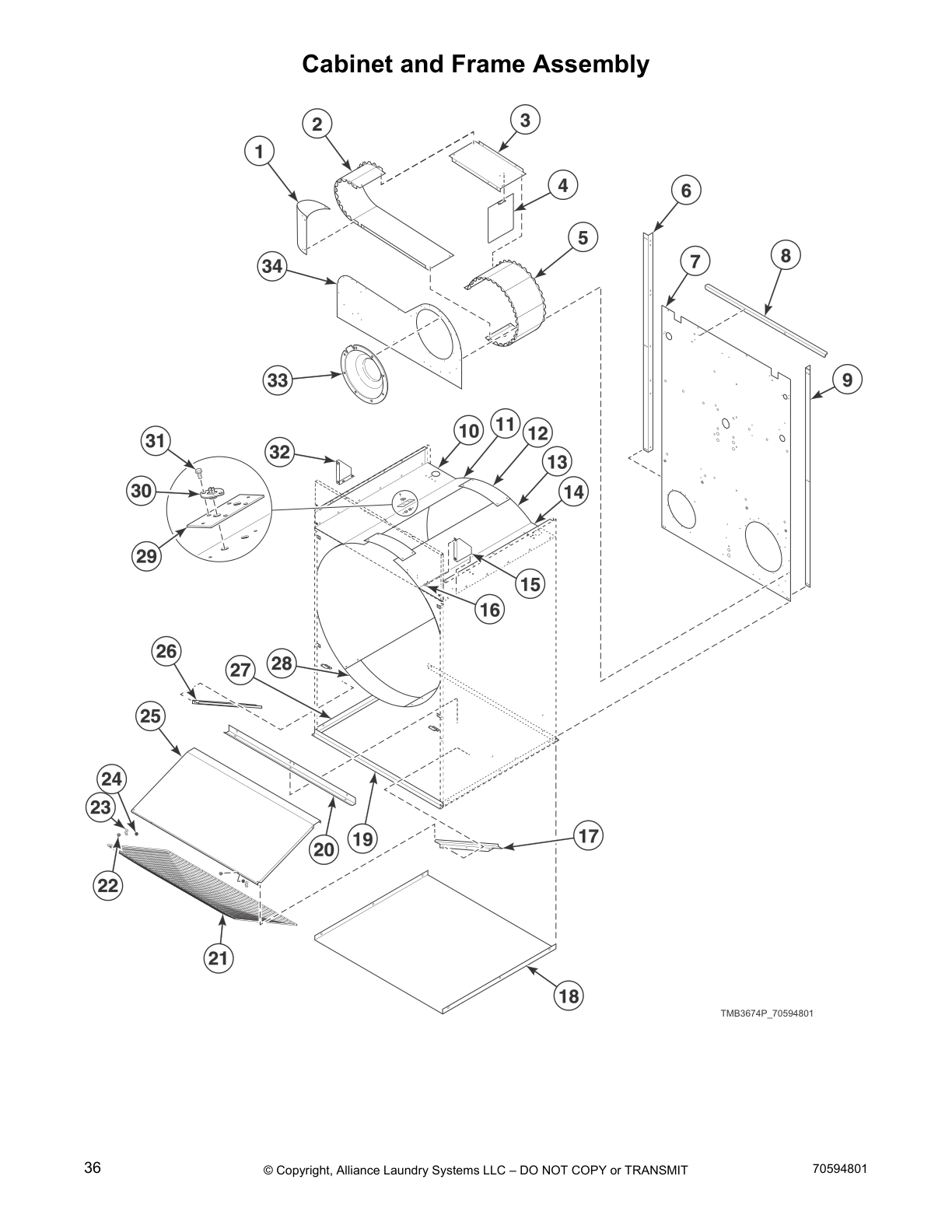

Cabinet and Frame Assembly

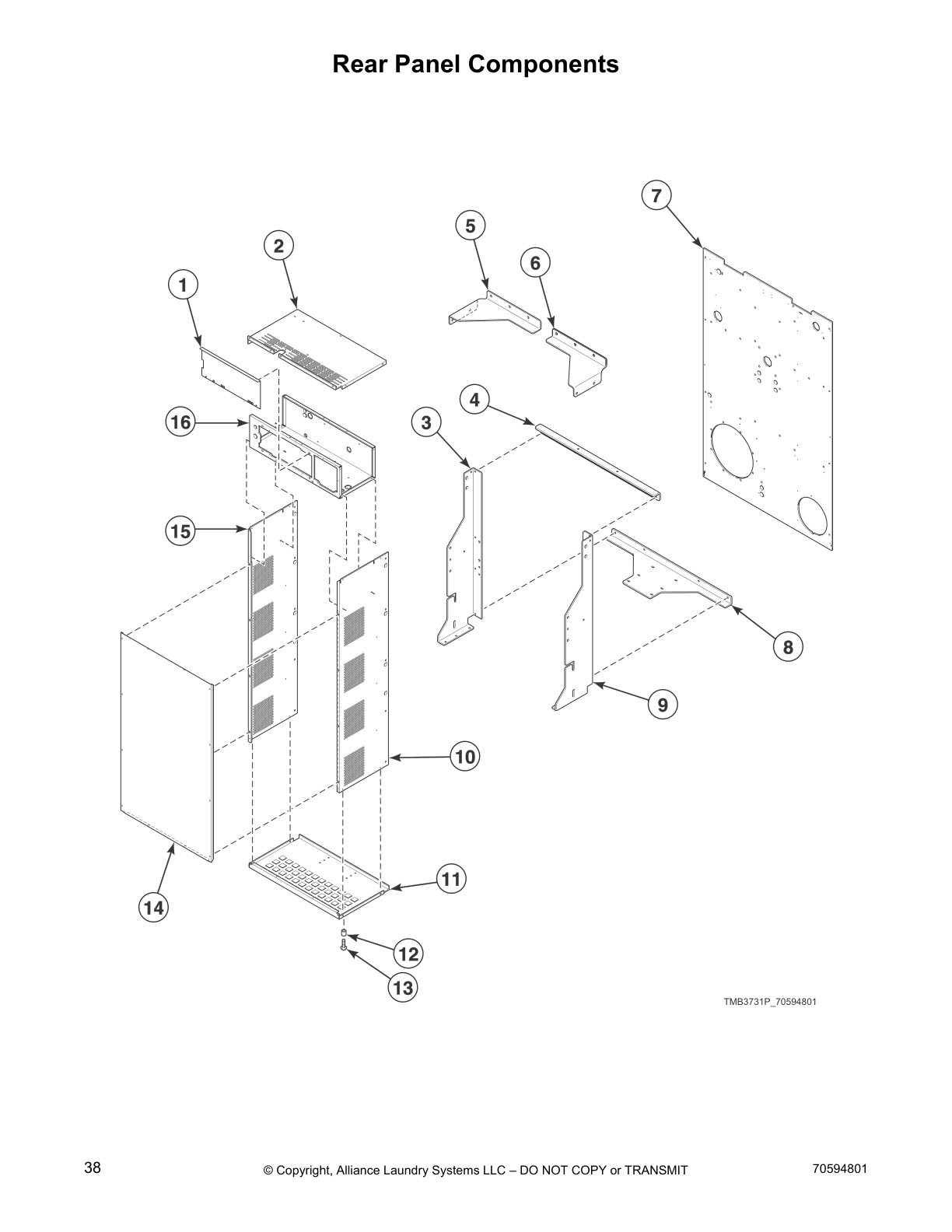

Rear Panel Components

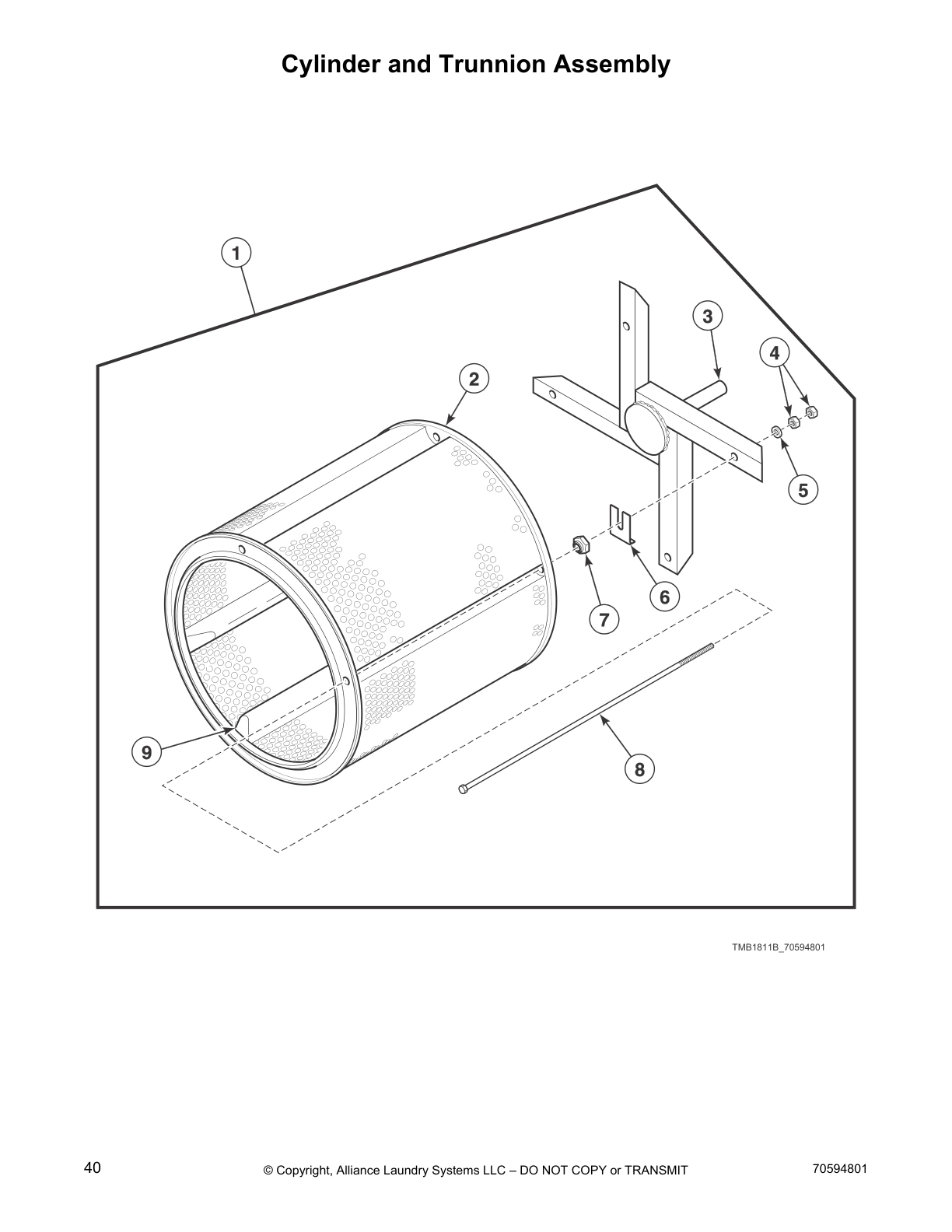

Cylinder and Trunnion Assembly

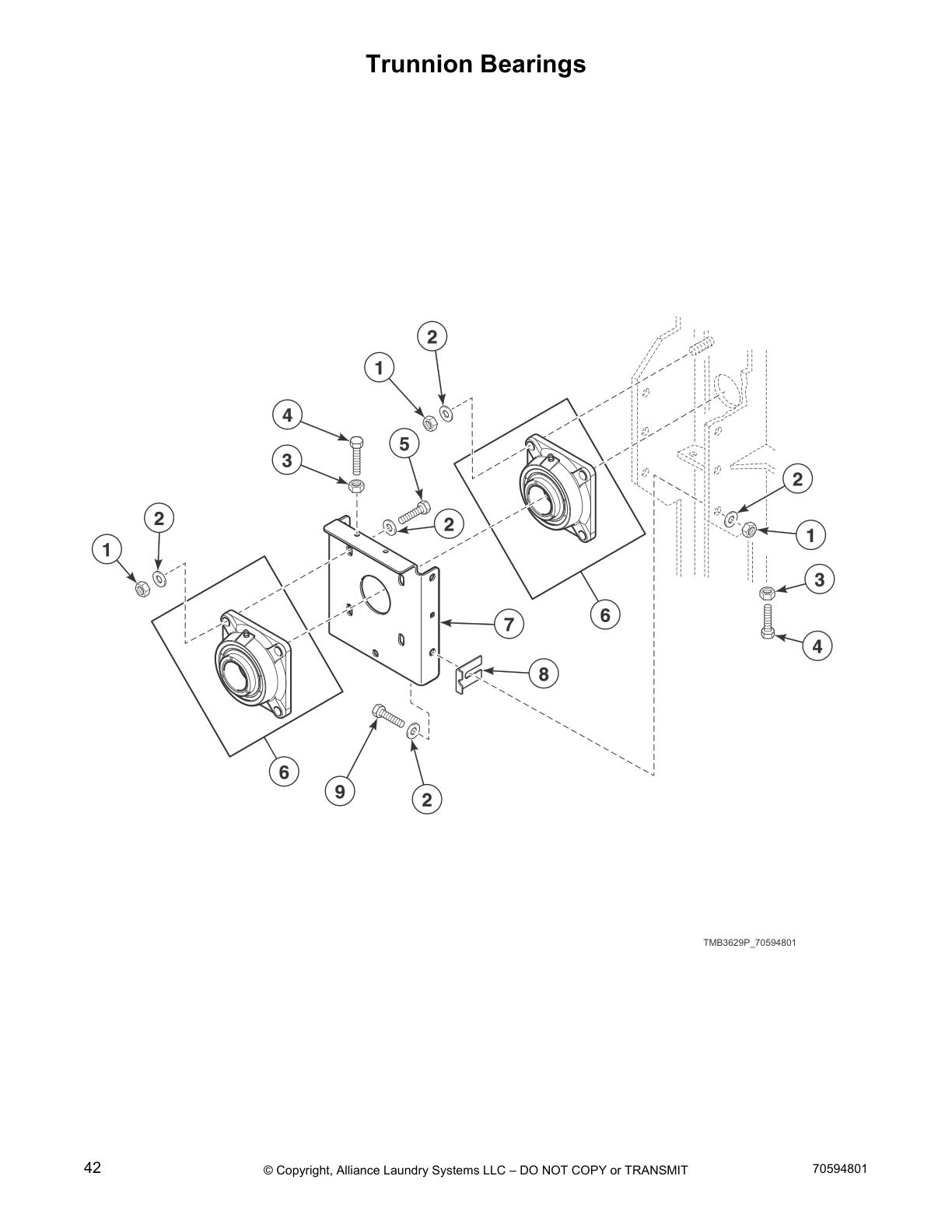

Trunnion Bearings

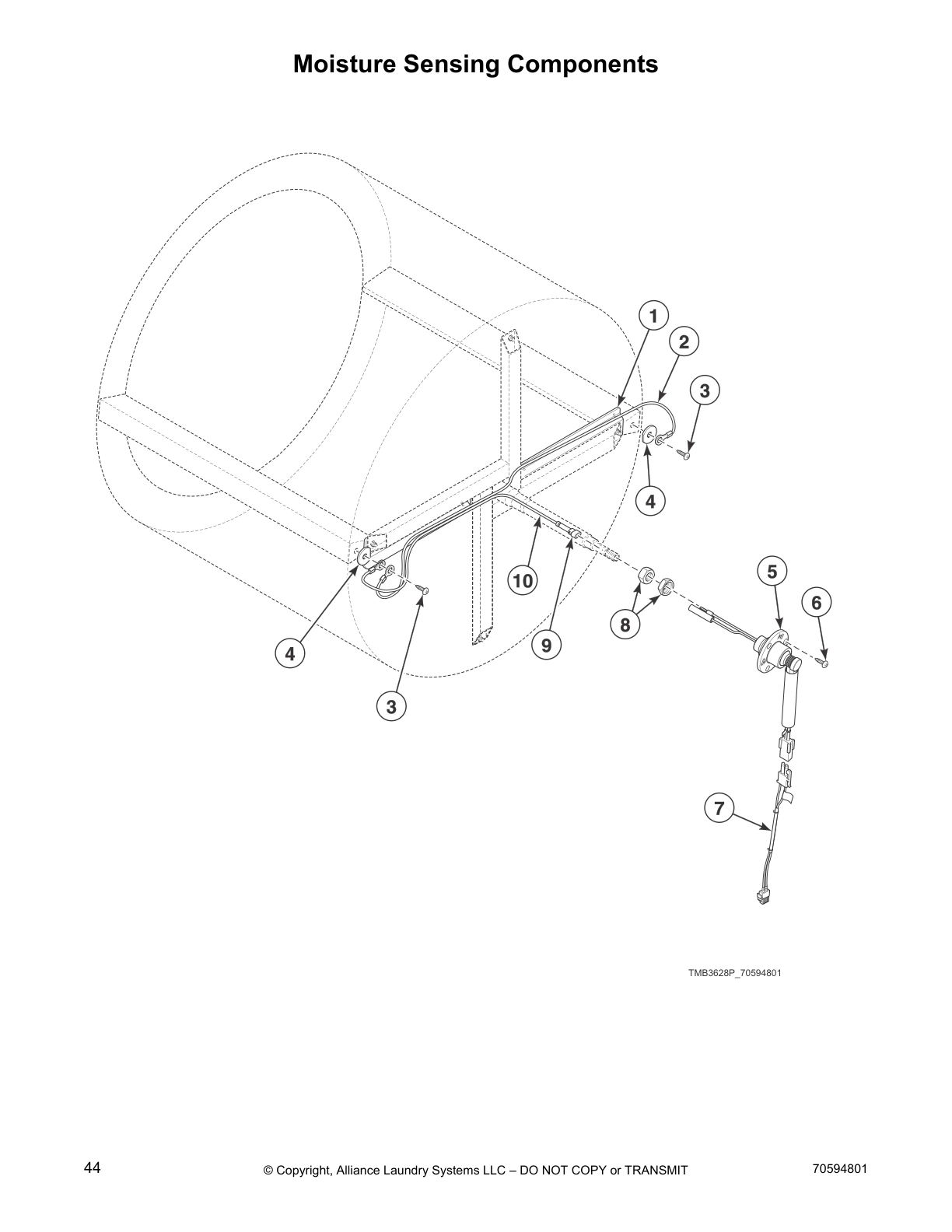

Moisture Sensing Components

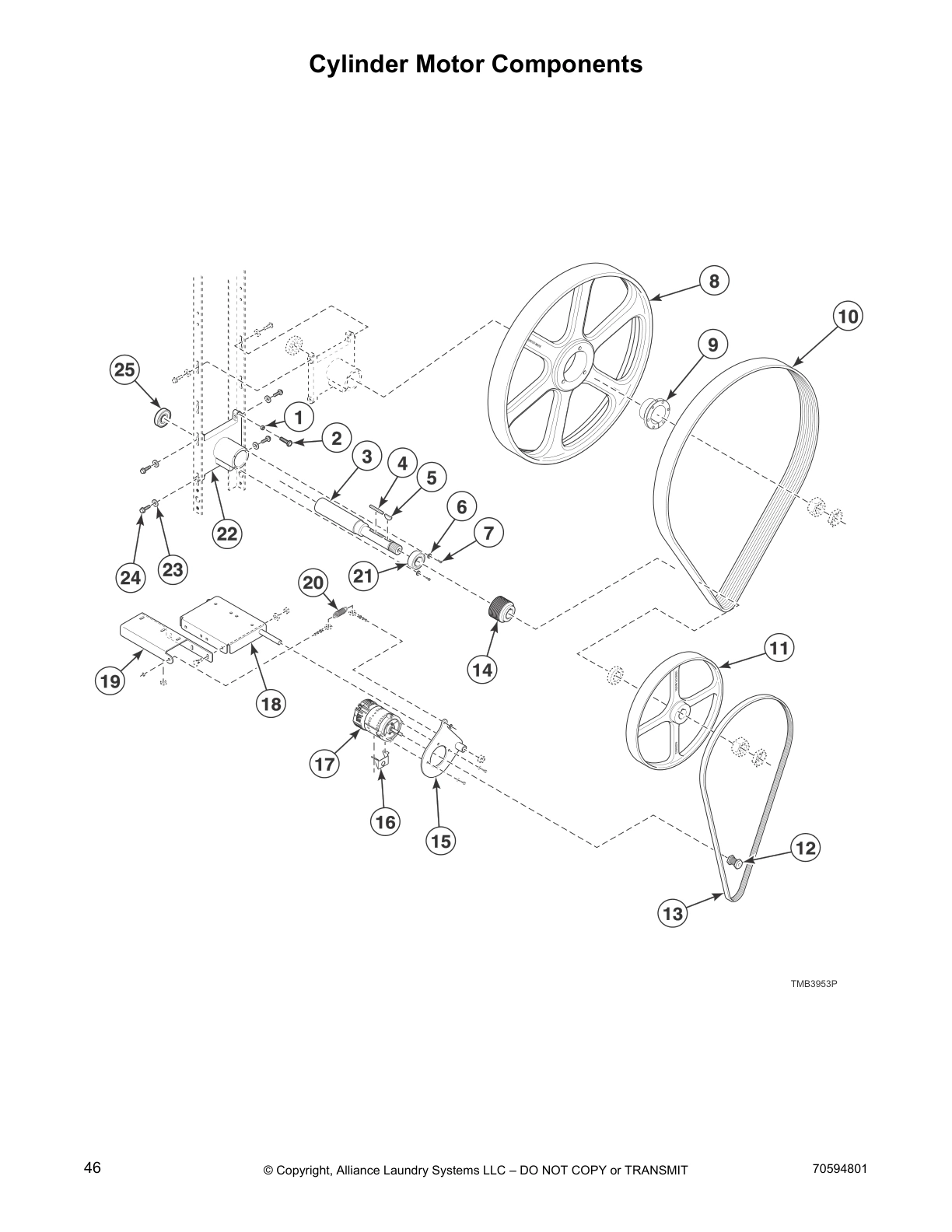

Cylinder Motor Components

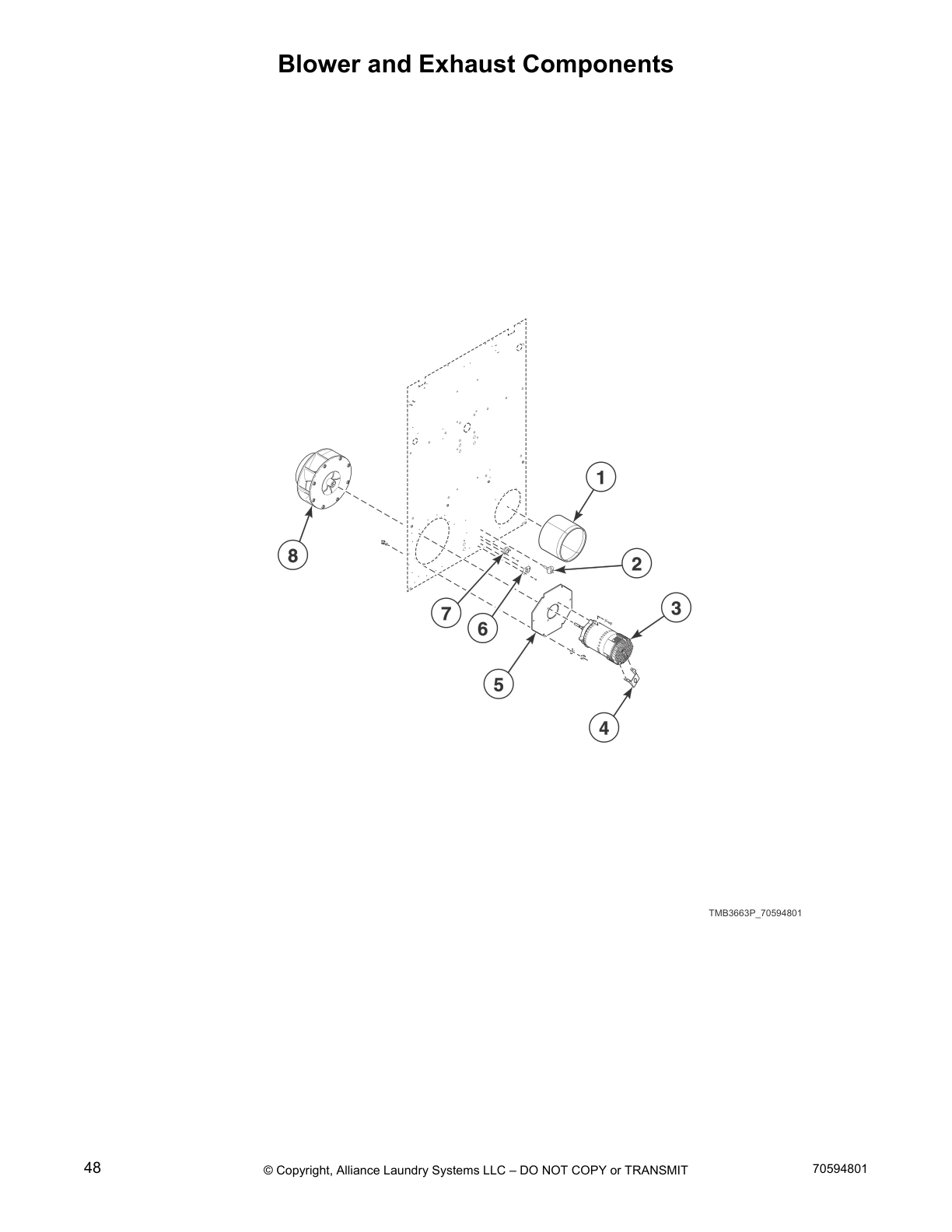

Blower and Exhaust Components
Airflow Switch

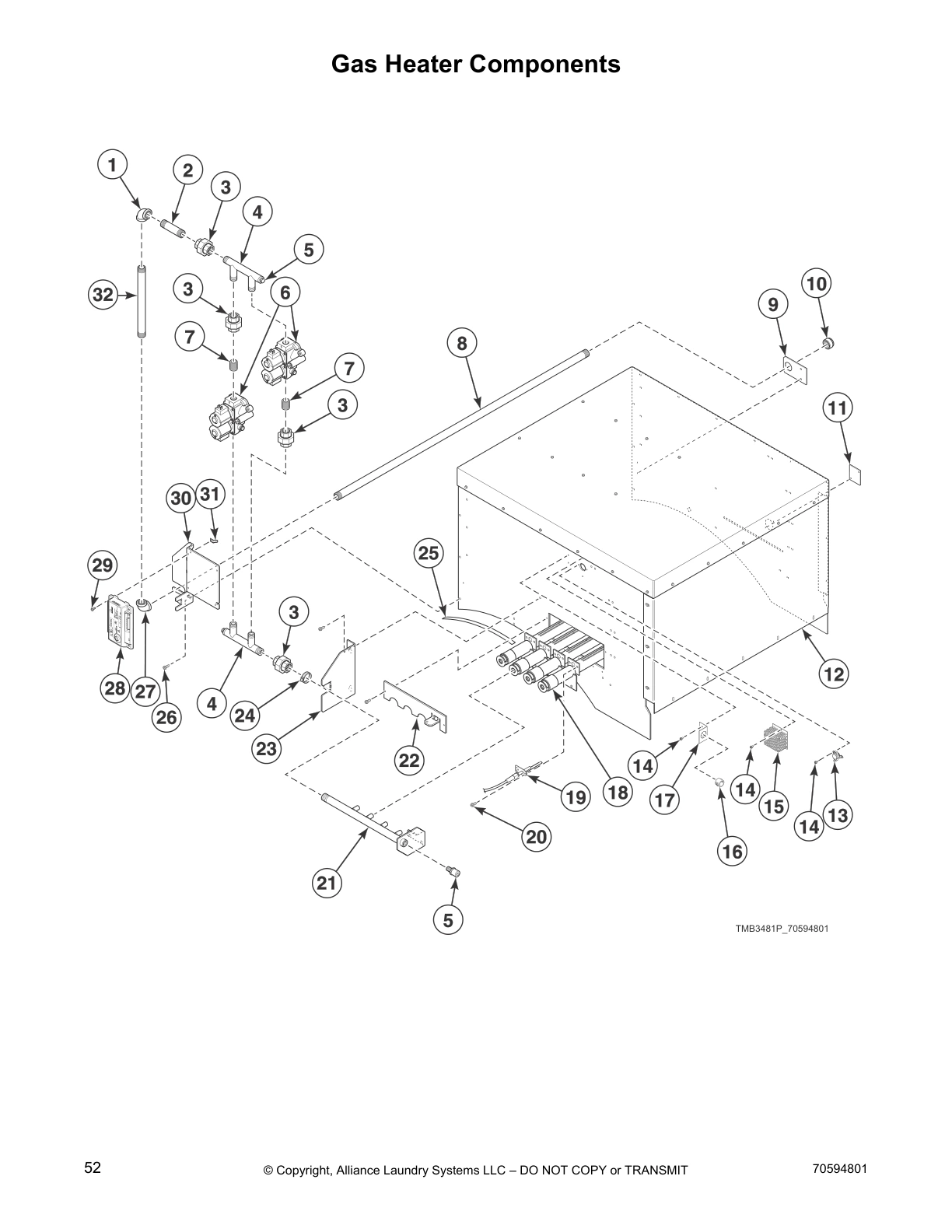

Gas Heater Components

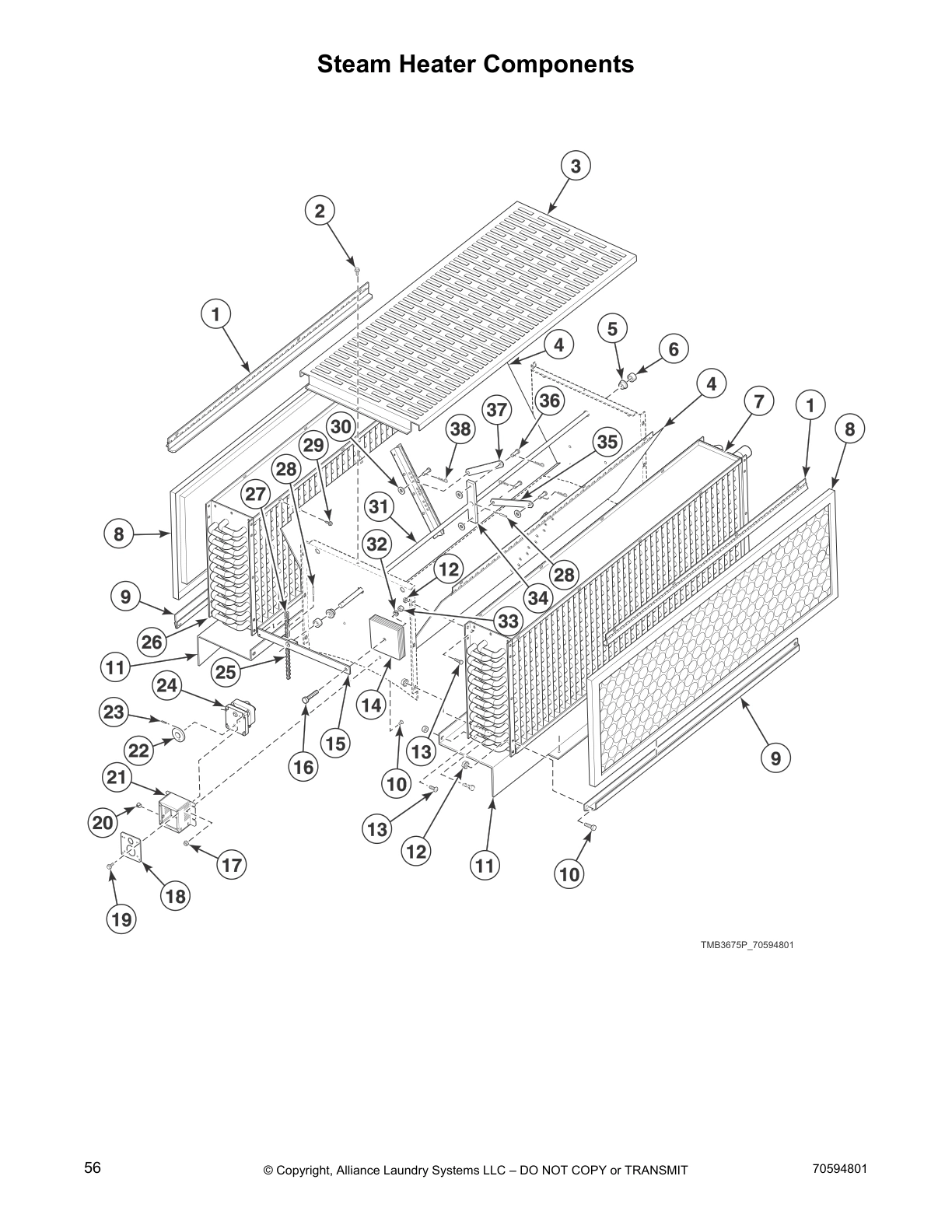

Steam Heater Components

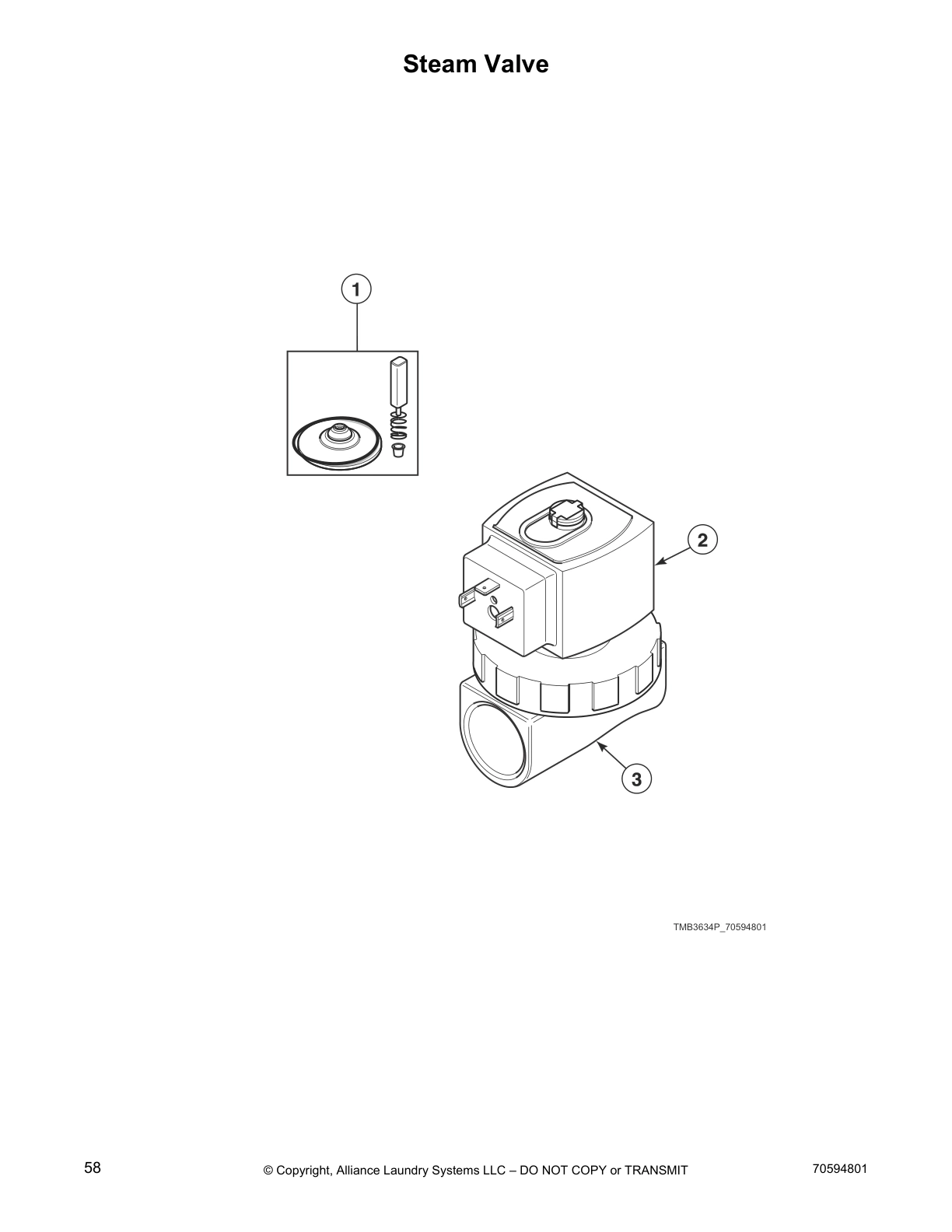

Steam Valve

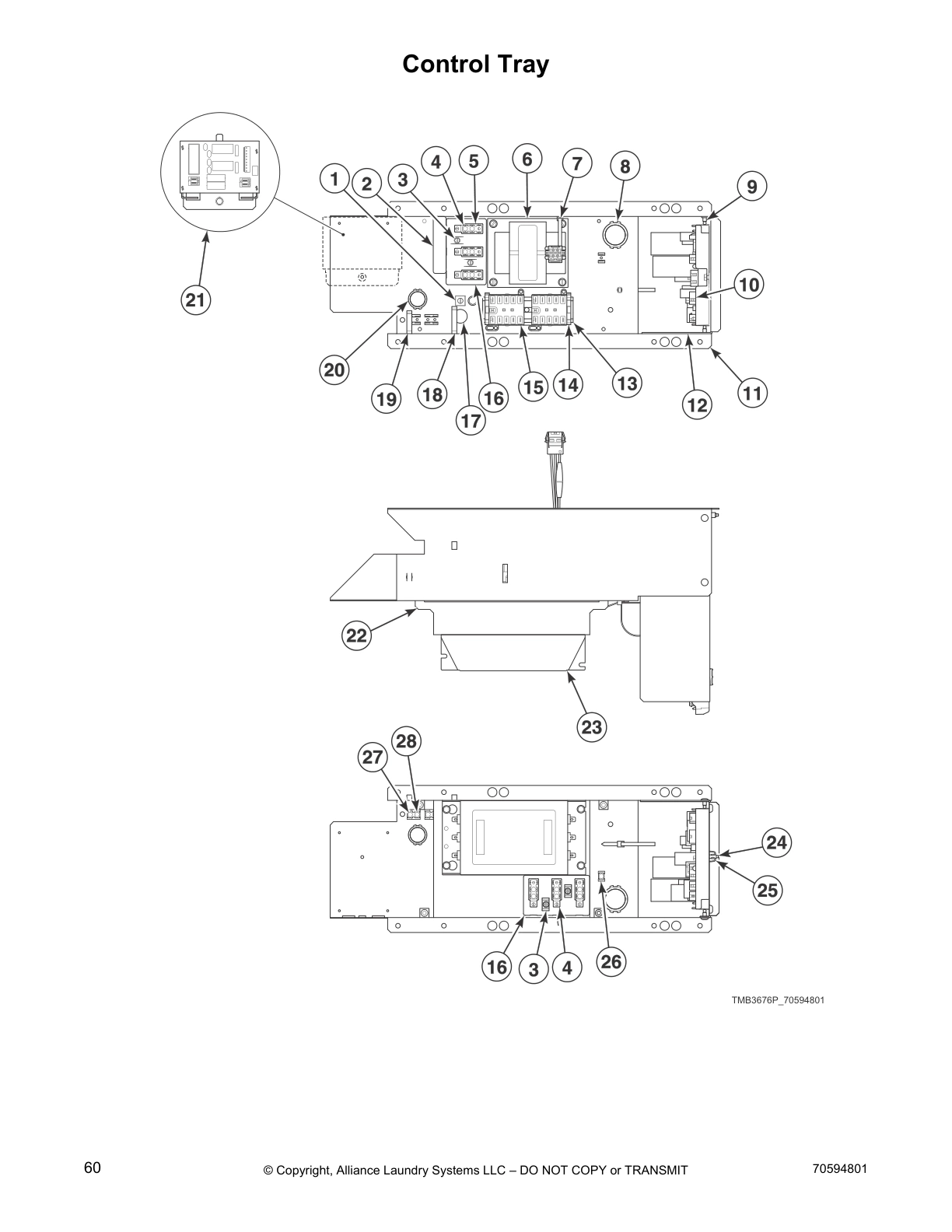

Control Tray
Common parts from model Huebsch HU200S Dryer
SPQ 44079603 SPQ 44079603 Contact Us For Availability
SPQ 70650401 SPQ 70650401 Contact Us For Availability
SPQ H88412101 SPQ H88412101 Contact Us For Availability
SPQ 44215501 SPQ 44215501 Contact Us For Availability
1
Nameplate SPQ F8688001 Contact Us For Availability
1
Door Ring Gasket SPQ 44217401 Contact Us For Availability
1
Handle and Caps Assembly SPQ 70154417 Contact Us For Availability
1
Control Tray Cover SPQ 70507501 Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 44221602 Contact Us For Availability
1
Nut SPQ F8387701 Contact Us For Availability
1
Wireway Channel SPQ 44239002 Contact Us For Availability
1
Nut SPQ M400026 Contact Us For Availability
1
Switch SPQ 70411901 Contact Us For Availability
1
Steam Filter Top Hinge Assembly SPQ 44088101 Contact Us For Availability
1
Valve Rebuild Kit SPQ F8379502 Contact Us For Availability
1
Ground Lug Connector SPQ M411283 Contact Us For Availability
2
Washer SPQ 70261401 Contact Us For Availability
2
Pop Rivet SPQ 44288903W Contact Us For Availability
2
Front Access Panel SPQ 44012714 Contact Us For Availability
2
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
2
Roller Catch Mounting Bracket SPQ 70117621 Contact Us For Availability
2
SPQ 44314101 SPQ 44314101 Contact Us For Availability
2
Cylinder Assembly SPQ 44221601 Contact Us For Availability
2
Rib Wire SPQ 44208101 Contact Us For Availability
2
Extension Spring SPQ 44259701P Contact Us For Availability
2
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
2
Coil SPQ F8514601P Contact Us For Availability
3
Nut SPQ 70030401 Contact Us For Availability
3
Door Glass SPQ M414215 Contact Us For Availability
3
Door Hinge Assembly SPQ 44218704 Contact Us For Availability
3
Roller Catch SPQ 70126301 Contact Us For Availability
3
Trunnion Assembly SPQ 44214902 Contact Us For Availability
3
Screw SPQ 44338901 Contact Us For Availability
3
Fan Motor SPQ 44259401P Contact Us For Availability
3
Terminal Block Shield SPQ 51783 Contact Us For Availability
3
Damper SPQ 44115101 Contact Us For Availability
3
Valve SPQ F8322906P Contact Us For Availability
4
Bushing SPQ 44041901P Contact Us For Availability
4
Cable Tie SPQ 430642 Contact Us For Availability
4
Nut SPQ M400977 Contact Us For Availability
4
Felt Pad SPQ 44266902 Contact Us For Availability
4
SPQ 44275801 SPQ 44275801 Contact Us For Availability
4
Nut SPQ 44214901 Contact Us For Availability
4
Washer SPQ 44238902 Contact Us For Availability
4
Switch Bracket SPQ 70356301 Contact Us For Availability
4
SPQ H96387519 SPQ H96387519 Contact Us For Availability
5
Contact Switch SPQ 70478802 Contact Us For Availability
5
Screw SPQ 70182601 Contact Us For Availability
5
Washer SPQ 44221502 Contact Us For Availability
5
Bearing Mounting SPQ M411165 Contact Us For Availability
5
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
5
Trunnion Housing Assembly SPQ M405232 Contact Us For Availability
5
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
5
SPQ M414459 SPQ M414459 Contact Us For Availability
5
Bushing SPQ 70333001 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ M4772P3 Contact Us For Availability
6
Door Glass Installation Tool SPQ 70211902P Contact Us For Availability
6
Moisture Sensor Harness SPQ 70442101 Contact Us For Availability
6
SPQ 44012306 SPQ 44012306 Contact Us For Availability
6
SPQ 44280304 SPQ 44280304 Contact Us For Availability
6
Spacer SPQ 44221501 Contact Us For Availability
6
Spacer SPQ 44048301P Contact Us For Availability
6
SPQ M400008 SPQ M400008 Contact Us For Availability
6
Limit Thermostat SPQ 44259301P Contact Us For Availability
6
SPQ M414451 SPQ M414451 Contact Us For Availability
7
Door Glass Label SPQ 44008402P Contact Us For Availability
7
Pop Rivet SPQ 70033504 Contact Us For Availability
7
SPQ 44014001 SPQ 44014001 Contact Us For Availability
7
Bolt SPQ 44215002 Contact Us For Availability
7
SPQ 44301701 SPQ 44301701 Contact Us For Availability
7
Nut SPQ 44333903 Contact Us For Availability
7
Airflow Switch Kit SPQ 70319201 Contact Us For Availability
7
SPQ M409834P SPQ M409834P Contact Us For Availability
7
Nut SPQ 70335601 Contact Us For Availability
8
Bushing SPQ 44065201 Contact Us For Availability
8
SPQ 70346501 SPQ 70346501 Contact Us For Availability
8
Porcelain Touch-Up Paint SPQ M401223 Contact Us For Availability
8
SPQ 44008401P SPQ 44008401P Contact Us For Availability
8
SPQ 44218101 SPQ 44218101 Contact Us For Availability
8
SPQ F8245101 SPQ F8245101 Contact Us For Availability
8
SPQ 44282802 SPQ 44282802 Contact Us For Availability
8
SPQ M401402 SPQ M401402 Contact Us For Availability
8
Cylinder Rib Assembly SPQ 44215001 Contact Us For Availability
8
1 Circuit Plug Housing SPQ M400035 Contact Us For Availability
8
Blower Assembly SPQ 70530904 Contact Us For Availability
8
SPQ 44172101 SPQ 44172101 Contact Us For Availability
9
Cold Weather Kit SPQ 44089301P Contact Us For Availability
9
Door Catch Kit SPQ 44166601 Contact Us For Availability
9
SPQ 44240802 SPQ 44240802 Contact Us For Availability
9
SPQ H88012034 SPQ H88012034 Contact Us For Availability
9
SPQ 44370401 SPQ 44370401 Contact Us For Availability
9
SPQ H96388087 SPQ H96388087 Contact Us For Availability
10
Emergency Stop Pushbutton SPQ 44331005 Contact Us For Availability
10
Belt Guard SPQ 44264201 Contact Us For Availability
10
Moisture Sensing Harness Kit SPQ 44344703 Contact Us For Availability
10
V-Belt SPQ 44293702 Contact Us For Availability
11
Control Bracket SPQ 44331006W Contact Us For Availability
11
Switch SPQ 44312401 Contact Us For Availability
11
Screw SPQ 44349101 Contact Us For Availability
11
Panel Locator SPQ 44169801 Contact Us For Availability
11
Steam Coil Support SPQ M411550 Contact Us For Availability
11
Control Tray SPQ 70492401 Contact Us For Availability
12
Plug SPQ M400985 Contact Us For Availability
12
Door Switch Cover SPQ 44316301 Contact Us For Availability
12
Door Ring SPQ 44220001 Contact Us For Availability
12
Motor Pulley SPQ 44267601 Contact Us For Availability
12
Control Board Control Tray SPQ 70494901 Contact Us For Availability
13
Door Switch Shield SPQ 44316601 Contact Us For Availability
13
Screw SPQ M400661 Contact Us For Availability
13
Magnet SPQ 44288401 Contact Us For Availability
13
Rear Panel Support SPQ 70275801 Contact Us For Availability
13
Drive Motor SPQ 44309402 Contact Us For Availability
13
Snap Bushing SPQ 02422 Contact Us For Availability
13
DIN Rail SPQ M412690 Contact Us For Availability
14
Washer SPQ 70343101 Contact Us For Availability
14
SPQ 44169601 SPQ 44169601 Contact Us For Availability
15
Contact Switch SPQ F8069501 Contact Us For Availability
15
Door Assembly SPQ 44219701 Contact Us For Availability
15
SPQ 44264202 SPQ 44264202 Contact Us For Availability
15
Contactor SPQ 70482601 Contact Us For Availability
16
Contact Base SPQ F8538101 Contact Us For Availability
16
Door Latch SPQ 44291903W Contact Us For Availability
16
Nut SPQ 44248002 Contact Us For Availability
16
SPQ 44314201 SPQ 44314201 Contact Us For Availability
16
Snap Bushing SPQ M400770 Contact Us For Availability
16
Drive Wheel SPQ H88010574 Contact Us For Availability
16
Insulator SPQ M413862 Contact Us For Availability
17
Control Box Base SPQ 44065301 Contact Us For Availability
17
Kickplate SPQ 44017801 Contact Us For Availability
17
Bolt SPQ 44259801P Contact Us For Availability
18
Emergency Stop Harness SPQ 44272401 Contact Us For Availability
18
Pop Rivet SPQ 44017901 Contact Us For Availability
18
Bottom Pan SPQ 44279001 Contact Us For Availability
18
Wire Clip SPQ F8449501 Contact Us For Availability
19
Emergency Stop Label SPQ 44012901 Contact Us For Availability
19
Lint Panel SPQ 70117611 Contact Us For Availability
19
Snap Bushing SPQ F8449502 Contact Us For Availability
20
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
20
Bearing SPQ M400650 Contact Us For Availability
20
Master Link SPQ M411826 Contact Us For Availability
20
Steam Control Assembly SPQ 70178701 Contact Us For Availability
21
Reed Switch Assembly SPQ 70126401 Contact Us For Availability
21
Lint Screen SPQ 44063603P Contact Us For Availability
21
Trunnion Housing SPQ F8440701 Contact Us For Availability
21
Screw SPQ 70501801 Contact Us For Availability
22
Washer SPQ M413923P Contact Us For Availability
22
Roll Pin SPQ H96388178 Contact Us For Availability
23
Nut SPQ H96418413 Contact Us For Availability
23
Screw SPQ M413826 Contact Us For Availability
23
Steam Cover SPQ H88900683 Contact Us For Availability
24
Expansion Clip SPQ F8206901 Contact Us For Availability
25
Key SPQ M400063 Contact Us For Availability
25
Washer SPQ H96388186 Contact Us For Availability
26
Damper Shaft SPQ M409833P Contact Us For Availability
27
Steam Damper Actuator SPQ H96382072P Contact Us For Availability
27
Terminal Block SPQ M400003 Contact Us For Availability
28
Clevis Pin SPQ H88970256 Contact Us For Availability
29
Thermistor SPQ 44068102 Contact Us For Availability
30
Blower Inlet Cone SPQ 44068101 Contact Us For Availability
31
SPQ 00177 SPQ 00177 Contact Us For Availability
31
Shaft Collar SPQ H96388079 Contact Us For Availability
32
Filter SPQ M400013 Contact Us For Availability
33
Filter Channel SPQ 70142 Contact Us For Availability
34
Steam Valve Harness SPQ 44096401 Contact Us For Availability
36
Damper Motor Harness SPQ 44091501 Contact Us For Availability
38
SPQ 44091601 SPQ 44091601 Contact Us For Availability
NI
SPQ 70155601 SPQ 70155601 Contact Us For Availability
NI
SPQ 70482901 SPQ 70482901 Contact Us For Availability
NI
SPQ 430725 SPQ 430725 Contact Us For Availability
NI
Key SPQ 44340301 Contact Us For Availability
NI
SPQ 44220501 SPQ 44220501 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 44088001 SPQ 44088001 Contact Us For Availability
NI
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
NI
SPQ 685837 SPQ 685837 Contact Us For Availability
NI
SPQ H87020202 SPQ H87020202 Contact Us For Availability
NI
SPQ 44282801 SPQ 44282801 Contact Us For Availability
NI
SPQ M402144 SPQ M402144 Contact Us For Availability
NI
SPQ 44240801 SPQ 44240801 Contact Us For Availability
NI
SPQ M412334 SPQ M412334 Contact Us For Availability
NI
SPQ 44191205 SPQ 44191205 Contact Us For Availability
NI
SPQ F280409P SPQ F280409P Contact Us For Availability
NI
SPQ 44267201 SPQ 44267201 Contact Us For Availability
NI
SPQ 70429601P SPQ 70429601P Contact Us For Availability
NI
SPQ F8520703 SPQ F8520703 Contact Us For Availability
NI
SPQ 44273606 SPQ 44273606 Contact Us For Availability
NI
DIN Valve Adapter KIt SPQ F8382301 Contact Us For Availability
× ![]()
