Model HA4000 – Common Parts & Diagrams

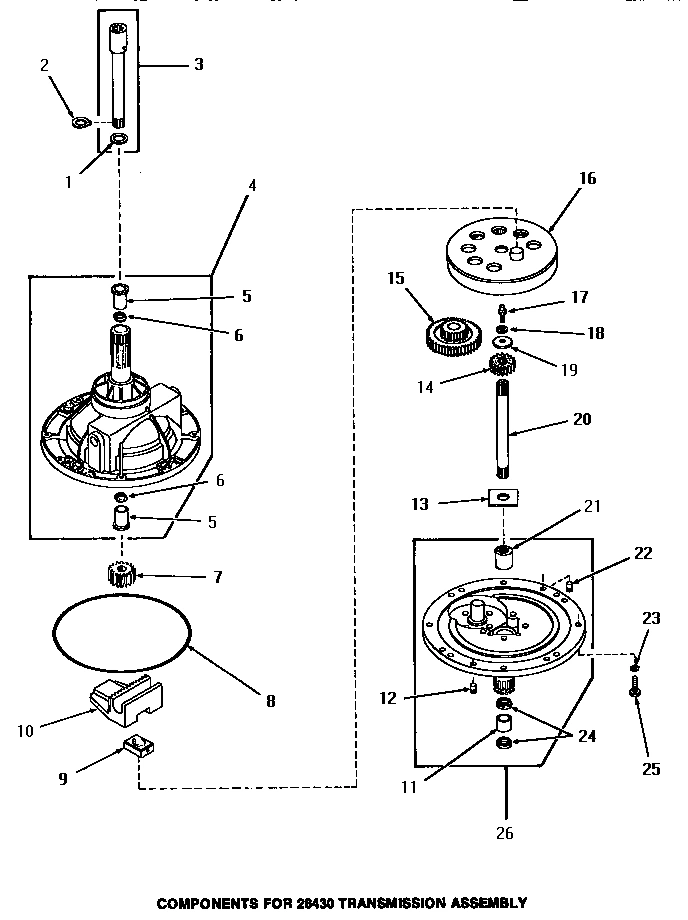

01 - 28430 TRANSMISSION ASSY COMPONENTS

01 - 28430 TRANSMISSION ASSY COMPONENTS

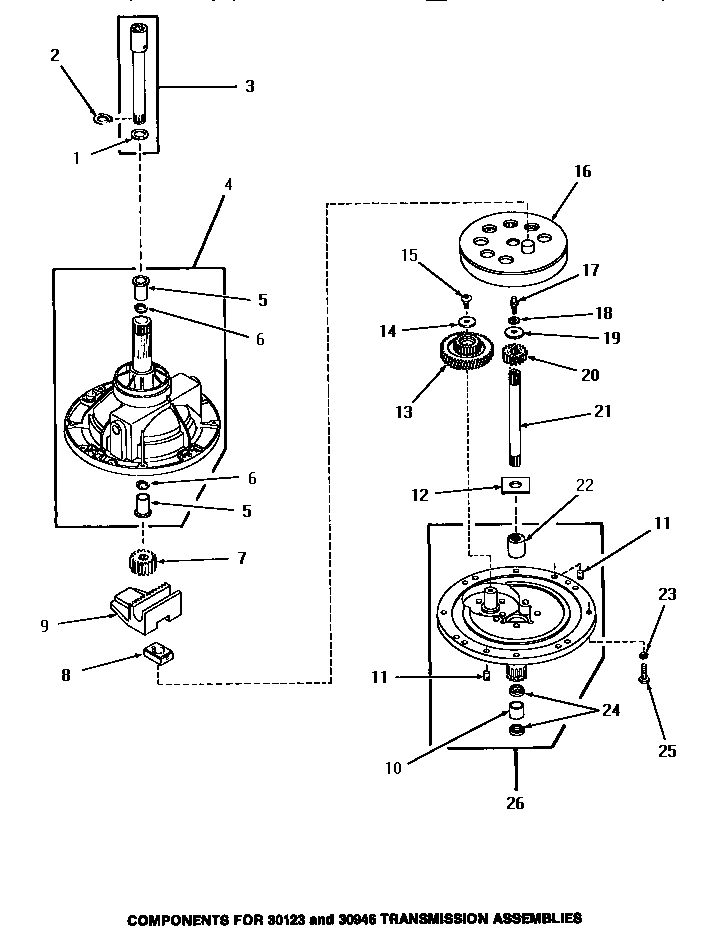

02 - 30123 & 30946 TRANSMISSION ASSEMBLIES

02 - 30123 & 30946 TRANSMISSION ASSEMBLIES

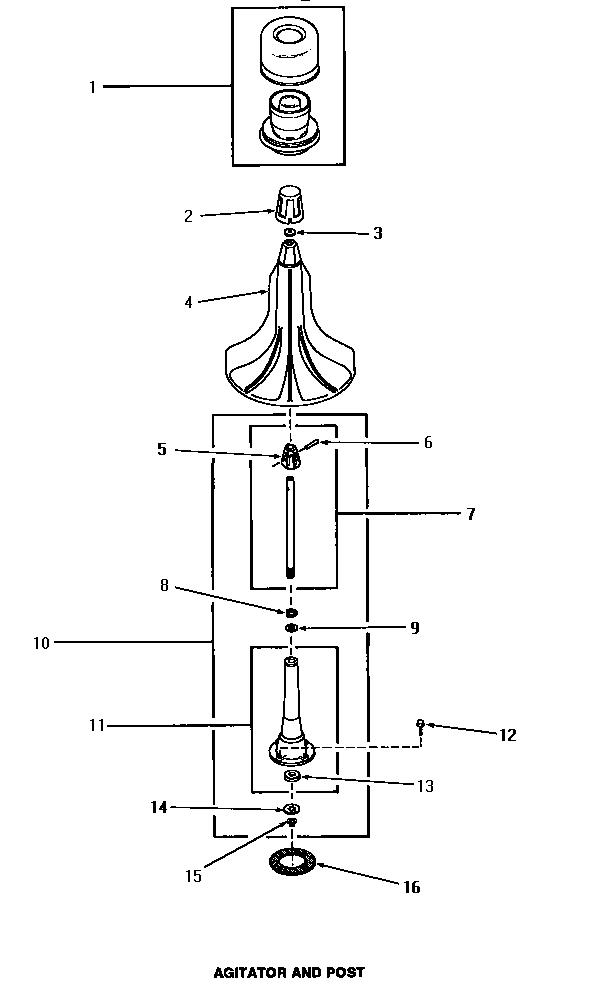

03 - AGITATOR & POST

03 - AGITATOR & POST

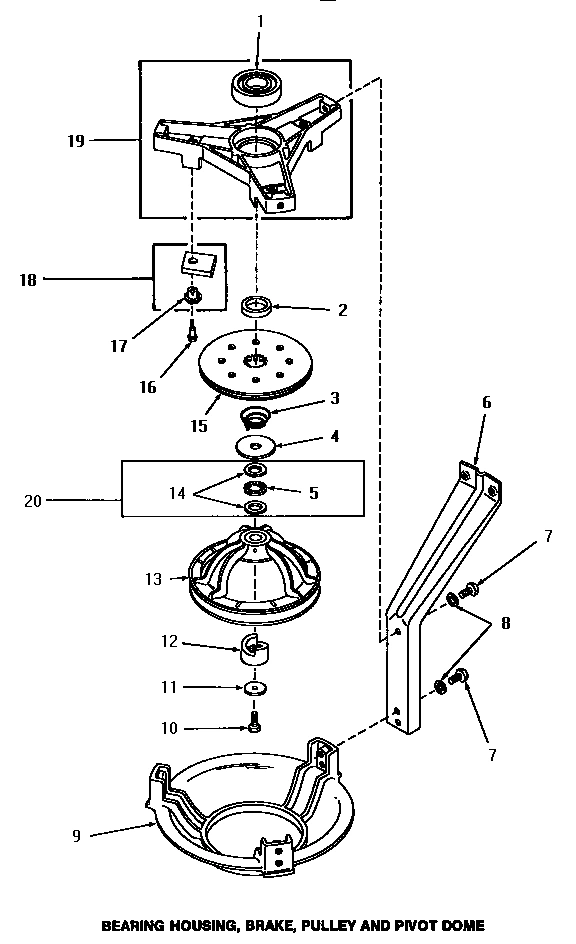

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

04 - BRG HSG/BRAKE/PULLEY & PIVOT DOME

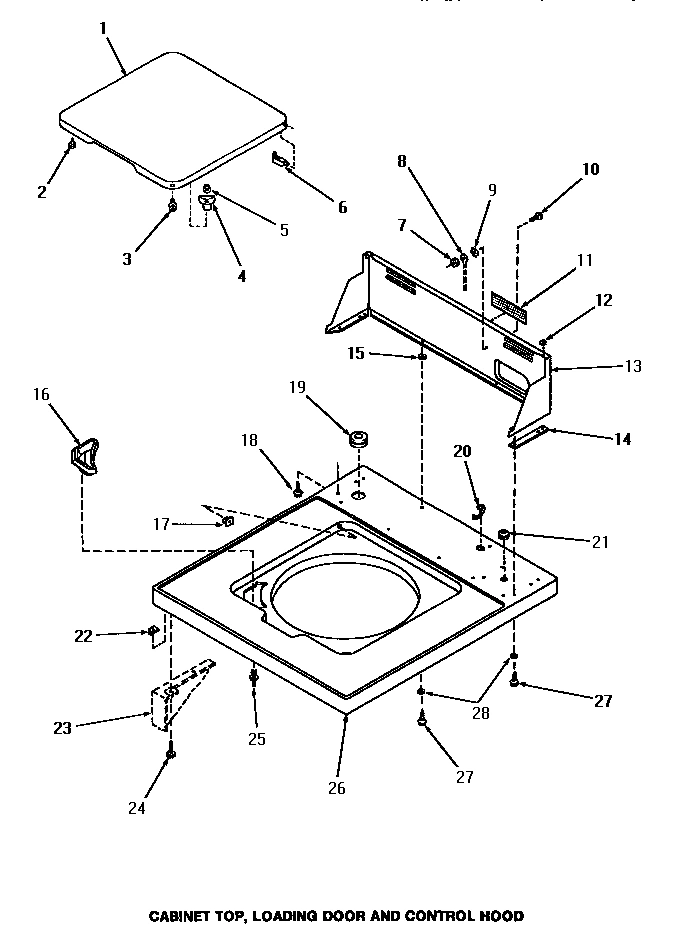

05 - CABINET TOP, LOADING DOOR & CONTROL HOOD

05 - CABINET TOP, LOADING DOOR & CONTROL HOOD

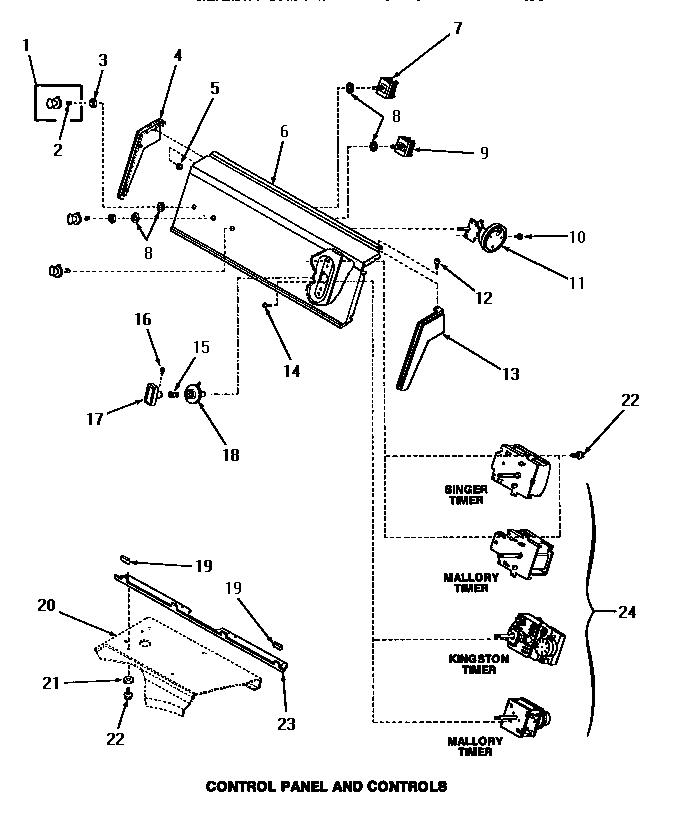

06 - CONTROL PANEL & CONTROLS

06 - CONTROL PANEL & CONTROLS

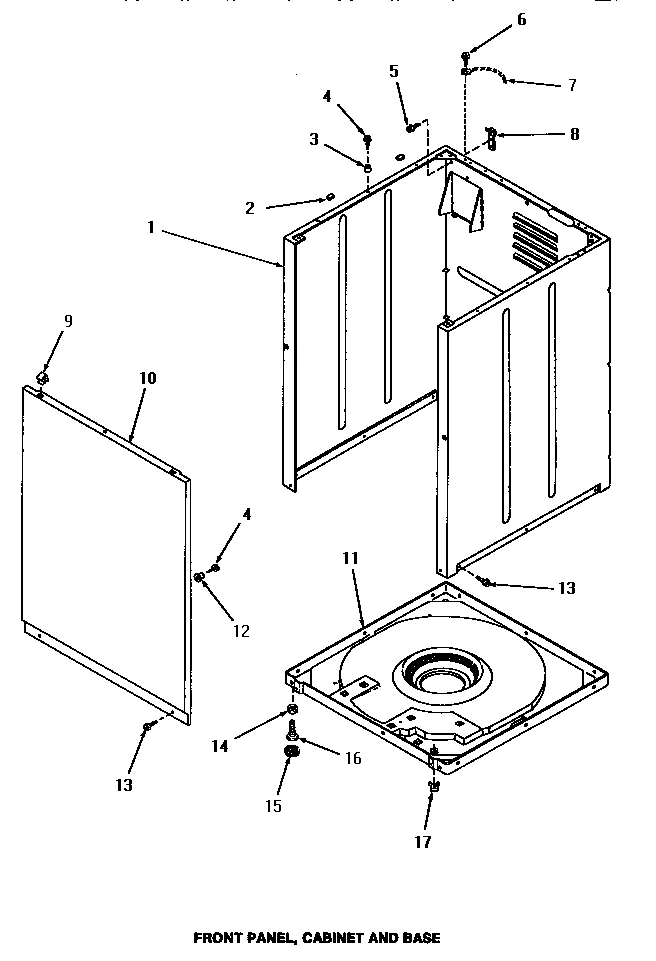

07 - FRONT PANEL, CABINET & BASE

07 - FRONT PANEL, CABINET & BASE

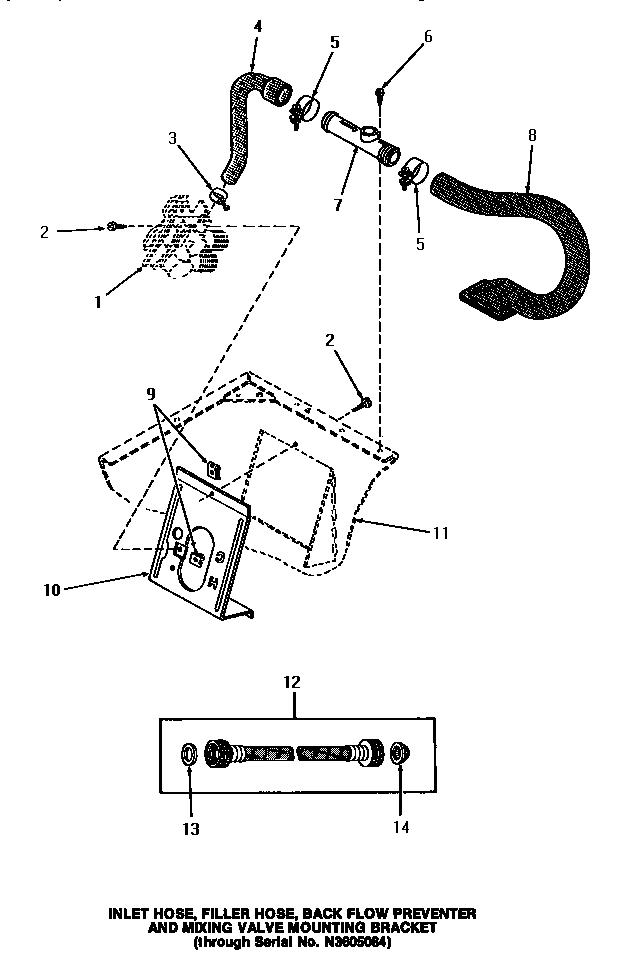

08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT

08 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT

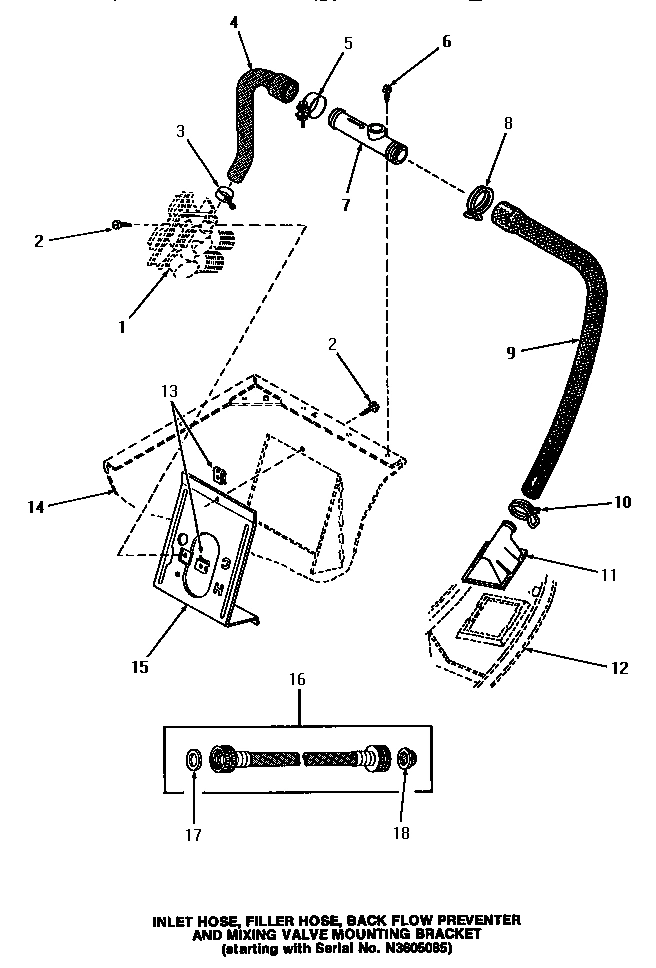

09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT

09 - INLET/FILL HOSE/BACK FL PREVENTER & BRKT

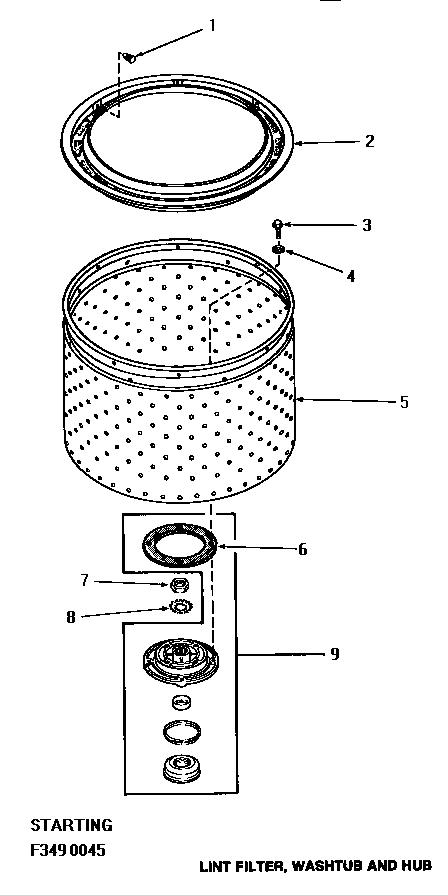

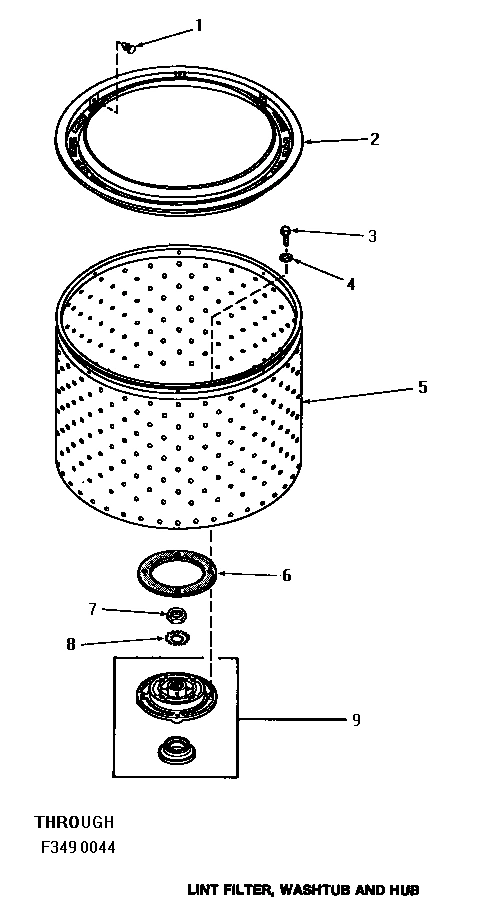

10 - LINT FILTER, WASHTUB & HUB

10 - LINT FILTER, WASHTUB & HUB

11 - LINT FILTER, WASHTUB & HUB

11 - LINT FILTER, WASHTUB & HUB

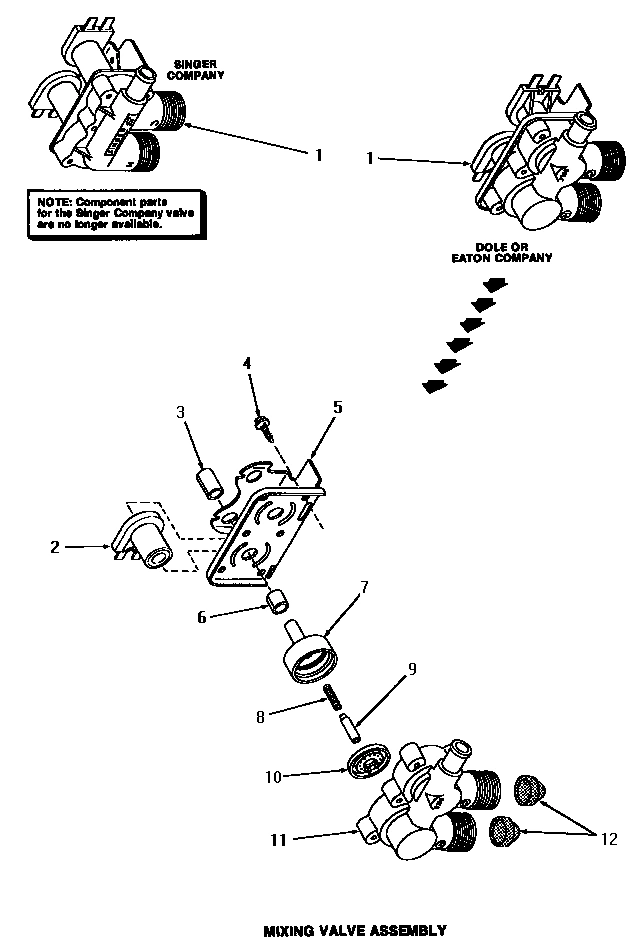

12 - MIXING VALVE ASSY

12 - MIXING VALVE ASSY

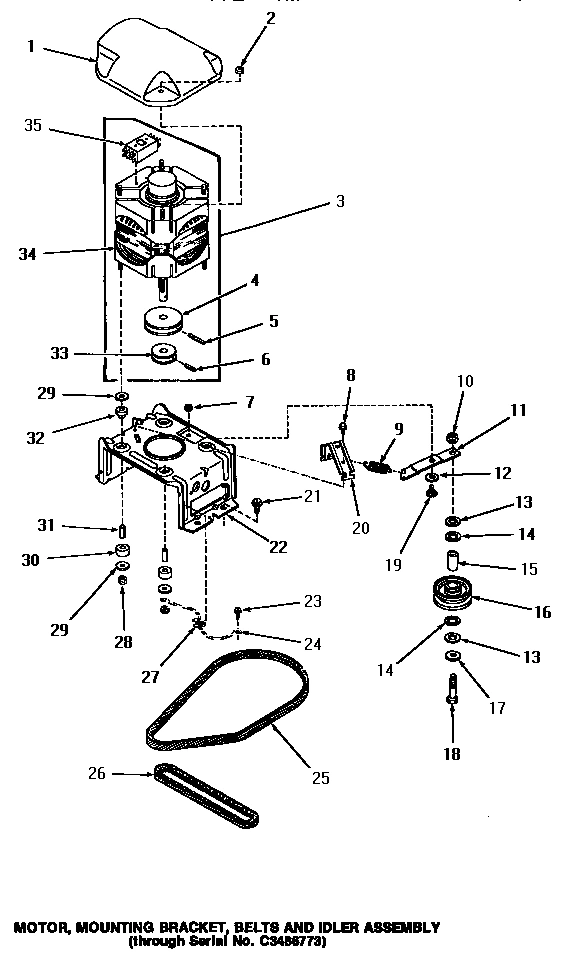

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

13 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

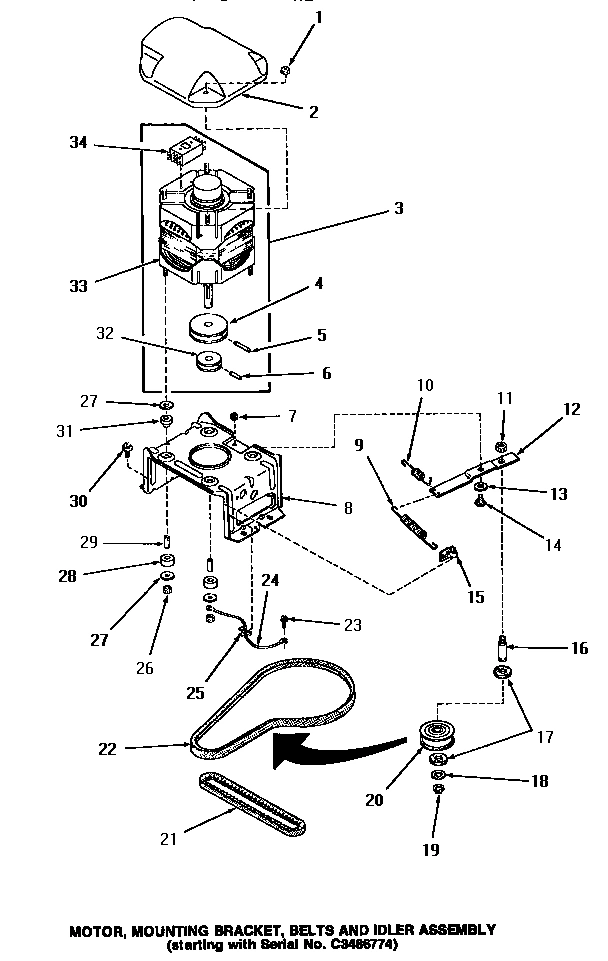

14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

14 - MOTOR, MTG BRACKET, BELTS & IDLER ASSY

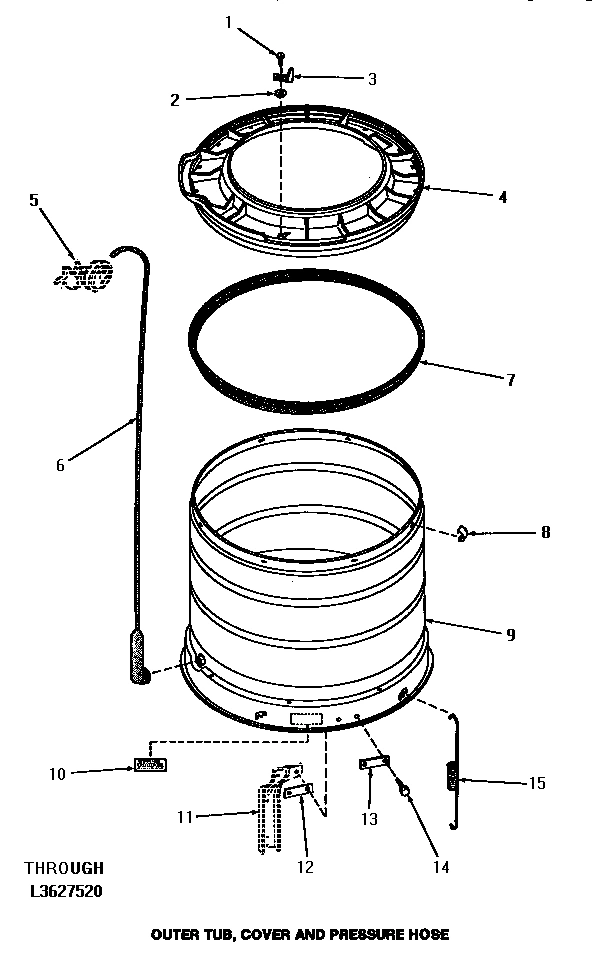

15 - OUTER TUB, COVER & PRESSURE HOSE

15 - OUTER TUB, COVER & PRESSURE HOSE

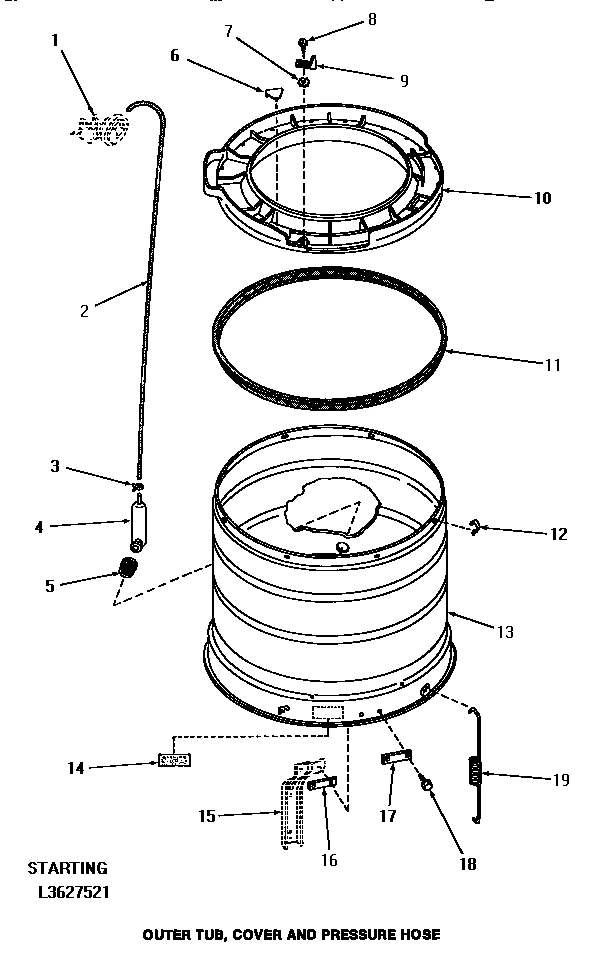

16 - OUTER TUB, COVER & PRESSURE HOSE

16 - OUTER TUB, COVER & PRESSURE HOSE

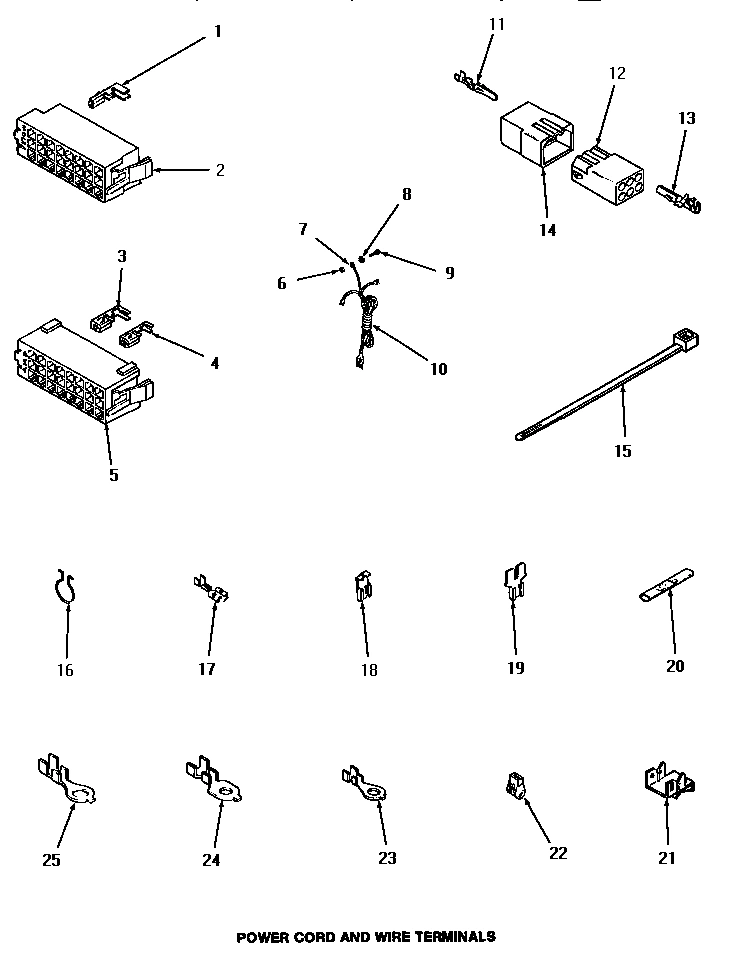

17 - POWER CORD & WIRE TERMINALS

17 - POWER CORD & WIRE TERMINALS

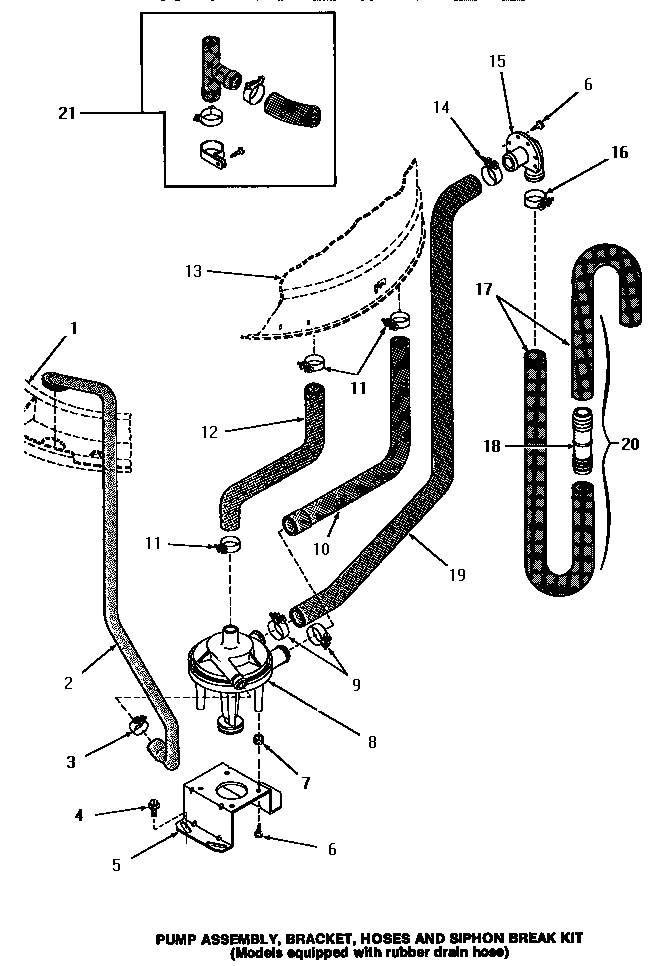

18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

18 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

19 - PUMP ASSY/BRKT/HOSES & SIPHON BREAK KIT

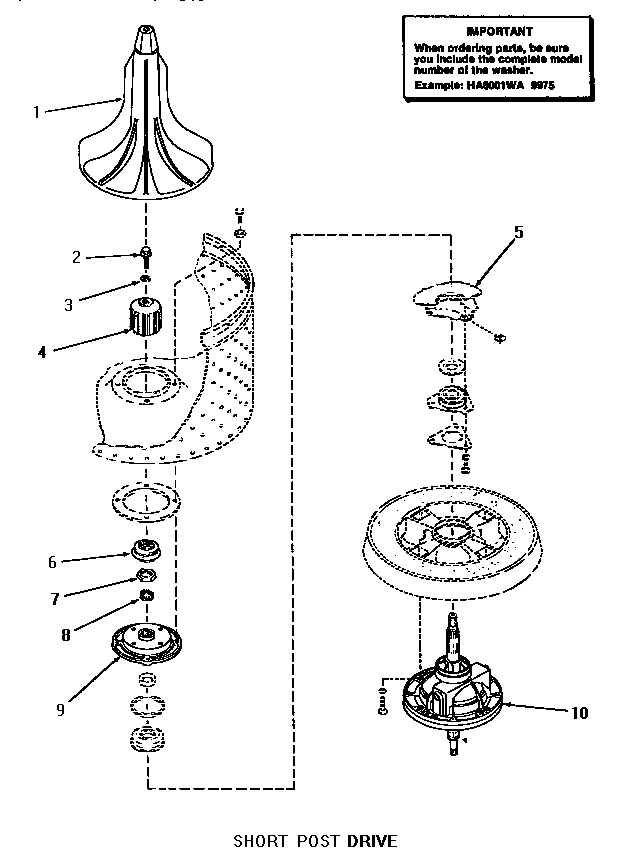

20 - SHORT POST DRIVE (ADDITION)

20 - SHORT POST DRIVE (ADDITION)

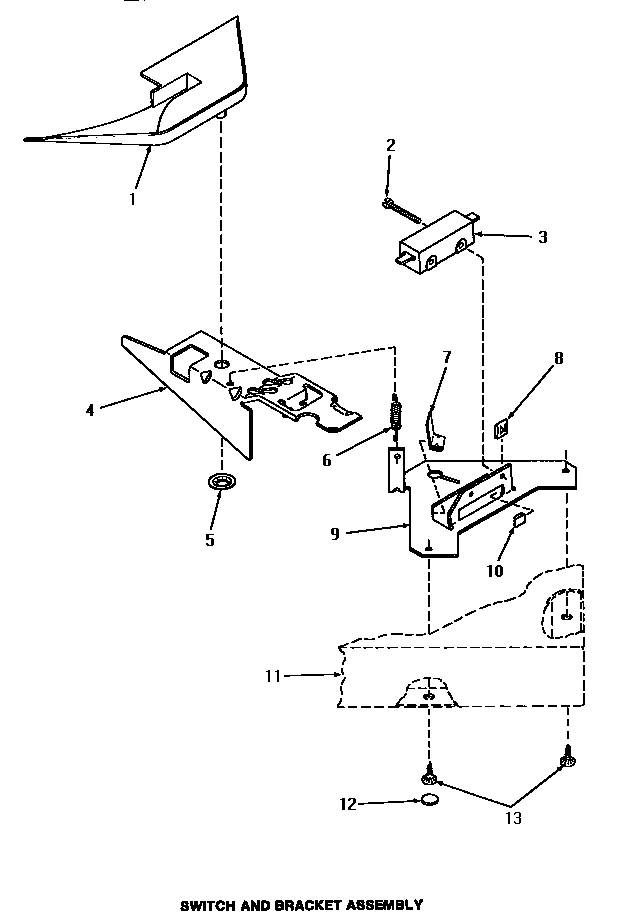

21 - SWITCH & BRACKET ASSY

21 - SWITCH & BRACKET ASSY

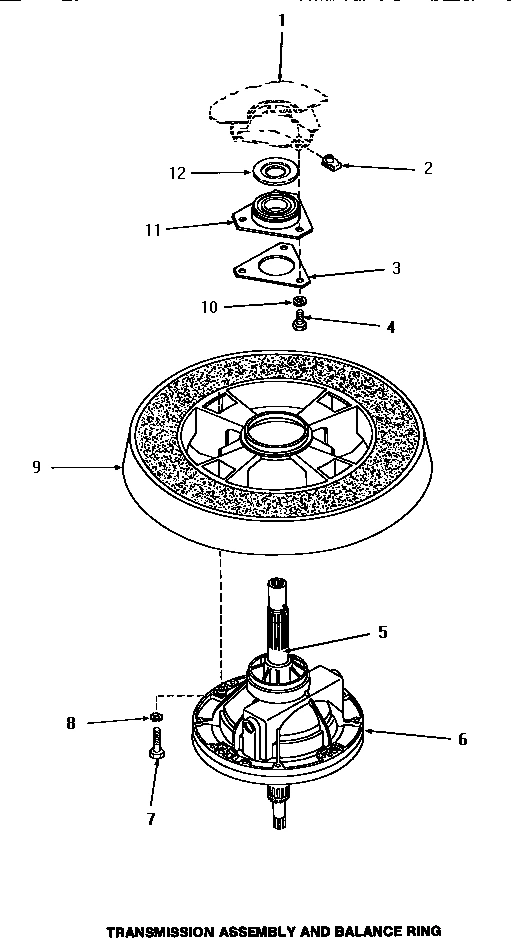

22 - TRANSMISSION ASSY & BALANCE RING

22 - TRANSMISSION ASSY & BALANCE RING

Common parts from model HA4000

WP26594P Whirlpool Grease

WP26594P Whirlpool Grease Out of Stock WPL WP26594P $47.82

29474 Speed Queen Fastener Lint FI

29474 Speed Queen Fastener Lint FI Out of Stock SPQ 29474 $0.58

27222 Speed Queen Nut Retainer 5/1

27222 Speed Queen Nut Retainer 5/1 Out of Stock SPQ 27222 $5.35

M400057 Speed Queen BOLT,5/16-18 X 3/4 HEX HD

M400057 Speed Queen BOLT,5/16-18 X 3/4 HEX HD Out of Stock SPQ M400057 $5.35

27604P Speed Queen ANTI-SEIZE COMPOUND-1 OZ T

27604P Speed Queen ANTI-SEIZE COMPOUND-1 OZ T In Stock SPQ 27604P $5.45

WPW10139757 Whirlpool Nut

WPW10139757 Whirlpool Nut Out of Stock WPL WPW10139757 $4.50

WP40008301 Whirlpool Insert

WP40008301 Whirlpool Insert In Stock WPL WP40008301 $4.79

WP22001650 Whirlpool Spring Clip

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $5.47

29210 Speed Queen Hose Clamp

29210 Speed Queen Hose Clamp Out of Stock SPQ 29210 $5.35

56156 Speed Queen NUT,3/8-16 SERRATED

56156 Speed Queen NUT,3/8-16 SERRATED In Stock SPQ 56156 $5.15

24122 Speed Queen SCREEN MIXING Valve

24122 Speed Queen SCREEN MIXING Valve In Stock SPQ 24122 $5.35

38008 Speed Queen Plastic Drive Helix Gear At

38008 Speed Queen Plastic Drive Helix Gear At In Stock SPQ 38008 $6.21

WP285655 Whirlpool Hose Clamp

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.47

52549 Speed Queen Washer/Dryer Washer 3/4"

52549 Speed Queen Washer/Dryer Washer 3/4" In Stock SPQ 52549 $3.25

WP16272 Whirlpool Hose Coupling

WP16272 Whirlpool Hose Coupling Out of Stock WPL WP16272 $4.50

WP22002960 Whirlpool Washer Inlet Strainer

WP22002960 Whirlpool Washer Inlet Strainer In Stock WPL WP22002960 $5.47

WP23748 Whirlpool Retaining Ring

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $7.30

28800P Speed Queen Idler Pulley Wheel

28800P Speed Queen Idler Pulley Wheel Out of Stock SPQ 28800P $9.76

Speed Queen Washer V-Style Drive Belt (32.5"

Speed Queen Washer V-Style Drive Belt (32.5" In Stock SPQ 28808 $17.02

27155 Speed Queen Drive Belt

27155 Speed Queen Drive Belt In Stock SPQ 27155 $9.94

27104 Speed Queen Motor Pulley

27104 Speed Queen Motor Pulley Out of Stock SPQ 27104 $6.58
