Model Whirlpool GW395LEGQ2 30" Slide−In Designer Style Gas Range – Common Parts & Diagrams

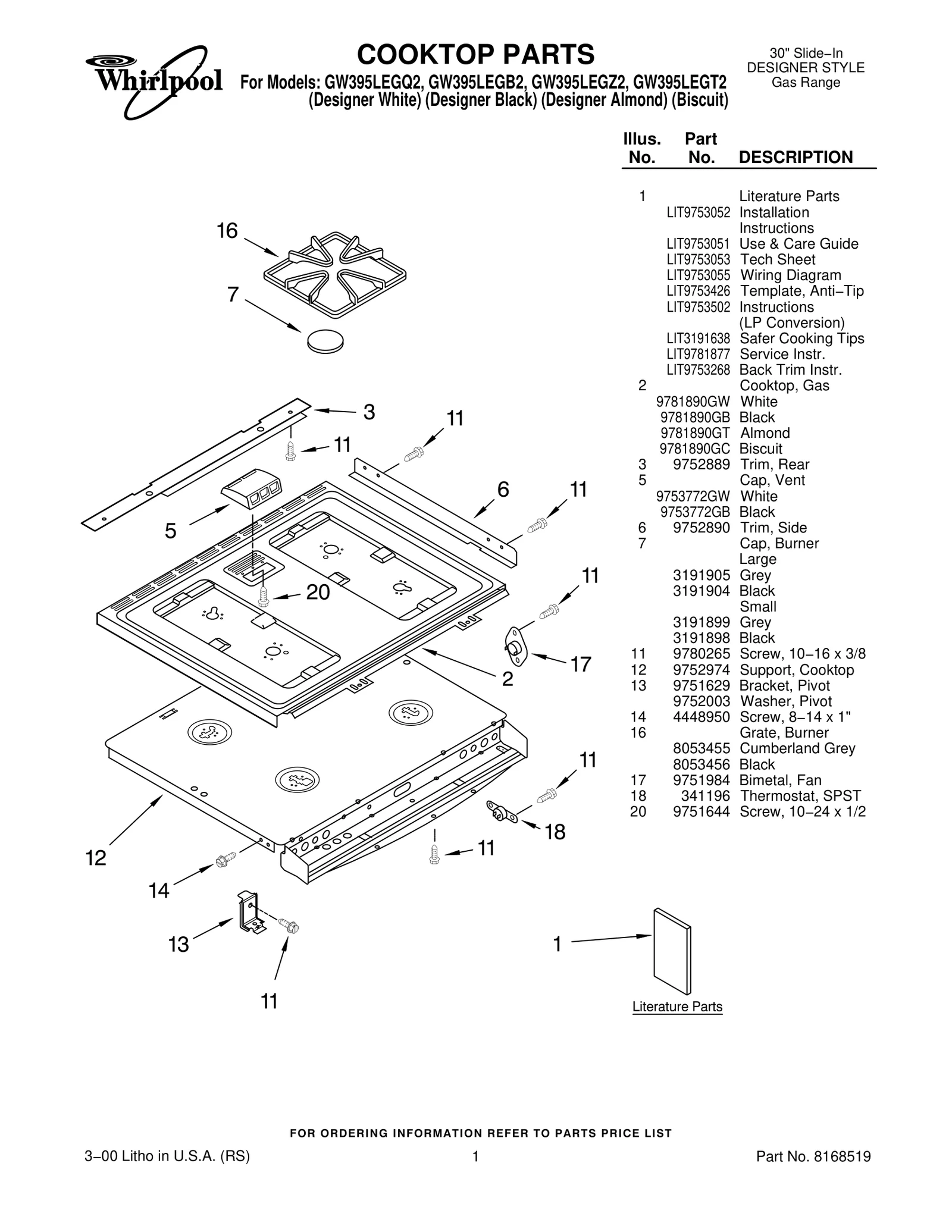

COOKTOP PARTS
CONTROL PANEL PARTS
COOKTOP BURNER PARTS
BROILER & OVEN BURNER PARTS
DOOR AND DRAWER PARTS
OVEN CHASSIS PARTS
REAR CHASSIS PARTS
MISCELLANEOUS PARTS
Common parts from model Whirlpool GW395LEGQ2 30" Slide−In Designer Style Gas Range
1
Small (2) WPL 9754183 Contact Us For Availability
1
Large (2) WPL 9754189 Contact Us For Availability
1
Shield, Oven (2) WPL 9752737 Contact Us For Availability
1
Baffle, Glass WPL 9781592 Contact Us For Availability
1
Vent, Burner Box WPL 9753300 Contact Us For Availability
1
Back Panel,Chassis WPL 9751051 Contact Us For Availability
2
Tubing, Burner(RF) WPL 9753005 Contact Us For Availability
2
Flame Shield, Bake WPL 9752738 Contact Us For Availability
2
Trim, Door−Left — White WPL 9750631PW Contact Us For Availability
2
Trim, Door−Left — Black WPL 9750631PB Contact Us For Availability
2
Trim, Door−Left — Almond WPL 9750631PT Contact Us For Availability
2
Trim, Door−Left — Biscuit WPL 9750631PC Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Tubing, Burner(RR) WPL 9753006 Contact Us For Availability
3
Shield, Flame WPL 9752980 Contact Us For Availability
3
Trim, Door−Right — White WPL 9750632PW Contact Us For Availability
3
Trim, Door−Right — Black WPL 9750632PB Contact Us For Availability
3
Trim, Door−Right — Almond WPL 9750632PT Contact Us For Availability
3
Trim, Door−Right — Biscuit WPL 9750632PC Contact Us For Availability
3
Panel, Rear Cover WPL 9751353 Contact Us For Availability
4
Burner, Bake WPL 9751367 Contact Us For Availability
4
Tubing, Burner(LF) WPL 9753003 Contact Us For Availability
4
Trim, Door Bottom — White WPL 9781209PW Contact Us For Availability
4
Trim, Door Bottom — Black WPL 9781209PB Contact Us For Availability
4
Trim, Door Bottom — Almond WPL 9781209PT Contact Us For Availability
4
Trim, Door Bottom — Biscuit WPL 9781209PC Contact Us For Availability
5
Tubing, Burner(LR) WPL 9753004 Contact Us For Availability
5
Glass, Door — White WPL 9781694PW Contact Us For Availability
5
Glass, Door — Black WPL 9781694PB Contact Us For Availability
5
Glass, Door — Almond WPL 9781694PT Contact Us For Availability
5
Glass, Door — Biscuit WPL 9781694PC Contact Us For Availability
5
Oven Liner WPL 9753011GM Contact Us For Availability
5
Bracket, Lock WPL 9750526 Contact Us For Availability
6
Cover, Control WPL 9752955 Contact Us For Availability
6
Vent, Door — White WPL 9753498GW Contact Us For Availability
6
Vent, Door — Black WPL 9753498GB Contact Us For Availability
6
Vent, Door — Almond WPL 9753498GT Contact Us For Availability
6
Vent, Door — Biscuit WPL 9753498GC Contact Us For Availability
6
Seal, Door Vent Side WPL 9781490 Contact Us For Availability
6
Gasket, Door Vent WPL 9781659 Contact Us For Availability
6
Gasket Oven WPL 3191649 Contact Us For Availability
6
Bracket, Regulator−Valve WPL 9751500 Contact Us For Availability
7
Cap, Burner Large — Grey WPL 3191899 Contact Us For Availability
7
Valve, Burner Small (2) WPL 9753045 Contact Us For Availability
7
Clip, Glass (2) WPL 9752906 Contact Us For Availability
7
Oven, Side L or R — White WPL 9781907PW Contact Us For Availability
7
Oven, Side L or R — Black WPL 9781907PB Contact Us For Availability
7
Oven, Side L or R — Almond WPL 9781907PT Contact Us For Availability
7
Oven, Side L or R — Biscuit WPL 9781907PC Contact Us For Availability
7
Oven Lock Assembly WPL 9752404 Contact Us For Availability
8
Solenoid WPL 9752409 Contact Us For Availability
8
Knobs, Control (4) — Almond WPL 3187768 Contact Us For Availability
8
Knobs, Control (4) — Biscuit WPL 9753990FC Contact Us For Availability
8
Valve, Burner Large (2) WPL 9753044 Contact Us For Availability
8
Pan, Oven Bottom WPL 9752736GM Contact Us For Availability
8
Handle, Door — White WPL 9752701PW Contact Us For Availability
8
Handle, Door — Black WPL 9752701PB Contact Us For Availability
8
Handle, Door — Almond WPL 9752701PT Contact Us For Availability
8
Handle, Door — Biscuit WPL 9752701PC Contact Us For Availability
8
Shield, Insulation WPL 9780664 Contact Us For Availability
9
Spark Switch & Harness Assembly WPL 9752994 Contact Us For Availability
9
Label−WPSI Control WPL 9753503 Contact Us For Availability
9
Tubing, Broil WPL 9752985 Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Fan Duct, Side WPL 9751789 Contact Us For Availability
9
Screw WPL 422222 Contact Us For Availability
10
Tube, Manifold WPL 9752996 Contact Us For Availability
10
Washer WPL 424238 Contact Us For Availability
11
Manifold (2) WPL 9752995 Contact Us For Availability
11
Screw, 1/4−20x1/2 WPL 776593 Contact Us For Availability
11
Burner Box WPL 9752975 Contact Us For Availability
12
Tubing, Valve WPL 9781015 Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Retainer, Insulation WPL 9752735 Contact Us For Availability
12
Switch, Interloc WPL 9750965 Contact Us For Availability
13
Pan Support, Bake WPL 9752734 Contact Us For Availability
13
Shield Door WPL 9781586 Contact Us For Availability
13
Duct, Top WPL 9751653 Contact Us For Availability
13
Screw, (2) WPL 9750887 Contact Us For Availability
14
Bolt, Valve (4) WPL 3185829 Contact Us For Availability
14
Bracket, Bake WPL 9751600 Contact Us For Availability
14
Support, Fan WPL 9751060 Contact Us For Availability
14
Nut (2) WPL 9750888 Contact Us For Availability
15
Control, Range WPL 9753639 Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Deflector, Broil WPL 9753409 Contact Us For Availability
15
Drawer Rail, Left 10 x 3/8 WPL 9750223 Contact Us For Availability
15
Rod, Lock WPL 9750523 Contact Us For Availability
16
Knob, Timer (18) — White WPL 9781954FW Contact Us For Availability
16
Knob, Timer (18) — Black WPL 9781954FB Contact Us For Availability
16
Knob, Timer (18) — Biscuit WPL 9781954FC Contact Us For Availability
16
Small Base, 6K WPL 9753928 Contact Us For Availability
16
Knob, Timer (18) — Almond WPL 9781954FT Contact Us For Availability
16
Burner, Broil WPL 9752981 Contact Us For Availability
16
Motor, Fan WPL 9751020 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
17
Single Position Device WPL 9752462 Contact Us For Availability
18
Thermostat, SPST WPL 341196 Contact Us For Availability
18
Tubing, Flex WPL 9751854 Contact Us For Availability
18
Insulation WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Fitting, Broiler WPL 9752984 Contact Us For Availability
19
Hinge, Receiver WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail, Pan WPL 9781904 Contact Us For Availability
20
Screw WPL 98884 Contact Us For Availability
21
Head, Burner — Small WPL 8273216 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Shield, Drawer WPL 9781025 Contact Us For Availability
22
Screw, #10 x 3/8 WPL 9751643 Contact Us For Availability
22
Screw (4) 10 x 1/2 WPL 9780272 Contact Us For Availability
22
Plate, Reflectance 23 420101GM Pan, Broiler WPL 9751641 Contact Us For Availability
22
Screw WPL 423247 Contact Us For Availability
24
Rack, Standard (2) WPL 9750498 Contact Us For Availability
24
Front, Drawer — White WPL 9750168PW Contact Us For Availability
24
Front, Drawer — Black WPL 9750168PB Contact Us For Availability
24
Front, Drawer — Almond WPL 9750168PT Contact Us For Availability
24
Front, Drawer — Biscuit WPL 9750168PC Contact Us For Availability
25
Screw WPL 9780269 Contact Us For Availability
26
Sensor, Oven WPL 8053344 Contact Us For Availability
27
Retainer, Panel WPL 9750676 Contact Us For Availability
28
Retainer, Glass WPL 9781502 Contact Us For Availability
29
Door Switch 30 420104GM Grill, Broiler WPL 9781580 Contact Us For Availability
30
Channel, Heat WPL 9750693 Contact Us For Availability
31
Vent, Burner Box WPL 9752978 Contact Us For Availability
32
Screw, 10−24 x 1/2 WPL 9751644 Contact Us For Availability
33
Extension, Vent Box WPL 9753067 Contact Us For Availability
34
Insulation, Wrap WPL 9754013 Contact Us For Availability
36
Screw, #8 x 3/8 WPL 9780275 Contact Us For Availability
37
Screw, #8 x 1 WPL 9751808 Contact Us For Availability
38
Screw WPL 9751871 Contact Us For Availability
39
Screw, 8−32 x 3/8 WPL 9781509 Contact Us For Availability
× ![]()
