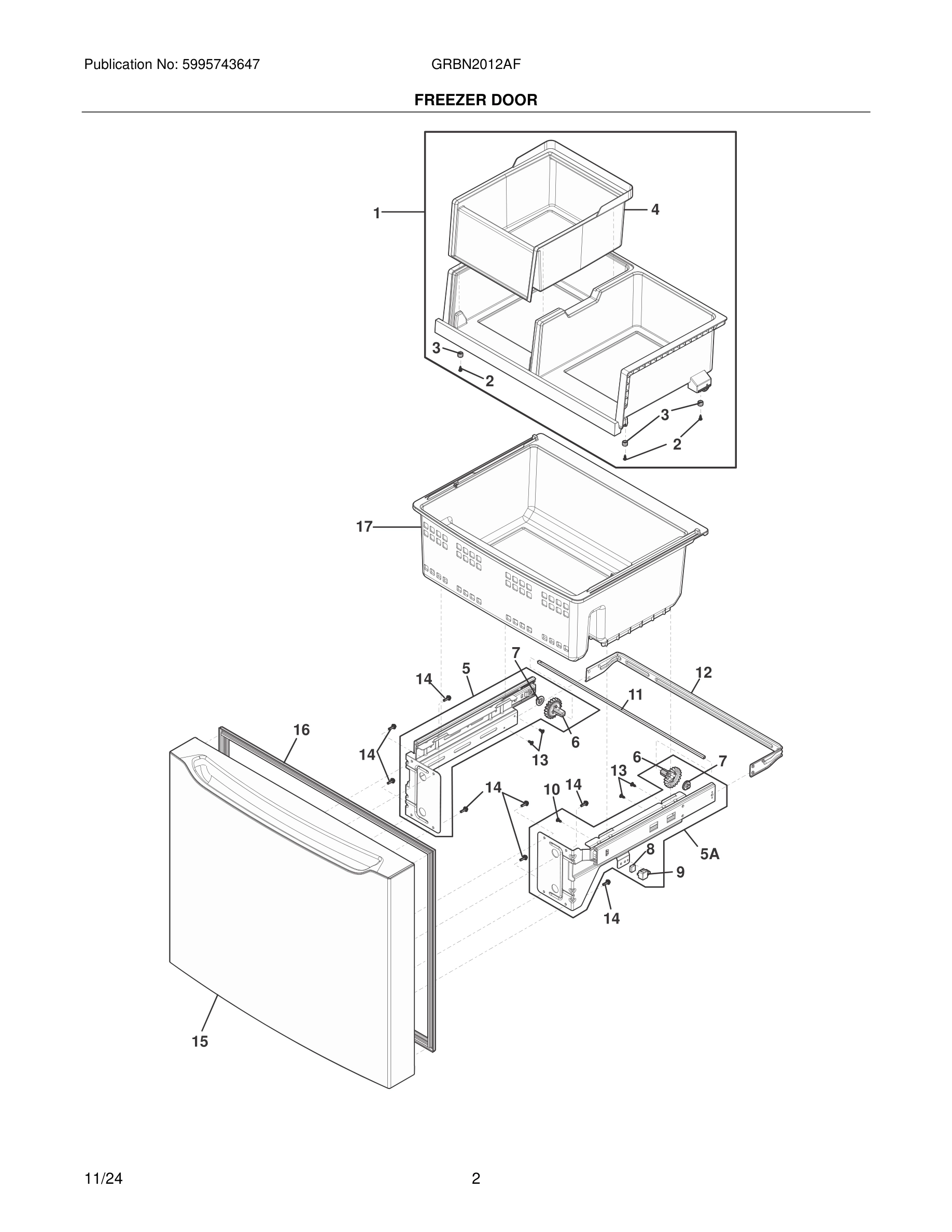

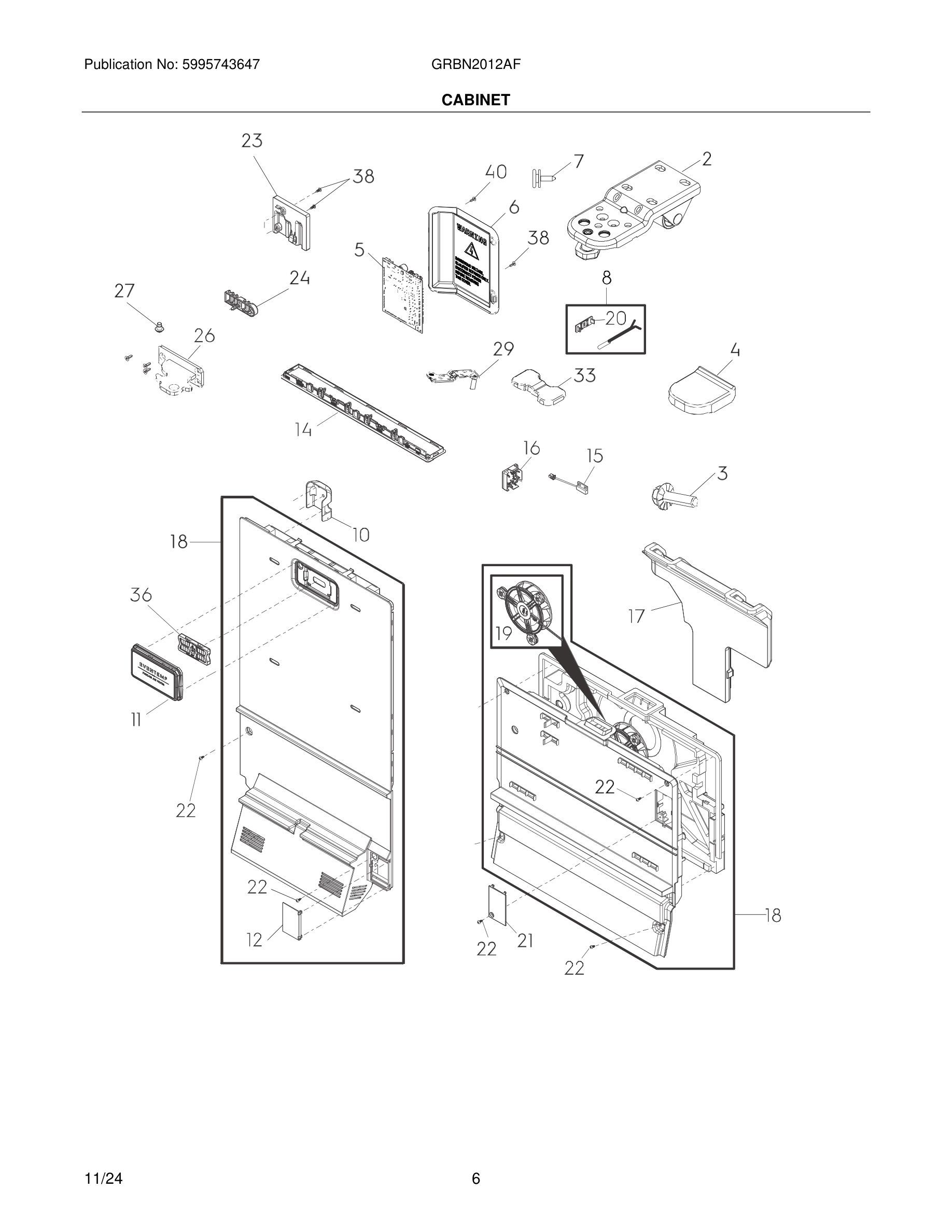

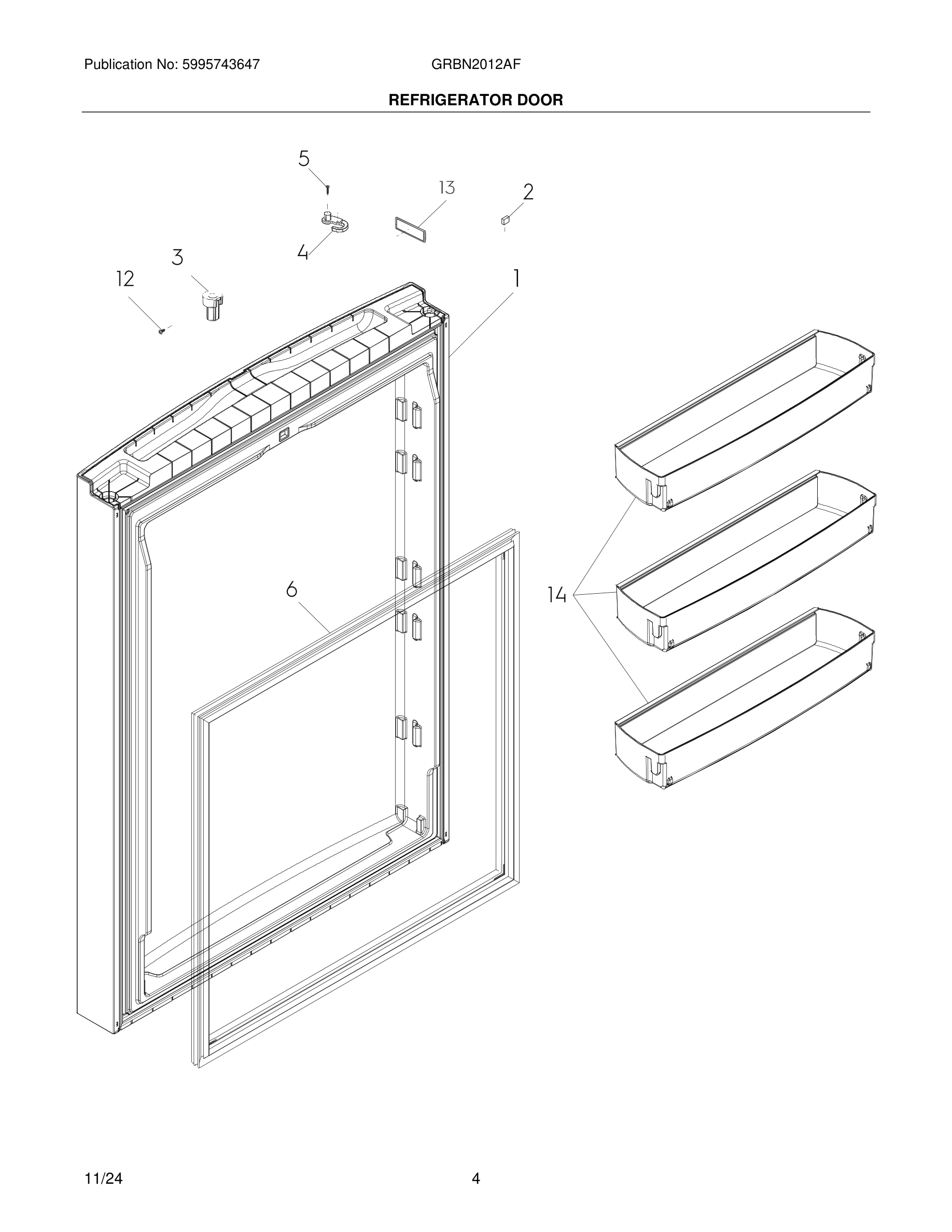

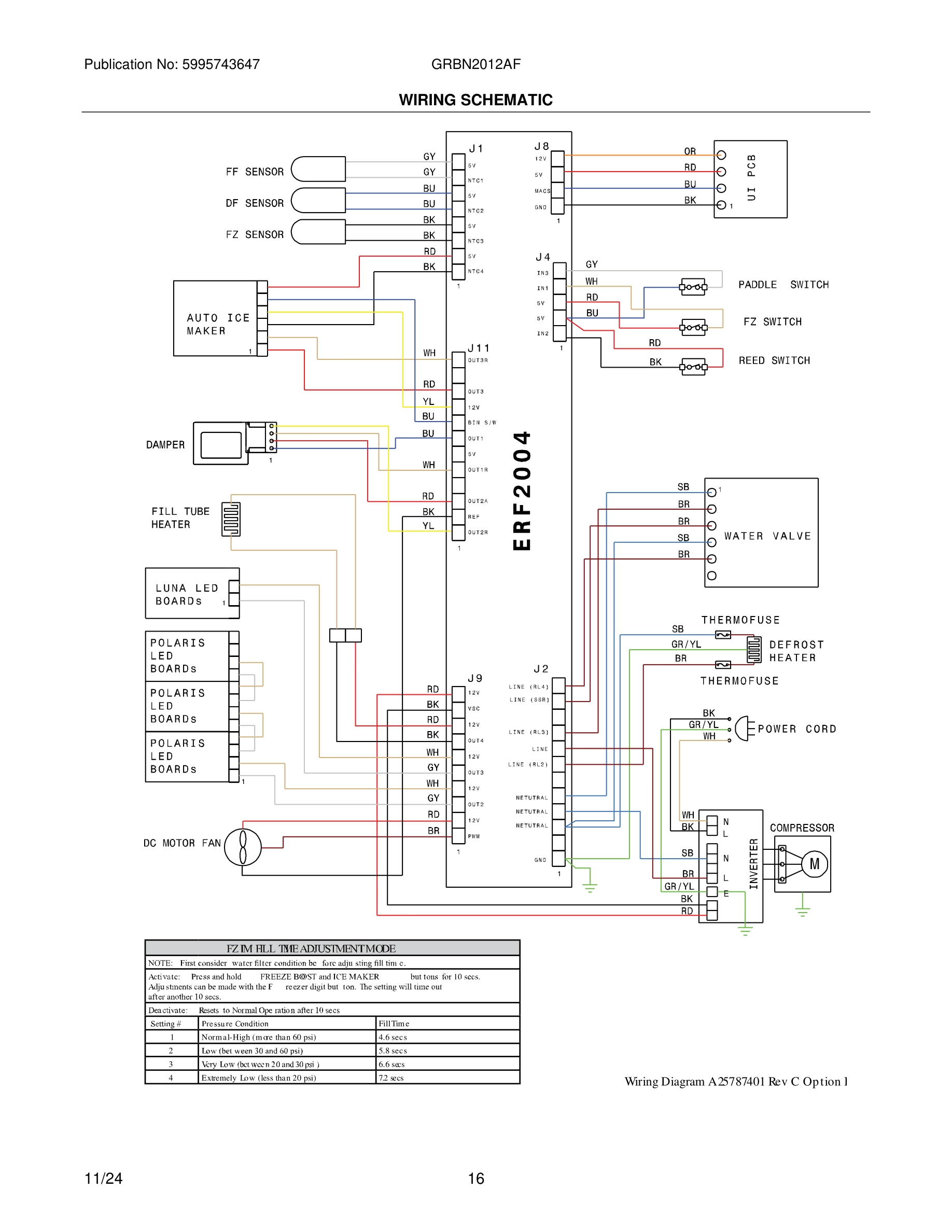

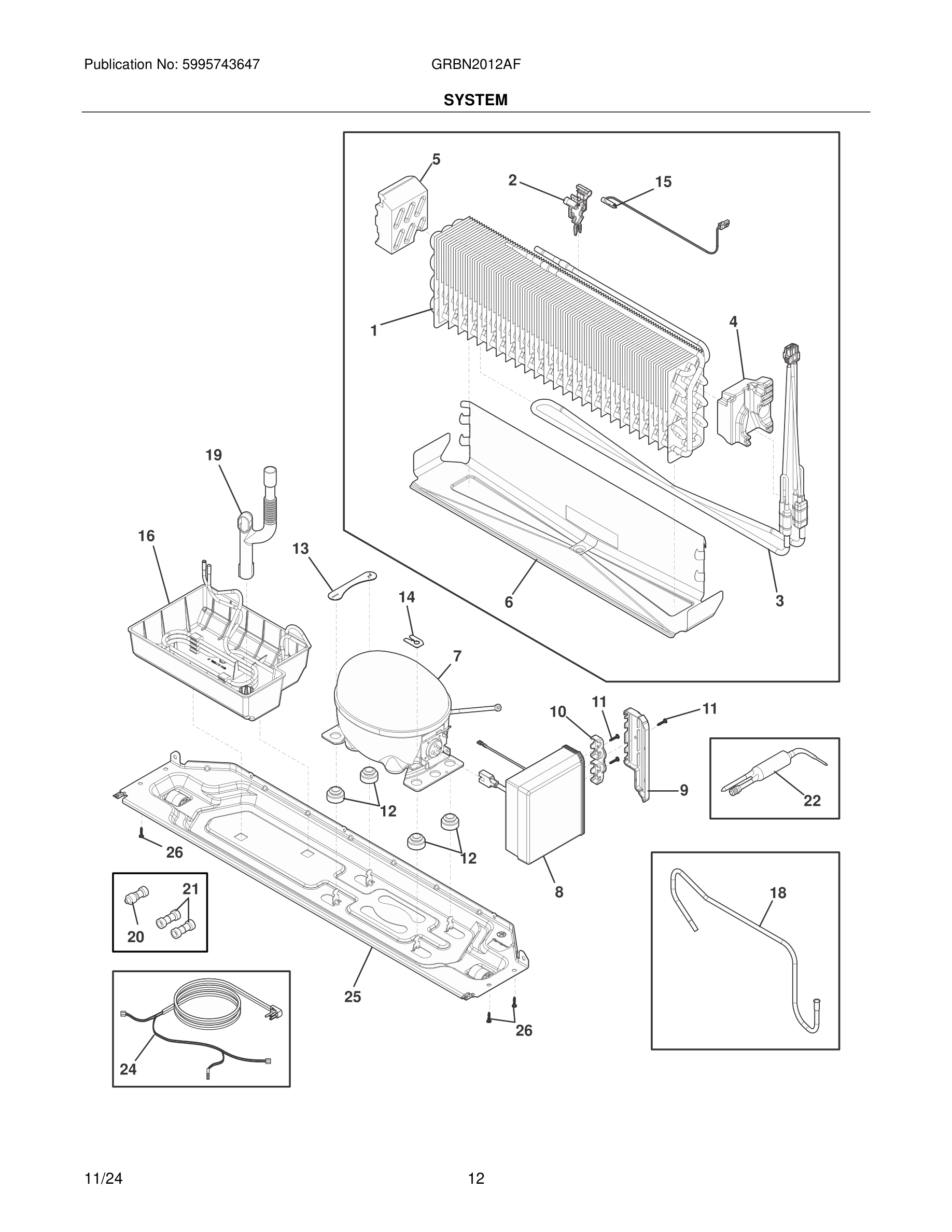

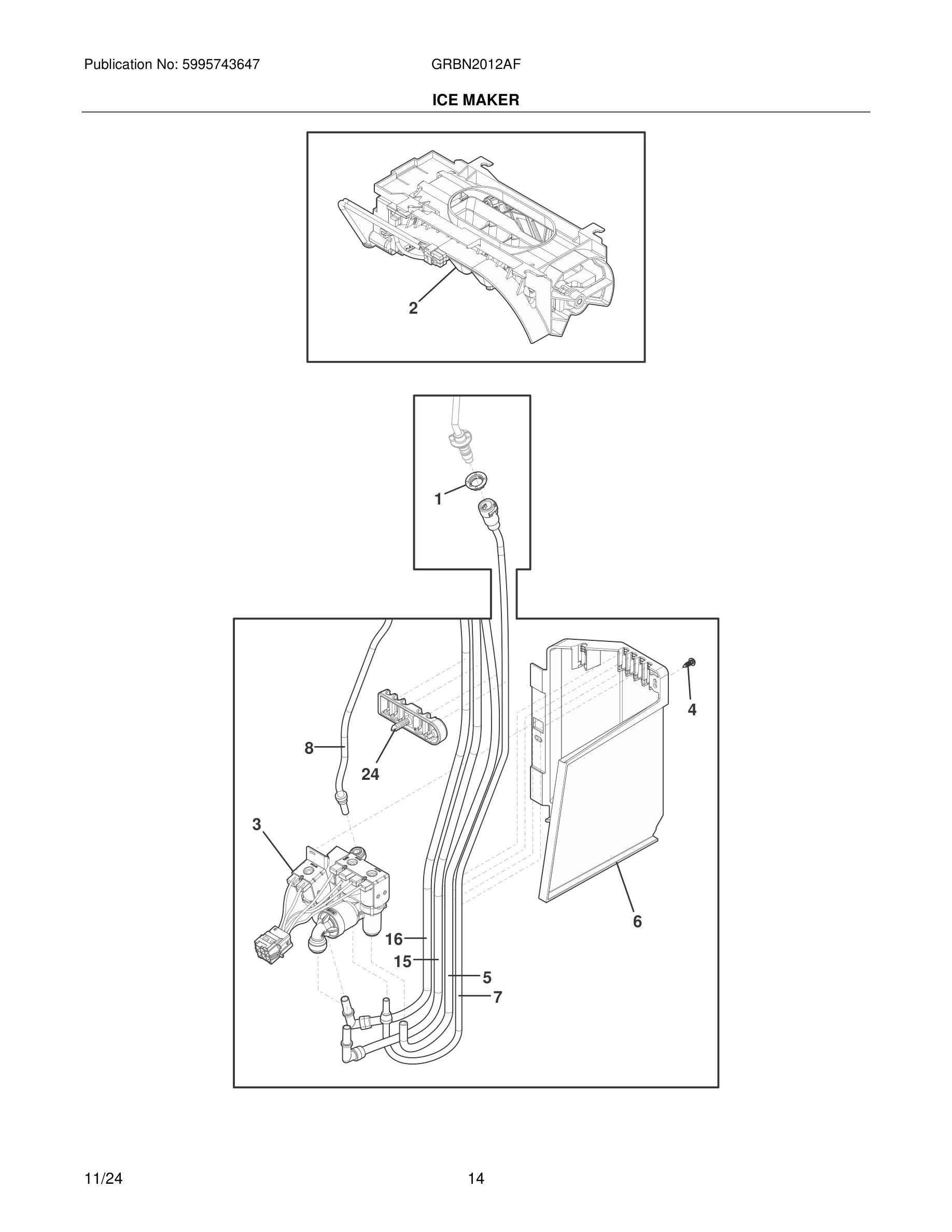

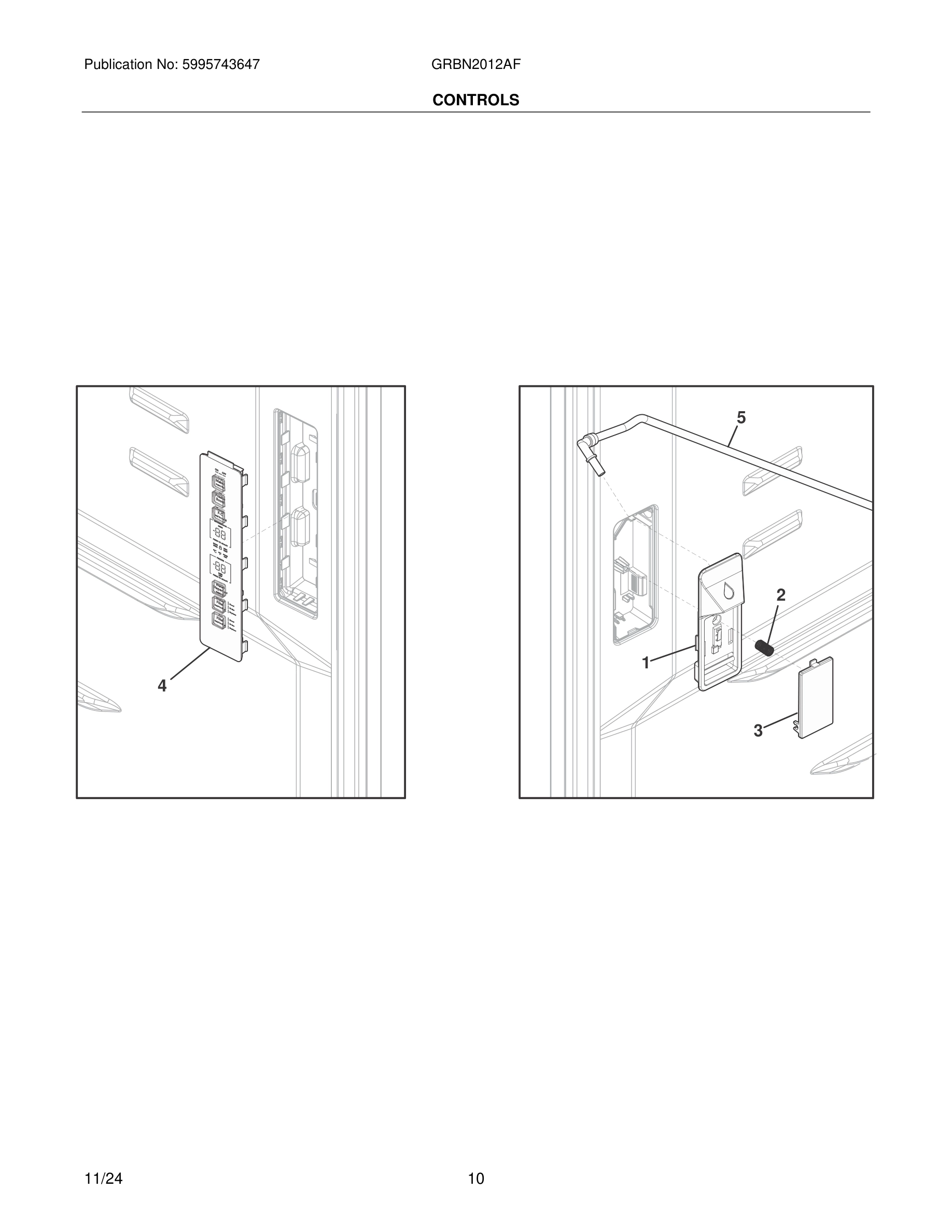

Model Frigidaire GRBN2012AF REFRIGERATOR – Common Parts &amp; Diagrams

1

5304535774 Frigidaire Nut Backorder WCI 5304535774 $1.70

1

5304536682 Frigidaire Assembly Dispenser Backorder WCI 5304536682 $49.65

1

5304536686 Frigidaire Evaporator Backorder WCI 5304536686 $103.17

1

5304536921 Frigidaire Door-Complete Backorder WCI 5304536921 $289.57

1

5304537043 Frigidaire Shelf Backorder WCI 5304537043 $76.41

2

243297618 Frigidaire Ice Maker Backorder WCI 243297618 $118.00

2

5304519199 Frigidaire Refrigerator Spring Backorder WCI 5304519199 $4.41

2

5304536678 Frigidaire Foot Assembly Backorder WCI 5304536678 $45.28

2

5304536687 Frigidaire Clip Backorder WCI 5304536687 $1.88

2

5304536723 Frigidaire Crisper Cover Backorder WCI 5304536723 $75.59

3

5304520519 Frigidaire Refrigerator Bearing Backorder WCI 5304520519 $6.66

3

5304536683 Frigidaire Paddle Backorder WCI 5304536683 $9.31

3

5304536688 Frigidaire Heater Backorder WCI 5304536688 $122.01

3

5304536701 Frigidaire Valve Assembly Backorder WCI 5304536701 $110.37

3

Membrane Assembly,humidity ,crisper cover WCI 5304536724 Contact Us For Availability

4

140010465148 Frigidaire Bearing Backorder WCI 140010465148 $4.46

4

140206803029 Frigidaire Cover Backorder WCI 140206803029 $2.74

4

5304536689 Frigidaire Support Backorder WCI 5304536689 $4.94

4

5304536725 Frigidaire Deli Cover Assembly Backorder WCI 5304536725 $108.92

4

811949503 Frigidaire Screw Backorder WCI 811949503 $2.17

4#

5304536684 Frigidaire Electrical Control Backorder WCI 5304536684 $145.67

5

5304519124 Frigidaire Roller Assembly Backorder WCI 5304519124 $12.27

5

5304536690 Frigidaire Support Backorder WCI 5304536690 $4.94

5

5304536703 Frigidaire Tubing Backorder WCI 5304536703 $30.61

5#

973925060712008 Frigidaire Control-Electrical Backorder WCI 973925060712008 $180.49

5*

5304536709 Frigidaire Insulator Backorder WCI 5304536709 $2.31

5*

Screw,PF AB PFZ PF ,3.5x1.27x19 WCI 808337901 Contact Us For Availability

6

140194404012 Frigidaire Cover Backorder WCI 140194404012 $11.70

6

5304536691 Frigidaire Trough Assembly Backorder WCI 5304536691 $37.08

6

5304536702 Frigidaire Cover Backorder WCI 5304536702 $29.82

6

GASKET Backorder WCI 5304536717 $30.68

6

5304536726 Frigidaire Support Assembly Backorder WCI 5304536726 $84.20

7

241695906 Frigidaire Screw Backorder WCI 241695906 $14.94

7

5304536706 Frigidaire Tubing Assembly Backorder WCI 5304536706 $27.82

7

5304536727 Frigidaire Bracket Assembly In Stock WCI 5304536727 $7.11

7#

5304536694 Frigidaire Compressor Backorder WCI 5304536694 $392.46

8

5303918905 Frigidaire Sensor Kit Backorder WCI 5303918905 $23.61

8

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $13.83

8

5304536707 Frigidaire Tubing Assembly Backorder WCI 5304536707 $42.34

8

5304536930 Frigidaire Assembly Support Backorder WCI 5304536930 $18.25

8#

5304536695 Frigidaire PCB Board Backorder WCI 5304536695 $234.26

8*

Cap,tubing WCI 5304529162 Contact Us For Availability

9

5304536681 Frigidaire Screw Backorder WCI 5304536681 $0.25

9

5304536925 Frigidaire Tower Backorder WCI 5304536925 $85.69

9

Cover,flex drive ,side ,compressor WCI 5304533517 Contact Us For Availability

10

CLAMP Backorder WCI 5304526793 $0.00

10

5304536680 Frigidaire Bracket Backorder WCI 5304536680 $2.74

10

5304536728 Frigidaire Drawer Assembly Backorder WCI 5304536728 $77.88

5304532654 Frigidaire Screw Backorder WCI 5304532654 $1.68

5304536712 Frigidaire Shaft Backorder WCI 5304536712 $34.68

5304536729 Frigidaire Crisper Drawer Backorder WCI 5304536729 $61.49

5304536926 Frigidaire Cover Backorder WCI 5304536926 $13.36

11*

Screw,phil pn hd ,M4 x 8 WCI 5304519066 Contact Us For Availability

5304519084 Frigidaire Screw Assembly Backorder WCI 5304519084 $2.20

5304536713 Frigidaire Bracket Assembly Backorder WCI 5304536713 $34.78

5304536730 Frigidaire Appliance Crisper Drawe Backorder WCI 5304536730 $66.58

5304536927 Frigidaire Cover Backorder WCI 5304536927 $3.10

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $6.09

140188105039 Frigidaire LED Light Backorder WCI 140188105039 $32.04

5304512150 Frigidaire Refrigerator Nameplate Backorder WCI 5304512150 $36.95

5304519053 Frigidaire Refrigerator Screw Backorder WCI 5304519053 $2.29

5304536931 Frigidaire Cover Backorder WCI 5304536931 $4.14

Clamp,compressor ,2 hole WCI 5304533505 Contact Us For Availability

CLAMP Backorder WCI 5304519152 $6.68

5304536685 Frigidaire LED Light In Stock WCI 5304536685 $54.68

5304536734 Frigidaire Bin Assembly Backorder WCI 5304536734 $20.01

811949401 Frigidaire Refrigerator Screw In Stock WCI 811949401 $3.85

FRIGIDAIRE PA PK-2 REFILL WCI FRPAPK2RF No Longer Available

15

5304529184 Frigidaire Switch Backorder WCI 5304529184 $15.51

15

5304536704 Frigidaire Tubing Backorder WCI 5304536704 $12.38

15

5304536920 Frigidaire Door Assembly Backorder WCI 5304536920 $218.36

15#

5303918851 Frigidaire Refrigerator Thermostat In Stock WCI 5303918851 $26.85

5304519100 Frigidaire Refrigerator Cover Backorder WCI 5304519100 $6.09

5304536696 Frigidaire Drain Pan Backorder WCI 5304536696 $33.76

5304536705 Frigidaire Tubing Backorder WCI 5304536705 $12.04

5304536714 Frigidaire Gasket Assembly Backorder WCI 5304536714 $32.60

17

5304536731 Frigidaire Basket Assembly Backorder WCI 5304536731 $49.85

17

5304536928 Frigidaire Duct Assembly Backorder WCI 5304536928 $24.09

18

5304536697 Frigidaire Tube Backorder WCI 5304536697 $20.99

18

5304536929 Frigidaire Assembly Cover Backorder WCI 5304536929 $107.61

19

5304536692 Frigidaire Fan Assembly Backorder WCI 5304536692 $74.24

19

5304536698 Frigidaire Tube Backorder WCI 5304536698 $12.38

20

Cover,temp sensor WCI 5304537119 Contact Us For Availability

20#

Lock Ring,drier ,3N ST 01 WCI L13000622 Contact Us For Availability

21

5304536693 Frigidaire Cover Assembly Backorder WCI 5304536693 $2.99

21#

L13000584 Frigidaire Lokring Backorder WCI L13000584 $29.75

22

A19676501 Frigidaire Refrigerator Filter Drie In Stock WCI A19676501 $82.09

23

5304536699 Frigidaire Cover Assembly Backorder WCI 5304536699 $4.03

24

5304536700 Frigidaire Clamp Backorder WCI 5304536700 $2.65

24

5304536708 Frigidaire Insulator Backorder WCI 5304536708 $2.74

24#

5304536756 Frigidaire Cord Backorder WCI 5304536756 $29.16

25

5304536679 Frigidaire Base Assembly Backorder WCI 5304536679 $44.46

26

140072822053 Frigidaire Hinge Assembly Backorder WCI 140072822053 $17.59

26

808199001 Frigidaire Screw Backorder WCI 808199001 $5.55

27

5304529178 Frigidaire Pin Backorder WCI 5304529178 $7.20

28

5304536716 Frigidaire Screw Assembly Backorder WCI 5304536716 $0.25

29

HINGE Backorder WCI 5304536718 $18.63

33

COVER Backorder WCI 5304536719 $2.97

36

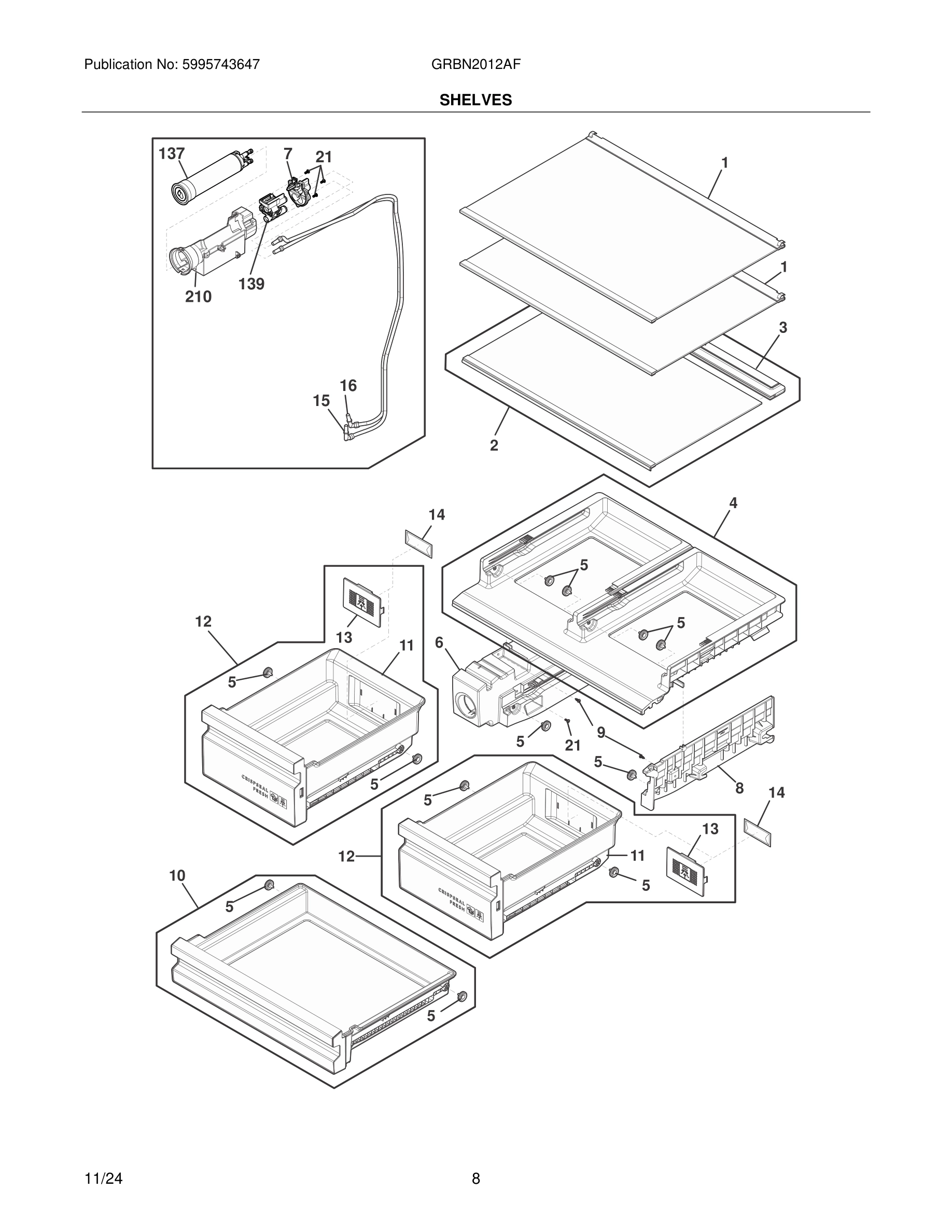

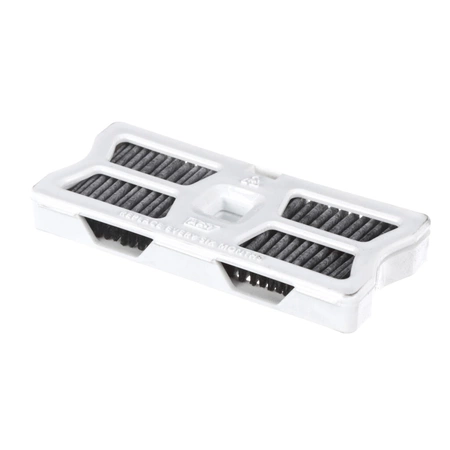

5304530334 Frigidaire Air Filter Backorder WCI 5304530334 $20.24

137

PurePour Frigidaire FPPWFU01 Refrigerator Wat In Stock WCI FPPWFU01 $62.29

139#

5304524817 Frigidaire Water Filter Head Manif In Stock WCI 5304524817 $53.82

210

5304531689 Frigidaire Refrigerator Support Backorder WCI 5304531689 $8.54
