Model Whirlpool GR450LXHB1 30" Electric Range Ceran Cooktop Convection Oven – Common Parts & Diagrams
COOKTOP PARTS

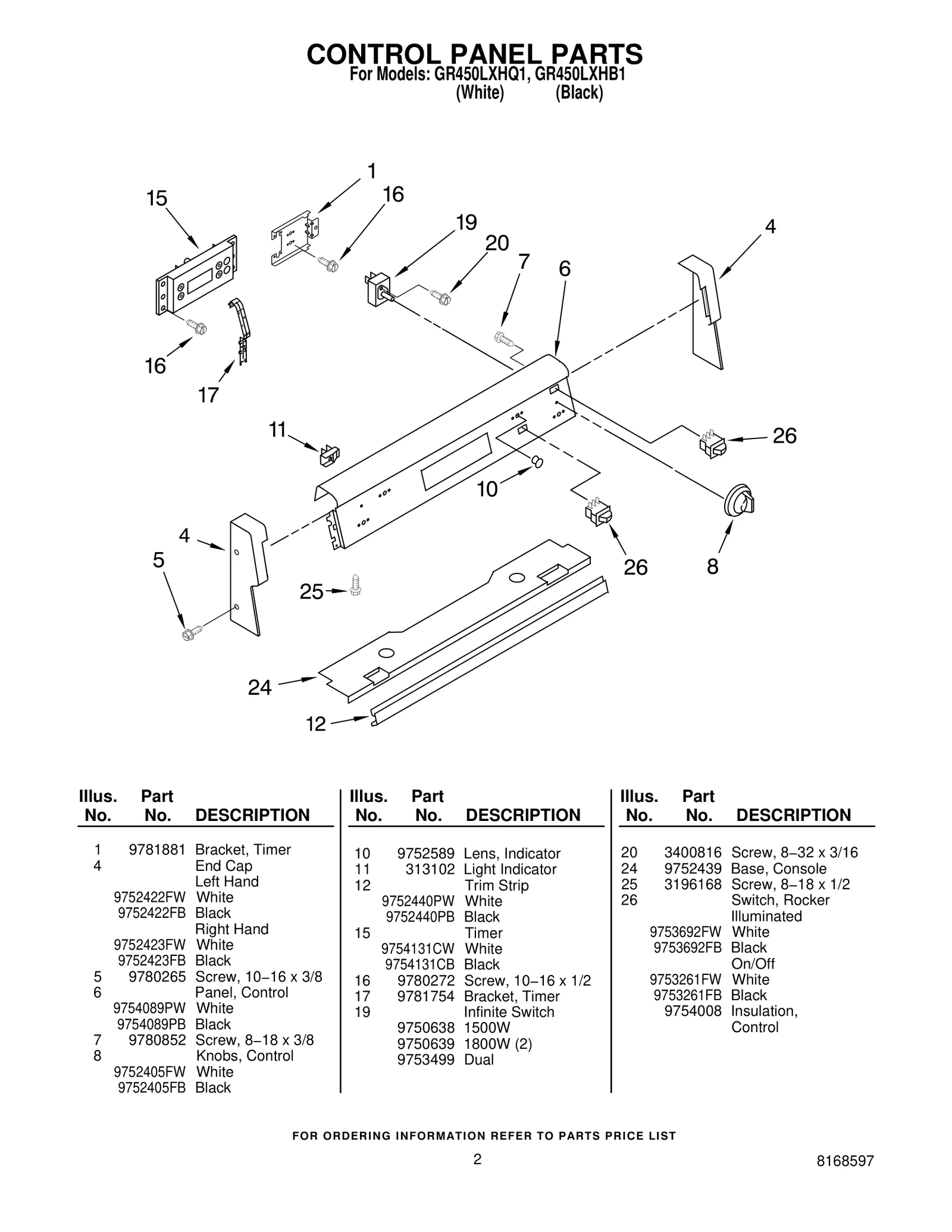

CONTROL PANEL PARTS

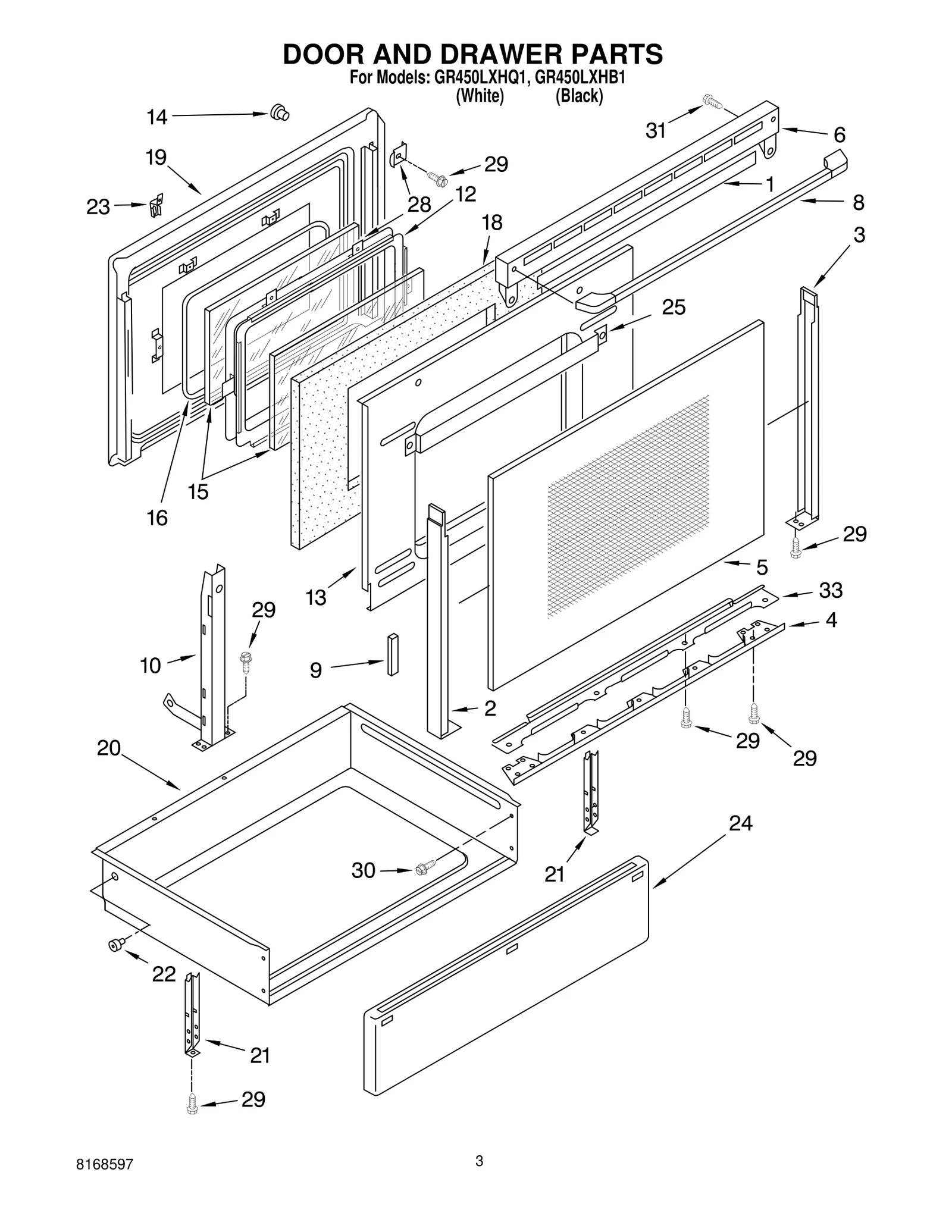

DOOR AND DRAWER PARTS

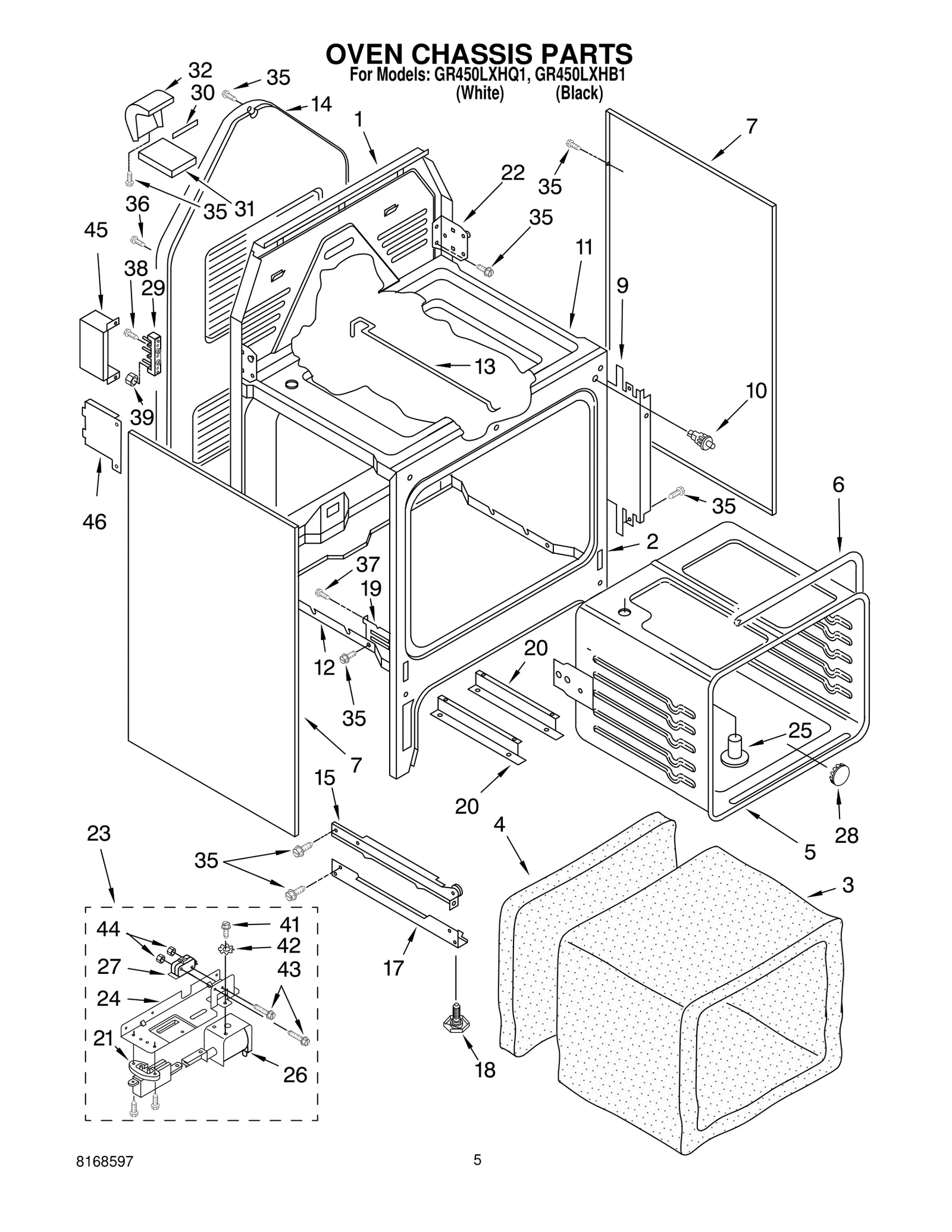

OVEN CHASSIS PARTS

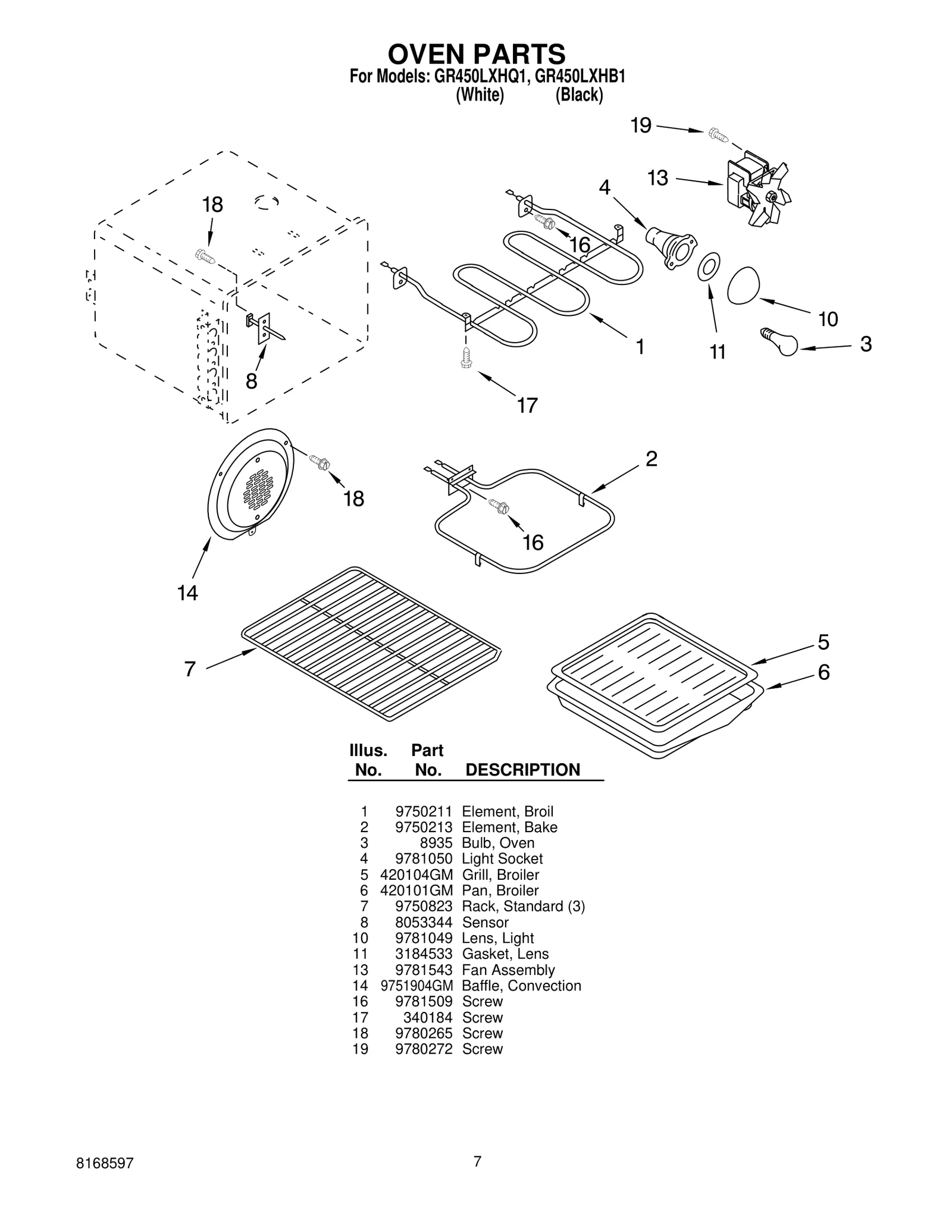

OVEN PARTS

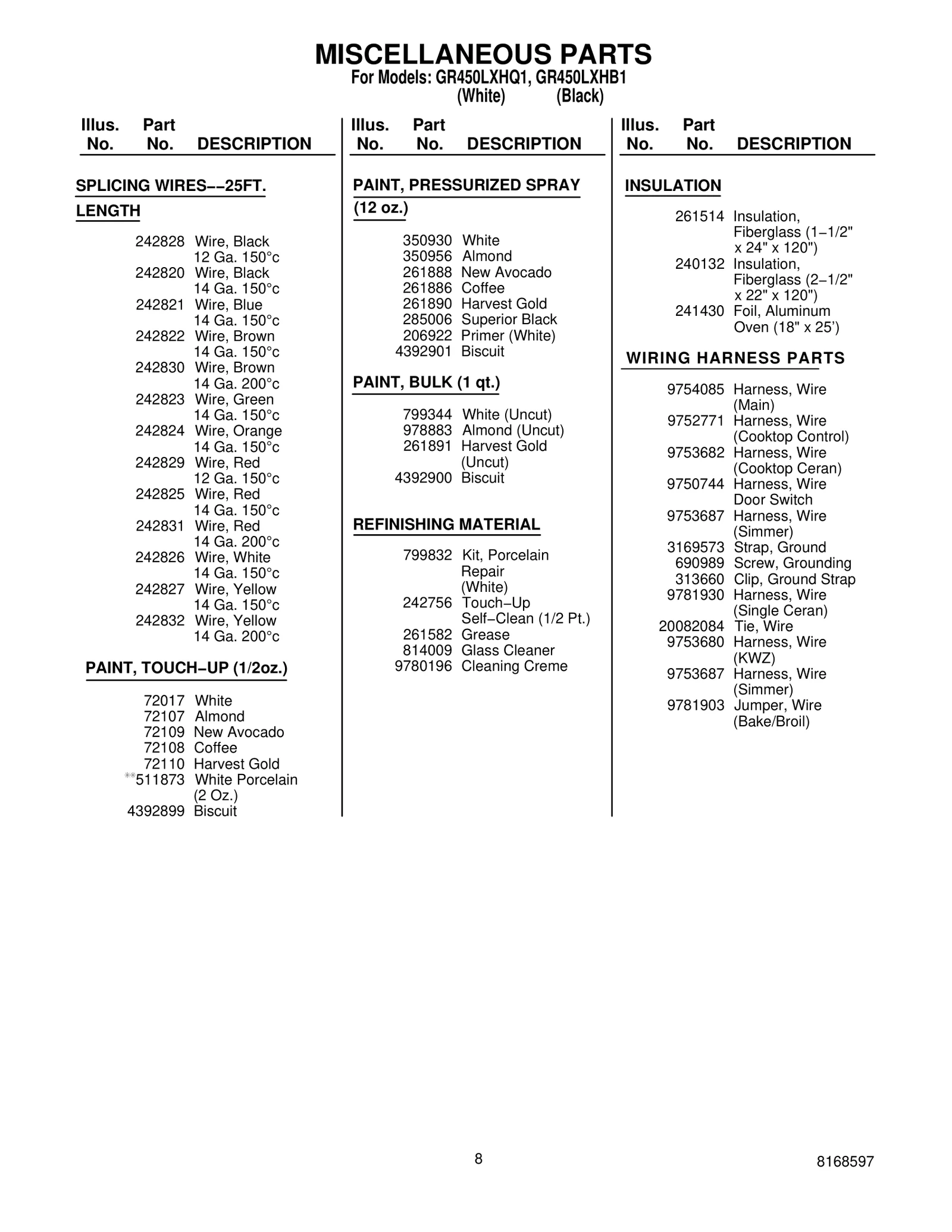

MISCELLANEOUS PARTS
Common parts from model Whirlpool GR450LXHB1 30" Electric Range Ceran Cooktop Convection Oven
1
Element, Broil WPL 9750211 Contact Us For Availability
1
Bracket, Timer WPL 9781881 Contact Us For Availability
1
Gasket,Door Vent WPL 9781659 Contact Us For Availability
1
Main Chassis, Back WPL 9750146 Contact Us For Availability
2
Element, Bake WPL 9750213 Contact Us For Availability
2
Trim, Door−Left — White WPL 9782003PW Contact Us For Availability
2
Trim, Door−Left — Black WPL 9782003PB Contact Us For Availability
2
Chassis, Front WPL 9750514GM Contact Us For Availability
3
Trim, Door−Right — White WPL 9782004PW Contact Us For Availability
3
Trim, Door−Right — Black WPL 9782004PB Contact Us For Availability
3
Insulation, Wrap WPL 9754000 Contact Us For Availability
4
End Cap Left Hand — White WPL 9752422FW Contact Us For Availability
4
End Cap Left Hand — Black WPL 9752422FB Contact Us For Availability
4
End Cap Left Hand — White WPL 9752423FW Contact Us For Availability
4
End Cap Left Hand — Black WPL 9752423FB Contact Us For Availability
4
Trim, Door Bottom — White WPL 9781209PW Contact Us For Availability
4
Trim, Door Bottom — Black WPL 9781209PB Contact Us For Availability
4
Insulation, Rear WPL 9754011 Contact Us For Availability
5
Glass, Door Front — White WPL 9781694PW Contact Us For Availability
5
Glass, Door Front — Black WPL 9781694PB Contact Us For Availability
5
Oven Liner WPL 9754249GM Contact Us For Availability
6
Panel, Control — White WPL 9754089PW Contact Us For Availability
6
Panel, Control — Black WPL 9754089PB Contact Us For Availability
6
Vent, Door — White WPL 9753498GW Contact Us For Availability
6
Vent, Door — Black WPL 9753498GB Contact Us For Availability
6
Gasket Oven WPL 3191649 Contact Us For Availability
7
Screw, 8−18 x 3/8 WPL 9780852 Contact Us For Availability
7
Oven, Side Panel — White WPL 9781907PW Contact Us For Availability
7
Oven, Side Panel — Black WPL 9781907PB Contact Us For Availability
7
Rack, Standard (3) WPL 9750823 Contact Us For Availability
8
Sensor WPL 8053344 Contact Us For Availability
8
Knobs, Control — Black WPL 9752405FB Contact Us For Availability
8
Handle, Door — White WPL 9752701PW Contact Us For Availability
8
Handle, Door — Black WPL 9752701PB Contact Us For Availability
9
Gasket, Door Glass WPL 9781449 Contact Us For Availability
9
Shield, Insulation WPL 9780664 Contact Us For Availability
10
Door Switch WPL 9781580 Contact Us For Availability
11
Light Indicator WPL 313102 Contact Us For Availability
11
Burner Box WPL 9750478 Contact Us For Availability
12
Trim Strip — White WPL 9752440PW Contact Us For Availability
12
Trim Strip — Black WPL 9752440PB Contact Us For Availability
12
Frame, Window WPL 9781602 Contact Us For Availability
12
Oven Bottom WPL 9750142 Contact Us For Availability
13
Fan Assembly WPL 9781543 Contact Us For Availability
13
Shield, Door WPL 9781586 Contact Us For Availability
13
Rod, Lock WPL 9750523 Contact Us For Availability
14
Panel, Rear WPL 9750150 Contact Us For Availability
14
Baffle, Convection WPL 9751904GM Contact Us For Availability
15
Drawer Rail, Right WPL 9750224 Contact Us For Availability
15
Timer — White WPL 9754131CW Contact Us For Availability
15
Timer — Black WPL 9754131CB Contact Us For Availability
15
Drawer Rail, Left WPL 9750223 Contact Us For Availability
16
Screw WPL 9781509 Contact Us For Availability
17
Bracket, Timer WPL 9781754 Contact Us For Availability
17
Bottom Rail (2) WPL 9750147 Contact Us For Availability
18
Insulation, Door WPL 9754006 Contact Us For Availability
19
Liner, Door WPL 9781600GM Contact Us For Availability
19
Screw WPL 9780272 Contact Us For Availability
19
Receiver, Hinge WPL 9750149 Contact Us For Availability
20
Drawer & Roller WPL 9780583 Contact Us For Availability
20
Support Rail WPL 9781904 Contact Us For Availability
21
Bracket, Drawer WPL 9750169 Contact Us For Availability
21
Single Position Device WPL 9752462 Contact Us For Availability
22
Clip, Vent Cover WPL 3149190 Contact Us For Availability
22
Hinge, Cktp.−Left WPL 9750258 Contact Us For Availability
22
Hinge, Cktp.−Right WPL 9750416 Contact Us For Availability
23
Retainer, Door WPL 9750676 Contact Us For Availability
23
Oven Lock Assembly WPL 9752404 Contact Us For Availability
24
Screw WPL 423248 Contact Us For Availability
24
Base, Console WPL 9752439 Contact Us For Availability
24
Front, Drawer — White WPL 9750168PW Contact Us For Availability
24
Front, Drawer — Black WPL 9750168PB Contact Us For Availability
24
Bracket, Lock WPL 9750526 Contact Us For Availability
25
Heat Channel WPL 9750693 Contact Us For Availability
25
Vent Tube WPL 9753091 Contact Us For Availability
26
Screw WPL 3149333 Contact Us For Availability
26
Solenoid WPL 9752409 Contact Us For Availability
26
Spring, Warm Zone Element WPL 9753677 Contact Us For Availability
26
Switch, Rocker Illuminated — White WPL 9753692FW Contact Us For Availability
26
Switch, Rocker Illuminated — Black WPL 9753692FB Contact Us For Availability
26
Switch, Rocker Illuminated — White WPL 9753261FW Contact Us For Availability
26
Insulation, Control WPL 9754008 Contact Us For Availability
27
Switch, Interlock WPL 9750965 Contact Us For Availability
28
Spacer, Door (9) WPL 9781502 Contact Us For Availability
28
Plug, Button WPL 9780578 Contact Us For Availability
30
Gasket, Vent WPL 9750767 Contact Us For Availability
31
Cover, Vent WPL 9750393 Contact Us For Availability
32
Cover, Back WPL 9750394 Contact Us For Availability
33
Deflector,Steam WPL 9781771 Contact Us For Availability
36
Screw WPL 9780275 Contact Us For Availability
38
Screw WPL 98884 Contact Us For Availability
41
Screw WPL 422222 Contact Us For Availability
42
Washer WPL 424238 Contact Us For Availability
43
Screw WPL 9750887 Contact Us For Availability
44
Nut WPL 9750888 Contact Us For Availability
45
Box, Terminal WPL 9752344 Contact Us For Availability
46
Cover, Ternminal Box WPL 9752345 Contact Us For Availability
× ![]()
