Model Electrolux GPG39WNW3 RANGE – Common Parts & Diagrams
02 - BACKGUARD

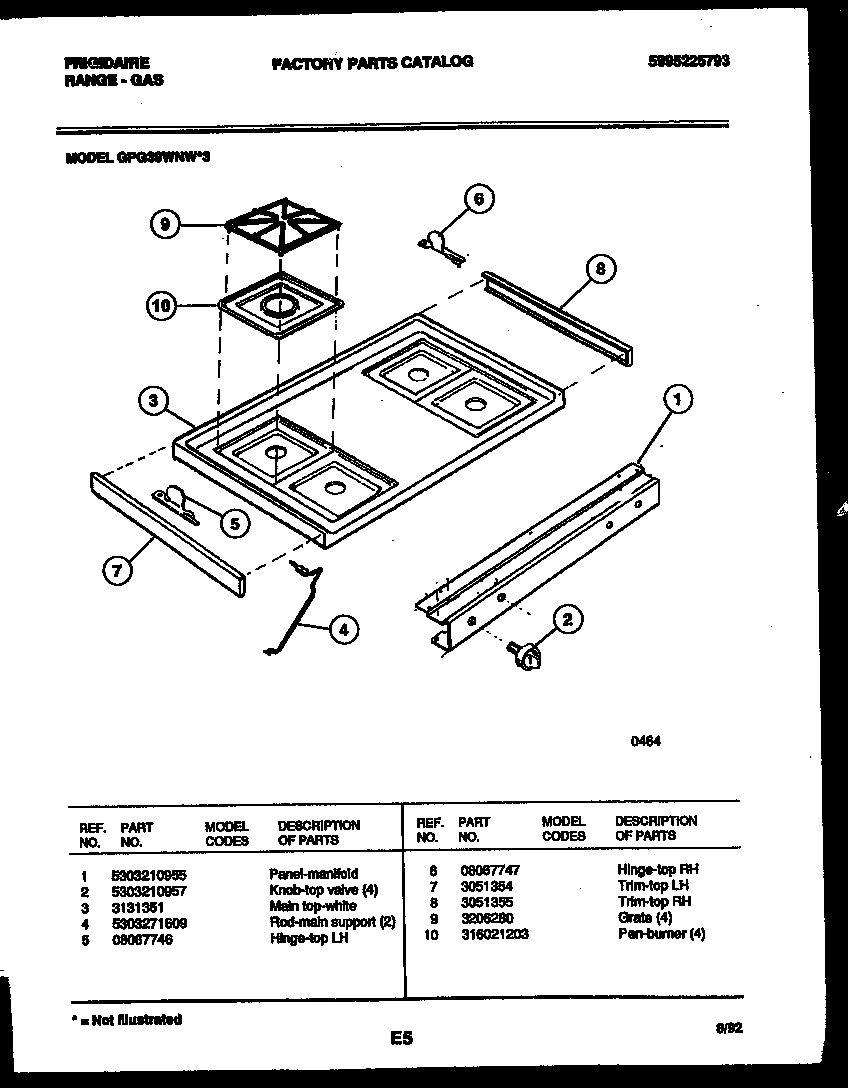

03 - COOKTOP PARTS

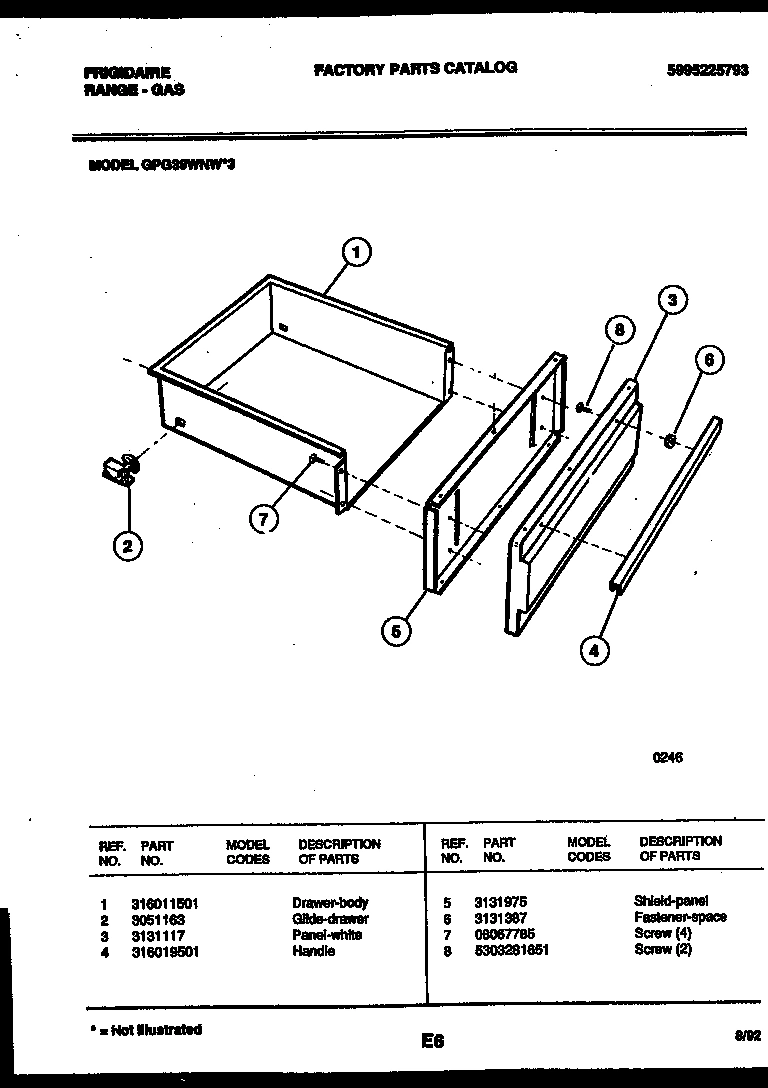

04 - DRAWER PARTS

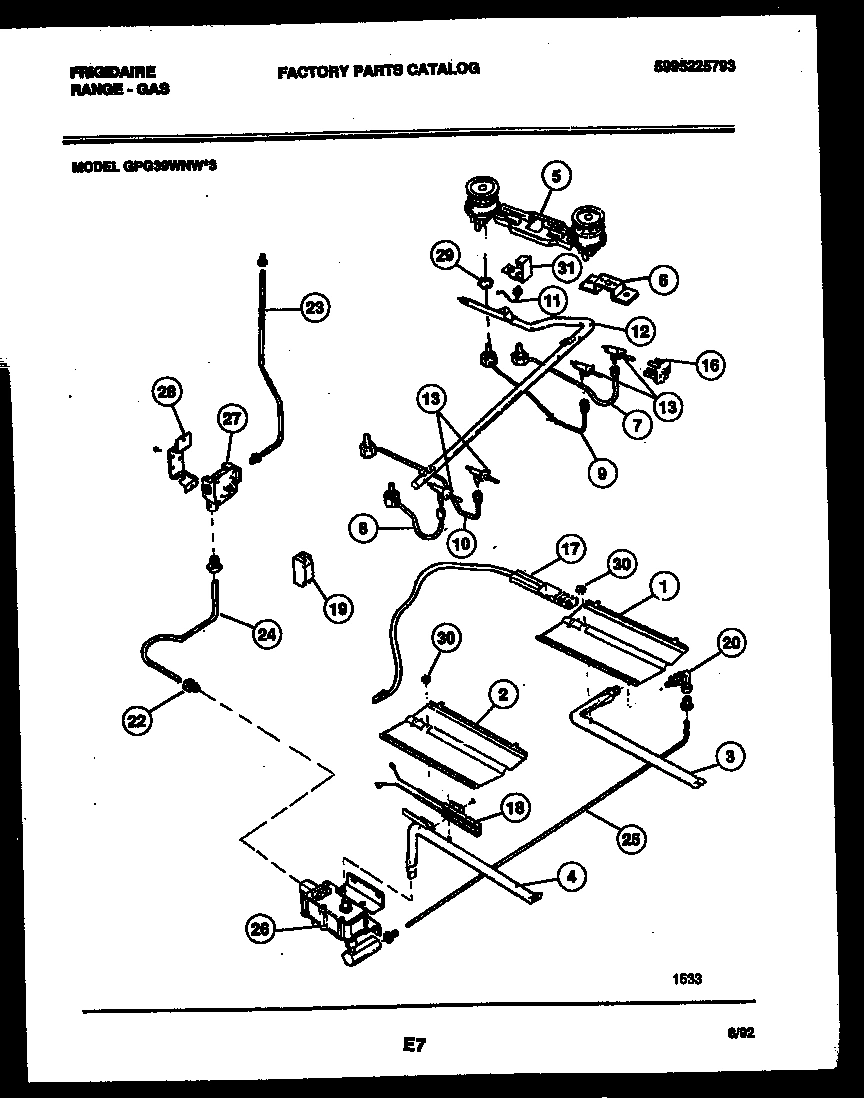

05 - BURNER, MANIFOLD AND GAS CONTROL

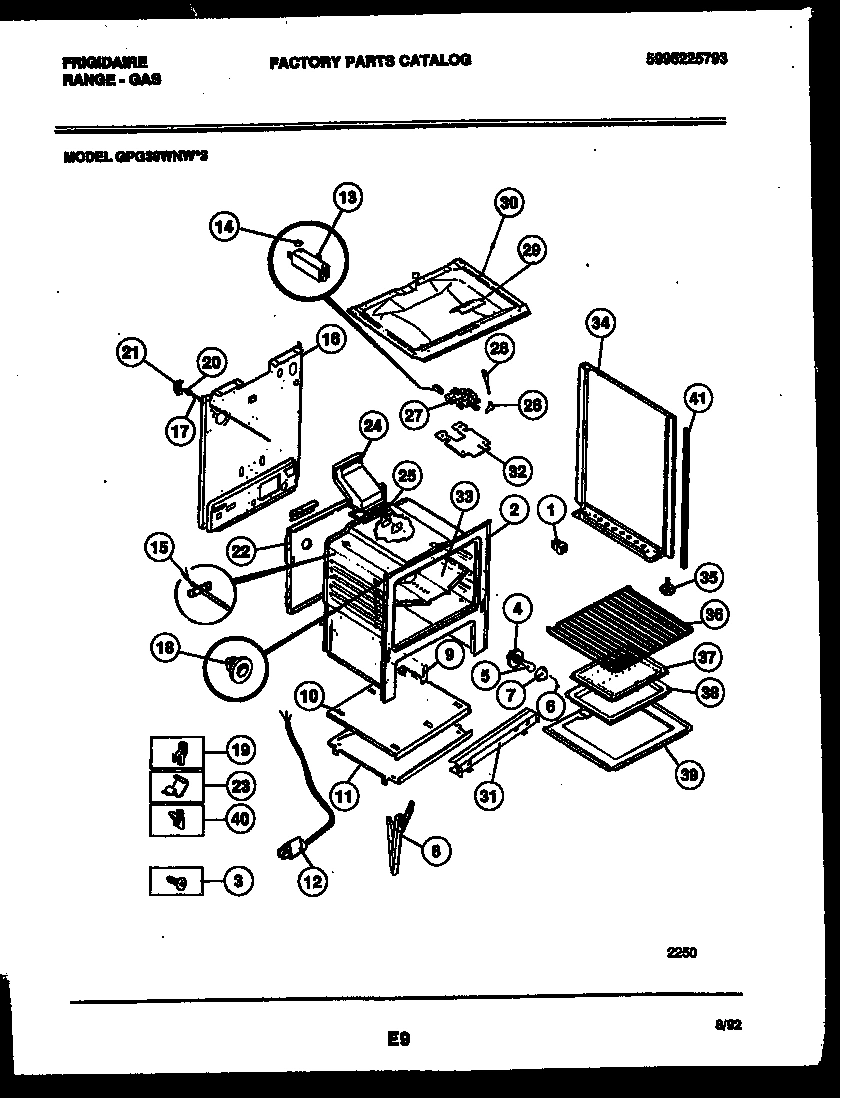

06 - BODY PARTS

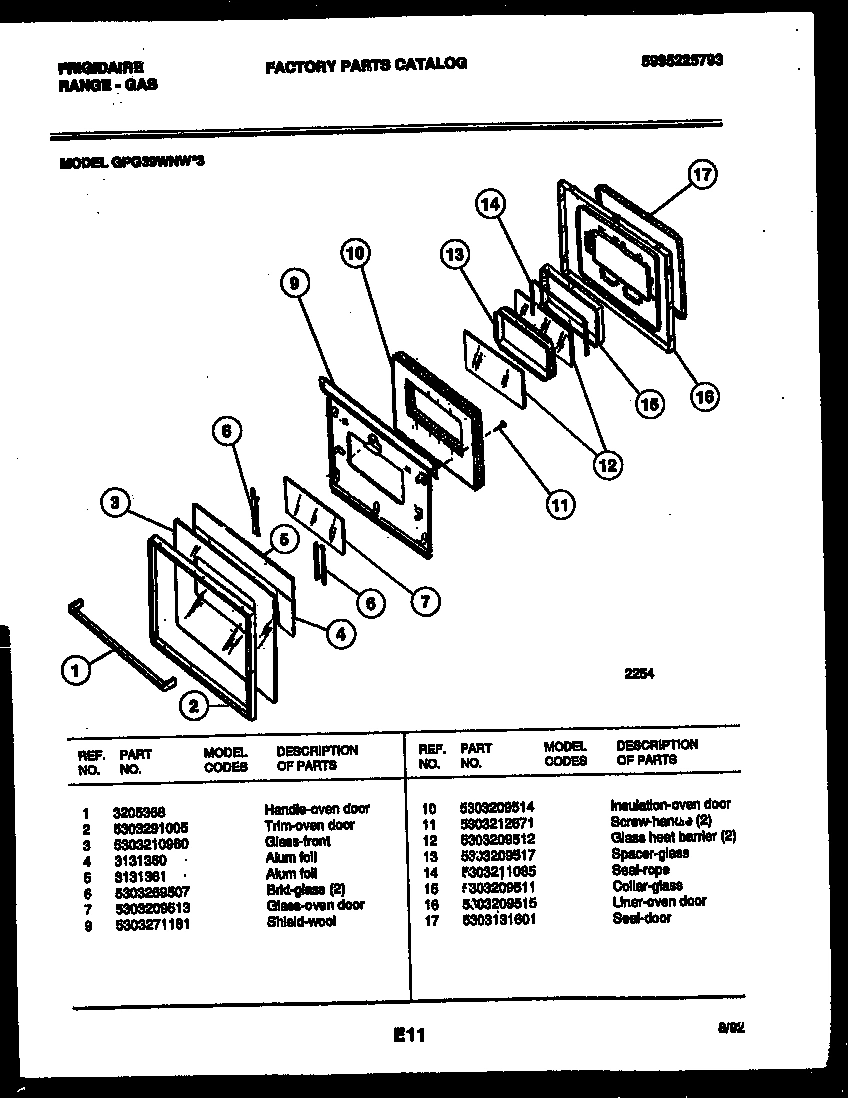

07 - DOOR PARTS
Common parts from model Electrolux GPG39WNW3 RANGE
*65708
WIRING DIAGRAM (NOT FOR PURCHASE) WCI 19100200014 Contact Us For Availability
1
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
1
WCI 5303210955 WCI 5303210955 Contact Us For Availability
1
WCI 316011501 WCI 316011501 Contact Us For Availability
1
WCI 5303210379 WCI 5303210379 Contact Us For Availability
1
HANDLE-OVEN DOOR WCI 3205368 Contact Us For Availability
2
WCI 5303210957 WCI 5303210957 Contact Us For Availability
2
BAFFLE-OVEN BURNER WCI 3131284 Contact Us For Availability
2
TRIM-OVEN DOOR WCI 5303291005 Contact Us For Availability
3
WCI 08067935 WCI 08067935 Contact Us For Availability
3
WCI 3131351 WCI 3131351 Contact Us For Availability
3
PANEL-WHITE WCI 3131117 Contact Us For Availability
3
WCI 5303210960 WCI 5303210960 Contact Us For Availability
4
ROD-MAIN SUPPORT (2) WCI 5303271609 Contact Us For Availability
4
HANDLE WCI 316019501 Contact Us For Availability
4
WCI 3131290 WCI 3131290 Contact Us For Availability
5
HINGE-TOP LH WCI 08067746 Contact Us For Availability
5
WCI 3131975 WCI 3131975 Contact Us For Availability
5
BURNER-TOP-DOUBLE WCI 5303131147 Contact Us For Availability
5
ALUM FOIL WCI 3131361 Contact Us For Availability
6
HINGE-TOP RH WCI 08067747 Contact Us For Availability
6
FASTENER-SPACE WCI 3131387 Contact Us For Availability
6
BRACKET BURNER MTG WCI 3200277 Contact Us For Availability
6
RETAINER-GLASS WCI 3204585 Contact Us For Availability
6
BRKT-GLASS (2) WCI 5303269507 Contact Us For Availability
7
BULB-FLUOR WCI 3131275 Contact Us For Availability
7
SCREW (4) WCI 08067785 Contact Us For Availability
7
TRIM-TOP LH WCI 3051354 Contact Us For Availability
7
WCI 5303283665 WCI 5303283665 Contact Us For Availability
7
WCI 5303209513 WCI 5303209513 Contact Us For Availability
8
CHAN-DOOR HINGE (2) WCI 316007002 Contact Us For Availability
8
WCI 5303281651 WCI 5303281651 Contact Us For Availability
8
TRIM-TOP RH WCI 3051355 Contact Us For Availability
8
WCI 5303283666 WCI 5303283666 Contact Us For Availability
9
COVER-HINGE CUTOUT (2) WCI 3131570 Contact Us For Availability
9
GRATE (4) WCI 3206280 Contact Us For Availability
9
WCI 5303283667 WCI 5303283667 Contact Us For Availability
9
WCI 5303271181 WCI 5303271181 Contact Us For Availability
10
WCI 316021203 WCI 316021203 Contact Us For Availability
10
WCI 5303283668 WCI 5303283668 Contact Us For Availability
10
WCI 5303270104 WCI 5303270104 Contact Us For Availability
10
INSULATION-OVEN DOOR WCI 5303209514 Contact Us For Availability
11
IGNITOR, TOP BURNER (2) WCI 3200276 Contact Us For Availability
11
WCI 3131313 WCI 3131313 Contact Us For Availability
11
SCREW-HANDLE (2) WCI 5303212671 Contact Us For Availability
11A
WCI 08067992 WCI 08067992 Contact Us For Availability
12
WCI 5303209512 WCI 5303209512 Contact Us For Availability
12
WCI 5303271375 WCI 5303271375 Contact Us For Availability
13
SWITCH-LATCH WCI 5303269499 Contact Us For Availability
13
WCI 316020401 WCI 316020401 Contact Us For Availability
13
WCI 5303209517 WCI 5303209517 Contact Us For Availability
14
WCI 08067776 WCI 08067776 Contact Us For Availability
14
WCI 5303211085 WCI 5303211085 Contact Us For Availability
14A
WCI 08067978 WCI 08067978 Contact Us For Availability
15
WCI 5303209511 WCI 5303209511 Contact Us For Availability
16
IGNITION SWITCH (4) WCI 316032000 Contact Us For Availability
16
WCI 3203082 WCI 3203082 Contact Us For Availability
16
WCI 5303209515 WCI 5303209515 Contact Us For Availability
17
ROD LIGHT WCI 5303209316 Contact Us For Availability
20
WCI 5303208640 WCI 5303208640 Contact Us For Availability
20
SWITCH, DOOR WCI 5303202622 Contact Us For Availability
21
BRACKET-LIGHT SWITCH WCI 5303131289 Contact Us For Availability
22
WCI 316014301 WCI 316014301 Contact Us For Availability
23
TUBE-ALUMINUM 3/8 (REGUL TO MANIFOLD) WCI 5303208495 Contact Us For Availability
23
CLIP-WIRE WCI 3011813 Contact Us For Availability
24
TUBE-ALUMINUM 3/8 (VALVE TO REGULATOR) WCI 5303208494 Contact Us For Availability
24
WCI 3131931 WCI 3131931 Contact Us For Availability
25
TUBE-ALUMINUM 3/8 (VALVE TO MIXER) WCI 5303208493 Contact Us For Availability
25A
SHIELD-LATCH (NON-ILLUSTRATED) WCI 3131593 Contact Us For Availability
25B
WCI 08013188 WCI 08013188 Contact Us For Availability
26
WCI 5303210956 WCI 5303210956 Contact Us For Availability
27
LATCH-DOOR BL METAL WCI 5303015453 Contact Us For Availability
27
WCI 54303280582 WCI 54303280582 Contact Us For Availability
28
WCI 5303131357 WCI 5303131357 Contact Us For Availability
29
NUT, SPECIAL WCI 3013279 Contact Us For Availability
29
WCI 08067757 WCI 08067757 Contact Us For Availability
30
WCI 3011597 WCI 3011597 Contact Us For Availability
31
WCI 5303271047 WCI 5303271047 Contact Us For Availability
32
SHIELD-LATCH WCI 3051413 Contact Us For Availability
33
WCI 3200836 WCI 3200836 Contact Us For Availability
33A
SHIELD-HEAT B/S (NON-ILLUSTRATED) WCI 3200834 Contact Us For Availability
34
PANEL-B/S-LH-WHITE WCI 5303269519 Contact Us For Availability
34A
PANEL-B/S-RH-WHITE WCI 5303269518 Contact Us For Availability
35
SCREW-LEVELING WCI 5303203397 Contact Us For Availability
37
WCI 5303131356 WCI 5303131356 Contact Us For Availability
38
PAN-BROILER WCI 5303013568 Contact Us For Availability
39
WCI 5303212540 WCI 5303212540 Contact Us For Availability
39B
WCI 08067961 WCI 08067961 Contact Us For Availability
39C
INSULATION-WOOL-BACK (NON-ILLUSTRATED) WCI 3204582 Contact Us For Availability
39E
INSULATION-OVEN-WRAP (NON-ILLUSTRATED) WCI 3200833 Contact Us For Availability
39F
INSULATION-OVEN-TOP (NON-ILLUSTRATED) WCI 3131304 Contact Us For Availability
40A
SHIELD, OVEN TOP (NON-ILLUSTRATED) WCI 3131314 Contact Us For Availability
40B
SHIELD-REAR WALL (NON-ILLUSTRATED) WCI 316014401 Contact Us For Availability
40C
ANTI-TIP KIT (NON-ILLUSTRATED) WCI 3934056 Contact Us For Availability
40D
WCI 08068018 WCI 08068018 Contact Us For Availability
41
TRIM-VERTICAL BODYSIDE WCI 5303051326 Contact Us For Availability
× ![]()
