Model LG GH7155XHS MWO-OTR – Common Parts & Diagrams
Diagram 0

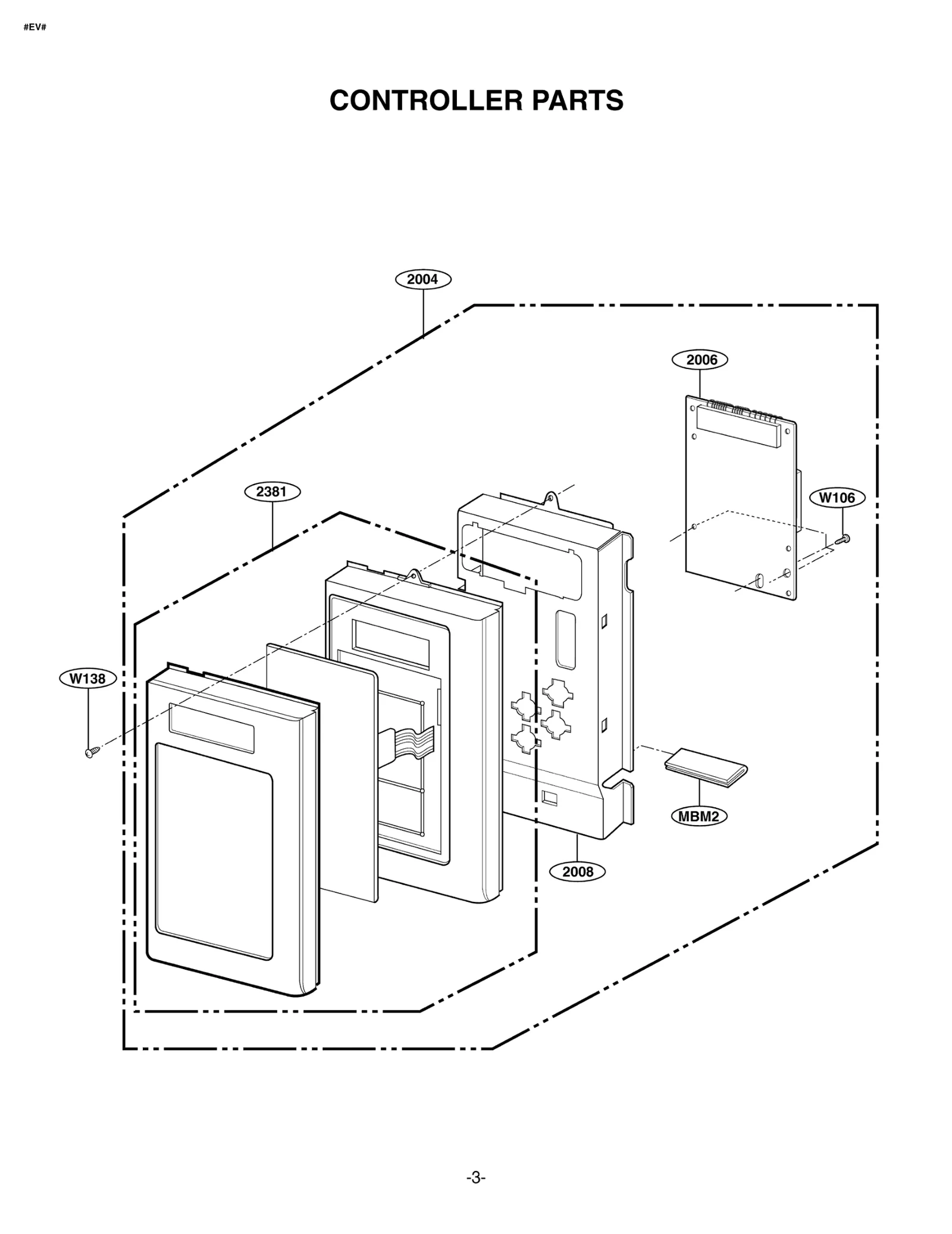

Diagram 1

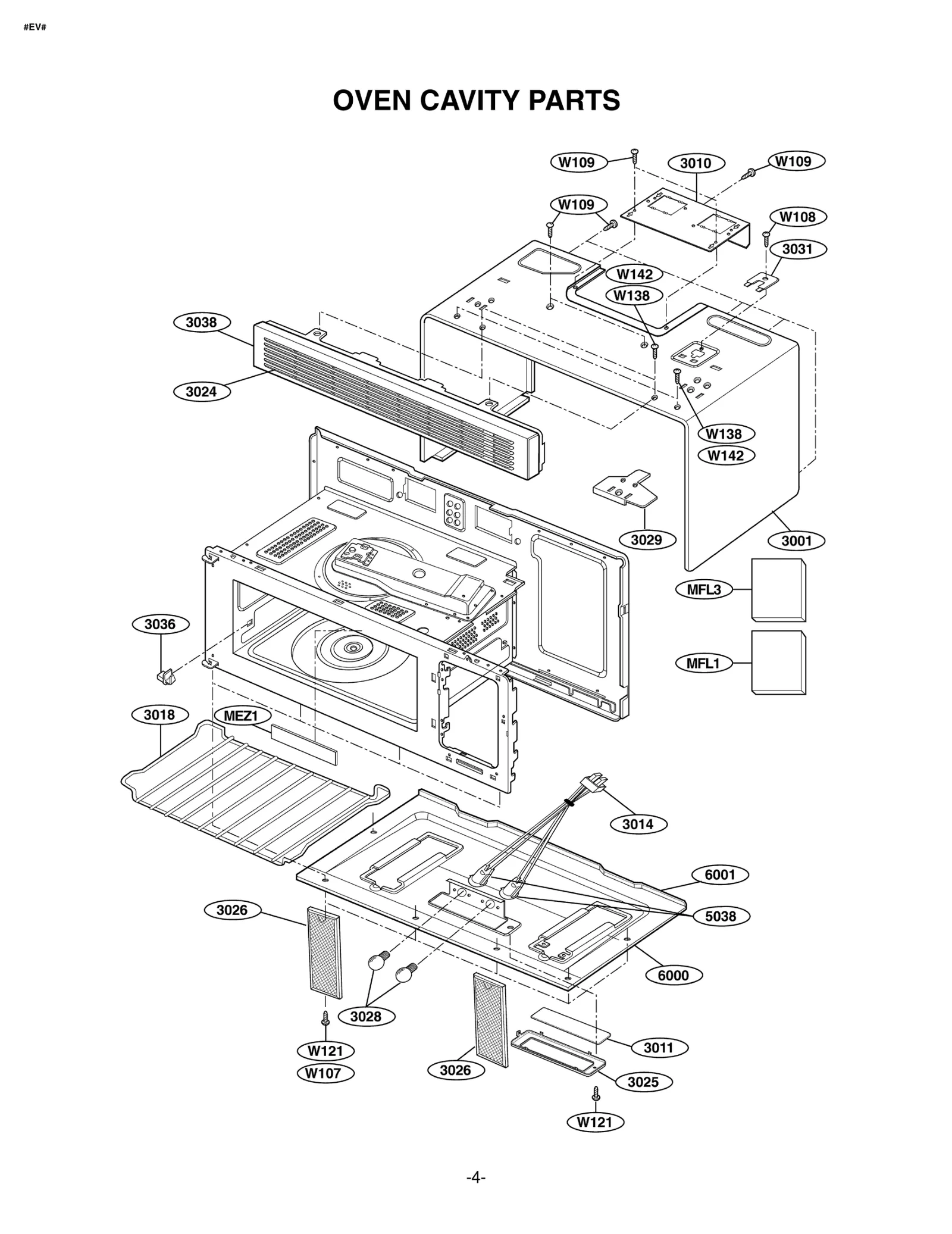

Diagram 2

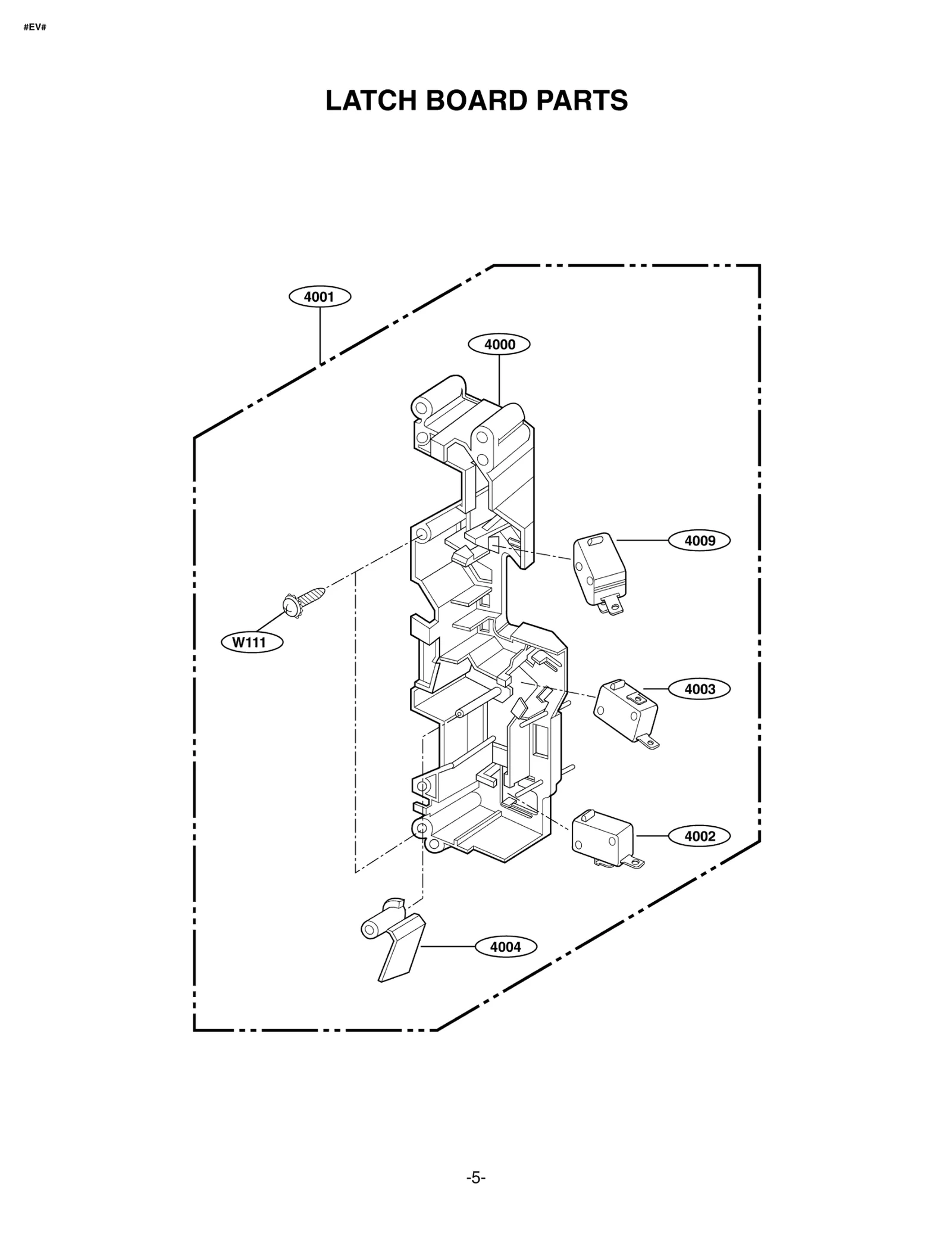

Diagram 3

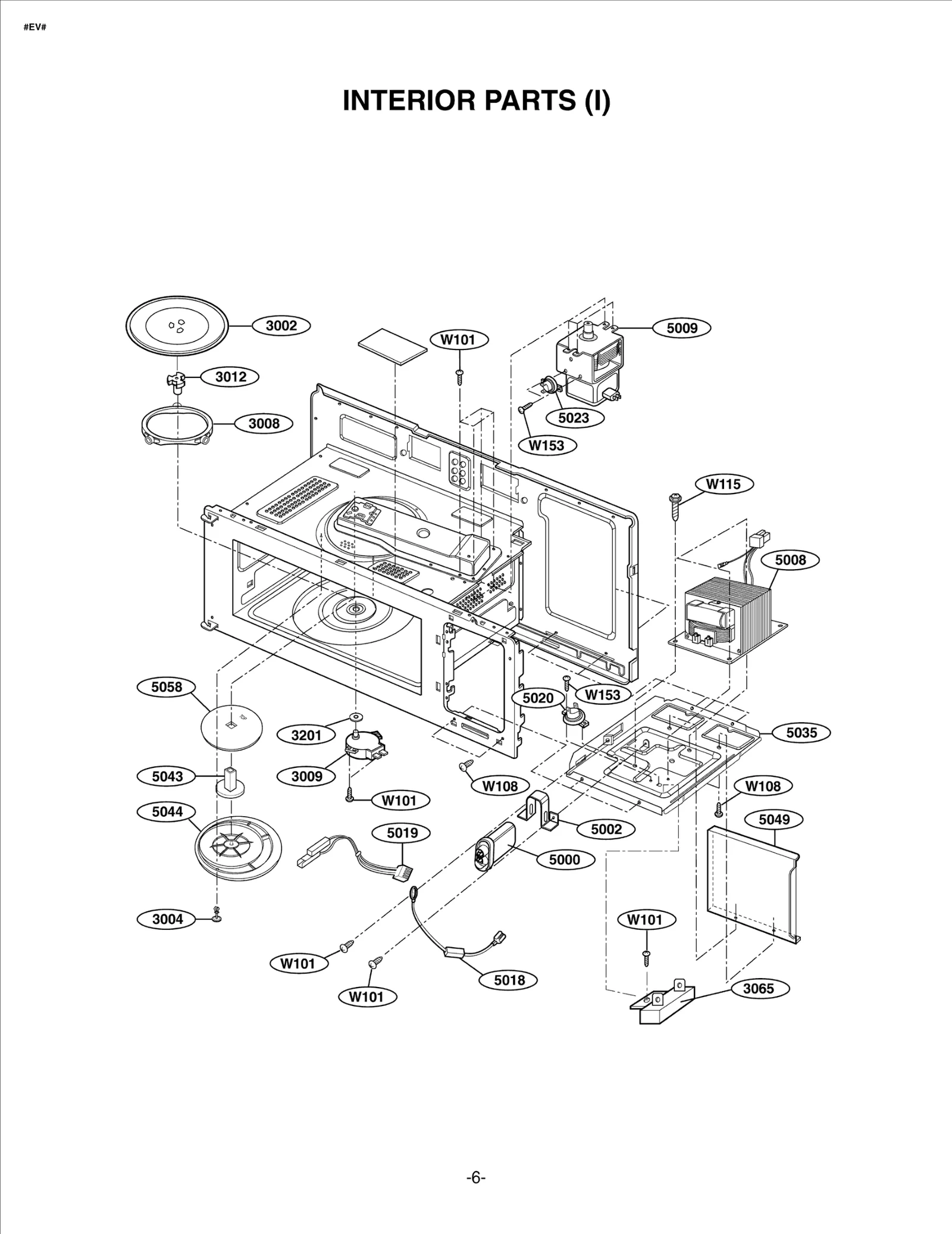

Diagram 4

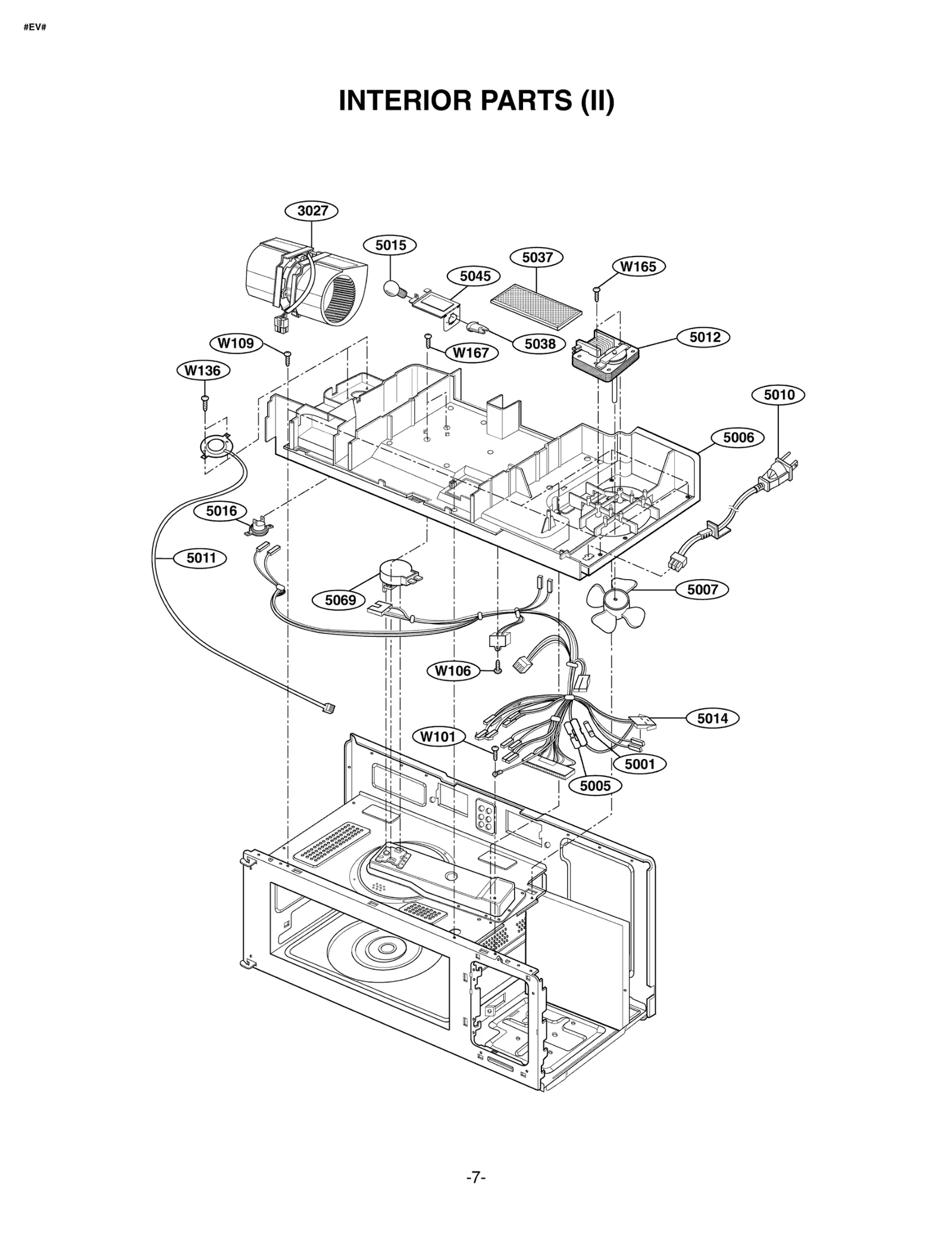

Diagram 5

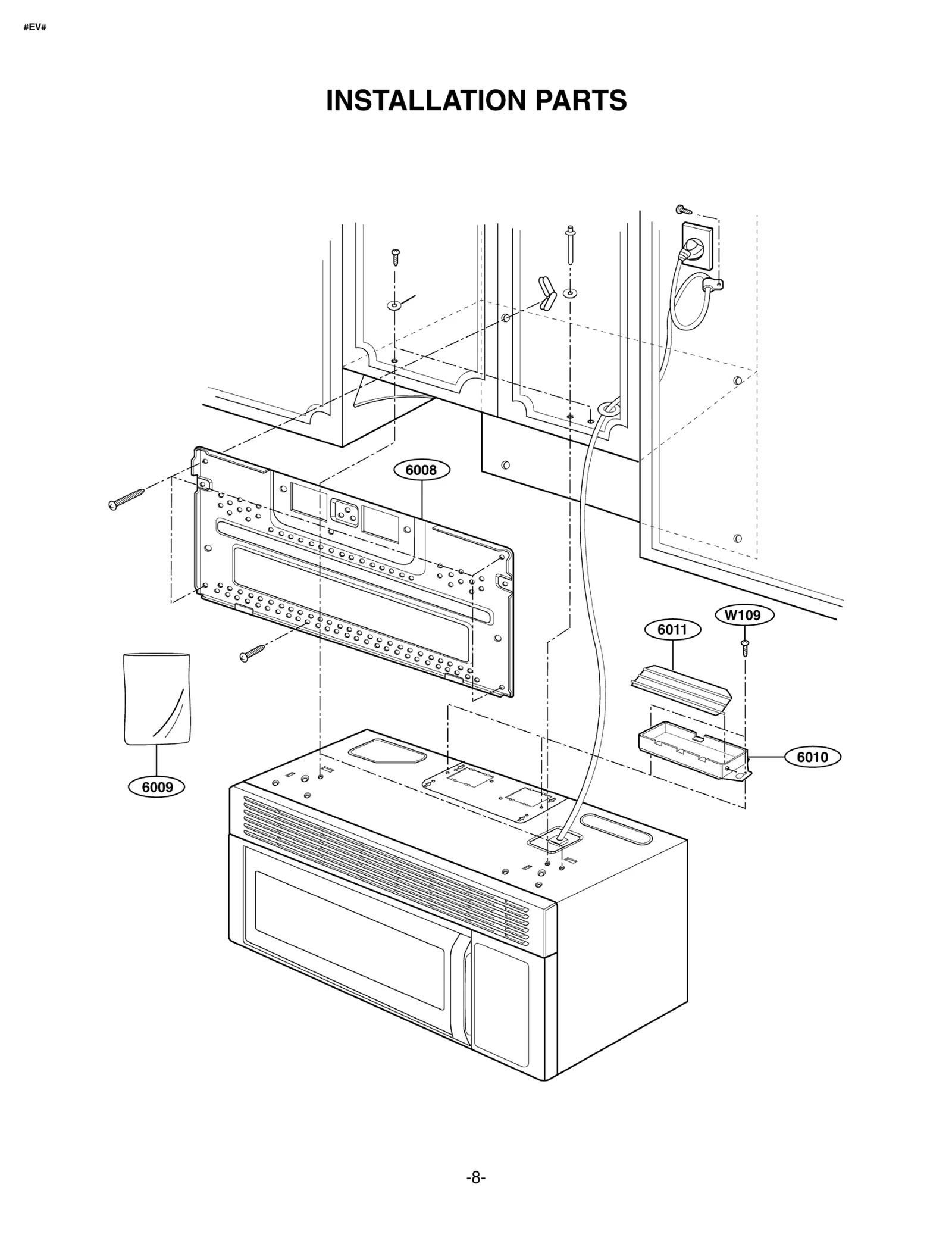

Diagram 6
Diagram 7
Common parts from model LG GH7155XHS MWO-OTR
3008
ROTATING RING ASSEMBLY LGE 5889W2A012A Contact Us For Availability
3009
MOTOR SYNCHRONOUS HYUP JIN 120 LGE 6549WRS001N Contact Us For Availability
3011
GLASS ALL MV-1320M MV-1325S W/ LGE 4890W4A001B Contact Us For Availability
3012
SHAFT TURN TABLE TEFLON 7.5*13 LGE 3B72373D Contact Us For Availability
3027
MOTOR(CIRC),VENTILATION LGE 6549W1V001M Contact Us For Availability
3029
BRACKET MOUNT LGE 4810W3G062A Contact Us For Availability
3031
COVER ALL MV-1320,COVER,POWER LGE 3550W3A084A Contact Us For Availability
3036
SHELF HOLDER LGE 3B71271E Contact Us For Availability
3038
GRILLE ASSY LGE 3531W1A007A Contact Us For Availability
4001
BOARD ASSY,[LATCH] LGE 3501W1A019A Contact Us For Availability
4002
MICRO SWITCH(PRIMARY) VP-533A LGE 3B73362E Contact Us For Availability
4002
SWITCH,MICRO LGE 6600W1K004C Contact Us For Availability
4003
SWITCH,MICRO LGE 6600W1K004B Contact Us For Availability
4003
MICRO SWITCH(MONITOR) VP-532A LGE 3B73361D Contact Us For Availability
4004
LEVER-SWITCH MH6110XBBO W/POOL LGE 4510W4A005A Contact Us For Availability
5000
Capacitor,High Voltage LGE 6120WRH001G Contact Us For Availability
5002
BRACKET HVC MV-1320,SECC 0.5T LGE 4810W3C002A Contact Us For Availability
5006
AIR DUCT LGE 5262W0A008B Contact Us For Availability
5007
PROPELLER LGE 2B72125A Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D002D Contact Us For Availability
5008
TRANSFORMER,HIGH VOLTAGE LGE 6170W1D003C Contact Us For Availability
5008
Transformer,high voltage LGE 6170W1D002H Contact Us For Availability
5009
MAGNETRON LGE 6324W1A001J Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014X Contact Us For Availability
5010
POWER CORD ASSY LGE 6411W2A002N Contact Us For Availability
5010
POWER CORD ASSEMBLY LGE 6411W1A014T Contact Us For Availability
5014
LEAD WIRE ASSY LGE 6877W1A183G Contact Us For Availability
5015
LAMP[OVEN/BASELESS] LGE 3B70067F Contact Us For Availability
5016
THERMOSTAT (110/0 PW-2N VERT) LGE 6930WRT003C Contact Us For Availability
5016
THERMOSTAT,BIMETAL LGE 6930W1A002D Contact Us For Availability
5017
HOLDER ALL 20A,300V MAX,LITTEL LGE 4930W3B025A Contact Us For Availability
5017
FUSE HOLDER LGE 4930W3B025B Contact Us For Availability
5019
LEAD WIRE ASSY-B L/WIRE-B MV-1 LGE 6877W2S002C Contact Us For Availability
5020
Thermostat LGE 6930W1A003M Contact Us For Availability
5020
BASE THERMOSTAT LGE 3B70068V Contact Us For Availability
5023
Thermostat LGE 6930W3A001N Contact Us For Availability
5035
PLATE,ALL LGE 3300W1G081A Contact Us For Availability
5037
CHARCOAL FILTER ASSY 10.0*4.84 LGE 2B72706C Contact Us For Availability
5038
LAMP HOLDER - ALL LGE 6804W3A001A Contact Us For Availability
5044
COVER,MWO LGE 3550W1A077A Contact Us For Availability
5045
COVER ALL MV-1320,OVEN LAMP,SE LGE 3550W3A082A Contact Us For Availability
5049
GUIDE,ALL LGE 4974W1G038A Contact Us For Availability
5058
STIRRER FAN,ALL LGE 5892W3A004A Contact Us For Availability
5069
Motor,AC LGE 2B72754L Contact Us For Availability
5069
MOTOR SYNCHRONOUS 120V,60HZ,F, LGE 6549WRS001K Contact Us For Availability
6000
Plate,Base LGE 3302W0A013A Contact Us For Availability
6001
BASE PLATE ASSY LGE 3303W1A041J Contact Us For Availability
6008
MOUNTING PLATE MV-1130SC W/POO LGE 3300W0G039A Contact Us For Availability
6009
MOUNTING KIT (OTR) LGE 2B72771A Contact Us For Availability
6011
EXHAUST DAMPER ER-841PV CBESE LGE 3B71432A Contact Us For Availability
MAY1
BOX,[WHITE] LGE 3890W2W067A Contact Us For Availability
MEZ1
LABEL,COOKING GUIDE LGE 3850W3A291D Contact Us For Availability
MFL1
OM: W/POOL LGE 3828W5A1053 Contact Us For Availability
MFL3
Manual,Installation LGE 3828W5U0045 Contact Us For Availability
W121
TRUSS HEAD TP SCREW+2 CUT MV- LGE 1TTL0402422 Contact Us For Availability
W165
TRUSS HEAD TP SCREW + 2 CUT LGE 1TTL0403318 Contact Us For Availability
× ![]()
