Model Whirlpool GH7145XFB0 MICROWAVE OVEN – Common Parts & Diagrams

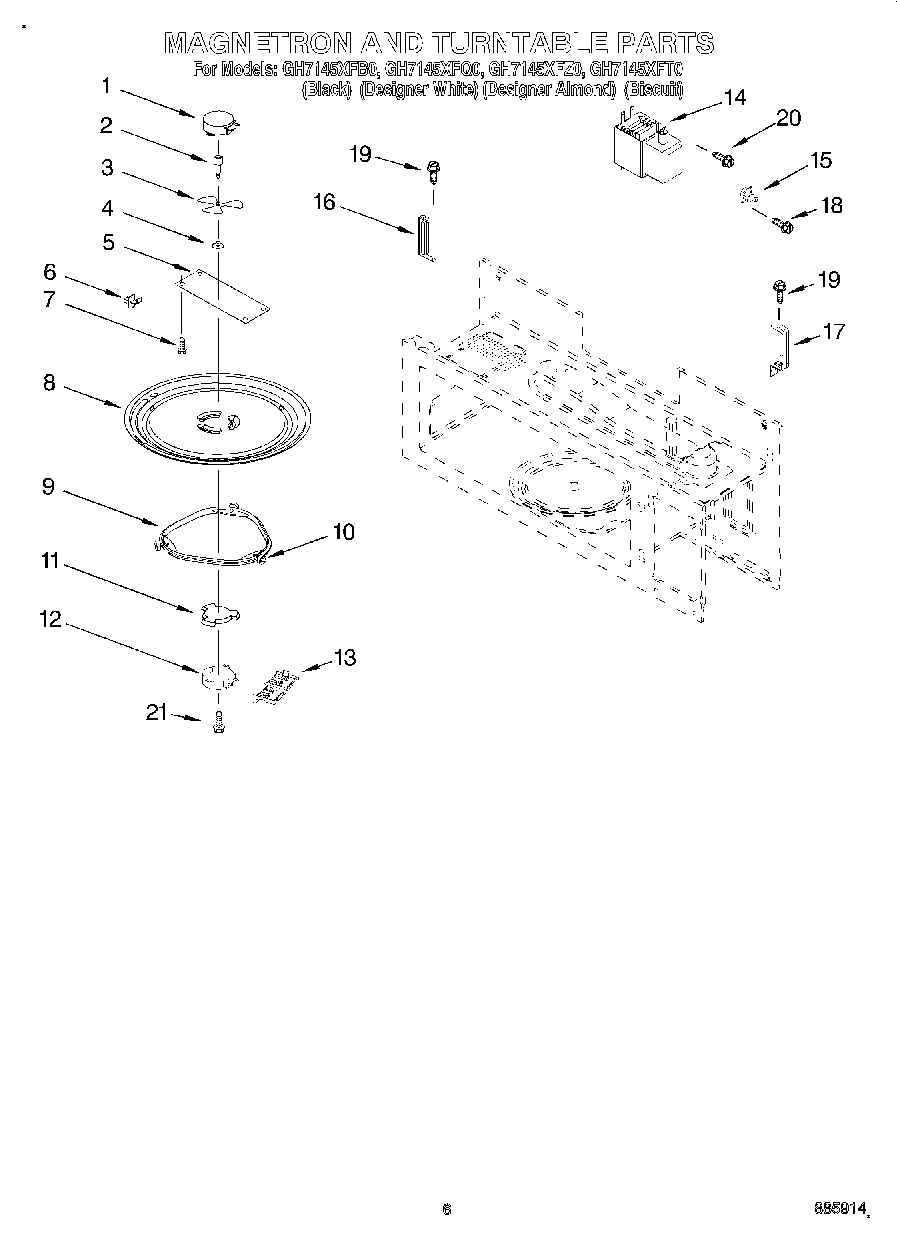

05 - MAGNETRON AND TURNTABLE

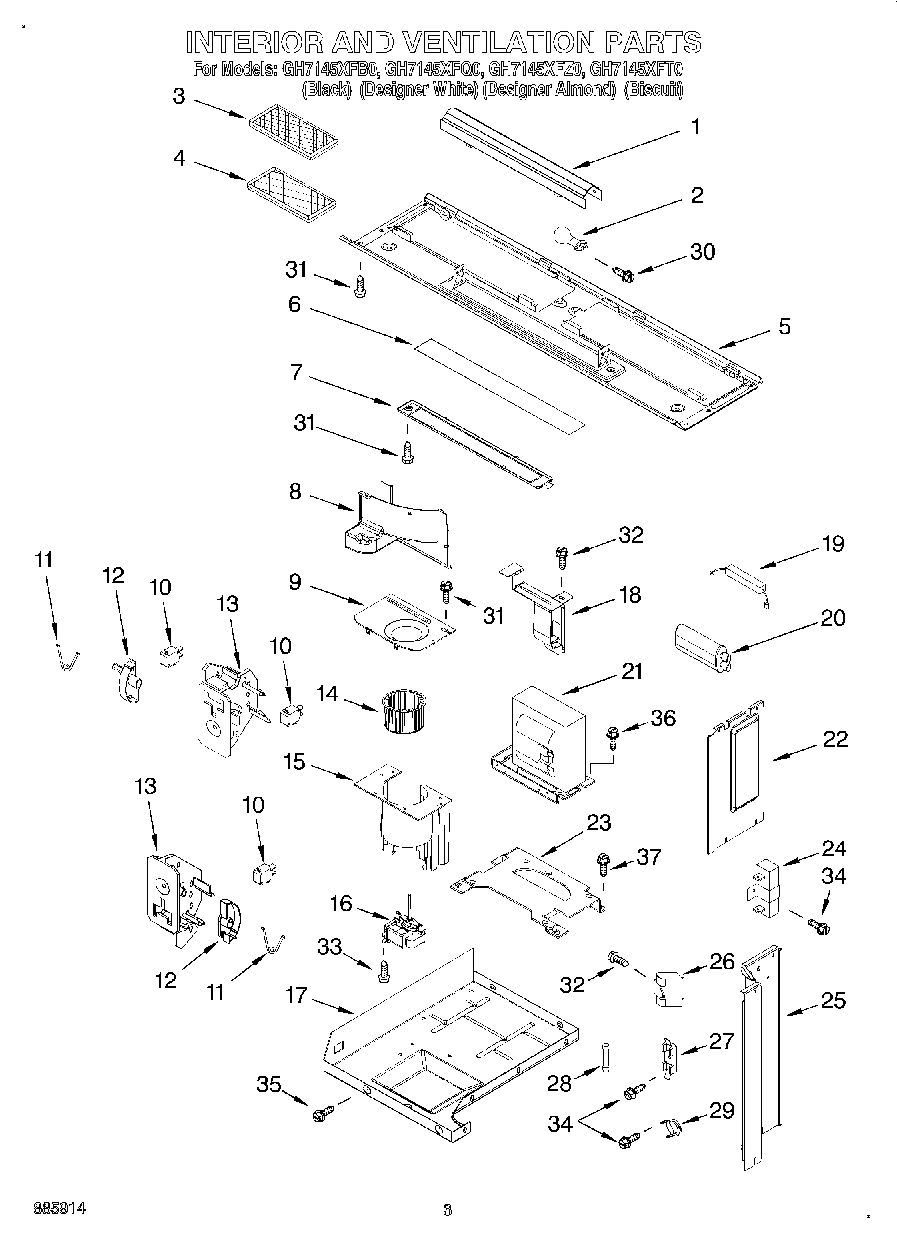

03 - INTERIOR AND VENTILATION

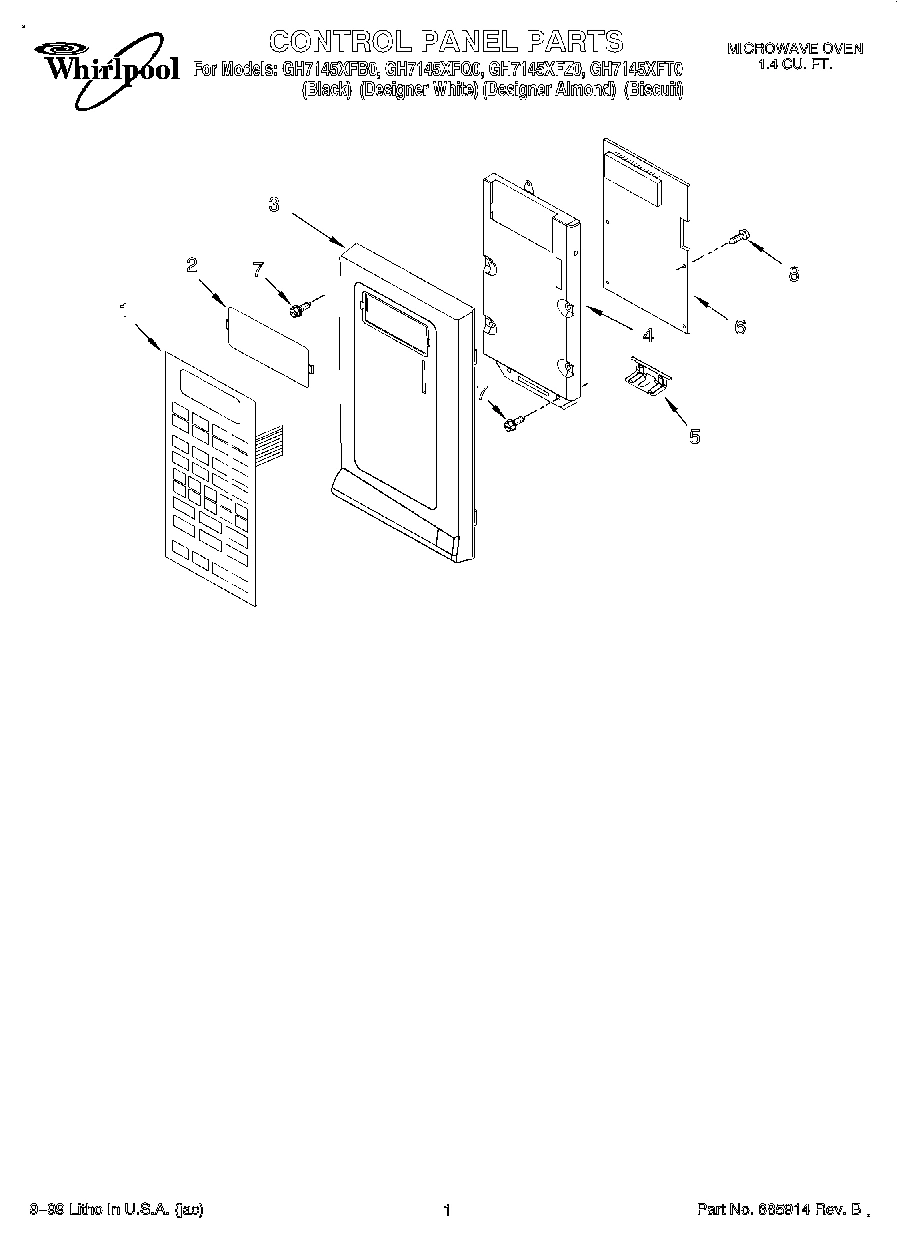

01 - CONTROL PANEL, LITERATURE

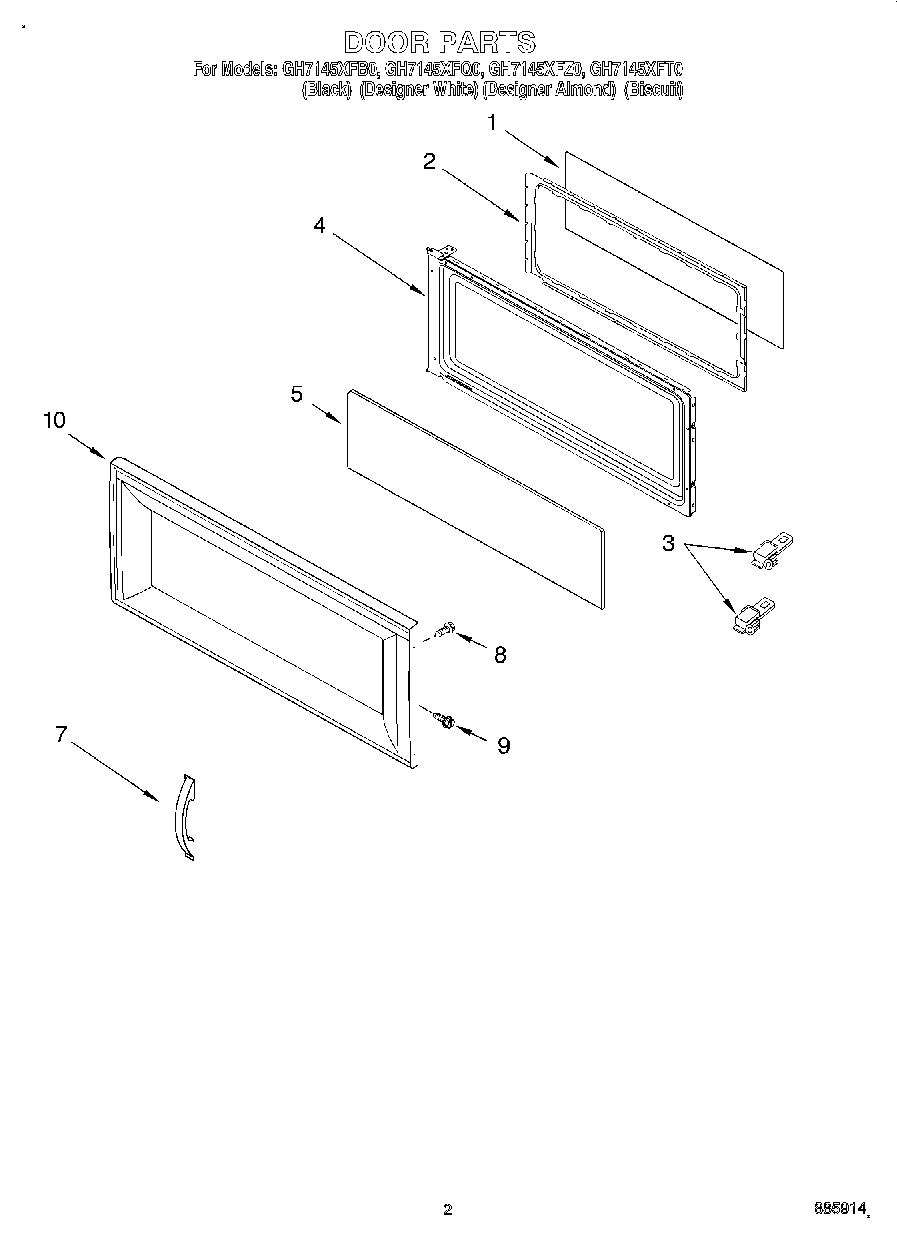

02 - DOOR

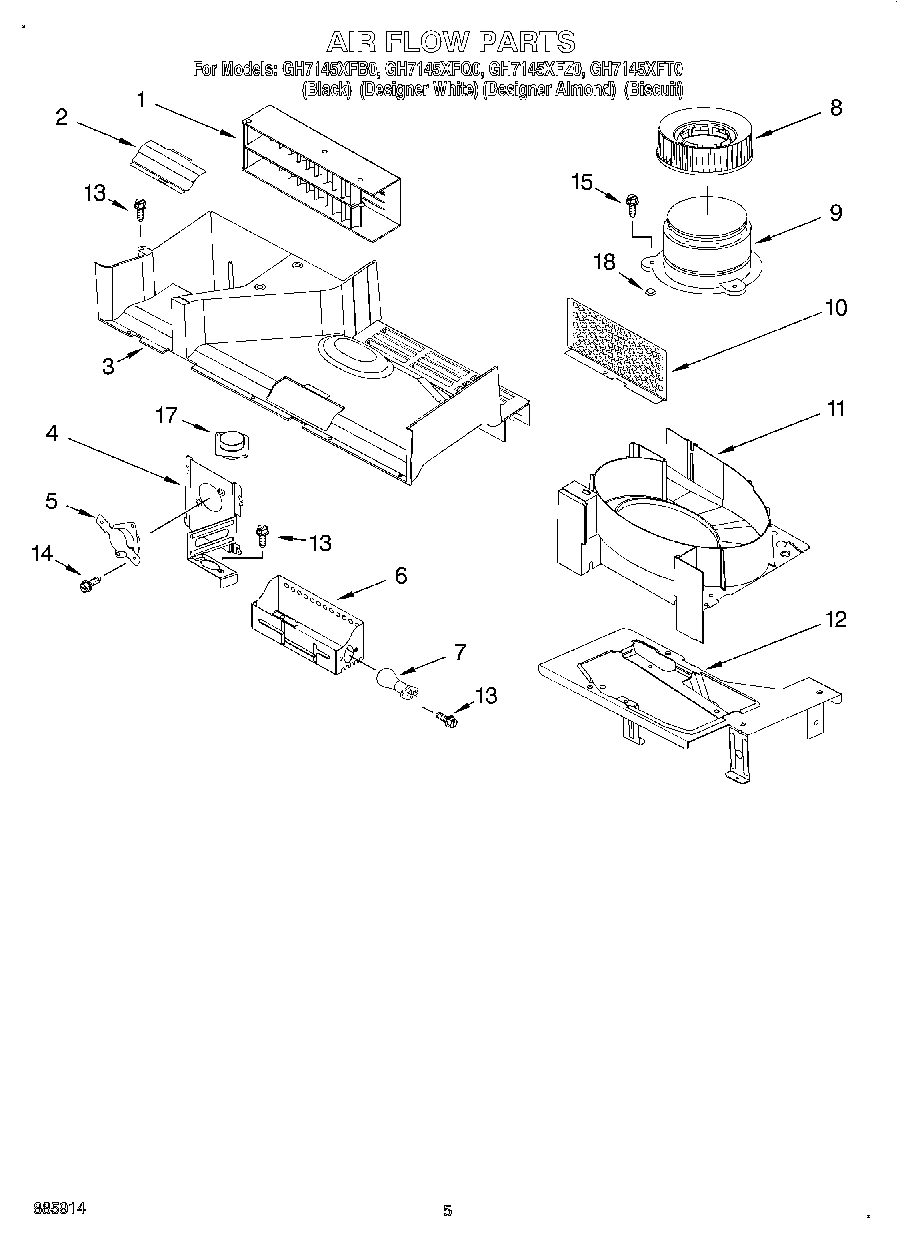

04 - AIR FLOW

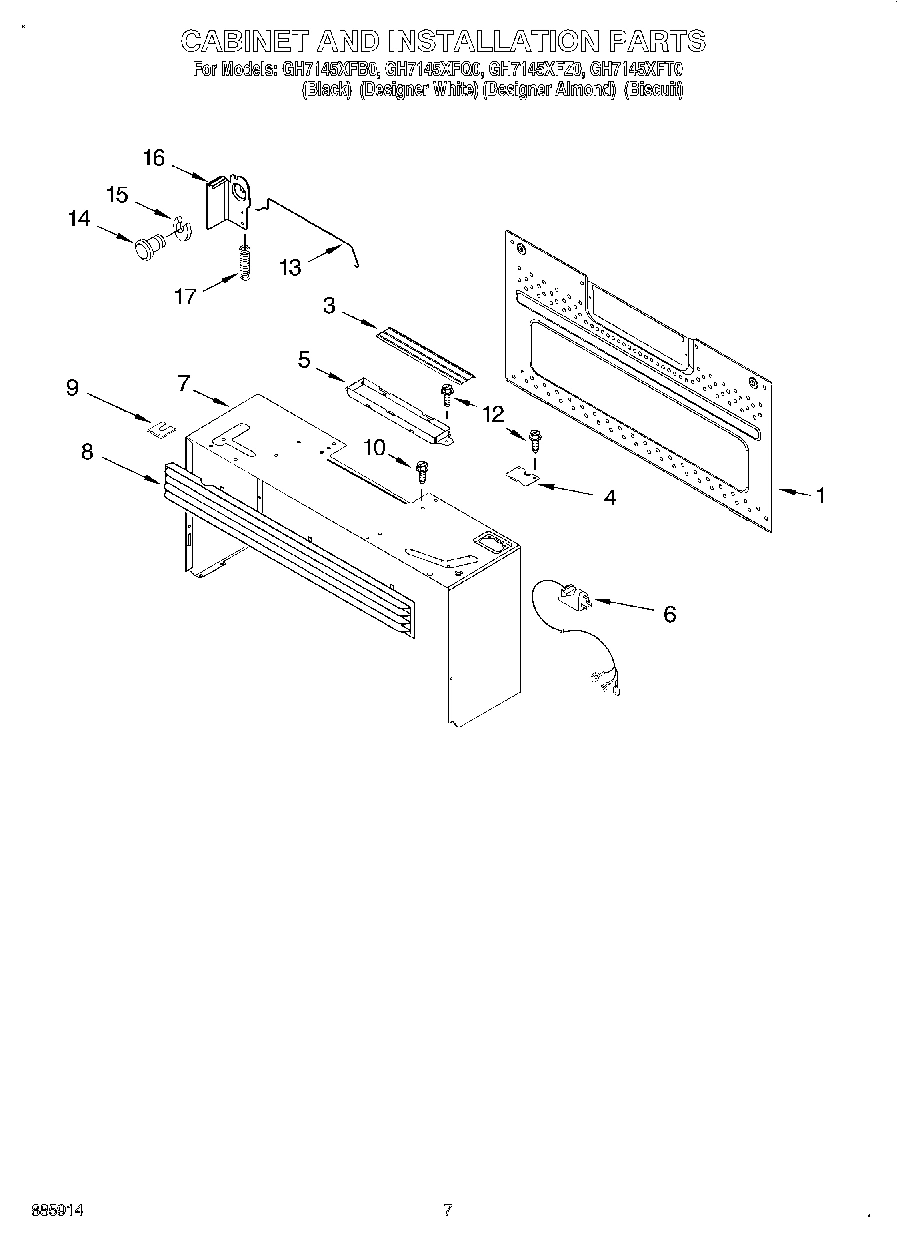

06 - CABINET AND INSTALLATION
Common parts from model Whirlpool GH7145XFB0 MICROWAVE OVEN
Cooking Guide (Label) WPL LIT4393456 Contact Us For Availability
Instructions, Installation WPL LIT4393805 Contact Us For Availability
Tech Sheet WPL LIT8169288 Contact Us For Availability
Guide, Use & Care WPL LIT8169421 Contact Us For Availability
1
Switch, Membrane (White) WPL 4393924 Contact Us For Availability
1
Switch, Membrane (Black) WPL 4393925 Contact Us For Availability
1
Switch, Membrane (Almond) WPL 8169428 Contact Us For Availability
1
Switch, Membrane (Biscuit) WPL 8169637 Contact Us For Availability
1
Film, Back WPL 4393870 Contact Us For Availability
1
Deflector, Air WPL 4393807 Contact Us For Availability
2
Lens (WH/BL/AL) WPL 4393905 Contact Us For Availability
2
Lens (Biscuit) WPL 8169638 Contact Us For Availability
2
Frame, Inner WPL 4393721 Contact Us For Availability
2
Reflector, Air WPL 8169557 Contact Us For Availability
3
Latch, Door WPL 4393913 Contact Us For Availability
3
Panel, Control (White) WPL 4393772 Contact Us For Availability
3
Panel, Control (Black) WPL 4393784 Contact Us For Availability
3
Panel, Control (Almond) WPL 8169340 Contact Us For Availability
3
Panel, Control (Biscuit) WPL 8169639 Contact Us For Availability
3
Duct, Air WPL 8169465 Contact Us For Availability
4
Bracket, Control WPL 4393906 Contact Us For Availability
4
Body, Door (White) WPL 4393722 Contact Us For Availability
4
Body, Door (Black) WPL 4393723 Contact Us For Availability
4
Body, Door (Almond) WPL 8169429 Contact Us For Availability
4
Body, Door (Biscuit) WPL 8169640 Contact Us For Availability
4
Bracket, Thermostat WPL 8169558 Contact Us For Availability
4
Lid, Power Cord WPL 4393714 Contact Us For Availability
5
Glass, Outer (Clear (Green Tint)) WPL 4393725 Contact Us For Availability
5
Plate, Hinge WPL 4393744 Contact Us For Availability
5
Glass, Outer (Clear) WPL 4393770 Contact Us For Availability
5
Thermostat WPL 4393945 Contact Us For Availability
6
PCB Assembly WPL 8169379 Contact Us For Availability
6
Housing, Lamp WPL 4393680 Contact Us For Availability
6
Cord, Power WPL 4393793 Contact Us For Availability
7
Handle, Door (Biscuit) WPL 8169642 Contact Us For Availability
7
Handle, Door (Almond) WPL 4393783 Contact Us For Availability
7
Case, Outer (White) WPL 8169502 Contact Us For Availability
7
Case, Outer (Black) WPL 8169503 Contact Us For Availability
7
Case, Outer (Biscuit) WPL 8169544 Contact Us For Availability
7
Case, Outer (Almond) WPL 8169575 Contact Us For Availability
8
Turntable WPL 4393799 No Longer Available
8
Screw WPL 4393346 Contact Us For Availability
8
Wheel, Fan WPL 4393682 Contact Us For Availability
8
Grille, Vent (Almond) WPL 8169334 Contact Us For Availability
9
Motor, Fan WPL 4393789 Contact Us For Availability
10
Frame, Outer (White) WPL 8169471 Contact Us For Availability
10
Frame, Outer (Black) WPL 8169352 Contact Us For Availability
10
Frame, Outer (Biscuit) WPL 8169641 Contact Us For Availability
10
Wheel, Plastic WPL 4393861 Contact Us For Availability
10
Frame, Outer (Almond) WPL 8169430 Contact Us For Availability
10
Shield WPL 8169559 Contact Us For Availability
11
Spring, Interlock (2) WPL 8169438 Contact Us For Availability
11
Housing, Fan WPL 8169563 Contact Us For Availability
12
Screw WPL 4393828 Contact Us For Availability
12
Bracket, Fan (Not Serviceable) WPL ARI65315A9 Contact Us For Availability
13
Rod WPL 8169318 Contact Us For Availability
14
Wheel, Fan WPL 8169317 Contact Us For Availability
14
Screw WPL 8169478 Contact Us For Availability
14
Latch, Pivot WPL 8169319 Contact Us For Availability
15
Thermostat WPL 4393943 Contact Us For Availability
15
Housing, Fan WPL 8169542 Contact Us For Availability
15
Screw WPL 4393830 Contact Us For Availability
15
E-Ring WPL 8169320 Contact Us For Availability
16
Motor, Fan WPL 4393700 Contact Us For Availability
16
Catch WPL 8169321 Contact Us For Availability
17
Filler Kit (Black) WPL 8171337 Contact Us For Availability
17
Filler Kit (White) WPL 8171336 Contact Us For Availability
17
Chassis WPL 8169565 Contact Us For Availability
17
Humidity, Sensor WPL 4393808 Contact Us For Availability
17
Installation, Hardware WPL 4393757 Contact Us For Availability
17
Rack WPL 4393826 Contact Us For Availability
17
Spring WPL 8169374 Contact Us For Availability
17
Filler Kit (Biscut) WPL 8171338 Contact Us For Availability
18
Holder, Capacitor WPL 4393702 Contact Us For Availability
18
Cushion, Mtr WPL 8169569 Contact Us For Availability
19
Screw WPL 8169474 Contact Us For Availability
21
Transformer, H.V. WPL 4393809 Contact Us For Availability
22
Plate, Side (R) WPL 4393705 Contact Us For Availability
23
Bracket, Transformer WPL 4393706 Contact Us For Availability
24
Resistor, Ceramic WPL 4393707 Contact Us For Availability
25
Plate, Side (L) WPL 8169470 Contact Us For Availability
26
Capacitor WPL 4393709 Contact Us For Availability
27
Holder, Fuse WPL 4393538 Contact Us For Availability
29
Thermostat WPL 4393710 Contact Us For Availability
33
Screw WPL 4393833 Contact Us For Availability
37
Screw WPL 4393839 Contact Us For Availability
× ![]()
