Model Whirlpool GH6177XPT4 MICROWAVE HOOD COMBINATION – Common Parts & Diagrams
01 - CONTROL PANEL PARTS

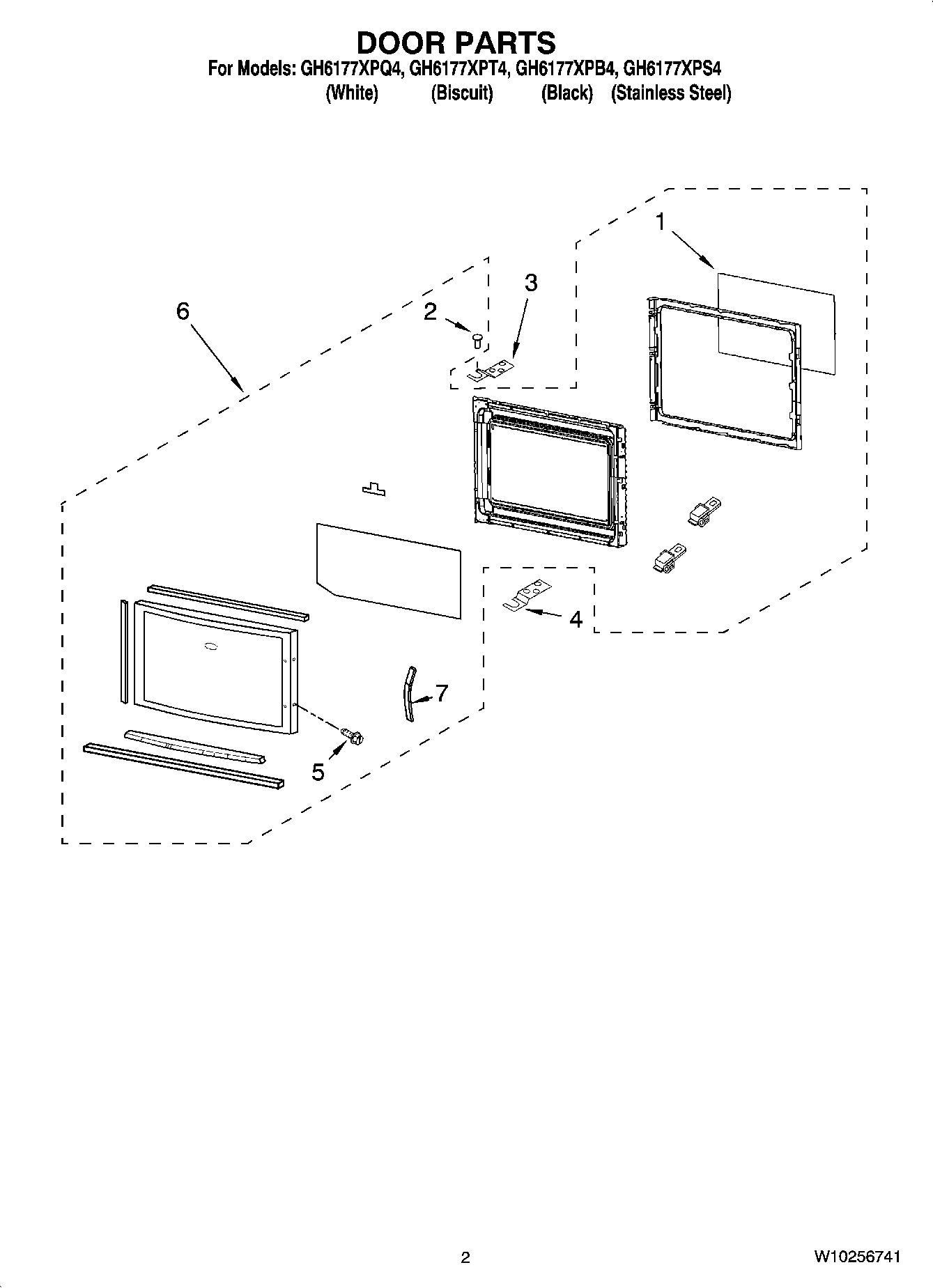

02 - DOOR PARTS

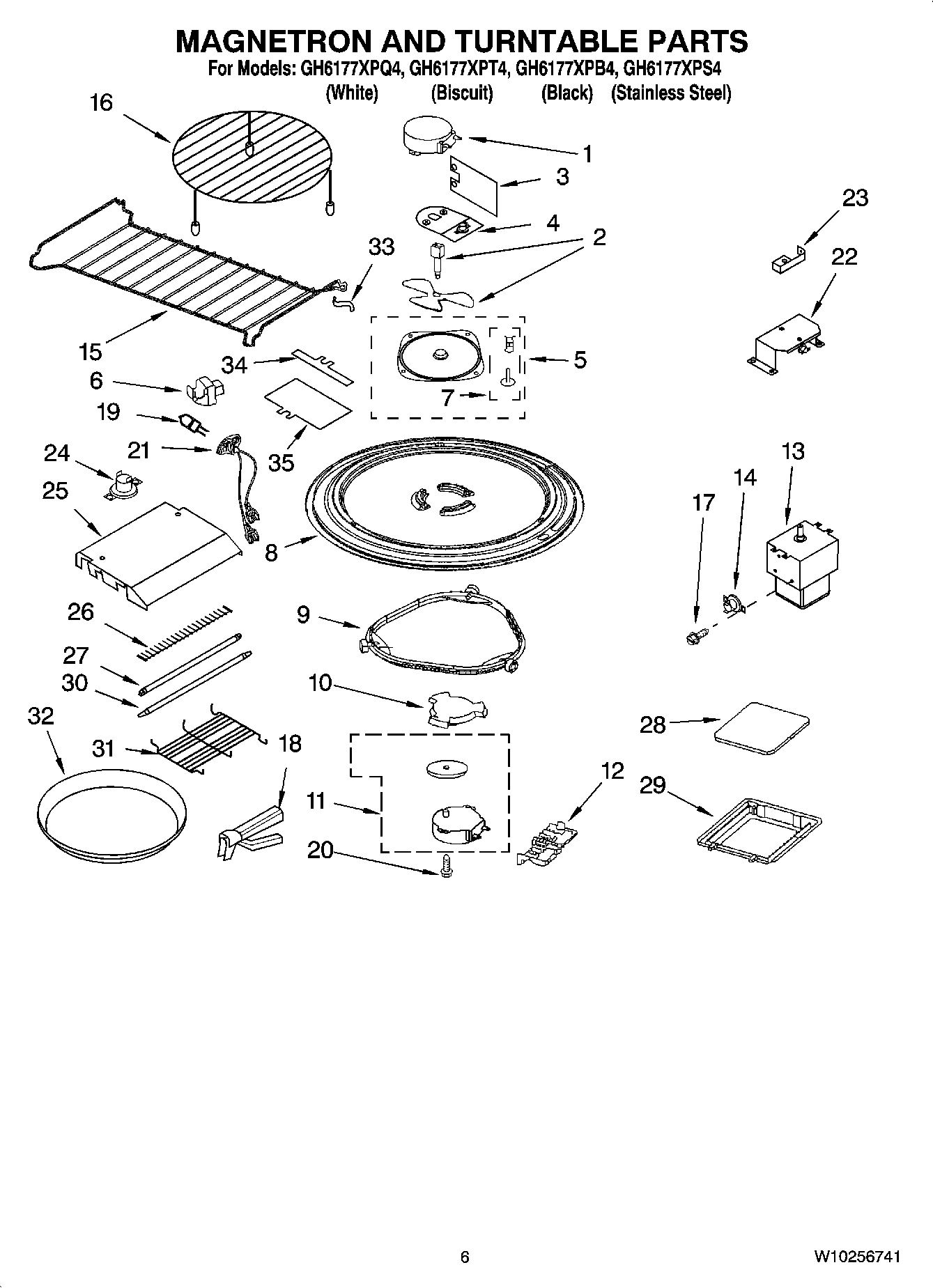

05 - MAGNETRON AND TURNTABLE PARTS

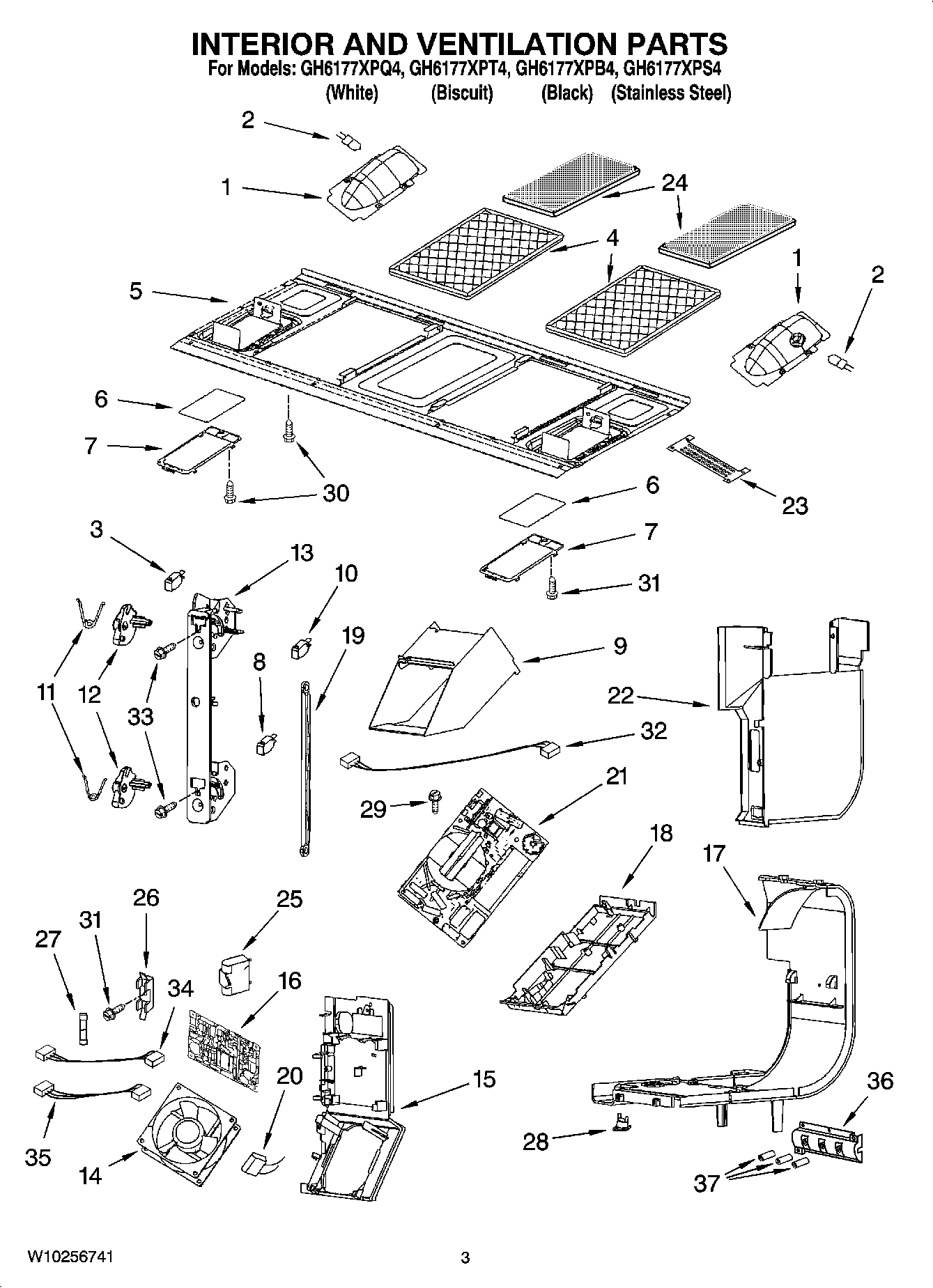

03 - INTERIOR AND VENTILATION PARTS

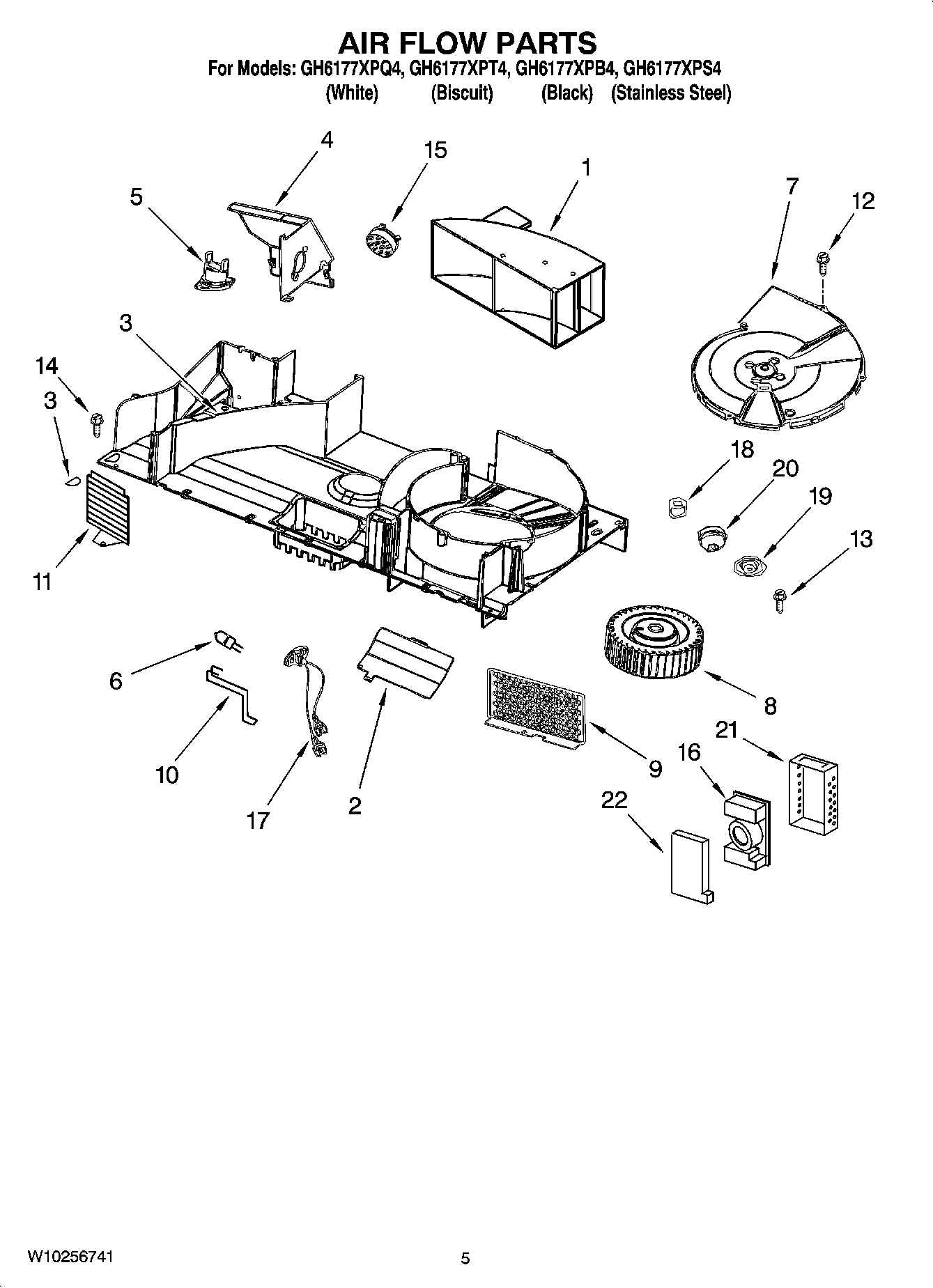

04 - AIR FLOW PARTS

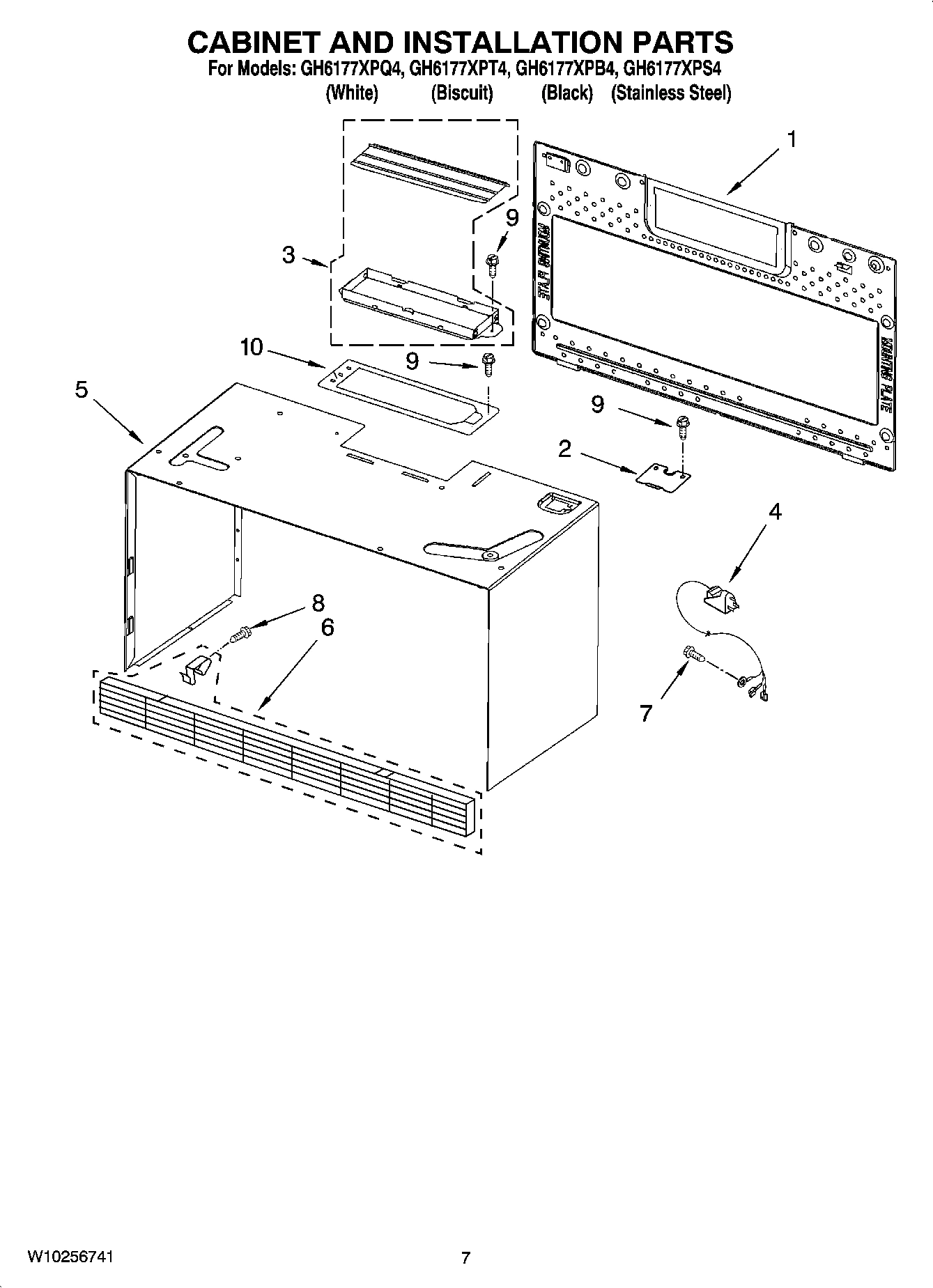

06 - CABINET AND INSTALLATION PARTS
Common parts from model Whirlpool GH6177XPT4 MICROWAVE HOOD COMBINATION
Installation, Hardware WPL 8205947 Contact Us For Availability
Template, Upper WPL 8184781 Contact Us For Availability
Magnetron WPL 8206231 Contact Us For Availability
Miscellaneous WPL ARI65269A3 Contact Us For Availability
PCBA WPL W10110601 Contact Us For Availability
Sensor, Humidity WPL W10111830 Contact Us For Availability
Inverter, Ground WPL W10114263 Contact Us For Availability
Cavity Thrmst 1-2 WPL W10114264 Contact Us For Availability
Supply, Power WPL W10114358 Contact Us For Availability
Main WPL W10114359 Contact Us For Availability
Thermostat, Grill WPL W10114360 Contact Us For Availability
Stirrer/Magnetron WPL W10114361 Contact Us For Availability
Cavity Thrmst 2-3 WPL W10114362 Contact Us For Availability
Socket, Lamp WPL W10256914 Contact Us For Availability
Harness, Wire WPL W10258106 Contact Us For Availability
1
Reflector, Lamp (Right) WPL 8184132 Contact Us For Availability
1
Reflector, Lamp (Left) WPL 8184194 Contact Us For Availability
1
Deflector, Air WPL 8184667 Contact Us For Availability
1
Plate, Mounting WPL W10222516 Contact Us For Availability
2
Pivot, Door WPL 8184922 Contact Us For Availability
2
Cover, Lamp WPL 8184885 Contact Us For Availability
2
Lid, Power Cord WPL 8184897 Contact Us For Availability
3
Duct, Air WPL 8184886 Contact Us For Availability
3
Damper Assembly WPL 8206556 Contact Us For Availability
4
Bracket, Thermostat WPL 8205401 Contact Us For Availability
4
Cord, Power WPL 8205640 Contact Us For Availability
5
Thermostat WPL 8183999 Contact Us For Availability
5
Plate, Bottom WPL W10244597 Contact Us For Availability
5
Case, Outer (Black/Stainless) WPL 8205398 Contact Us For Availability
5
Case, Outer (Biscuit) WPL 8205399 Contact Us For Availability
5
Case, Outer (White) WPL W10256903 Contact Us For Availability
6
Glass, Lamp WPL 8184141 Contact Us For Availability
6
Grille, Vent (Biscuit) WPL 8205216 Contact Us For Availability
6
Grille, Vent (Stainless Steel) WPL 8205217 Contact Us For Availability
7
Bracket, LCD WPL 8184915 Contact Us For Availability
7
Holder, Glass WPL 8184889 Contact Us For Availability
7
Cover, Fan WPL 8184884 Contact Us For Availability
7
Screw WPL 4393274 Contact Us For Availability
8
Turntable WPL 4393799 Contact Us For Availability
8
Screw WPL 8169475 Contact Us For Availability
8
Motor, Fan Assy WPL W10114253 Contact Us For Availability
9
Cover, Inverter WPL W10110596 Contact Us For Availability
9
Shield WPL 8204754 Contact Us For Availability
10
Spring WPL 8169647 Contact Us For Availability
10
Plate, Damper WPL W10110597 Contact Us For Availability
11
Spring, Interlock WPL 8169438 Contact Us For Availability
11
SHIELD WPL 8206460 Contact Us For Availability
12
Plate, Cam WPL 8205211 Contact Us For Availability
13
Support, Interlock WPL 8185189 Contact Us For Availability
13
SCREW WPL 8184198 Contact Us For Availability
14
Fan, DC 12 Volt WPL 8184875 Contact Us For Availability
14
Screw WPL 8169474 Contact Us For Availability
15
Humidity, Sensor WPL 8206446 Contact Us For Availability
15
Housing, Fan WPL 8184894 Contact Us For Availability
16
Grill WPL 8184862 Contact Us For Availability
16
Inverter 40 W WPL 8204989 Contact Us For Availability
16
Filter WPL 8205853 Contact Us For Availability
17
Bracket, Holder WPL 8206565 Contact Us For Availability
17
Holder, Lamp WPL 8204669 Contact Us For Availability
18
Spacer, Copper Pipe WPL 8184129 Contact Us For Availability
18
Holder, Inverter WPL 8184670 Contact Us For Availability
19
Rod-Locking Link WPL 8185190 Contact Us For Availability
20
Cushion, Mtr WPL 8169635 Contact Us For Availability
20
Capacitor, 125 V WPL W10217709 Contact Us For Availability
21
Socket, Halogen Light WPL W10256911 Contact Us For Availability
21
Base, Filter WPL W10114258 Contact Us For Availability
22
Thermostat/Bracket WPL 8205578 Contact Us For Availability
22
Plate, Side WPL 8185031 Contact Us For Availability
22
Cover, Filter WPL W10114259 Contact Us For Availability
23
Bracket, Plug WPL W10110595 Contact Us For Availability
23
Cable WPL 8184887 Contact Us For Availability
24
Thermostat WPL 8204995 Contact Us For Availability
25
Grill, Insulation Plate WPL W10256913 Contact Us For Availability
25
Capacitor WPL 8184204 Contact Us For Availability
26
Holder, Fuse WPL W10117908 Contact Us For Availability
28
Thermostat WPL 8183998 Contact Us For Availability
28
Glass, Lamp WPL W10189668 Contact Us For Availability
29
Frame, Glass WPL 8169646 Contact Us For Availability
29
SCREW WPL 8184199 Contact Us For Availability
31
Cover, Protector WPL 8205239 Contact Us For Availability
31
SCREW WPL 8184200 Contact Us For Availability
34
Shield, Front WPL W10114356 Contact Us For Availability
34
Ribbon Cable (P27 To CN153 On 40 W Inverter) WPL 8205021 Contact Us For Availability
35
Shield, Rear WPL W10114357 Contact Us For Availability
35
Ribbon Cable (P4 To CN151 On 40 W Inverter) WPL 8205022 Contact Us For Availability
36
Holder, Ferrite WPL W10244598 Contact Us For Availability
37
Ferrite WPL 8206086 Contact Us For Availability
× ![]()
