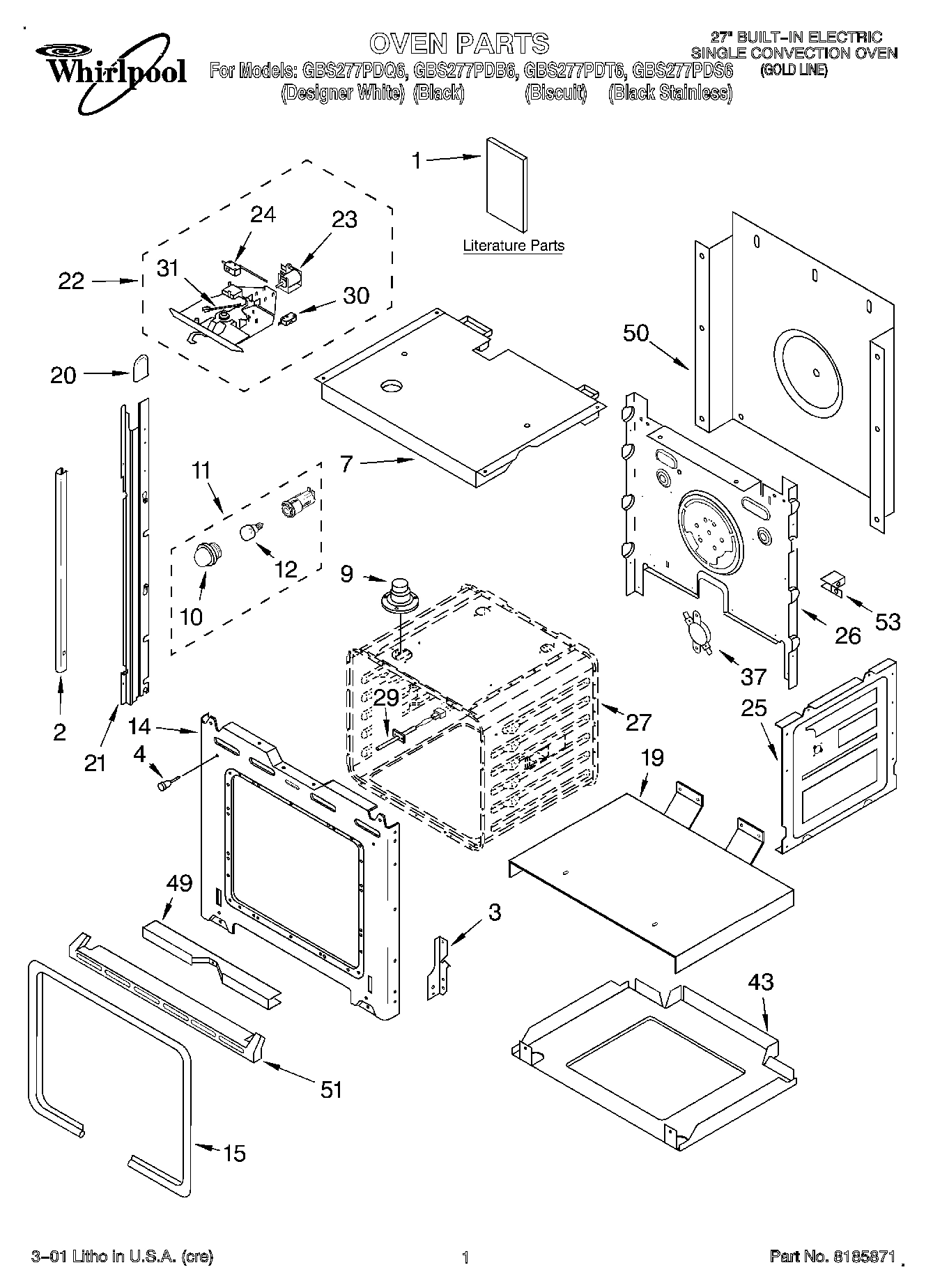

Model Whirlpool GBS277PDB6 BUILT-IN ELECTRIC SINGLE OVEN – Common Parts &amp; Diagrams

1

Literature Parts (Installation/ Micro Trim Ki WPL LIT4450841 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT4451884 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT4452004 Contact Us For Availability

1

Door Liner WPL 4455617 Contact Us For Availability

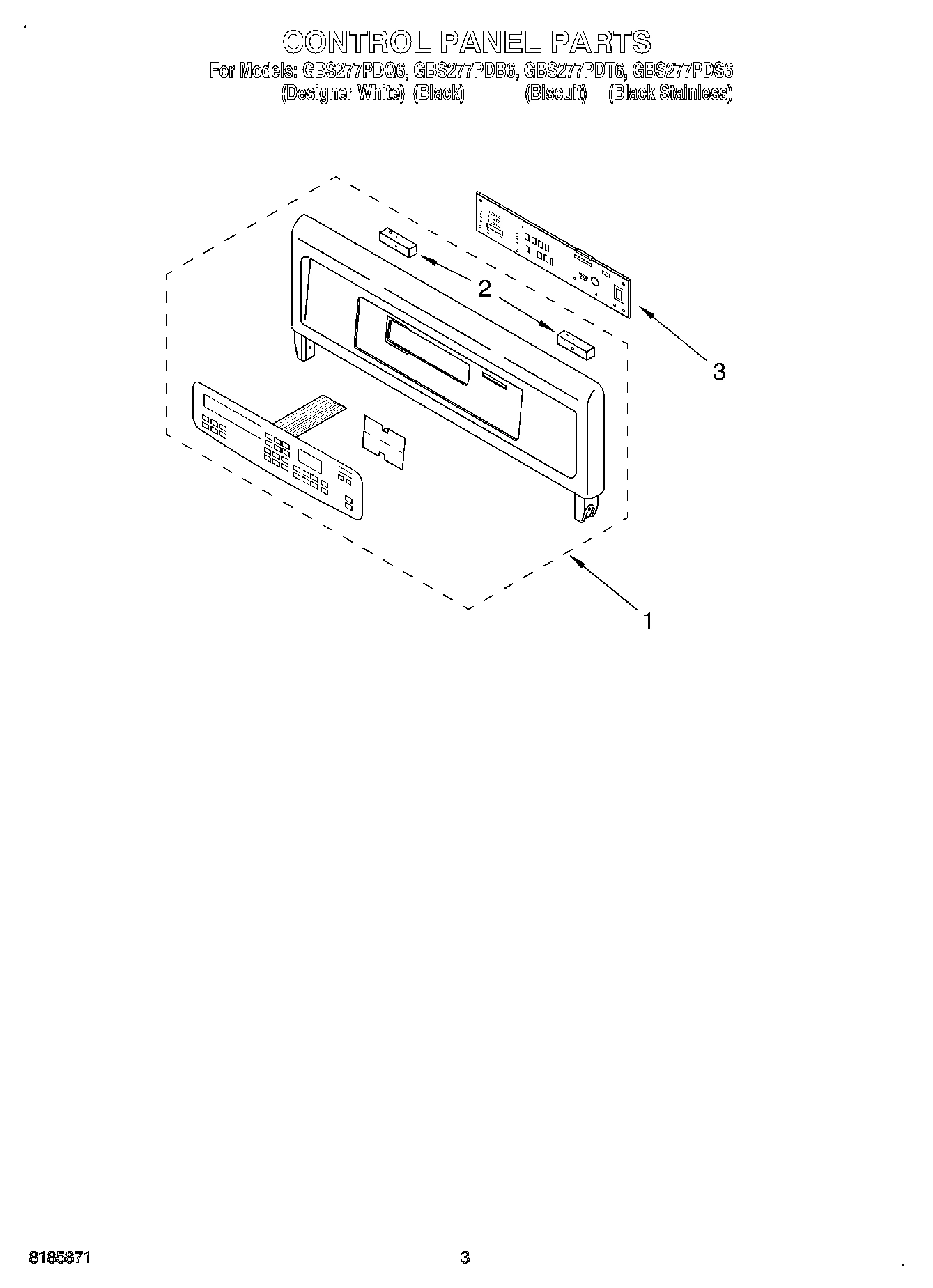

1

Control Panel Assy. W/Membrane Switch (Biscui WPL 8300444 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (White WPL 8300451 Contact Us For Availability

1

Control Panel Assy. W/Membrane Switch (Black WPL 8300452 Contact Us For Availability

2

4455178 Whirlpool Oven Top Elbow Backorder WPL 4455178 $9.06

2

WP8281236 Whirlpool Screw Backorder WPL WP8281236 $4.82

2

Trim, Side (Screw White) WPL 4449041 Contact Us For Availability

2

Trim, Side (RH Black) WPL 4450844 Contact Us For Availability

2

Trim, Side (White, Right) WPL 4450845 Contact Us For Availability

2

Trim, Side (LH Black) WPL 4450847 Contact Us For Availability

2

Trim, Side (LH White) WPL 4450848 Contact Us For Availability

2

Trim, Side (Right Hand) (Biscuit Model) WPL 4452120 Contact Us For Availability

2

Trim, Side (LH Biscuit) WPL 4452121 Contact Us For Availability

2

Gasket, Control Panel WPL 4451033 Contact Us For Availability

3

WP4449253 Whirlpool Glass Window In Stock WPL WP4449253 $126.99

3

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $4.82

3

Blower 60MM WPL 4455334 Contact Us For Availability

3

Reciever, Hinge (Right Hand) WPL 4455521 Contact Us For Availability

3

Reciever, Hinge (Left Hand) WPL 4455520 Contact Us For Availability

3

Microcomputer WPL 4452892 Contact Us For Availability

4

4448520 Whirlpool Oven Bumper In Stock WPL 4448520 $14.02

4

Insulation, Door WPL 4451721 Contact Us For Availability

5

4455177 Whirlpool Oven Bottom Elbow Backorder WPL 4455177 $6.68

5

Bracket, Handle WPL 4450813 Contact Us For Availability

5

Screw WPL 4451040 Contact Us For Availability

6

Rack, Oven WPL 4448715 Contact Us For Availability

7

Top, Chassis WPL 4455285 Contact Us For Availability

9

W10861715 Whirlpool Vent Tube Backorder WPL W10861715 $78.42

9

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

9

Motor Convection WPL 4451583 Contact Us For Availability

10

WP4452226 Whirlpool Convection Fan Backorder WPL WP4452226 $49.31

10

Lens, Light WPL 4452165 Contact Us For Availability

11

WPW10734065 Whirlpool Light Backorder WPL WPW10734065 $66.70

11

Screw WPL 3400080 Contact Us For Availability

WP4173175 Whirlpool Light Bulb In Stock WPL WP4173175 $58.99

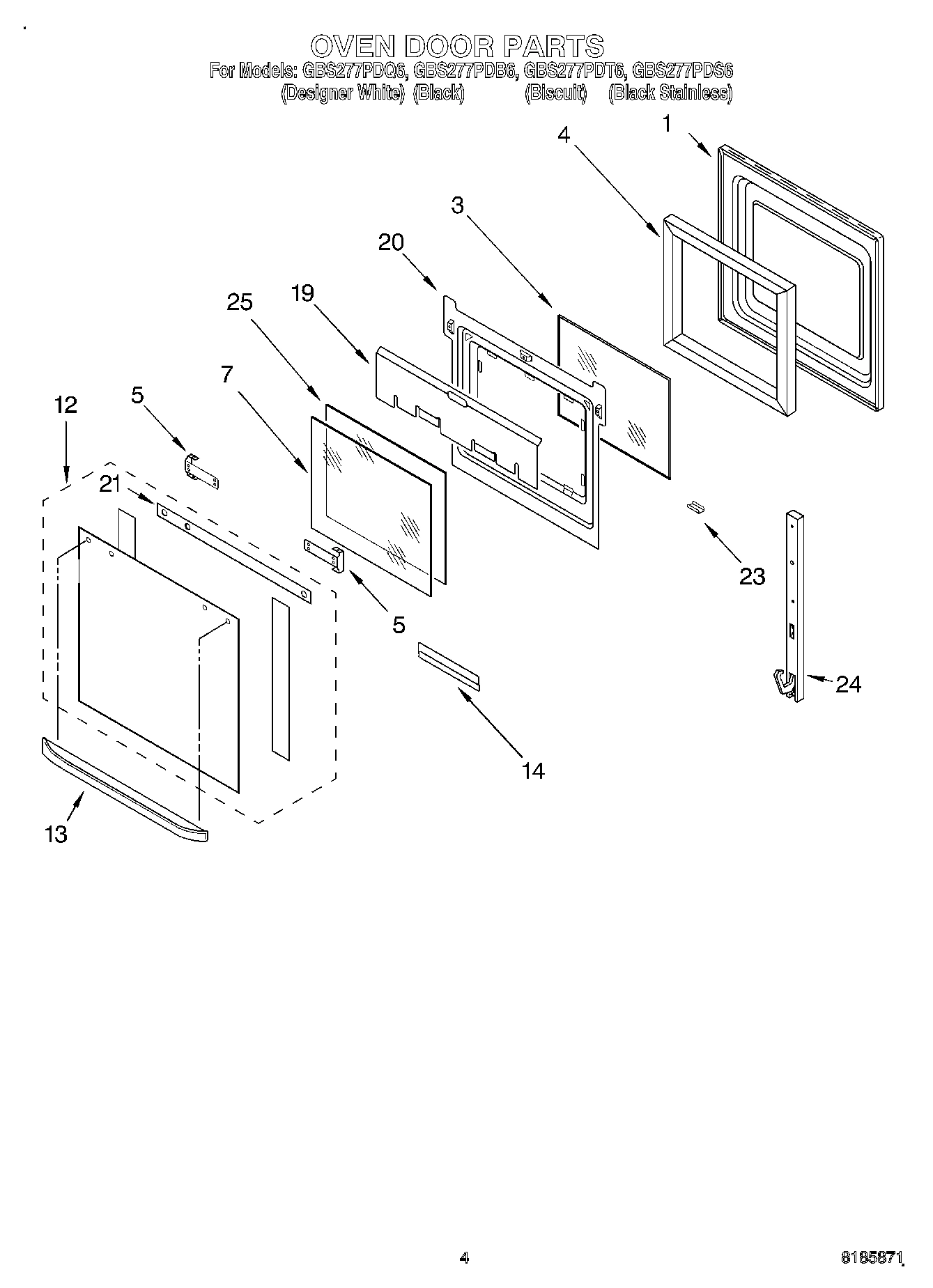

Door Glass Assy (Black Model) WPL 4452062 Contact Us For Availability

Door Glass, Assy (White Model) WPL 4452063 Contact Us For Availability

Door Glass, Assy (Black, Stainless Model) WPL 4452478 Contact Us For Availability

Door Glass Assy (Biscuit) WPL 8300257 Contact Us For Availability

WP4450038 Whirlpool Screw In Stock WPL WP4450038 $4.82

Door Handle (Black) WPL 4448405 Contact Us For Availability

Handle, Door (White Model) WPL 4448406 Contact Us For Availability

Door Handle (Biscuit) WPL 8300255 Contact Us For Availability

WP4450118 Whirlpool Nut Backorder WPL WP4450118 $4.82

Retainer, Glass WPL 4451668 Contact Us For Availability

Screw WPL 4449040 Contact Us For Availability

Frame, Front WPL 4455611 Contact Us For Availability

15

WP4455381 Whirlpool Door Gasket In Stock WPL WP4455381 $122.62

19

Support, Insulation WPL 4451477 Contact Us For Availability

19

Shield, Heat WPL 4450361 Contact Us For Availability

261900 Whirlpool Microwave Spray Backorder WPL 261900 $30.44

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

814381 Whirlpool Pin In Stock WPL 814381 $4.82

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

WP261869 Whirlpool Microwave Paint Backorder WPL WP261869 $15.84

WP482338 Whirlpool Refrigerator Adhesive In Stock WPL WP482338 $34.73

Cap, Spacer WPL 4451605 Contact Us For Availability

Retainer, Glass WPL 4451670 Contact Us For Availability

814371 Whirlpool Oven Rail Mount Backorder WPL 814371 $74.47

814372 Whirlpool Oven Rail Mount Backorder WPL 814372 $74.29

WP4448444 Whirlpool Grommet Backorder WPL WP4448444 $4.82

Seal, Door Top WPL 4451673 Contact Us For Availability

22

Latch Assembly WPL 4451896 Contact Us For Availability

Solenoid WPL 4452224 Contact Us For Availability

Retainer, Clip (Black) WPL 4450863 Contact Us For Availability

Retainer, Clip (White) WPL 4450864 Contact Us For Availability

Retainer, Clip (Biscuit) WPL 4452119 Contact Us For Availability

WP4449743 Whirlpool Screw Backorder WPL WP4449743 $4.82

WP4455524 Whirlpool Door Hinge In Stock WPL WP4455524 $41.71

WP4455525 Whirlpool Oven Door Hinge In Stock WPL WP4455525 $56.99

Microswitch N.C. WPL 4452312 Contact Us For Availability

25

W10782197 Whirlpool Side Panel Backorder WPL W10782197 $94.56

25

WP4449257 Whirlpool Door Glass Backorder WPL WP4449257 $126.08

25

Glass, Inner (1 Pc) WPL 4455256 Contact Us For Availability

26

Back, Chassis WPL 4452233 Contact Us For Availability

27

Liner, Oven (Not a Serviceable Part) WPL ARI58869A7 Contact Us For Availability

29

WPW10131825 Whirlpool Oven Temperature Sensor In Stock WPL WPW10131825 $67.99

30

Switch, Micro WPL 4451426 Contact Us For Availability

31

Spring, Latch WPL 4451537 Contact Us For Availability

37

WP9759243 Whirlpool Thermostat In Stock WPL WP9759243 $40.99

43

Base, Chassis WPL 4451397 Contact Us For Availability

49

WP4448933 Whirlpool Retainer Backorder WPL WP4448933 $4.82

49

WP4449154 Whirlpool Screw In Stock WPL WP4449154 $4.82

50

WP4451747 Whirlpool Rear Cover Backorder WPL WP4451747 $90.20

WP3400832 Whirlpool Screw In Stock WPL WP3400832 $6.99

WPL 4448475 WPL 4448475 Contact Us For Availability

WPL 4448476 WPL 4448476 Contact Us For Availability

WPL 4452414 WPL 4452414 Contact Us For Availability

WP4449809 Whirlpool Screw In Stock WPL WP4449809 $7.99

WPL 4449315 WPL 4449315 Contact Us For Availability

WPL 4449845 WPL 4449845 Contact Us For Availability

WPL 4450364 WPL 4450364 Contact Us For Availability
