Model Electrolux FRS24XGCB0 REFRIGERATOR – Common Parts & Diagrams

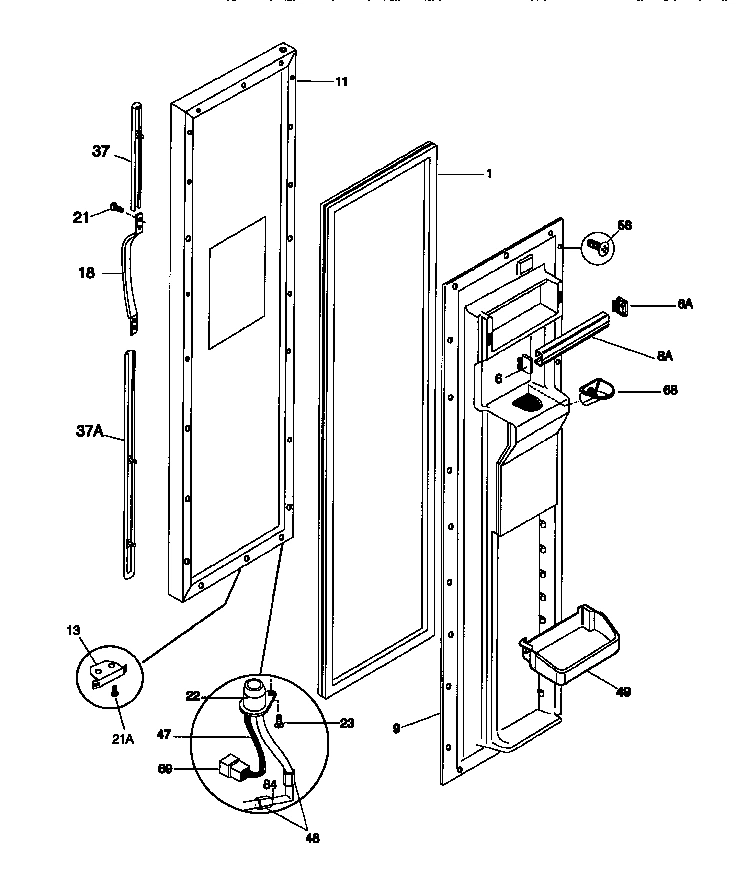

02 - FREEZER DOOR

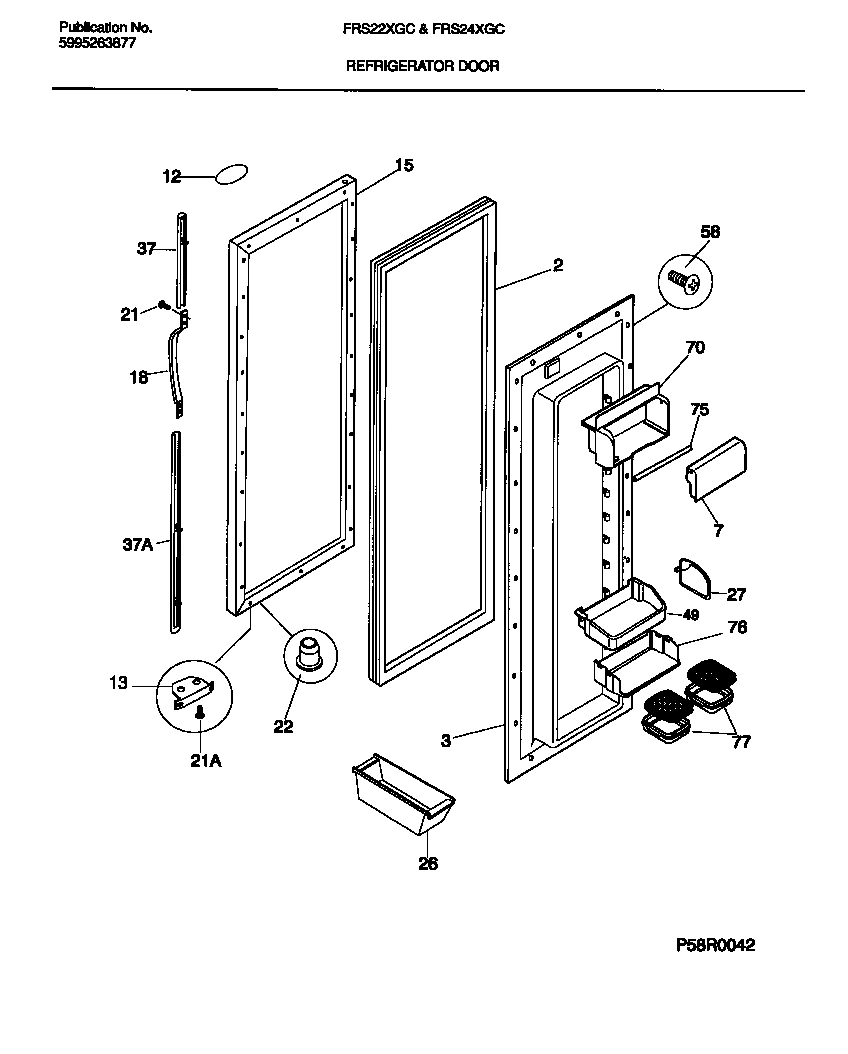

03 - REFRIGERATOR DOOR

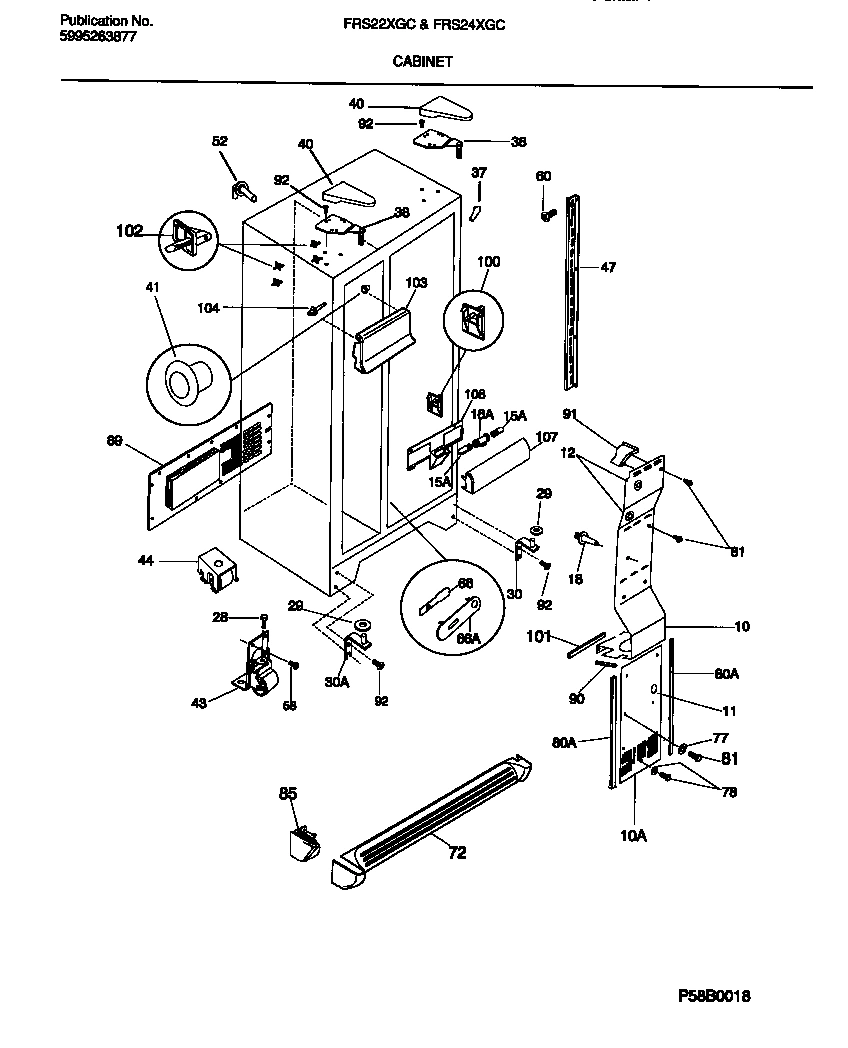

04 - CABINET

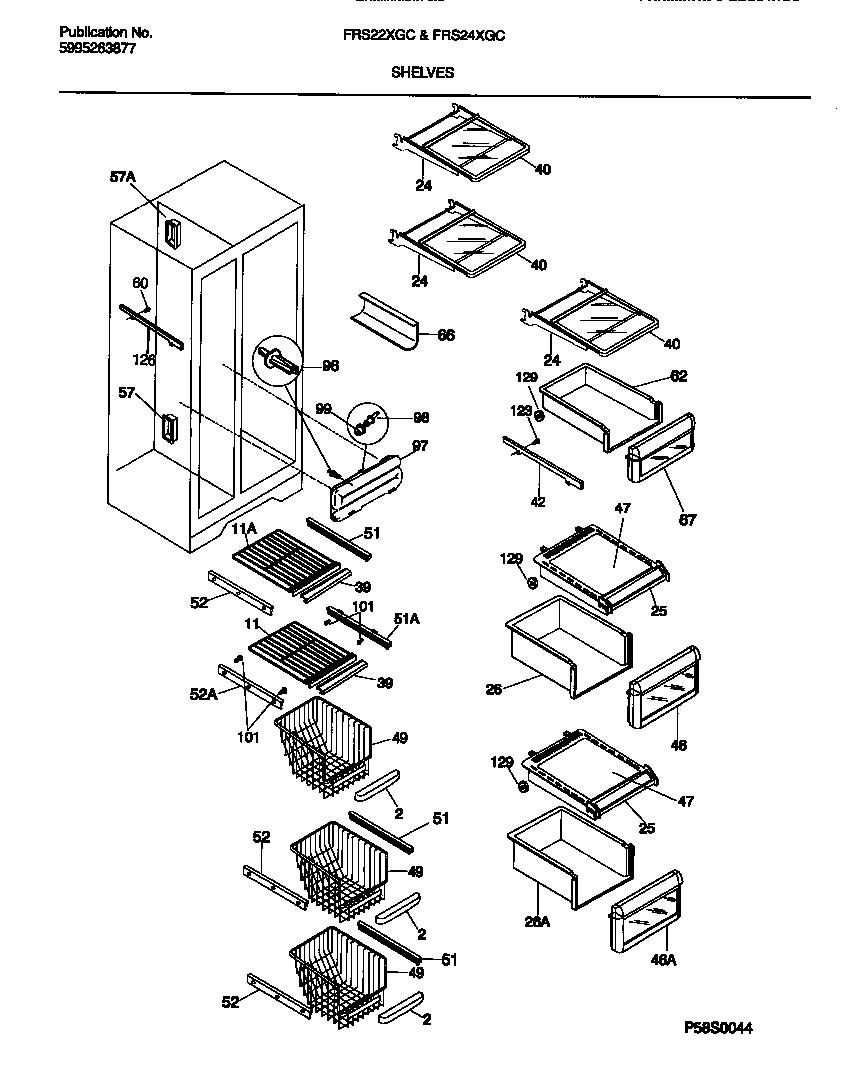

05 - SHELVES

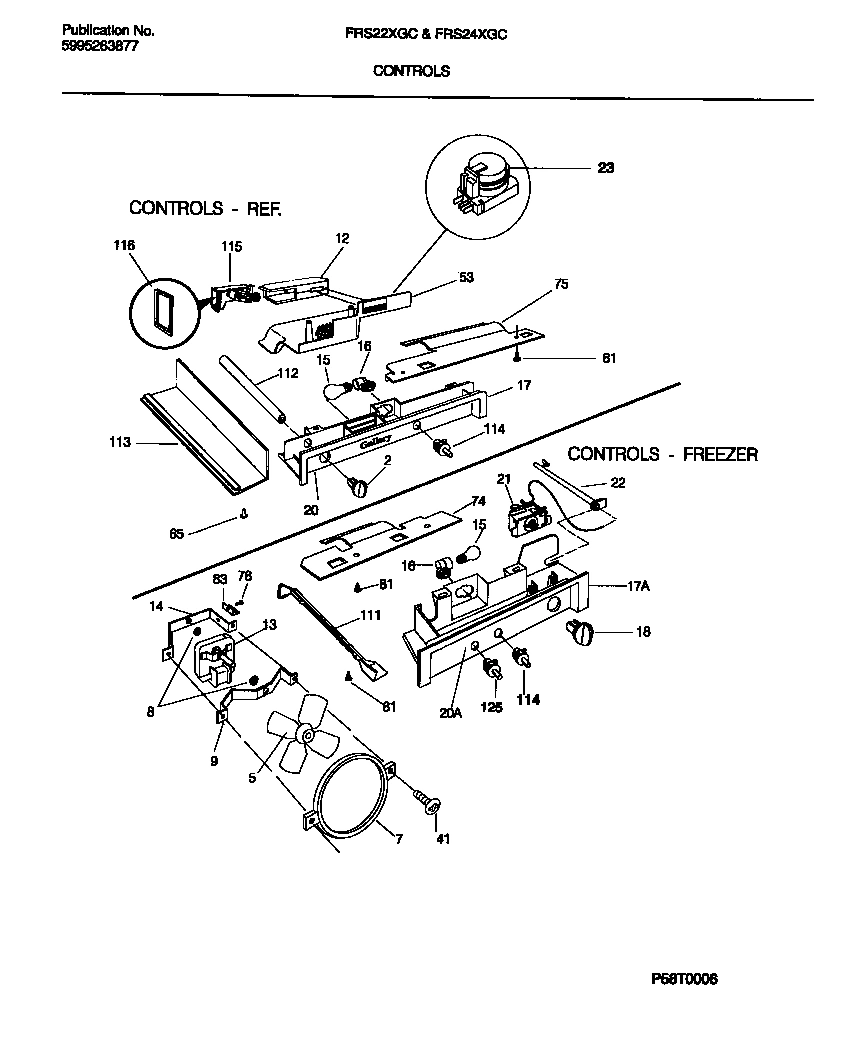

06 - CONTROLS

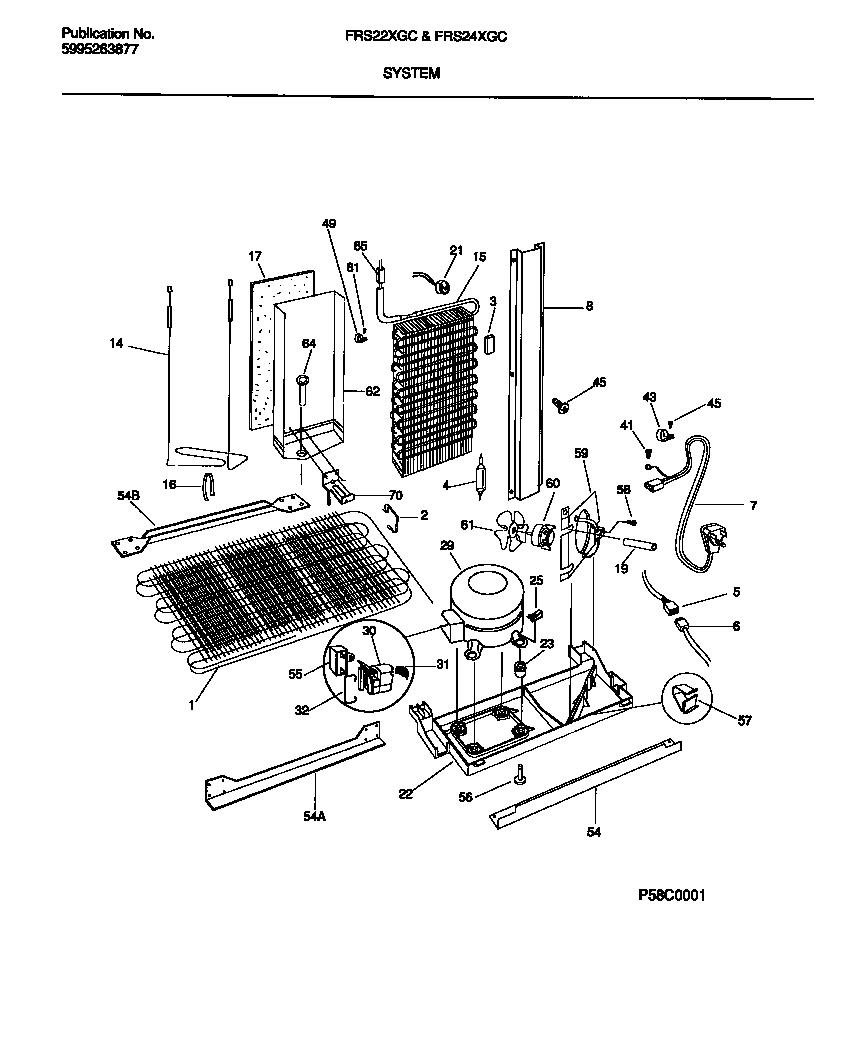

07 - SYSTEM

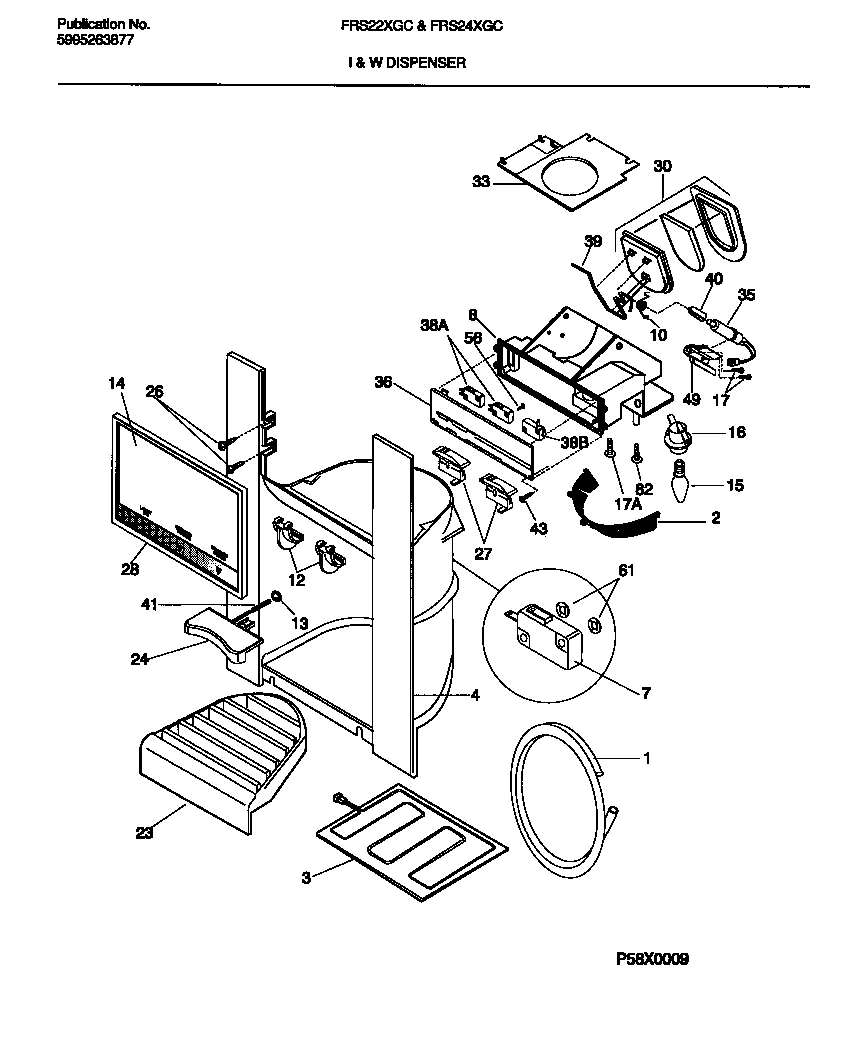

08 - ICE AND WATER DISPENSER

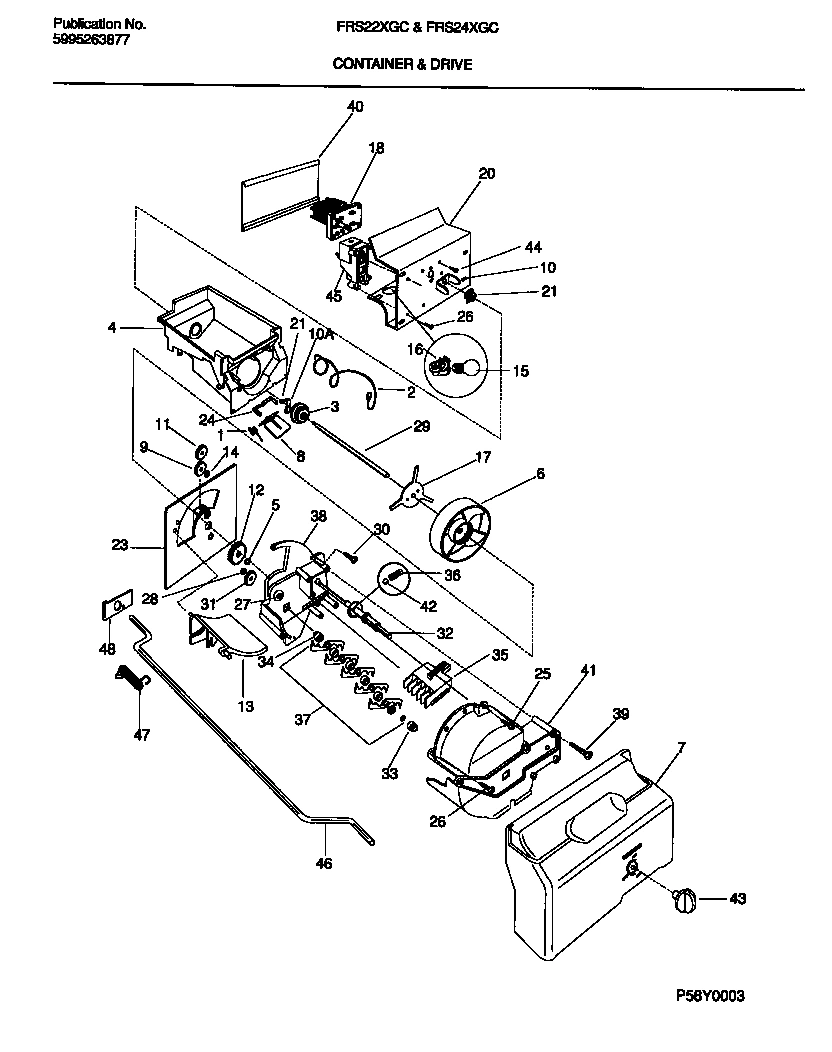

09 - CONTAINER AND DRIVE

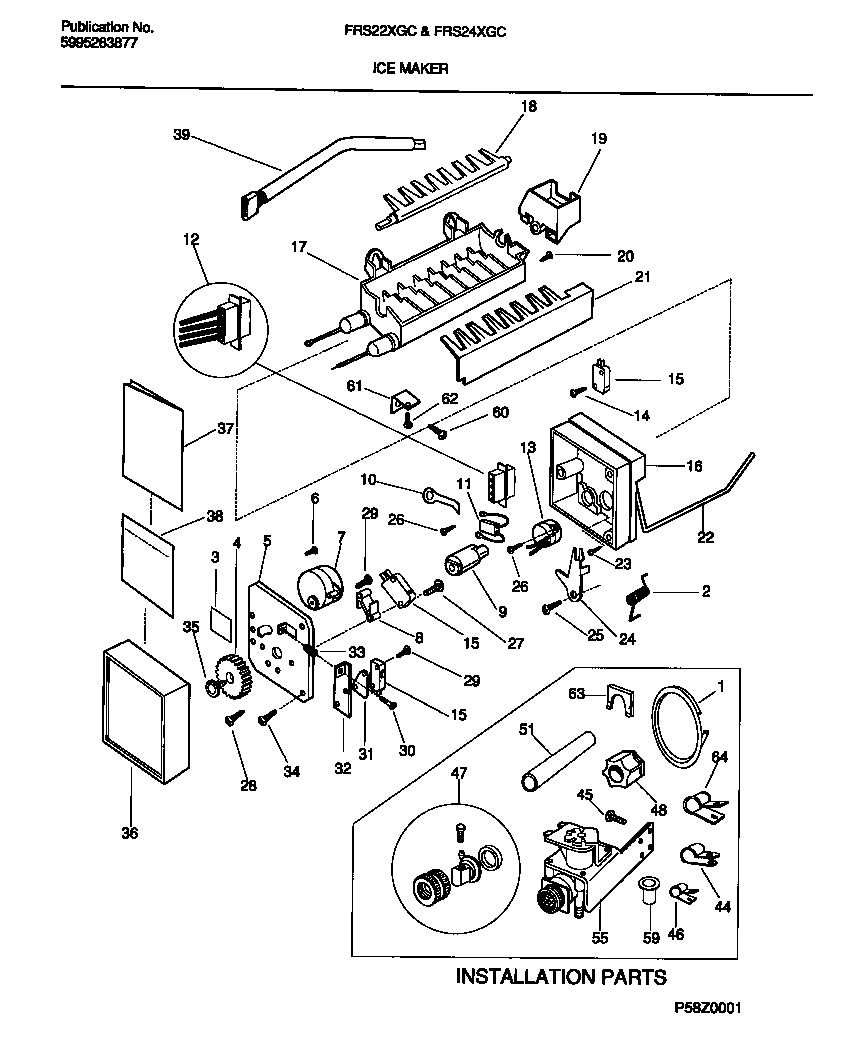

10 - ICE MAKER

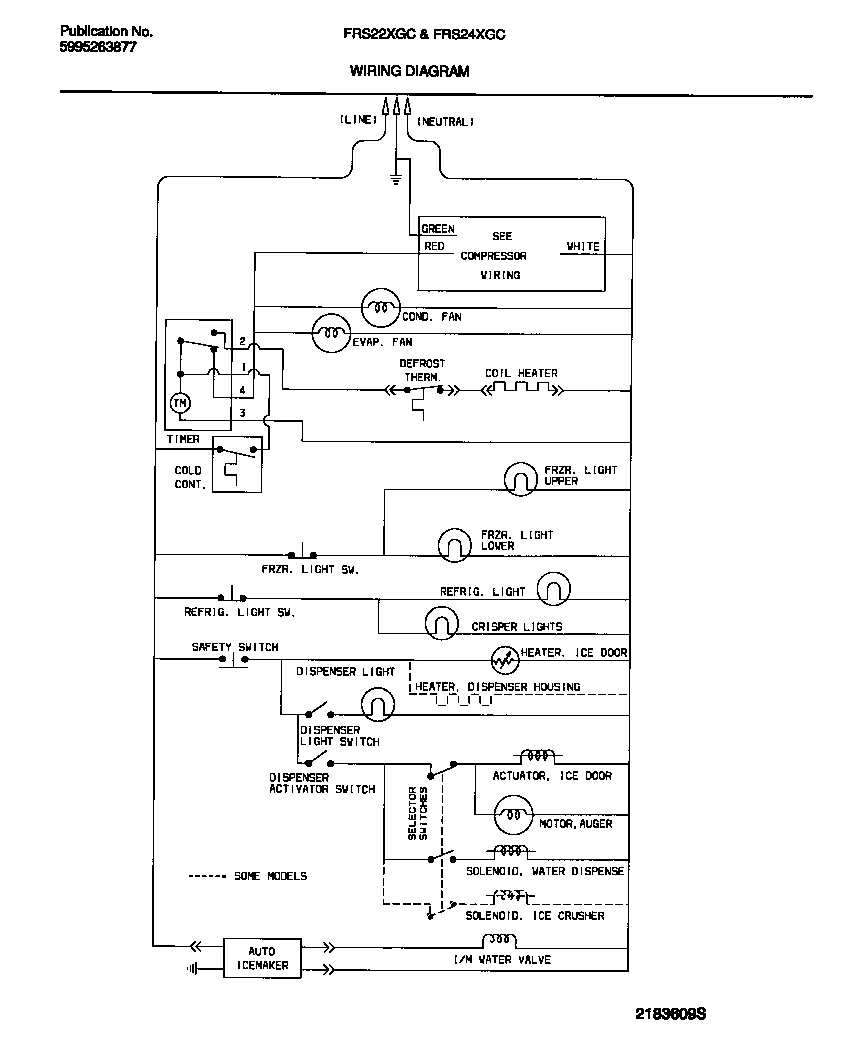

11 - WIRING DIAGRAM
12 - WIRING DIAGRAM
Common parts from model Electrolux FRS24XGCB0 REFRIGERATOR
*68683
LOCK-HANDLE TRIM, SNAP-ON WCI 215782300 Contact Us For Availability
*68684
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*68690
WCI 215339900 WCI 215339900 Contact Us For Availability
*68691
WCI 215188300 WCI 215188300 Contact Us For Availability
*68692
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*68693
WCI 215781700 WCI 215781700 Contact Us For Availability
*68694
WCI 218432501 WCI 218432501 Contact Us For Availability
1
WCI 215734323 WCI 215734323 Contact Us For Availability
1
WCI 215408100 WCI 215408100 Contact Us For Availability
1
WCI 215571300 WCI 215571300 Contact Us For Availability
1A
WCI 215294101 WCI 215294101 Contact Us For Availability
1A
SPACER-TUBE (NOT ILLUSTRATED) WCI 5303208866 Contact Us For Availability
1B
SPACER, TUBE (NOT ILLUSTRATED) WCI 5303289026 Contact Us For Availability
2
WCI 215734324 WCI 215734324 Contact Us For Availability
2
WCI 218383601 WCI 218383601 Contact Us For Availability
2
WCI 5303307883 WCI 5303307883 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 215732118 WCI 215732118 Contact Us For Availability
2
WCI 218232500 WCI 218232500 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
WCI 218232300 WCI 218232300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
3A
WCI 215226501 WCI 215226501 Contact Us For Availability
3B
BLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILL WCI 215305900 Contact Us For Availability
4
WCI 218432103 WCI 218432103 Contact Us For Availability
4A
WCI 218216800 WCI 218216800 Contact Us For Availability
4B
LABEL-ICE CONTAINER (NOT ILLUSTRATED) WCI 218363200 Contact Us For Availability
5
WCI 215748105 WCI 215748105 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
5A
WCI 218254800 WCI 218254800 Contact Us For Availability
5B
WCI 215004900 WCI 215004900 Contact Us For Availability
5C
HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATE WCI 215005200 Contact Us For Availability
5D
WCI 218463600 WCI 218463600 Contact Us For Availability
6
WCI 5303297814 WCI 5303297814 Contact Us For Availability
6
WCI 5303297813 WCI 5303297813 Contact Us For Availability
6
WCI 218254900 WCI 218254900 Contact Us For Availability
6
WCI 215752800 WCI 215752800 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 215421613 WCI 215421613 Contact Us For Availability
7A
WCI 218284800 WCI 218284800 Contact Us For Availability
7B
SHIELD-MICRO SWITCH (NOT ILLUSTRATED) WCI 215944300 Contact Us For Availability
8
WCI 215571200 WCI 215571200 Contact Us For Availability
8
WCI 5303289033 WCI 5303289033 Contact Us For Availability
8
WCI 218432301 WCI 218432301 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 215419700 WCI 215419700 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218232800 WCI 218232800 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 218298003 WCI 218298003 Contact Us For Availability
11
WCI 218298004 WCI 218298004 Contact Us For Availability
11
WCI 215755200 WCI 215755200 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 215766503 WCI 215766503 Contact Us For Availability
12
WCI 215420400 WCI 215420400 Contact Us For Availability
12A
HARNESS-WIRING, INTERNAL IM, WITH PLUG WCI 3206349 Contact Us For Availability
12B
PLUG, ``ONLY`` WCI 3206321 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215748101 WCI 215748101 Contact Us For Availability
13
WCI 218285200 WCI 218285200 Contact Us For Availability
13A
WCI 215348100 WCI 215348100 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 215752000 WCI 215752000 Contact Us For Availability
14
WCI 218408403 WCI 218408403 Contact Us For Availability
14
WCI 215419900 WCI 215419900 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
15A
EVAPORATOR, W/HEAT EXCHANGR WCI 215289604 Contact Us For Availability
15B
TUBE-INLET (NOT ILLUSTRATED) WCI 3206414 Contact Us For Availability
16
WCI 5303299157 WCI 5303299157 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
BOX-CONTROL, REFR, W/LIGHT TUNNEL WCI 218468701 Contact Us For Availability
17
WCI 5303296581 WCI 5303296581 Contact Us For Availability
17
WCI 5303289496 WCI 5303289496 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17
WCI 215754800 WCI 215754800 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
WASHER-FLAT (NOT ILLUSTRATED) WCI 215923400 Contact Us For Availability
18
WCI 5303307882 WCI 5303307882 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18B
HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED) WCI 218329300 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303307884 WCI 5303307884 Contact Us For Availability
20
WCI 5303307888 WCI 5303307888 Contact Us For Availability
20
WCI 215285302 WCI 215285302 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303294323 WCI 5303294323 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 5303289030 WCI 5303289030 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303299660 WCI 5303299660 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
23A
WCI 215755300 WCI 215755300 Contact Us For Availability
23B
WCI 215617100 WCI 215617100 Contact Us For Availability
23B
RING-RETAINER (NOT ILLUSTRATED) WCI 215755700 Contact Us For Availability
23C
STUD (NOT ILLUSTRATED) WCI 215755800 Contact Us For Availability
24
WCI 215571400 WCI 215571400 Contact Us For Availability
24
WCI 215019701 WCI 215019701 Contact Us For Availability
24
WCI 215766303 WCI 215766303 Contact Us For Availability
25
WCI 215014200 WCI 215014200 Contact Us For Availability
25
WCI 215421400 WCI 215421400 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 218147701 WCI 218147701 Contact Us For Availability
25B
TRIM-STORAGE PAN CVR (NOT ILLUSTRATED) WCI 5303289586 Contact Us For Availability
25C
TRIM-STORAGE PAN CVR, W/HUMIDITY HOLE (NOT IL WCI 5303307878 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 215748400 WCI 215748400 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 5303299661 WCI 5303299661 Contact Us For Availability
28
WCI 215755100 WCI 215755100 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 5303917193 WCI 5303917193 Contact Us For Availability
29
WCI 215757501 WCI 215757501 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
WCI 215003200 WCI 215003200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
30
WCI 215753600 WCI 215753600 Contact Us For Availability
30
WCI 215757300 WCI 215757300 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 215757400 WCI 215757400 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
32A
WCI 215747501 WCI 215747501 Contact Us For Availability
32B
RING-SNAP (NOT ILLUSTRATED) WCI 215748102 Contact Us For Availability
33
WCI 218379901 WCI 218379901 Contact Us For Availability
33
WCI 215748200 WCI 215748200 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 215748300 WCI 215748300 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 218284700 WCI 218284700 Contact Us For Availability
35
WCI 215753500 WCI 215753500 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218432400 WCI 218432400 Contact Us For Availability
36
WCI 215756700 WCI 215756700 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37A
WCI 215756100 WCI 215756100 Contact Us For Availability
37B
BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED) WCI 215753400 Contact Us For Availability
37C
BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED) WCI 215753300 Contact Us For Availability
37D
BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED) WCI 215753200 Contact Us For Availability
37E
BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED) WCI 215753100 Contact Us For Availability
37F
BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED) WCI 215753000 Contact Us For Availability
37G
SHAFT-CRUSHER (NOT ILLUSTRATED) WCI 215253600 Contact Us For Availability
37H
RING-SNAP (NOT ILLUSTRATED) WCI 215748104 Contact Us For Availability
37I
SPACER, (2) (NOT ILLUSTRATED) WCI 215756200 Contact Us For Availability
37J
SPACER, (4) (NOT ILLUSTRATED) WCI 215839400 Contact Us For Availability
38
WCI 218480000 WCI 218480000 Contact Us For Availability
38
SWITCH-MICRO (2) WCI 218479900 Contact Us For Availability
38
WCI 218270100 WCI 218270100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
39
WCI 215217543 WCI 215217543 Contact Us For Availability
39
WCI 215757000 WCI 215757000 Contact Us For Availability
39
WCI 5303289065 WCI 5303289065 Contact Us For Availability
40
WCI 215036602 WCI 215036602 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
40
WCI 215363000 WCI 215363000 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 218270200 WCI 218270200 Contact Us For Availability
41B
NUT, ``U`` TYPE, NO. 8-15(A) (NOT ILLUSTRATED WCI 5303209814 Contact Us For Availability
42
WCI 215756000 WCI 215756000 Contact Us For Availability
42A
WCI 215002301 WCI 215002301 Contact Us For Availability
42B
HANGER, PAN/TRAY, RH (NOT ILLUSTRATED) WCI 215002401 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
43A
WCI 215755003 WCI 215755003 Contact Us For Availability
43B
SCREW-ROLLER MTG, SPCL IND HEX HD, 5/16-18(23 WCI 5308017044 Contact Us For Availability
43B
SPRING-KNOB (NOT ILLUSTRATED) WCI 215752900 Contact Us For Availability
44
WCI 215163900 WCI 215163900 Contact Us For Availability
44
SCREW,PAN HEAD, 8-32 X .25 WCI 218359200 Contact Us For Availability
45
WCI 215935901 WCI 215935901 Contact Us For Availability
46
WCI 218285301 WCI 218285301 Contact Us For Availability
47
WCI 5303288974 WCI 5303288974 Contact Us For Availability
47
WCI 215254800 WCI 215254800 Contact Us For Availability
47
WCI 5308000205 WCI 5308000205 Contact Us For Availability
47A
WCI 215723574 WCI 215723574 Contact Us For Availability
47B
WCI 5303289387 WCI 5303289387 Contact Us For Availability
48
WCI 215898200 WCI 215898200 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 218384701 WCI 218384701 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
51
HANGER-BASKET, RH, (3) WCI 5303296575 Contact Us For Availability
51
WCI 5303307887 WCI 5303307887 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162504 WCI 215162504 Contact Us For Availability
53
WCI 215809501 WCI 215809501 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55A
WCI 215197400 WCI 215197400 Contact Us For Availability
55B
SCREW-SOLENOID VALVE, HX HD-SLOT WSHR, 12-24 WCI 215290100 Contact Us For Availability
55C
CAP-WATER VALVE (NOT ILLUSTRATED) WCI 5303015102 Contact Us For Availability
56
WCI 215014100 WCI 215014100 Contact Us For Availability
56
SCREW-SEL & LITE SW, PAN HEAD, 4-24 X 9/16 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 5303289064 WCI 5303289064 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501800 WCI 215501800 Contact Us For Availability
61
WCI 215766000 WCI 215766000 Contact Us For Availability
61A
WCI 5303289032 WCI 5303289032 Contact Us For Availability
61B
NUT, SPEED (NOT ILLUSTRATED) WCI 215004700 Contact Us For Availability
61C
GROMMET, SILENCER (NOT ILLUSTRATED) WCI 215223700 Contact Us For Availability
62
WCI 218285701 WCI 218285701 Contact Us For Availability
62
WCI 215048700 WCI 215048700 Contact Us For Availability
63
WCI 5300154167 WCI 5300154167 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
66
WCI 215050201 WCI 215050201 Contact Us For Availability
66
WCI 218171301 WCI 218171301 Contact Us For Availability
66
WCI 5303307872 WCI 5303307872 Contact Us For Availability
67
WCI 218278501 WCI 218278501 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359609 WCI 218359609 Contact Us For Availability
74
WCI 5303289516 WCI 5303289516 Contact Us For Availability
75
WCI 5303289052 WCI 5303289052 Contact Us For Availability
77
WASHER-NYLON,3/16 X 5/8 OD WCI 5303001216 Contact Us For Availability
80
WCI 218249801 WCI 218249801 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
84
WCI 5308010289 WCI 5308010289 Contact Us For Availability
85
WCI 218359805 WCI 218359805 Contact Us For Availability
89
WCI 215176300 WCI 215176300 Contact Us For Availability
90
WCI 215022602 WCI 215022602 Contact Us For Availability
91
WCI 215177600 WCI 215177600 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
98
CONNECTOR - TUBE WCI 5308015614 Contact Us For Availability
99
GROMMET-TANK WCI 5300186057 Contact Us For Availability
100
SUPPORT-CRSPR COVER WCI 5303288973 No Longer Available
101
WCI 215305702 WCI 215305702 Contact Us For Availability
102
SUPPORT, MOTOR BRKT, & SHELF WCI 215134700 Contact Us For Availability
103
WCI 218368301 WCI 218368301 Contact Us For Availability
104A
SUPPORT-ICE ACCESS DR WCI 5303001211 Contact Us For Availability
104B
SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X WCI 3001212 Contact Us For Availability
107
WCI 218188800 WCI 218188800 Contact Us For Availability
108
WCI 218476800 WCI 218476800 Contact Us For Availability
111
WCI 5303297842 WCI 5303297842 Contact Us For Availability
112
WCI 215277102 WCI 215277102 Contact Us For Availability
113
COVER - DMPR ROD EXT WCI 5303296580 Contact Us For Availability
115
WCI 215011502 WCI 215011502 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
126A
WCI 215205400 WCI 215205400 Contact Us For Availability
126B
RAIL-AUGER BUCKET, RH (NOT ILLUSTRATED) WCI 218232700 Contact Us For Availability
129A
WCI 5303299152 WCI 5303299152 Contact Us For Availability
129B
BEARING-ROLLER (NOT ILLUSTRATED) WCI 5303299153 Contact Us For Availability
× ![]()
