Model Electrolux FRS20WRHW1 REFRIGERATOR – Common Parts & Diagrams

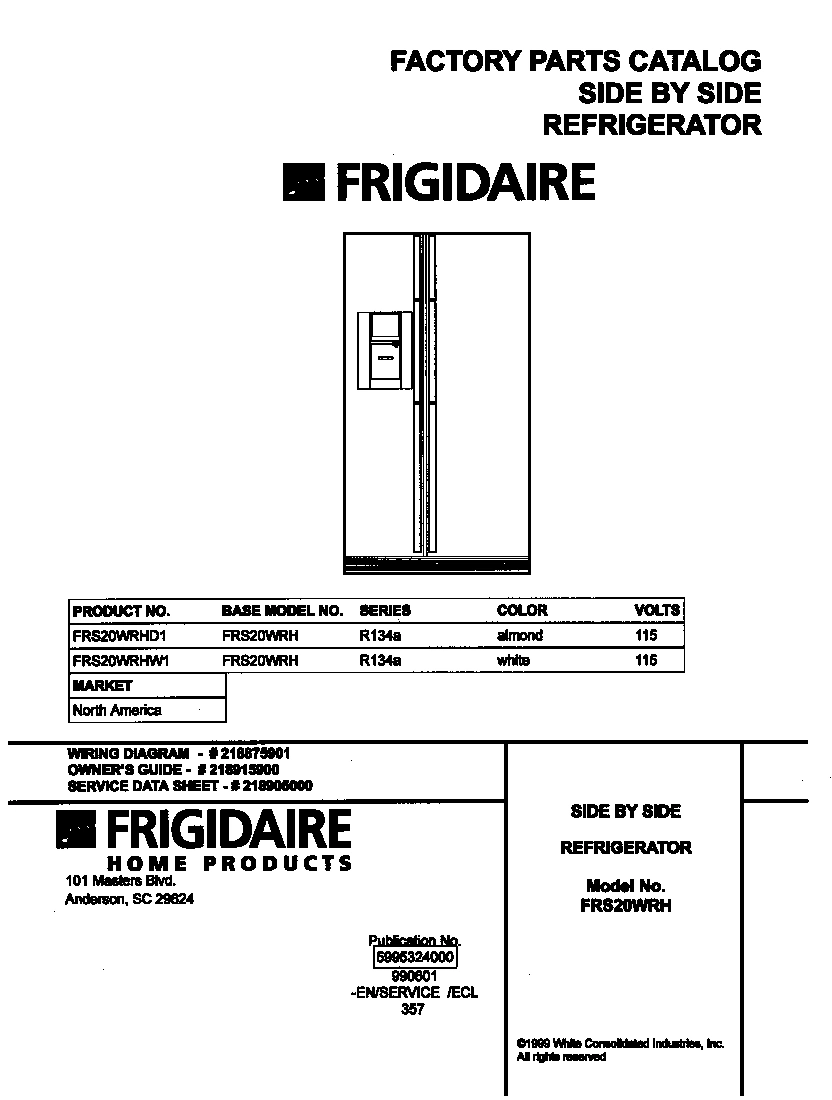

01 - COVER

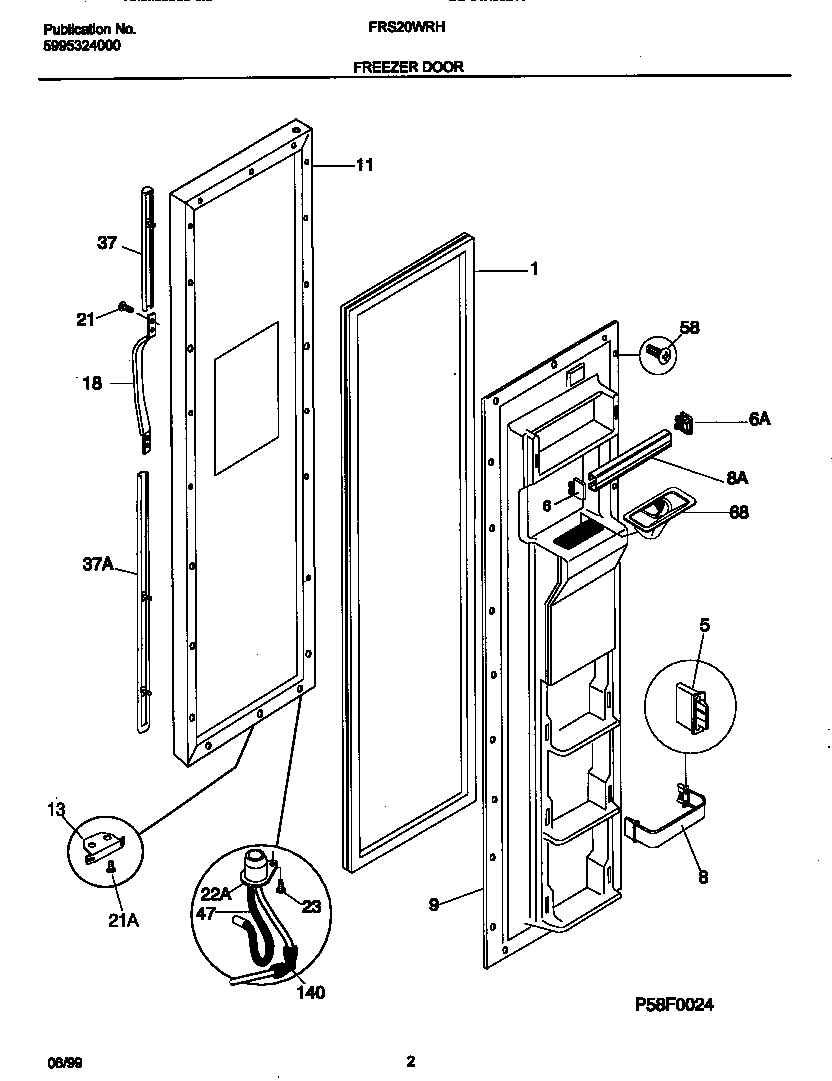

02 - FREEZER DOOR

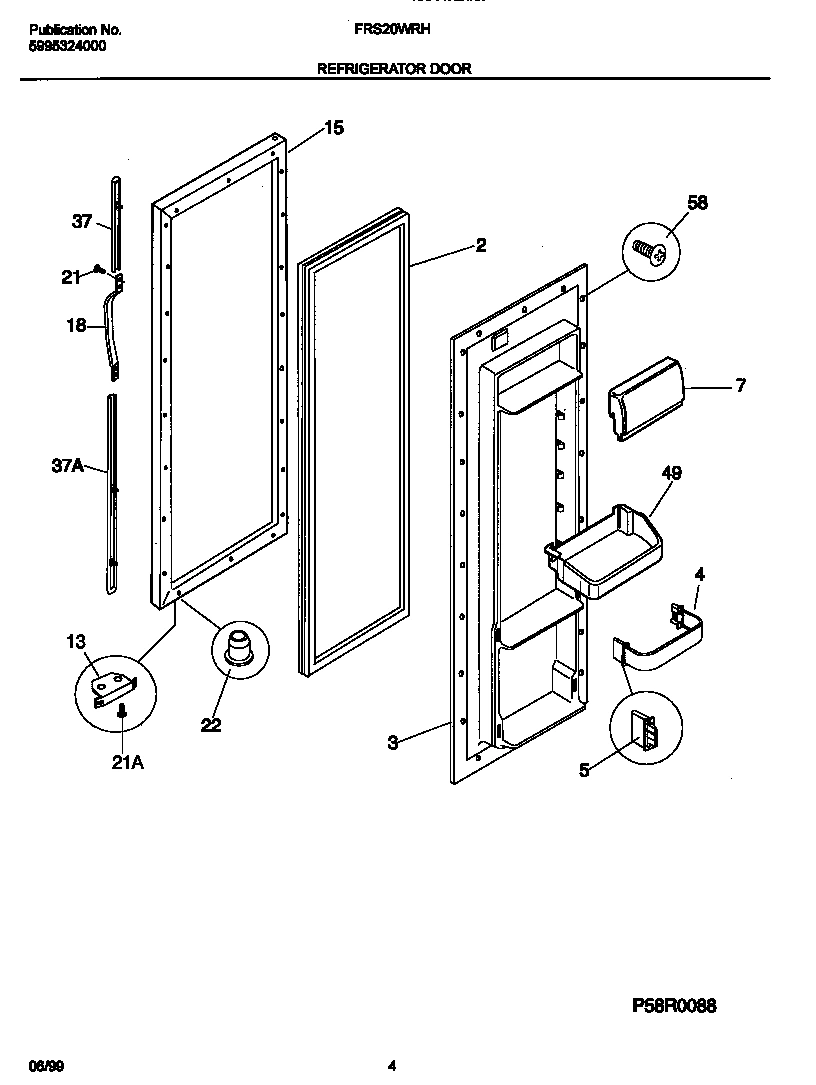

03 - REFRIGERATOR DOOR

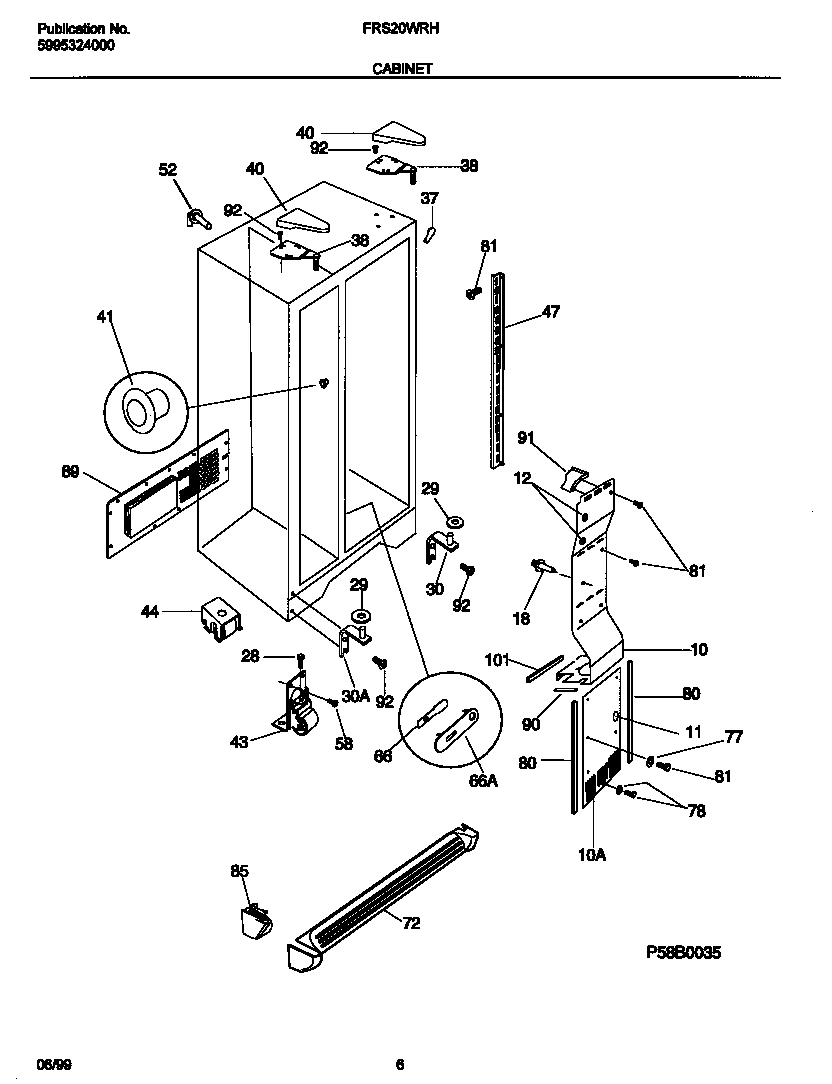

04 - CABINET

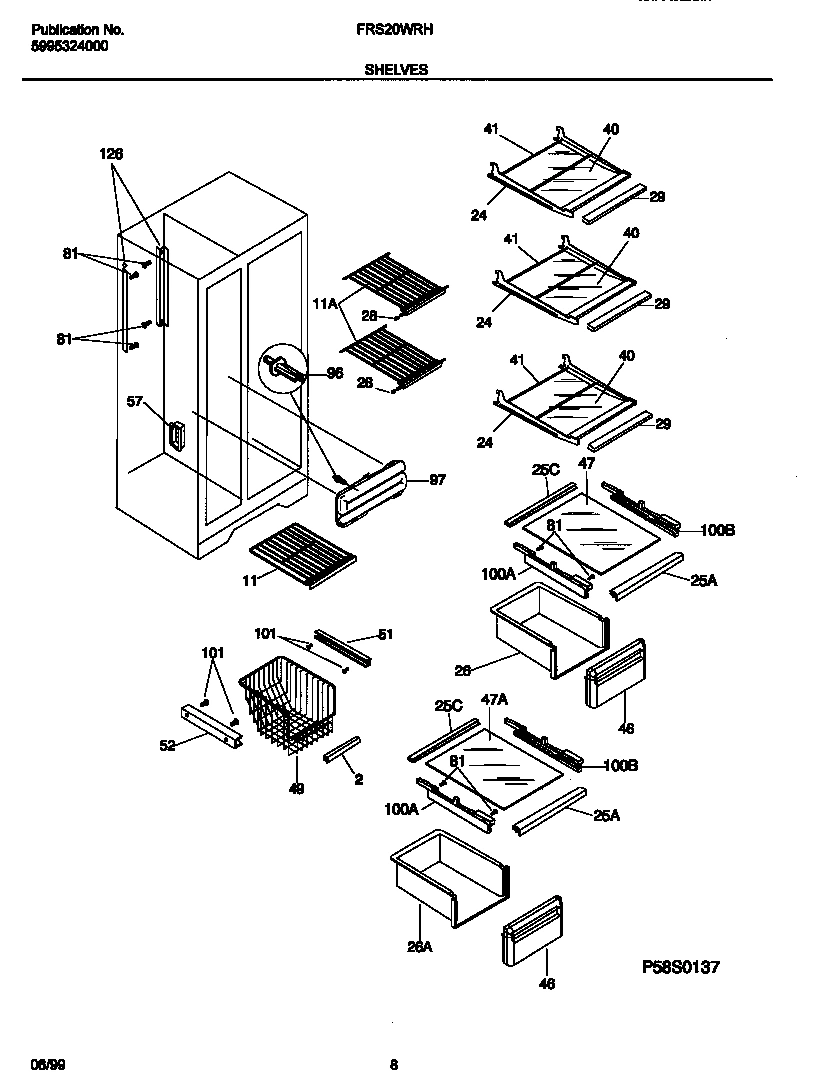

05 - SHELVES

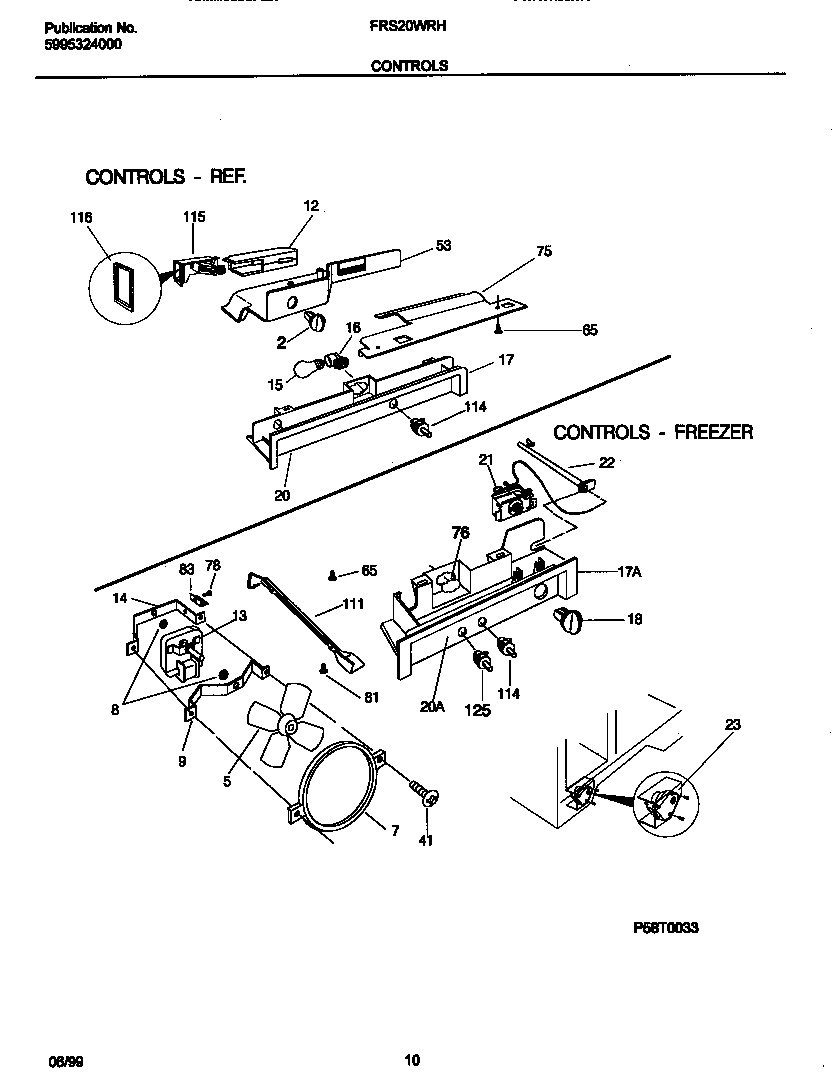

06 - CONTROLS

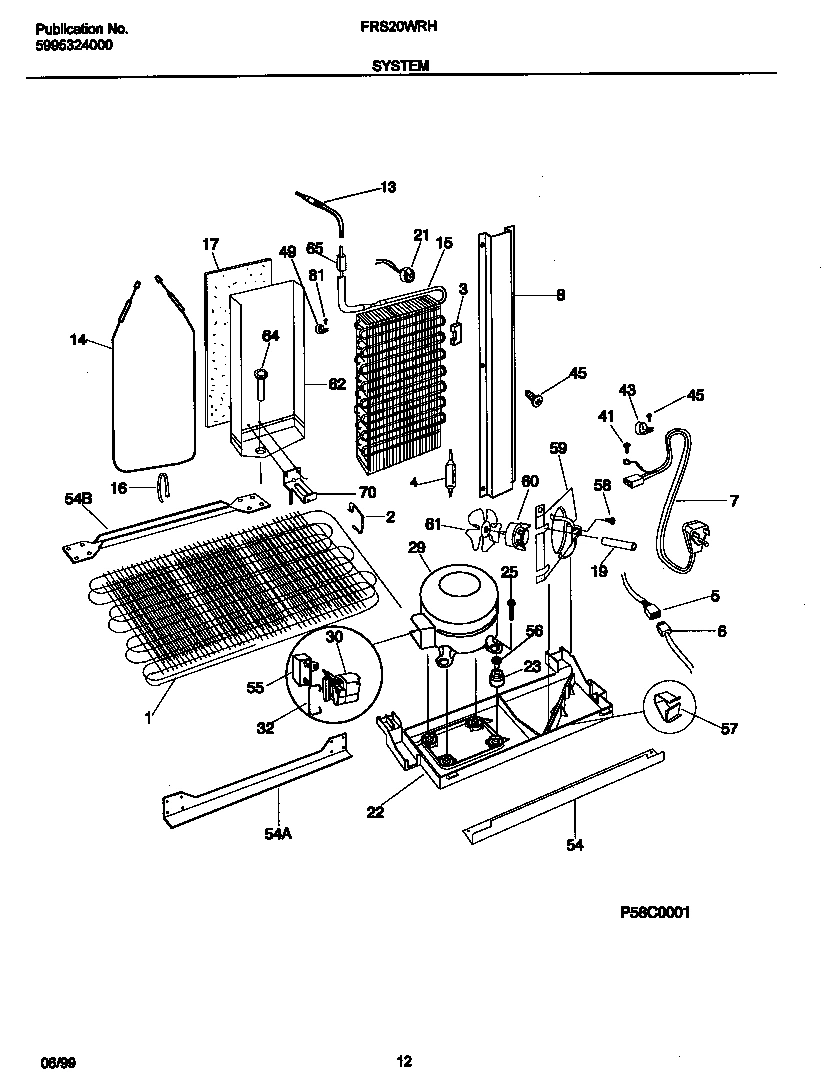

07 - SYSTEM
08 - ICE DISPENSER

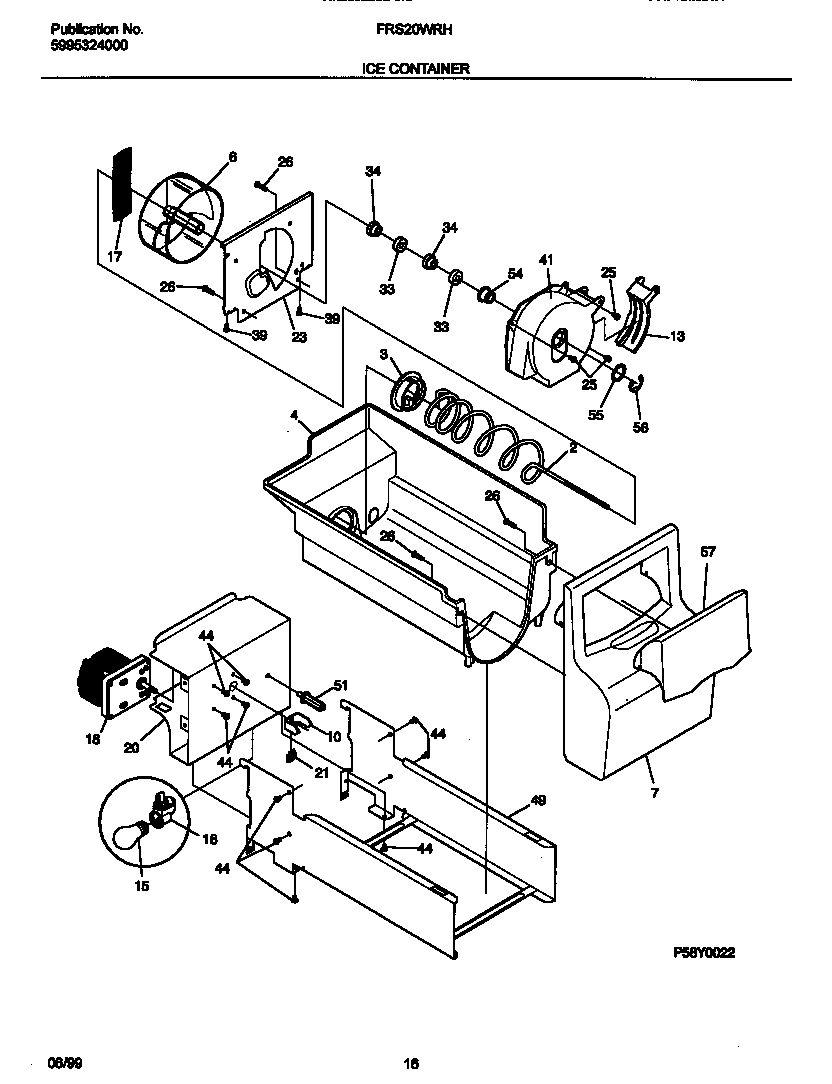

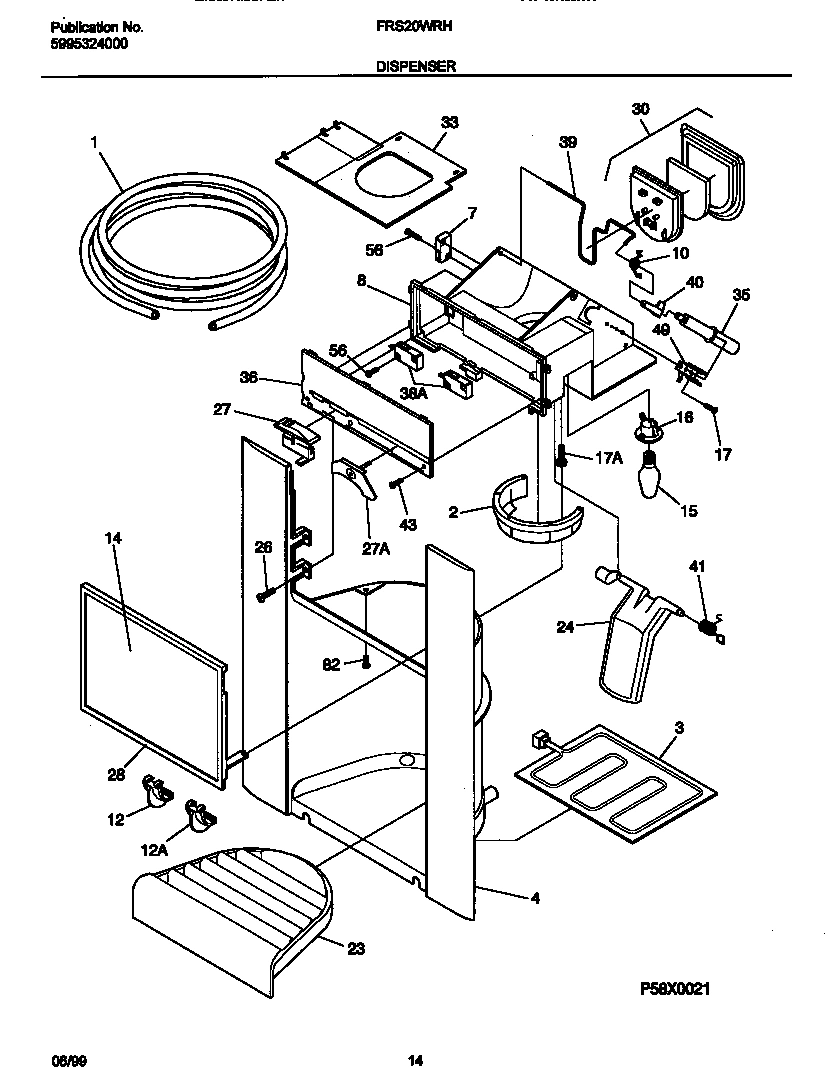

09 - ICE CONTAINER

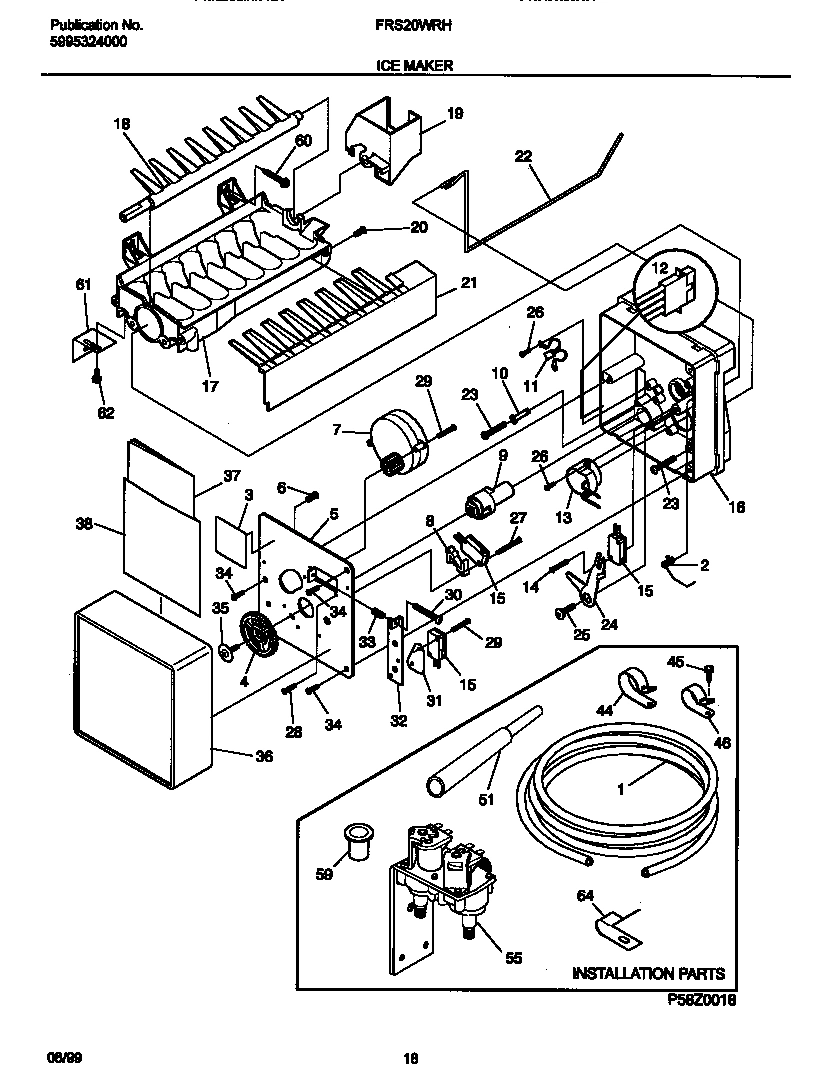

10 - ICE MAKER

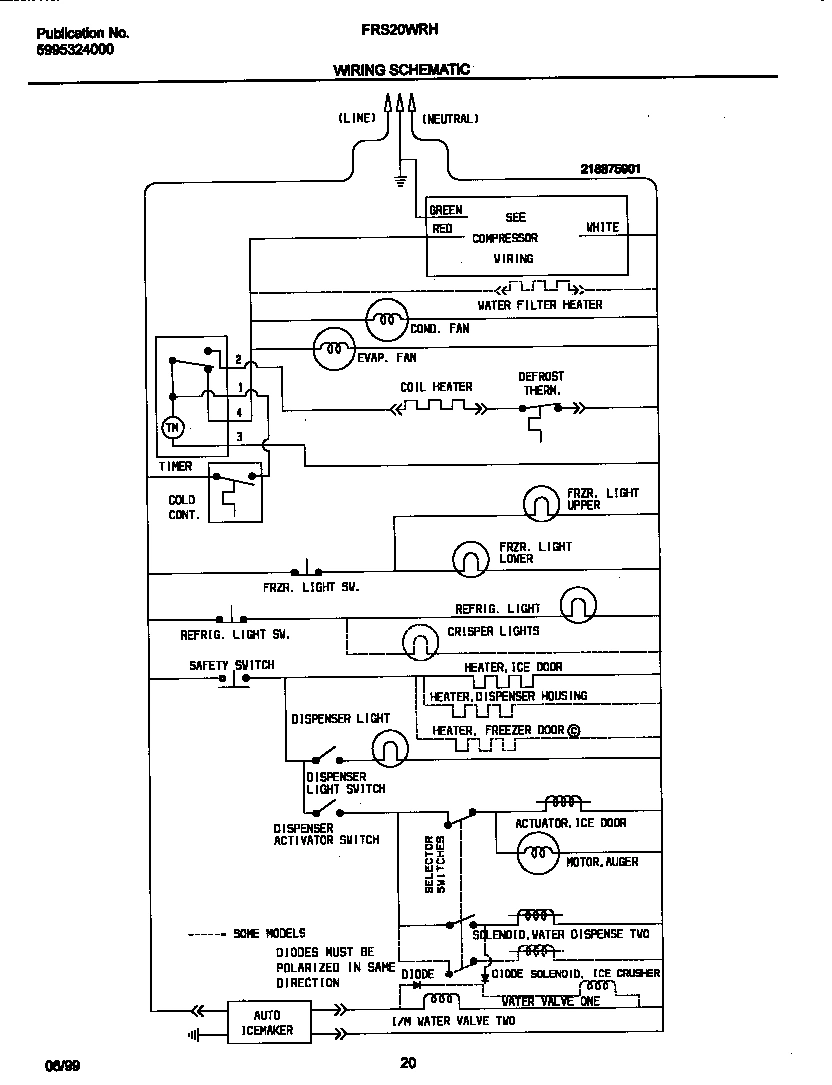

11 - WIRING DIAGRAM

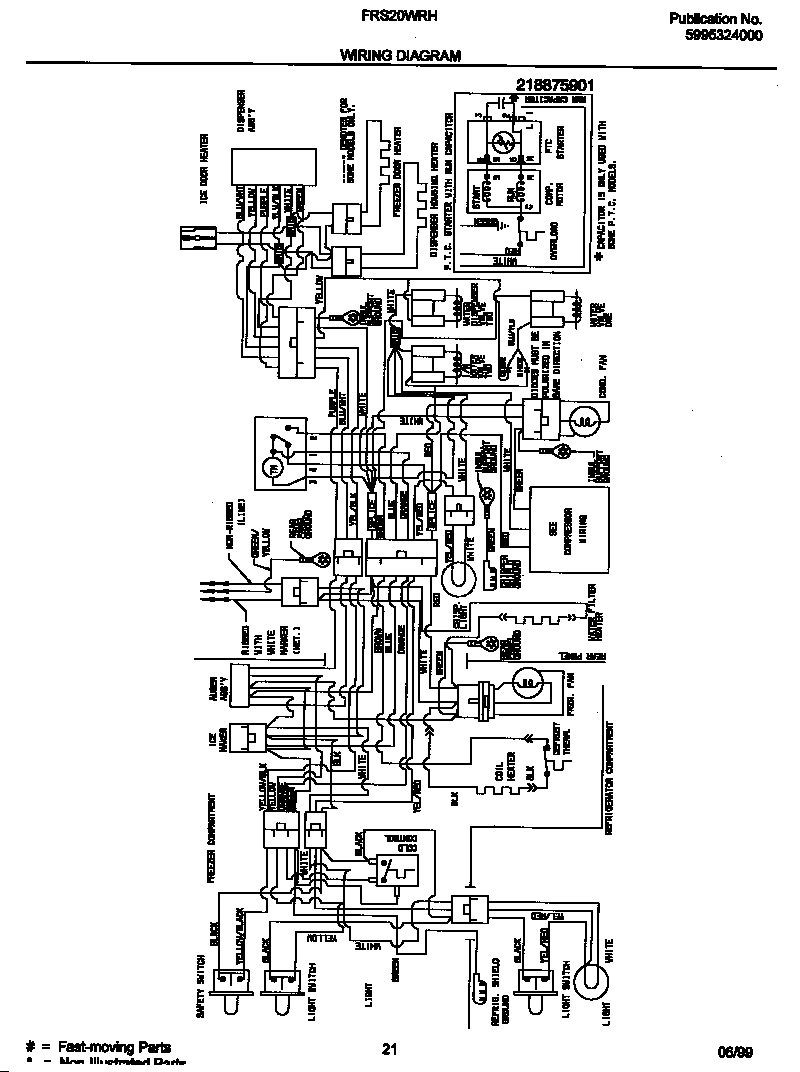

12 - WIRING DIAGRAM
Common parts from model Electrolux FRS20WRHW1 REFRIGERATOR
*25521
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*25533
PLUG-BUTTON,CAB LINER HOLES WCI 5308016571 Contact Us For Availability
*25537
WCI 218731102 WCI 218731102 Contact Us For Availability
*25538
COVER-DEFROST TIMER, TOP WCI 215277000 Contact Us For Availability
*25540
SHIELD-DEFROST TIMR,BTM WCI 5303289058 Contact Us For Availability
*25541
NUT,``U`` TYPE ,8-15(A) ,FAN MTR MTG WCI 5303209814 Contact Us For Availability
*25542
SPACER-COND TUBE,BLACK WCI 5303208866 Contact Us For Availability
*25543
SPACER TUBE WCI 5303289026 Contact Us For Availability
*25544
WCI 215005200 WCI 215005200 Contact Us For Availability
*25545
WCI 218815101 WCI 218815101 Contact Us For Availability
*25546
SCREW,HEX HD SER WSHR ,8-18 X 3/8 WCI 218754500 Contact Us For Availability
*25547
TUBE-INLET WCI 3206414 Contact Us For Availability
*25551
WCI 215732700 WCI 215732700 Contact Us For Availability
*25552
WCI 215004700 WCI 215004700 Contact Us For Availability
*25553
WCI 215004800 WCI 215004800 Contact Us For Availability
*25554
WCI 5303917166 WCI 5303917166 Contact Us For Availability
*25555
WCI 215294101 WCI 215294101 Contact Us For Availability
*25556
SHIELD-MICRO SWITCH WCI 215944300 Contact Us For Availability
*25557
WCI 218863107 WCI 218863107 Contact Us For Availability
*25558
WCI 5304407107 WCI 5304407107 Contact Us For Availability
*25559
WCI 218842801 WCI 218842801 Contact Us For Availability
*25562
WCI 218835800 WCI 218835800 Contact Us For Availability
*25563
Screw-solenoid valve,hx hd-slot wshr ,12-24 x WCI 215290100 Contact Us For Availability
*25565
ADAPTER-WATER SPLY,STRAIGHT WCI 5308000205 Contact Us For Availability
1
WCI 218787700 WCI 218787700 Contact Us For Availability
2
WCI 215028605 WCI 215028605 Contact Us For Availability
2
WCI 5303289029 WCI 5303289029 Contact Us For Availability
2
WCI 218505301 WCI 218505301 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
3
WCI 218679603 WCI 218679603 Contact Us For Availability
3
WCI 215484300 WCI 215484300 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
WCI 218852401 WCI 218852401 Contact Us For Availability
5
WCI 5303288950 WCI 5303288950 Contact Us For Availability
5
WCI 218646100 WCI 218646100 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 218897101 WCI 218897101 Contact Us For Availability
7
WCI 215459201 WCI 215459201 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 218284800 WCI 218284800 Contact Us For Availability
8
WCI 218803400 WCI 218803400 Contact Us For Availability
8
WCI 218874901 WCI 218874901 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 218209800 WCI 218209800 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5304405989 WCI 5304405989 Contact Us For Availability
12
WCI 215809600 WCI 215809600 Contact Us For Availability
12
WCI 218836201 WCI 218836201 Contact Us For Availability
12
WCI 218925401 WCI 218925401 Contact Us For Availability
12
WCI 218925501 WCI 218925501 Contact Us For Availability
12A
HARNESS-WIRING, IM INTERNAL, WITH PLUG WCI 3206349 Contact Us For Availability
12B
CONNECTOR PLUG, WIRING HARNESS WCI 3206321 Contact Us For Availability
13
WCI 5303289522 WCI 5303289522 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 215426200 WCI 215426200 Contact Us For Availability
13
WCI 215006701 WCI 215006701 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
WCI 218416186 WCI 218416186 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
WCI 218691302 WCI 218691302 Contact Us For Availability
15
WCI 218284900 WCI 218284900 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
CONTROL BOX, REFR WCI 5303296808 Contact Us For Availability
17
WCI 5303289042 WCI 5303289042 Contact Us For Availability
17
WCI 215794400 WCI 215794400 Contact Us For Availability
17A
WCI 5303321928 WCI 5303321928 Contact Us For Availability
17A
WCI 215840700 WCI 215840700 Contact Us For Availability
17B
SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000 WCI 215188300 Contact Us For Availability
17B
WASHER-FLAT WCI 215923400 Contact Us For Availability
18
WCI 5303308568 WCI 5303308568 Contact Us For Availability
18
WCI 218815702 WCI 218815702 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 218631200 WCI 218631200 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303321926 WCI 5303321926 Contact Us For Availability
20
WCI 5303325668 WCI 5303325668 Contact Us For Availability
20
WCI 5304407106 WCI 5304407106 Contact Us For Availability
20
SCREW,8-18 X 0.375 ,(2) WCI 3206331 Contact Us For Availability
21
WCI 5303300027 WCI 5303300027 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
22
WCI 5303289320 WCI 5303289320 Contact Us For Availability
22
WCI 5303319683 WCI 5303319683 Contact Us For Availability
22
WCI 218811100 WCI 218811100 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303297844 WCI 5303297844 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 215919136 WCI 215919136 Contact Us For Availability
24
WCI 218921301 WCI 218921301 Contact Us For Availability
25
WCI 218015301 WCI 218015301 Contact Us For Availability
25
WCI 218015401 WCI 218015401 Contact Us For Availability
25
WCI 218773500 WCI 218773500 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
26
WCI 5303288968 WCI 5303288968 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
WCI 218432600 WCI 218432600 Contact Us For Availability
27
WCI 218814901 WCI 218814901 Contact Us For Availability
27
SCREW-SW&SPCR/PLATE,4-40 X 1 WCI 3206338 Contact Us For Availability
28
END CAP-SHELF, PROTECTOR, LOWER FZR SHELF WCI 08013638 Contact Us For Availability
28
WCI 218906201 WCI 218906201 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 215314301 WCI 215314301 Contact Us For Availability
29
WCI 215919413 WCI 215919413 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
WCI 218721101 WCI 218721101 Contact Us For Availability
30
DOOR ASSY-ICE CHUTE, W/GASKET, INSUL WCI 215753600 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 218870201 WCI 218870201 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW-MTG PLATE/SPRT,8-18 X 7/16 WCI 3206345 Contact Us For Availability
35
WCI 218740002 WCI 218740002 Contact Us For Availability
35
SCREW - GEAR / CAM, 6-20 X 0.437 WCI 3206346 Contact Us For Availability
36
WCI 218835601 WCI 218835601 Contact Us For Availability
36
COVER-ICE MAKER,COMPLETE WCI 3206347 Contact Us For Availability
37
WCI 215867053 WCI 215867053 Contact Us For Availability
37
WCI 215867055 WCI 215867055 Contact Us For Availability
37
WCI 5303321081 WCI 5303321081 Contact Us For Availability
37
WCI 5303320544 WCI 5303320544 Contact Us For Availability
37A
WCI 215782300 WCI 215782300 Contact Us For Availability
37C
WCI 218676001 WCI 218676001 Contact Us For Availability
38
WCI 218479900 WCI 218479900 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
40
WCI 218498188 WCI 218498188 Contact Us For Availability
40
WCI 218284500 WCI 218284500 Contact Us For Availability
41
WCI 215765400 WCI 215765400 Contact Us For Availability
41
WCI 215919813 WCI 215919813 Contact Us For Availability
43
WCI 215760300 WCI 215760300 Contact Us For Availability
44
SCREW,PAN HEAD, 8-32 X .25 WCI 218359200 Contact Us For Availability
45
WCI 218769200 WCI 218769200 Contact Us For Availability
46
WCI 5304411658 WCI 5304411658 Contact Us For Availability
47
INSERT-PAN COVER,GLASS ,CLEAR ,LOWER WCI 215723551 Contact Us For Availability
47
WCI 218498189 WCI 218498189 Contact Us For Availability
49
WCI 5303288957 WCI 5303288957 Contact Us For Availability
49
WCI 215506900 WCI 215506900 Contact Us For Availability
49
WCI 215794000 WCI 215794000 Contact Us For Availability
49
WCI 5304404329 WCI 5304404329 Contact Us For Availability
51
WCI 5303288960 WCI 5303288960 Contact Us For Availability
51
WCI 5304404336 WCI 5304404336 Contact Us For Availability
51
WCI 215811600 WCI 215811600 Contact Us For Availability
52
WCI 215454600 WCI 215454600 Contact Us For Availability
52
WCI 215162501 WCI 215162501 Contact Us For Availability
53
WCI 215809505 WCI 215809505 Contact Us For Availability
54
WCI 5303289027 WCI 5303289027 Contact Us For Availability
54
WCI 5303289292 WCI 5303289292 Contact Us For Availability
54
WCI 5303289311 WCI 5303289311 Contact Us For Availability
55
WCI 218720500 WCI 218720500 Contact Us For Availability
56
WCI 218769300 WCI 218769300 Contact Us For Availability
56
WCI 218434300 WCI 218434300 Contact Us For Availability
57
WCI 5303271653 WCI 5303271653 Contact Us For Availability
57
WCI 218247300 WCI 218247300 Contact Us For Availability
59
WCI 5303289031 WCI 5303289031 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
60
WCI 215501901 WCI 215501901 Contact Us For Availability
61
WCI 5303289032 WCI 5303289032 Contact Us For Availability
62
WCI 215048201 WCI 215048201 Contact Us For Availability
65
PIN-MOUNTING, PUSH-IN, PLASTIC WCI 5303001361 Contact Us For Availability
65
WCI 5303289301 WCI 5303289301 Contact Us For Availability
70
WCI 5303289041 WCI 5303289041 Contact Us For Availability
72
WCI 218359613 WCI 218359613 Contact Us For Availability
75
WCI 218465101 WCI 218465101 Contact Us For Availability
76
WCI 218225800 WCI 218225800 Contact Us For Availability
82
SCREW,PLASK H/L,6 X 3/8 WCI 215296300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
96
WCI 215192600 WCI 215192600 Contact Us For Availability
100A
WCI 218015501 WCI 218015501 Contact Us For Availability
100B
WCI 218015601 WCI 218015601 Contact Us For Availability
111
WCI 5303289024 WCI 5303289024 Contact Us For Availability
115
WCI 215011503 WCI 215011503 Contact Us For Availability
116
WCI 215011400 WCI 215011400 Contact Us For Availability
125
WCI 215334201 WCI 215334201 Contact Us For Availability
140
WCI 218518700 WCI 218518700 Contact Us For Availability
× ![]()
