Model Electrolux FPGS18TIPLL0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS

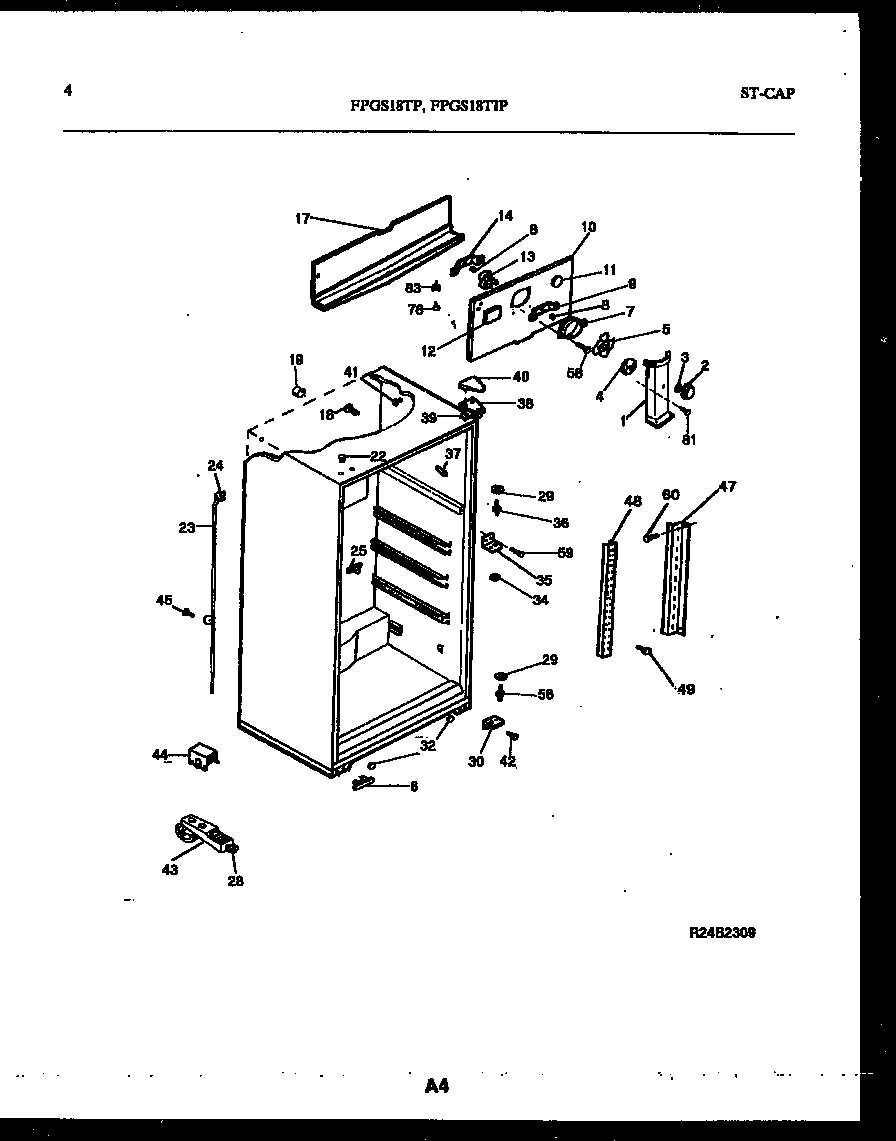

03 - CABINET PARTS

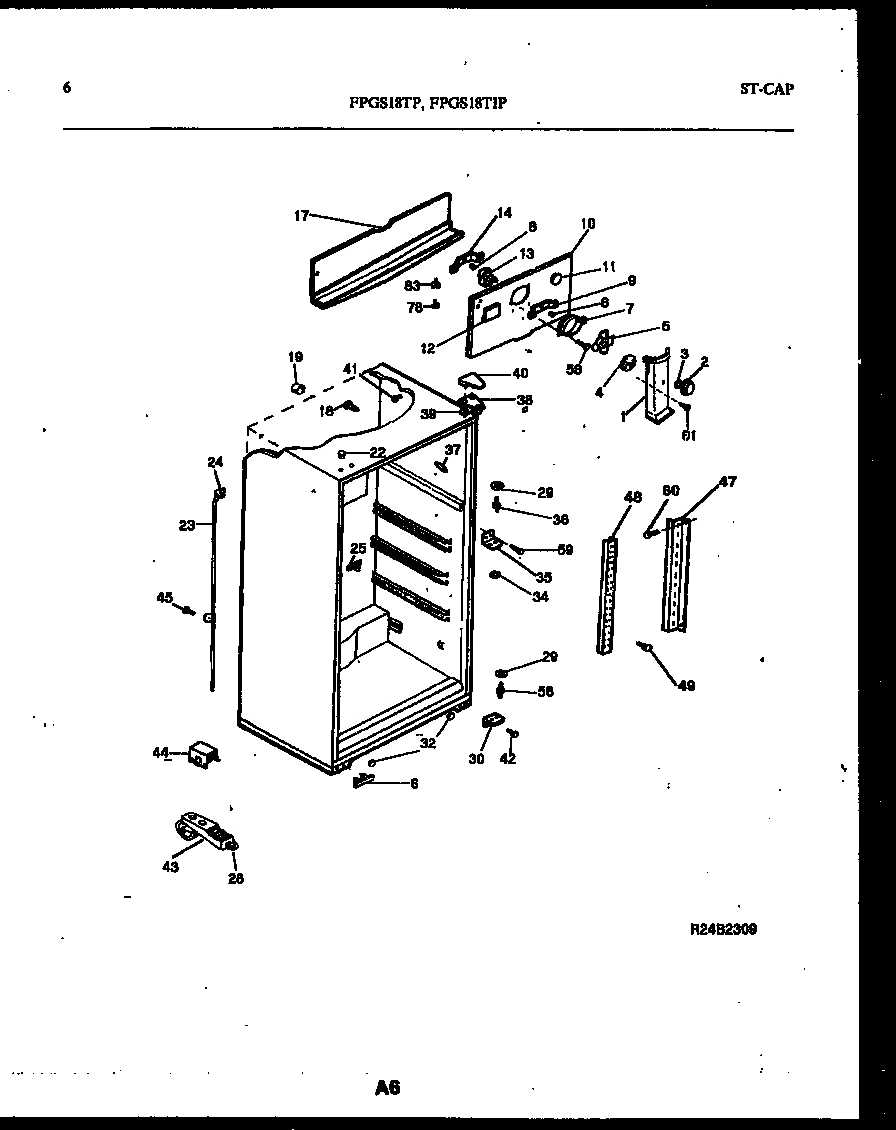

04 - CABINET PARTS

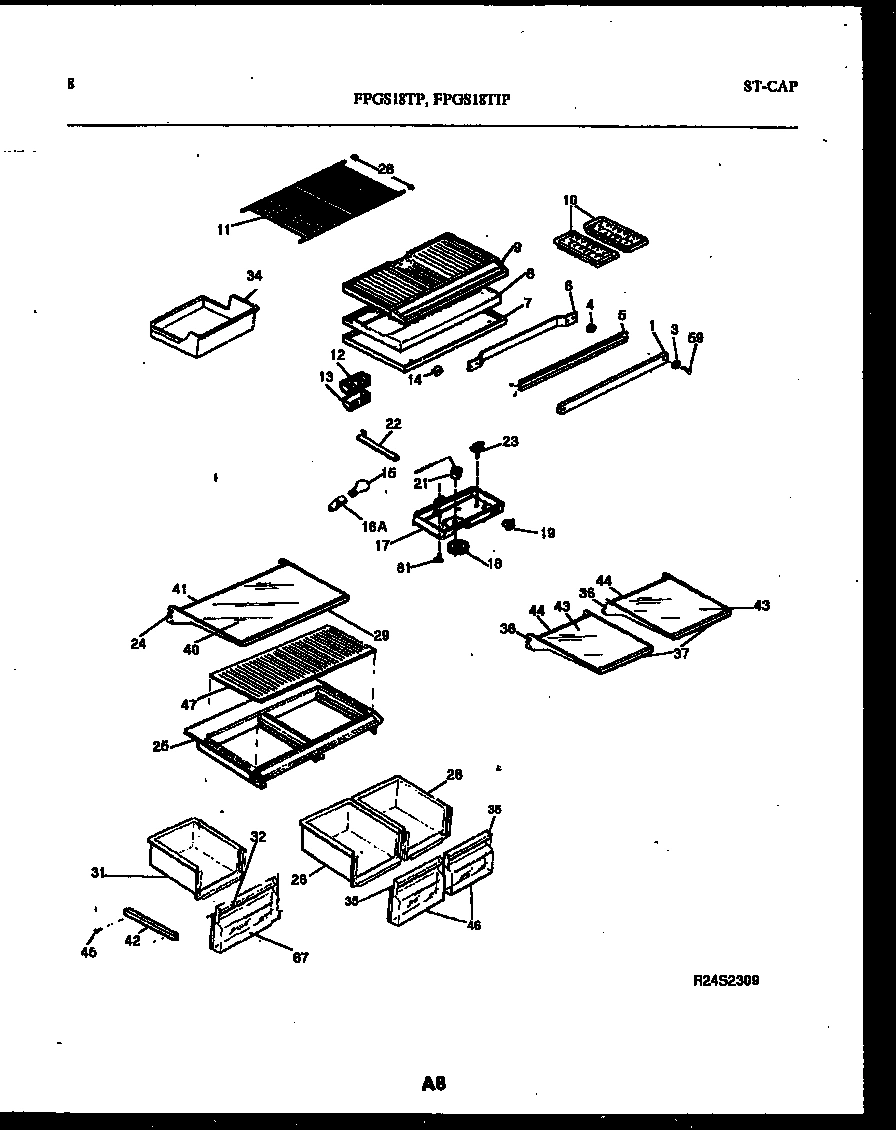

05 - SHELVES AND SUPPORTS

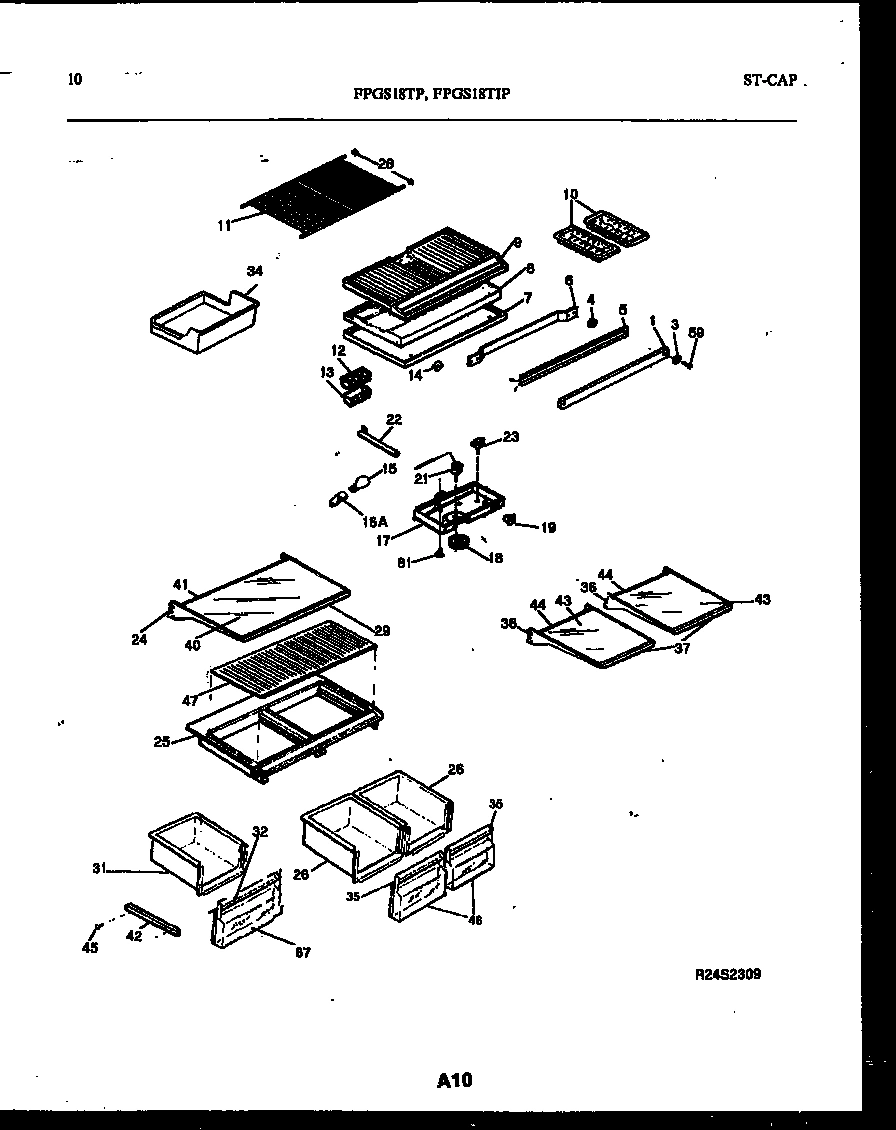

06 - SHELVES AND SUPPORTS

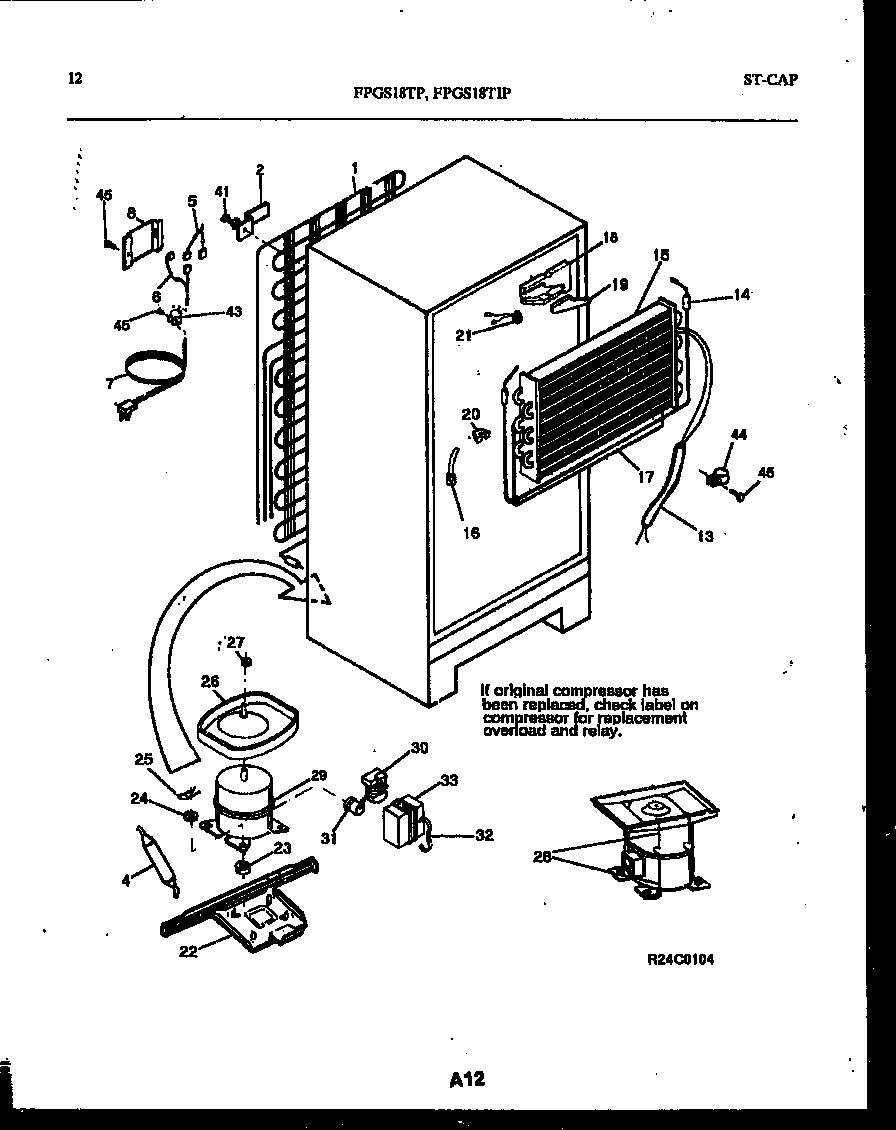

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
08 - ICE MAKER AND INSTALLATION PARTS

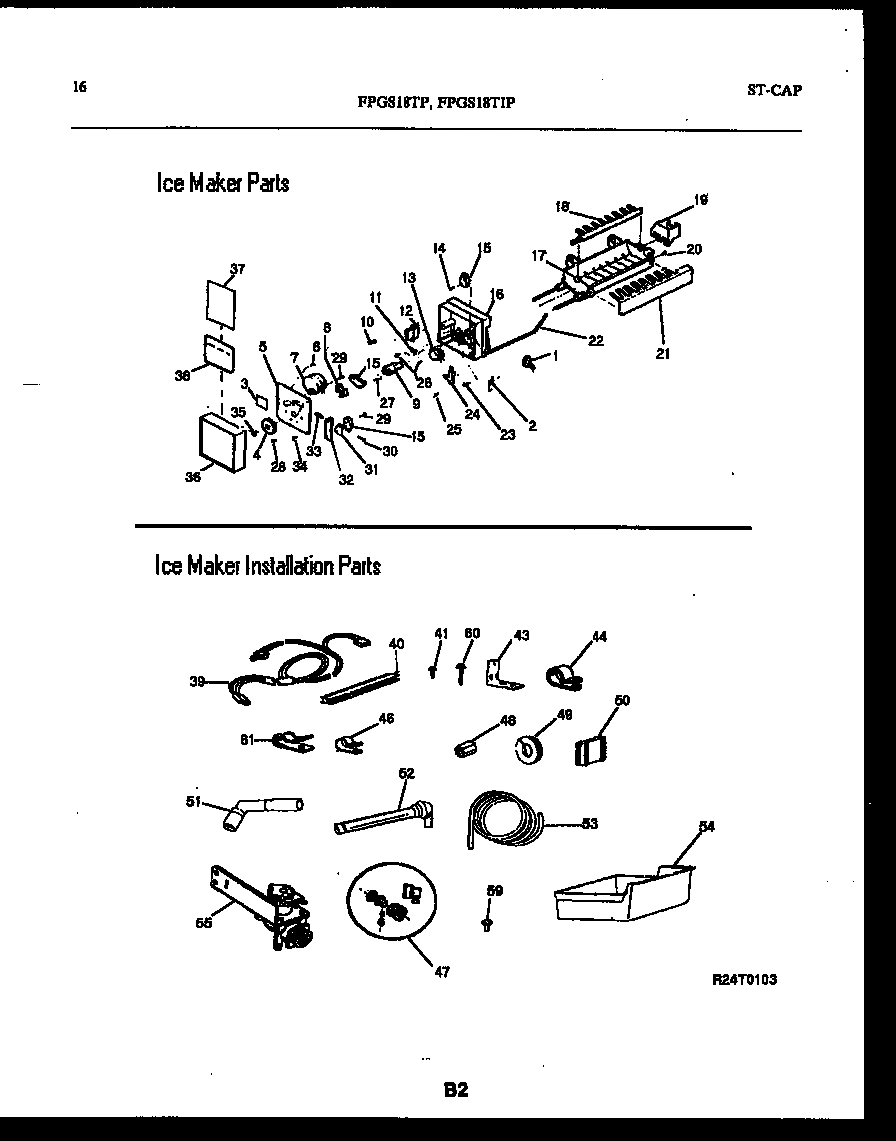

09 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPGS18TIPLL0 REFRIGERATOR
*61218
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*61222
WCI 5300170910 WCI 5300170910 Contact Us For Availability
*61222
LOCK, REAR TRIM WCI 5303211351 Contact Us For Availability
*61226
WCI 3916557 WCI 3916557 Contact Us For Availability
1
WCI 5303288238 WCI 5303288238 Contact Us For Availability
1
HARNESS-WIRING, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 3206450 WCI 3206450 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
SPACER-MULLION MTG, STEEL WCI 5303200464 Contact Us For Availability
5
WCI 5303207230 No Longer Available
5
WCI 3206445 WCI 3206445 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5303207229 No Longer Available
6
WCI 5303275252 WCI 5303275252 Contact Us For Availability
6
WCI 3206113 WCI 3206113 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3206454 WCI 3206454 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3206456 WCI 3206456 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
BOTTOM PANEL-FRZR WCI 3206455 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5303288242 WCI 5303288242 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215133500 WCI 215133500 Contact Us For Availability
13A
WCI 5303200590 WCI 5303200590 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
WCI 3206452 WCI 3206452 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 3206390 WCI 3206390 Contact Us For Availability
17
WCI 5303207493 WCI 5303207493 Contact Us For Availability
17A
WCI 08016567 WCI 08016567 Contact Us For Availability
18
KNOB-TEMP CONTROL WCI 3206391 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303207249 WCI 5303207249 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 3206126 WCI 3206126 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303269702 WCI 5303269702 Contact Us For Availability
23
SCREW - SUP / MOLD BODY, 8-18 X 1, (4) WCI 3206334 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215069021 WCI 215069021 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5303207340 WCI 5303207340 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303208431 WCI 5303208431 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
28A
WCI 5308011326 WCI 5308011326 Contact Us For Availability
29
TRIM-FULL SHELF, FRONT WCI 215217504 Contact Us For Availability
29
WCI 5303916411 WCI 5303916411 Contact Us For Availability
29
SCREW-MTR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 5303270406 WCI 5303270406 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 5303208419 WCI 5303208419 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 No Longer Available
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
TRIM-CRISPER PAN, (2) WCI 3206440 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 215069020 WCI 215069020 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
37
TRIM-HALF SHELF, MEAT KPR SHELF, (2), FRONT WCI 215217503 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37A
WCI 5303209263 WCI 5303209263 Contact Us For Availability
38
WCI 3206100 WCI 3206100 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
WCI 3206105 WCI 3206105 Contact Us For Availability
40
WCI 5303282446 WCI 5303282446 Contact Us For Availability
41
WCI 5303282450 WCI 5303282450 Contact Us For Availability
42
HANGER-MEAT PAN, RH WCI 5303282331 Contact Us For Availability
42A
HANGER-MEAT PAN, LH (NON-ILLUSTRATED) WCI 5303282330 Contact Us For Availability
43
WCI 5300188673 WCI 5300188673 Contact Us For Availability
43
WCI 5303282445 WCI 5303282445 Contact Us For Availability
43A
WCI 5308009760 WCI 5308009760 Contact Us For Availability
43B
WCI 5308009790 WCI 5308009790 Contact Us For Availability
44
WCI 5303283014 WCI 5303283014 Contact Us For Availability
44
WCI 5303282451 WCI 5303282451 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
WCI 5303288314 WCI 5303288314 Contact Us For Availability
46
WCI 5303288315 WCI 5303288315 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 3206202 WCI 3206202 Contact Us For Availability
47
WCI 5303275649 WCI 5303275649 Contact Us For Availability
48
WCI 3916030 WCI 3916030 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 5308016568 WCI 5308016568 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-WATER WCI 3206356 Contact Us For Availability
55A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
56
PIN-LOWER HINGE WCI 5303001321 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
67
WCI 5303288316 WCI 5303288316 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
