Model Electrolux FPES19TIPH0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - DOOR PARTS

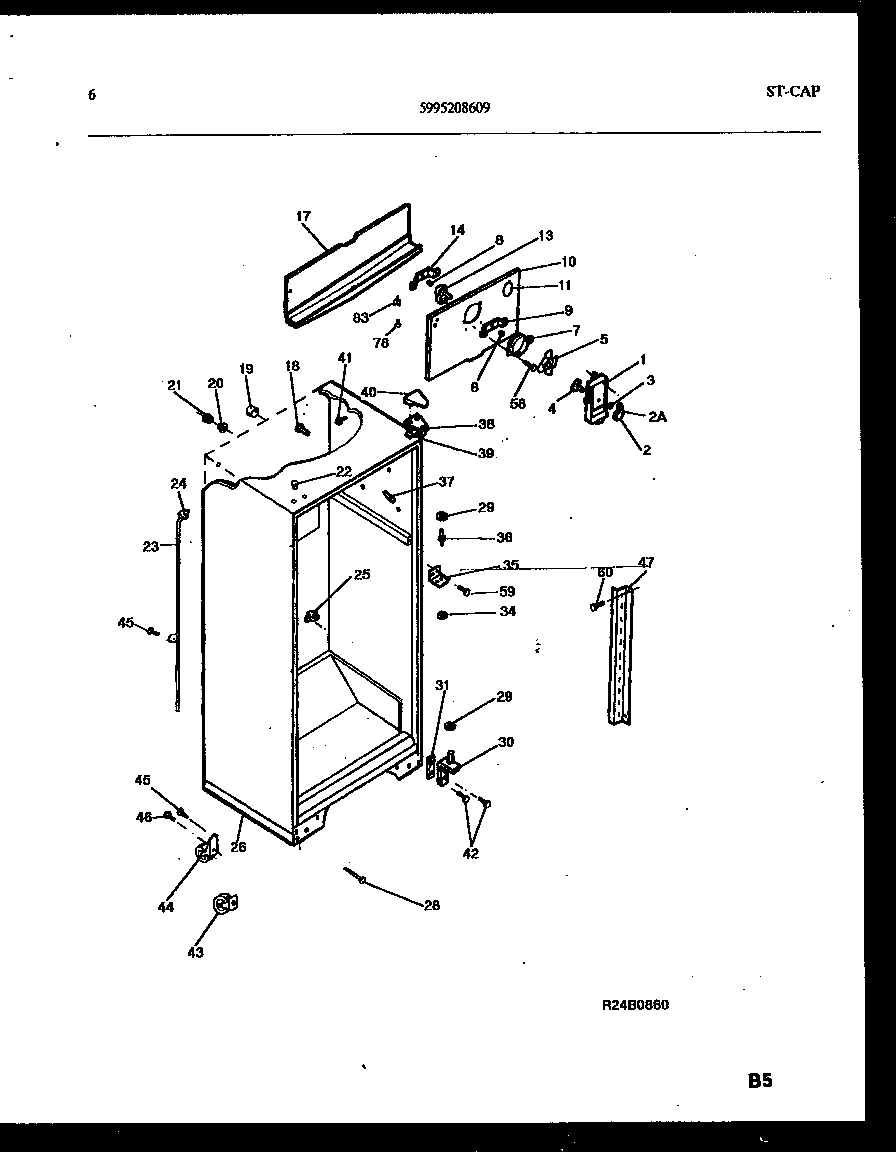

04 - CABINET PARTS

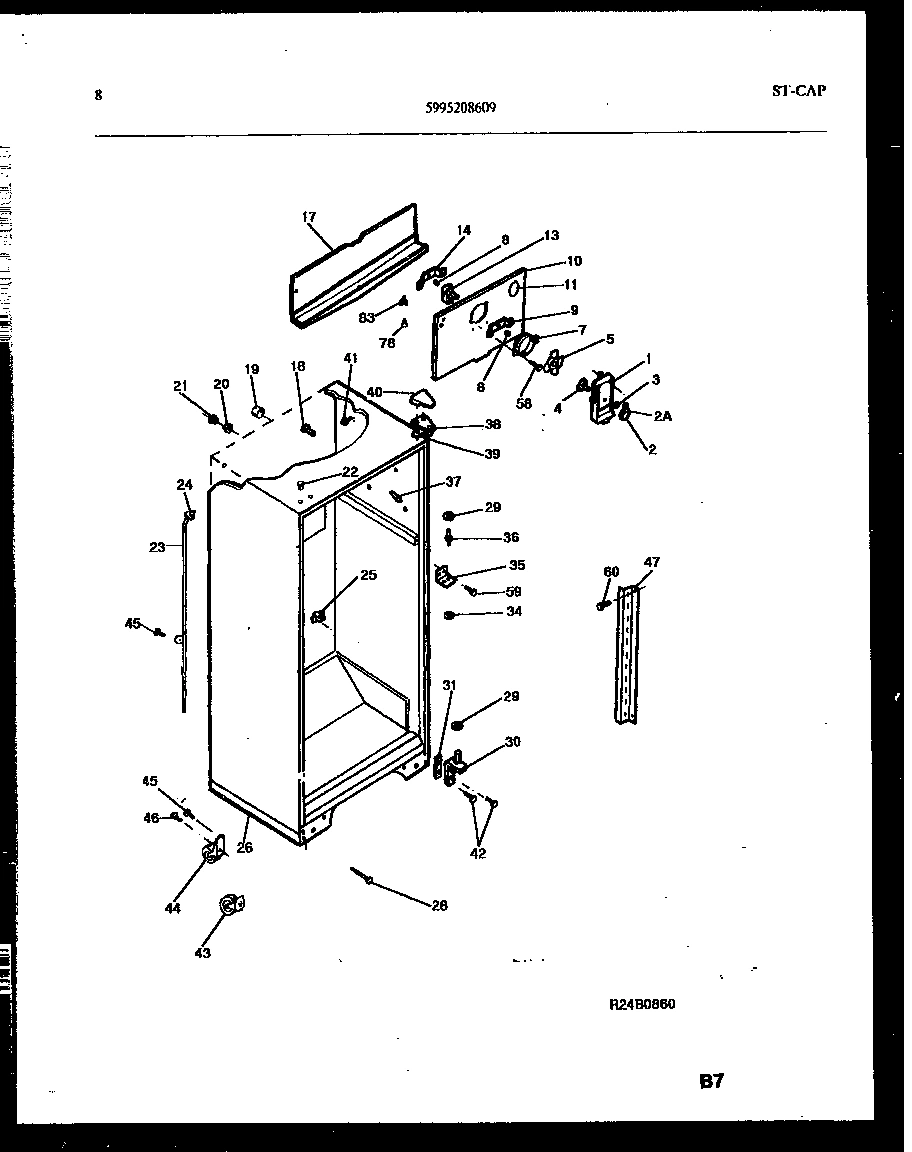

05 - CABINET PARTS

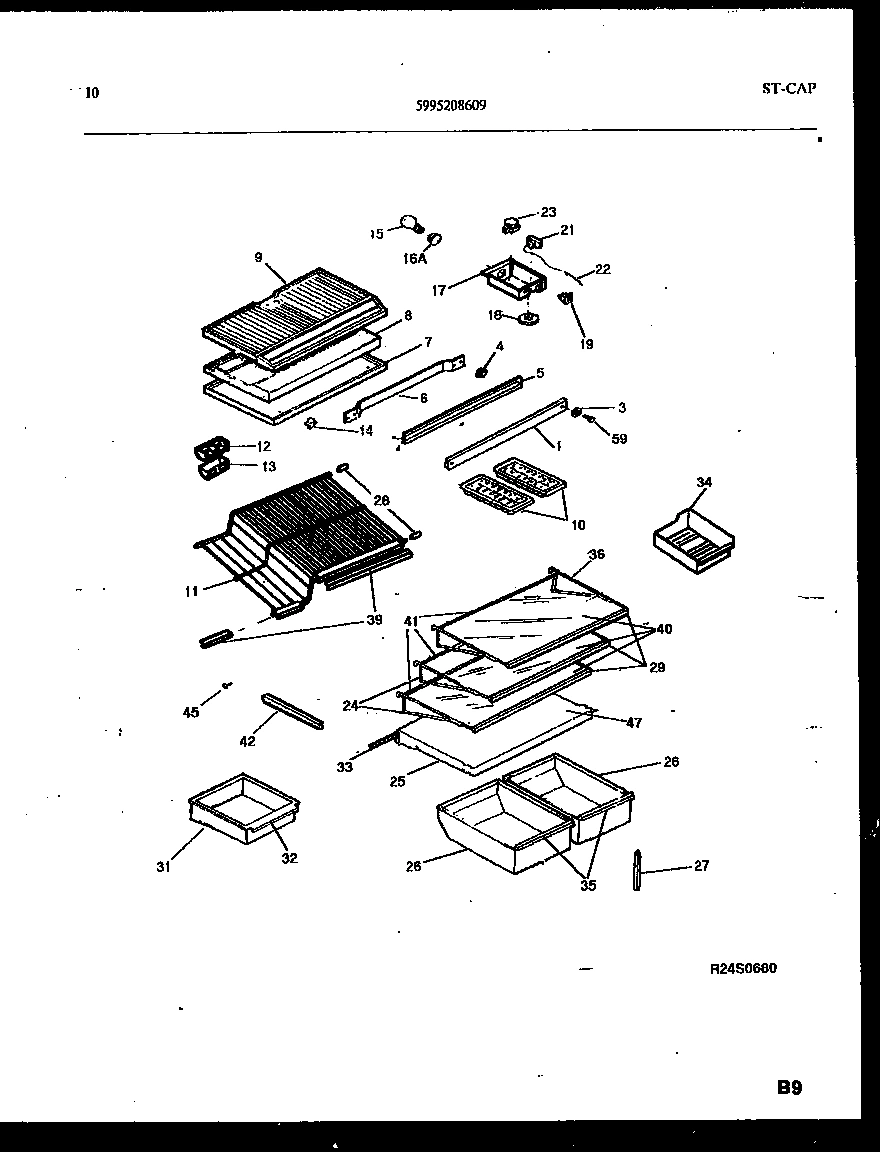

06 - SHELVES AND SUPPORTS

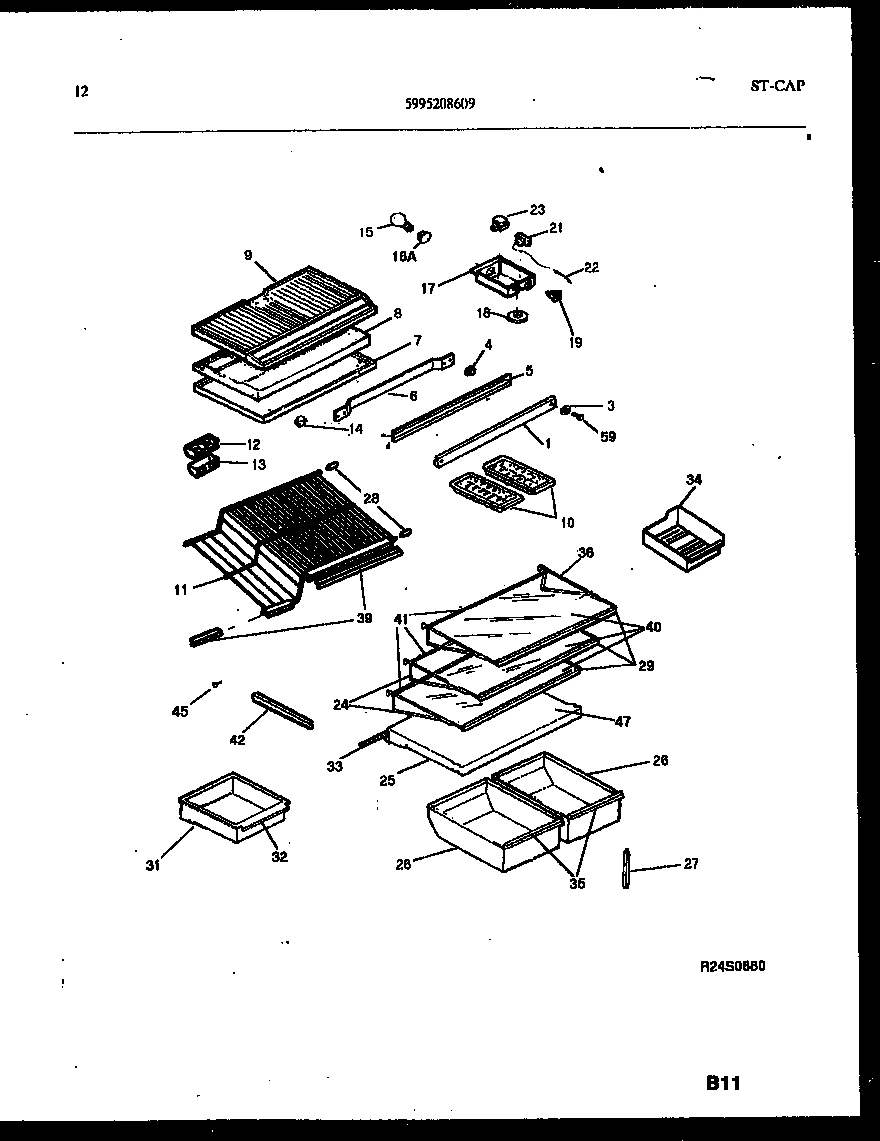

07 - SHELVES AND SUPPORTS

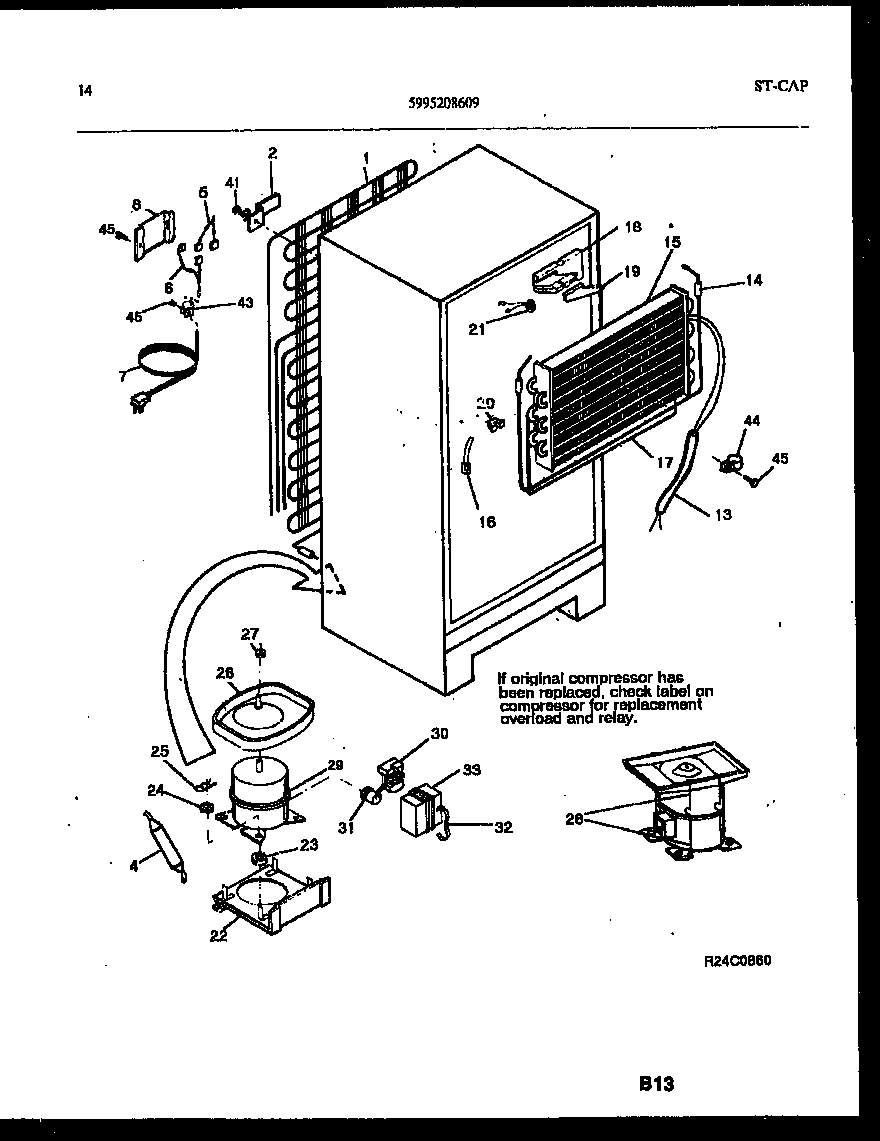

08 - SYSTEM AND AUTOMATIC DEFROST PARTS

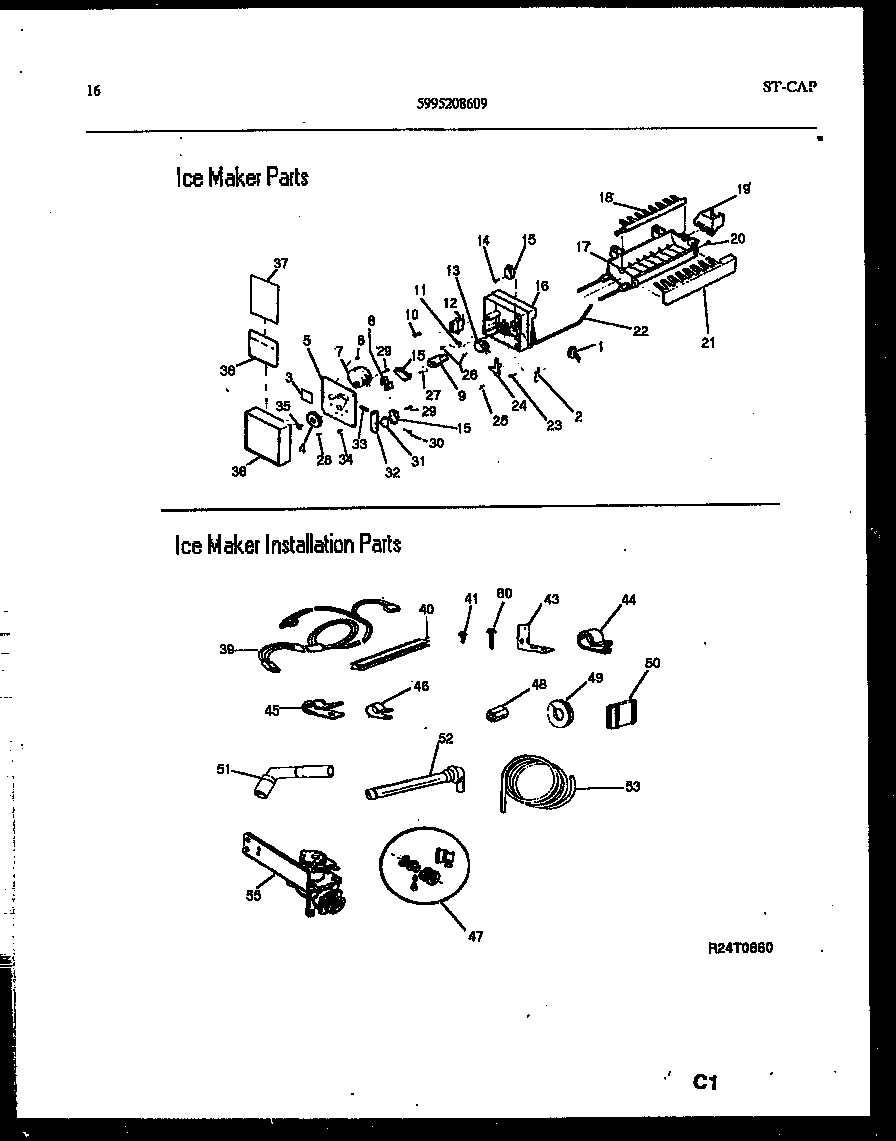

09 - ICE MAKER AND INSTALLATION PARTS

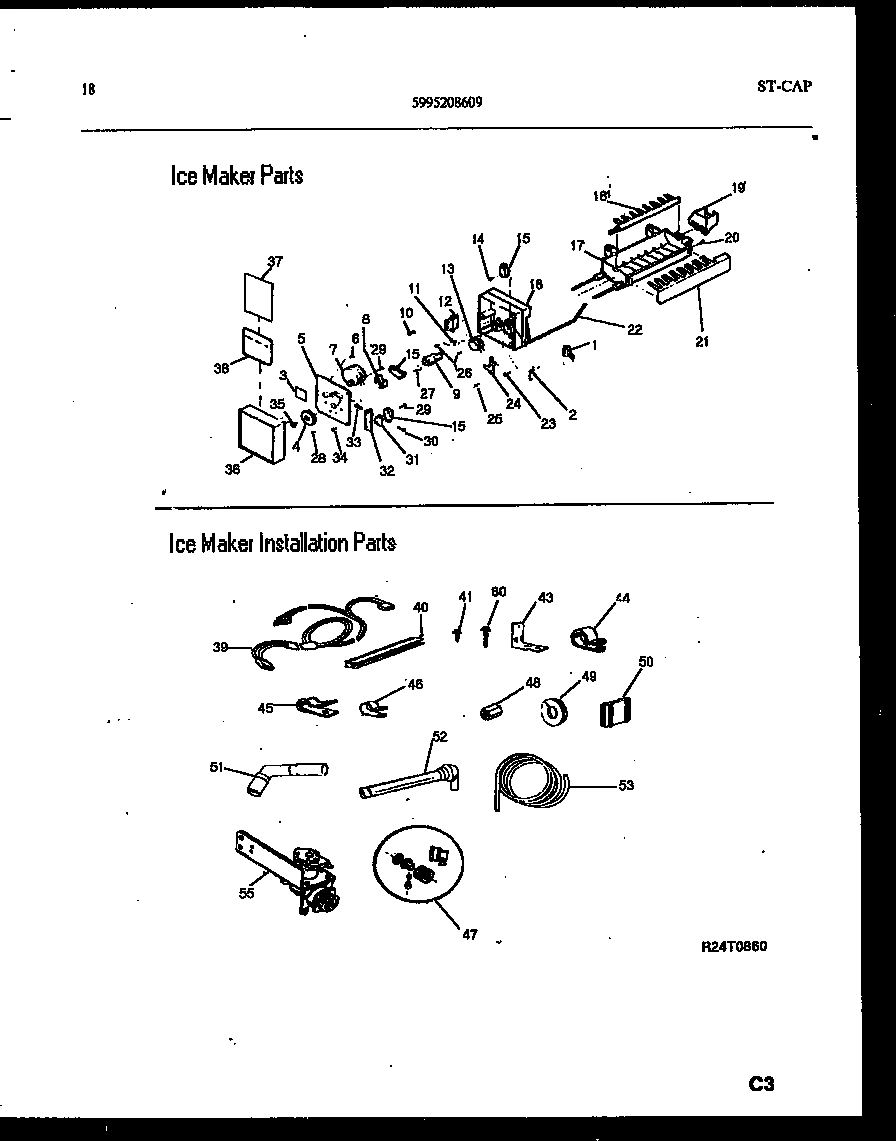

10 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPES19TIPH0 REFRIGERATOR
*52605
BUTTON PLUG-LINER WCI 5308016571 Contact Us For Availability
*52609
CLIP-CANTILEVER SHLF WCI 5300170910 Contact Us For Availability
*52615
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
*52620
WCI 5303001191 WCI 5303001191 Contact Us For Availability
1
WIRING HARNESS, ICE MAKER WCI 3206349 Contact Us For Availability
1
WCI 5303200368 WCI 5303200368 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308009793 WCI 5308009793 Contact Us For Availability
2
BRACKET, COND MTG WCI 5303001342 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WCI 08009823 WCI 08009823 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
WCI 5303200464 WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WIRING HARNESS,CONTROL/DIVIDER WCI 3018900 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3018993 WCI 3018993 Contact Us For Availability
7
CORD, ELEC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL, FREEZER WCI 5303211427 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 5308009771 WCI 5308009771 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
10A
NUT, ``U`` TYPE, NO. 8(A), EVAP COVER, (2) (N WCI 5303209814 Contact Us For Availability
11
SHELF-FREEZER-STEP WCI 3018979 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12B
WCI 5303200590 WCI 5303200590 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
14
SCREW-SW TO SUPPORT, 4-24 X 3/4, (2) WCI 3206323 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
17
BOX, CONTROL WCI 3018895 Contact Us For Availability
18
SUPPORT, EVAP COVER, (2) WCI 5308000097 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
SWITCH, ENERGY SAVER WCI 5303018896 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
BUTTON PLUG, WHEAT, UPR HINGE HOLES WCI 5303001678 Contact Us For Availability
22
HOUSING, CONTRL CAP TUBE WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
DRAIN TUBE, W/ SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
FRAME-FULL SHELF, CANTILEVER, (2) WCI 5303210022 Contact Us For Availability
24
WASHER-COMPR MTG (4) WCI 5308003633 Contact Us For Availability
24
LEVER-ARM WCI 3206334 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER-CRISPER PAN WCI 5303018983 Contact Us For Availability
25
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVER/SUPT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
WCI 3018984 WCI 3018984 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
26
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SUPT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
27
SUPPORT, CRISPER CVR, ADJUSTABLE WCI 5303206507 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-FULL SHELF, SNAP-ON WCI 5303272550 Contact Us For Availability
29
COMPRESSOR-W/ ELEC, SERVICE WCI 5303916004 Contact Us For Availability
29
SCREW-MOTOR & SW/PLATE, 4-40 X 3/4, (4) WCI 3206340 Contact Us For Availability
29A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
30A
WCI 5303212597 WCI 5303212597 Contact Us For Availability
30B
WCI 5303212596 WCI 5303212596 Contact Us For Availability
31
SHIM-LWR HINGE BRKT WCI 5303212488 Contact Us For Availability
31
PAN, MEAT WCI 3018987 Contact Us For Availability
31
WCI 3201680 WCI 3201680 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 5303272530 WCI 5303272530 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
GASKET - CRISPER COVER WCI 5303200329 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 5308000186 No Longer Available
34
SCREW-MTG PLATE/SUPT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
35
TRIM, CRISPER PAN, LH WCI 5303272523 Contact Us For Availability
35
TRIM, CRISPER PAN, RH WCI 5303272529 Contact Us For Availability
35
SCREW-GEAR/CAM, 6-20 X .437 WCI 3206346 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
FRAME-MEAT KPR SHELF, CANTILEVER WCI 5303210990 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
LABEL-ICE MAKER (NON-ILLUSTRATED) WCI 08005251 Contact Us For Availability
37
WCI 5303202338 WCI 5303202338 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, SMALL WCI 5303272521 Contact Us For Availability
39
TRIM-FRZR SHELF, LARGE WCI 5303272524 Contact Us For Availability
39
WIRING HARNESS,ICE MAKER WCI 3206358 Contact Us For Availability
40
COVER, UPPER HINGE, WHEAT WCI 5303001665 Contact Us For Availability
40
SHELF-GLASS, FULL SHELF WCI 5303211964 Contact Us For Availability
40A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
41
WCI 5303211962 WCI 5303211962 Contact Us For Availability
41A
LOCK-REAR TRIM, (2) (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
42
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
42A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
45
WCI 08014528 WCI 08014528 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SUPPLY WCI 3206360 Contact Us For Availability
47
WCI 5308000302 WCI 5308000302 Contact Us For Availability
47
INSERT-CRISPER COVER, GLASS WCI 5303211968 Contact Us For Availability
48
NUT-INLET/WTR VALVE, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
51
EXTENSION-INLET TUBE, S X S & SD ONLY WCI 5308000239 Contact Us For Availability
55
VALVE-SOLENOID/WATER WCI 3206356 Contact Us For Availability
55A
CAP-WATER VALVE (NON-ILLUSTRATED) WCI 5303015102 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
