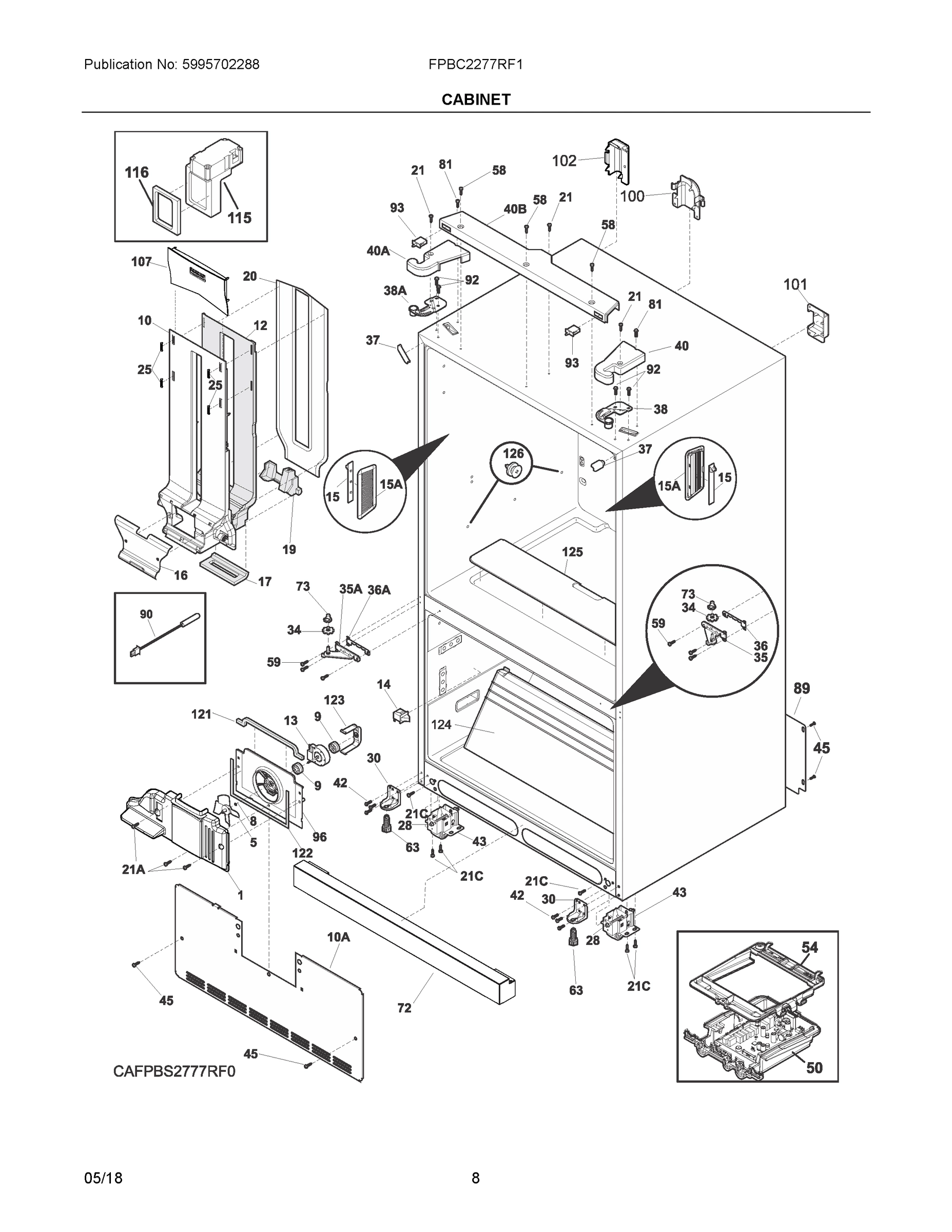

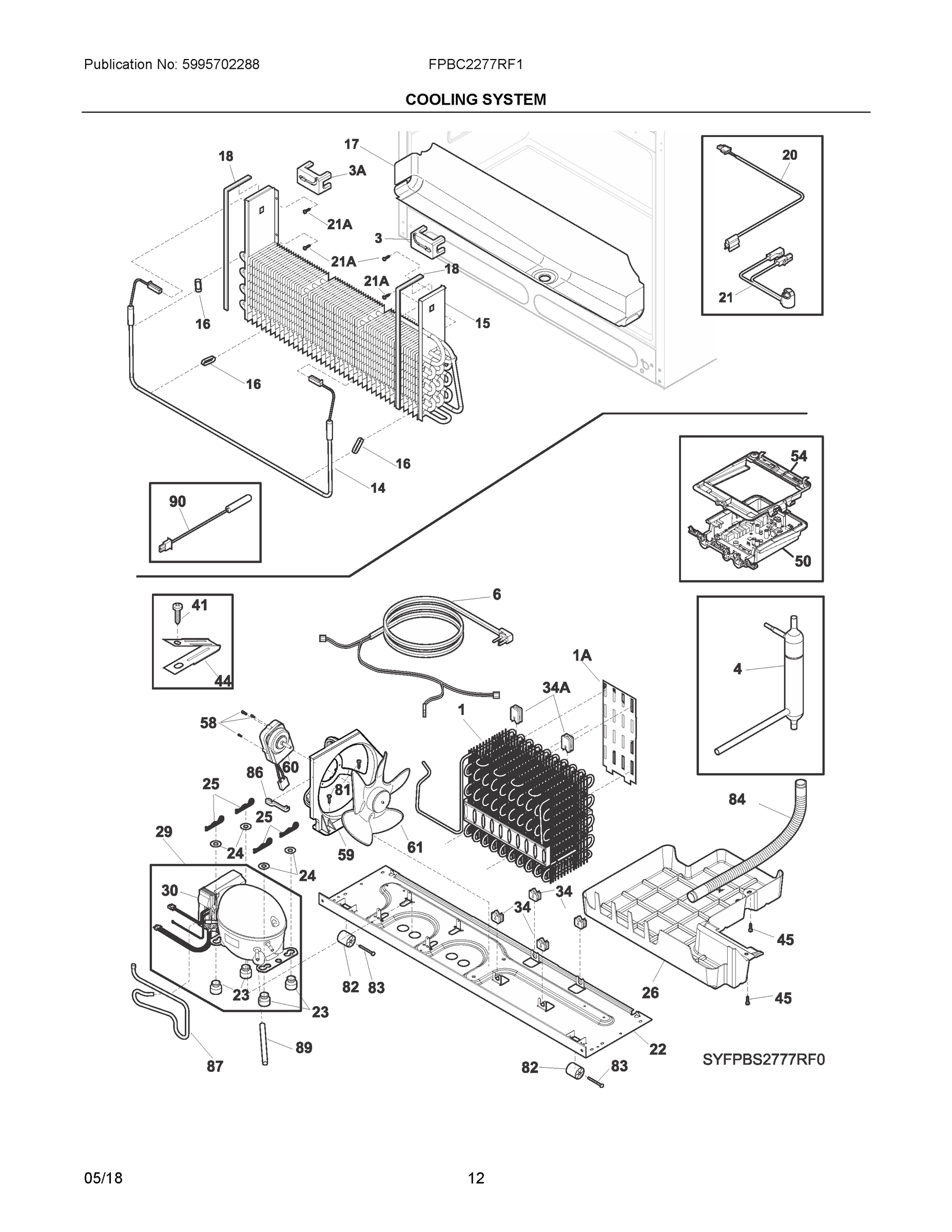

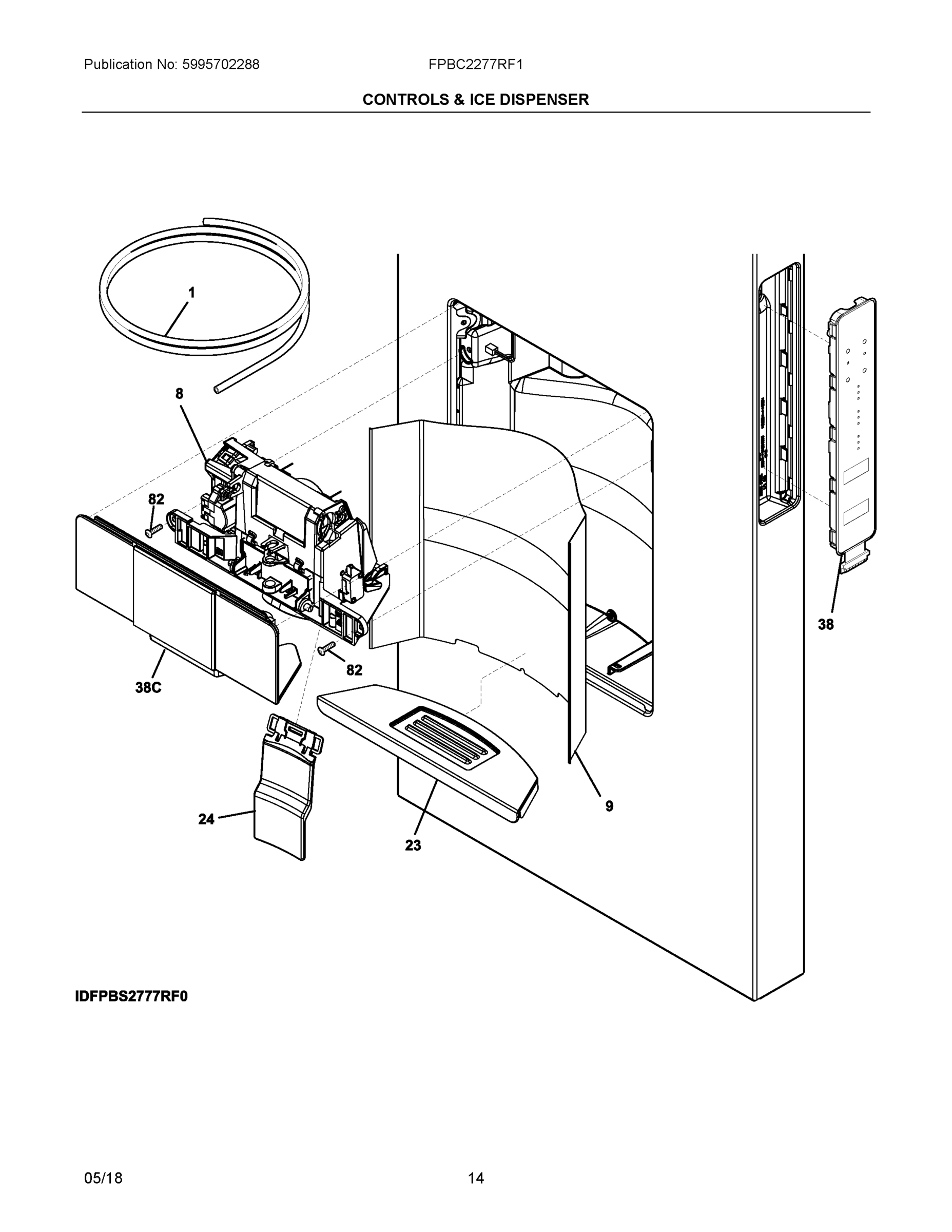

Model Electrolux FPBC2277RF1 REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts &amp; Diagrams

1

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $102.58

1

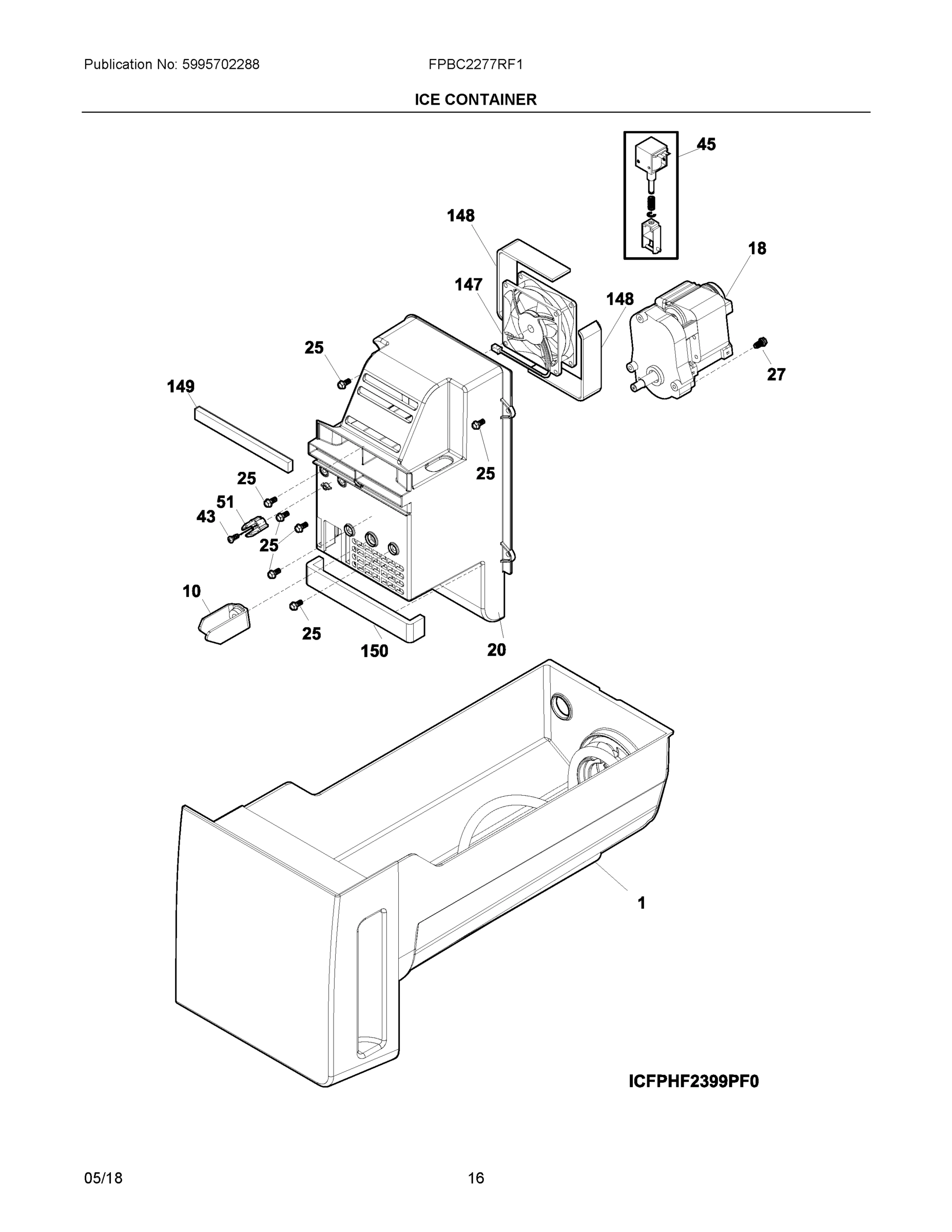

242100111 Frigidaire Refrigerator Ice Contain Backorder WCI 242100111 $200.79

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $64.27

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $77.20

2

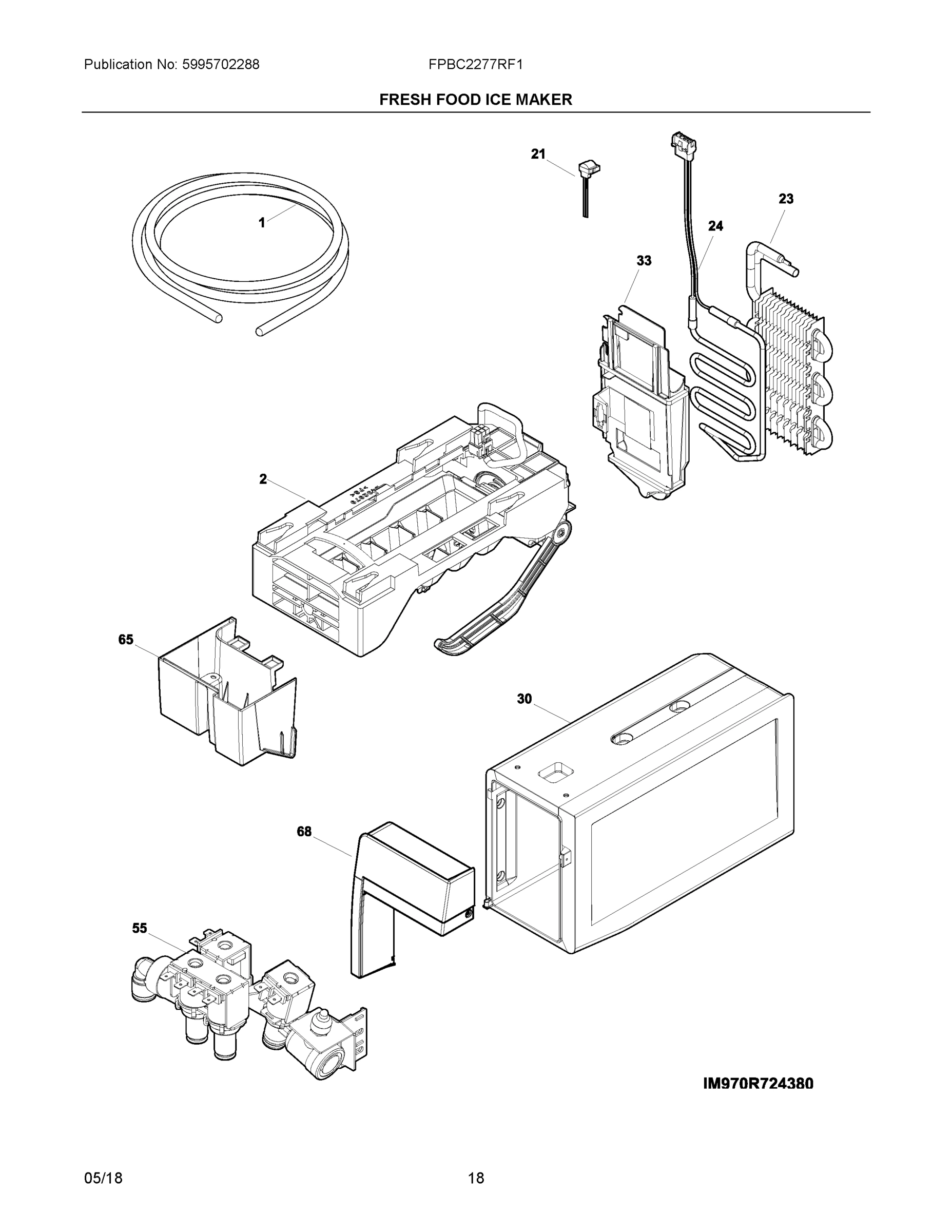

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $105.27

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $9.48

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $44.94

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $28.28

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

5303918773 Frigidaire Refrigerator Dispenser In Stock WCI 5303918773 $210.57

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $46.05

9

809089801 Frigidaire Refrigerator Liner Backorder WCI 809089801 $152.53

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $45.46

10

COVER-AIR DUCT, SILVER WCI 242072003 Contact Us For Availability

10A

241860402 Frigidaire Refrigerator Evaporator Backorder WCI 241860402 $102.63

11

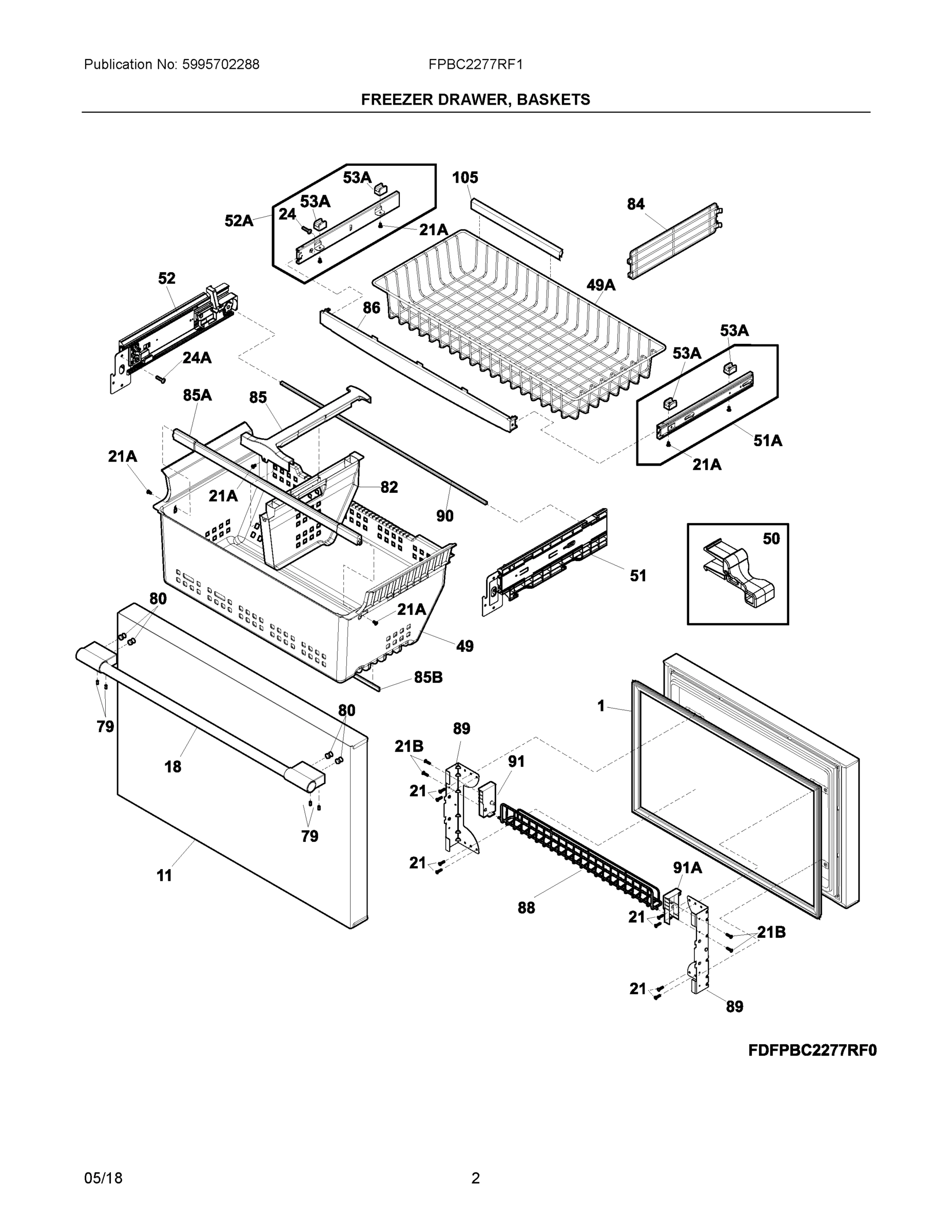

DRAWER, STAINLESS, FREEZER WCI 241987939 Contact Us For Availability

11

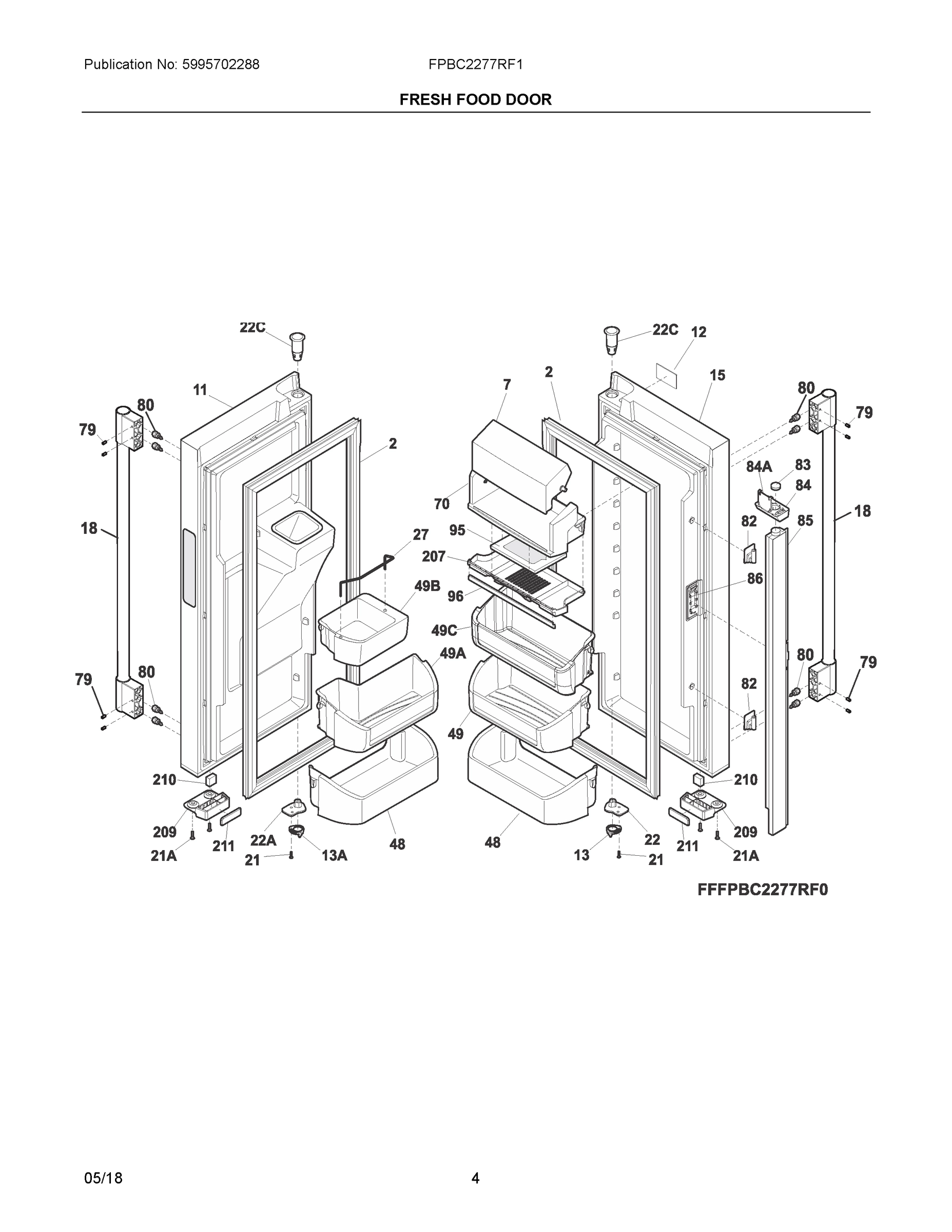

DOOR-REFR, STAINLESS, LH WCI 242185653 Contact Us For Availability

12

809108704 Frigidaire Refrigerator Badge Backorder WCI 809108704 $15.96

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $14.42

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $100.27

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $14.42

14

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $31.61

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $99.82

15

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $50.92

15

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $198.01

15

DOOR-REFR, STAINLESS, RH WCI 242185651 Contact Us For Availability

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $21.05

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $37.70

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.81

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $85.42

17

241928201 Frigidaire Refrigerator Air Duct Ga Backorder WCI 241928201 $13.88

18

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $143.97

18

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $13.86

18

5304536767 Frigidaire Handle Assembly Backorder WCI 5304536767 $95.72

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $30.87

20

242072201 Frigidaire Refrigerator Cover Backorder WCI 242072201 $75.96

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $62.24

20

808137001 Frigidaire Refrigerator Thermistor In Stock WCI 808137001 $25.49

241690602 Frigidaire Refrigerator Screw In Stock WCI 241690602 $7.35

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $12.20

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $12.18

5303918810 Frigidaire Refrigerator French Doo In Stock WCI 5303918810 $32.17

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $30.50

21A

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl In Stock WCI 242075602 $16.15

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $33.26

23

242094603 Frigidaire Refrigerator Evaporator Backorder WCI 242094603 $89.88

23

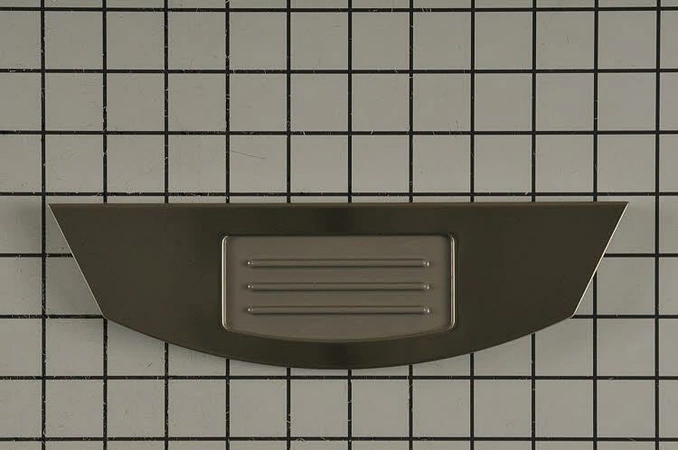

5304501179 Frigidaire Sump Assembly Backorder WCI 5304501179 $124.79

241812301 Frigidaire Refrigerator Compressor Backorder WCI 241812301 $9.44

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $77.07

5304501181 Frigidaire Refrigerator Actuator Backorder WCI 5304501181 $73.76

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $6.61

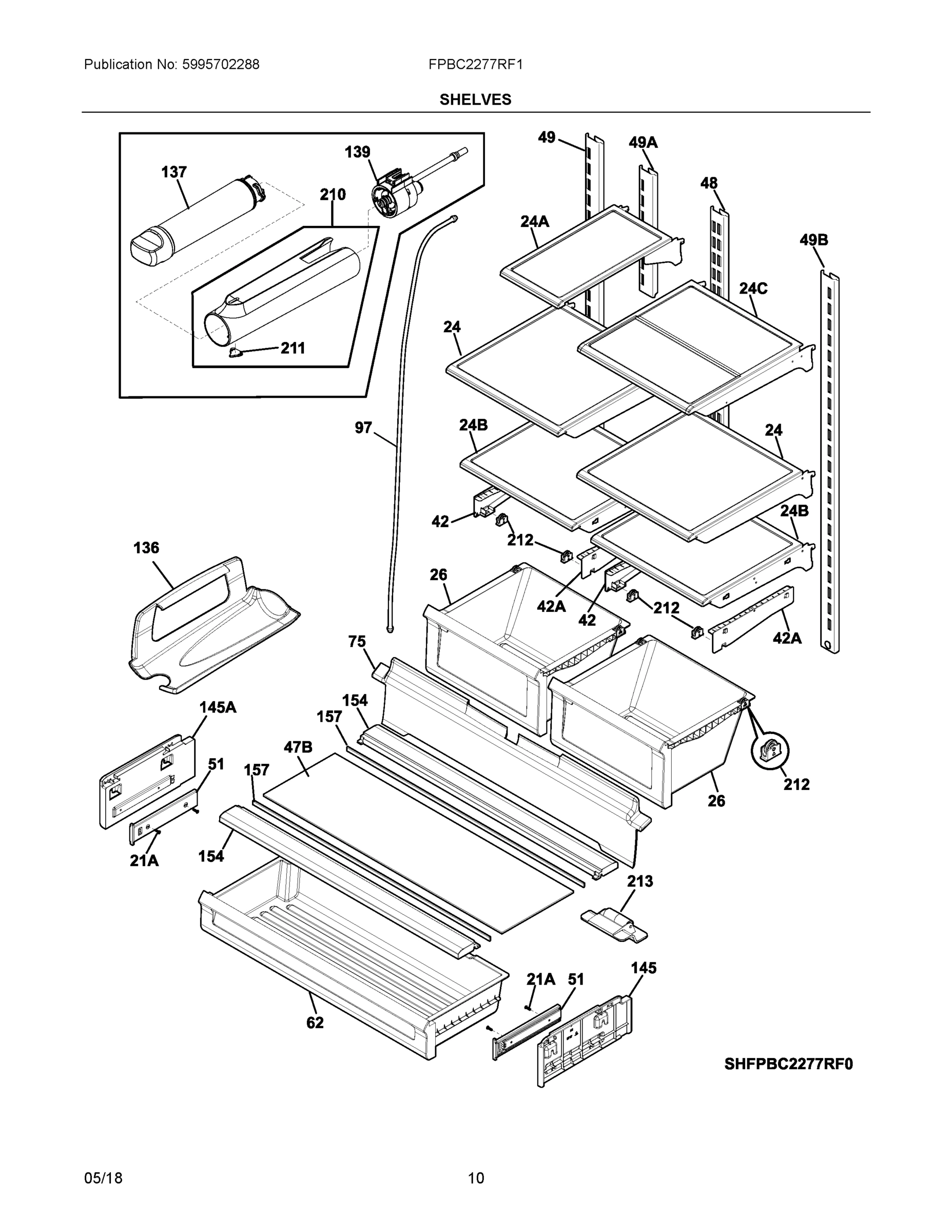

SHELF, SLIDING, CANTILEVER, "SPILL-SAFE" WCI 242068704 Contact Us For Availability

24A

240383412 Frigidaire Refrigerator Screw Backorder WCI 240383412 $8.87

24A

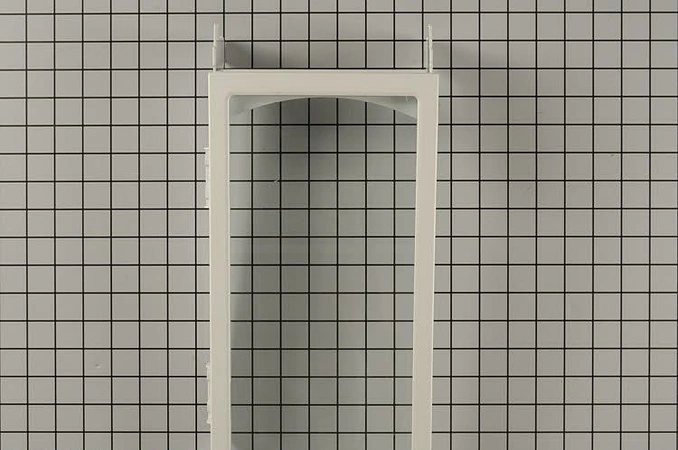

242200502 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242200502 $147.54

24B

242068706 Frigidaire Refrigerator Shelf Backorder WCI 242068706 $137.21

24C

242235502 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242235502 $176.93

25

242037702 Frigidaire Refrigerator Spring Clip Backorder WCI 242037702 $6.63

26

241920608 Frigidaire Defrost Pan Backorder WCI 241920608 $108.13

26

PAN-CRISPER, (2) WCI 241801813 Contact Us For Availability

27

241752702 Frigidaire Refrigerator Retainer Backorder WCI 241752702 $28.82

30

241778701 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778701 $19.43

30

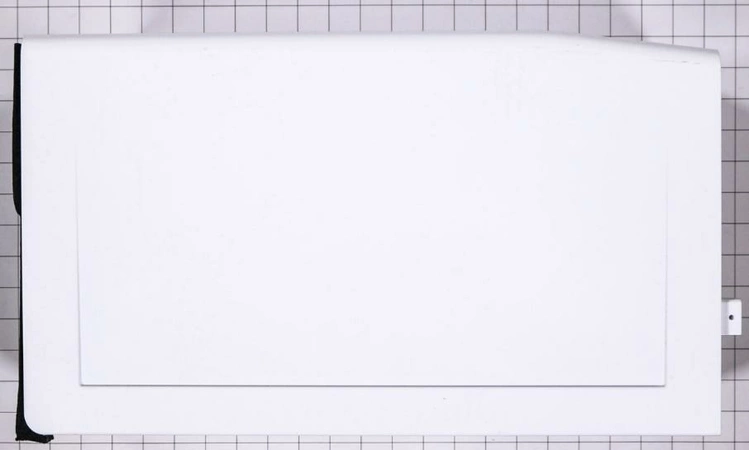

242100402 Frigidaire Refrigerator Housing Ass Backorder WCI 242100402 $117.03

30

5304512686 Frigidaire Refrigerator Inverter K In Stock WCI 5304512686 $242.07

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse Backorder WCI 241868301 $24.38

35

241767211 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767211 $74.87

35A

241767212 Frigidaire Refrigerator Lower Hinge Backorder WCI 241767212 $75.96

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $38.80

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $17.18

37

242161206 Frigidaire Refrigerator Cabinet Cor Backorder WCI 242161206 $6.86

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.57

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $50.46

38C

809091203 Frigidaire Refrigerator Control Ass Backorder WCI 809091203 $266.58

40

5304504483 Frigidaire Refrigerator Gray Upper Backorder WCI 5304504483 $48.25

40A

5304504482 Frigidaire Refrigerator Upper Left Backorder WCI 5304504482 $48.79

40B

241862405 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862405 $82.07

41

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $10.50

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $11.07

42

242079401 Frigidaire Refrigerator Left Side C In Stock WCI 242079401 $24.38

42A

242079402 Frigidaire Refrigerator Support Backorder WCI 242079402 $24.95

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $6.61

47B

242082304 Frigidaire Refrigerator Glass Backorder WCI 242082304 $118.14

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $72.09

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $62.69

49

242037205 Frigidaire Refrigerator Door Bin Backorder WCI 242037205 $79.31

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $52.68

49

5304526200 Frigidaire Refrigerator Basket Backorder WCI 5304526200 $119.15

49A

242037202 Frigidaire Refrigerator Door Bin Backorder WCI 242037202 $61.01

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $34.37

49A

BASKET-FRZR, UPPER WCI 241780826 Contact Us For Availability

49B

242080201 Frigidaire Refrigerator Door Bin Backorder WCI 242080201 $42.16

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $61.01

49C

242079801 Frigidaire Refrigerator Bin Backorder WCI 242079801 $65.43

50

5304501271 Frigidaire Shelf Clip In Stock WCI 5304501271 $12.18

50

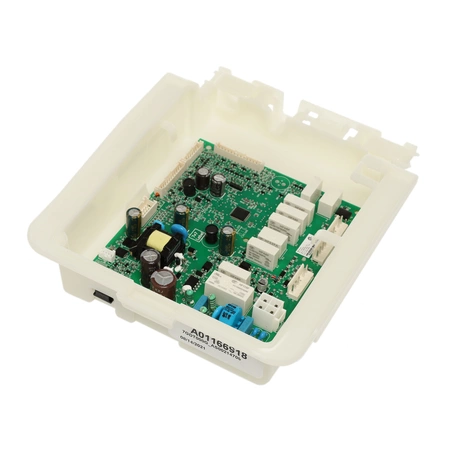

5304502625 Frigidaire Refrigerator Assembly B Backorder WCI 5304502625 $253.41

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $16.07

51

242120001 Frigidaire Refrigerator Slide Backorder WCI 242120001 $129.80

51

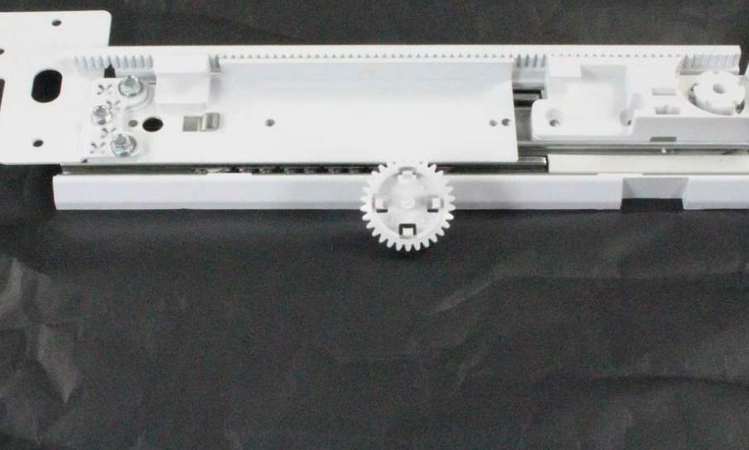

5303918725 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918725 $218.61

51A

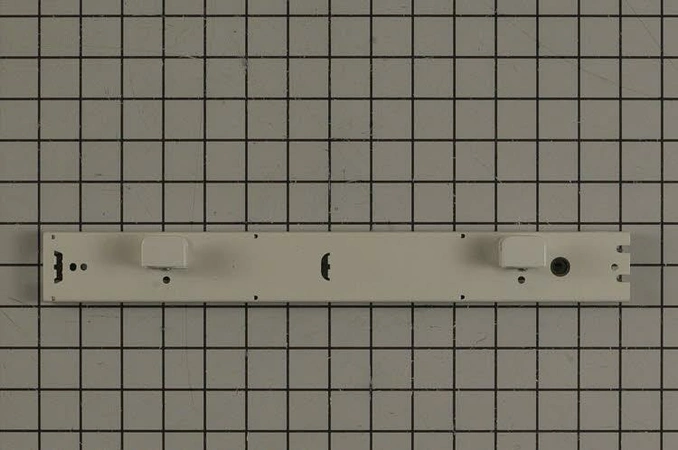

241894227 Frigidaire Refrigerator Slide Assem Backorder WCI 241894227 $95.43

52

5303918724 Frigidaire Refrigerator Slide Asse Backorder WCI 5303918724 $235.68

52A

241894228 Frigidaire Refrigerator Slide Assem Backorder WCI 241894228 $94.84

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $9.42

54

807854301 Frigidaire Refrigerator Support Backorder WCI 807854301 $35.52

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $158.07

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

59

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $114.51

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $16.05

62

242096815 Frigidaire Refrigerator Deli Pan Backorder WCI 242096815 $136.99

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $18.27

65

808462601 Frigidaire Refrigerator Cover Backorder WCI 808462601 $28.82

68

242095002 Frigidaire Refrigerator Cover Backorder WCI 242095002 $78.20

70

242053001 Frigidaire Refrigerator Bracket Backorder WCI 242053001 $39.89

72

5304501186 Frigidaire Refrigerator Toe Grille Backorder WCI 5304501186 $383.91

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $16.64

74

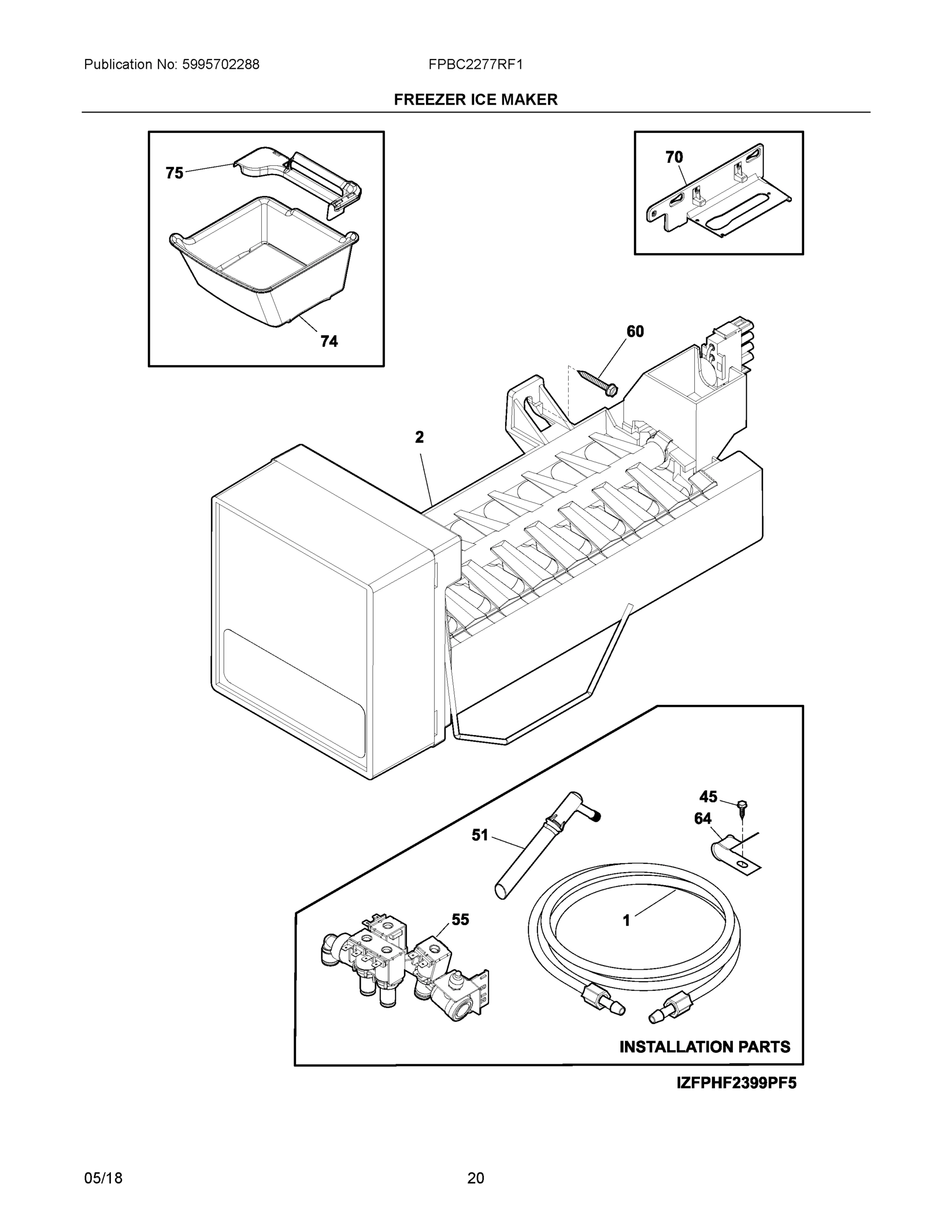

242128001 Frigidaire Ice Container Backorder WCI 242128001 $142.56

75

242240101 Frigidaire Refrigerator Shield Backorder WCI 242240101 $62.12

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $10.50

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $10.55

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $16.64

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $16.07

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $56.55

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84

241780907 Frigidaire Refrigerator Divider Backorder WCI 241780907 $64.91

84

241830904 Frigidaire Refrigerator Drain Tube In Stock WCI 241830904 $18.29

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $26.62

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $20.51

85

241778811 Frigidaire Refrigerator Flipper Mul In Stock WCI 241778811 $209.10

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $57.69

85B

241872203 Frigidaire Refrigerator Beam Suppor Backorder WCI 241872203 $39.39

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $26.62

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $34.93

87

TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability

88

241824008 Frigidaire Refrigerator Tilt-Out Ra Backorder WCI 241824008 $90.40

89

5304509676 Frigidaire Refrigerator Bracket Backorder WCI 5304509676 $56.58

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $54.36

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.67

90

242136901 Frigidaire Refrigerator Timing Bar Backorder WCI 242136901 $24.51

91

241824102 Frigidaire Refrigerator Door Rack C Backorder WCI 241824102 $12.75

91A

241824101 Frigidaire Refrigerator Cap Backorder WCI 241824101 $12.75

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

93

241835505 Frigidaire Refrigerator Light Switc In Stock WCI 241835505 $49.92

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $103.15

96

242048001 Frigidaire Refrigerator Trim Backorder WCI 242048001 $32.17

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $8.85

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $17.75

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $17.75

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $13.86

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $58.18

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $7.20

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $8.31

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $6.09

124

242006903 Frigidaire Refrigerator Air Duct In Stock WCI 242006903 $46.59

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $89.84

136

DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability

139

5304522623 Frigidaire Head/Manifold Water Fil In Stock WCI 5304522623 $55.45

145

242120101 Frigidaire Refrigerator Support Backorder WCI 242120101 $56.03

145A

242120102 Frigidaire Refrigerator Support Backorder WCI 242120102 $56.58

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $80.98

148

242095406 Frigidaire Refrigerator Gasket In Stock WCI 242095406 $13.83

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $99.30

154

SUPPORT WCI 242082401 Contact Us For Availability

157

241872201 Frigidaire Refrigerator Crisper Cov Backorder WCI 241872201 $39.37

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $58.77

209

242291001 Frigidaire Refrigerator Housing Backorder WCI 242291001 $14.97

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $24.38

210

5303918723 Frigidaire Refrigerator Housing Backorder WCI 5303918723 $20.51

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $17.73

211

807932201 Frigidaire Refrigerator Plug Backorder WCI 807932201 $11.64

212

242236801 Frigidaire Refrigerator Roller Asse Backorder WCI 242236801 $16.07

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $34.31

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $9.44

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.99

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.96

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $39.94

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $46.57

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $73.20

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $11.07

5303918744 Frigidaire Refrigerator Kit In Stock WCI 5303918744 $148.63

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $23.27

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

241842301 Frigidaire Refrigerator Thermistor In Stock WCI 241842301 $26.60

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $18.27

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $9.40

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $3.33

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $11.09

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $12.75

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $75.41

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $14.40

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $14.42

5304517889 Frigidaire Refrigerator Liner Backorder WCI 5304517889 $47.68

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $29.98

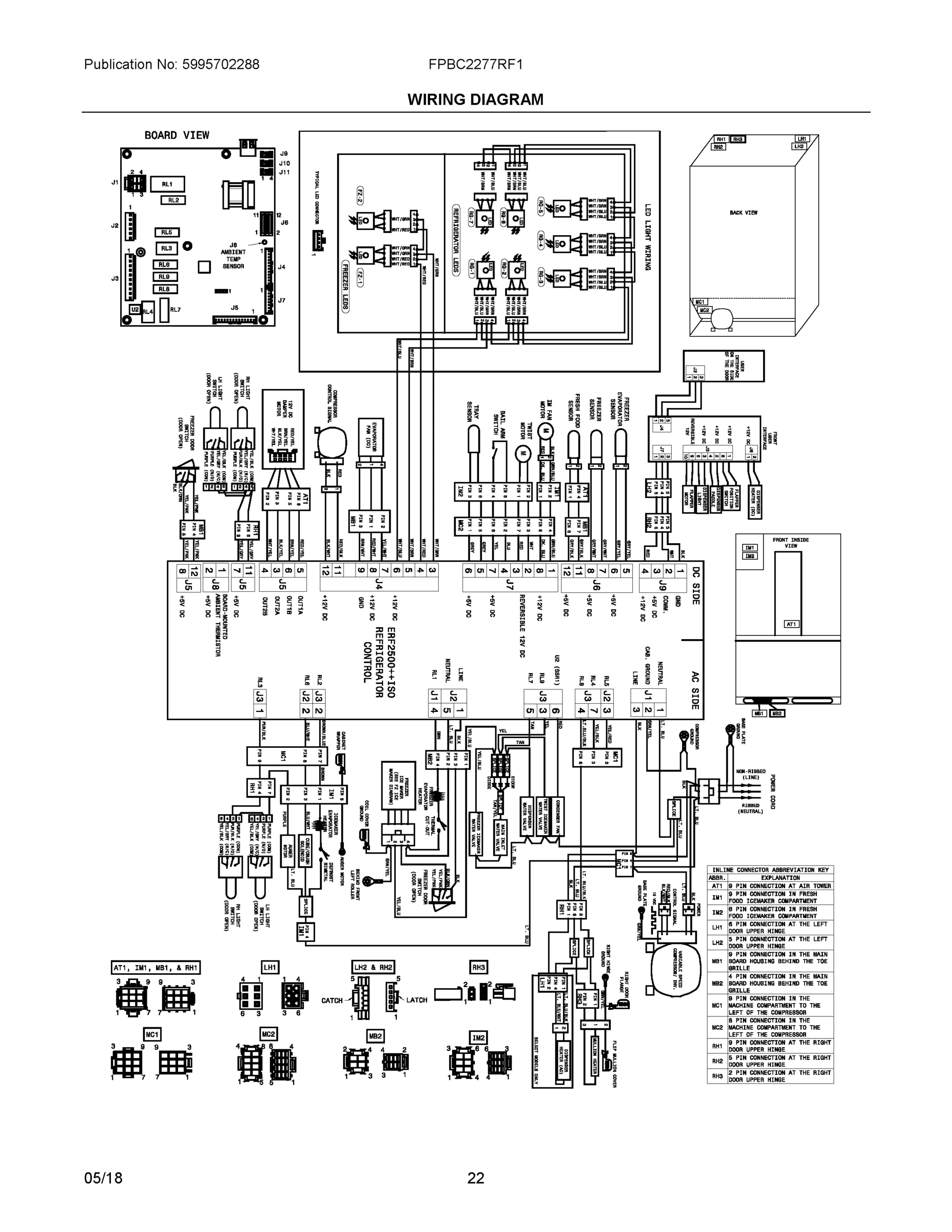

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $74.28

807999001 Frigidaire Refrigerator Harness Backorder WCI 807999001 $113.13

808165201 Frigidaire Refrigerator Harness Backorder WCI 808165201 $139.73

A13402902 Frigidaire Refrigerator Bypass In Stock WCI A13402902 $76.66

HARNESS-WIRING, AIR HANDLER WCI 242095806 Contact Us For Availability

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $23.30

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $13.29

242012002 Frigidaire Refrigerator Door Liner Backorder WCI 242012002 $65.45

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $10.53

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $9.98

240451503 Frigidaire Refrigerator Screw Backorder WCI 240451503 $2.76

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $13.31

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $4.41

NIBA

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $12.25

NIC

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $14.40

NIC

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $10.53

NICA

242080102 Frigidaire Refrigerator Door Liner Backorder WCI 242080102 $53.23

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $18.84

NIE

242200102 Frigidaire Refrigerator Clip Backorder WCI 242200102 $8.31

NIF

242220119 Frigidaire Refrigerator Water Tube In Stock WCI 242220119 $22.67

NIG

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $28.30
