Model Whirlpool FNF17E8 FREEZER – Common Parts & Diagrams
03 - UNIT COMPARTMENT & SYSTEM

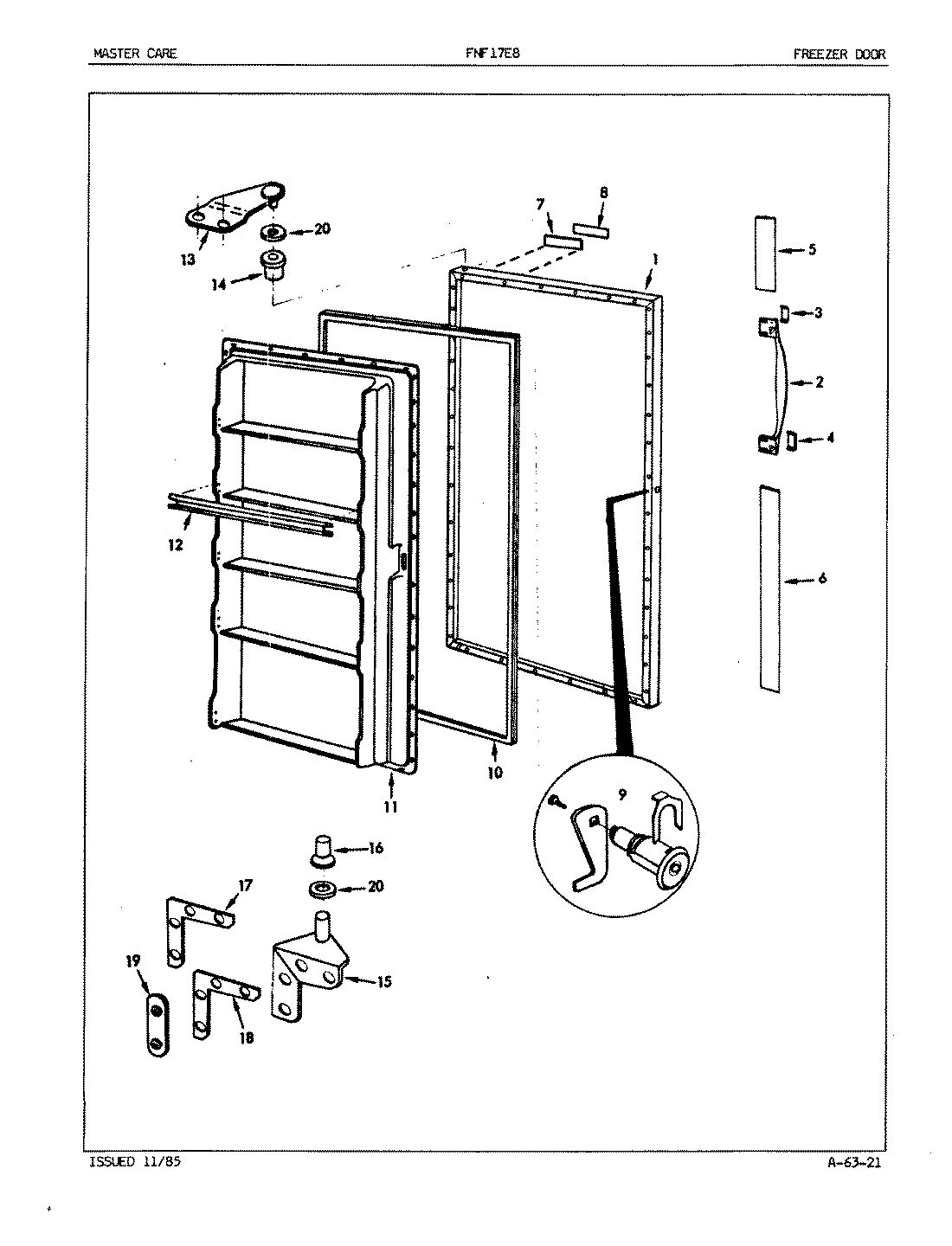

02 - FREEZER DOOR

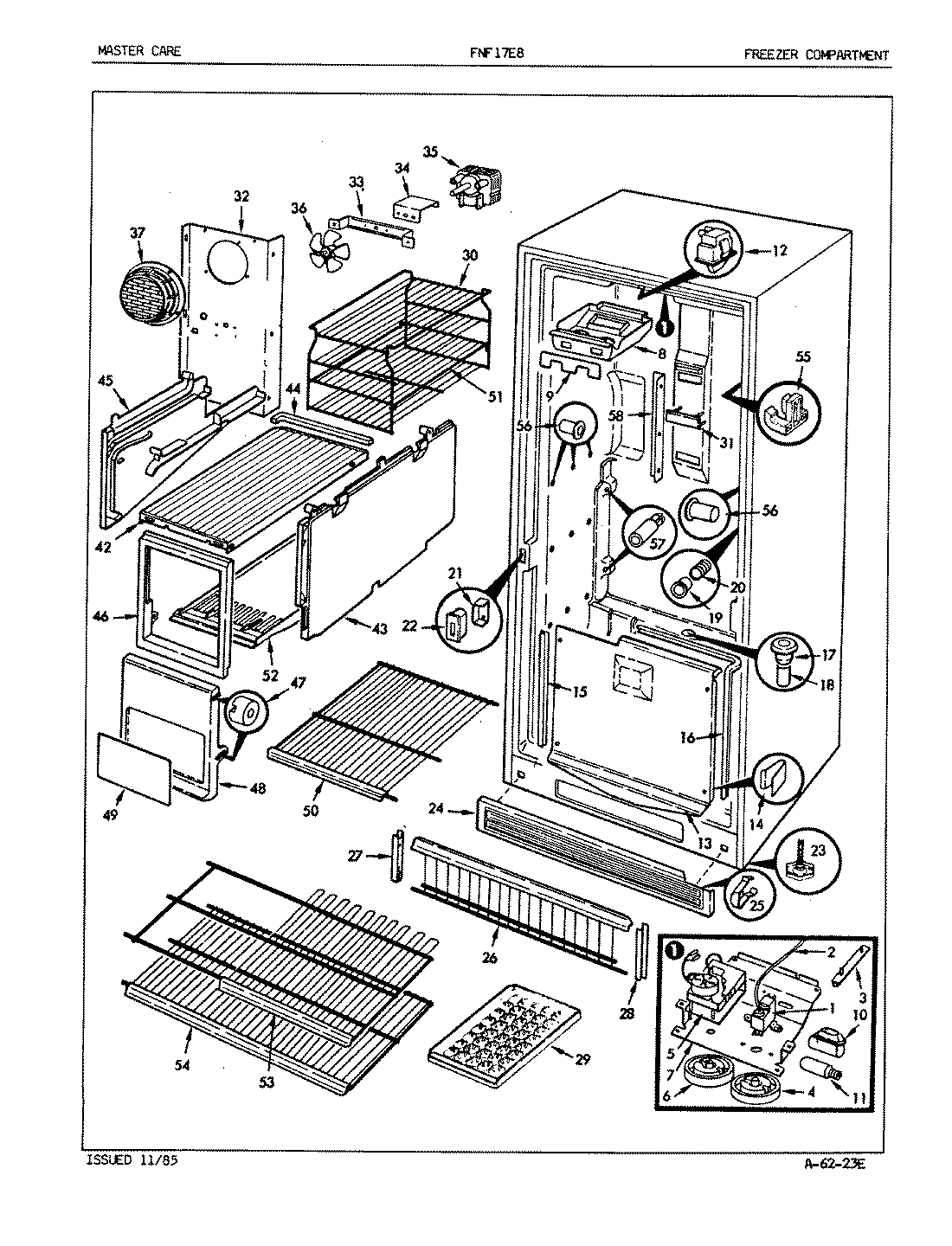

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool FNF17E8 FREEZER
1
COMPRESSOR WPL RMC2751 Contact Us For Availability
1
FOAM BLOCK WPL 04697501 Contact Us For Availability
1
INSULATION WPL 04697702 Contact Us For Availability
1
OUTER PANEL WPL 04766211 Contact Us For Availability
1
SCREW WPL 406020103 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288146 Contact Us For Availability
1
WIRE HARNESS WPL 655341 Contact Us For Availability
2
GROMMET WPL 00469102 Contact Us For Availability
2
FASTENER WPL 434003506 Contact Us For Availability
2
DOOR HANDLE WPL 601942 Contact Us For Availability
2
PLASTIC SLEEVE WPL 4008 Contact Us For Availability
3
SLEEVE WPL 00469401 Contact Us For Availability
3
INSERT WPL 651825 Contact Us For Availability
3
PALNUT WPL 431015505 Contact Us For Availability
3
COVER WPL 554283 Contact Us For Availability
4
WASHER WPL 00541703 Contact Us For Availability
4
INSERT WPL 651827 Contact Us For Availability
4
KNOB WPL 600614 Contact Us For Availability
5
SCREW WPL 04303701 Contact Us For Availability
5
STRAP WPL 654191 Contact Us For Availability
5
COMP MTG RAIL WPL 654221 Contact Us For Availability
5
SCREW COMP MTG WPL Y04703209 Contact Us For Availability
5
TRIM WPL 6473311 Contact Us For Availability
5
SCREW WPL 4060081 Contact Us For Availability
5
TIMER WPL 654692 Contact Us For Availability
6
RELAY WPL 9286105 Contact Us For Availability
6
TRIM WPL 6473312 Contact Us For Availability
6
TIMER KNOB WPL 653972 Contact Us For Availability
7
OVERLOAD WPL 5306781 Contact Us For Availability
7
BEZEL WPL 04843402 Contact Us For Availability
7
SCREW WPL 4000231 Contact Us For Availability
7
BRACKET WPL 653722 Contact Us For Availability
8
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
8
NAMEPLATE WPL 04933818 Contact Us For Availability
8
COVER WPL 653531 Contact Us For Availability
9
COVER, TERMINAL WPL 651891 Contact Us For Availability
9
WASHER, LOCK WPL 04841704 Contact Us For Availability
9
LOCK ASSEMBLY WPL 618572 Contact Us For Availability
9
LOCK BODY WPL Y04689701 Contact Us For Availability
9
CLIP WPL Y04689703 Contact Us For Availability
9
KEY WPL Y04689704 Contact Us For Availability
9
FOIL WPL 6013114 Contact Us For Availability
9
FOIL WPL 6013115 Contact Us For Availability
9
FOIL WPL 6013117 Contact Us For Availability
9
FOIL WPL 6013118 Contact Us For Availability
9
FOIL WPL 6013119 Contact Us For Availability
9
FOIL WPL 6013120 Contact Us For Availability
9
FOIL WPL 6013121 Contact Us For Availability
9
SIDE FOIL WPL 654901 Contact Us For Availability
9
FOIL WPL 654902 Contact Us For Availability
9
FOIL WPL 654903 Contact Us For Availability
9
INSERT WPL 655162 Contact Us For Availability
10
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
10
DOOR GASKET WPL 04528303 Contact Us For Availability
10
RECEPTACLE, BULB WPL Y04553701 Contact Us For Availability
11
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
11
CONDENSER WPL RA438711 Contact Us For Availability
11
INNER PANEL WPL Y04647905 Contact Us For Availability
11
15T7N LAMP WPL 201745 Contact Us For Availability
12
CONDENSER SHROUD WPL 600212 Contact Us For Availability
12
TRIM WPL 04552113 Contact Us For Availability
12
SWITCH, LIGHT WPL 557321 Contact Us For Availability
12
FOIL WPL 6013113 Contact Us For Availability
12
FOIL WPL 601317 Contact Us For Availability
12
SPACER WPL 620283 Contact Us For Availability
13
SCREW WPL 4140011 Contact Us For Availability
13
GROMMET, CONDENSER TUBING WPL 533511 Contact Us For Availability
13
DOOR HINGE WPL 04856602 Contact Us For Availability
13
SCREW WPL 4050061 Contact Us For Availability
13
COVER, EVAP. COIL WPL 654171 Contact Us For Availability
14
DIVIDER WPL 653921 Contact Us For Availability
14
TAPPING PLATE WPL 04938101 Contact Us For Availability
14
CLIP WPL 04594901 Contact Us For Availability
15
SEAL WPL 6407710 Contact Us For Availability
15
SCREW WPL 04415601 Contact Us For Availability
15
DOOR HINGE WPL 04856601 Contact Us For Availability
15
GASKET WPL 04557703 Contact Us For Availability
16
FAN MOTOR WPL 2805613 Contact Us For Availability
16
SCREW WPL 4030141 Contact Us For Availability
16
BUSHING WPL 557813 Contact Us For Availability
16
GASKET WPL 04557702 Contact Us For Availability
17
BLADE, CONDENSER FAN WPL 604851 Contact Us For Availability
17
SHIM WPL Y04529701 Contact Us For Availability
17
DRAIN GROMMET WPL 04557001 Contact Us For Availability
18
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
18
SHIM WPL Y04529702 Contact Us For Availability
18
SLEEVE WPL 04587901 Contact Us For Availability
19
SPEEDNUT WPL 199141 Contact Us For Availability
19
NUT WPL 04543401 Contact Us For Availability
19
TUNNEL SUCTION LINE WPL 04701401 Contact Us For Availability
20
BRACKET WPL 600361 Contact Us For Availability
20
HINGE PLATE (BOTTOM) WPL 04530303 Contact Us For Availability
20
SCREW WPL 4001111 Contact Us For Availability
20
WASHER WPL 521851 Contact Us For Availability
20
RET TUNNEL WPL 04701501 Contact Us For Availability
21
GROMMET, BRACKET WPL 569331 Contact Us For Availability
21
RETAINER WPL 04295102 Contact Us For Availability
22
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
22
SCREW WPL 04637502 Contact Us For Availability
22
STRIKE WPL 04938602 Contact Us For Availability
23
GROUND WIRE WPL 296753 Contact Us For Availability
23
LEG, LEVELING WPL 60128 Contact Us For Availability
24
COVER WPL 654881 Contact Us For Availability
24
SCREW WPL 998645 Contact Us For Availability
24
KICKPLATE WPL 6013822 Contact Us For Availability
25
SCREW WPL 04503102 Contact Us For Availability
25
SCREW WPL 04637704 Contact Us For Availability
25
EVAPORATOR WPL RA4362013 Contact Us For Availability
25
SCREW WPL 4000171 Contact Us For Availability
25
CLIP, KICKPLATE WPL 601001 Contact Us For Availability
26
SCREW WPL 4000011 Contact Us For Availability
26
SEAL WPL 653911 Contact Us For Availability
26
PLATE WPL Y04556201 Contact Us For Availability
26
GATE, GE WPL 04840802 Contact Us For Availability
27
SCREW WPL 04571303 Contact Us For Availability
27
SUPPORT, BRACKET WPL 655872 Contact Us For Availability
28
SCREW WPL 4000331 Contact Us For Availability
28
SUPPORT, GATE (RT) WPL 655871 Contact Us For Availability
29
BRACKET WPL 04556501 Contact Us For Availability
29
FAN BAFFLE WPL 656171 Contact Us For Availability
29
ICE CUBE TRAY WPL 601121 Contact Us For Availability
30
FAN BLADE WPL Y0455641 Contact Us For Availability
30
RACK WPL 653941 Contact Us For Availability
31
SEAL, AIR BLOCK WPL 04558001 Contact Us For Availability
31
BAFFLE WPL 654131 Contact Us For Availability
32
HEATER, DEFROST WPL 6010640 Contact Us For Availability
32
AIR DUCT WPL 654121 Contact Us For Availability
33
CABLE TIE WPL 04598201 Contact Us For Availability
33
CLIP HEATER CORD WPL 04737301 Contact Us For Availability
33
SHIELD, HEATER WPL Y04556601 Contact Us For Availability
33
BRACKET, FAN MOTOR WPL 648561 Contact Us For Availability
34
THERMOSTAT, DEFROST WPL 5208526 Contact Us For Availability
34
FAN SHIELD WPL 654621 Contact Us For Availability
35
HEAT EXCHANGER WPL RA4397310 Contact Us For Availability
35
SCREW WPL 4060621 Contact Us For Availability
35
MOTOR, FAN WPL 5651310 Contact Us For Availability
36
INSULATION WPL 652141 Contact Us For Availability
36
BLADE, FAN WPL 654201 Contact Us For Availability
37
FAN GRID WPL 626891 Contact Us For Availability
38
SCREW WPL 4050071 Contact Us For Availability
38
TIMER WPL 5411311 Contact Us For Availability
39
PAN, DRAIN WPL 298394 Contact Us For Availability
40
RAIL, DRAIN PAN (RT) WPL 605551 Contact Us For Availability
41
RAIL, DRAIN PAN (LT) WPL 605552 Contact Us For Availability
42
CLAMP WPL 538101 Contact Us For Availability
42
LINE CORD WPL Y00075401 Contact Us For Availability
42
SCREW WPL Y04589901 Contact Us For Availability
42
SHELF WPL 653461 Contact Us For Availability
43
TUBE, DRAIN WPL 654291 Contact Us For Availability
43
DIVIDER WPL 653451 Contact Us For Availability
44
DRAIN TUBE WPL 2691124 Contact Us For Availability
44
TOP SHELF SEAL WPL 6014610 Contact Us For Availability
45
CLAMP WPL 04384004 Contact Us For Availability
45
CLIP WPL 04585501 Contact Us For Availability
45
CLIP WPL 550422 Contact Us For Availability
45
WIRE HARNESS WPL 655331 Contact Us For Availability
45
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
45
GUARD RAIL WPL 653481 Contact Us For Availability
46
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
46
SCREW WPL 4051171 Contact Us For Availability
46
FRONT WPL 653471 Contact Us For Availability
47
STUD WPL 653571 Contact Us For Availability
48
SCREW WPL 4050011 Contact Us For Availability
48
F F DOOR WPL 653561 Contact Us For Availability
49
INSERT WPL 654041 Contact Us For Availability
50
SHELF WPL 653851 Contact Us For Availability
51
WIRE RACK WPL 654681 Contact Us For Availability
52
SHELF WPL 654231 Contact Us For Availability
53
SHELF WPL 654051 Contact Us For Availability
54
CUP, SHELF WPL 603131 Contact Us For Availability
54
SHELF WPL 654061 Contact Us For Availability
55
SCREW WPL 402017103 Contact Us For Availability
55
STUD WPL 545701 Contact Us For Availability
56
V NUT WPL 545382 Contact Us For Availability
57
SCREW WPL 04643802 Contact Us For Availability
57
GROMMET WPL Y04643801 Contact Us For Availability
58
SCREW WPL 4000151 Contact Us For Availability
58
RIVET WPL 00519407 Contact Us For Availability
58
CLIP WPL 04529001 Contact Us For Availability
58
DRAIN PLUG WPL 04602801 Contact Us For Availability
58
PLUG WPL 04611201 Contact Us For Availability
58
PLUG WPL 495010900 Contact Us For Availability
58
PLUG BUTTON WPL 495048900 Contact Us For Availability
58
PLUG, ICE MAKER (FRONT) WPL 495049900 Contact Us For Availability
58
NUT WPL 538211 Contact Us For Availability
58
PLUG WPL 5614415 Contact Us For Availability
58
TAPPING PLATE WPL 654581 Contact Us For Availability
58
FF BRACKET WPL 654591 Contact Us For Availability
58
WIRE HARNESS WPL 655361 Contact Us For Availability
× ![]()
