Model Electrolux FMW220EN2D REFRIGERATOR – Common Parts & Diagrams

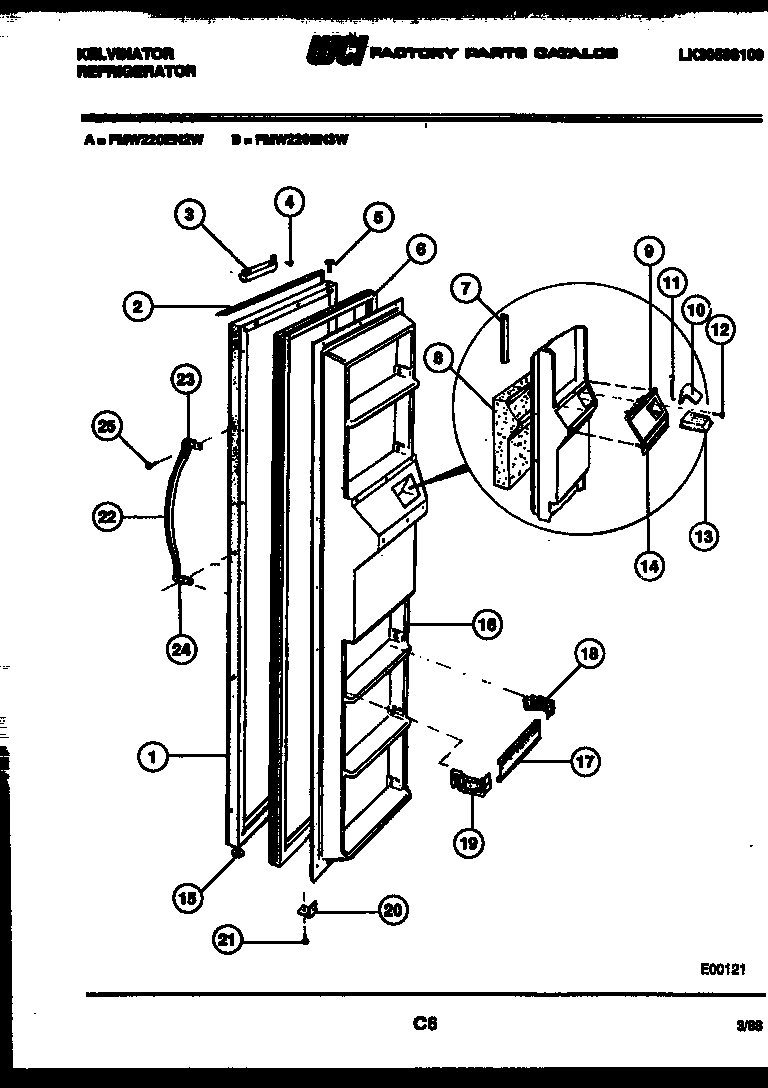

02 - FREEZER DOOR PARTS

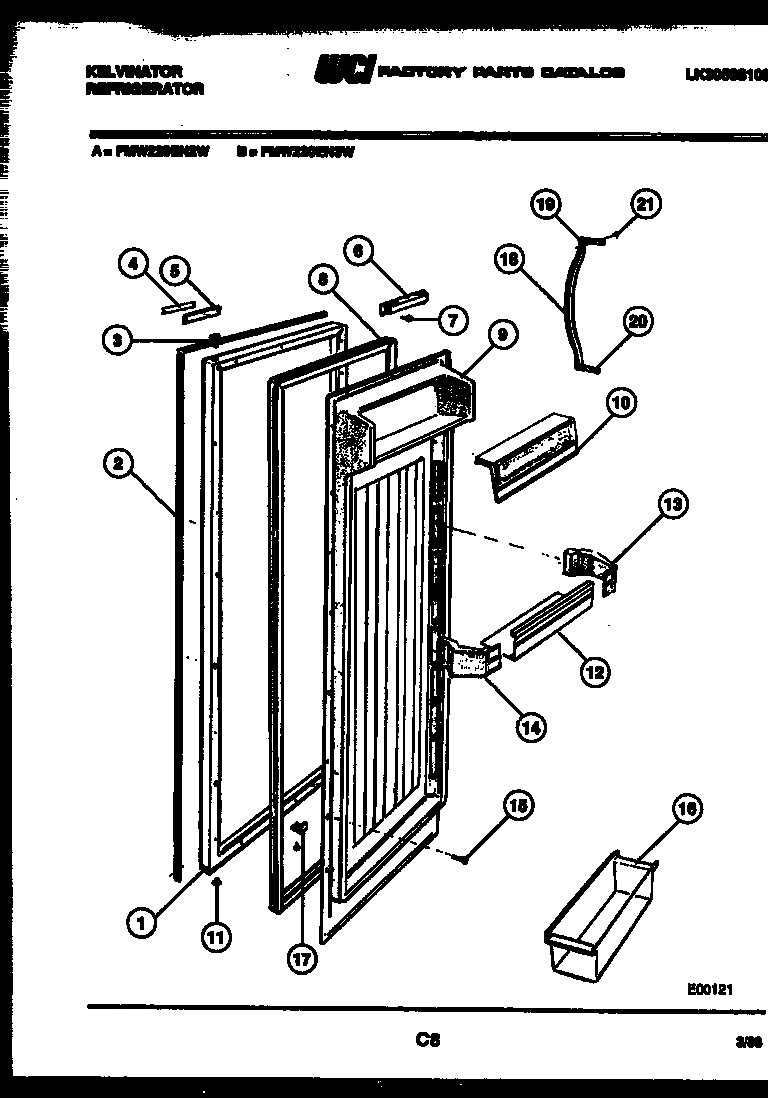

03 - REFRIGERATOR DOOR PARTS

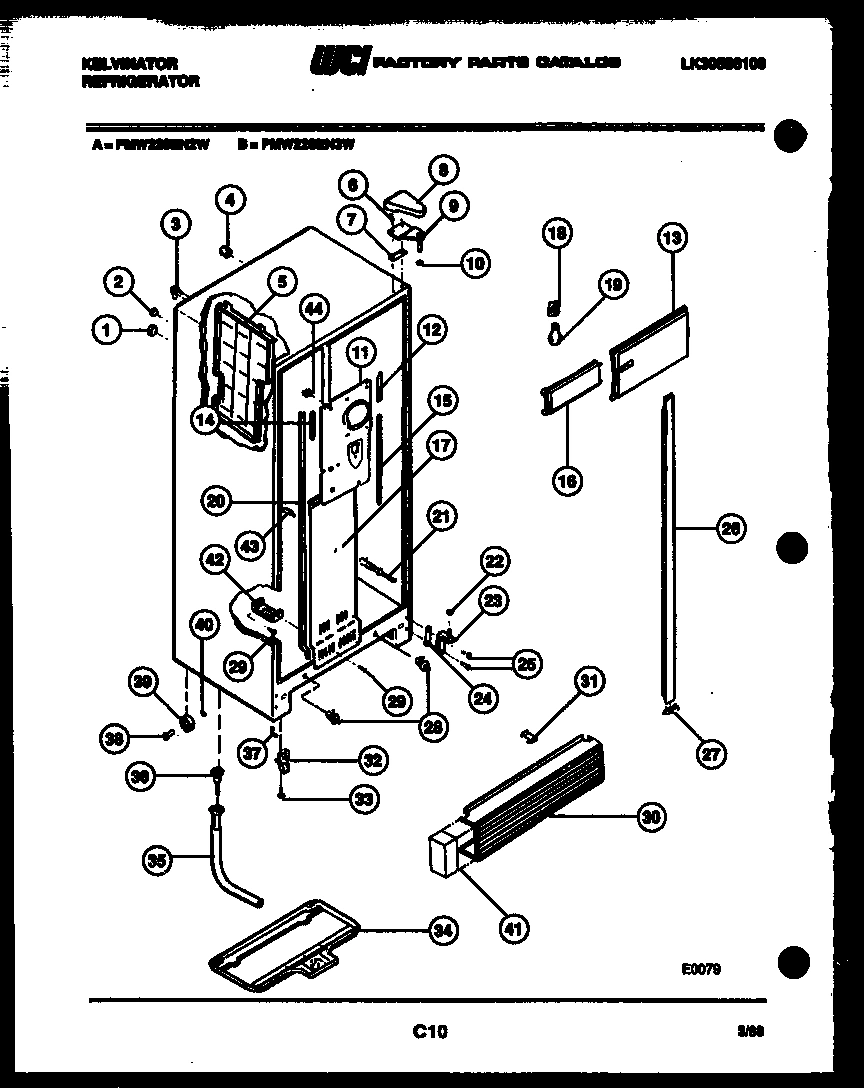

04 - CABINET PARTS

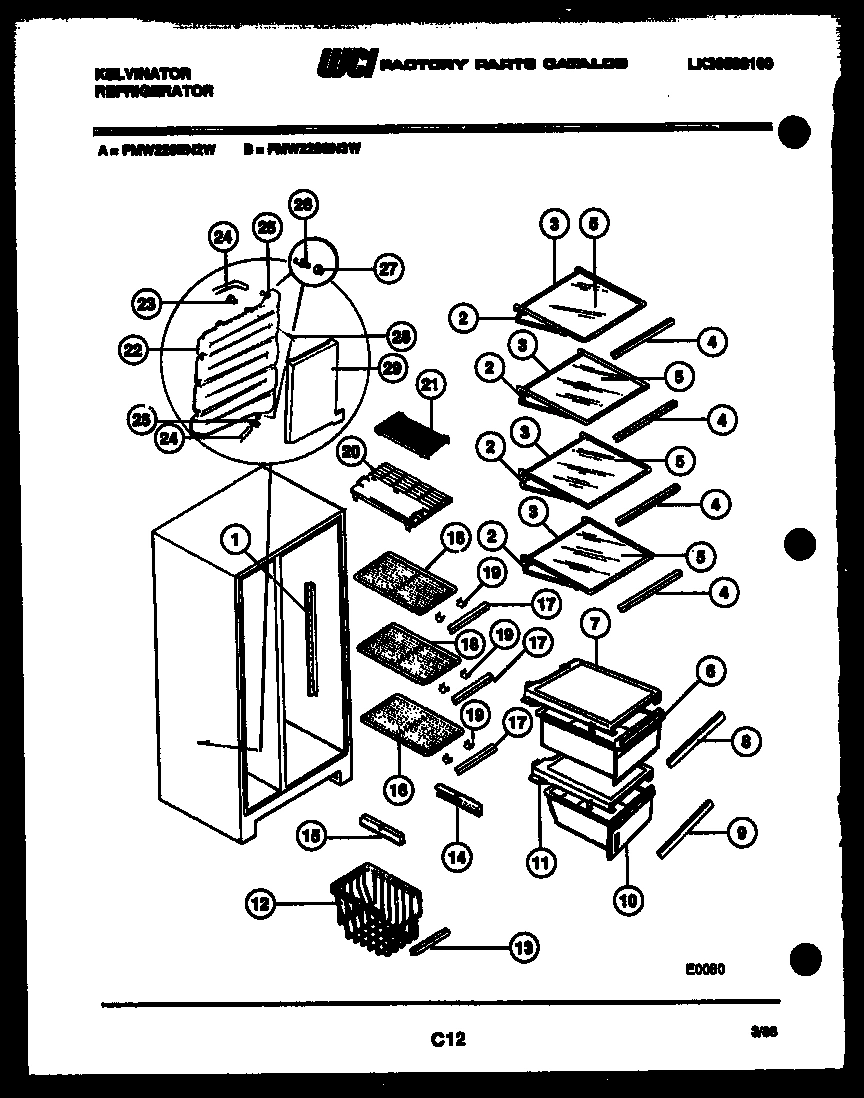

05 - SHELVES AND SUPPORTS

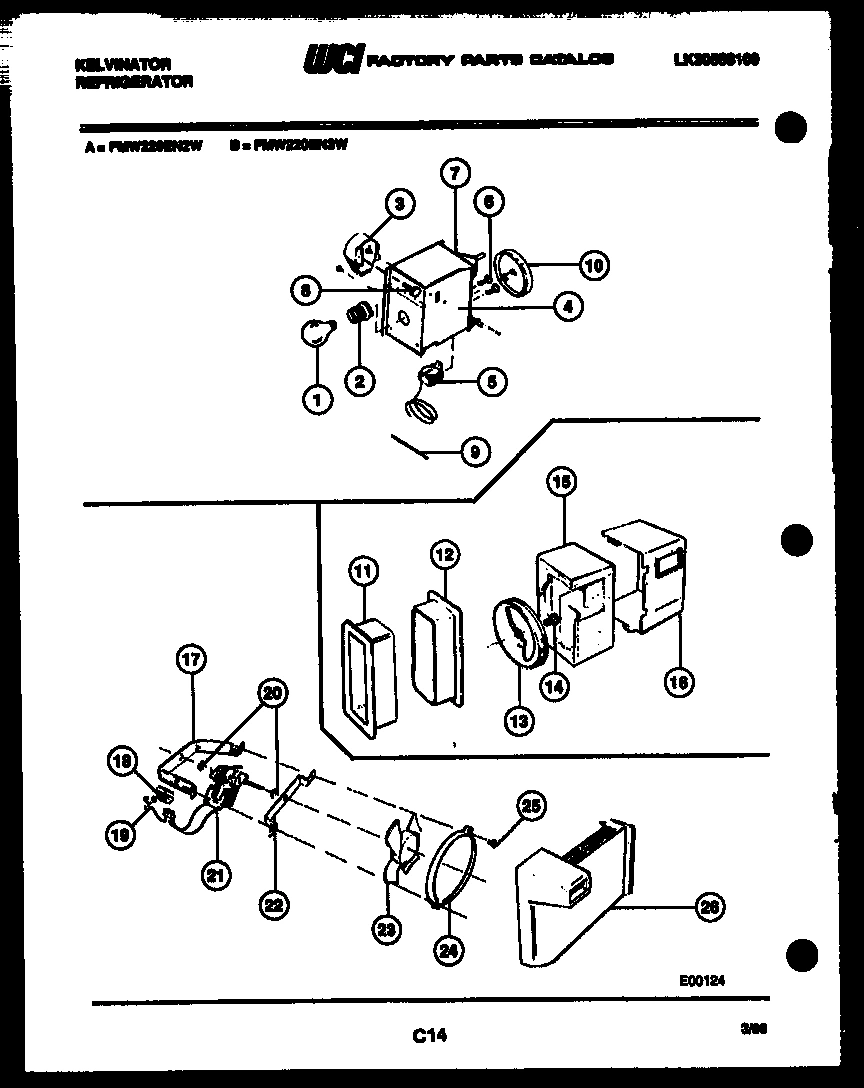

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

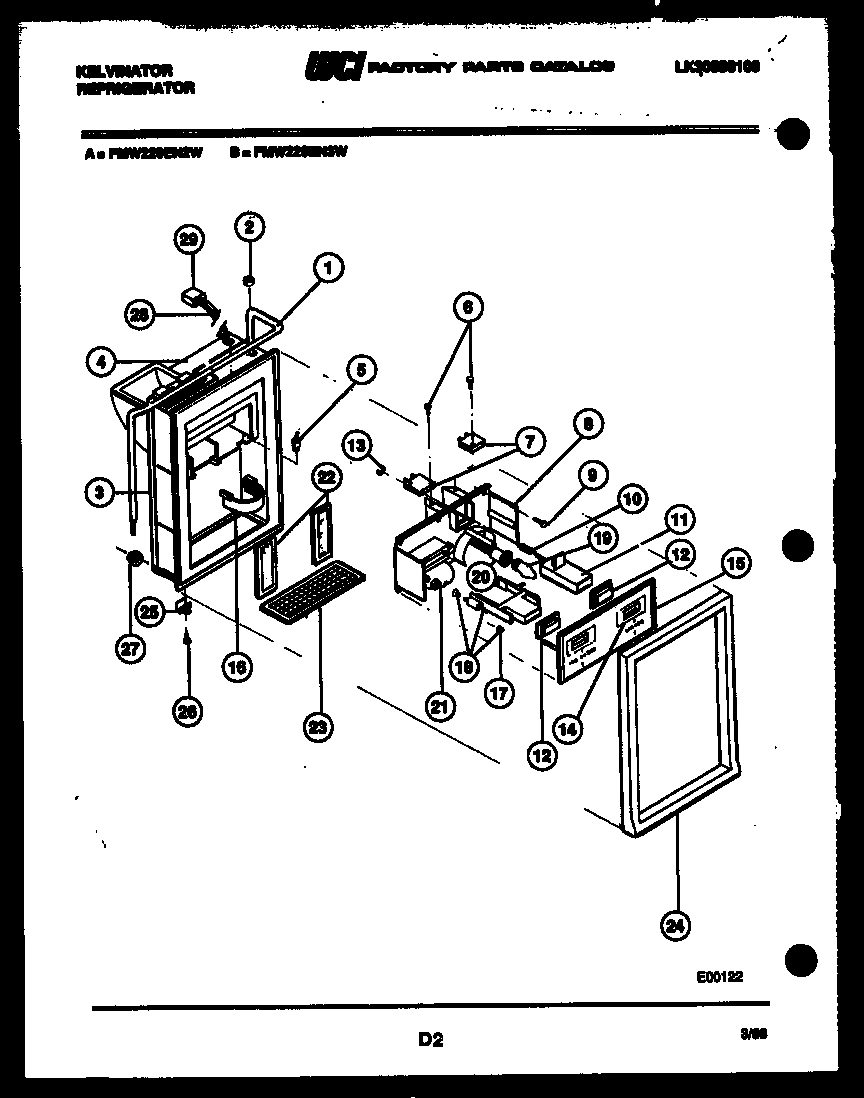

07 - ICE DOOR, DISPENSER, AND WATER TANK

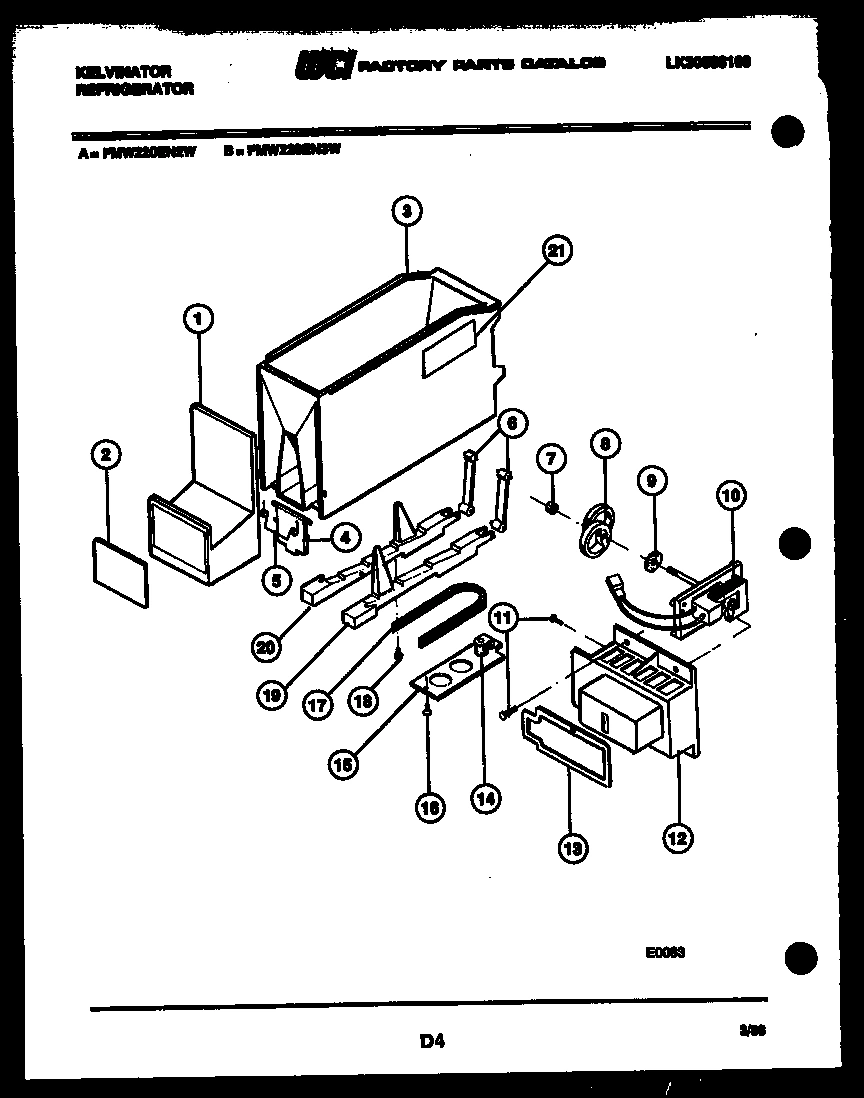

08 - ICE DISPENSER

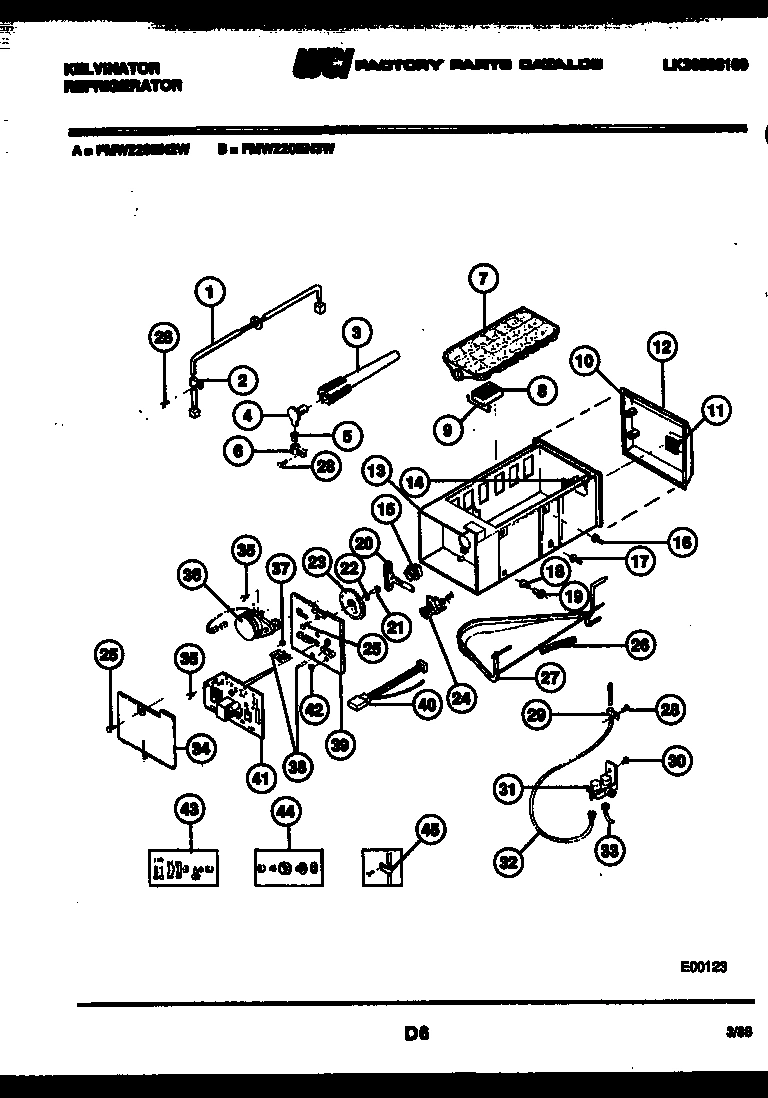

09 - INTERIOR PARTS
10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FMW220EN2D REFRIGERATOR
*40145
PLUG-REFR LINER (4) WCI G162892-01 Contact Us For Availability
*40185
FOAM TAPE-COVER WCI G167795-04 Contact Us For Availability
*40186
CLIP, GROUNDING WCI G162703 Contact Us For Availability
*40205
WCI G186533-01 WCI G186533-01 Contact Us For Availability
*40276
HOT TUBE REPAIR KIT WCI G189379 Contact Us For Availability
1
WCI G189946-11 WCI G189946-11 Contact Us For Availability
1
FERRULE - INNER (2) WCI G174733 Contact Us For Availability
1
WCI G170694 WCI G170694 Contact Us For Availability
1
WCI G188233 WCI G188233 Contact Us For Availability
1
WCI 3015126 WCI 3015126 Contact Us For Availability
1
WCI 3017210 WCI 3017210 Contact Us For Availability
1
WCI 3017362 WCI 3017362 Contact Us For Availability
1A
DOOR PLUG-BOTTOM (NON-ILLUSTRATED) WCI G152308-01 Contact Us For Availability
2
TRIM-FREEZER DOOR WCI G189468-09 Contact Us For Availability
2
TRIM-REFRIGERATOR DOOR WCI G189468-22 Contact Us For Availability
2
FERRULE-OUTER (2) WCI G174734 Contact Us For Availability
2
WCI G171608-08 WCI G171608-08 Contact Us For Availability
2
LIGHT SOCKET-REFR WCI G168302 Contact Us For Availability
2
GROMMET-WATER WCI G175246 Contact Us For Availability
2
WCI 3015134 WCI 3015134 Contact Us For Availability
2
WCI G161655 WCI G161655 Contact Us For Availability
2
COIL BLOCK WCI G169493 Contact Us For Availability
3
BEARING-UPPER HINGE WCI G183139 Contact Us For Availability
3
WCI G172436-16 WCI G172436-16 Contact Us For Availability
3
WCI G182738 WCI G182738 Contact Us For Availability
3
ICE CONTAINER WCI G182151-01 Contact Us For Availability
3
TUBE-FILLER EXTENSION WCI G187034 Contact Us For Availability
3
WCI G190223 WCI G190223 Contact Us For Availability
4
WCI 3015133 WCI 3015133 Contact Us For Availability
4
TUBE, RUBBER WCI G85642 Contact Us For Availability
4
TRIM-SHELF-FRONT (4) WCI G172434-19 Contact Us For Availability
4
WCI G188308-03 WCI G188308-03 Contact Us For Availability
4
DOOR-ICE CONTAINER WCI G182524-01 Contact Us For Availability
4
WCI G189609 WCI G189609 Contact Us For Availability
5
WCI G178292 WCI G178292 Contact Us For Availability
5
WCI 3017208 WCI 3017208 Contact Us For Availability
5
WCI 3015454 WCI 3015454 Contact Us For Availability
5
WCI G162205-05 WCI G162205-05 Contact Us For Availability
5
WCI G179999 WCI G179999 Contact Us For Availability
5
SPRING-CNTNR DOOR WCI G182525 Contact Us For Availability
5
WCI G154156 WCI G154156 Contact Us For Availability
6
DOOR CLOSER WCI G161119 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI G180551-03 Contact Us For Availability
6
PAN-STORAGE UPPER WCI 3015085 Contact Us For Availability
6
WCI G107080 WCI G107080 Contact Us For Availability
6
WCI G177686 WCI G177686 Contact Us For Availability
6
SPRING AND PIN ASSEMBLY (2) WCI G182869 Contact Us For Availability
6
WCI G167363 WCI G167363 Contact Us For Availability
7
SCREW-CLOSER MTG WCI G169729 Contact Us For Availability
7
WCI G177720 WCI G177720 Contact Us For Availability
7
WCI G183861 WCI G183861 Contact Us For Availability
7
COVER-PAN UPPER WCI G169711-01 Contact Us For Availability
7
CONTROL BOX WCI G189359 Contact Us For Availability
7
WCI G185542 WCI G185542 Contact Us For Availability
7
LOCK NUT 1/4-28 WCI G187107 Contact Us For Availability
7
WCI G182507 WCI G182507 Contact Us For Availability
7A
GASKET-COVER UPR (2) (NON-ILLUSTRATED) WCI G180108-03 Contact Us For Availability
7A
INSULATOR-BOX REAR (NON-ILLUSTRATED) WCI G165434 Contact Us For Availability
8
INSULATION-HOUSING WCI G181913 Contact Us For Availability
8
WCI G180551-02 WCI G180551-02 Contact Us For Availability
8
WCI G183558-11 WCI G183558-11 Contact Us For Availability
8
PLATE-SWITCH MTG WCI G185754 Contact Us For Availability
8
CAM-DRIVE LINK WCI G181926 Contact Us For Availability
8
INSULATOR-THERMOSTAT WCI G174479 Contact Us For Availability
8
WCI 3007521 WCI 3007521 Contact Us For Availability
9
WCI G179017 WCI G179017 Contact Us For Availability
9
PANEL-INNER DOOR WCI 3016862 Contact Us For Availability
9
HINGE-TOP RS WCI G183715 Contact Us For Availability
9
TRIM-PAN LOWER WCI 3015076 Contact Us For Availability
9
SEAL-MOTOR SHAFT WCI G182526 Contact Us For Availability
9
RETAINER, INSULATOR WCI G174427 Contact Us For Availability
9
BRACKET, COND. MTG (4) WCI G169666-01 Contact Us For Availability
9A
WCI G183716 WCI G183716 Contact Us For Availability
10
WCI G175040-01 WCI G175040-01 Contact Us For Availability
10
WCI G167783-06 WCI G167783-06 Contact Us For Availability
10
WASHER-HINGE WCI G170156 Contact Us For Availability
10
PAN-STORAGE LOWER WCI 3015125 Contact Us For Availability
10
WCI G164906-01 WCI G164906-01 Contact Us For Availability
10
WCI G174700 WCI G174700 Contact Us For Availability
10
MOTOR-ICE DISPENSER WCI G182881 Contact Us For Availability
10
WCI 3017384 WCI 3017384 Contact Us For Availability
11
SPRING-FLIPPER WCI G184726 Contact Us For Availability
11
BEARING-LOWER HINGE WCI G183138 Contact Us For Availability
11
WCI 3017209 WCI 3017209 Contact Us For Availability
11
COVER-PAN-LOWER WCI G169724-01 Contact Us For Availability
11
WCI G166802 WCI G166802 Contact Us For Availability
11
WCI G185063-01 WCI G185063-01 Contact Us For Availability
11
SCREW-HOUSING (3) WCI G182885 Contact Us For Availability
11
WCI 3017383 WCI 3017383 Contact Us For Availability
12
WCI 3015078 WCI 3015078 Contact Us For Availability
12
GASKET, COIL COVER WCI G165233 Contact Us For Availability
12
WCI G171611 WCI G171611 Contact Us For Availability
12
WCI G166803 WCI G166803 Contact Us For Availability
12
WCI G187106-01 WCI G187106-01 Contact Us For Availability
12
HOUSING-DISP MOTOR WCI G182513 Contact Us For Availability
12
WCI 3017432 WCI 3017432 Contact Us For Availability
12
WCI G162549-01 WCI G162549-01 Contact Us For Availability
12A
WCI G101890 WCI G101890 Contact Us For Availability
12A
SCREW-TRIM MTG (2) (NON-ILLUSTRATED) WCI G167770-01 Contact Us For Availability
12A
GASKET-FERRULE (NON-ILLUSTRATED) WCI G167582 Contact Us For Availability
12B
SCREW-SHELF (10) (NON-ILLUSTRATED) WCI G167115 Contact Us For Availability
13
WCI 3017430 WCI 3017430 Contact Us For Availability
13
WCI G163064-01 WCI G163064-01 Contact Us For Availability
13
WCI 3016878 WCI 3016878 Contact Us For Availability
13
WCI 3015079 WCI 3015079 Contact Us For Availability
13
WCI G165217-01 WCI G165217-01 Contact Us For Availability
13
WCI G174411 WCI G174411 Contact Us For Availability
13
WCI G185255 WCI G185255 Contact Us For Availability
13
HOUSING-ICE MAKER WCI G187057-01 Contact Us For Availability
14
TRIM COVER-DOOR PNL WCI G181241-01 Contact Us For Availability
14
WCI G163065-01 WCI G163065-01 Contact Us For Availability
14
GASKET-COVER LS WCI G174234-08 Contact Us For Availability
14
HANGER-BASKET RS WCI G168986 Contact Us For Availability
14
WCI G185373 WCI G185373 Contact Us For Availability
14
WCI 3015128 WCI 3015128 Contact Us For Availability
14
SPOOL-ICE RAM WCI G181929 Contact Us For Availability
14
WCI 3017382 WCI 3017382 Contact Us For Availability
15
WCI G175070 WCI G175070 Contact Us For Availability
15
GASKET-COVER RS WCI G174234-10 Contact Us For Availability
15
HANGER-BASKET LS WCI G168987 Contact Us For Availability
15
WCI G164575 WCI G164575 Contact Us For Availability
15
WCI G182643-01 WCI G182643-01 Contact Us For Availability
15
SUPPORT-SPOOL WCI G181950 Contact Us For Availability
15
WCI G182487 WCI G182487 Contact Us For Availability
16
WCI 3015127 WCI 3015127 Contact Us For Availability
16
WCI 3015068 WCI 3015068 Contact Us For Availability
16
LIGHT SHIELD - FREEZER WCI G182527-01 Contact Us For Availability
16
SHELF-FREEZER BOTTOM WCI G169658-02 Contact Us For Availability
16
CONTROL BOX-DAMPER WCI G164523 Contact Us For Availability
16
WCI G180004-01 WCI G180004-01 Contact Us For Availability
16
SCREW-SUPPORT MTG WCI G182868 Contact Us For Availability
16
WCI 3017391 WCI 3017391 Contact Us For Availability
16
WCI G182225-18 WCI G182225-18 Contact Us For Availability
17
WCI 3015077 WCI 3015077 Contact Us For Availability
17
WCI G165376 WCI G165376 Contact Us For Availability
17
COIL COVER-LOWER WCI G169477-01 Contact Us For Availability
17
TRIM-CLIP ON (3) WCI G161074-37 Contact Us For Availability
17
WCI G185303 WCI G185303 Contact Us For Availability
17
WCI G174414 WCI G174414 Contact Us For Availability
17
BELT-RAM RETURN WCI G182867 Contact Us For Availability
17
WCI G182506 WCI G182506 Contact Us For Availability
17
WCI G189028 WCI G189028 Contact Us For Availability
18
SUPPORT RS (5) WCI G170022-01 Contact Us For Availability
18
WCI G189455-01 WCI G189455-01 Contact Us For Availability
18
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
18
ICE ACTUATOR ASSEMBLY WCI G190359 Contact Us For Availability
18
WCI G189712 WCI G189712 Contact Us For Availability
18
CAPACITOR WCI G188885-01 Contact Us For Availability
18
STRAP-CAPACITOR WCI G188897 Contact Us For Availability
18A
WCI G189456-03 WCI G189456-03 Contact Us For Availability
18A
BOX-LIGHT SOCKET (NON-ILLUSTRATED) WCI G182493-01 Contact Us For Availability
18B
SPACER-HANDLE (NON-ILLUSTRATED) WCI G191430 Contact Us For Availability
18C
SCREW-SPACER MTG (2) (NON-ILLUSTRATED) WCI G172321 Contact Us For Availability
18D
WCI 3016230 WCI 3016230 Contact Us For Availability
19
SUPPORT LS (5) WCI G170023-01 Contact Us For Availability
19
WCI G189452-01 WCI G189452-01 Contact Us For Availability
19
CLIP, SHELF TRIM (6) WCI G162928 Contact Us For Availability
19
WCI G188104-01 WCI G188104-01 Contact Us For Availability
19
CAP-LEVELING SCREW WCI G185464 Contact Us For Availability
20
BUSHING (2) WCI G187559 Contact Us For Availability
20
HANDLE END-BOTTOM WCI G189451-01 Contact Us For Availability
20
GASKET-COIL COVER WCI G188000-03 Contact Us For Availability
20
SHELF-PLASTIC LOWER WCI G185494-01 Contact Us For Availability
20
WCI G177729 WCI G177729 Contact Us For Availability
20
RAM-ICE LS WCI G182206-01 Contact Us For Availability
20
WCI G182416 WCI G182416 Contact Us For Availability
20A
LABEL - LOWER SHELF (NON-ILLUSTRATED) WCI G177706-07 Contact Us For Availability
21
WCI G185566 WCI G185566 Contact Us For Availability
21
WCI G164912-03 WCI G164912-03 Contact Us For Availability
21
WCI 3017212 WCI 3017212 Contact Us For Availability
21
WCI G177724 WCI G177724 Contact Us For Availability
21
WCI 3016895 WCI 3016895 Contact Us For Availability
21
WCI G174444 WCI G174444 Contact Us For Availability
21
COMPRESSOR WITH ELECTRICALS WCI G190156 Contact Us For Availability
21A
LABEL - UPPER SHELF (NON-ILLUSTRATED) WCI G177706-06 Contact Us For Availability
22
WASHER, HINGE WCI G164355 Contact Us For Availability
22
TANK-WATER WCI G186055 Contact Us For Availability
22
WCI G185302 WCI G185302 Contact Us For Availability
22
WCI G182929 WCI G182929 Contact Us For Availability
22
WASHER-CRANK SHAFT WCI G174430 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI G163204 Contact Us For Availability
23
HINGE-BOTTOM RS WCI G162383 Contact Us For Availability
23
WCI G163938 WCI G163938 Contact Us For Availability
23
WCI G182551-01 WCI G182551-01 Contact Us For Availability
23
WCI G174484 WCI G174484 Contact Us For Availability
23
WASHER-COMPR (4) WCI G164634 Contact Us For Availability
23A
HINGE-BOTTOM LS (NON-ILLUSTRATED) WCI G175068 Contact Us For Availability
23B
WCI G141673 WCI G141673 Contact Us For Availability
24
SHIM-BOT HINGE (3) WCI G162903 Contact Us For Availability
24
WCI G167217 WCI G167217 Contact Us For Availability
24
FRAME-DOOR HOUSING WCI G182518-02 Contact Us For Availability
24
WCI 3017390 WCI 3017390 Contact Us For Availability
24A
WCI G142361 WCI G142361 Contact Us For Availability
24B
WCI G77210 WCI G77210 Contact Us For Availability
25
SCREW-HINGE MTG (2) WCI G99167 Contact Us For Availability
25
WCI G166705 WCI G166705 Contact Us For Availability
25
WCI G185567 WCI G185567 Contact Us For Availability
25
CLIP-HSG FRAME (2) WCI G179966 Contact Us For Availability
25
WCI G188596 WCI G188596 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI G171111 Contact Us For Availability
25B
WCI G171123 WCI G171123 Contact Us For Availability
26
WCI G164643-11 WCI G164643-11 Contact Us For Availability
26
WCI G186058 WCI G186058 Contact Us For Availability
26
WCI G181917-01 WCI G181917-01 Contact Us For Availability
26
SCREW-CLIP MOUNTING WCI G179974 Contact Us For Availability
26
WCI 3017392 WCI 3017392 Contact Us For Availability
26
WCI G183584 WCI G183584 Contact Us For Availability
26A
WCI G169100 WCI G169100 Contact Us For Availability
26A
WCI G169297 WCI G169297 Contact Us For Availability
27
PALNUT-SELF THD (12) WCI G188218 Contact Us For Availability
27
MULLION TRIM-ALMOND WCI G169745-11 Contact Us For Availability
27
WCI G186057 WCI G186057 Contact Us For Availability
27
WCI 3015044 WCI 3015044 Contact Us For Availability
27
WCI G169641 WCI G169641 Contact Us For Availability
28
WCI G185226 WCI G185226 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI G164579 Contact Us For Availability
29
COVER, WATER TANK WCI G163925-02 Contact Us For Availability
29
WIRING HARNESS-CTRL WCI 3015135 Contact Us For Availability
29
WCI G177742 WCI G177742 Contact Us For Availability
30
WCI G174597-09 WCI G174597-09 Contact Us For Availability
31
WCI G170238 WCI G170238 Contact Us For Availability
31
WCI G189174 WCI G189174 Contact Us For Availability
32
ROLLER-FRONT (2) WCI G186731 Contact Us For Availability
33
SCREW-ROLLER MTG (2) WCI G187491 Contact Us For Availability
34
WCI G171125 WCI G171125 Contact Us For Availability
34
COVER AND LEVER ASSY WCI G191470 Contact Us For Availability
35
SCREW (5) WCI G185562 Contact Us For Availability
36
WCI G171193 WCI G171193 Contact Us For Availability
36
MOTOR-ICE MAKER WCI G174505 Contact Us For Availability
37
WCI G177743 WCI G177743 Contact Us For Availability
37
NUT-HEX 10-32 LH WCI G174434 Contact Us For Availability
37A
NUT-ELBOW (NON-ILLUSTRATED) WCI G143689 Contact Us For Availability
38
WCI G162809 WCI G162809 Contact Us For Availability
38
CAM FOLLOWER-PIN WCI G182234 Contact Us For Availability
39
WCI G162808 WCI G162808 Contact Us For Availability
39
WCI G182015 WCI G182015 Contact Us For Availability
40
PUSH NUT (2) WCI G162662 Contact Us For Availability
40
WIRING HARNESS-PCB WCI G182859 Contact Us For Availability
41
COVER-HINGE LS WCI G174658-01 Contact Us For Availability
41
PRINTED CIRCUIT BOARD WCI G181942 Contact Us For Availability
42
WCI G158022 WCI G158022 Contact Us For Availability
42
RETAINING RING WCI G174422 Contact Us For Availability
42A
LOCK WASHER (2) (NON-ILLUSTRATED) WCI G164820 Contact Us For Availability
42B
WCI G184851 WCI G184851 Contact Us For Availability
43
SUPPORT-COIL COVER (4) WCI G169471 Contact Us For Availability
43
SADDLE VALVE KIT WCI G99428 Contact Us For Availability
44
SUPPORT-COIL COVER WCI G163669 Contact Us For Availability
44
WATER SUPPLY ADAPTER KIT WCI G159415 Contact Us For Availability
× ![]()
