Model Whirlpool FGP315BW1 GAS RANGE – Common Parts & Diagrams

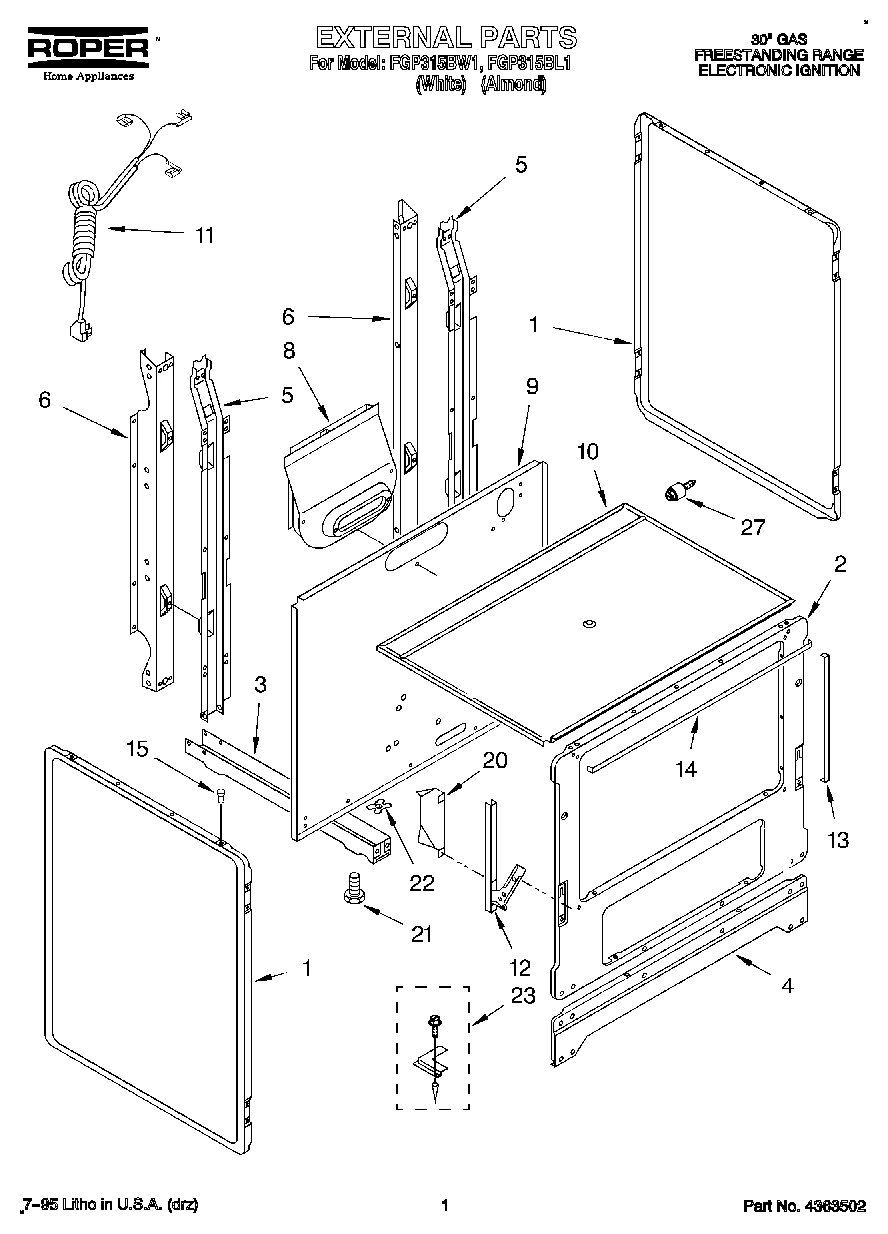

01 - EXTERNAL

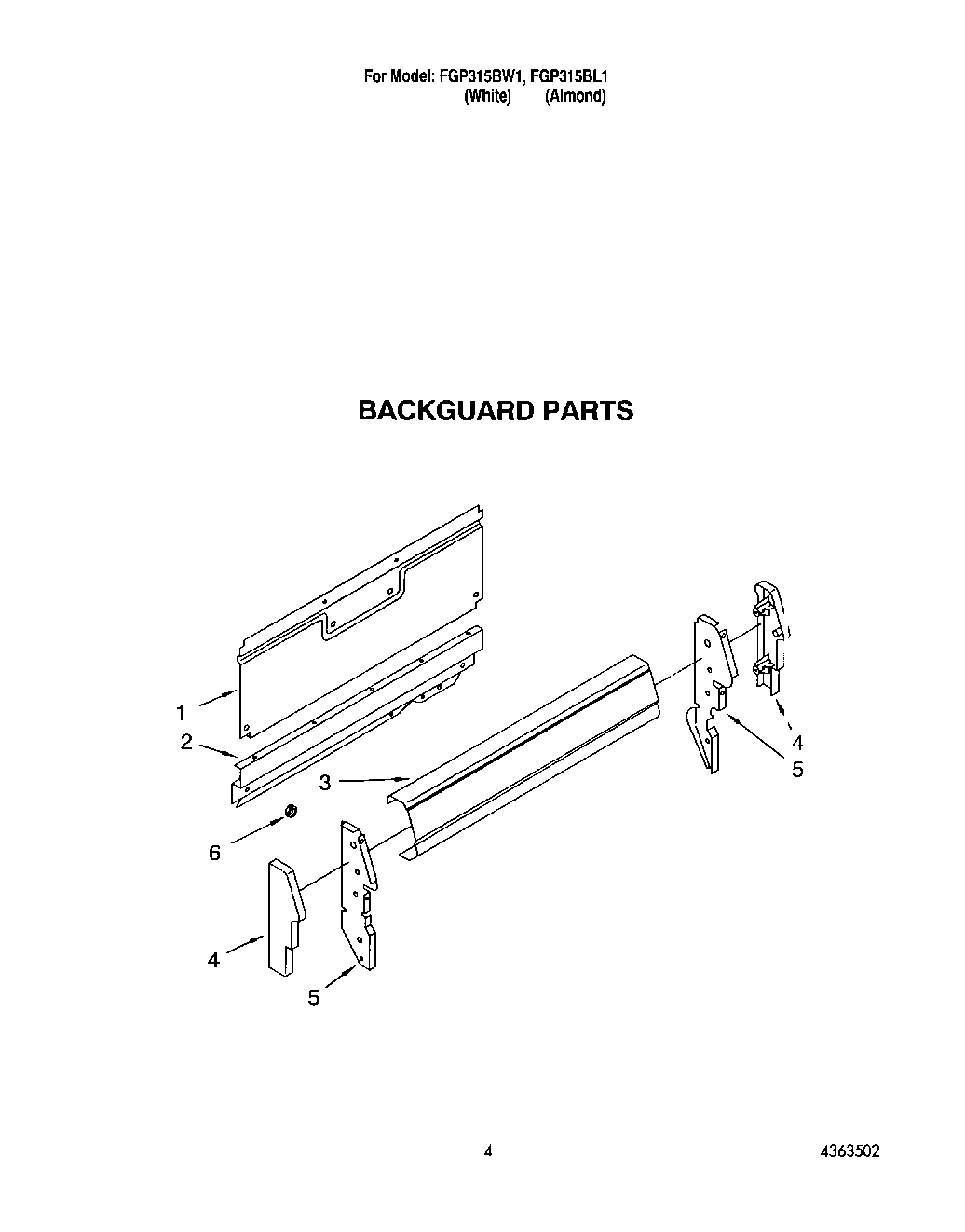

03 - BACKGUARD

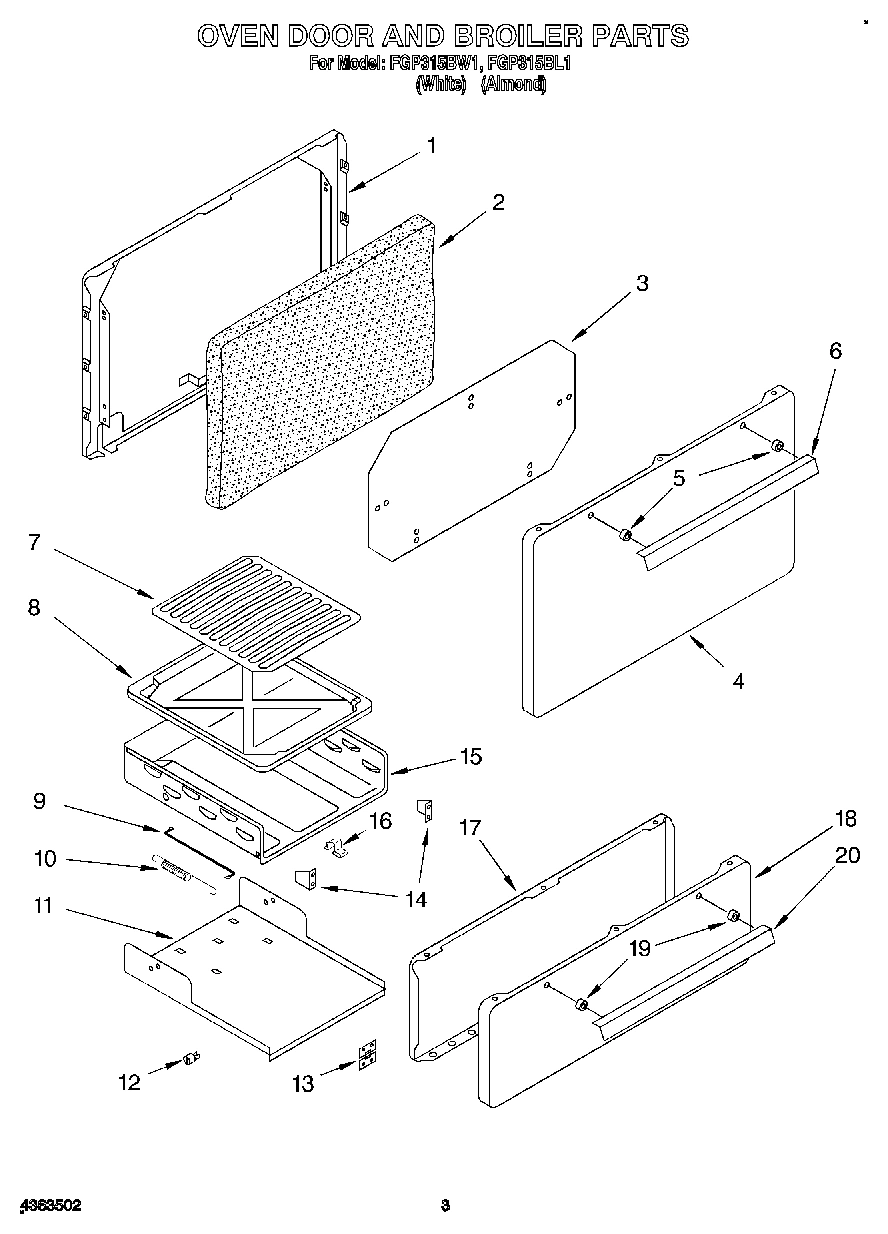

02 - OVEN DOOR AND BROILER

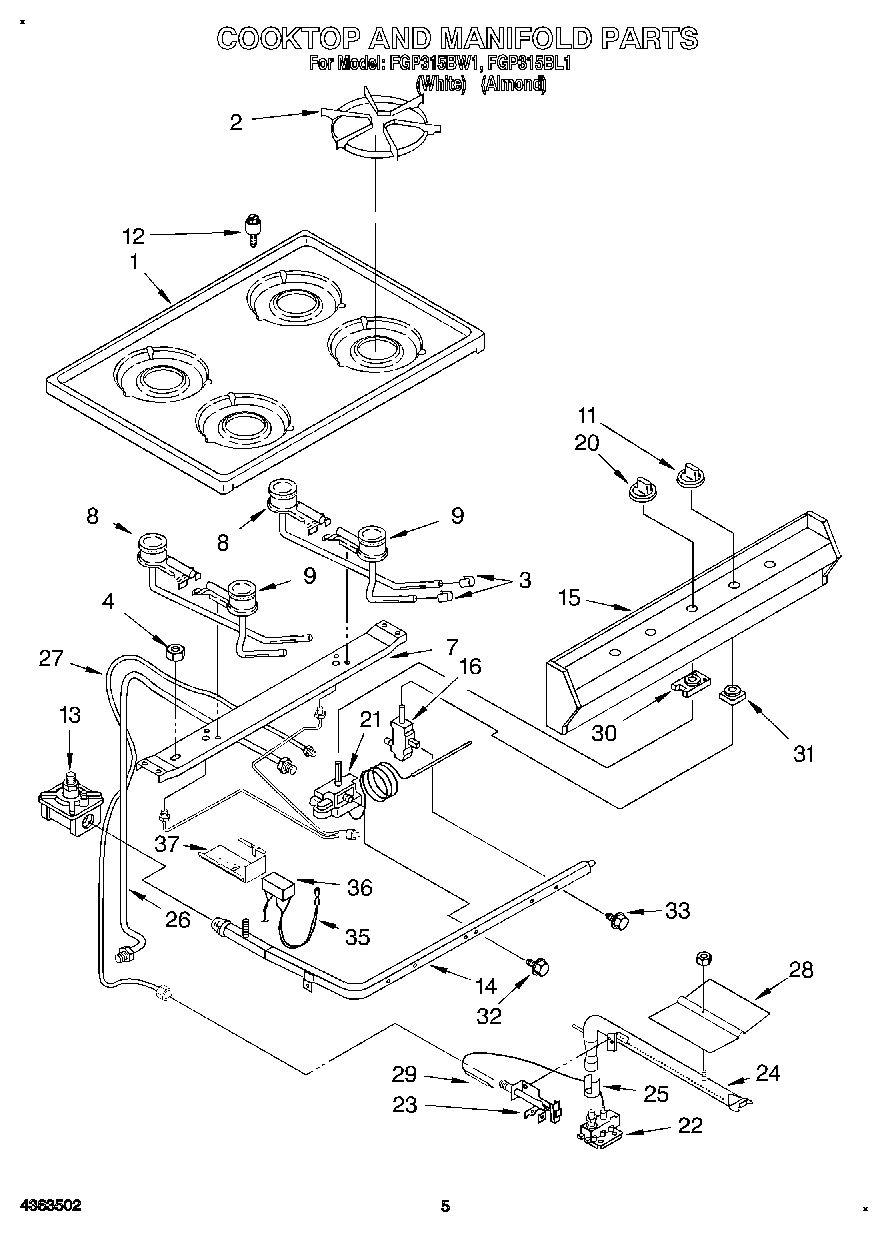

04 - COOKTOP AND MANIFOLD, LIT/OPTIONAL

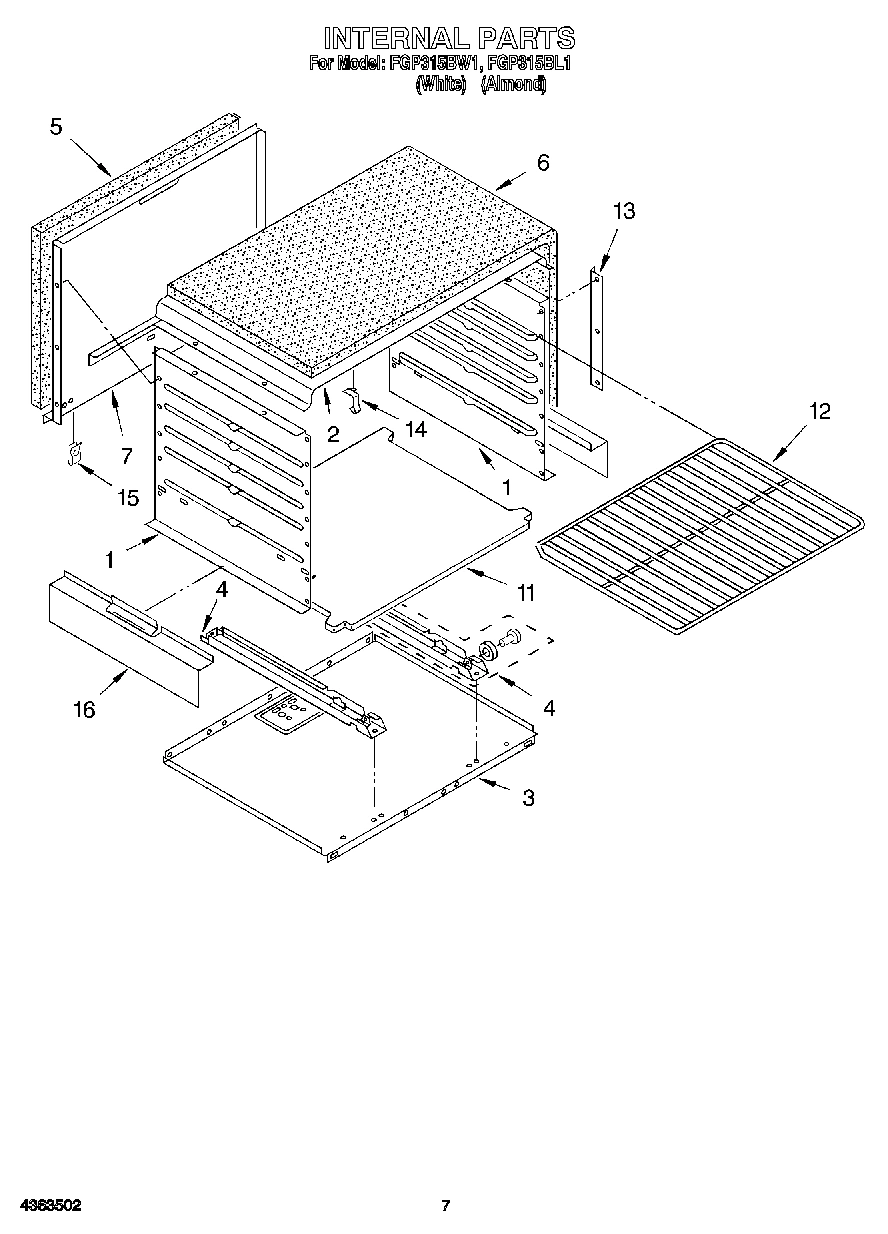

05 - INTERNAL
Common parts from model Whirlpool FGP315BW1 GAS RANGE
Installation Instructions WPL LIT4363356 Contact Us For Availability
Use & Care Guide WPL LIT4363357 Contact Us For Availability
1
Cover, Wire WPL 4320448 Contact Us For Availability
1
Liner, Door WPL 4363285 Contact Us For Availability
1
Cooktop (Almond) WPL 4179175 Contact Us For Availability
1
Cooktop (White) WPL 4320480 Contact Us For Availability
1
Liner, Oven Side (2) WPL 4315753 Contact Us For Availability
2
Panel, Filler (White) WPL 4320423 Contact Us For Availability
2
Panel, Filler (Almond) WPL 4320424 Contact Us For Availability
2
Insulation, Door WPL 4363236 Contact Us For Availability
2
Grate (4) WPL 4157056 Contact Us For Availability
2
Liner, Oven Top WPL 4315045 Contact Us For Availability
3
Panel, Backguard WPL 4364027 Contact Us For Availability
3
Screw, Baffle (4) WPL 4363237 Contact Us For Availability
3
Baffle, Door WPL 4363287 Contact Us For Availability
3
Shutter, Air (4) WPL 4157074 Contact Us For Availability
3
Baffle, Bottom WPL 4363572 Contact Us For Availability
4
Base, Front WPL 4157006 Contact Us For Availability
4
Screw WPL 4157122 Contact Us For Availability
4
End Cap (Left) WPL 4320549 Contact Us For Availability
4
End Cap (Right) WPL 4320550 Contact Us For Availability
4
Panel, Oven Door (White) WPL 4363220 Contact Us For Availability
4
Panel, Oven Door (Almond) WPL 4363281 Contact Us For Availability
4
Nut, Hex WPL 4157075 Contact Us For Availability
4
Track, Broiler (Left Hand) WPL 4364032 Contact Us For Availability
4
Track, Broiler (Right Hand) WPL 4364033 Contact Us For Availability
5
Support, Main (2) WPL 4157011 Contact Us For Availability
5
Screw WPL 4157123 Contact Us For Availability
5
Support, Backguard (Left Hand) WPL 4320418 Contact Us For Availability
5
Support, Backguard (Right Hand) WPL 4320419 Contact Us For Availability
6
Support, Rear (2) WPL 4315382 Contact Us For Availability
7
Grid, Broiler WPL 4315094 Contact Us For Availability
7
Support, Burner WPL 4320798 Contact Us For Availability
7
Liner, Oven Back WPL 4315054 Contact Us For Availability
8
Box, Flue WPL 4363002 Contact Us For Availability
8
Screw, WPL 4157121 Contact Us For Availability
8
Burner, Rear (2) WPL 4363106 Contact Us For Availability
9
Panel, Rear WPL 4363085 Contact Us For Availability
9
Rod, Push (2) WPL 4363047 Contact Us For Availability
9
Screw WPL 4320431 Contact Us For Availability
9
Burner, Front (2) WPL 4363104 Contact Us For Availability
10
Burner Box WPL 4320679 Contact Us For Availability
10
Spring, Door (2) WPL 4363233 Contact Us For Availability
11
Knob, Burner (4) WPL 4315516 Contact Us For Availability
11
Cord, Power WPL 4363111 Contact Us For Availability
11
Carriage Broiler WPL 4362896 Contact Us For Availability
11
Bottom, Oven WPL 4363242 Contact Us For Availability
12
Hinge, Door (2) WPL 4157022 Contact Us For Availability
12
Screw WPL 4320567 Contact Us For Availability
12
Screw WPL 4320662 Contact Us For Availability
12
Speed Clip (4) WPL 4157115 Contact Us For Availability
12
Locator Stud (2) WPL 4314933 Contact Us For Availability
12
Rack, Oven (2) WPL 4320804 Contact Us For Availability
13
Seal, Door (2) (Side) WPL 4315334 Contact Us For Availability
13
Hinge, Door (2) WPL 4363046 Contact Us For Availability
13
Regulator, Pressure WPL 4157084 Contact Us For Availability
13
Support, Liner (2) WPL 4157328 Contact Us For Availability
14
Seal, Door (2) (Top) WPL 4315333 Contact Us For Availability
14
Bracket, Door (2) WPL 4363048 Contact Us For Availability
14
Pipe, Manifold WPL 4314823 Contact Us For Availability
15
Bumper, Cooktop (2) WPL 4157027 Contact Us For Availability
15
Drawer, Broiler WPL 4363145 Contact Us For Availability
15
Panel, Manifold WPL 4315515 Contact Us For Availability
15
Clip, Speed WPL 4157330 Contact Us For Availability
16
Clip, Broiler WPL 4157959 Contact Us For Availability
16
Valve, 90~ (4) (Includes Ill. No. 33) WPL 4314821 Contact Us For Availability
16
Shield, Heat (2) WPL 4157331 Contact Us For Availability
17
Liner, Broiler Door WPL 4321171 Contact Us For Availability
18
Screw, Panel (8) WPL 4320742 Contact Us For Availability
18
Panel, Broiler (White) WPL 4320807 Contact Us For Availability
18
Panel, Broiler (Almond) WPL 4320816 Contact Us For Availability
19
Spacer, Handle (2) WPL 4157041 Contact Us For Availability
20
Shield, Hinge (2) WPL 4157325 Contact Us For Availability
20
Handle, Door WPL 4157040 Contact Us For Availability
20
Screw, Handle (2) WPL 4320579 Contact Us For Availability
20
Knob, Thermostat WPL 4315517 Contact Us For Availability
21
Leg, Leveler (4) WPL 4363195 Contact Us For Availability
21
Thermostat (Includes Ill. No. 32) WPL 4314890 Contact Us For Availability
22
Tee-Nut (4) WPL 4157332 Contact Us For Availability
22
Valve, Safety WPL 4157094 Contact Us For Availability
23
Anti-Tip Kit WPL 4320545 Contact Us For Availability
23
Screw WPL 4320604 Contact Us For Availability
23
Pilot, Oven WPL 4363115 Contact Us For Availability
24
Burner, Oven WPL 4320371 Contact Us For Availability
25
Shutter, Burner WPL 4157097 Contact Us For Availability
26
Tubing 3/8`` (Thermostat To Safety Valve) WPL 4157098 Contact Us For Availability
27
Locator stud (2) WPL 4315408 Contact Us For Availability
27
Stud Screw (2) WPL 4315409 Contact Us For Availability
27
Tubing 3/16`` (Thermostat To Pilot) WPL 4157099 Contact Us For Availability
28
Reflector, Broiler WPL 4320440 Contact Us For Availability
29
Ignitor, Oven WPL 4157184 Contact Us For Availability
32
Bolt, Thermostat Mounting (2) WPL 4314816 Contact Us For Availability
33
Bolt, Valve Mounting (4) WPL 4314817 Contact Us For Availability
35
Ignitor, Top (Right Hand) WPL 4157694 Contact Us For Availability
35
Ignitor, Top (Left Hand) WPL 4157695 Contact Us For Availability
36
Module, Spark WPL 4363560 Contact Us For Availability
37
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
37
Harness, Ignition WPL 4363345 Contact Us For Availability
37
Cover, Spark Module WPL 4363559 Contact Us For Availability
× ![]()
