Model FGHS2634KW0 – Common Parts & Diagrams
01 - COVER
03 - FREEZER DOOR

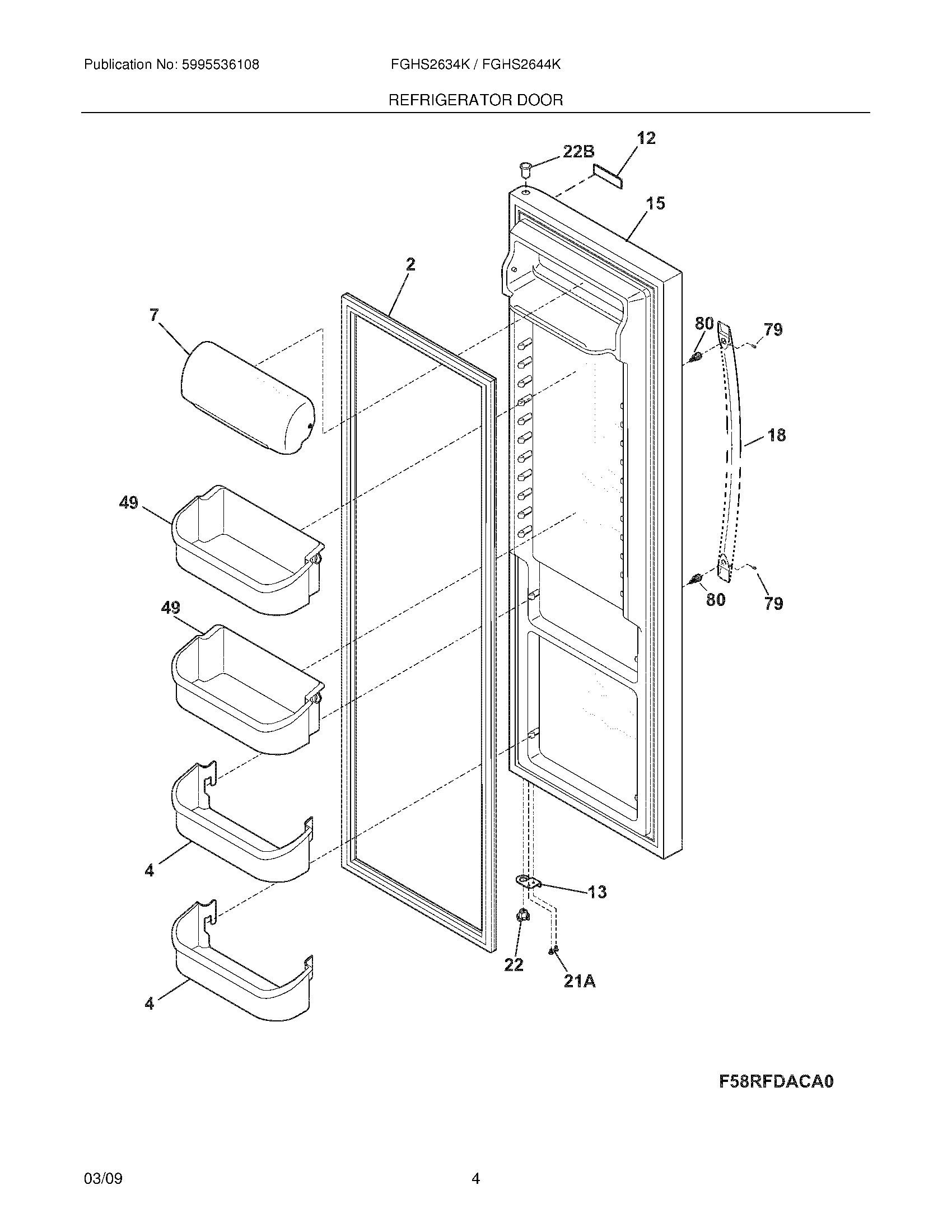

05 - REFRIGERATOR DOOR

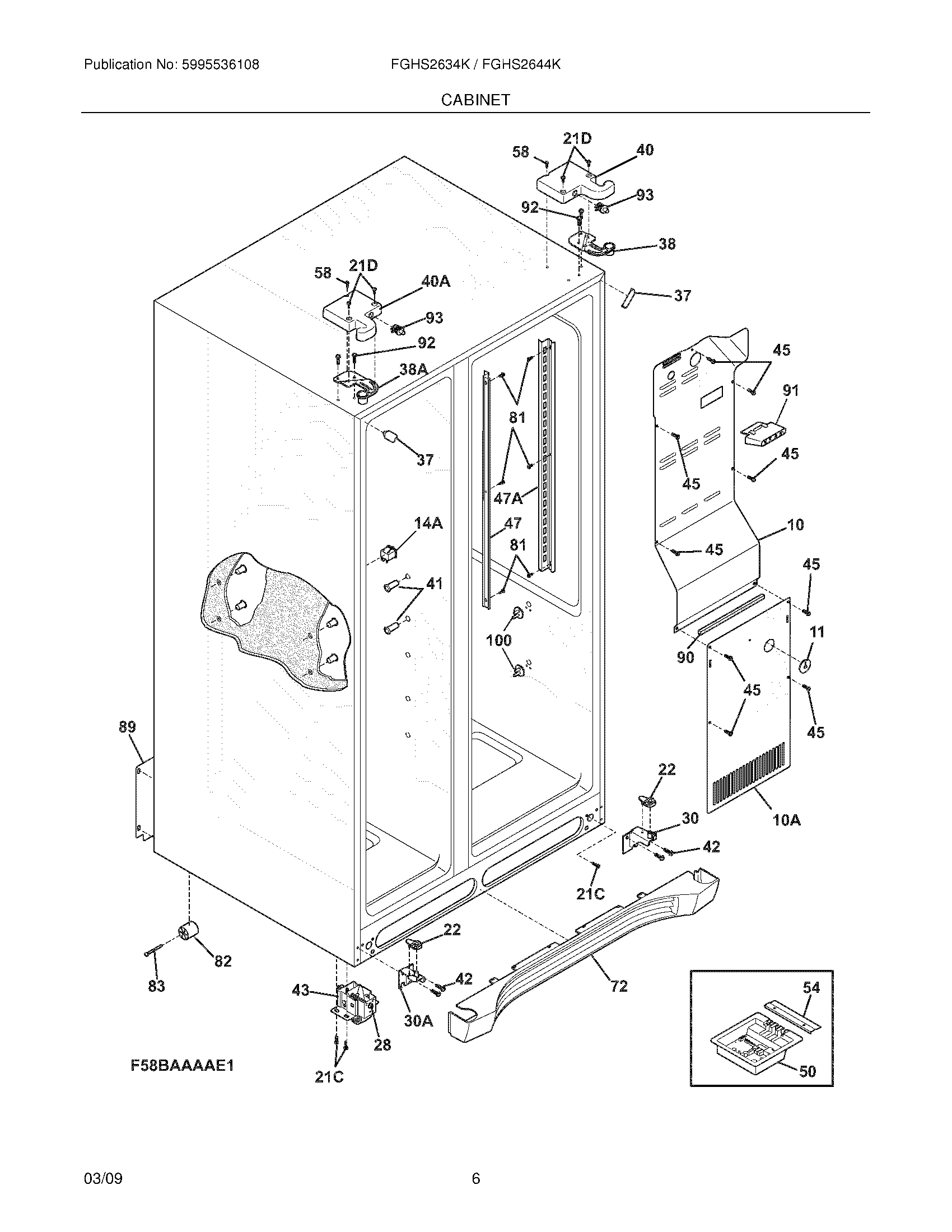

07 - CABINET

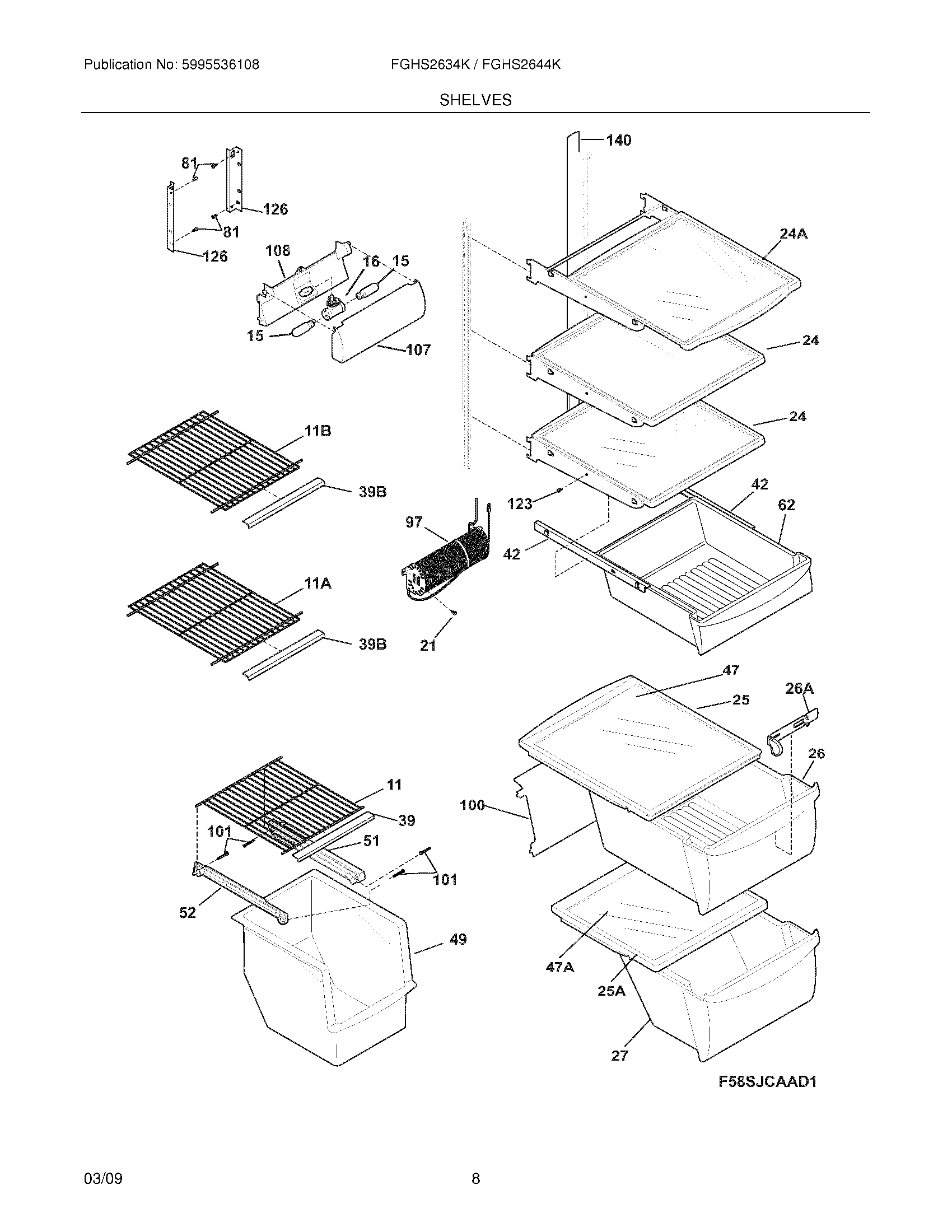

09 - SHELVES

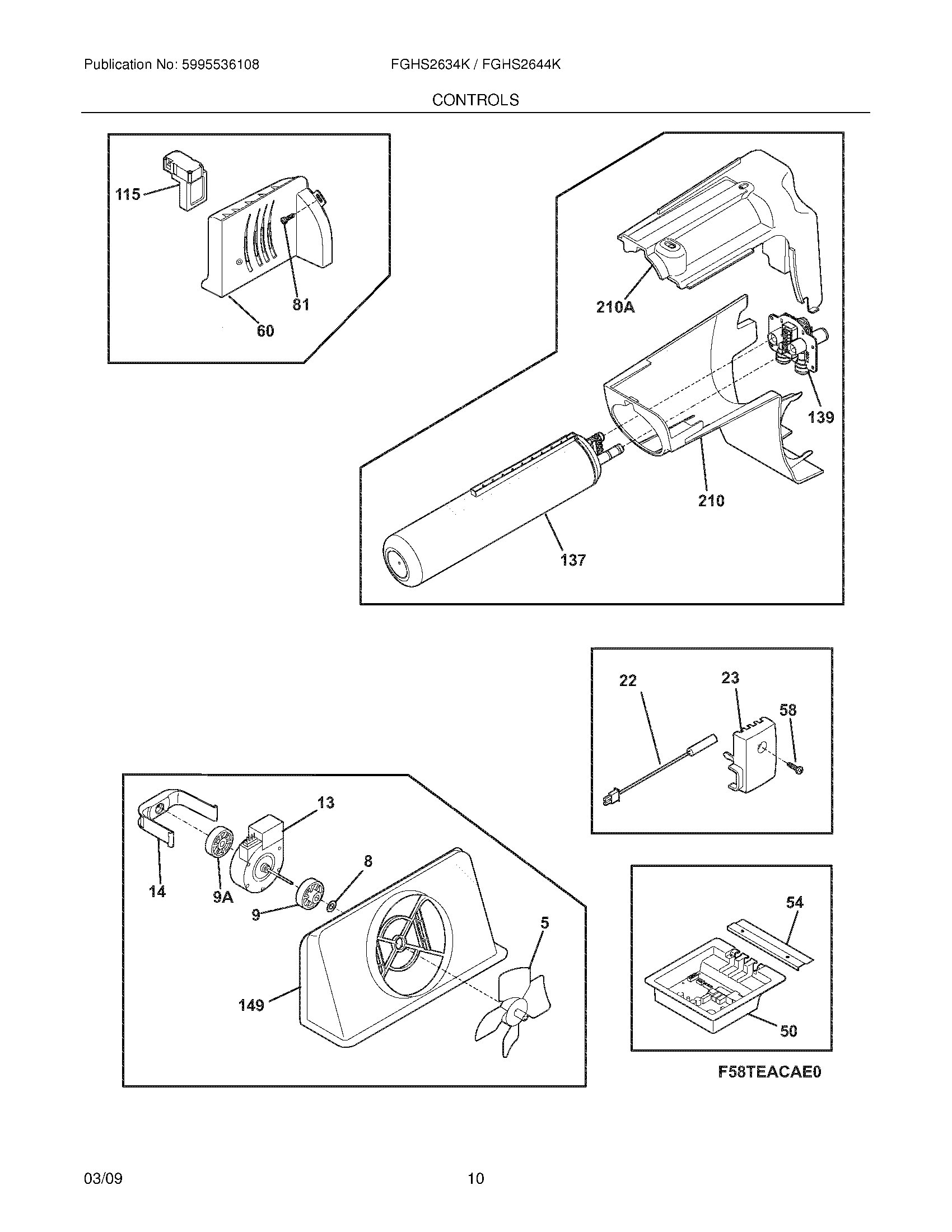

11 - CONTROLS

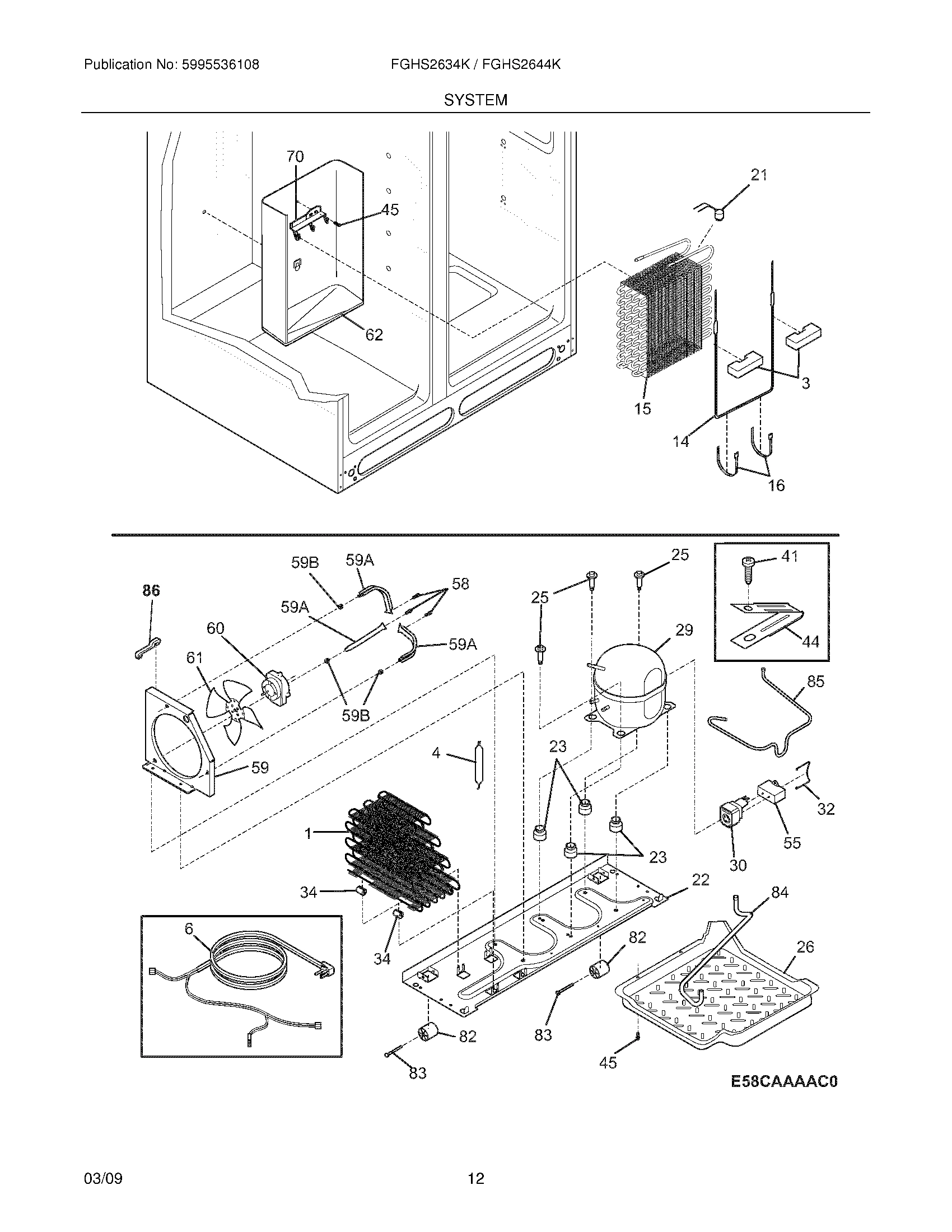

13 - SYSTEM

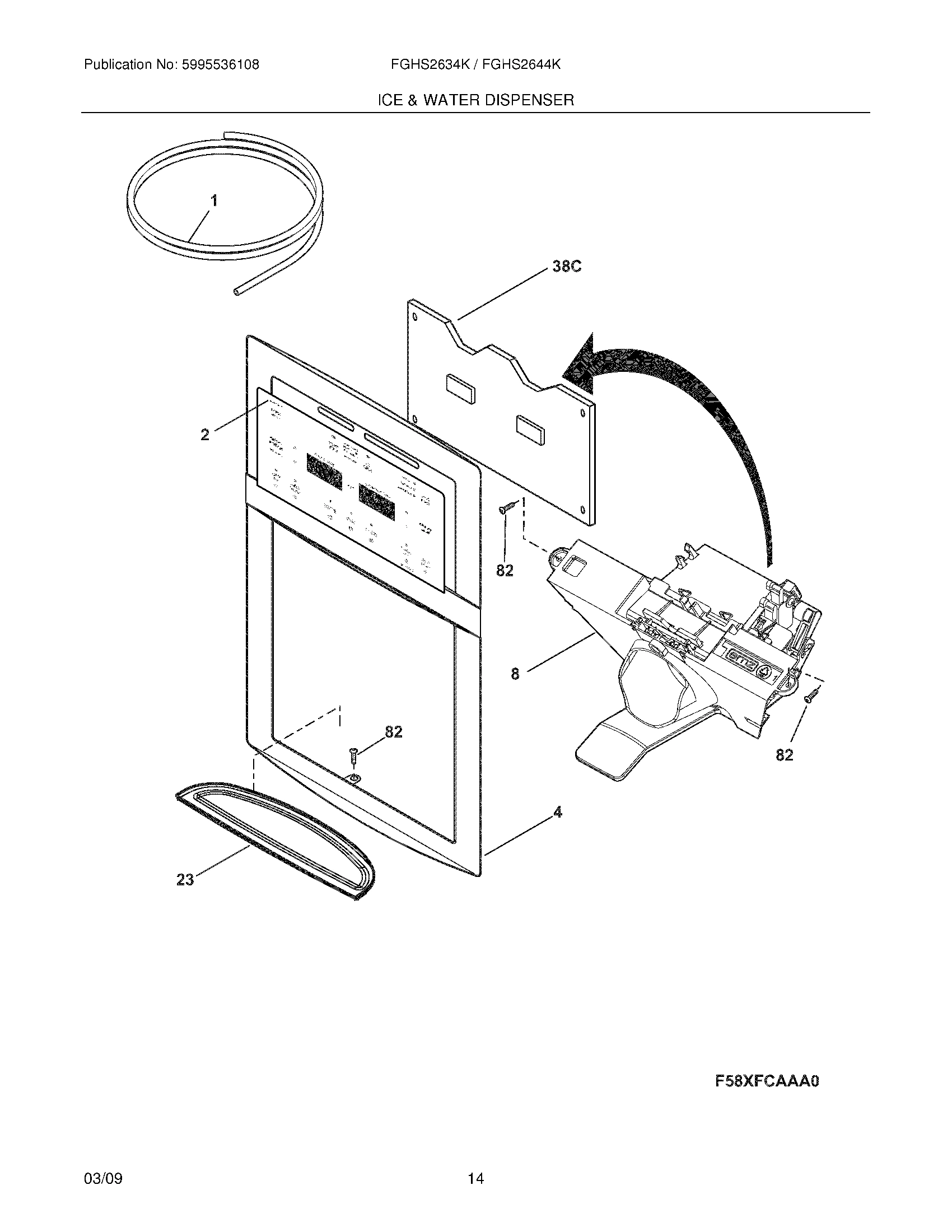

15 - ICE & WATER DISPENSER
17 - ICE CONTAINER
19 - ICE MAKER
22 - WIRING SCHEMATIC

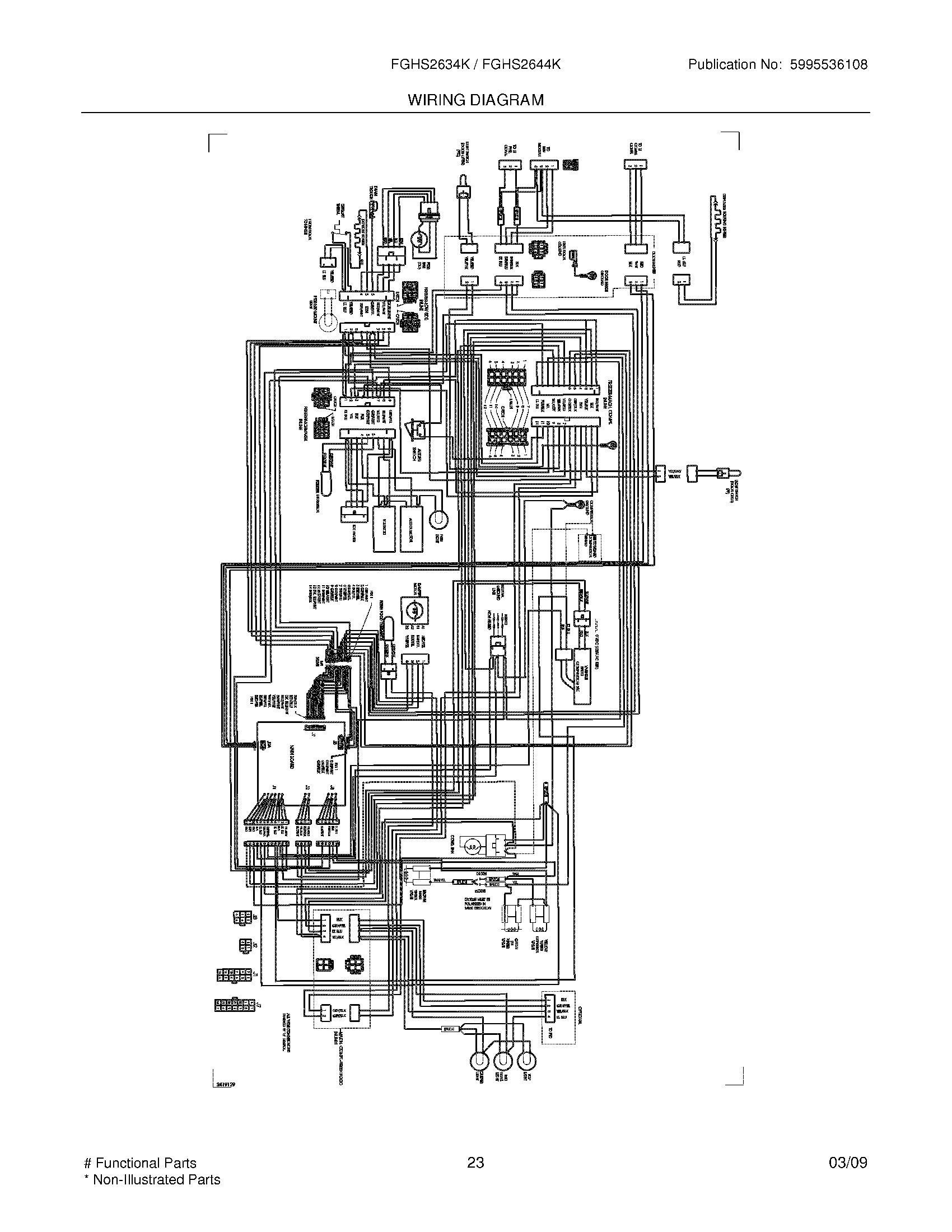

23 - WIRING DIAGRAM
