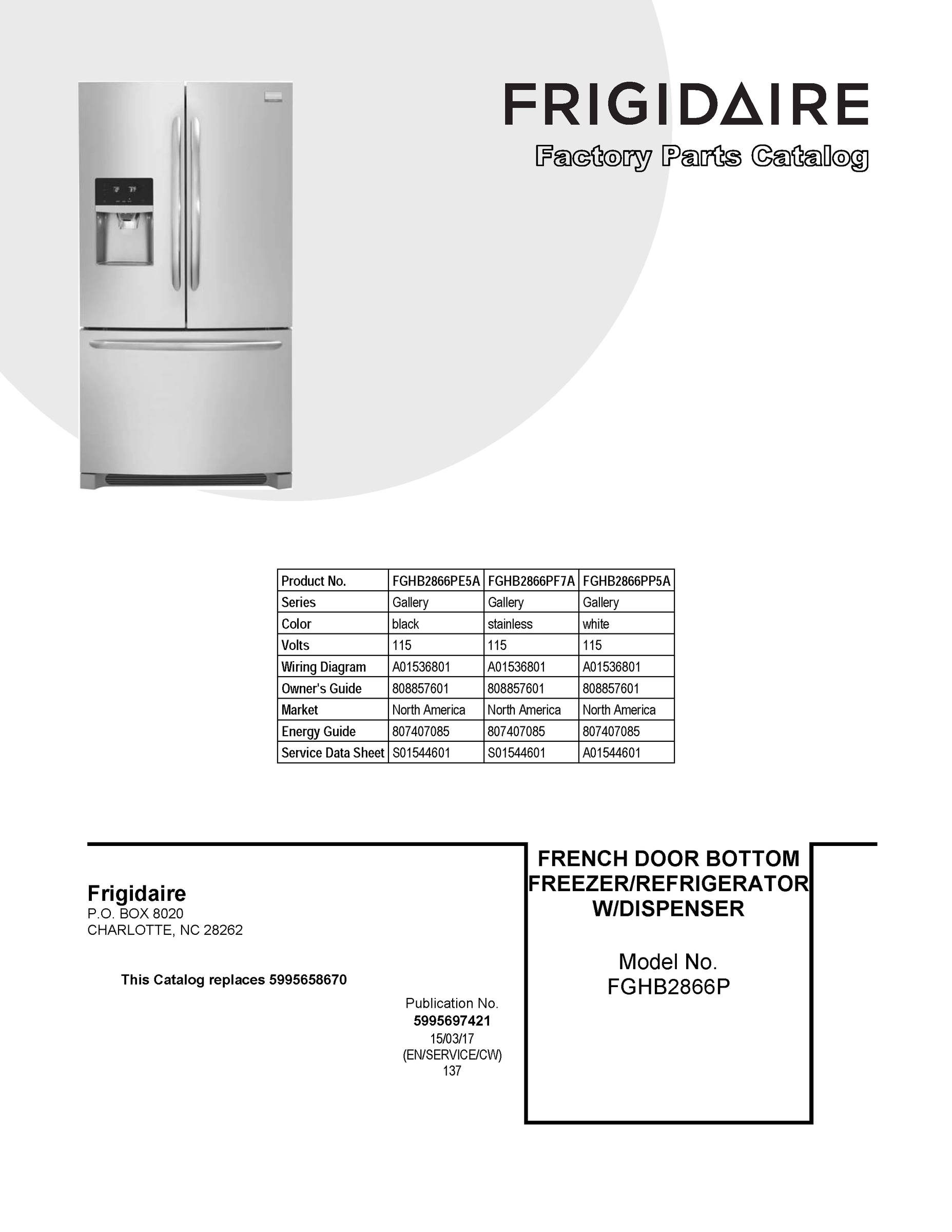

Model Electrolux FGHB2866PE5A REFRIGERATOR, FRENCH DOOR, BOTTOM FREEZER, W/DISPE – Common Parts &amp; Diagrams

1

241862903 Frigidaire Refrigerator Condenser In Stock WCI 241862903 $102.58

1

242093006 Frigidaire Refrigerator Ice Contain In Stock WCI 242093006 $191.35

1

5304537408 Frigidaire Gasket In Stock WCI 5304537408 $64.27

2

241778315 Frigidaire Door Gasket In Stock WCI 241778315 $77.20

2

243297613 Frigidaire Refrigerator Ice Maker In Stock WCI 243297613 $105.27

4

5303305677 Frigidaire Replacement Filters Fil In Stock WCI 5303305677 $9.48

4A

242194301 Frigidaire Refrigerator Trim Backorder WCI 242194301 $73.76

5

5308000010 Frigidaire Refrigerator Evaporator In Stock WCI 5308000010 $44.94

6

241516904 Frigidaire Refrigerator Service Cor In Stock WCI 241516904 $28.28

8

215474201 Frigidaire Refrigerator Washer Backorder WCI 215474201 $16.59

8

242270106 Frigidaire Refrigerator Module In Stock WCI 242270106 $156.99

9

241518301 Frigidaire Refrigerator Bushing In Stock WCI 241518301 $46.05

10

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $45.46

10

242072002 Frigidaire Refrigerator Cover Backorder WCI 242072002 $91.65

10A

241860402 Frigidaire Refrigerator Evaporator Backorder WCI 241860402 $102.63

11

DOOR-REFR, BLACK, W/DISP WCI 242185616 Contact Us For Availability

11

DOOR-FRZR, BLACK, COMPLETE ASSY WCI 241987914 Contact Us For Availability

12

242015201 Frigidaire Nameplate Backorder WCI 242015201 $3.31

12

INSULATION-AIR DUCT WCI 242072401 Contact Us For Availability

13

241868401 Frigidaire Refrigerator Door Stop Backorder WCI 241868401 $14.42

13

809069220 Frigidaire Evaporator Fan Motor In Stock WCI 809069220 $100.27

13A

241868402 Frigidaire Refrigerator Door Stop Backorder WCI 241868402 $14.42

14

242060202 Frigidaire Refrigerator Light Switc Backorder WCI 242060202 $31.61

14

5303918410 Frigidaire Refrigerator Defrost He In Stock WCI 5303918410 $99.82

15

242196204 Frigidaire Refrigerator Light Board Backorder WCI 242196204 $50.92

15

5303918569 Frigidaire Refrigerator Evaporator In Stock WCI 5303918569 $198.01

15

DOOR-REFR, BLACK WCI 241988042 Contact Us For Availability

15A

242202701 Frigidaire Refrigerator Lens In Stock WCI 242202701 $21.05

16

242072101 Frigidaire Refrigerator Cover Backorder WCI 242072101 $37.70

16

5308000110 Frigidaire Refrigerator Evaporator In Stock WCI 5308000110 $48.81

17

241791201 Frigidaire Refrigerator Drain Troug Backorder WCI 241791201 $85.42

17

241928201 Frigidaire Refrigerator Air Duct Ga Backorder WCI 241928201 $13.88

241816602 Frigidaire Refrigerator Auger Motor In Stock WCI 241816602 $143.97

241860101 Frigidaire Refrigerator Gasket Backorder WCI 241860101 $13.86

241930103 Frigidaire Door Handle Backorder WCI 241930103 $164.16

242029403 Frigidaire Refrigerator Door Handle Backorder WCI 242029403 $129.77

19

242072601 Frigidaire Refrigerator Support Backorder WCI 242072601 $30.87

20

242072201 Frigidaire Refrigerator Cover Backorder WCI 242072201 $75.96

20

242095702 Frigidaire Refrigerator Air Handler In Stock WCI 242095702 $62.24

20

808137001 Frigidaire Refrigerator Thermistor In Stock WCI 808137001 $25.49

241732101 Frigidaire Refrigerator Screw Backorder WCI 241732101 $12.20

242017501 Frigidaire Refrigerator Screw Backorder WCI 242017501 $12.18

5303918568 Frigidaire Thermostat Defrost In Stock WCI 5303918568 $71.54

5304521781 Frigidaire Refrigerator Thermostat In Stock WCI 5304521781 $30.50

21C

241899703 Frigidaire Refrigerator Screw Backorder WCI 241899703 $10.29

22

CAM, UPPER HINGE, RH WCI 242075601 Contact Us For Availability

22A

242075602 Frigidaire Refrigerator Cam Assembl In Stock WCI 242075602 $16.15

22C

241760401 Frigidaire Refrigerator Bearing Backorder WCI 241760401 $14.94

23

218513300 Frigidaire Refrigerator Compressor Backorder WCI 218513300 $33.26

23

242176502 Frigidaire Main Board Backorder WCI 242176502 $19.97

23

5303918567 Frigidaire Refrigerator Evaporator Backorder WCI 5303918567 $216.30

24

242068701 Frigidaire Refrigerator Shelf Backorder WCI 242068701 $151.98

24

242094802 Frigidaire Defrost Heater In Stock WCI 242094802 $77.07

24

5304515677 Frigidaire Package of 4 Screws In Stock WCI 5304515677 $6.61

24A

240383412 Frigidaire Refrigerator Screw Backorder WCI 240383412 $8.87

24A

242200501 Frigidaire Refrigerator "Spill-Safe Backorder WCI 242200501 $144.22

24B

242068703 Frigidaire Refrigerator Shelf Backorder WCI 242068703 $143.10

24C

242235501 Frigidaire Refrigerator Shelf "Spil Backorder WCI 242235501 $153.37

25

241949502 Frigidaire Refrigerator Clip Backorder WCI 241949502 $14.94

25

SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability

26

241801802 Frigidaire Refrigerator Crisper Pan In Stock WCI 241801802 $169.14

26

241920609 Frigidaire Side-by-Side Defrost Pan Backorder WCI 241920609 $108.13

27

241752703 Frigidaire Refrigerator Retainer Backorder WCI 241752703 $40.48

30

241778701 Frigidaire Refrigerator Anti-Tip Br Backorder WCI 241778701 $19.43

30

5304512686 Frigidaire Refrigerator Inverter K In Stock WCI 5304512686 $242.07

33

HOUSING-EVAPORATOR WCI 242094401 Contact Us For Availability

34

241868301 Frigidaire Refrigerator Washer Asse Backorder WCI 241868301 $24.38

36

241868201 Frigidaire Refrigerator Spacer Backorder WCI 241868201 $38.80

36A

241868202 Frigidaire Refrigerator Spacer Backorder WCI 241868202 $17.18

37

242161202 Frigidaire Refrigerator Trim-Cabine In Stock WCI 242161202 $6.09

38

241761301 Frigidaire Upper Bracket Hinge Backorder WCI 241761301 $51.57

38A

241761302 Frigidaire Refrigerator Upper Hinge Backorder WCI 241761302 $50.46

38C

5304527930 Frigidaire Water/Ice Dispenser Con In Stock WCI 5304527930 $201.93

40B

241862402 Frigidaire Refrigerator Upper Hinge Backorder WCI 241862402 $92.08

41

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $10.50

42

240578902 Frigidaire Screw Mounting Hinge Backorder WCI 240578902 $11.07

42

242067901 Frigidaire Refrigerator Roller Supp Backorder WCI 242067901 $16.87

42A

242067801 Frigidaire Refrigerator Door Suppor Backorder WCI 242067801 $34.37

43

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $6.61

47B

242082303 Frigidaire Refrigerator Glass Backorder WCI 242082303 $79.29

48

242071401 Frigidaire Refrigerator White Door Backorder WCI 242071401 $72.09

48

242122101 Frigidaire Refrigerator Channel She Backorder WCI 242122101 $62.69

49

242037201 Frigidaire Door Bin Shelf In Stock WCI 242037201 $87.62

49

242122202 Frigidaire Refrigerator Channel Backorder WCI 242122202 $52.68

49

5303918736 Frigidaire Refrigerator Lower Bask Backorder WCI 5303918736 $183.04

49A

241780810 Frigidaire Refrigerator Basket Backorder WCI 241780810 $176.93

49A

242037202 Frigidaire Refrigerator Door Bin Backorder WCI 242037202 $61.01

49A

242122001 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122001 $34.37

49B

242011701 Frigidaire Bin Shelf Door Backorder WCI 242011701 $38.26

49B

242122301 Frigidaire Refrigerator Shelf Mount Backorder WCI 242122301 $61.01

50

5304502779 Frigidaire Refrigerator Board Main In Stock WCI 5304502779 $254.07

51

242095501 Frigidaire Refrigerator Anti-Twist Backorder WCI 242095501 $16.07

51

242197901 Frigidaire Refrigerator Slide Backorder WCI 242197901 $104.85

51A

241894223 Frigidaire Drawer Right Slide Rail Backorder WCI 241894223 $103.71

52A

241894224 Frigidaire Refrigerator Slide Assem Backorder WCI 241894224 $103.15

53A

5303918801 Frigidaire Refrigerator Retainer S Backorder WCI 5303918801 $9.42

54

807854301 Frigidaire Refrigerator Support Backorder WCI 807854301 $35.52

55

242253002 Frigidaire Refrigerator Water Valve In Stock WCI 242253002 $158.07

58

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $7.74

59

240442708 Frigidaire Refrigerator Screw - #10 In Stock WCI 240442708 $6.09

59A

241946106 Frigidaire Refrigerator Condenser F Backorder WCI 241946106 $35.48

60

242018301 Frigidaire Refrigerator Condenser F In Stock WCI 242018301 $114.51

61

241639502 Frigidaire Refrigerator Condenser F In Stock WCI 241639502 $16.05

62

PAN-DELI WCI 242096802 Contact Us For Availability

63

216396900 Frigidaire Dryer Adjustable Levelin In Stock WCI 216396900 $18.27

65

808456301 Frigidaire Refrigerator Cover Backorder WCI 808456301 $36.02

68

242095002 Frigidaire Refrigerator Cover Backorder WCI 242095002 $78.20

72

242054802 Frigidaire Refrigerator Black Kickp Backorder WCI 242054802 $63.78

73

242075701 Frigidaire Refrigerator Lower Hinge Backorder WCI 242075701 $16.64

80

218755504 Frigidaire Refrigerator Shoulder Sc In Stock WCI 218755504 $10.50

81

134154100 Frigidaire Screw 10-32 x 0.375 Co In Stock WCI 134154100 $10.55

81

240359403 Frigidaire Refrigerator Fan Shroud Backorder WCI 240359403 $2.76

82

240335202 Frigidaire Refrigerator Roller Backorder WCI 240335202 $16.64

82

241779401 Frigidaire Refrigerator Flipper Hin In Stock WCI 241779401 $16.07

82

5304503705 Frigidaire Refrigerator Divider Backorder WCI 5304503705 $92.62

83

241812202 Frigidaire Refrigerator Magnet Backorder WCI 241812202 $56.55

83

5304455655 Frigidaire Refrigerator Rivet Backorder WCI 5304455655 $28.21

84

808274201 Frigidaire Door Guide Assembly Backorder WCI 808274201 $26.62

84A

242190501 Frigidaire Refrigerator Mullion Ass Backorder WCI 242190501 $20.51

85

241778808 Frigidaire Refrigerator White Mulli Backorder WCI 241778808 $283.82

85

242130901 Frigidaire Refrigerator Divider Backorder WCI 242130901 $67.13

85A

242139301 Frigidaire Refrigerator Support Bea Backorder WCI 242139301 $57.69

85B

241872203 Frigidaire Refrigerator Beam Suppor Backorder WCI 241872203 $39.39

86

240409302 Frigidaire Refrigerator Condenser T Backorder WCI 240409302 $49.36

86

241779802 Frigidaire Door Hinge Mullion Flipp In Stock WCI 241779802 $26.62

86

5304507340 Frigidaire Refrigerator Trim Backorder WCI 5304507340 $34.93

87

TUBE-CONNECTOR, SUCTION WCI 241871501 Contact Us For Availability

89

241972302 Frigidaire Refrigerator Drawer Brac Backorder WCI 241972302 $79.87

89

5304520905 Frigidaire Assembly Cover Refriger Backorder WCI 5304520905 $54.36

89

TUBE-PROCESS WCI 215346900 Contact Us For Availability

90

240597220 Frigidaire Sensor In Stock WCI 240597220 $3.67

90

242136901 Frigidaire Refrigerator Timing Bar Backorder WCI 242136901 $24.51

92

241710601 Frigidaire Refrigerator Screw In Stock WCI 241710601 $10.53

93

241835502 Frigidaire Refrigerator Black Light In Stock WCI 241835502 $52.71

96

241860601 Frigidaire Refrigerator Evaporator Backorder WCI 241860601 $103.15

96

242048006 Frigidaire Air Filter-Door Trim Backorder WCI 242048006 $12.18

100

242157601 Frigidaire Refrigerator Cover Backorder WCI 242157601 $8.85

101

242157801 Frigidaire Refrigerator Cover Backorder WCI 242157801 $17.75

102

242029301 Frigidaire Refrigerator Door Handle Backorder WCI 242029301 $19.43

102

242157501 Frigidaire Refrigerator Cover Backorder WCI 242157501 $17.75

103

242077302 Frigidaire Screw In Stock WCI 242077302 $6.09

105

242116801 Frigidaire Refrigerator Basket Trim Backorder WCI 242116801 $13.86

107

241963102 Frigidaire Refrigerator Air Duct Backorder WCI 241963102 $26.62

115

5303918899 Frigidaire Damper Control Assembly In Stock WCI 5303918899 $58.18

116

241518601 Frigidaire Refrigerator Damper Seal In Stock WCI 241518601 $7.20

122

241860117 Frigidaire Gasket Backorder WCI 241860117 $8.31

123

242135301 Frigidaire Refrigerator Evaporator Backorder WCI 242135301 $6.09

124

242006903 Frigidaire Refrigerator Air Duct In Stock WCI 242006903 $46.59

125

242071201 Frigidaire Refrigerator Cover Backorder WCI 242071201 $89.84

136

DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability

139

242009602 Frigidaire Refrigerator Water Filte In Stock WCI 242009602 $51.81

145

242200003 Frigidaire Refrigerator Right Deli Backorder WCI 242200003 $57.12

145A

242200004 Frigidaire Refrigerator Left Hand D Backorder WCI 242200004 $60.43

147

5304493604 Frigidaire Refrigerator Gasket & F In Stock WCI 5304493604 $80.98

148

242095406 Frigidaire Refrigerator Gasket In Stock WCI 242095406 $13.83

149

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $99.30

151

242069701 Frigidaire Refrigerator Water Filte Backorder WCI 242069701 $19.40

154

SUPPORT WCI 242082401 Contact Us For Availability

157

241872201 Frigidaire Refrigerator Crisper Cov Backorder WCI 241872201 $39.37

207

242047901 Frigidaire Refrigerator Air Filter Backorder WCI 242047901 $58.77

210

241779101 Frigidaire Refrigerator Magnet In Stock WCI 241779101 $24.38

210

241983816 Frigidaire Refrigerator Water Filte Backorder WCI 241983816 $57.71

210A

241998303 Frigidaire Refrigerator Water Filte In Stock WCI 241998303 $10.35

211

241979601 Frigidaire Refrigerator Bumper Backorder WCI 241979601 $17.73

212

242236801 Frigidaire Refrigerator Roller Asse Backorder WCI 242236801 $16.07

213

242010901 Frigidaire Refrigerator Assembly Ro Backorder WCI 242010901 $34.31

218362501 Frigidaire Refrigerator Screw Backorder WCI 218362501 $9.44

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $14.99

240494001 Frigidaire Refrigerator Plug Button Backorder WCI 240494001 $13.29

241500303 Frigidaire Refrigerator Screw Backorder WCI 241500303 $2.96

241503901 Frigidaire Refrigerator P-1 Tube Ad In Stock WCI 241503901 $39.94

241510904 Frigidaire Refrigerator Dispenser H Backorder WCI 241510904 $46.57

241947701 Frigidaire Refrigerator Spacer Backorder WCI 241947701 $73.20

242068601 Frigidaire Refrigerator Bumper Backorder WCI 242068601 $10.53

242146401 Frigidaire Refrigerator Screw In Stock WCI 242146401 $11.07

5303918596 Frigidaire Refrigerator Dispenser In Stock WCI 5303918596 $275.47

5304455650 Frigidaire Refrigerator Screw Backorder WCI 5304455650 $11.09

5304521649 Frigidaire Refrigerator Wiring Har Backorder WCI 5304521649 $74.28

5304521784 Frigidaire Refrigerator Harness Backorder WCI 5304521784 $44.92

218252201 Frigidaire Refrigerator Screw Backorder WCI 218252201 $11.07

240383407 Frigidaire Refrigerator Screw Backorder WCI 240383407 $9.98

241695904 Frigidaire Refrigerator Screw Backorder WCI 241695904 $10.53

241842301 Frigidaire Refrigerator Thermistor In Stock WCI 241842301 $26.60

241844403 Frigidaire Refrigerator Tube Backorder WCI 241844403 $18.27

241860111 Frigidaire Refrigerator Evaporator Backorder WCI 241860111 $9.40

241953908 Frigidaire Refrigerator Screw Backorder WCI 241953908 $3.33

242011101 Frigidaire Refrigerator Pin Lock Backorder WCI 242011101 $11.09

242015001 Frigidaire Refrigerator Screw Backorder WCI 242015001 $12.75

242036801 Frigidaire Refrigerator Plastic Cli In Stock WCI 242036801 $75.41

242095805 Frigidaire Refrigerator Wiring Harn Backorder WCI 242095805 $60.43

242096001 Frigidaire Refrigerator Insulation Backorder WCI 242096001 $14.42

242141401 Frigidaire Refrigerator Harness Wir In Stock WCI 242141401 $141.61

5304453707 Frigidaire Oven Screw In Stock WCI 5304453707 $11.64

5304520993 Frigidaire Refrigerator Mullion Ha Backorder WCI 5304520993 $29.98

NIAA

242039701 Frigidaire Refrigerator Screw Backorder WCI 242039701 $10.53

NIAB

241860104 Frigidaire Refrigerator Coil Cover Backorder WCI 241860104 $23.30

NIAC

241860105 Frigidaire Refrigerator Coil Cover Backorder WCI 241860105 $13.29

218515401 Frigidaire Refrigerator Clip Backorder WCI 218515401 $12.25

240346701 Frigidaire Refrigerator Foam Seal T In Stock WCI 240346701 $23.27

240363602 Frigidaire Refrigerator Shoulder Sc Backorder WCI 240363602 $9.96

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $13.31

242004802 Frigidaire Refrigerator Foam Strip Backorder WCI 242004802 $4.41

NIC

241964707 Frigidaire Refrigerator Water Tube In Stock WCI 241964707 $14.40

NIC

242072501 Frigidaire Refrigerator Insulation Backorder WCI 242072501 $14.40

NID

241965906 Frigidaire Refrigerator Water Tube Backorder WCI 241965906 $18.84

NIG

242220204 Frigidaire Water Inlet Tube In Stock WCI 242220204 $28.30

NIH

242095425 Frigidaire Gasket Backorder WCI 242095425 $7.77
