Model Electrolux FGFS68CJSA RANGE – Common Parts & Diagrams
01 - COVER

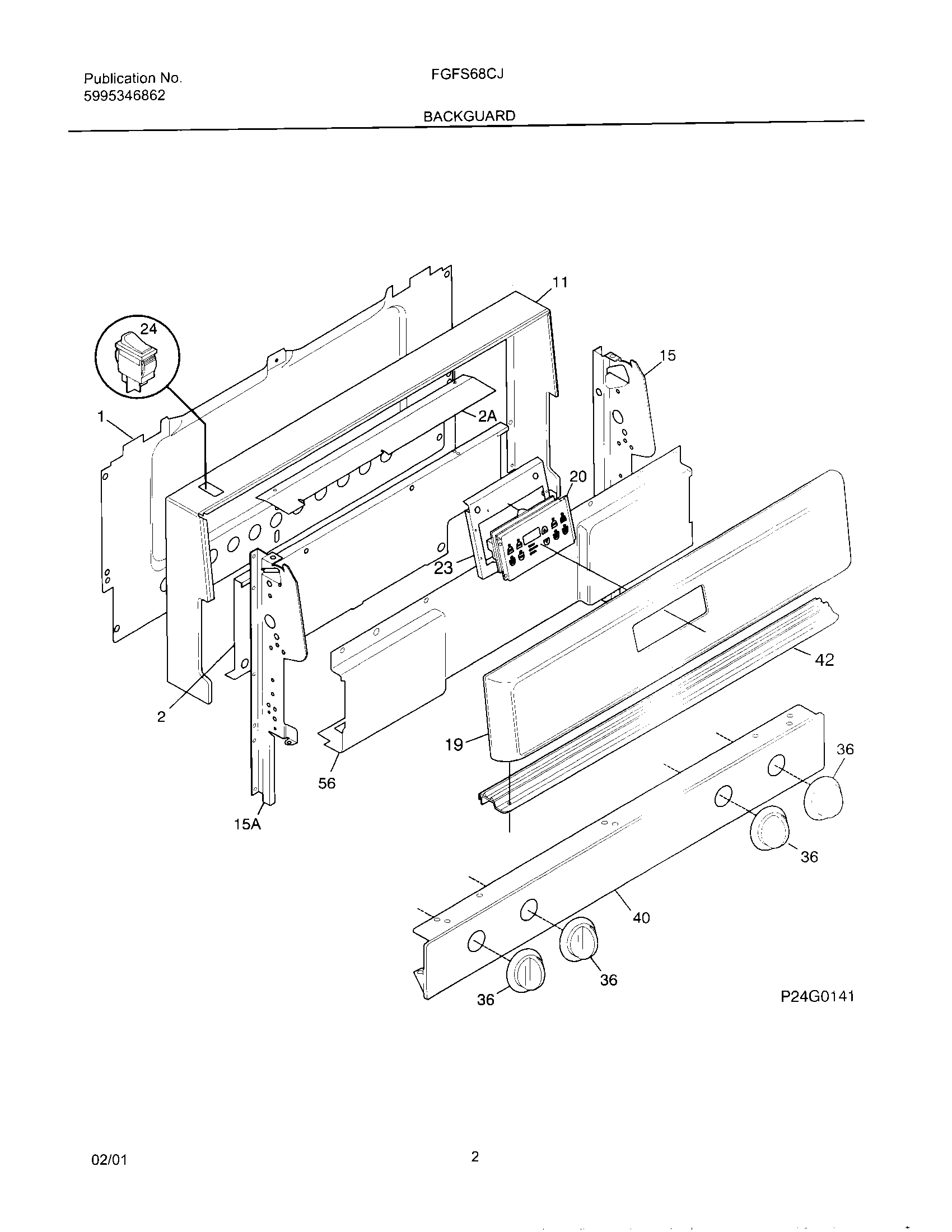

03 - BACKGUARD

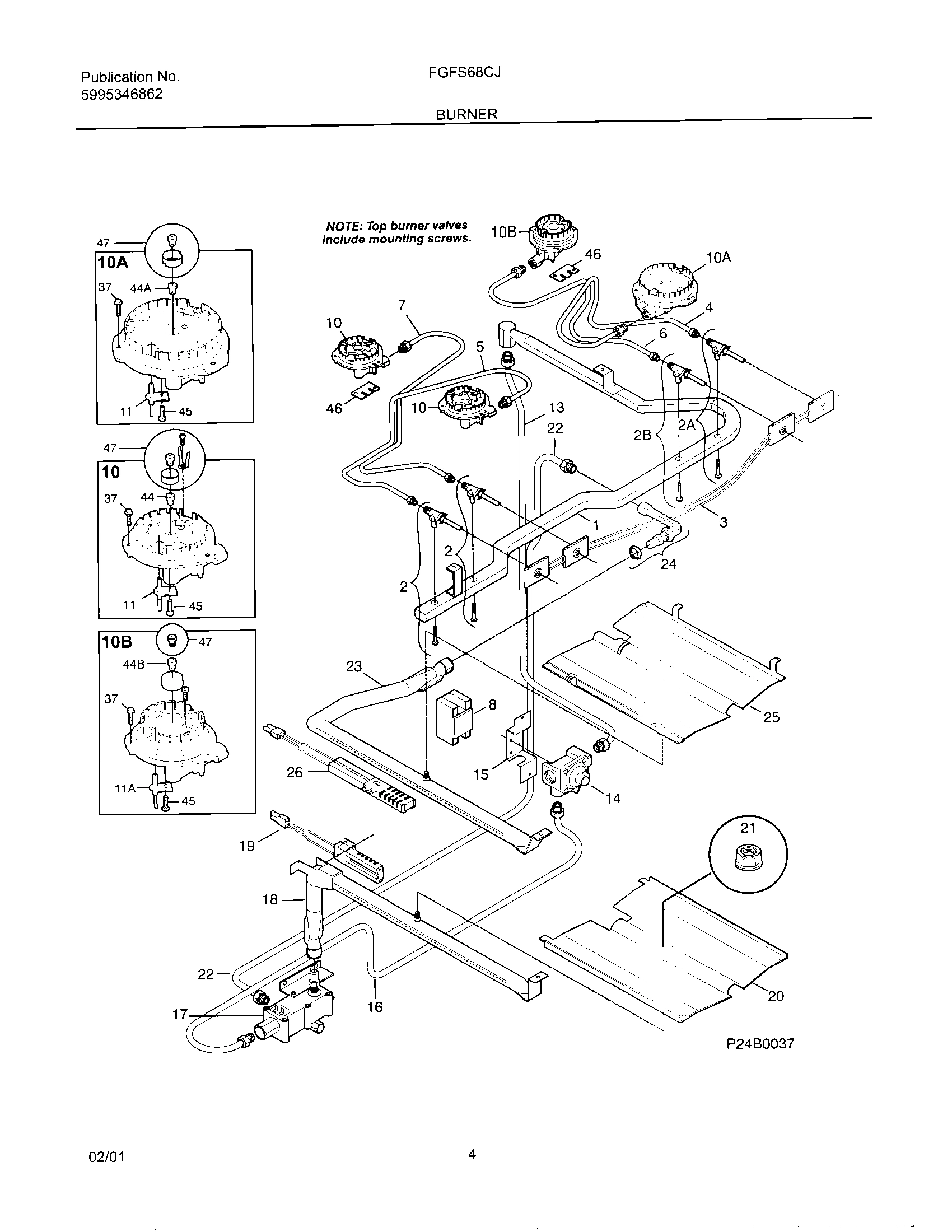

05 - BURNER

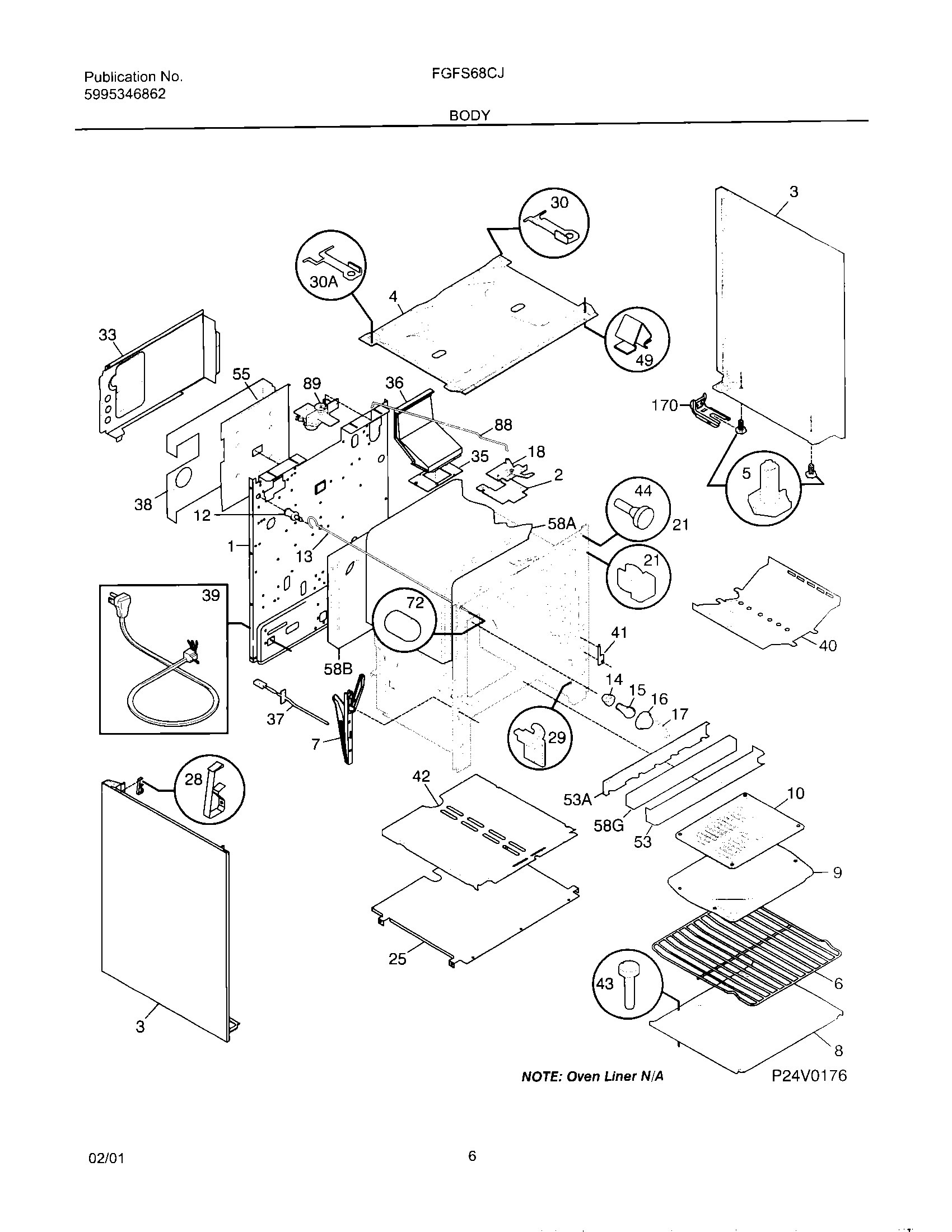

07 - BODY

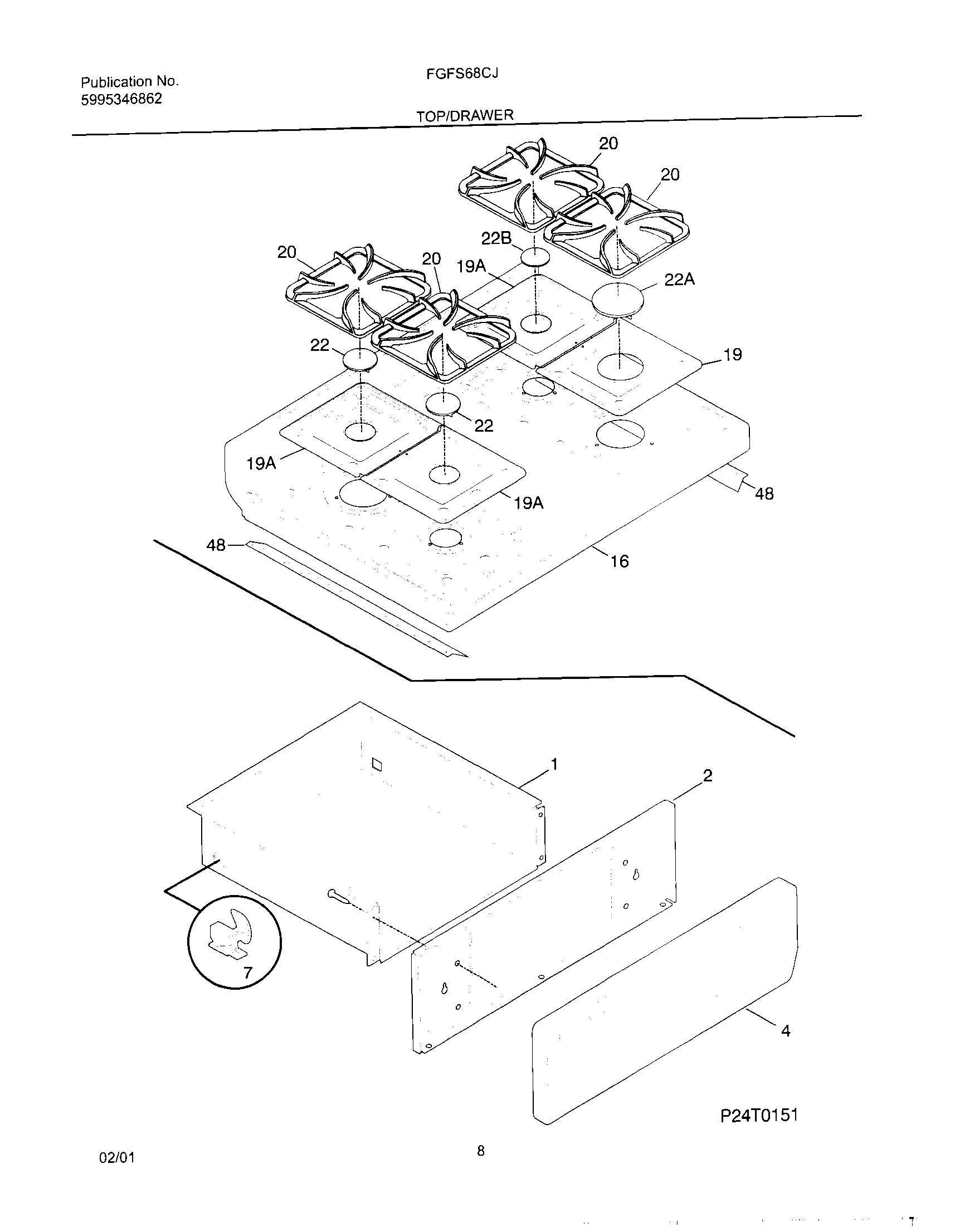

09 - TOP/DRAWER

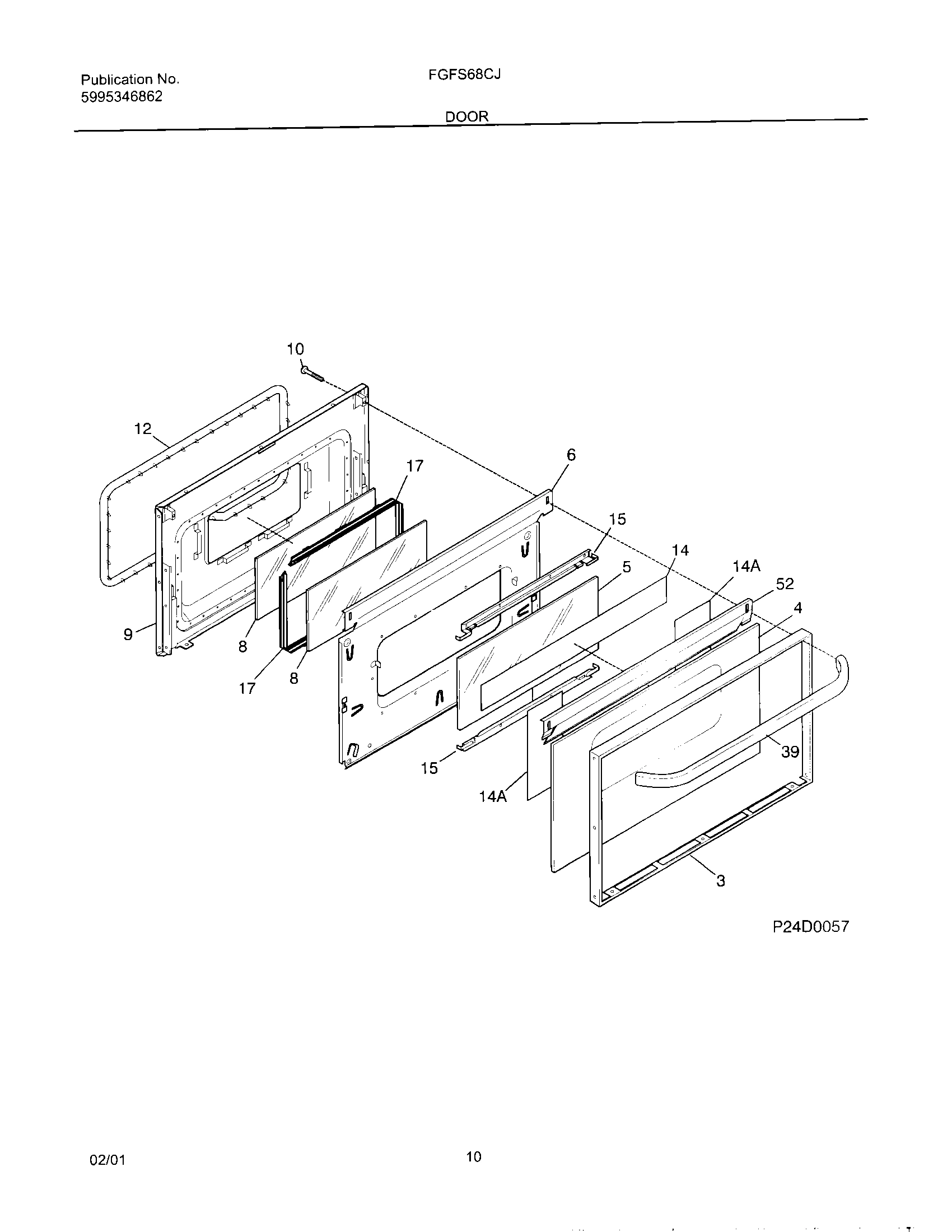

11 - DOOR

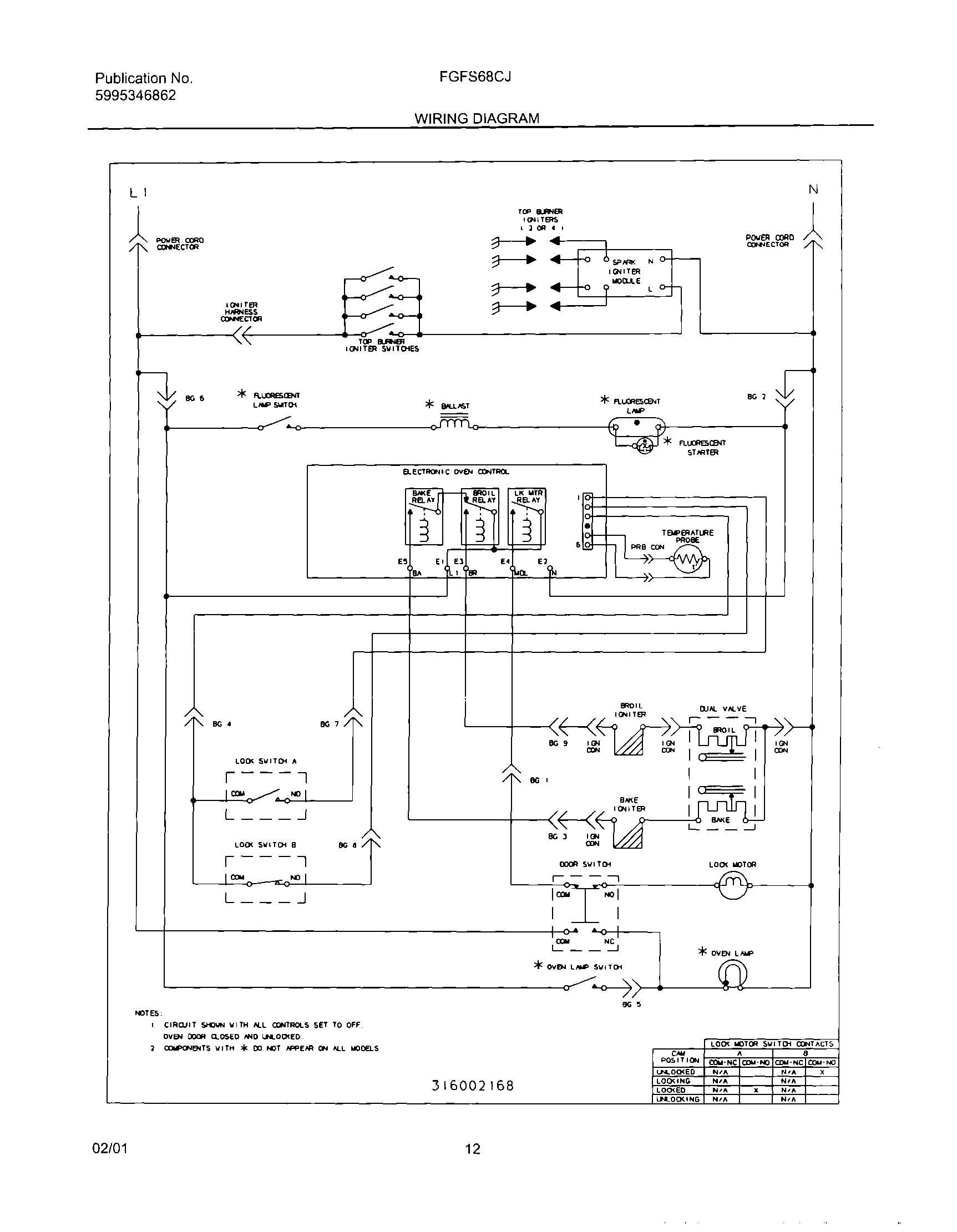

12 - WIRING DIAGRAM
Common parts from model Electrolux FGFS68CJSA RANGE
1
DRAWER-UTILITY WCI 316011501 Contact Us For Availability
2
WCI 316134100 WCI 316134100 Contact Us For Availability
2
WCI 316134102 WCI 316134102 Contact Us For Availability
2
Shield-drawer,liner ,galv steel ,front panel WCI 5303288582 Contact Us For Availability
3
WCI 316001824 WCI 316001824 Contact Us For Availability
3
WCI 316067804 WCI 316067804 Contact Us For Availability
4
WCI 316059612 WCI 316059612 Contact Us For Availability
4
Panel-drawer front,white WCI 316084405 Contact Us For Availability
4
WCI 316089013 WCI 316089013 Contact Us For Availability
5
WCI 316129200 WCI 316129200 Contact Us For Availability
5
WCI 316117601 WCI 316117601 Contact Us For Availability
6
Tube,burner ,natural ,RR WCI 316059614 Contact Us For Availability
6
WCI 316091404 WCI 316091404 Contact Us For Availability
9
Pan,broiler WCI 316081900 Contact Us For Availability
9
WCI 316066619 WCI 316066619 Contact Us For Availability
10
Insert-broiler pan WCI 316082000 Contact Us For Availability
10
Screw-handle mtg,wafer hd sq dr ,10-24T x 2.0 WCI 5303280308 Contact Us For Availability
13
Tube,3/8 ,aluminum ,rgltr to manf ,with fitti WCI 316065005 Contact Us For Availability
14
Foil-aluminum, (4) WCI 316102202 Contact Us For Availability
14
WCI 316102203 WCI 316102203 Contact Us For Availability
15
WCI 316081405 WCI 316081405 Contact Us For Availability
16
WCI 316114801 WCI 316114801 Contact Us For Availability
17
Spacer-glass,(2) WCI 316117701 Contact Us For Availability
19
Pan-burner,large ,gray WCI 316011417 Contact Us For Availability
19
Pan-burner,small ,gray WCI 316011409 Contact Us For Availability
20
GRATE,GRAY ,(4) WCI 316085304 Contact Us For Availability
21
SPACER-BODYSIDE, (8) WCI 3014099 Contact Us For Availability
22
WCI 316065002 WCI 316065002 Contact Us For Availability
22
CAP-BURNER,LARGE ,GLOSS GRAY WCI 316098509 Contact Us For Availability
22
WCI 316118801 WCI 316118801 Contact Us For Availability
22
Cap-burner,small ,gray ,(4) WCI 316122101 Contact Us For Availability
23
WCI 08067935 WCI 08067935 Contact Us For Availability
36
WCI 316109513 WCI 316109513 Contact Us For Availability
41
WCI 3131570 WCI 3131570 Contact Us For Availability
44
ORIFICE-TOP BURNER, SMALL WCI 5303210090 Contact Us For Availability
48
Shield,deflector ,main top panel ,(2) WCI 316077401 Contact Us For Availability
52
WCI 316081301 WCI 316081301 Contact Us For Availability
58
WCI 316047708 WCI 316047708 Contact Us For Availability
72
Cover-rod end,lt switch rod WCI 5303285692 Contact Us For Availability
88
WCI 316026400 WCI 316026400 Contact Us For Availability
89
WCI 316028101 WCI 316028101 Contact Us For Availability
NI
Screw,cup pt ,8-18 x 0.375 ,chrome ,hinge,ind WCI 316021108 Contact Us For Availability
NI
WCI 316065306 WCI 316065306 Contact Us For Availability
NI
Screw,wafer hd sq dr ,10-32 x 0.312 ,(2) WCI 5303280311 Contact Us For Availability
NI
WIRING HARNESS,CHASSIS WCI 316001632 Contact Us For Availability
NI
SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2 WCI 5303288570 Contact Us For Availability
NI
WCI 316089600 WCI 316089600 Contact Us For Availability
NI
WCI 316132100 WCI 316132100 Contact Us For Availability
NI
RIVET-POP, WARNING-PLATE WCI 3203618 Contact Us For Availability
× ![]()
